2.1 Multimedia Speaker System
OPERATION MANUAL
you want - we can
MS-1085
MS-1085
gold
MS-1086 www.sven.
you want - we can
ENG
14
2.1 Multimedia Speaker System
Technical support is on www.sven.fi
Congratulations on your purchase of the Sven speaker system!
COPYRIGHT
© 2016. SVEN PTE. LTD. Version 1.0 (V 1.0).
This anual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this anual more exact, some discrepancies may occur. The
information in this anual is given on «as is» terms. The author and the publisher do not bear any liability
to a person or an organization for loss or damage which has arisen from the information contained in
this anual.
1. BUYER RECOMMENDATIONS
Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device
for damage; if the product was damaged during transportation, address the firm which carried out the
delivery; if the product functions incorrectly, address the dealer at once.
Check up the package contents and availability of the warranty card. Make sure the warranty card
has a shop stamp, a legible signature or the sellers stamp and purchase date, and the goods number
corresponds to that in the warranty card.
Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of room
temperature for at least 4 hours.
Before installing and using the speaker system, read this Manual carefully and keep it for future reference.
CONTENTS
RUS........................................................................................................1
UKR........................................................................................................7
ENG........................................................................................................13
1. BUYER RECOMMENDATIONS .......................................................................... 14
2. PACKAGE CONTENTS .................................................................................... 15
3. SAFETY PRECAUTIONS .................................................................................. 15
4. TECHNICAL DESCRIPTION .............................................................................. 15
5. PREPARATION AND OPERATION ...................................................................... 16
6. TROUBLESHOOTING ..................................................................................... 17
7. TECHNICAL SPECIFICATIONS .......................................................................... 18
Operation Manual
ENG
MS-1085
MS-1085 GOLD
MS-1086
15
2.1 Multimedia Speaker System
2. PACKAGE CONTENTS
Subwoofer 1 pc
Satellites 2 pcs
2RCA to mini-jack signal cable 1 pc
Mini-jack to mini-jack microphone cable 1 pc
Operation manual 1 pc
Warranty card 1 pc
3. SAFETY PRECAUTIONS
To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service and
repairs should be performed only by qualified specialists in an authorized service center. The list of
authorized service centers is available on www.sven.fi
Do not allow the circuit of wires (including the grounded ones) between the speakers, on the power
amplifier or the ground, for it causes damage to the power amplifier output stage.
Do not touch the MSS power cord plug pins for 2 seconds after unplugging it from the mains.
Do not put foreign objects inside the holes of the MSS.
Protect the MSS from high humidity, water and dust.
Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose it to
direct sunlight.
Do not place any open flame sources on or close to MSS.
Do not place the MSS in poorly ventilated areas. Leave an air gap of 10 cm or more. When operating the
MSS, do not put any devices on it, do not cover it with cloth or other objects preventing it from cooling.
Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
4. TECHNICAL DESCRIPTION
MS-1085 / MS-1085 GOLD/ MS-1086 Multimedia Speaker System (MSS) are designed to play music
and sound games, movies, etc. The MSS has a built-in transformer power supply, an audio and a signal
cable allowing to connect it to virtually any audio source (CD/DVD player, TV, PC, etc.).
Special features
Speaker system is compatible with PCs, DVD/Media-players, mobile devices and other sound
sources
Wired remote control
2-way satellites
Subwoofer volume control
Headset jack on wired remote control
Front control panel (Fig. 1)
a MIC: microphone output
b BASS: subwoofer volume control knob
c INPUT: audio device connection input
d OUTPUT: satellite output
e POWER: power switch
Caution! High voltage inside! To avoid the risk of electric shock do not open or
touch elements inside.
you want - we can
ENG
16
2.1 Multimedia Speaker System

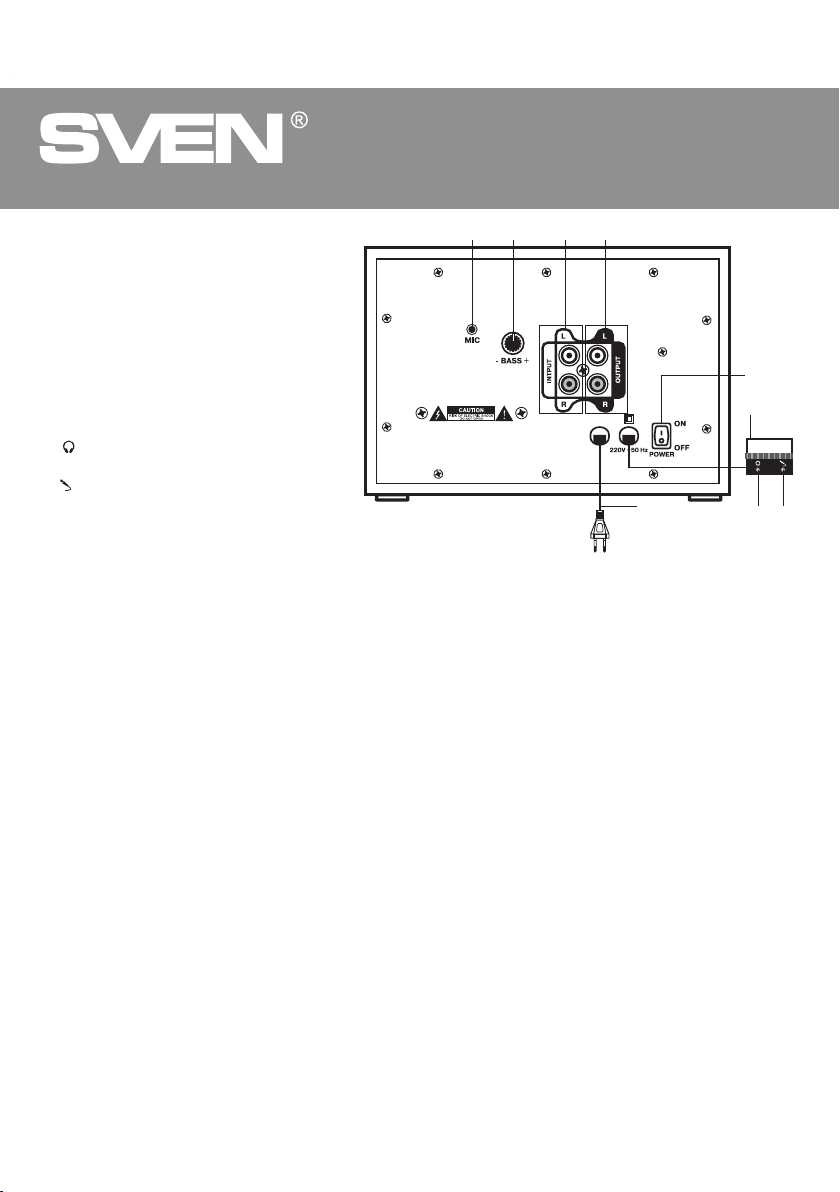

Fig.1. Rear panel
5. PREPARATION AND OPERATION
Speaker placement
Place the satellites symmetrically to
the listener at the distance not less than
one meter.
Place MSS far away from monitors
and TV sets, as insignificant image dis-
tortion in these supersensitive devices
is possible. We recommend that the
subwoofer should be placed on the
table.
Installation and operation guide
MS-1085 / MS-1085 GOLD/ MS-1086 Multimedia
Speaker System can be connected to virtually
any audio source: DVD/CD/ MP3, TV, PC sound
card, etc. (see Fig. 2).
WARNING! All the components should be switched off before connection.
Connect the subwoofer and the satellites (see Fig. 2).
Plug the mini-jack of the signal cable (2RCA to mini-jack) into Line out port of the computer sound card
or an audio output of your CD/MP3 player, then insert the 2RCA-jacks of the signal cable into the sub-
woofer input connector OUTPUT d. Note that the white RCA-jack must be connected to the white sub-
woofer terminal and the red RCA-jack to the red subwoofer terminal.
Plug the mini-jack of the microphone cable into the Mic jack of the computer sound card, then insert
the other mini-jack of the microphone cable into the MIC microphone output a.
Plug the headset into jacks 7 and 8 on the wired remote control.
Note. To connect the MSS to a DVD player or TV, use a 2RCA to 2RCA signal cable (not included),
as shown in Fig. 2.
Plug the power cord i into a mains outlet.
Set the volume control knob f to its minimum by turning knob f counter-clockwise until it stops,
switch on the device with POWER e switch on the subwoofer rear panel.
Set the required volume with the volume control knob on the wired remote control.
Keep the subwoofer volume control knob in mid position.
Notes:
If the MSS is left unused for a long period of time, please mind to switch off POWER e on the
subwoofer rear panel and unplug it.
To improve the sound quality, use the Line-Out port of your sound card.
a b c d
e
f
g
ih
f Volume control knob
g : headphone jack
h : microphone jack
iPower cord
Operation Manual
ENG
MS-1085
MS-1085 GOLD
MS-1086
17
Fig. 2. Connection diagram
PC
2RCA to mini-jack
signal cable
crophone cable
Power cord
Remote
control
Player
CD
DVD
Cause
The MMS isnt connected to the mains outlet.
Power switch is o.
Volume level is set at minimum value.
Improperly connected audio source.
Volume level is set at minimum value.
Large amplitude of the input signal.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect audio sources correctly.
Adjust the volume control knob.
Turn down the source volume and
MSS volume.
Problem
The MMS doesnt
turn on.
No sound.
There is too quiet
sound of speakers.
Distortion of
sound.
If none of the above methods can solve the problem, please seek professional advice at your nearest
service center. Never attempt to repair the product yourself.
6. TROUBLESHOOTING
you want - we can
ENG
18
2.1 Multimedia Speaker System
7. TECHNICAL SPECIFICATIONS
Notes:
Technical specifications given in this table are supplemental information and cannot give occasion
to claims.
Technical specifications and package contents are subject to change without notice due to the
improvement of SVEN production.
Parameter, measurement unit
Output power (RMS), W:
subwoofer
satellites
Speaker diameter, mm:
subwoofer
satellites
Supply voltage, V/Hz
Frequency range, Hz:
subwoofer
satellites
Dimensions, mm:
subwoofer
satellites (one speaker)
Weight, kg
MS-1085 / MS-1085 GOLD
46 (20 + 2 × 13)
20
2 × 13
= 125
= 75, = 25
~230/50
40 150
150 20,000
266 × 246 × 187
101 × 111 × 166
4.96
MS-1086
48 (20 + 2 × 14)
20
2 × 14
=110
= 75, = 25
~230/50
35 150
150 20,000
266 × 246 × 187
101 × 111 × 166
4.96
Operation Manual
ENG
MS-1085
MS-1085 GOLD
MS-1086
19
you want - we can
2.1
: MS-1085 /MS-1085 GOLD/ MS-1086
: OOO «», 109052, ,
. , . , . 86, .
: «-»,
105082, . , . , . 75, . 5.
www.sven..
: 12 . : 5 .
: « . »,
176 , 02-02, , 427447.
«
», 48310, , , , 15.
.
i: MS-1085 /MS-1085 GOLD/ MS-1086
/ :
« », 08400, ,
. -, . , 31,
. (044) 233-65-89/98. ,
.
www.sven..
: 12 . : 5 .
/ .
. .
: « . », 176 ,
02-02, , 427447.
« », 48310, , ,
, 15. .
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
02-02, Singapore, 427447. Produced under the control of
Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland,
48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
MS-1085
MS-1085
gold
MS-1086
Other manuals for MS-1085
3
This manual suits for next models
2
Other Sven Speakers System manuals
