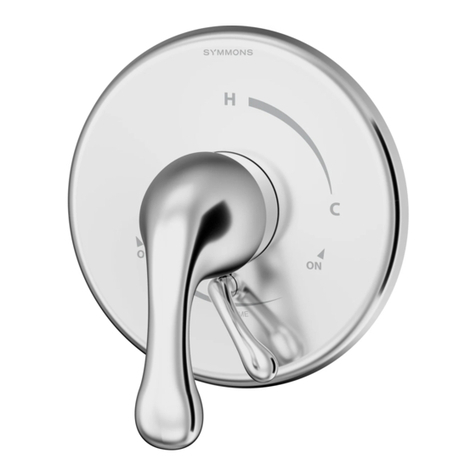

Symmons Unity S-6600-OP Manual

Unity®
S-6600-OP, S-6600TS-OP, S-6601-OP, S-6602-OP
Operation & Maintenance Manual
Specification Modifications
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Model Numbers
Note: Append appropriate -sufx to model number.
Compliance
-ASME A112.18.1/CSA B125.1
-WaterSense 1.5 gpm (5.7 L/min)
2.0 gpm (7.6 L/min) Certied by
CSA Group
Finish Options
-STN
Satin Nickel finish
☐-1.5 1.5 gpm (5.7 L/min) ow restrictor
☐-2.0 2.0 gpm (7.6 L/min) ow restrictor
☐-143 3 mode showerhead in place of standard head
☐-145 5 mode showerhead in place of standard head
☐-231 Super showerhead in place of standard head
-CHKS Integral check stops - for use in installations
where a positive shut-off device is used
downstream of mixing valve
☐-IPS 1/2" female IPS connections
☐-L/HD Less showerhead
☐-REV Reverse coring, hot on right, cold on left, for
back to back installations
☐-SS Slip spout on any tub/shower unit
☐-VP Vandal resistant escutcheon screws in place of
standard screws
☐-X Integral service stops - allows water shutoff at
valve for service
CG
S-6600-OP
Unity Shower Valve with 13" Oval Plate
S-6601-OP
Unity Shower System with 13" Oval Plate
S-46-1-BODY
Temptrol Pressure Balancing shower valve body with
integral volume control
S-6600TS-OP
Unity Tub/Shower Valve with 13" Oval Plate
S-6602-OP
Unity Tub/Shower System with 13" Oval Plate
S-46-2-BODY
Temptrol Pressure Balancing tub/shower valve body
with integral diverter
S-6600-OP/S-6601-OP
Shower system powered by the Temptrol®Pressure
Balancing valve. Features 13" oval plate, integrated
volume control, 1 mode showerhead with easy to clean
rubber nozzles and standard 2.5 gpm (9.5 L/min) ow
restrictor. Components made from metal and nonmetallic
construction, plated in standard polished chrome nish.
S-6600TS-OP/S-6602-OP
Tub/shower system powered by the Temptrol®Pressure
Balancing valve. Features 13" oval plate, integrated
diverter, non-diverter tub spout, 1 mode showerhead with
easy to clean rubber nozzles and standard 2.5 gpm
(9.5 L/min) ow restrictor. Components made from metal
and nonmetallic construction, plated in standard polished
chrome nish.

2
Dimensions
FLOORFLOOR
EE
GG
AA JJ
KK
CC
HH
II
BB
FF
LL
MM
NN
DD
Notes:
1) All dimensions measured from nominal rough-in (see F as reference).
2) Dimensions subject to change without notice.
Measurements
A 6-3/8", 162 mm
B 3-1/2", 89 mm
C 3-3/4", 95 mm
D
Shower Valve Hole Size
Min. Ø 3", 76 mm
Max. Ø 4", 102 mm
E Ref. 77", 1956 mm
FRough-in
2-3/8" ± 1/2", 60 mm ± 13 mm
G
S-6600-OP,
S-6601-OP:
Ref. 42", 1067 mm
S-6600TS-OP,
S-6602-OP:
Ref. 32", 813 mm
H
Male 1/2" NPT tting must
protrude 4" from
nished wall
I 5-1/2", 140 mm
J Ø 2-1/2", 64 mm
K Ø 2-3/4", 70 mm
L Ø 13", 330 mm
M 3-1/2", 89 mm
N Ø 2-1/2", 64 mm

3
Parts Breakdown
Replacement Parts
Item Description Part Number
A Showerhead 4-141*
B
C
Shower Arm
Flange 300S*
D
H
Handle
Set Screw RTS-064*
E Dome Cover T-19*
F
G
Screws
Oval Plate
S-6600-OP,
S-6601-OP:
S-6600-OP-ESC*
S-6600TS-OP,
S-6602-OP:
S-6600TS-OP-ESC*
IDiverter/Volume
Control Handle RTS-067*
J Tub Spout 060*
*Note: Append -STN to part number for
Satin Nickel nish.
Tools Required for Installation
Adjustable Wrench
Allen Wrench:
Handle (1/8" mm)
Plumber Tape
Silicone
HOT
Water Supply
COLD
Water Supply
A
B
C
D
H
E
F
G
F
IJ
Notes:
1) Apply a bead of silicone around the perimeter of all shower trim
installed ush to the nished wall (less mounting plates and
brackets). Leave opening on bottom of escutcheon for weep hole.
2) Apply plumber tape to all threaded connections.
3) Escutcheon artwork is dependent on handle style.
4) Oval plate available for lever style handles only.

4
I
G
1
F
F
G
2
1
D
H
2
1
2
J
1
2
C
B
Note: Handle should be facing the
6 o’clock position.
1
2
B
A
1) Install diverter handle or volume
control handle (I) into shower
escutcheon (G).
2) Install shower escutcheon (G) to
shower valve. Secure with two
screws (F).
3) Install dome cover (E) to valve by
turning clockwise.
4) Install handle (D) to valve and secure
with set screw (H).
5) Install tub spout (J) to pipe tting.
Turn clockwise to secure.
6) Attach shower arm (B) and ange (C)
to vertical shower pipe. Turn clock-
wise to tighten.
Installation
Note: 1) For valve body installation, please see valve body manual.
2) Use the provided oval plate template for Temptrol valve body conversion applications.
7) Install showerhead (A) to shower
arm (B). Turn clockwise to tighten.
1
E
2

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: [phone] ■ Fax: [phone]
Copyright © 2017 Symmons Industries, Inc. ■symmons.com ■[email protected] ■ZV-3226 REV 0 ■ 012017
Operation (Temperature Control)
1) Turn shower handle counter-
clockwise approximately 1/4 turn to
put valve in cold position.
2) Turn shower handle counter-
clockwise approximately 1/2 turn to
put valve in warm position.
3) Turn shower handle counter-
clockwise approximately 3/4 turn to
put valve in hot position.
Troubleshooting Chart
Operation (Volume Control for S-6600-OP & S-6601-OP)
Operation (Diverter Control for S-6600TS-OP & S-6602-OP)
1) Turn volume control handle left for
high ow.
2) Turn volume control handle right for
low ow.
1) Turn diverter handle left for tub
spout operation.
2) Turn diverter handle right for
showerhead operation.
Problem Cause Solution
Finish is spotting. Elements in water supply may cause
water staining on nish.
Clean nished trim area with a soft
cloth using mild soap and water or a
non-abrasive cleaner and then quickly
rinse with water.
