System air AW 200 EC User manual

Document in original language | · 004
Axial Fans
AW, AR
Installation and Operating Instructions GB

| 004
© Copyright Systemair AB
All rights reserved
E&OE
Systemair AB reserves the rights to alter their products without notice.
This also applies to products already ordered, as long as it does not affect the previously agreed specifications.

| 004
Contents
1 General information.........................................1
1.1 Warning symbols ...................................1
1.1.1 Instruction symbols.....................1
2 Important safety information .............................1
2.1 Personnel .............................................1
2.2 Personal protective equipment..................2
2.3 5 rules of electrical safety ........................2
3 Warranty.......................................................2
4 Delivery, transport, storage ...............................2
5 Description ....................................................3
5.1 Intended use .........................................3
5.2 Incorrect use ........................................3
5.3 Technical data .......................................3
6 Name plate and type key ..................................4
7 Installation.....................................................5
7.1 Installation positions ...............................6
8 Electrical connection ........................................7
8.1 Electrical connection accessories ............. 11
8.2 Protecting the motor............................. 11
8.3 Variable-speed fans.............................. 11
9 Commissioning ............................................. 12
10 Operation .................................................... 12
11 Troubleshooting/maintenance/repair ................ 12
11.1 Troubleshooting................................... 13
11.2 Maintenance....................................... 14
12 Cleaning...................................................... 15
13 Deinstallation/dismantling............................... 15
14 Disposal ...................................................... 15
15 Commissioning Report.................................... 15

General information | 1
1 General information
1.1 Warning symbols
Danger
Direct hazard
Failure to comply with this warning will lead
directly to death or to serious injury.
Caution
Hazard with a low risk
Failure to comply with this warning may lead to
moderate injuries.
Warning
Potential hazard
Failure to comply with this warning may lead to
death or serious injury.
Important
Hazard with risk of damage to objects
Failure to comply with this warning will lead to
damage to objects.
Note:
Useful information and instructions
1.1.1 Instruction symbols
Instruction Instruction with xed sequence
♦Carry out this action 1. Carry out this action 3. (if applicable, further actions)
♦(if applicable, further actions) 2. Carry out this action
2 Important safety information
Planners, plant builders and operators are responsible for the proper assembly and intended use.
♦Read the operating instructions completely and carefully.
♦Keep the operating instructions and other valid documents, such as the circuit diagram or motor instructions, with
the fan. They must always be available at the place of use.
♦Observe and respect local conditions, regulations and laws.
♦Abide by the system-related conditions and requirements of the system manufacturer or plant constructor.
♦Safety elements may not be dismantled, circumvented or deactivated.
♦Only use the fan in a awless condition.
♦Provide generally prescribed electrical and mechanical protective devices.
♦During installation, electrical connection, commissioning, troubleshooting, and maintenance, secure the location and
premises against unauthorised access.
♦Do not circumvent any safety components or put them out of action.
♦Before any work on the fan, test absence of voltage.
Even when the motor is stopped, dangerous voltages may be present on terminals.
♦Keep all the warning signs on the fan complete and in a legible condition.
♦The device is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction.
♦When lifting the device, use suitable lifting gear.
♦Do not allow children to play with the device.
2.1 Personnel
The fan may only be used by qualified, instructed and trained personnel. The persons must know the relevant safety di-
rectives in order to recognise and to avoid risks. The individual activities and qualifications can be found in Table 1 Qual-
ifications, page 2.
| 004

2|Warranty
Table 1 Qualifications
Activities Qualifications
Storage, operation, transport, cleaning, disposal Trained personnel (see following note)
Electrical connection, commissioning, electrical
disconnection Electrical expert or matching qualification
Installation, disassembly Fitter or matching qualification
Maintenance Electrical expert or matching
qualification
Fitter or matching
qualification
Repair
Electrical expert or matching
qualification
Fitter or matching
qualification
Smoke extraction fans and EX fans only by agreement with
Systemair.
Note:
The operator is responsible for ensuring that personnel are instructed and have understood the contents of
the operating instructions. If something is unclear, please contact Systemair or its representative.
2.2 Personal protective equipment
♦Wear protective equipment during all work in the vicinity of the fan.
• protective working clothes
• protective working shoes
• protective working gloves
• helmet
• goggles
• hearing protection
2.3 5 rules of electrical safety
1. Disconnect (disconnection of
the electrical system from
live components at all
terminals)
2. Prevent reactivation
3. Test absence of voltage
4. Ground and short-circuit
5. Cover or restrict adjacent live parts
3 Warranty
For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance
with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re-
port. Systemair will require these in the case of a warranty claim. The commissioning report is a component of this
document. The maintenance plan must be created by the operator, see section Maintenance.
4 Delivery, transport, storage
Safety information
Warning: Risk from rotating fan blades
♦Prevent access by unauthorised persons by safety personnel or access protection.
Warning: Suspended loads
♦Do not walk under suspended loads.
♦Make sure that there is nobody under a suspended load.
Delivery
Each fan leaves our plant in an electrically and mechanically proper condition. We recommend transporting the fan to
the installation site in the original packaging.
Checking delivery
♦Check the packaging and the fan for transport damage. Any findings should be noted on the cargo manifest.
♦Check completeness of the delivery.
| 004

Description |3
Unpacking
When opening the transport packaging, there is a risk of damage from sharp edges, nails, staples, splinters etc.
♦Unpack the fan carefully.
♦Check the fan for obvious transport damage.
♦Only remove the packaging shortly before assembly.
Transport
Safety information
Warning: Electrical or mechanical hazards due to fire, moisture, short circuit or malfunction.
♦Never transport the fan by the connecting wire, terminal box, impeller, protection grille, inlet cone or silencer.
♦In open transport, please make sure that no water can penetrate into the motor or other sensitive parts.
♦We recommend transporting the fan to the installation site in the original packaging.
Caution: If transported without care during loading and unloading, the fan may be damaged.
♦Load and unload the fan carefully.
♦Use hoisting equipment that is suitable for the weight to be hoisted.
♦Observe the transportation arrows on the packaging.
♦Use the fan packaging exclusively as transport protection and not as a lifting aid.
Storage
♦Store the fan in the original packaging in a dry, dust-free location protected against weather.
♦Avoid the effects of extreme heat or cold.
Hazard due to loss of function of the motor bearing
♦Avoid storing for too long (recommendation: max. 1 year).
♦Check that the motor bearing functions properly before installation.
5 Description
5.1 Intended use
• Systemair axial fans of the series AR and AW are exclusively designed as a built-in device for conveying air according
to its technical data.
5.2 Incorrect use
Incorrect use refers mainly to using the fan in another way to that described. The following examples are incorrect
and hazardous:
• Conveying of abrasive, explosive, combustible air or
air with solid particles.
• Operation in an explosive atmosphere
• Installation outside without weather protection
• Operation without duct system or protection grille
• Operation with the air connections closed
5.3 Technical data
Max. ambient temperature [°C] see data sheet, available in our online catalogue.
Max. temperature of transported air [°C] see data sheet, available in our online catalogue.
Sound pressure [dB] see data sheet, available in our online catalogue.
Voltage, current, frequency, enclosure class, weight see name plate of the fan
The motor data can be found on the name plate of the motor, or in the technical documents of the motor
manufacturer.
The data on the name plate of the fan apply to "standard air" according to ISO 5801.
| 004

4| Name plate and type key

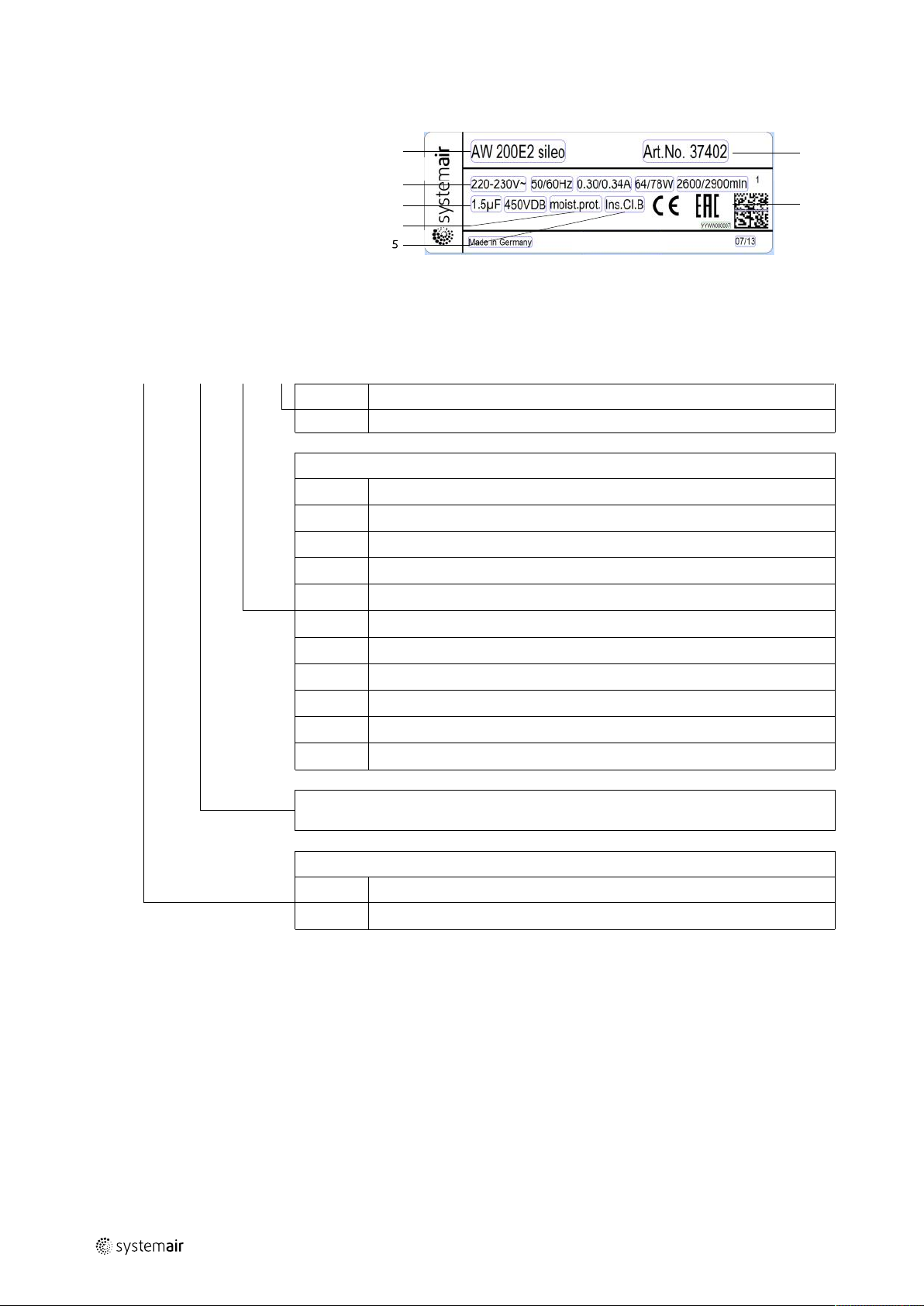

6 Name plate and type key
1Type designation
1
2
3
6
7
4
5
2Voltage/frequency/current/
power/fan impeller speed
3Capacity/capacitor voltage*
4Moisture protection*
5Insulation class 6Article no. 7Certifications
* Not available with every device
Table 2 Type key
AW 200 DV L
-L Large motor version
-Normal motor version
Motor type
EC Electronically commutated/1 phased or 3 phased
E2 2 poled/controllable by frequency converter/1 phased
E4 4 poled/controllable by frequency converter/1 phased
E6 6 poled/controllable by frequency converter/1 phased
DV 4 poled voltage controllable/3 phased
DS 6 poled voltage controllable/3 phased
EZ 2 poled voltage controllable/1 phased
EV 4 poled voltage controllable/1 phased
ES 6 poled voltage controllable/1 phased
D4 4 poled/controllable by frequency converter/3 phased
D6 6 poled/controllable by frequency converter/3 phased
Size
Fan type
AW Axial fan with a wall plate
AR Axial fan with a round casing acc. to Eurovent 1/2
| 004

Installation | 5
7 Installation
Safety information
General safety information
General safety information
♦Observe 2 Important safety information, page 1
♦Use installation material with fire resistance classes that meet temperature requirements.
♦Provide contact and intake protection and ensure safety distances according to DIN EN ISO13857 and DIN 24167-1.
♦To reduce transmission of vibration to the duct system, we recommend flexible connections from our accessory
range, see chapter Accessories.
Preconditions
♦Ensure that the fan and all its components are
undamaged.
♦Fit the fans in such a way that there is sufficient
access for installation, troubleshooting, maintenance
and repair.
♦Protect against dust and moisture when installing.
♦Ensure that the information on the name plates (fan
and motor) matches up with the operating conditions.
Important
Damage to the bearings or other parts of the fan can occur.
♦Do not place a duct bend directly before or after the fan!
♦Ensure a smooth and constant air flow to the device. Ensure a free exhaust. See Fig. 1 Straight ducts,
page 5.

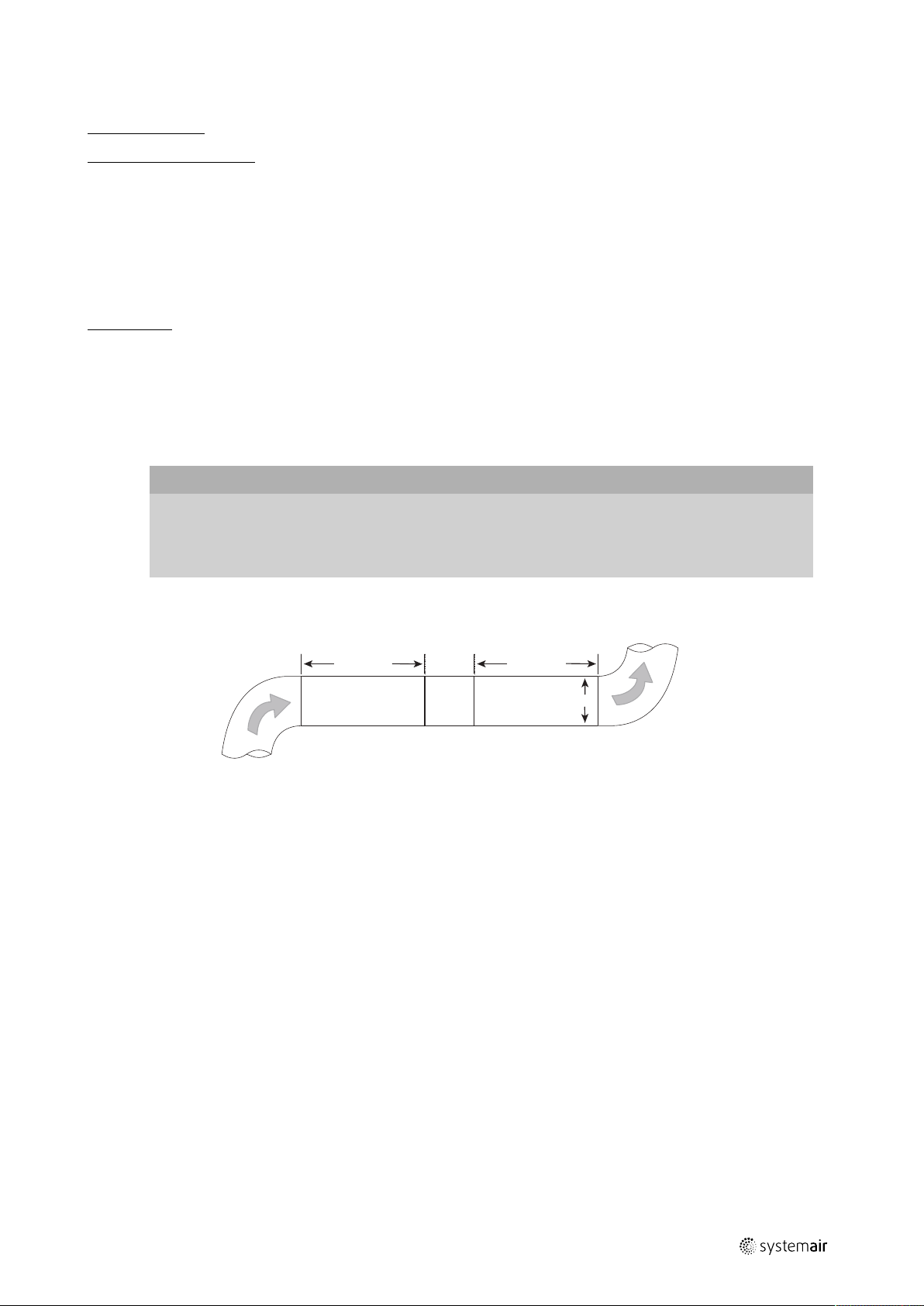

• Rectangular duct system: D= Hydraulic diameter • Round duct system: D= Nominal diameter
Ø D
min.
2,5x Ø D
min.
2,5x Ø D
Fig. 1 Straight ducts
| 004

6| Installation
7.1 Installation positions
The installation is possible in any mounting position.
AW 200 EC
sileo
(#35854)
AW 250 EC
sileo
(#35855)
AW 300 EC
sileo
(#35857)
AW 350 EC
sileo
(#35859)
AW 400 EC
sileo
(#35860)
AW 300E2
Axial fan
(#5801)
AR 300E2
Axial fan
(#34461)
AR 200E2
sileo Axial fan
(#37374)
AR 200E4
sileo Axial fan
(#37375)
AR 250E2
sileo Axial fan
(#37376)
AR 250E4
sileo Axial fan
(#37377)
AR 300E4
sileo Axial fan
(#37378)
AR 315E4
sileo Axial fan
(#37379)
AR 315DV
sileo Axial fan
(#37380)
AR 350DV
sileo Axial fan
(#37382)
AW 200E2
sileo Axial fan
(#37402)
AW 200E4
sileo Axial fan
(#37403)
AW 250E2
sileo Axial fan
(#37404)
AW 250E4
sileo Axial fan
(#37405)
AW 300E4
sileo Axial fan
(#37406)
AW 315E4
sileo Axial fan
(#37407)
AW 315DV
sileo Axial fan
(#37408)
AW 350E4
sileo Axial fan
(#37409)
AW 350DV
sileo Axial fan
(#37410)
AW 450 EC
sileo
(#35863)
AW 500 EC
sileo
(#35865)
AW 500D EC
(#35866)
AW 560D EC
sileo
(#35867)
AW 630D EC
sileo
(#35872)
AW 710D-L
EC sileo
(#35876)
AW 800D EC
sileo
(#35879)
AW 1000D EC
sileo
(#35899)
AW 400DV
sileo Axial fan
(#34124)
AW 400E4
sileo Axial fan
(#34125)
AW 450DV
sileo Axial fan
(#34126)
AW 500DV
sileo Axial fan
(#34131)
AW 560DV
sileo Axial fan
(#34134)
AW 630DS
sileo Axial fan
(#34138)
AW 710DV
sileo Axial fan
(#34140)
AW 910DS
sileo Axial fan
(#34157)
AR 710E6
sileo Axial fan
(#34482)
AR 710DV
sileo Axial fan
(#34483)
AR 710DS
sileo Axial fan
(#34484)
AR 910DS
sileo Axial fan
(#34486)
AR 1000DS
sileo Axial fan
(#34487)
AR 400E4
sileo Axial fan
(#37383)
AR 450E4
sileo Axial fan
(#37385)
AR 450DV
sileo Axial fan
(#37386)
AR 500E4
sileo Axial fan
(#37387)
AR 500DV
sileo Axial fan
(#37388)
AR 560E4
sileo Axial fan
(#37389)
AR 560DV
sileo Axial fan
(#37390)
AR 630E6
sileo Axial fan
(#37391)
AR 630DS
sileo Axial fan
(#37393)
AW 450E4
sileo Axial fan
(#37411)
AW 500E4
sileo Axial fan
(#37412)
AW 560E4
sileo Axial fan
(#37413)
AW 630E6
sileo Axial fan
(#37414)
AW 630DV
sileo Axial fan
(#37415)
AW 800DS
sileo Axial fan
(#37416)
AR 630DV
sileo Axial fan
(#37392)
AR 800DS
sileo Axial fan
(#37418)
AR 400DV
sileo Axial fan
(#37384)
AW 710DS
sileo Axial fan
(#34141)
AW 1000DS
sileo Axial fan
(#34144)
AW 710E6
sileo Axial fan
(#34142)
| 004

Electrical connection | 7
8 Electrical connection
Safety information
♦Observe 2 Important safety information, page 1
♦Prevent the ingress of water into the connection box.
Connection
♦Check if the data on the nameplate matches the
connection data.
♦Complete the electrical connection according to the
circuit diagram.
♦Fans with EC- motors must be switched on/off via the
control input.
♦Connect the cable end in a dry environment.
♦Install a circuit breaker in the permanent electrical
installation, with a contact opening of at least 3 mm
at each pole.
Protective grounding wire
The protective grounding must have a cross-section equal to or greater than that of the phase conductor.
Residual current circuit breaker
All-current-sensitive residual current circuit breakers are required for use in alternating-current systems with 50/60
Hz, in combination with electronic devices such as EC motors, frequency converters or uninterruptible power supplies
(UPS).
Table 3 Description of electrical connections of the following fans: AW 200 EC sileo (#35854), AW 250 EC sileo
(#35855), AW 300 EC sileo (#35857), AW 350 EC sileo (#35859)AW 400 EC sileo (#35860), AW 450 EC sileo
(#35863)
Wire
no. Connection Color Function/assignment
CON10 L black or
brown Power supply, see name plate for voltage range
CON11 N blue Neutral conductor
CON12 PE green/
yellow Protective conductor
1 GND blue GND-connection of the controller interface
2 0...10 V PWM yellow Controller input 0...10 V or PWM
3 10 V red
Voltage output 10 V / Short-circuit-proof power supply for external
devices (e.g. poti)
I max=1.1mA:
AW 200 EC sileo (#35854)AW 250 EC sileo (#35855), AW 300 EC sileo
(#35857), AW 450 EC sileo (#35863)
I max=10mA:
AW 350 EC sileo (#35859)AW 400 EC sileo (#35860)
4Tacho* white Speed output: Open Collector, 1 impulse per revolution, electrically
isolated, Isink_max = 10 mA
NC* white 1 Status relais, open for failure
COM* white 2
* Not available with every device
| 004

8| Electrical connection
Client side
Max. speed Adjustable speed
10V –> n = max
1V –> n = min
<1V –> 0
Adjustable speed through PWM
1...10 KHz
100 % PWM –> n = max
10 % PWM –> n = min
< 10 % –> 0
Adjustable speed through potentiometer
| 004

Electrical connection | 9
Table 4 Description of electrical connections of the following fans: AW 500 EC sileo (#35865), AW 500D EC
(#35866), AW 560D EC sileo (#35867)
Wire
no. Connection Function/assignment
PE PE Protective conductor
1 L1
KL1 Power supply, see name plate for voltage range
2 L2
3 L3
1, 2* N, L* KL1 Power supply, see name plate for voltage range
1 NC
KL2
Status relais, open for failure
2 COM Status relais, changeover contact, common connection (2 A, max. 250
VAC, min. 10 mA, AC1)
3 NO Status relais, close for failure
1 OUT
KL3
Analog output, 0-10 VDC, max. 3 mA, SELV output of current motor
modulation level:
1 V corresponds to 10% modulation level.
10 V corresponds to 100% modulation level.
2, 8 GND GND-connection of the controller interface
3, 7 0...10 V PWM Analog input 1, set value: 0-10 V, Ri = 100 kΩ, adjustable curve, only
usable as alternative to 4-20 mA input, SELV
4 +10 V Voltage output 10 VDC (+/- 3%), max. 10 mA, power supply for ext.
devices (e.g. potentiometer), SELV
5 +20 V Voltage output 20 VDC (+25%/-10%), max. 50 mA power supply for
ext. devices (e.g. sensors), SELV
6 4–20 mA Control/current sensor value input 4-20 mA, impedance 100 Ω, use only
as alternative to 0-10 V input, SELV
9, 11 RSB RS485 interface for MODBUS
10, 12 RSA RS485 interface for MODBUS
* AW 500 EC sileo (#35865) has a 1~ 230V Motor.
Client side
Max. speed Adjustable speed
10V –> n = max
1V –> n = min
<1V –> 0
Set value requirement, e.g. via
pressure Adjustable speed through potentiometer
| 004

10 | Electrical connection
Table 5 Description of electrical connections of the following fans: AW 630D EC sileo (#35872), AW 710D-L EC sileo
(#35876), AW 800D EC sileo (#35879), AW 1000D EC sileo (#35899)
Wire
no. Connection Function/assignment
PE PE Protective conductor
1 L1
KL1 Power supply, see name plate for voltage range
2 L2
3 L3
3 NC
KL2
Status relais, open for failure
2 COM Status relais, changeover contact, common connection (2 A, max. 250
VAC, min. 10 mA, AC1)
1 NO Status relais, close for failure
1 RSB
KL3
RS485 interface for MODBUS
2 RSA RS485 interface for MODBUS
3/10 GND GND-connection of the controller interface
4 Ain1 U Analog input 1, set value: 0-10 V, Ri = 100 kΩ, adjustable curve, only
usable as alternative to input Ain1 I; SELV
5 +10 V Fixed voltage output 10 VDC, +10 V ±3%, max. 10 mA, short-circuit-
proof power supply for external devices (e.g. pot); SELV
6 Ain1 I Analog input 1, set value: 4-20 mA, Ri = 100 Ω, adjustable curve, only
usable as alternative to input Ain1U; SELV
7 Din1
Digital input 1: enable electronics
enable: pin open or applied voltage 5-50 VDC
disable: bridge to GND or applied voltage < 1 VDC
reset function: triggers software reset after a level change to < 1 VDC;
SELV
8 DIN2
Digital input 2: Switching parameter sets 1/2, according to EEPROM
setting, the valid or used parameter set can be selected via bus or via
digital input DIN2.
Parameter set 1: pin open or applied voltage 5-50 VDC
Parameter set 2: bridge to GND or applied voltage < 1 VDC; SELV
9 DIN3
Digital input 3: according to EEPROM setting, the integrated controller's
direction of action can be selected as normal/inverse via bus or digital
Input normal: pin open or applied voltage 5-50 VDC
Input inverse: bridge to GND or applied voltage < 1 VDC; SELV
11 Ain2 U Analog input 2, measured value: 0-10 V, Ri = 100 kΩ, adjustable curve,
only usable as alternative to input Ain2I; SELV
12 +20 V Fixed voltage output 20 VDC, +20 V +25/-10%, max. 50 mA, short-
circuit-proof power supply for external devices (e.g. sensors); SELV
13 Ain2 I Analog input 2, measured value: 4-20 mA, Ri = 100 Ω, adjustable curve,
only usable as alternative to input Ain2U; SELV
14 Aout
Analog output, 0-10 VDC, max. 5 mA, SELV output of current motor
modulation level:
1 V corresponds to 10% modulation level.
10 V corresponds to 100% modulation level.
| 004

Electrical connection | 11

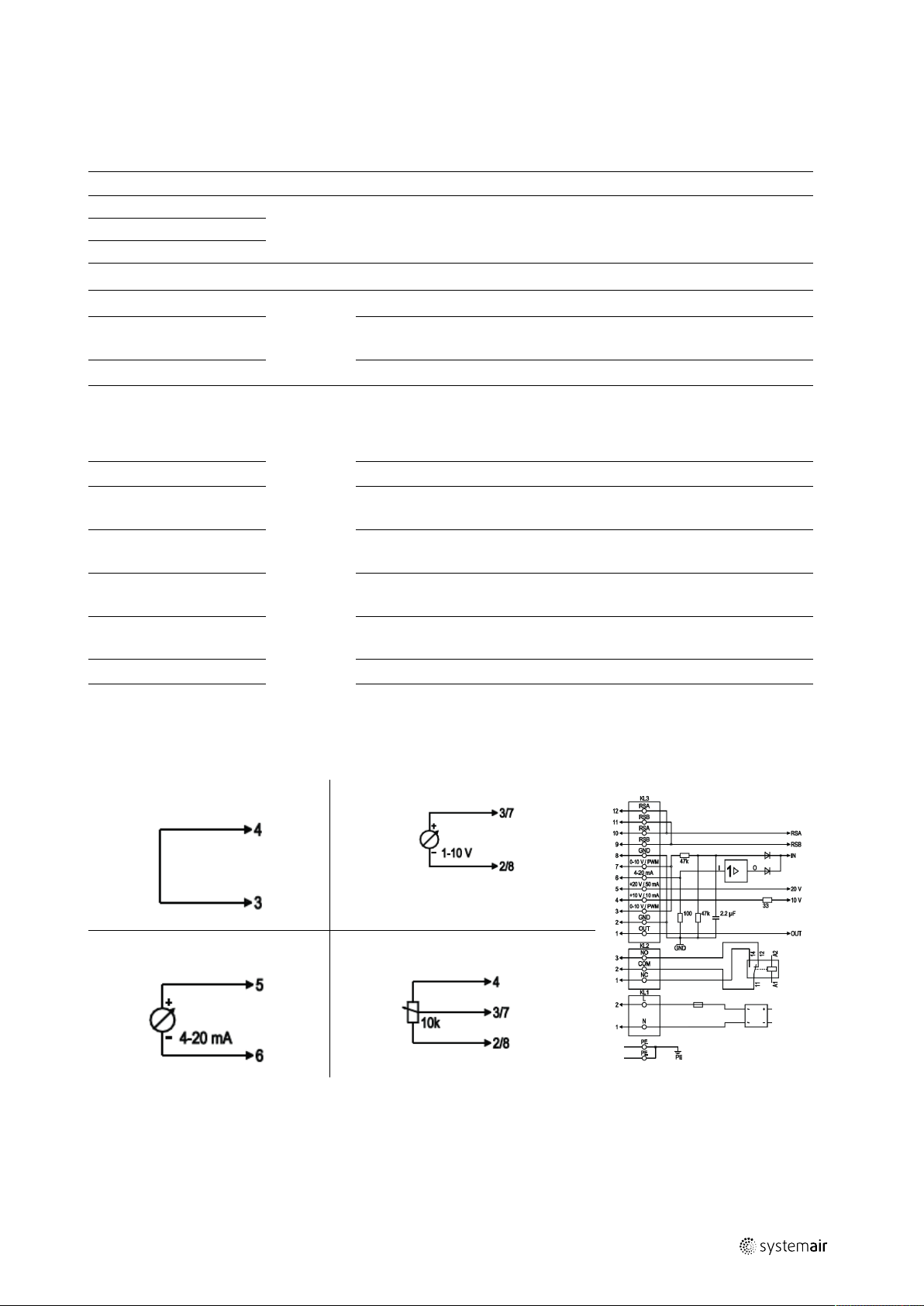

8.1 Electrical connection accessories
The following wiring diagrams show the electrical connections between accessories and
fans (with EC motor) or frequency converters (e.g. FRQ, FRQS, FXDM) which can be
controlled with a 0–10V signal. If you are not sure if your fan is equipped with an EC- motor
please see chapter 6 Name plate and type key, page 4.
motor/frequency
converter
Wire- colours of motors with carried out cables: +10V = red 0..10V = yellow GND = blue
MTP 10 MTP 20 MTV—1/10 EC-Basic
8.2 Protecting the motor
Note:
In fans equipped with an EC motor, there is no additional motor protection needed. The motor protection is
integrated in the electronics of the motor.
Important
Damage to motor due to overcurrent, overload or short circiut.
♦Lead-out temperature monitors must be integrated in the control circuit in such a way that, if a fault
occurs, the motor cannot switch on again automatically after it has cooled down.
♦Motor lines and temperature monitor lines should be laid separately on principle.
♦Without thermal protection: Use a motor protection switch!
Note:
Internally connected thermocontact: no external connection feasible or necessary.
Warning
Risk of injury because of sudden start up of the fan.
Thermost switches switch after triggering by excess temperature and closed independently after cooling
off. The fan can start up during this time.
♦Consider that the impeller can start up suddenly without resetting the fault.
♦Observe the 5 rules of electrical safety, see 2.3 5 rules of electrical safety, page 2.
8.3 Variable-speed fans
Warning
Resonant frequencies may result in increased vibration in certain speed ranges. These vibrations may
destroy components.
♦Only operate the fan outside these speed ranges.
♦Skip over these speed ranges.
♦Pass through these speed ranges so quickly that any vibration cannot exceed the admissible resonant
frequency values.
♦Observe the operating instructions of the frequency converter.
| 004

12 |Commissioning
Caution
Damage as a result of incorrect commissioning of the frequency converter.
♦Install the fan and frequency converter as near as possible to one another.
♦Use shielded cables.
♦All components (fan, frequency converter and motor) must be grounded.
♦We recommend using all-pole sinus filters.
♦Avoid running the fan via the frequency converter below 10 Hz.
♦Heating of the motor due to use of a variable frequency drive must be checked in the application by the
customer.
♦Never exceed the maximum impeller rotation speed indicated on the name plate of the fan.
9 Commissioning
Warranty claims can only be made if commissioning work is carried out correctly and written evidence thereof is
provided.
Safety information
♦Observe 2 Important safety information, page 1
Preconditions
♦Installation and electrical connection have been
correctly performed.
♦Before switching the fan on, check for externally
visible damage and ensure that the protective
equipment functions properly.
♦Inlet and outlet are free.
♦Cable glands are tight.
♦Safety devices have been fitted.
Commissioning of speed-controlled fans
Check the fan for vibrations at all normal operation speeds during commissioning. Determine and evaluate vibrations
on the housing and bearing areas in accordance with DIN ISO 14694 depending on motor power and positioning.
Measurable vibration velocities depend e.g. on following factors:
• positioning • bottom section/foundation state • flow conditions
The working point of the fan, as well as used external devices and accessories, also influence the running
characteristics.
Tests
Do the tests requested in the commissioning report (15 Commissioning Report, page 15)
10 Operation
Safety information
♦Observe 2 Important safety information, page 1
11 Troubleshooting/maintenance/repair
Safety information
♦Observe 2 Important safety information, page 1
| 004

Troubleshooting/maintenance/repair | 13
11.1 Troubleshooting
Table 6 Troubleshooting
Problem Possible causes Remedy
Fan does not run
smoothly
Impeller imbalance Rebalancing by a specialist company if possible,
otherwise contact Systemair.
Soiling on the impeller Clean carefully, rebalance
Material decomposition on the
impeller due to aggressive
material conveyed.
Contact Systemair
Impeller rotates in wrong
direction.
Change direction of rotation (swap two phases in case of
a 3– phase motor).
Contact Systemair
Deformation of impeller due to
excessive temperature.
Ensure that the temperature does not exceed the certified
value/Install new impeller.
Vibrations, oscillations Check the installation of the fan/check the duct system,
see 7 Installation, page 5.
Fan operation in resonant
frequency range Consider chapter 8.3 Variable-speed fans, page 11
Air output of fan too
low
Impeller rotates in wrong
direction.
Change direction of rotation (swap two phases in case of
a 3– phase motor).
Wrong wiring configuration (e.g.
Y instead of Delta). Check and possibly correct the wiring configuration.
Pressure losses too high. Optimize the line routing.
Flow regulators not or only
partly open. Check opening position on site.
Intake or pressure ducts are
blocked. Remove the blockage.
Grinding sounds
when starting or
operating the fan
Check if the duct connections of
the fan are strained. Loosen the duct connections and realign it.
Thermal contacts/
resistors have
triggered
Impeller rotates in wrong
direction.
Change direction of rotation (swap two phases in case of
a 3– phase motor).
Contact Systemair
Missing phase In case of a 3 phase standard motor (not EC), check if all 3
phase are present.
Motor overheated Check the cooling impeller (if used), measure the motor
winding (if possible) / contact Systemair.
Capacitor (if used) not or not
correctly connected. Connect the capacitor correctly.
Motor blocked Contact Systemair
Fan does not reach
nominal speed
Defective motor winding Contact Systemair
Control units (if used) such as
frequency converter or
transformer are set incorrectly.
Correct the settings of the control units.
Mechanical blockage Remove the blockage.
Motor does not
rotate
Faulty supply voltage Check the supply voltage, re-establish the voltage supply.
Faulty connection Disconnect from the power supply, correct the
connection, see circuit diagram.
Temperature monitor has
responded. Allow the motor to cool down, find and resolve the cause
of the fault.
| 004

14 | Troubleshooting/maintenance/repair
Troubleshooting cont'd
Electronics/motor
overheated
Insufficient cooling Improve cooling.
Overloaded motor Check if the correct fan is used for your application.
Ambient temperature too high Check if the correct fan is used for your application.
Note:
For all other damage/defects, please contact Systemair.
11.2 Maintenance
Warranty claims can only be made if maintenance work is carried out correctly and written evidence thereof is
provided.
We recommend regular maintenance intervals to ensure continuous fan operation. These maintenance intervals are
specified in the “Activities” table below. In addition, the operator must carry out follow-up activities such as cleaning,
replacing defective components or other corrective measures. For traceability reasons, a maintenance plan must be
created which documents the work carried out. This must be created by the operator. If the operating conditions are
"extreme", the maintenance intervals must be reduced so that maintenance is carried out more frequently. Examples
of extreme operating conditions:
• Kitchen exhaust fans
• Fans for stables
Table 7 Activities
Normal operating
conditions
Extreme operating
conditions
Activity Every six
months
Annually Quarterly Every six
months
Check the fan and its components for visible damage,
corrosion and contamination. X X
Check the impeller for damage and imbalance. X X
Check the condensate drain is working correctly. X X
Clean the fan/ventilation system (see 12 Cleaning, page
15). X X
Check the screwed connections for damages/defects and
check that they are firmly seated. XSee normal operating
conditions
Check the fan intake is free from contamination. X X
Check that the fan and its components are being used
correctly. XSee normal operating
conditions
Check the current consumption and compare this with the
rated data. X X
Check the vibration dampers (if used) are working
correctly and check for visible damage and corrosion. XSee normal operating
conditions
Check the electrical and mechanical protective equipment
is working correctly. XSee normal operating
conditions
Check the fan’s rating plate is legible. X X
Check the connection clamps and screwed cable
connections for damage/defects, and check that they are
firmly seated. XSee normal operating
conditions
Check the flexible connectors for damage. XSee normal operating
conditions
Spare parts
♦Use original spare parts from Systemair only.
♦When ordering spare parts, please specify the serial number of the fan. This can be found on the name plate.
| 004

Cleaning | 15
12 Cleaning
Safety information
♦Observe 2 Important safety information, page 1
Procedure
Keeping the fan clean extends its service life.
• Install a filter monitor.
• Change the filters of the ventilation system.
• Do not use steel brushes or sharp-edged objects.
• Do not use a high-pressure cleaner (steam jet cleaner) under any circumstances.
• Do not bend the fan blades when cleaning.
• When cleaning the impeller, pay attention to balance weights that have been positioned
• Keep the airways of the fan clear and clean them if necessary with a brush.
13 Deinstallation/dismantling
Deinstall and dismantle the fan in reverse order of installation and electrical connection.
14 Disposal
♦Ensure material is recycled. Observe national regulations.
♦The device and the transport packaging are predominantly made from recyclable raw materials.
♦Disassemble the fan into its components.
♦Separate the parts according to:
• reusable material
• material groups to be disposed of (metal, plastics, electrical parts, etc.)
15 Commissioning Report
Warranty claims can only be made if commissioning work is carried out correctly and written evidence thereof is
provided.
Fan
Description:
Article no.: Manufacturing order no.:
Installer
Company: Contact person:
Company address:
Tel. no.: Email:
Operator (Place of installation)
Company: Contact person:
Company address:
Tel. no.: Email:
Type of connection Yes No
Directly to mains □ □
0-10 V signal (EC motor) □ □
via contactor control □ □
Transformer □ □
| 004

16 |Commissioning Report
Frequency converter □ □
Sinus filter □ □
Shielded cables □ □
Motor protection Yes No
Motor protection switch or motor protection relay □ □
PTC resistor □ □
Resistance value [Ω]:
Thermal contact □ □
Electrical motor protection □ □
Others:
Functional check Yes No
Impeller easily rotatable (by hand) □ □
Rotation direction acc. to directional arrow □ □
Smooth running without unusual noise/
vibrations
□ □
Nominal data - Fan (name plate on fan housing)
Voltage [V]: Current [A]:
Frequency [Hz]: Power [kW]:
Fan impeller speed [rpm]:
Measured data at commissioning
Voltage [V]: Temp. of transported air [°C]:
Current L1 [A]*: Fan impeller speed [rpm]:
Current L2 [A]: “Air volume”, “Differential pressure” not necessary for
Jet fans
Air volume [m3/s]:
Current L3 [A]: Differential pressure [Pa]*:
*For single-phase fans, fill in line “Current L1 [A]” *Δ- Pressure between suction-side and discharge of the fan
If an air flow measurement is not possible, this value can be calculated using the following formula:
X=
Duct cross-section [m²] Flow speed [m/s]
Grille measurement acc. to VDI 2044 Air volume [m³/s]:
Yes No
Commissioning of the fan successful? □ □
Date, installer's signature
Date, operator's signature
| 004
