7 Spare Parts and Schematics
The spare parts lists show:
1. The position of the part in the explosion drawing.
2. The name of the part.
3. The part number.
4. The type of the machine.
Stand. means Standard Machine w/o Color
Color means Color printer
5. The classification of parts.
When ordering parts it is essential to specify a part number and designation.
factory repair only
depot repair
standardized parts - C-parts
printer specific parts
recommended spare parts
ABCDE
Spare Parts and Schematics
7-1

This page intentionally left blank.
Spare Parts and Schematics
7-2

7.1
Housing/Panel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
18
19
20
21
24
(4x)
22
7-3/4
Housing/Panel Spare Parts and Schematics

1 Front Flap Assy 054 897 B 1
2 Housing Lower Part 054 571 B 1
3 Housing Upper Part 054 645 B 1
4 Tappet 054 632 B 1
5 Front Top Cover Assy 054 570 B 1
6 Metal Clamp (Cover Back) 053 519 B 2
7 Rear Cover Assy 054 569 B 1
8 Top Cover Assy (Noise Preventer) 054 623 B 1
9 Cover Toothed Wheel 053 306 B 1
10 Panel Complete 047 566 x A, E 1
11 Switch Unit 4F 13x60 707 109 B 1
12 Panel Cable 047 520 A 1
13 Cap Optional Interface 054 588 B 1
14 Cap ,,Emu - Slot“ 054 586 B 1
15 Spring 053 894 B 1
16 Joint right (Flap bottom) 053 326 B 1
18 Guide (Lower Housing) 054 608 B 2
19 Lock 053 889
20 Joint left (Flap bottom) 053 325 B 1
21 Suspension (Chassis) 053 529 B 4
22 Power Switch Assy 047 526 A 1
23 Holder / Lock Main Board Complete 054 605 B 1
24 Clamp Panel Cable 054 589 x B 1
25 PCB Holder Interconnection Board 054 551 B 1
item name Part No Stand. Color T 2045 T 2060 T 2060-2T Class Qty.
Spare Parts and Schematics Housing/Panel
7-5

This page intentionally left blank.
Housing/Panel Spare Parts and Schematics
7-6

7.2

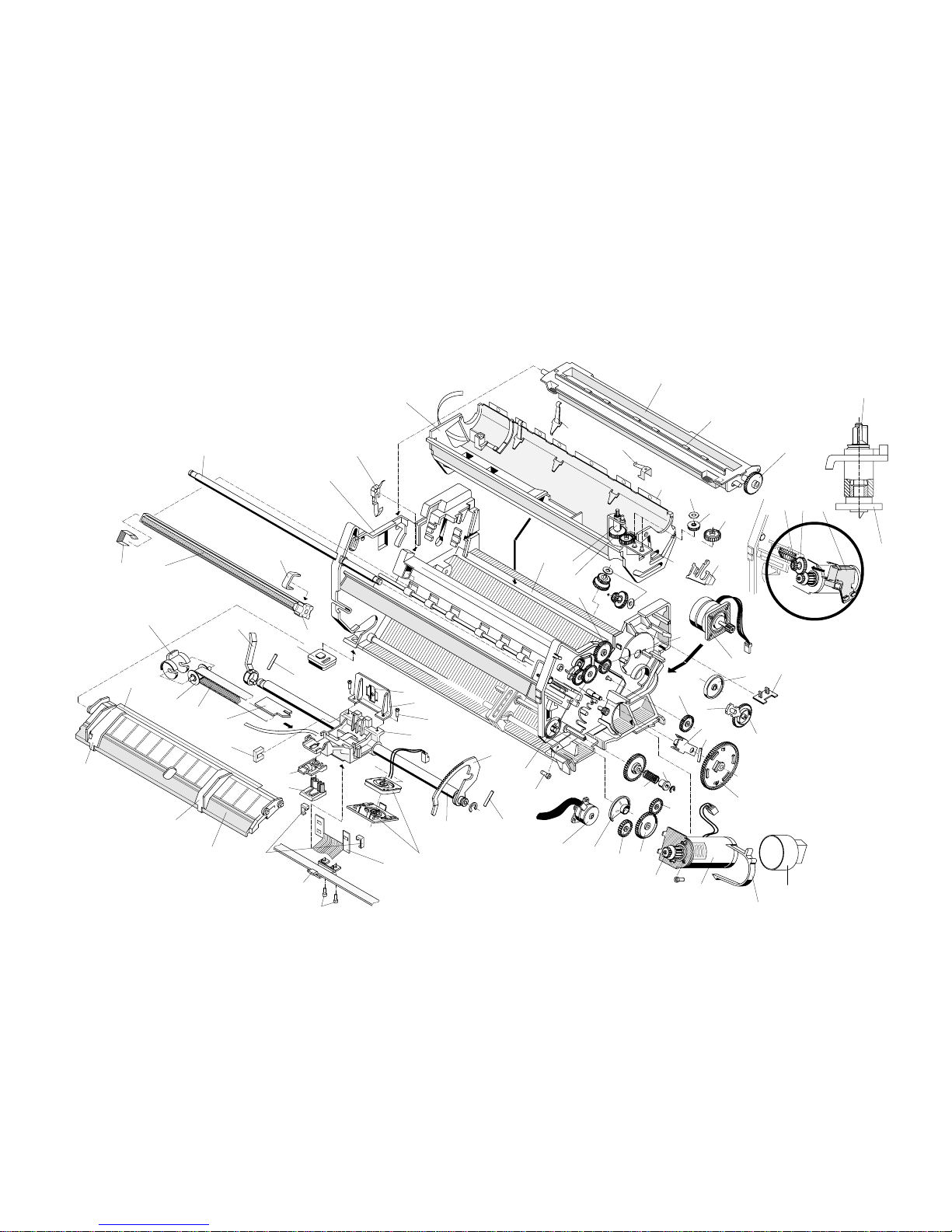

Basic Printer
7-7/8
126
(2x) 62 61
70
11
125
59
49 48 46
45
38
32
22
21a
21
17
16
34
51
127
1
2
3
4
5
67
89
10 (4x)
12 13
14
15
18
19
20 (3x) 23
24
25 26 28 29 30
18
19
31
33
26
36
37
39
40
41
42
26
47
50
52
53
54
55
56
57
58
63
64
66
67
7172
73 (2x)
74
76
77
26
57
7.2
Basic Printer
Basic Printer Spare Parts and Schematics

7-9/10
Basic Printer Spare Parts and Schematics
101 (2x)
100
99
98
128
129
96 (6x)
60
95
107
102
62
116
38
120
124
84
111
118
81
82
85
86 87
88 89 41
42
92
93 (3x)
94
97
103
104 (3x)
105 (6x)
106 (3x)
112
110
113
117
122
36
125

,,/“ no item number available. Please see details in according chapters
,,na“ no spare part
ElectronicParts
/ Interconnection Board 047 564 x x x A 1
/ Main Board Complete (47504+47507) 047 525 x A, E 1
/ Main Board Complete (47562+47548) 047 549 x x A, E 1
/ Power Supply 047 504 x B, E 1
/ Power Supply 047 562 x x B, E 1
/ Power Bar / Voltage Selection 054 596 B 1
/ Main Controller 047 507 x B, E 1
/ Main Controller (PPUA46950) 047 548 x x B, E 1
/ Main Controller (PPUA47537) 047 552 x x B, E na
/ Fan Main Board Complete 047 046 B 1
/ Automatic Gap Adjustment Complete 047 540 A 1
/ Cable Power Supply 047 522 B 1
/ Timing Station 047 514 A 1
/ Firmware - IC6 (on Main Controller) 047 565 x x x x A 1
/ Firmware - IC6 (on Main Controller) 047 536 x x x A 1
/ E-Prom 4MB, 32pin 709 868 C na
22 Power Switch Assy 047 526 A 1
61 Fan Printhead Spares Assy 059 934 x x x B 1
62 Carriage Adapter 047 575 A 1
84 Paper End Sensor (PE+Ppos) 047 254 A 1
112 Paper End Sensor ASF 047 255 A 1
124 Interlock Complete 047 523 A 1
Motors and Cables
/ ASF Motor Cable 046 807 B 1
/ Color Motor Cable 047 527 B 1
12 Panel Cable 047 520 A 1
32 LF Motor 053 437 A 1
46 CR Motor Tube 053 268 B 1
48 CR Motor DC 054 567 x A 1
48 CR Motor DC 047 568 x x A 1
49 Wrap Spring Clutch CR Motor 054 529 A 1
55 AGA Motor Stepper 053 443 A 1
120 Function Motor Stepper 053 441 A 1
Printhead / Carriage System
/ Printhead NDK 9/24 055 348 x A,E 1
/ Printhead NDK 11/24 055 371 x x A,E 1
/ Carriage Assy Color 054 826 x x x x x A,E 1
/ Carriage Assy 054 563 x x x x A,E 1
7 Toothed Belt Z557 706 949 A 1
11 Print Bar 054 565 B 1
58+59 CR Shaft Assy (Axle) 054 646 B 1
61 Fan Printhead Spares Assy 054 185 B 1
63 Screw M3x6 DIN 7985 707 145 C 4
64 Holder 053 274 B 1
66 Spring (Angle) 050 119 B 1
67 Carriage Guide 053 270 x B,D 1
item name Part No Stand. Color T 2045 T 2060 T 2060-2T Class Qty.
Spare Parts and Schematics Basic Printer
7-11

71 Ribbon Mask (SP) 054 426 A 1
72 Paper Guard (SP) 054 426 A 1
73 Screw 3x8 716 175 C 2
81 Shaft Assy Standard 053 241 B 1
81 Shaft Assy 2nd Tractor 054 320 B 1
125 Carriage Mono Complete 054 563 x A 1
125 Carriage Color Complete 054 826 x A 1
126 Holder Sensor Board Carriage 054 615 B 2
127 AGA Sensor Holder Carriage 054 614 B 1
Tractor Assy Complete 054 564 na
50 Bearing 053 387 B 2
51 Pressure Spring 054 808 B 1
97 Tractor Wheel Front Z72 053 248 B 1
98 Tractor Belt 052 717 B 2
99 Paper Guard Tractor 054 577 B 1
100 Tractor Set Assy 053 567 A 1
101 Tractor Side Plate 054 815 B 2
102 Bushing 053 387 B 2
118 Tractor Clips 054 647 B 2
128 Axle Round 054 766 B 1
129 Axle Square 054 630 B 1
Upper Friction
21 Upper friction Assy 054 562 A,D 1
21a Drive Axle w Rollers 054 554 B 1
22 Toothed Wheel 054 555 B 1
Mechanic Parts
1 Paper Guide front 053 255 B 1
2 Marginal Stop right, Single Sheet front 053 256 B 1
3 Marginal Stop left, Single Sheet front 053 257 B 1
4 Paper Guide Foil 053 254 B 1
5 Belt Tightener 053 219 B 1
6 Pulley Assy 053 433 B 1
8 Lever (Parallelity) 053 213 B 1
9 Platen Bearing 052 042 B 2
10 Foot 053 229 B 4
11 Platen Assy 054 565 B 1
12 ESD Spring (Platen) 054 285 B 1
13 Clamp 052 051 B 1
14 Carriage Shaft 053 275 B 1
15 Side Plate left 053 225 B 1
16 ESD Connection 054 607 B 1
17 Transverse Connection Side Plate 054 612 B 1
18 Shaft Ribbon Drive 053 244 B 1
19 Tothed Wheel Z30 053 245 B 1
18+19 Ribbon Drive complete (SP) 054 456 A 1
20 Spring 053 242 B 3
23 Spring Clock Stripe 053 227 B 1
24 Paper Guard Foil 053 253 B 1
25 Toothed Wheel 2 Z21 053 281 B 1
26 Toothed Wheel 1 Z30 053 201 B 4
item name Part No Stand. Color T 2045 T 2060 T 2060-2T Class Qty.
Basic Printer Spare Parts and Schematics
7-12

28 Bevel gear 053 579 B 1
29 Bevel Gear Drive 053 580 B 1
30 Lid (Toothed Wheel Drive) 053 286 B 1
31 Damper right 053 204 B 1
33 Toothed Wheel Z58 FD 053 423 B 1
34 Base Transverse Connection 054 550 na
36 Eccentric Wheel top Z76 053 208 B 2
37 Damper 053 546 B 2
38 Excentric Wheel Middle 054 626 B 2
39 Plug Carrier 053 336 B 1
40 Toothed Wheel 2 Z68 053 202 B 2
41 Bearing 053 220 B 1
42 Pin 2,5x20 DIN 1475 707 025 C 1
45 LF Drive Toothed Wheel Z128 054 617 B 1
47 Clamp CR-Motor 053 289 B 1
52 Intermedium Wheel Z46 053 335 B 1
53 Switching Wheel 053 210 B 1
54 Worm Gear Head Distance 053 217 B 1
57 Spring 053 218 B 2
60 Flag AGA 054 616 B 1
70 Cable Holder Carriage 054 593 B 1
74 Washer 053 282 B 2
76 Toothed Wheel Z50 053 285 x B 1
77 Circlip 706 013 B 1
82 Paper Guide (Transverse) 053 264 B 1
85 Funcion Shaft 053 212 B 1
86 Side Plate right 053 224 B 1
87 Curve Plate 053 284 x B 1
88 Toothed Wheel 2 Z84/14 053 216 B 1
89 Toothed Wheel Z56 053 283 x B 1
93 Roll Cover Standard 053 324 B 3
93 Roll Cover 2nd Tractor 053 957 B 3
94 Blind Transverse Carrier 053 334 B 1
95 Indicator Axle 054 765 B 1
96 Roller Bottom 053 898 B 6
103 Incremental strip 053 230 A 1
104 Leaf Spring 053 544 B 3
105 Roller (Tube) 053 258 B 6
107 Blind Transverse Carrier 053 329 B 1
110 Cable Cover 053 522 B 1
111 Cable Holder PH Cable 054 594 B 1
113 Cable Holder 053 259 B ?
116 ESD Spring (outer) 053 398 B 1
117 Toothed Wheel 1 Z70/14 (SP) 054 403 B 1
122 Damper left 053 205 B 1
item name Part No Stand. Color T 2045 T 2060 T 2060-2T Class Qty.
Spare Parts and Schematics Basic Printer
7-13

DIN (Standard) Parts
/ Screw TORx 8x32 DIN 7981 707 044 C 6
/ Screw TORx 2x16 DIN 7981 707 049 C 4
/ Washer 4 DIN 6799 706 013 C 2
/ Washer 8 DIN 6799 706 241 C 1
/ Washer 5 DIN 6799 706 176 C 2
/ Screw M4x8 DIN 7985 707 485 C 1
/ Washer 6 DIN 6799 706 113 C 1
/ Screw M4x12 DIN 7985 707 184 C 2
56 Screw M3x6 DIN 7985 707 145 C 2
106 Cyl. Pin 4M6x80 DIN 6325 706 554 C 3
item name Part No Stand. Color T 2045 T 2060 T 2060-2T Class Qty.
Basic Printer Spare Parts and Schematics
7-14

7.3

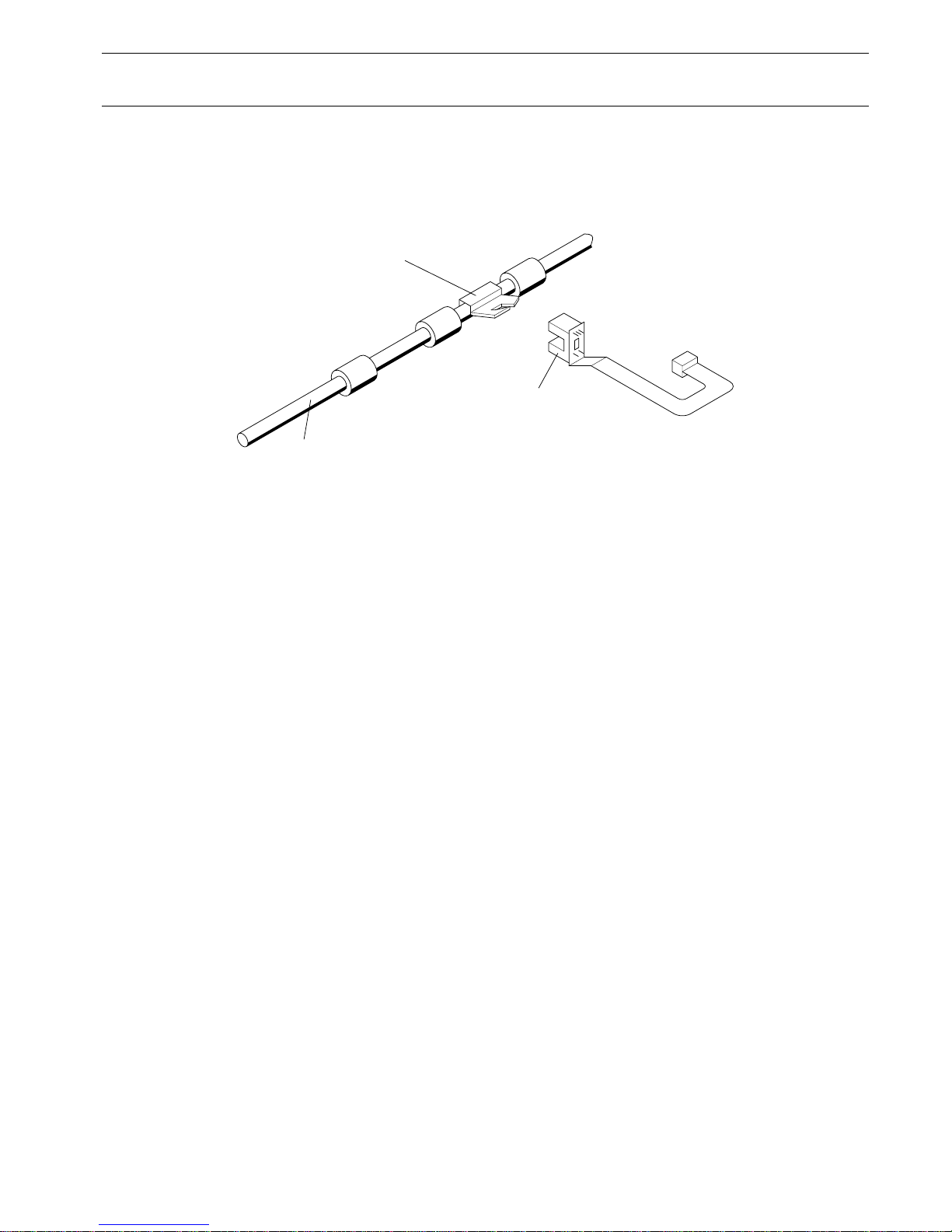

AGA
3
2
1
Spare Parts and Schematics AGA
7-15

1 AGA Assy 047 540 A 1
2 AGA Flag 054 616 B 1
3 Indicator Axle 054 765 B 1
item name Part No Stand. Color T 2045 T 2060 T 2060-2T Class Qty.
AGA Spare Parts and Schematics
7-16

7.4

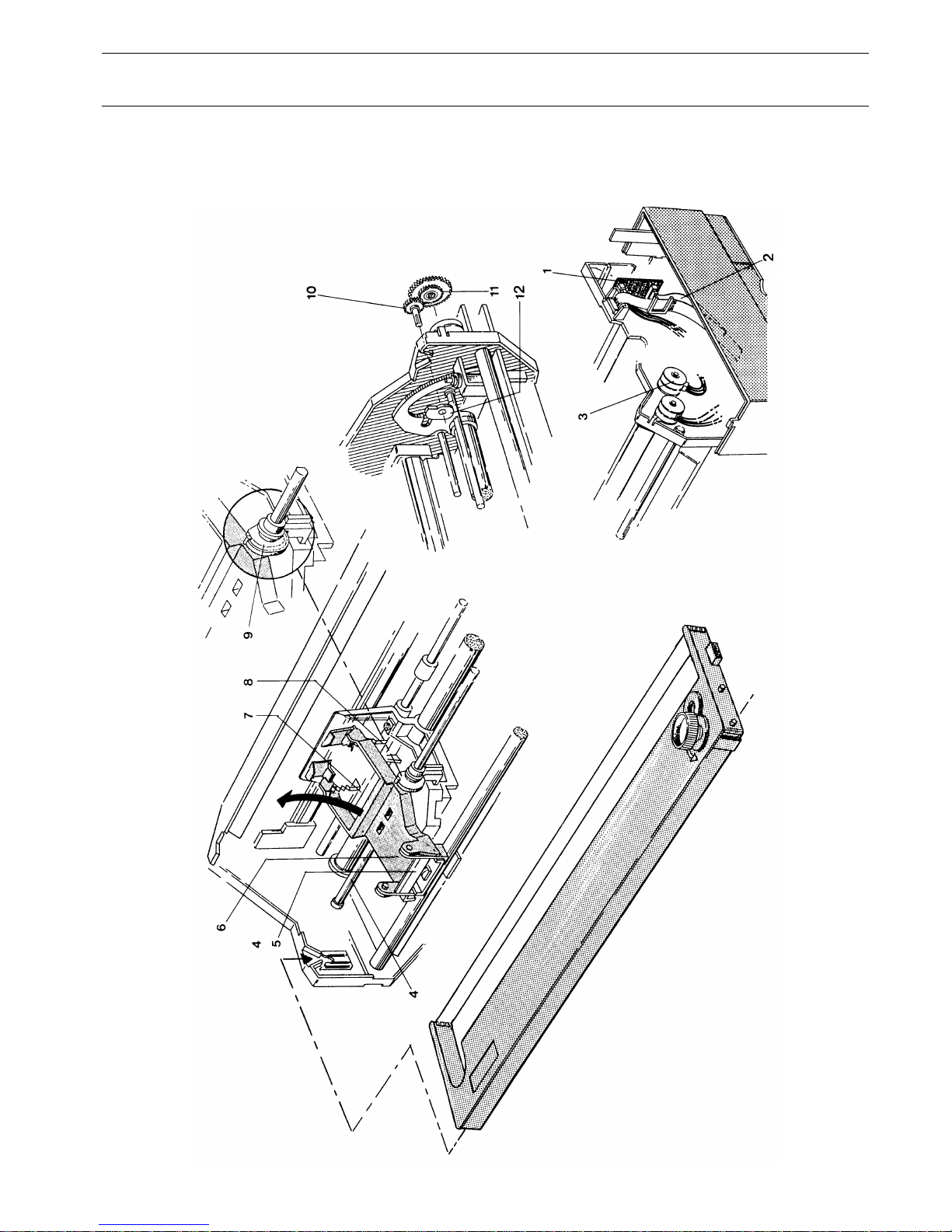

Color Option
Spare Parts and Schematics Color Option
7-17

Color Parts
1 Motor Controller (Color) 046 760 x A,D 1
2 Color Motor Cable 046 809 x B,D 1
3 Motor Color 053 510 A 1
4 Switch Shaft 053 315 x B 1
5 Bearing 053 314 x B 1
6+7+8 Ribbon Carrier + Springs 054 471 x B 1
9 Curve (inner) 053 321 x B 1
10 Toothed Wheel Z40 053 318 x B 1
11 Toothed Wheel Z40/84 053 319 x B 1
12 Curve (outer) 053 317 x B 1
Mono Parts
Curve Plate 053 284 x B 1
Toothed Wheel Z50 053 285 x B 1
Toothed Wheel Z56 053 283 x B 1
Carriage guide 053 270 x B,D 1
Please see also explosion drawings
item name Part No Stand. Color T 2045 T 2060 T 2060-2T Class Qty.
Color Option Spare Parts and Schematics
7-18

7.5
Connector
Board/Cables
Spare Parts and Schematics Connector Board/Cables
7-19

1 LF-Motor 053 437 A 1
2 2nd Tractor Cable 047 190 x B 1
3 Interlock Assy 047 523 A 1
4 Paper Motion Cable na x x – –
5 PE Sensor ASF 047 255 A 1
6 Sheet Feeder Cable 046 807 B 1
7 Carriage Adapter I 047 513 A 1
8 Carriage Adapter II 047 513 A 1
9 Main Logic – – –
10 PE-Sensor Front 047 254 A 1
11 Function Motor 053 441 A 1
12 CR-Motor 054 567 A 1
13 Color Motor Cable 047 527 B 1
14 Panel Cable 047 520 A 1
15 AGA-Motor 053 433 A 1
item name Part No Stand. Color T 2045 T 2060 T 2060-2T Class Qty.
Connector Board/Cables Spare Parts and Schematics
7-20

Part ID-No Class. Qty
Power Switch Assy 047 526 A 1
Part ID-No Class. Qty
Cable Power Supply 047 522 B 1
Spare Parts and Schematics Power Supply T 2045
7-41
