T&S EasyInstall B-0123 Series User manual

P/N:
DATE:
DRAWN:
CHECKED:
APPROVED:
098-014496-45 REV 6
10-12-17
TEH
DMH 04-18-18
JHB 04-20-18
PRE-RINSE UNIT
B-0123 Series
(B-0123-B, Pre-Rinse
Unit w/Wall Bracket)

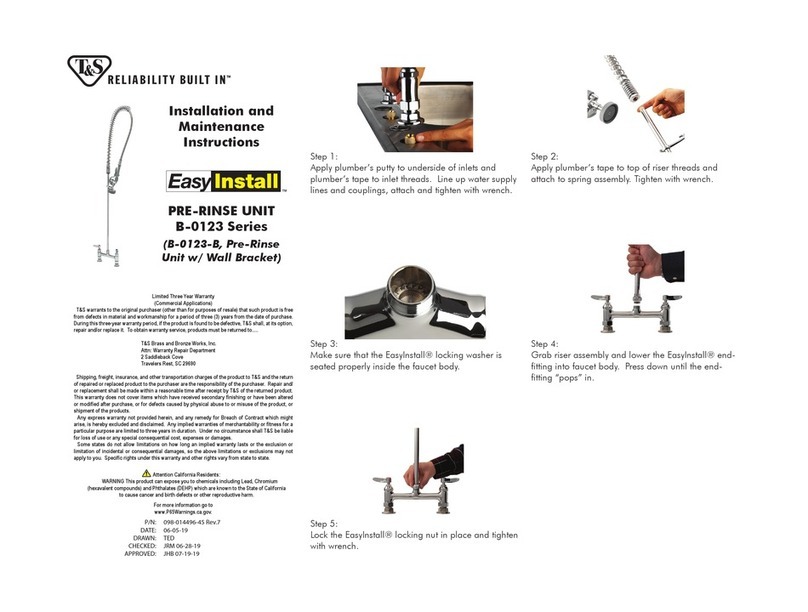

Step 1:
Apply plumber’s putty to underside of inlets and
plumber’s tape to inlet threads. Line up water supply
lines and couplings, attach and tighten with wrench.
Step 4:
Grab riser assembly and lower the EasyInstall® end-
tting into faucet body. Press down until the end-
tting “pops” in.
Step 2:
Apply plumber’s tape to top of riser threads and
attach to spring assembly. Tighten with wrench.
Step 3:
Make sure that the EasyInstall® locking washer is
seated properly inside the faucet body.
Step 5:
Lock the EasyInstall® locking nut in place and tighten
with wrench.
Limited One Year Warranty
(Commercial Applications)
T&S warrants to the original purchaser (other than for purposes of resale)
that such product is free from defects in material and workmanship for a
period of one (1) year from the date of purchase. During this one-year
warranty period, if the product is found to be defective, T&S shall, at its
option, repair and/or replace it. To obtain warranty service, products must
be returned to.....
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other transportation charges of the product
to T&S and the return of repaired or replaced product to the purchaser are
the responsibility of the purchaser. Repair and/or replacement shall be
made within a reasonable time after receipt by T&S of the returned product.
This warranty does not cover items which have received secondary finishing
or have been altered or modified after purchase, or for defects caused by
physical abuse to or misuse of the product, or shipment of the products.
Any express warranty not provided herein, and any remedy for Breach of
Contract which might arise, is hereby excluded and disclaimed. Any implied
warranties of merchantability or fitness for a particular purpose are limited
to one year in duration. Under no circumstance shall T&S be liable for loss
of use or any special consequential cost, expenses or damages.
Some states do not allow limitations on how long an implied warranty lasts
or the exclusion or limitation of incidental or consequential damages, so the
above limitations or exclusions may not apply to you. Specific rights under
this warranty and other rights vary from state to state.
Attention California Residents:
“WARNING: This product contains chemicals known to the State of California to
cause cancer, and birth defects or other reproductive harm.”
Installation and
Maintenance
Instructions

OPTIONAL (-B Models)
Wall Bracket Installation:
1. Fasten wall flange to wall using wall mount screws
2. Place 2-piece clamp assembly around riser and tighten
clamp screws securely.
3. Tighten set screws securely.
* Parts included in B-10K parts kit
Base Faucet Assemblies
1 Faucet Body Assembly w/ Eterna Cartridges B-0220-LN
2Faucet Body Assembly w/ Cerama Cartridges B-0220-CR-LN
2 Asm, Quarter-Turn Eterna Cartridge, RTC (new style) 002712-40NS
3Asm, Quarter-Turn Cerama Cartridge, RTC (new style) 012446-25NS
3 Cartridge Only, Eterna w/ Spring Checks, RTC 012443-40NS
3Cartridge Only, Cerama w/ Check Valves, RTC 012394-25NS
4 Asm, Quarter-Turn Eterna Cartridge, LTC (new style) 002711-40NS
2Asm, Quarter-Turn Cerama Cartridge, LTC (new style) 012447-25NS
5 Cartridge Only, Eterna w/ Spring Checks, LTC 012442-40NS
5 Cartridge Only, Cerama w/ Check Valves, LTC 012395-25NS
6 Handle, Lever 001638-45NS
4Handle, Wrist Action B-WH4-NS
7 Screw, Handle 000925-45
8 Index, Button - Hot (Red) 001193-19NS
9 Index, Button - Cold (Blue) 018506-19NS
10 Asm, Coupling Flange 00AA
11 Washer, Coupling Nut 001019-45
12 Lock Washer, EasyInstall 014200-45
Riser Assembly
13 Nipple, 3/8” x 24” 000372-40
14 Swivel Assembly, EasyInstall EZ-K
15 Swivel Piece N/A
16 O-Ring, Swivel Piece 001065-45
17 Asm, Finger Hook & Screw 004R
18 Wall Bracket, 6” (add -B to model # for wall bracket) B-0109-01
Pre-Rinse Unit Assembly
19 Spring Body 000821-40
20 Spring, Overhead 000888-45
21 Asm, Flexible Stainless Steel Hoses B-0044-H
22 Asm, Spray Valve B-0107
Spray Valve Assembly
23 Washer, Hold Down Assembly 010476-45
24 Ring, Hold Down Assembly 000907-45
25 Body, Spray Valve (no handle) 000065-40
26 Handle 001120-45
27 Nut, Handle 003198-45
28 Screw, Handle 003199-45
29 Nipple 000694-40
30 Cup, Spray 000019-40
31 Ring, Sprayhead 007861-45
32 Sprayface 001121-45
33 Screw, Sprayface 000913-45
Bonnet Assembly
34 Asm, Bonnet 002856-40
35 Stem 009306-20
36 Washer, Seat 012915-45
37 Washer, Bonnet Binding 001040-45
38 Bonnet 000608-25
39 Washer, Bonnet Brass 000974-45
40 Stem, Packing 001100-45
41 Spring, Bonnet 000895-45
42 Push Button 000753-25
43 Grease Pack (o-ring lubricant) 012665-45
*
*
*
*
*
*
*
*
*
*
20
22
23
19
17
13
14
15
16
12
7
9
6
4
1
11
10
2
8
10
21
5
3
353637383940
39
26
34
4142
24
23
25
29
30
32
33
31
43
27
28
18
4
5
6
1
2
8
3
Set Screws (2)
Clamp
Screws (2)
