T&S ChekPoint EC-3100 User manual

Installation and
Maintenance
Instructions
EC-3100 Series
ChekPoint
ELECTRONIC FAUCET
DECK-MOUNT & WALL-MOUNT
GOOSENECK, SPOUT & 4”
CENTERSET SENSOR
OPERATED
Limited One Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product is
free from defects in material and workmanship for
a period of one (1) year from the date of purchase.
During this one-year warranty period, if the product
is found to be defective, T&S shall, at its options,
repair and/or replace it. To obtain warranty service,
products must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S and
the return of repaired or replaced product to the
purchaser are the responsibility of the purchaser.
Repair and/or replacement shall be made within a
reasonable time after receipt by T&S of the returned
product. This warranty does not cover Items which
have received secondary finishing or have been
altered or modified after purchase, or for defects
caused by physical abuse to or misuse of the
product, or shipment of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might
arise, is hereby excluded and disclaimed. Any
implied warranties of merchantability or fitness
for a particular purpose are limited to one year in
duration. Under no circumstances shall T&S be
liable for loss of use or any special consequential
costs, expenses or damages.
Some states do not allow limitations on how
long and implied warranty lasts or the exclusion or
limitation of incidental or consequential damages,
so the above limitations or exclusions may not apply
to you. Specific rights under this warranty and other
rights vary from state to state.
P/N: 098-016361-45 Rev.6
Date: 04-22-14
Drawn: TEH
Checked: GEF 05-07-14
Approved: JHB 05-07-14
EC-3100
EC-3101
EC-3102
EC-3103
EC-3106

3
2
1
45
10
8
6
9
7

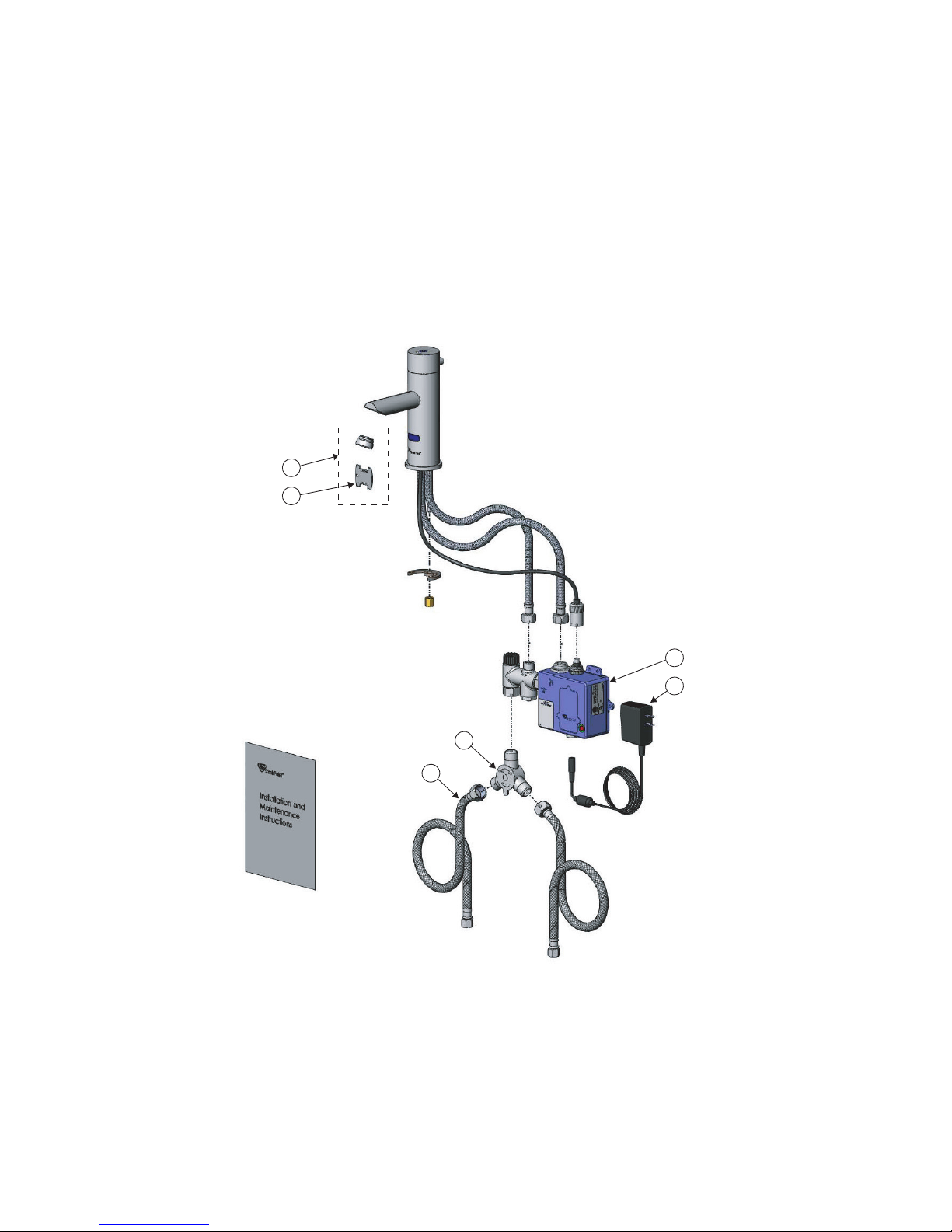

Exploded View
2
EC-3100

1
2
3
46
7
9
8
5
10
Exploded View
3
EC-3101

1
3
5
6
7
2
8
4
Exploded View
4
EC-3102

1
3
4
5
6 7
2
8
Exploded View
5
EC-3103

6
5
4
3
2
1
Exploded View
6
EC-3106

Part Number Guide
7
EC-3100 & EC-3101 Electronic Faucets
1 Aerator, Vandal Resistant B-0199-06
2 Adapter for Non-Splash Aerator 044A
3 O-Ring 006575-45
4 Angled Sensor w/ Cable 017195-45
5 Inlet Hose for use with EC-3100
1/2” NPSM-F x 1/4” NPSM-F x 18”Long 016297-45
5 Inlet Hose for use with EC-3101
1/2” NPSM-F x 3/8” NPSM-F x 30” Long 016325-45
6 Electronic Module 016647-45
7 A/C Transformer 5EF-0002
8 Manual Mixing Valve 5EF-0006
9 Supply Hose, 9/16-24 UN Female x 1/2” NPSM 5EF-0005
10 Vandal Resistant Key Q015425-45
EC-3102 & EC-3103 Electronic Faucets
1 Aerator, Vandal Resistant, 2.2 GPM 016355-45
2 Angled Sensor w/ Cable 017195-45
3 Inlet Hose, Faucet, 1/2” NPSM-F x 1/4” NPSM-F 016297-45
4 Electronic Module 016647-45
5 A/C Transformer 5EF-0002
6 Manual Mixing Valve 5EF-0006
7 Supply Hose, 9/16-24 UN Female x 1/2” NPSM 5EF-0005
8 Vandal Resistant Key Q015425-45
EC-3106 Electronic Faucet
1 ChekPoint Module (Blue) with Bypass Tee 017493-45
2 A/C Transformer 5EF-0002
3 Manual Mixing Valve 5EF-0006
4 Supply Hose, 9/16-24 UN Female x 1/2” NPSM 5EF-0005
5 VR Aerator with Key B-0199-09
6 Vandal Resistant Key Q015425-45

8
General Instructions
Important:
· ALL ELECTRICAL WIRING IS TO BE
INSTALLED IN ACCORDANCE WITH
NATIONAL/LOCAL CODES AND REGULA-
TIONS.
· ALL PLUMBING IS TO BE INSTALLED IN
ACCORDANCE WITH
APPLICABLE CODES AND REGULATIONS.
· USE APPROPRIATE PRECAUTIONS
WHILE CONNECTING TRANSFORMER TO
120 VAC POWER SOURCE.
· DO NOT PLUG TRANSFORMER INTO
POWER SOURCE (RECEPTACLE) UNTIL
ALL WIRING IS COMPLETED.
· FLUSH ALL WATER LINES UNTIL WATER
IS CLEAR BEFORE CONNECTING FAUCET
TO SUPPLY STOPS.
Tools Required For Installation of
Faucets
· 8” (200mm) adjustable wrench
· 1/8” hex key wrench
· Basin wrench
· Slotted screwdriver, 3/16”
· Phillips head screwdriver, #1
· Pliers
Prior to Installation:
Prior to installing the T&S ChekPoint
Series Faucet, install the items listed on
next column. Also, refer to Figure 1.
· Provide electrical receptacle within
approximately 6’ from sink for plug-in
transformer — 120 VAC, 2 amp service
for each plug-in transformer used.
· Scrub or wash-up sink
· Drain line
· Hot and cold water supply lines
Mixing Valve
When installing the faucet with the mix-
ing valve the Installation Instructions
MUST be followed.
Figure 1
Deck-Mount
Wall-Mount

9
General Instructions
Installation of ChekPoint Faucets
The T&S ChekPoint Sensor Operated Faucet is a pre-tempered faucet. A mixing valve
(supplied) must be used in conjunction with the faucet. Water temperature can be
controlled by adjusting the mixing valve.

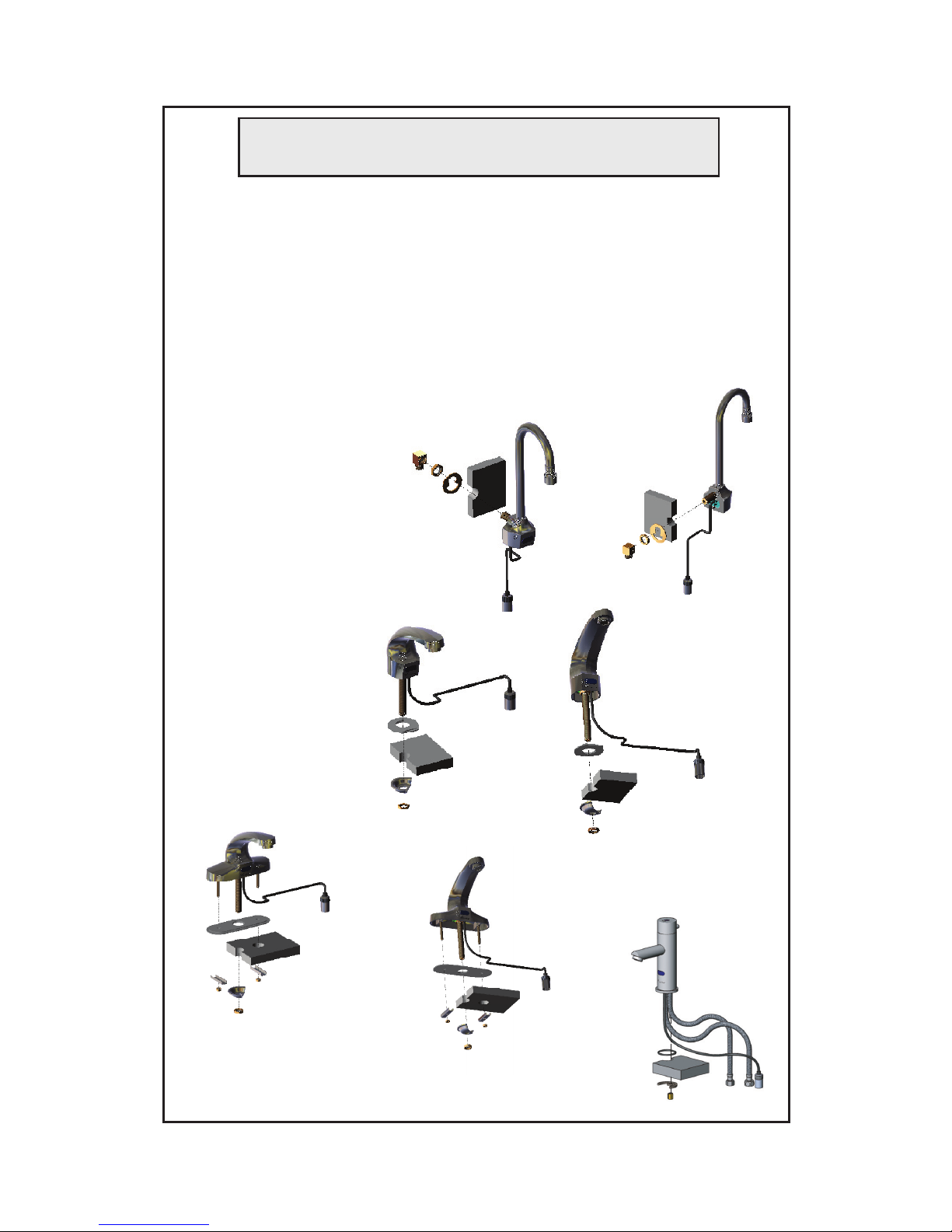

Install Faucet Assembly (Figures 2A, 2B, 2C and 2D)
TO MOUNT ON A SURFACE UP TO 1”(25mm) THICK
Insert faucet cable and spout shank through base gasket and then through the mount-
ing hole of scrub or wash-up sink. Secure using lockwasher and nut supplied.
Note: T&S Brass does
NOT supply hardware
necessary for mounting
the faucet on surfaces
thicker than 1” (25 mm)
thick.
Figure 2A
Wall-Mount
(Front View)
Figure 2B
Single Hole Deck-Mount
(Front View)
(Back View)
(Bottom View)
(Front View)
Figure 2C
4” Deck-Mount
(Bottom View)
Figure 2D
EC-3106

10
General Instructions
OPTIONAL ANTI-ROTATION
FEATURE
Wall-Mount Model: EC-3101
(Figure 2D)
Note: The anti-rotation feature uses a set
screw to anchor the faucet in the vertical
position and is intended for use ONLY on
stainless steel sinks.
Use the mounting hole diagram or fau-
cet base gasket as a template by placing
it in position over the faucet mounting
hole. Mark the stainless steel mounting
surface at the center of the small notch
at the bottom of the base gasket. Drill a
9/32” (7.14 mm) diameter hole through
the stainless steel mounting surface.
Extend the 1/4-20 set screw installed in
the back of the faucet body by unscrew-
ing it (counterclockwise) with a 1/8” hex
key wrench. Unscrew it far enough that
it protrudes past the base gasket and
into the 9/32” drilled hole. Assemble
the washer and nut to secure the faucet
in place.
OPTIONAL ANTI-ROTATION
FEATURE
Deck-Mount Models: EC-3100 &
EC-3102
(Figure 2E)
Note: The anti-rotation feature uses a pin
to anchor the faucet in position and is
intended for use ONLY on stainless steel
sinks.
Use the mounting hole diagram or the
faucet base gasket as a template by
placing it in position over the faucet
mounting hole. Mark the stainless steel
mounting surface at the center of the
small hole at the bottom of the base
gasket. Drill a 5/32” (4 mm) diameter
hole through the stainless steel
mounting surface. Install the faucet
aligning the pin with the small hole.
Assemble the washer and nut to secure
the faucet in place.
Note: The pin can be removed with
pliers if not needed.
Figure 2D
Figure 2E
EC-3101 MOUNTING HOLE
DIAGRAM
Ø1” THRU
1 9/32”
Ø9/32”
For Anti-Rotation
EC-3100 & EC-3102
MOUNTING HOLE
DIAGRAM
Ø1” THRU
Ø5/32”
For Anti-Rotation
1”

11
General Instructions
Mount Control Module to Wall
Install the control module in an appropriate location.
When installed all cables and hoses should have some
slack. Mount control module to wall using mounting
screws and plastic anchors (not included). It is
important to have the control box mounted securely
before any further connections are made.
FOR HOT AND COLD WATER SUPPLY
APPLICATIONS
Supply stops must be furnished by installer or
purchased from T&S. Flush supply lines of any debris.
Tighten compression ttings securely on supply lines.

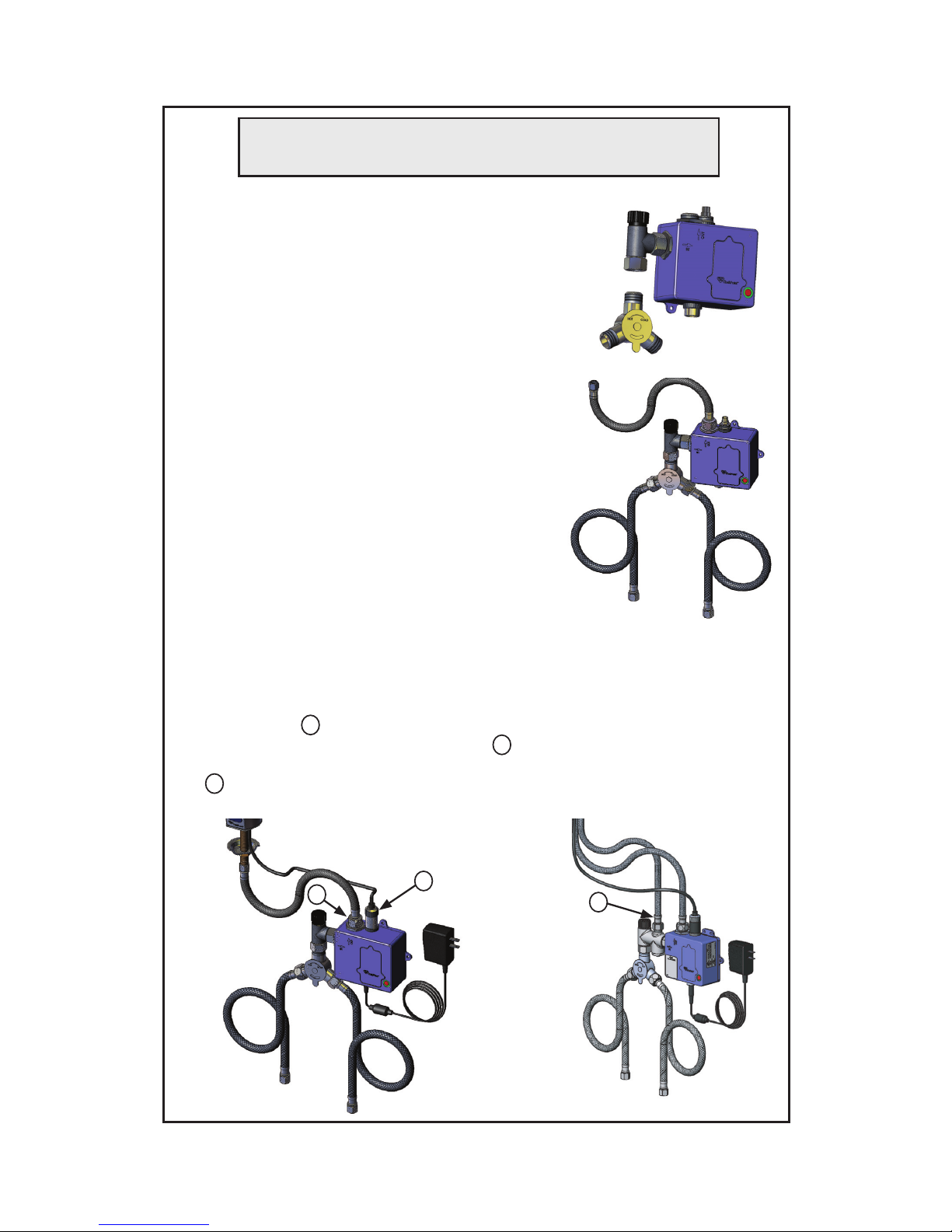

Sensor Cable and Supply Line Connections
(Figures 4, 4a and 4b)
Figure 4
Install Mixing Valve Assembly (Figure 3)
(If supplied separately)
Install mixing valve into tting on control module as
shown in Figure 3. Tighten tting snugly BUT DO NOT
OVERTIGHTEN. No thread sealant is necessary.
Important: Orient mixing valve as shown in Figure 3.
Figure 3
Figure 4a Figure 4b
Route the sensor cable from the spout to the top of the control module. Align the (2)
white arrows (one on the male side and one on the female side) and plug the mating
connectors together. Drop the chrome sleeve down over the sensor plug and screw
to tighten (g. 4a 1 ). Secure the supply line from the spout to the tting on top
of the controller (do not overtighten). (Fig. 4a 2 ) For the EC-3106, also secure the
second supply line to the manual by-pass on the manifold next to the controller (Fig.
4b 3 ). Tighten the compression tting securely on the supply lines but do not over
tighten.
1
23

12
General Instructions
BATTERY OPTION
Note: Should you choose to run your sensor faucet on battery power, it will require (4) AA
alkaline batteries.
1. If the AC adapter is plugged in, unplug it from its power source and the control
module.
2. With the help of a phillips head screwdriver, remove the battery cover’s three (3)
fasteners and pull cover away from the control box.
3. Replace old batteries if needed.
4. Install the new AA batteries, making sure that the + and - ends are facing the correct
direction. Return the battery cover to its spot and tighten fasteners.
5. Re-set the sensor range if needed (see sensor range setup).
TRANSFORMER OPTION (Figure 5)
Important: DO NOT plug Transformer into receptacle until all wiring has
been completed.
This type of Transformer is designed to be plugged into a 120 VAC wall
receptacle. The Transformer is supplied with a 6 foot Cable. Remove the
rubber plug from the transformer connector on the control module.
Plug the transformer cable into the transformer connector. plug-in transformer
Figure 5
SENSOR RANGE SETUP
1. AF-serial sensor range can only be set by using the on/o
button situated on the bottom right corner of the control box.
Do not attempt to open control box.
2. Push and hold the on/o button for 5-7 seconds. Water ow will
stop and the red LED light inside the electronic eye will blink on.
Release the on/o button. The LED should turn itself o, signaling
that the faucet is ready for setup.
3. Place and hold your hand at the desired sensor distance. The LED
will turn “ON”.
4. Use the other hand to press the on/o button. The LED will ash
5 times to save the new sensor range setting.
5. The default sensor range is 5-1/2” (14cm). Sensing distance is
adjustable from 3/4”(2cm) to 5-1/2”(14cm).
Note: For the Hydro Generator (EC-HYDROGEN) power option, refer to the instruction
manual in the EC-HYDROGEN kit ordered separately. For hard wiring and hard wire gang-
ing (EC-HARDWIRE) and easy-wire (EC-EASYWIRE) ganging power options , refer to the
instruction manual in each respective kit when ordered separately.

13
General Instructions
Running Time Range:
Response Time:
Sensing Range:
Power Source:
Low Battery Indicator:
OPERATION
1. Place hands under spout. Water will ow for as long as the user’s hands remain
within sensor range and will shut o after 15 seconds (time adjustable).
2. Keep electronic eye cover clean.
3. Red ashing in the electronic eye indication low batteries.
(Replacement batteries: Alkaline AA.)
4. Solid red light in the electronic eye and no water ow indicated batteries are dead.
5. When used in conjunction with the optional AC adapter, the faucet will automati-
cally switch to AC power and conserve its battery power.
Fresh alkaline batteries should last 450,000 on/o cycles.
15 seconds - 20 minutes (6 presets selectable)
0.3 seconds
3/4” to 5-1/2” (2-14 cm) from sensor
AC and/or DC
Red LED on
CARE AND CLEANING OF CHROME AND SPECIAL FINISHES
DO NOT use abrasive or chemical cleaners (including chlorine bleach) to clean faucets
as they may dull the luster and attack the chrome or special decorative nishes. Use
ONLY soap and water, then wipe dry with clean cloth or towel. While cleaning the
bathroom tile, the faucet should be protected from any splattering of cleaner. Acids
and cleaning uids will discolor or remove chrome plating. Do not use abrasive or
chemical cleaners on the sensor lens as this will damage it and aect operation.
(See next page for EC-3106 Manual/Auto Operation.)

14
General Instructions
EC-3106 (MANUAL/AUTO OPERATION)
The EC-3106 model has the ability to be switched from the sensor mode to a manual
mode. The manual mode can be used if a constant ow of water is needed for an
extended period of time (e.g. the unit loses power, etc.). To switch from sensor
to manual mode, press the red button behind the unit toward the top and turn
counterclockwise 180° until the red button clicks. The window on top of the unit will
be changed from ‘auto’ to ‘OFF’. The unit is now in manual mode and will operate as
a manual faucet delivering water according to the temperature set on the manual
mixing valve. To activate water ow, turn the top of the unit counterclockwise 90°,
clockwise 90° to shut it o. To return to sensor mode, press the red button and rotate
the top of the unit clockwise until the red button is in the back of the faucet and“clicks”
into position. “Auto” will show in the window to indicate the unit is now in the sensor
mode.
Sensor Module ByPass Operation
(EC-3106 only)
If the sensor faucet is in need of repair and
must be serviced and the blue control module
removed, the by-pass valve must be closed with
a at head screwdriver by accessing the shut-o
screw on the bottom-side of the manifold (g.
6 1 ). The controller can then be removed for
servicing and the faucet can continue to be used
by changing it to the manual mode as described
above.
open
close
Figure 6
1

15
PERIOD
15 seconds
30 seconds
45 seconds
60 seconds
3 minutes
20 minutes
SW(1)
OFF
OFF
OFF
OFF
ON
ON
SW(2)
OFF
OFF
ON
ON
OFF
OFF
SW(3)
OFF
ON
OFF
ON
OFF
ON
PERIOD
1 seconds
10 seconds
15 seconds
30 seconds
SW(5)
OFF
OFF
ON
ON
SW(6)
OFF
ON
OFF
ON
Auto Flush Mode
SW (4)
ON - (Enable)
OFF - (Disable)
Auto Time Out Selection
Water Shut Off Delay Selection
FEATURES
AUTO-ADJUSTMENT SCAN PERIOD
• Two scan periods of 0.4 seconds or 0.7 seconds are automatically adjusted. The
scan period at 0.4 seconds occurs while the faucet is at standby. The scan pe-
riod will change to 0.7 seconds when the faucet detects an object in the front
of the sensor.
WATER FLOW CONTROL ADJUSTMENTS
• The ChekPoint controller oers a selection of pre-set ow control adjustments.
These selections are made by conguring a bank of six switches, SW(1) to
SW(6), according to the tables below. The ow control switches are located
inside the ChekPoint control module in a black box next to the battery com-
partment. To access the switches, remove the (4) screws and back cover of the
control module.
AUTO TIME-OUT ADJUSTMENT (SWITCHES 1-3)
• The ChekPoint controller provides six periods to select from for shutting o the
water when the object is left in front of the electronic eye. The time periods to
select from are: 15 seconds, 30 seconds, 45 seconds, 60 seconds, 3 minutes and
20 minutes. The default setting is 15 seconds.
Note: The chart below indicates the switch positions required for each auto time-out mode.
AUTO-FLUSH (SWITCH 4)
• The ChekPoint controller oers the option to select the Auto Flush mode in
switch 4 position. When enabled, the controller will ush the ChekPoint faucet
every 12 hours for 25-30 seconds when the faucet is not used. Default setting
from the factory is in the “o” position.
WATER SHUT-OFF DELAY
ADJUSTMENT (SWITCHES 5 & 6)
• The ChekPoint controller provides four
periods to select from for shutting o
the water when the object is removed
from in front of the electronic eye.
The time periods to select from are: 1
second, 10 seconds, 15 seconds, and
30 second. The default setting is 1
second.
General Instructions

16
LOW BATTERY DETECTION
• A red ashing light in the electronic eye indicates low batteries.
• A solid red light in the electronic eye and no water ow indicates the batteries
are dead.
• The user should change new batteries immediately.
POWER SAVING
• If the electronic eye (sensor) has not detected object motion within 30 minutes,
the controller will enter its lowest scan period of 1.4 seconds
• When object motion is detected, the controller will change the scan period
from 0.4 seconds to 0.7 seconds and change back to 0.4 seconds when the
object removed.
ANTI-INTEFERENCE SYSTEM
• Sunlight or other types of lighting may interfere with the distance sensing
range. In this case, the controller will compensate the sensing distance to a
safe range temporarily. The controller will adjust the distance to the normal
range when no interference is detected.
General Instructions

17
General Instructions
Q&A
Q: Can I operate the faucet manually, without using the electronic eye?
A: Yes. Press the on/o button and water will start owing. To turn water o, press
on/o button again. If you forget to turn the water o, the faucet will automatically
turn it o after 60 seconds.
Q: What is the optimal sensing distance?
A: About 2” from sensor.
Q: Does the electronic eye require special maintenance?
A: In order for the sensor to function, the electronic eye must be clean. Use only mild
soaps and water. Wipe with a soft cloth.
Q: Why doesn’t the water shut itself o after I have moved my hands away from the
electronic eye?
A: Sensor range could be too long. User may have to adjust sensor range.
Q: No water will come out of the faucet and the red LED stays on. What is the prob-
lem?
A: Replace the batteries.
016647-45 5EF-0002
017195-45
5EF-0006

18
General Instructions
PROBLEM
No Water When Activated
Red LED in electronic eye
POSSIBLE CAUSE/SOLUTION
If red LED stays on or is ashing:
1. Replace batteries and/or make sure
transformer is plugged in
2. If appropriate action from no. 1 does
not correct problem:
• Sensor range too long/picking up
sink. Reduce range.
• Sensor is faulty; replace sensor
module.
1. Check supply stop(s); open if closed.
2. Debris in solenoid lter; remove,
clean and reinstall.
3. Debris in aerator or spray head;
remove, clean and reinstall
1. Range too long; decrease detection
zone. Check surroundings for factors
that can contribute to the range; for
example, bright lights, highly reective
surfaces, sunlight, etc.
1. Debris in solenoid valve, won’t close
properly.
2. Control module is faulty; replace
control module.
Very Low Flow or Slow Dribble
False Triggering
(Unit goes on by itself)
Continues to Run
(Even after power to faucet has been
disconnected)
TROUBLESHOOTING GUIDE

T&S BRASS AND BRONZE WORKS, INC.
A firm commitment to application-engineered plumbing products
2 Saddleback Cove, P.O. Box 1088, T & S Brass-Europe
Travelers Rest, SC 29690 ‘De Veenhoeve’
Phone: [phone] Oude Nieuwveenseweg 84
Fax: [phone] CW Nieuwveen
E-mail: [email protected] The Netherlands

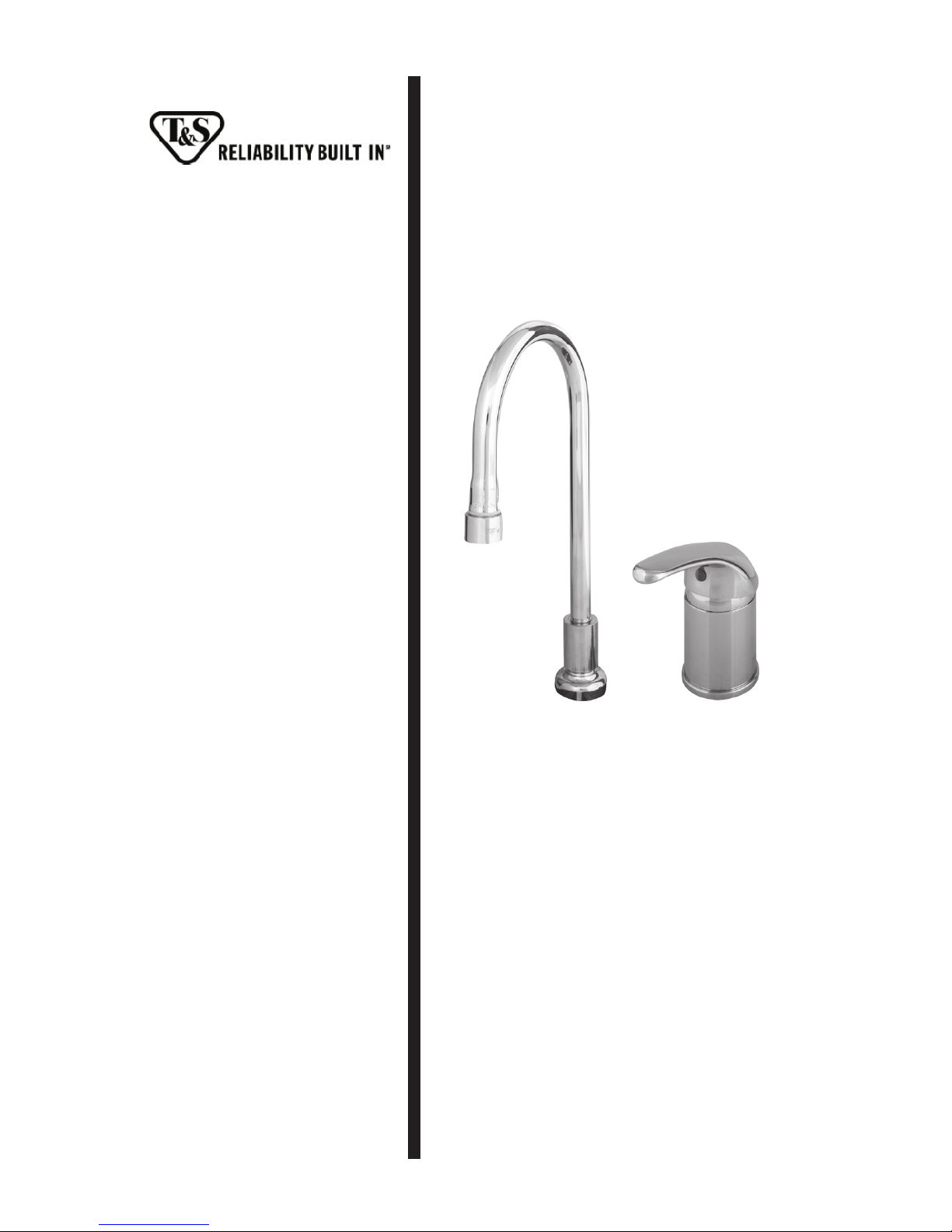

RELATED T&S BRASS PRODUCT LINE

Installation and
Maintenance
Instructions
B-2740 SERIES
SINGLE LEVER FAUCETS
(with or without Sidespray)
Limited One Year Warranty
T&S warrants to the original purchaser
(other than for purposes of resale) that
such product is free from defects in
material and workmanship for a period
of one (1) year from the date of purchase.
During this one-year warranty period,if the
product is found to be defective,T&S shall,
at its options, repair and/or replace it. To
obtain warranty service,products must be
returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product
to T&S and the return of repaired or
replaced product to the purchaser are
the responsibility of the purchaser. Repair
and/or replacement shall be made within
a reasonable time after receipt by T&S of
the returned product. This warranty does
not cover Items which have received
secondary finishing or have been altered
or modified after purchase, or for defects
caused by physical abuse to or misuse of
the product, or shipment of the products.
Any express warranty not provided
herein, and any remedy for Breach of
Contract which might arise, is hereby
excluded and disclaimed. Any implied
warranties of merchantability or fitness
for a particular purpose are limited to one
year in duration. Under no circumstances
shall T&S be liable for loss of use or any
special consequential costs, expenses or
damages.
Some states do not allow limitations
on how long and implied warranty lasts
or the exclusion or limitation of incidental
or consequential damages, so the above
limitations or exclusions may not apply to
you. Specific rights under this warranty
and other rights vary from state to state.
P/N: 098-016721-45 Rev. 0
Date: 02-19-08
Drawn: TEH
Checked: ARH 04-08-08
Approved: JHB 04-09-08
