Taurus TF-PU1207HT User manual

TFPU1207HT.01.01
Chin-up Bar
Operating Instructions
Specication
The Taurus chin-up bar Premium is a solid chin-up bar for wall mounting
that oers various dierent grip positions. Upper grip, lower grip or parallel
hand position - the chin-up bar oers all grip variations, as well as special
ball grips/climbing grips that are particularly well suited to additionally
improve the forearm muscles and grip strength. As a special highlight, the
wide pull-up bars are available with two dierent grip diameters.
The pull-up bar can be loaded with up to 120 kg (please also note the
wall condition).
+ Chin-up bar with many grip positions
+ Very solid steel construction
+ Wide chin-up grip with two dierent grip diameters possible
+ Incl. two ball handles | climbing handles
+ With angled, parallel and straight handles in dierent grip widths
+ Several ways to attach support straps or a sling trainer
Technical Data
Packaging dimensions (L x W x H): 65 cm x 49 cm x 13 cm
Weight (gross, incl. packaging): 14 kg
Max. load approx.: 120 kg
Assembly
Before assembly, take a close look at the individual assembly steps shown
and carry out the assembly in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly.
Tighten the screws using the tool only when you are instructed to do
so.
Assemble both side frames (1) and both small handles (3) to the big
handle (2) by using two bolts (4), four washers (5) and two lock nuts (6)
on each side.
Art. No. TF-PU1207HT
No. Description Qty.
1 Side Frame 2
2 Big Handle 1
3 Small Handle 2
4 Bolt M10*65 4
5 Washer 10 8
6 Lock Nut M10 4
7 Expansion Bolt Set 6

Chin-up Bar
Wall Assembly General Safety Instructions
⚠DANGER
+ Before you start using the equipment, you should consult your
physician that this type of exercise is suitable for you from a health
perspective.
+ Note that excessive training can seriously endanger your health. If
you notice any signs of weakness, nausea, dizziness, pain, shortness of
breath, or other abnormal symptoms, stop exercising immediately and
seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under 14 years.
+ Children should not be allowed unsupervised access to the equipment
+ Persons with disabilities must have a medical license and must be
under strict observation when using the equipment.
+ The equipment is strictly for use by one person at a time.
⚠CAUTION
+ Make sure that nobody is within the range of motion of the equipment
during training so as not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.
Care, Maintenance and Storage
⚠WARNING
The storage location should be chosen so that improper use by third
parties or children can be prevented.
1. Clean the device with a dry soft cloth.
2. Store the device in the supplied carton in a dry environment.
Warranty Information
Training equipment from Taurus® is subject to strict quality control.
However, if a tness equipment purchased from us does not work
perfectly, we take it very seriously and ask you to contact our customer
service as indicated. We are happy to help you by phone via our service
hotline.
Warranty period
The warranty periods, shown on our web shop, begin on delivery
of the tness equipment. The respective warranty periods for your
equipment can be found on its product website.
Contact
DE
Technical Support
📞[phone]
📧[email protected]
Service
📞0800 20 20 277
(freecall)
📧[email protected]
UK
Technical Support
📞[phone]
📧support@powerhousetness.co.uk
Service
📞[phone]
FR
Technical Support & Service
📞[phone]
[phone]
📧service-france@tshop.fr
DK
Technical Support & Service
📞80 90 16 50
[phone]
📧info@tshop.dk
INT
Technical Support & Service
📞[phone]
📧service[email protected]
BE
Technical Support & Service
📞02 732 46 77
[phone]
📧info@tshop.be
NL
Technical Support & Service
📞[phone]
📧info@tshop.nl
AT
Technical Support & Service
📞0800 20 20 277
(freecall)
[phone]
📧[email protected]
CH
Technical Support & Service
📞0800 202 027
[phone]
📧[email protected]
PL
Technical Support & Service
📞22 307 43 21
[phone]
📧info@tshop.pl

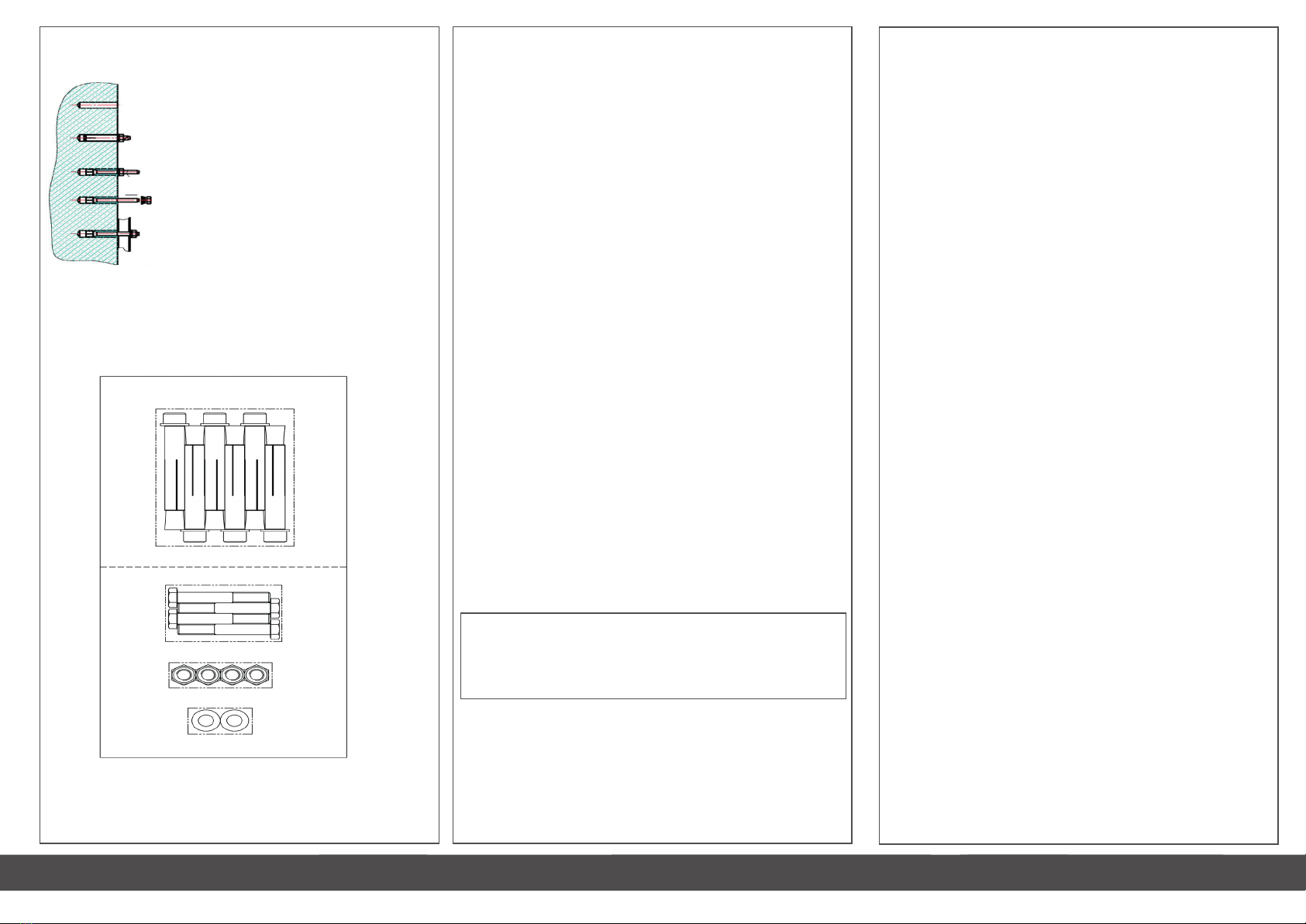

1. Drill a hole with a minumum depth of 80mm.
2. Insert the expansion screw (with cover) into the
hole.
3. Tighten the nut, causing the bolt to unscrew and
the inside to spread and x itself into the wall.
4. Unscrew the nut.
5. Slide the wall support on the bolt and x it with
the previously unscrewd nut.
Expansion screw x 6 PCS
M10*65 x 4 PCS
M10 x 4 PCS
Ø 10 x 8 PCS
