Techni Mobili RTA-910TV User manual

Thank you for purchasing our product.
MODEL RTA-910TV
ASSEMBLY INSTRUCTIONS
REV.NTL-6366-0222-0

•Please read carefully the assembly instructions
before the installation.
•Do not discard this manual or any of the packaging
material until the unit has been completely
assembled.
•Might require two people.
P. 1 RTA-910TV P. 1

P. 2 RTA-910TV P. 2
1
x1
2
x1
3
x2
4
x1
Bottom panel Right panel Partition panel,
bottom
Left panel
MAIN PARTS LIST
5
x1
6
x2
7
x1
8
x2
Middle panel Partition panel, top Top panel Front panel,
top and bottom
9
x1
10
x1
Sliding door
Support panel,
bottom center
11
x1
12
x2
Back panel,
bottom
Back panel, top
LIST OF HARDWARE, SCREWS AND FITTINGS
PART QTY ITEM
A30 M6x30
Dowels
B20 M5x31
Bolts
C20 M2x9
Cam locks
D30 ST3.5x12
E8ST3.5x40
F2ST3.5x25
G15 Plastic corner
bracket
H7Ø12x6mm
Glide studs
PART QTY ITEM
I12
Ø15mm
Plastic
adhesive
stickers
J1128mm
Handle
K2
sets
Bottom roller
with top glide
and screws
for door
L10 13x13mm
Metal junction
caps for nails
M50 22*Ø2mm
Nails
N1Touch-up
chalk
NOTE: You will need for the assembly a Phillips screwdriver and mallet/hammer (not included).
13
x1
Sliding track
Bottom
roller
Top
glide
Screws
(x4)
++

MAIN PARTS LAYOUT (FOR REFERENCE):
P. 3 RTA-910TV P. 3
7
6
5
6
2
11
9
3
3
4
13
8
8
11
10

P. 4 RTA-910TV P. 4
☛
☛
This unit uses cam bolts and locks. The following explains how to use them.
☛
☛
This unit uses cam bolts and locks. The following explains how to use them.
This unit uses cam bolts and locks. The following explains how to use them.
This is not an assembly step; it is a guide for when you are actually doing the
This is not an assembly step; it is a guide for when you are actually doing the
assembly using this kind of hardware.
Cam Bolt
Cam Lock
1. Screw the bolt into the corresponding hole
on panel “A”.
3. Insert the cam lock on panel “B” making
sure it goes aligned to receive the bolt’s head.
4. Turn the cam lock clockwise. This will lock the
parts together and will close any gaps.
Alignment: The cross points
towards the panel “A” with the bolt.
2. Join panel “B” to panel “A”. If panel “B” comes
with the cam lock pre-installed, make sure it is
aligned to receive the bolt’s head (refer to point
3). There might be a very small gap between the
panels which is normal.
Panel “B”
Panel “B”
Panel “B”
Panel “B”
Panel
“B”

BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
❶Do aquick inventory
to make sure the package
contains all the parts and
hardware listed in the
assembly instructions.
❷Missing, damaged
and defective parts can
be replaced at no cost
to you. Please refer to
the last pages on this
manual.
❹If during assembly
you find an issue or
need clarification, please
contact our Customer
Service for assistance.
Please refer to the last
pages on this manual.
❺On each step read the
instructions and analyze
the illustrations thoroughly
before proceeding to do the
assembly.
❽Do not overtighten
or force the screws as
they might break, strip,
damage the threads of
the holes or get stuck
inside the part.
❻Make sure you
understand which
hardware will be used on
each step.Using the
wrong size of screw, bolt
or pin might strip the
threads or cause damage
to the part in which it is
being used.
❼To avoid
misalignments, always
leave the screws loose
and tighten them until
all pieces are
positioned correctly.
❾Sometimes the laminate might cover
partially or entirely the hole on apanel.If there
is no visible hole for the screw, pass and press
the tip of your finger over the area where the
hole should be located to feel the indentation,
and once found, carefully pierce the laminate to
reveal the hole underneath.
❿If the hole seems too small for the screw,
first make sure you are using the correct size of
screw and that it’s been installed in the correct
hole.If the hole still appears to be too small,
carefully pierce the laminate to reveal the
hole’s actual size.
P. 5 RTA-910TV P. 5
❸The replacement parts
service is limited to the
48 contiguous United States.
If you reside in Alaska,
Hawaii, Puerto Rico,
U.S. territories or other
countries, please contact the
supplier from where the unit
was purchased.

ASSEMBLY STEPS
P. 6 RTA-910TV P. 6
•Insert the dowels Ainto the indicated holes on panels 2, 3, 4and 6.
•Attach the bolts Finto the indicated holes on panels 2and 4.
(Front)
STEP 1
Hardware:
A
Dowels
20
Pcs
(NOT INCLUDED)
F
Bolts
8
Pcs
(NOT INCLUDED)
4
6
All dowels will
insert into the
innermost holes
(Top)
(Front)
(Top)
2
33
•Insert the dowels A into the innermost holes on the side edges of
panels 1 and 5.
•Insert the sliding tracks 12 into the grooves on panels 1 and 5 using a
rubber mallet, but tap gently to avoid breaking them.
STEP 2
Hardware:
A
Dowels
8
Pcs
(NOT INCLUDED)
1
(Front)
(Front)
5
6
12
12

P. 7 RTA-910TV P. 7
•Join the left panel 4to the bottom panel 1.
•Insert the cam locks Cin panel 1and turn them to lock the panels as
explained in page 4.
STEP 3
Hardware:
CCam
locks
2
Pcs
(NOT INCLUDED)
Cam locks alignment
(Refer to page 4)
4
1
(Front)
(Back)
(Top)
Make sure the sliding
track is located at the
front on panel 1.
(Front)
Assemble the bottom partition panels 3 to the bottom panel 1 with
screws E from underneath.
(Top)
(Front)
(Back)
STEP 4
Hardware:
E
M3.5x40
4
Pcs
(NOT INCLUDED)
1
3
After joined, the back
of panels 3 will be
flushed at the back but
receded at the front
(Front)
3
(Back)
(Top)
front on panel

P. 8 RTA-910TV P. 8

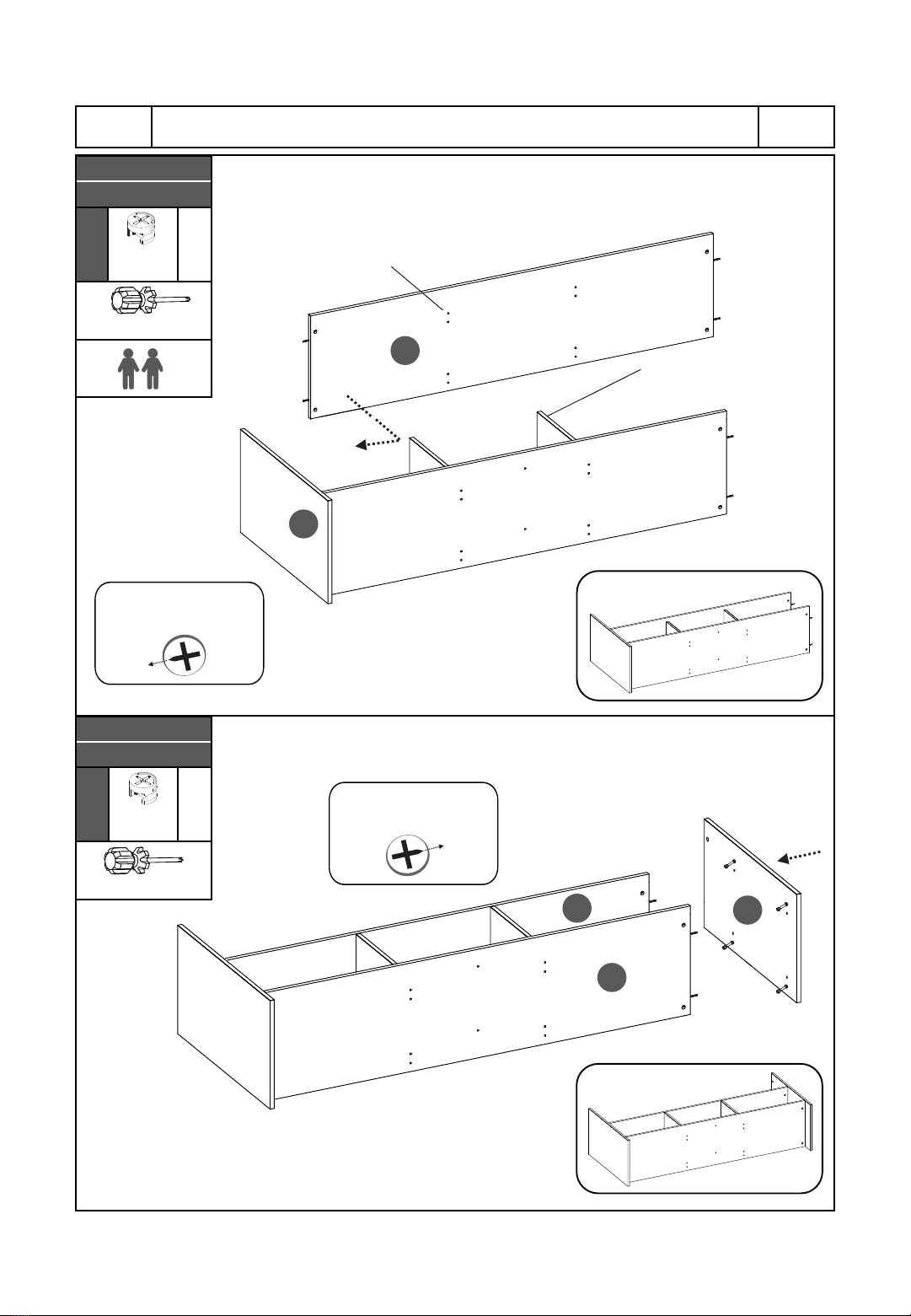

With the help of another person, assemble panel 5to panel 4 with cam
locks Cas explained in page 4. Please note that the panels 3 will also
be receded from this panel.
Front holes are farther
away from the edge
STEP 5
Hardware:
CCam
locks
2
Pcs
(NOT INCLUDED)
The Panels 3 will also be
receded from panel 5
Assemble panel 2 to panels 1 and 5 with cam locks C as explained
in page 4.
(Top)
(Front)
STEP 6
Hardware:
CCam
locks
4
Pcs
(NOT INCLUDED)
1
2
5
4
5
(Front)
Cam locks alignment
(Refer to page 4)
Cam locks alignment
(Refer to page 4)

P. 9 RTA-910TV P. 9
•Assemble the bottom support panel 13 to the bottom panel 1with
screws Dthrough the brackets G.
•Assemble the front panel 8that has the middle bracket G to panels
1, 2, 4and 13 with screws D through the brackets G.
(The one with with one
bracket G in the middle)
View from the bottom:
(Front)
(Back)
STEP 8
Hardware:
D
M3.5x12
9
Pcs
(NOT INCLUDED)
2
1
8
4
STEP 7
Hardware:
A
Dowel
2
Pcs
(NOT INCLUDED)
D
M3.5x12
15
Pcs
G15
Pcs
(NOT INCLUDED)
13
This middle bracket G installs
only on one of of the two
panels 8 and facing this way
(Top)
•Insert dowels Ainto the indicated holes on the support panel 13.
•Attach the brackets Gto panels 8and 13 with screws D as shown.
(Top)
8
8
(Top)
13
(Top)

P. 1 0 RTA-910TV P. 1 0
•Attach the glide studs H on the bottom of panels 2, 4 and 13.
•With the help of another person, bring the unit upright.
•Secure panel 5 to panels 3 with screws E through the indicated holes.
•Attach the bolts B to panel 5in the indicated holes.
STEP 9
Hardware:
H
Glides
5
Pcs
(NOT INCLUDED)
STEP 10
Hardware:
E
M3.5x40
4
Pcs
BM5x31
Bolts
4
Pcs
(NOT INCLUDED)
4
2
3
5
13
3
8
EB

P. 11 RTA-910TV P. 11
Assemble the top partition panels 6 to panel 5 with cam locks B as
explained in page 4.
• With the help of another person (to ensure a good alignment of the
pieces), assemble the other front panel 8 to the top panel 7 with
screws D through the brackets G.
•Attach the bolts B to panel 7 in the indicated holes.
(Top)
(Bottom)
(Front)
(Back)
STEP 11
Hardware:
B
Cam locks
4
Pcs
(NOT INCLUDED)
STEP 12
Hardware:
D
M3.25x12
4
Pcs
BM5x31
Bolts
8
Pcs
(NOT INCLUDED)
6
6
7
5
Cam locks alignment
(Refer to page 4)
8

P. 1 2 RTA-910TV P. 1 2
•
•
With the help of another person, assemble the top panel 7to panels
2, 4and 6with cam locks Bas explained in page 4.
Secure the front panel 8to the side panels 2and 4with screws D
through the brackets G.
•Assemble the handle Jto the front face of the door 9with screws F.
•Attach the top glides Kto the top holes on the other side of the
door 9using the own screws that come in the set K.
•Attach the bottom rollers K to the bottom holes with own screws,
but leave themloose to allow the roller to pivot and make possible
to install the door into the unit in the next step.
STEP 13
Hardware:
D
M3.5x12
2
Pcs
BCam
locks
8
Pcs
(NOT INCLUDED)
STEP 14
Hardware:
F
M3.5x25
2
Pcs
J
Handle
1
Pc
K
x4
sets
(NOT INCLUDED)
7
Leave the bottom screws loose
((Top))
(F(Bottom))
9
4
2
6
K-Roller
Cam locks alignment
(Refer to page 4)
6
8
2
J
K-Glide
F
K-Screw
K-Screw

P. 1 3 RTA-910TV P.13
•
•

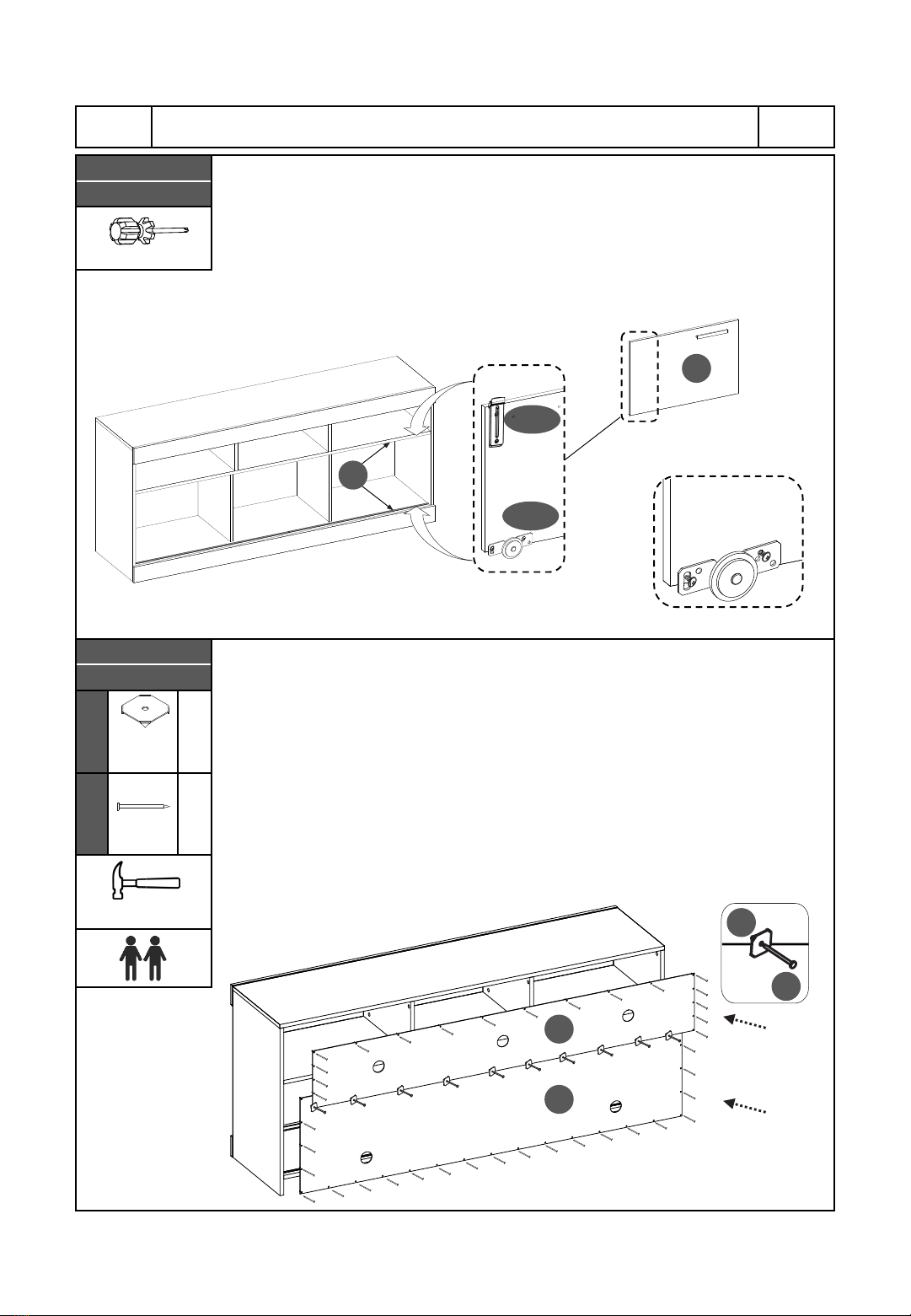

Insert the door 9into the unit by engaging first the top glides Kinto
the top sliding track 12,then engage the bottom rollers Kinto the
bottom sliding track 12.
Secure the bottom rollers Kto the door 9by tightening the screws
from inside the unit.
With the help of another person, use a minimum of 12 nails Mand a
minimum of 4 junction plates Lto attach the bottom back panel 10 and
the top back panel 11 to the back side of the unit.
Important:
•The panels don’t cover the back completely, so make sure to align
and center with all sides.
•Use the plates L in between the two panels only.
•Center the nails on the panels, if they go too close to the edge of the
panel, it could split the wood.
•Make sure the nails enter as straight as possible into the panels. If
they go slanted they could split the wood.
(Front)
(Back)
STEP 15
Hardware:
STEP 16
Hardware:
L
12
to
50
Pcs
M
Junction
plates
4
to
10
Pcs
(NOT INCLUDED)
9
K-Roller
K-Glide
N
First insert top glides
into top track
Then insert bottom
rollers into bottom track
Last tighten the screws
from inside the unit
(NOT INCLUDED)
12
11
10
M
Nails

ALL DONE!
Give yourself a nice pat on the back. You did a
great job!
P. 1 4 RTA-910TV P. 1 4
•Attach the stickers I to cover the cam locks.
•If needed, use the touch-up chalk N to fix any small damages or
imperfections on the finish.
STEP 17
Hardware:
I
Covers
12
Pcs
N
Touch-Up
1
Pc

WEIGHT LIMITS
P. 1 5 RTA-910TV P. 1 5
•Do not exceed the indicated weight limits.
•Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
•Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and
water, then dry with a clean towel.
•Do not use solvents or abrasive materials to clean the unit.
•If you decide to use a cleaning agent, test first on an area hidden from view such as
underneath the top panel.
•Do not sit on the unit or step on it to use it as a step ladder.
•Do not allow small children to play inside the compartments or climb on the unit as your
TV set might tip over and fall on them causing serious injuries.
•Do not pull, push or drag the unit to move it for more than 1 feet. The unit must be lifted by
at least 2 persons when moving in the same or adjacent rooms.
•Before moving the unit, make sure to secure or remove your TV set or any other objects
that are heavy or might fall off. Please note that lifting from the top panel with too much
weight on the product might lead to part damage/separation.
•When lifting the unit, use both hands and bend your knees, not your backs.
•When transporting the unit to places far away, protect and secure the unit to avoid damage
in transit.
•Shall any part of the unit become defective during the warranty period, replacement parts
might be available to you at no charge. Please refer to the last pages on this manual.
•The warranty does not extend to regular wear and tear, nor the manufacturer assumes
liability for damages or consequences due to accidents, incorrect assembly, negligence,
improper use, modifications, or not heeding the above warnings.
CARE, MAINTENANCE AND SAFETY WARNINGS:
55 Lbs.
(25 Kg)
6.6 Lbs.
(3 Kg)
33 Lbs.
(15 Kg)
33 Lbs.
(15 Kg)
6.6 Lbs.
(3 Kg)
33 Lbs.
(15 Kg)
6.6 Lbs.
(3 Kg)

P. 1 6 RTA-910TV P. 1 6
RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA
Products or its authorized resellers that this product will be free from defects in its
workmanship and materials, under normal use and service conditions, as described herein.
"Defects" as used in this warranty, is defined as any imperfections that impair the use of the
furniture or product. RTA Products LLC will replace any defective part, at its discretion, and
without charge to the original purchaser other than the freight from the end consumer to RTA
Products.
Replacement parts can only be supplied if parts are available. Items out of production may be
unavailable. This warranty will be effective for the applicable time period beginning the date
of purchase on your original sales receipt. RTA product’s obligation under this warranty is
limited to repairing or replacing products or parts as provided herein. This product has been
designed for and is intended for office and home-office use only. This warranty is Original
Purchaser’s sole remedy for product defects, and this warranty does not extend to any
product, or damage to any product, caused by or attributed to abuse or misuse, products
used for commercial or rental purposes, use modifications of, or attachments to the product,
and products or parts not used, maintained, or extended hereunder is in lieu of any and all
other warranties, express or implied, including without limitations any implied warranty or
merchantability or of fitness for a particular purpose. Please note, all desks made with PVC
Laminate surface should not be exposed to direct sunlight, as it may damage the material.
Damage of this nature is not covered under this warranty.
RTA Products will not be responsible for indirect, special, incidental or consequential
damages. This warranty is limited to merchandise purchased in the Continental United
States, excludes AK, HI and PR. Some States do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to
you. This warranty gives you specific legal rights. You may also have other rights that may
vary from state to state.
RTA Products will advise you of the procedure to follow in making warranty claims. The
following are the procedures for warranty claims:
a. Call us Monday –Friday, from 9am-5pm (Eastern Time) at [phone] to explain the
defect and give your name, address and phone number. Please have ready the model
number of our product, date and place of purchase. You can also write to us by e-mail
to [e-mail] and include the same information.
b. If we determine that replacement will remedy the situation, and in order to determine the
extent or the cause of the defect, purchaser will need to send the part in question at
purchaser’s expense. Once we receive the part, we will examine it and determine
whether the claim is valid (or not), and then proceed to send the replacement. We will
ship the replacement at our expense.
TECHNI MOBILI DESK WARRANTY
DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY
