Techni Mobili RTA-739DL User manual

Thank you for purchasing our product.
MODEL RTA-739DL
ASSEMBLY INSTRUCTIONS
REV.PRF-6378-0222-0

•Please read carefully the assembly instructions
before the installation.
•Do not discard this manual or any of the packaging
material until the unit has been completely
assembled.
•Might require two people.
P. 1 RTA-739DL P. 1

P. 2 RTA-739DL P. 2
1
x1
2
x1
3
x1
4
x1
Right frame Left frame Center-left leg Center-right leg
MAIN PARTS LIST
5
x1
6
x1
Left-top-back tube Left-bottom-back tube
14
x1
Left tabletop
12
x4
15
x1
Corner top
16
x1
Right tabletop 17
x2
Right shelf panel
7
x1
8
x1
Left-top-front tube Right-top-back tube
9
x1
10
x1
Right-bottom-back tube Right-top-front tube
Corner-bottom-back tube Foot
11
x1
13
x1
Earphones
hook

P. 3 RTA-739DL P. 3
MAIN PARTS LIST
18
x1
Left panel 19
x1
Right panel 20
x1
Back panel 21
x1
Bottom panel
22
x3
Drawer front panel 23
x3
Drawer left panel 24
x3
Drawer right panel 25
x3
Drawer back panel
26
x3
Drawer bottom
panel
27
x3
Sets
Sliders*, each set of 4 pcs
“Flat”: 2 pcs, go inside the cabinet “L shaped”: 2 pcs, go on the drawers
LIST OF HARDWARE, SCREWS AND FITTINGS
PART QTY ITEM
A20 M5x42
bolts
B20 Ø15x12
Cam locks
C8Ø8x40
Dowels
D40 M3.5x14
E4M7x50
F7M6x12
G12 M6x40
H27 M6x30
PART QTY ITEM
I12 M5x40
J6M4x18
K396mm
Handle*
L3Corner
bracket
1Screwdriver
1Allen
Wrench
* These come
with the
sliders 27
* Screws D
come packaged
together with
these pieces.
* This piece is in
Silver for desk
colors Sand and
Walnut
* This piece is
in Gold for desk
color Gold

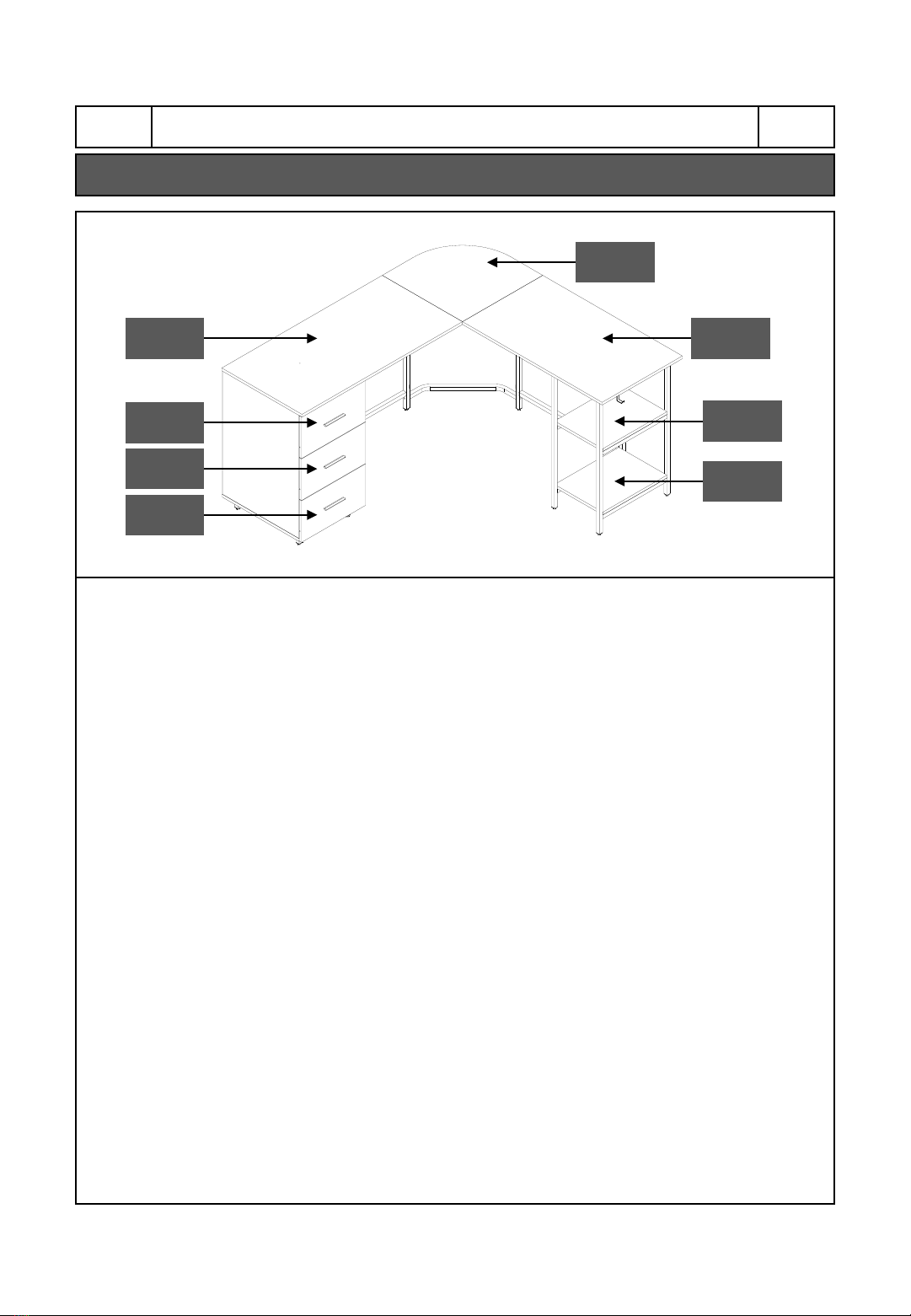

MAIN PARTS LAYOUT (FOR REFERENCE):
P. 4 RTA-739DL P. 4

P. 5 RTA-739DL P. 5
☛
☛
This unit uses cam bolts and locks. The following explains how to use them.
☛
☛
This unit uses cam bolts and locks. The following explains how to use them.
This unit uses cam bolts and locks. The following explains how to use them.
This is not an assembly step; it is a guide for when you are actually doing the
This is not an assembly step; it is a guide for when you are actually doing the
assembly using this kind of hardware.
Cam Bolt
Cam Lock
1. Screw the bolt into the corresponding hole
on panel “A”.
3. Insert the cam lock on panel “B” making
sure it goes aligned to receive the bolt’s head.
4. Turn the cam lock clockwise. This will lock the
parts together and will close any gaps.
Alignment: The cross points
towards the panel “A” with the bolt.
2. Join panel “B” to panel “A”. If panel “B” comes
with the cam lock pre-installed, make sure it is
aligned to receive the bolt’s head (refer to point
3). There might be a very small gap between the
panels which is normal.
Panel “B”
Panel “B”
Panel “B”
Panel “B”
Panel
“B”

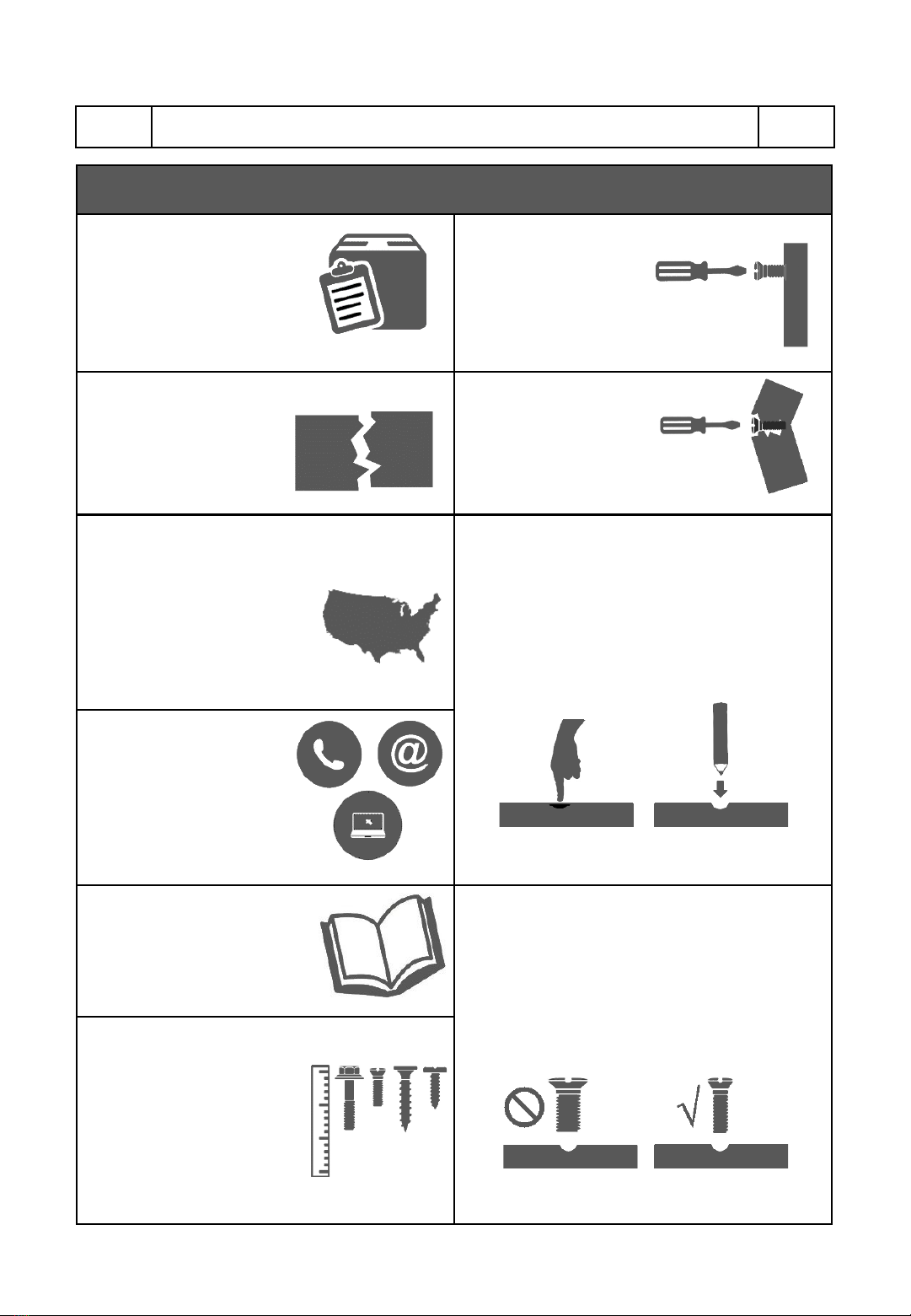

BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
❶Do aquick inventory
to make sure the package
contains all the parts and
hardware listed in the
assembly instructions.
❷Missing, damaged
and defective parts can
be replaced at no cost
to you. Please refer to
the last pages on this
manual.
❹If during assembly
you find an issue or
need clarification, please
contact our Customer
Service for assistance.
Please refer to the last
pages on this manual.
❺On each step read the
instructions and analyze
the illustrations thoroughly
before proceeding to do the
assembly.
❽Do not overtighten
or force the screws as
they might break, strip,
damage the threads of
the holes or get stuck
inside the part.
❻Make sure you
understand which
hardware will be used on
each step.Using the
wrong size of screw, bolt
or pin might strip the
threads or cause damage
to the part in which it is
being used.
❼To avoid
misalignments, always
leave the screws loose
and tighten them until
all pieces are
positioned correctly.
❾Sometimes the laminate might cover
partially or entirely the hole on apanel.If there
is no visible hole for the screw, pass and press
the tip of your finger over the area where the
hole should be located to feel the indentation,
and once found, carefully pierce the laminate to
reveal the hole underneath.
❿If the hole seems too small for the screw,
first make sure you are using the correct size of
screw and that it’s been installed in the correct
hole.If the hole still appears to be too small,
carefully pierce the laminate to reveal the
hole’s actual size.
P. 6 RTA-739DL P. 6
❸The replacement parts
service is limited to the
48 contiguous United States.
If you reside in Alaska,
Hawaii, Puerto Rico,
U.S. territories or other
countries, please contact the
supplier from where the unit
was purchased.

ASSEMBLY STEPS

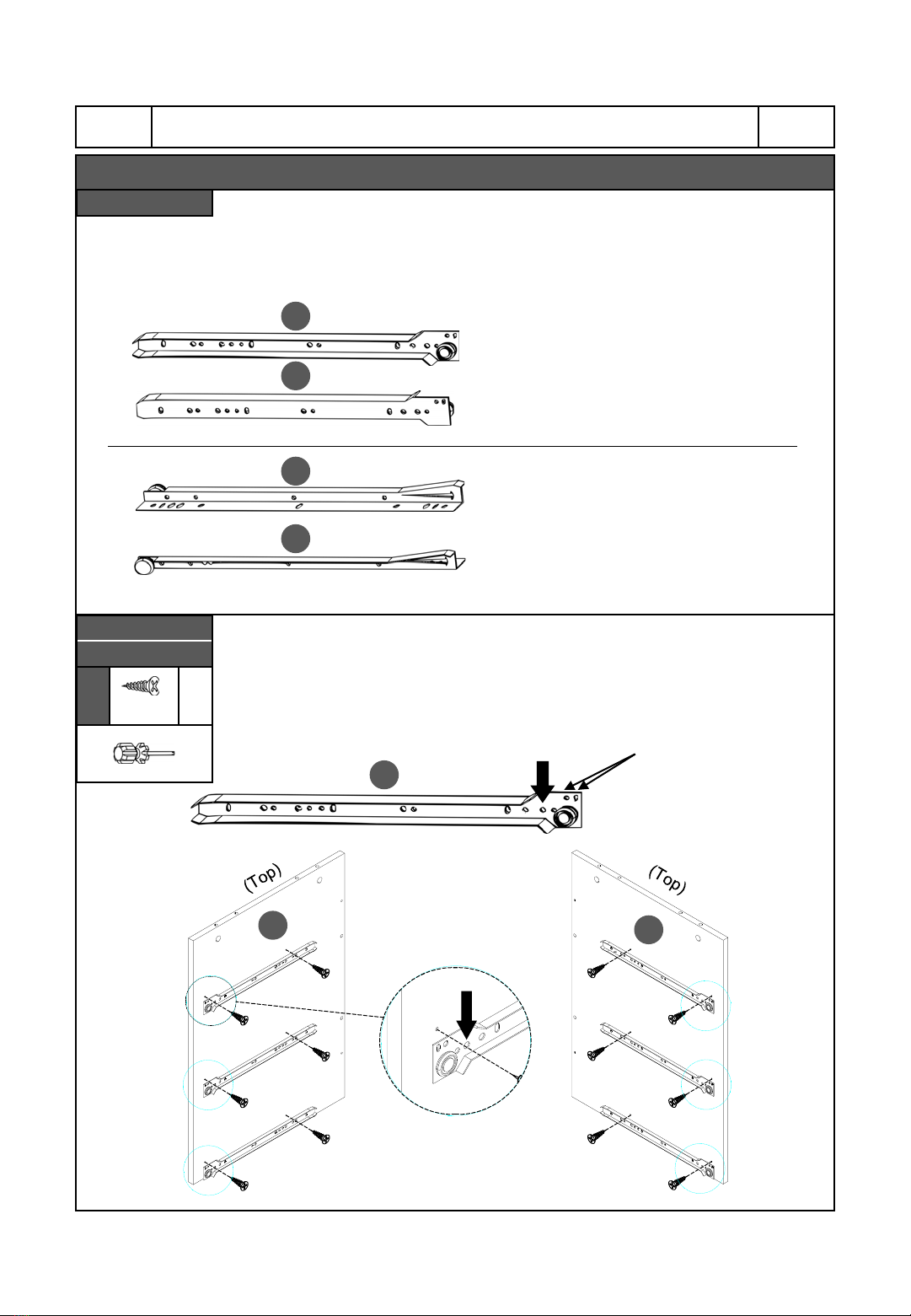

Grab all the sets of sliders 27 and separate them into 2 groups according
to their shape:
- The “Flat” ones will be used on the next step.
- The “L Shaped” will be used until step 18, set them aside.
STEP 1
P. 7 RTA-739DL P. 7
Assemble the “Flat” sliders 27 to the cabinet panels 18 and 19 with
screws D, making sure the wheel faces towards the front of the panel.
Please note the sliders attach at the front on the 4th hole and the wheel
faces down with 2 empty holes above it.
(x3)
(Front)
4th hole from front
STEP 2
Hardware:
D
M3.5x14
12
Pcs
(Front)
(Front)
(Front)
The “Flat” ones will
be used on step 2.
The “L-Shaped” will
be used on step
18, set them aside.
27
27
27
27
(x3)
(x3)
(x3)
(Front)
2 empty holes
above the wheel
27
19
18
(Front)
(Front)

P. 8 RTA-739DL P. 8

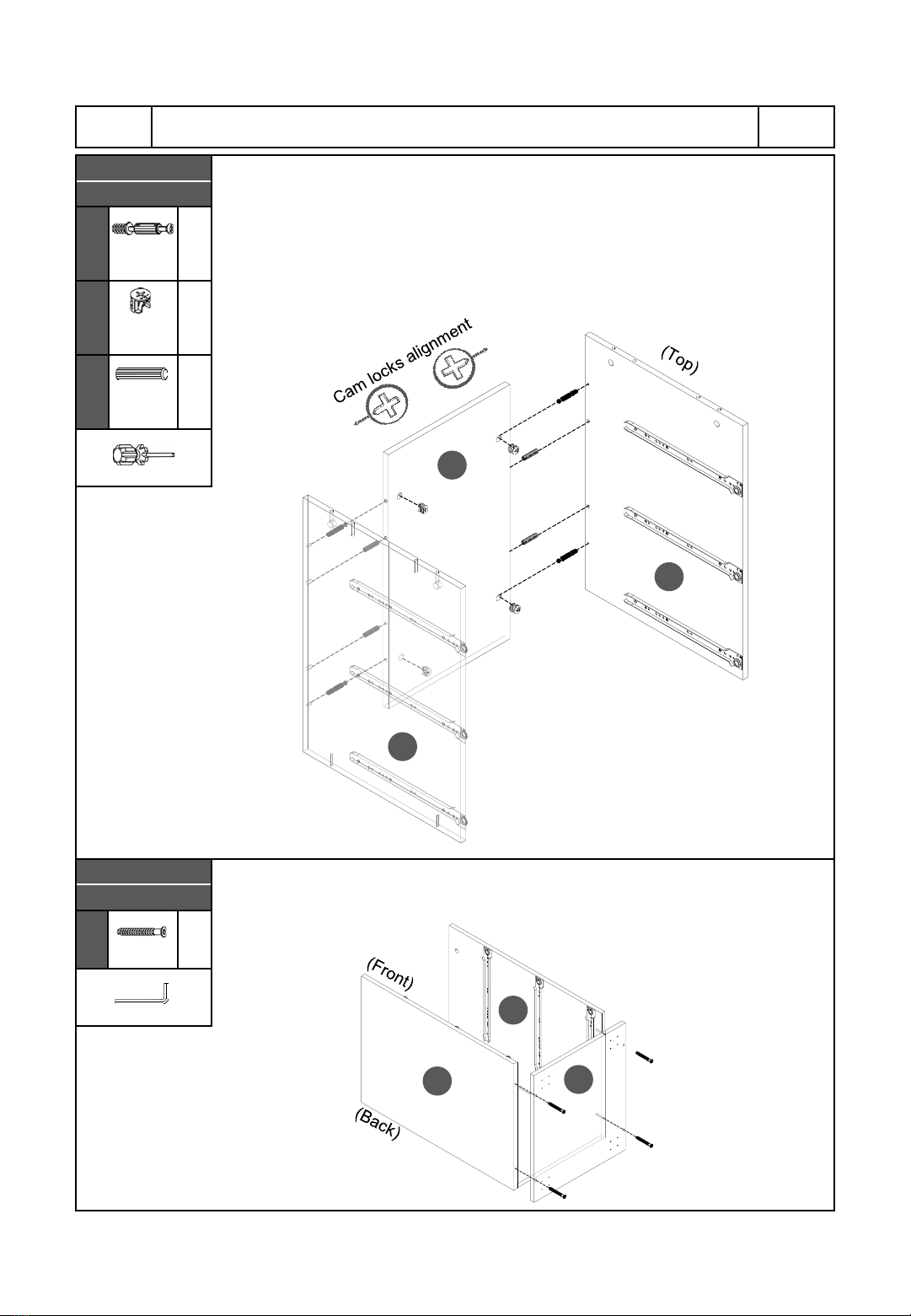

•Insert the dowels Cin the indicated holes on panels 18 and 19.
•Attach the bolts Ainto the indicated holes on panels 18 and 19.
•Join panel 18 to 20, insert the cam locks Bon panel 20 and turn them
to lock the pieces as explained in page 5.
•Join panel 19 to 20,insert the cam locks Bon panel 20 and turn them
to lock the pieces as explained in page 5.
•Turn the cabinet over its back side.
•Assemble the bottom panel 21 to the panels 18 and 19 with screws E.
STEP 3
Hardware:
AM5x42
Bolt
4
Pcs
BØ15x12
Cam lock
4
Pcs
CØ8x40
Dowel
4
Pcs
STEP 4
Hardware:
E
M7x50
4
Pcs
(Front)
19
18
20
(Top)
19
18 21

P. 9 RTA-739DL P. 9

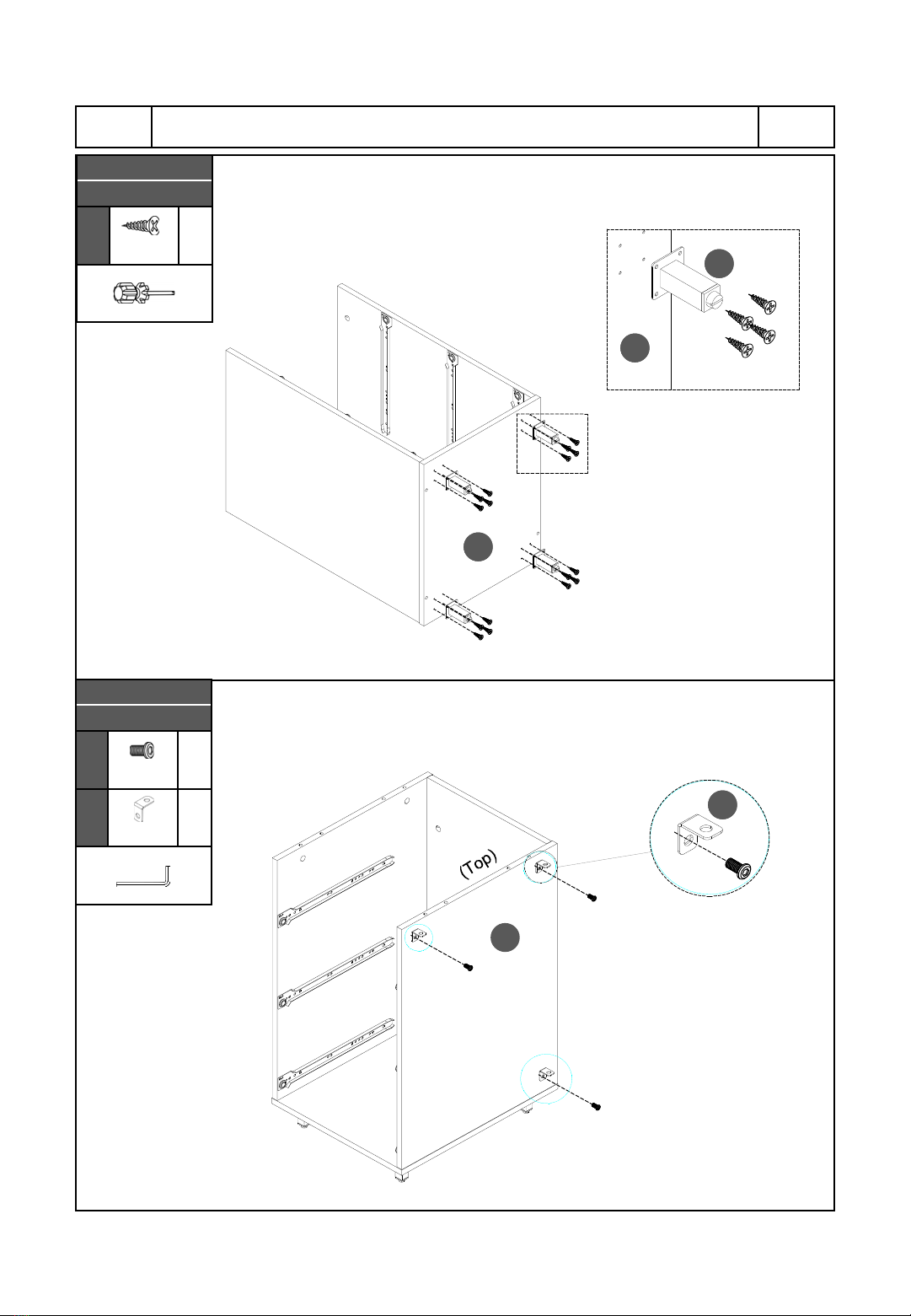

Attach the feet 12 to the bottom panel 21 with screws D.
Bring the cabinet upright and attach the brackets L to panel 19 facing UP
with screws F.
STEP 6
Hardware:
F
M6x12
3
Pcs
L
Brackets
3
pcs
STEP 5
Hardware:
D
M3.5x14
16
Pcs
12
21
21
19
(Back)
L

P. 1 0 RTA-739DL P. 1 0
Do not tighten any screws until the end of step 13.
•Place the tubes 5, 6and 7on top of the brackets Lin their
respective position and assemble them with screws Fas shown.
•Assemble the leg 3to the tubes 5, 6and 7with screws G.
•Assemble the leg 4to leg 3with a screw G.
•Assemble the corner bottom tube 11 to legs 3and 4with screws G.
STEP 7
Hardware:
F
M6x12
3
Pcs
G
M6x40
3
Pcs
STEP 8
Hardware:
G
M6x40
3
Pcs
6
5
3
7
L
Tubes go ON TOP
of the brackets
G
F
4
3
11

P. 11 RTA-739DL P. 11

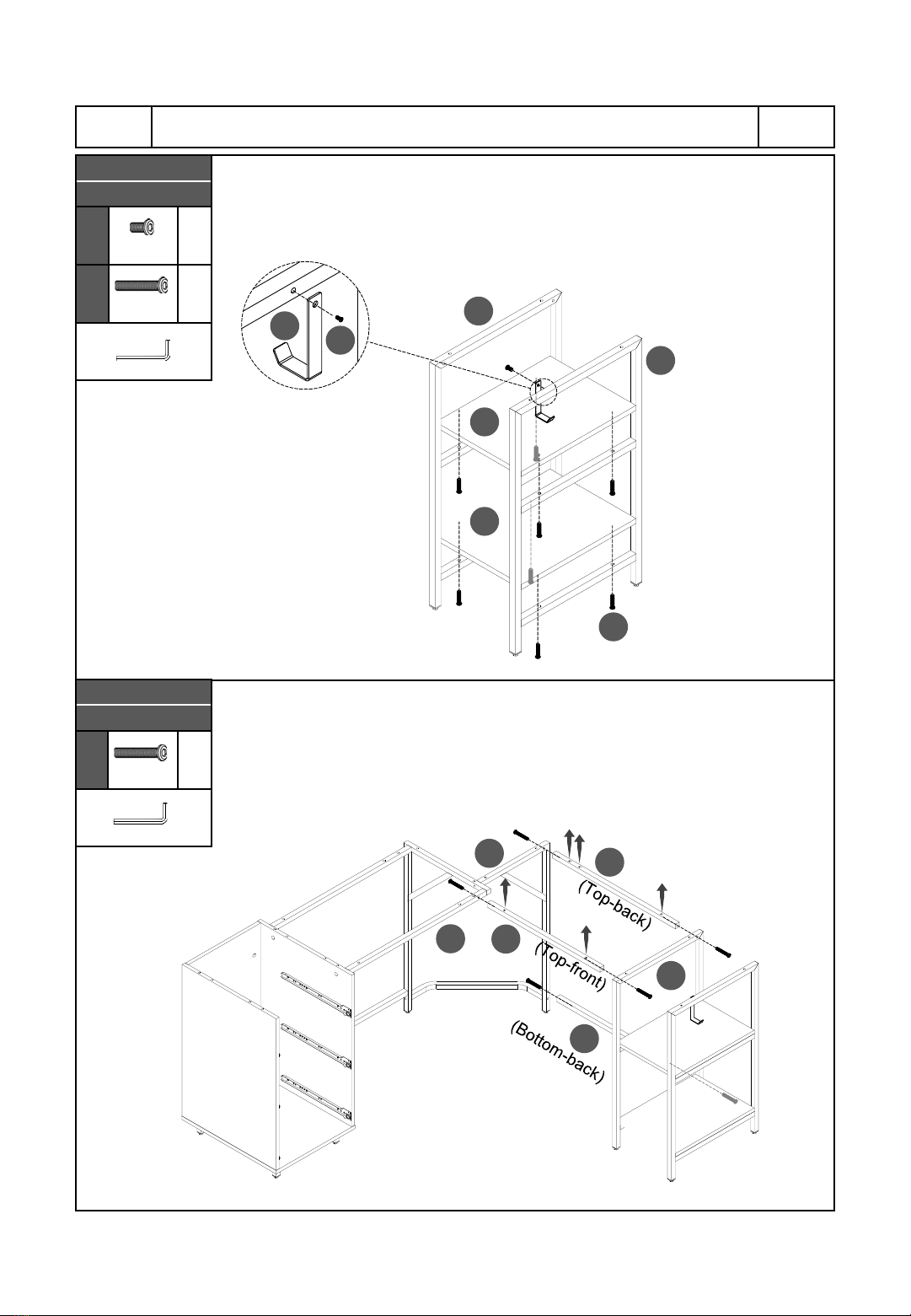

•Assemble the shelves 17 to the frames 1and 2with screws Hfrom
underneath as shown.
•Attach the hook 13 to the frame 1with screw Ffrom inside.
•Pay attention to the orientation of the holes on the tubes.
•Assemble the tubes 8and 9to the leg 4in their respective positions
with screws G.
•Assemble the tube 10 to tube 7with screw G.
•Assemble the frame 2to the tubes 8, 9and 10 with screws G.
STEP 9
Hardware:
F
M6x12
1
Pc
H
M6x30
8
Pcs
STEP 10
Hardware:
G
M6x40
6
Pcs
2
1
13
17
(Front)
(Back)
(View from inside)
17
F
H
9
8
2
10
7
4

P.12 RTA-739DL P.12
•
•

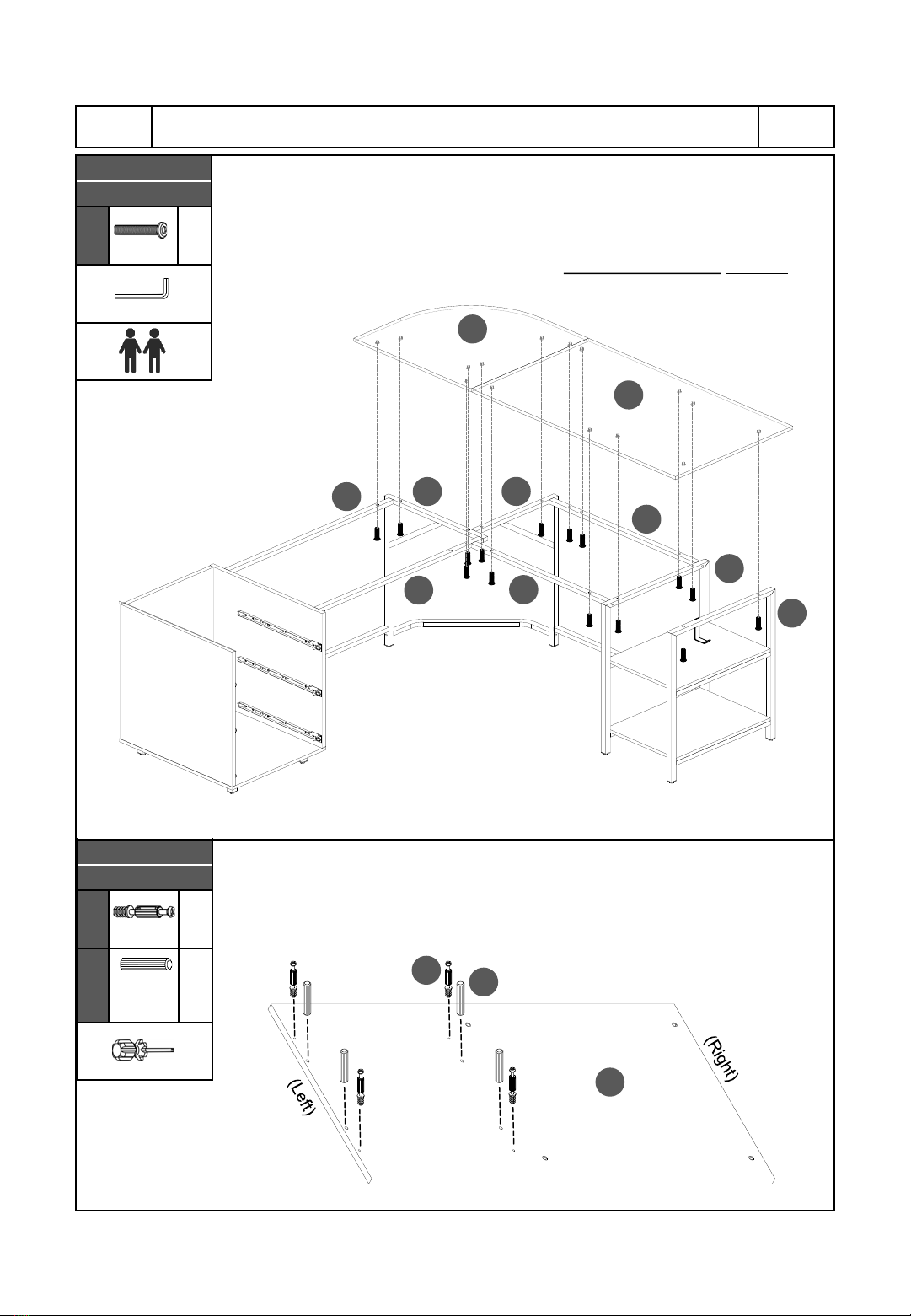

With the help of another person, place the corner top 15 and the right
tabletop 16 over the structures.
Using screws H from underneath, secure the corner top 15 to the
tubes 3, 4, 5, 7 and 8,and secure the right tabletop 16 to the frames
1and 2and to the tubes 8and 10, but LEAVE THEM ALL LOOSE to
allow flexibility to correct any misalignments.
STEP 11
Hardware:
H
M6x30
15
Pcs
STEP 12
Hardware:
A
M5x42
4
Pcs
CØ8x40
Dowel
4
Pcs
•Attach the bolts Aand the dowels Con the indicated holes on the left
tabletop 14.
C
A
14
16
15
4
3
7
5
8
10
2
1

P.13 RTA-739DL P.13
•
•
STEP 13
Hardware:
BØ15x12
Cam lock
4
Pcs
•If the panels require alignment, push/pull/lift to get them as aligned as
possible with minimal gaps between them.
•Please note that the tops might not end up 100% perfectly aligned, it
should not be of concern unless the difference in levels and gaps are
considerable that will not allow the desk to function properly.
•When all the tops are installed, proceed to tighten all the screws left
loose from step 7 through step 13 inclusive.
•
With the help of another person, carefully place the left tabletop 14
over the left cabinet making sure the bolts and dowels enter into the
holes of panels 18 and 19.
Insert the cam locks B in panels 18 and 19, and turn them to lock
the tabletop to the side panels.
Secure the tabletop 14 to the tubes 5and 7with screws Hfrom
underneath, but LEAVE THEM ALL LOOSE to allow flexibility.
HM6x30
4
Pcs
18 19
5
14
H
B
7

P. 1 4 RTA-739DL P. 1 4
For each of the 3 drawers, assemble the side panels 23 and 24 to the
back panel 25 with screws I. Please note the alignment of the grooves at
the bottom of the panels.
For each of the 3 drawers, slide
the bottom panel 26 through the
grooves of the side panels and
into the back panel as shown.
STEP 14
Hardware:
I
M5x40
12
Pcs
STEP 15STEP 16
Hardware:
J
M4x18
K
6 front surface of the front panel
Pcs 22 with screws Jas shown.
Or 3
Pcs
For each of the 3 drawers,
assemble the handle Kto the
Silver handles: For desks
colors Walnut and Sand.
Gold handles: For desk
in Gold only.
STEP 17
Hardware:
A
M5x42
12
Pcs
B
Ø15x12
12
Pcs
•For each of the 3 drawers, assemble the front panel 22 to panels 23
and 24 with bolts Aand cam locks Bas explained in page 5. Please
note that the bottom panel 26 will enter into the groove of panel 22.
Or
Or
Or
(Gold)
24
25
23
26
22
(Silver)
23
22
24
26

P.15 RTA-739DL P.15
For each of the 3 drawers, flip them upside-down and assemble the "L"
sliders 27 with screws D,making sure the wheel goes towards the back,
and that they don’t protrude, otherwise, the drawer raises 1” and won’t fit
in the cabinet.
Insert the drawers into the cabinet, starting with the bottom one, them
middle, then top.Insert at an angle with their fronts facing down,
making sure the wheels from the drawer slide in the middle of the sliders
inside the cabinet.
STEP 18
Hardware:
D
M3.5x14
12
Pcs
STEP 19
(Front)
M3.5x14 Pcs
23
27
24

ALL DONE!
Give yourself a nice pat on the back. You did a
great job!
P.16 RTA-739DL P.16
Handles for desk color GOLD only:

WEIGHT LIMITS
P.17RTA-739DLP.17
66 Lbs.
(30 Kg)
•Do not exceed the indicated weight limits.
•Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
•Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and
water, then dry with a clean towel.
•Do not use solvents or abrasive materials to clean the unit.
•If you decide to use a cleaning agent, test first on an area hidden from view such as
underneath the tabletop.
•Do not sit on the unit or lean against it.
•Do not allow small children to play under or over the unit.
•Do not allow small children to reach inside the drawers or compartments without your
supervision.
•Do not pull, push or drag the unit to move it for more than 1 feet. The unit must be lifted by
at least 2 persons when moving in the same or adjacent rooms.
•Before moving the unit, make sure to secure or remove any object that is heavy or might
fall off. Please note that lifting from the tabletops with too much weight on the product
might lead to part damage/separation.
•When lifting the unit, use both hands and bend your knees, not your backs.
•When transporting the unit to places far away, protect and secure the unit to avoid damage
in transit. It is recommended to disassemble in sections if possible.
•Shall any part of the unit become defective during the warranty period, replacement parts
might be available to you at no charge. Please refer to the last pages on this manual.
•The warranty does not extend to regular wear and tear, nor the manufacturer assumes
liability for damages or consequences due to accidents, incorrect assembly, negligence,
improper use, modifications, or not heeding the above warnings.
CARE, MAINTENANCE AND SAFETY WARNINGS:
66 Lbs.
(30 Kg)
88 Lbs.
(40 Kg)
88 Lbs.
(40 Kg)
11 Lbs.
(5 Kg)
11 Lbs.
(5 Kg)
11 Lbs.
(5 Kg)
88 Lbs.
(40 Kg)

RTA Products, LLC warrants to the Original Purchaser who acquired anew product from
RTA Products or its authorized resellers that this product will be free from defects in its
workmanship and materials, under normal use and service conditions, as described
herein."Defects" as used in this warranty, is defined as any imperfections that impair the
use of the furniture or product.RTA Products LLC will replace any defective part, at its
discretion, and without charge to the original purchaser other than the freight from the end
consumer to RTA Products.
Replacement parts can only be supplied if parts are available.Items out of production
may be unavailable.This warranty will be effective for the applicable time period
beginning the date of purchase on your original sales receipt.RTA product’s obligation
under this warranty is limited to repairing or replacing products or parts as provided
herein.This product has been designed for and is intended for office and home-office use
only.This warranty is Original Purchaser’s sole remedy for product defects, and this
warranty does not extend to any product, or damage to any product, caused by or
attributed to abuse or misuse, products used for commercial or rental purposes, use
modifications of, or attachments to the product, and products or parts not used,
maintained, or extended hereunder is in lieu of any and all other warranties, express or
implied, including without limitations any implied warranty or merchantability or of fitness
for aparticular purpose.Please note, all desks made with PVC Laminate surface should
not be exposed to direct sunlight, as it may damage the material.Damage of this nature
is not covered under this warranty.
RTA Products will not be responsible for indirect, special, incidental or consequential
damages.This warranty is limited to merchandise purchased in the Continental United
States.Some States do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you.This warranty
gives you specific legal rights.You may also have other rights that may vary from state to
state.
RTA Products will advise you of the procedure to follow in making warranty claims.The
following are the procedures for warranty claims:
a. Call us Monday –Friday, from 9am-5pm (Eastern Time) at [phone] to explain
the defect and give your name, address and phone number.Please have ready the
model number of our product, date and place of purchase.You can also write to us by
e-mail to [e-mail] and include the same information.
b. If we determine that replacement will remedy the situation, and in order to determine
the extent or the cause of the defect, purchaser will need to send the part in question
at purchaser’s expense.Once we receive the part, we will examine it and determine
whether the claim is valid (or not), and then proceed to send the replacement.We will
ship the replacement at our expense.
P.18 RTA-739DL P.18
TECHNI MOBILI WARRANTY
DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY
TV Stand/Entertainment Center: 2 YEAR WARRANTY

FOR SEVERAL HELP OPTIONS
INCLUDING REPLACEMENT PARTS ORDERS
_________________________________________________________________
VISIT: WWW.TECHNIMOBILI.COM
CLICK ON SUPPORT TAB
Scan QR Code to order replacement parts
OR EMAIL US: [e-mail]
