Tecnosicurezza Pulse Pro T6630/GRP User manual

Pulse Pro
Installation instructions

2 of 20 II_PulsePro_05_eng
Installation instructions
Pulse PRO
Table of contents
TABLE OF CONTENTS 2
MODELS AND CHARACTERISTICS 3
ACCESSORIES 3
AUDIT AND PROGRAMMING ACCESSORIES 3
CERTIFICATIONS 4
IMPORTANT NOTES! 4
KEYPAD DIMENSIONS 6
SWINGBOLT LOCK DIMENSIONS 6
DEADBOLT LOCK DIMENSIONS 7
LATCHBOLT LOCK DIMENSIONS 7
MOTORLOCK LOCK DIMENSIONS 8
MOTOR LATCHBOLT LOCK DIMENSIONS 8
KEYPAD ROTATING KIT INSTALLATION INSTRUCTIONS (ACCESSORY, P.N. T3300) 9
FIXED KEYPAD INSTALLATION INSTRUCTIONS 10
SWINGBOLT LOCK INSTALLATION INSTRUCTIONS 10
DEADBOLT AND LATCHBOLT LOCKS INSTALLATION INSTRUCTIONS 11
MOTORLOCK AND MOTOR LATCHBOLT LOCKS INSTALLATION INSTRUCTIONS 14
FUNCTIONAL TESTS 16
CE DECLARATIONS 17

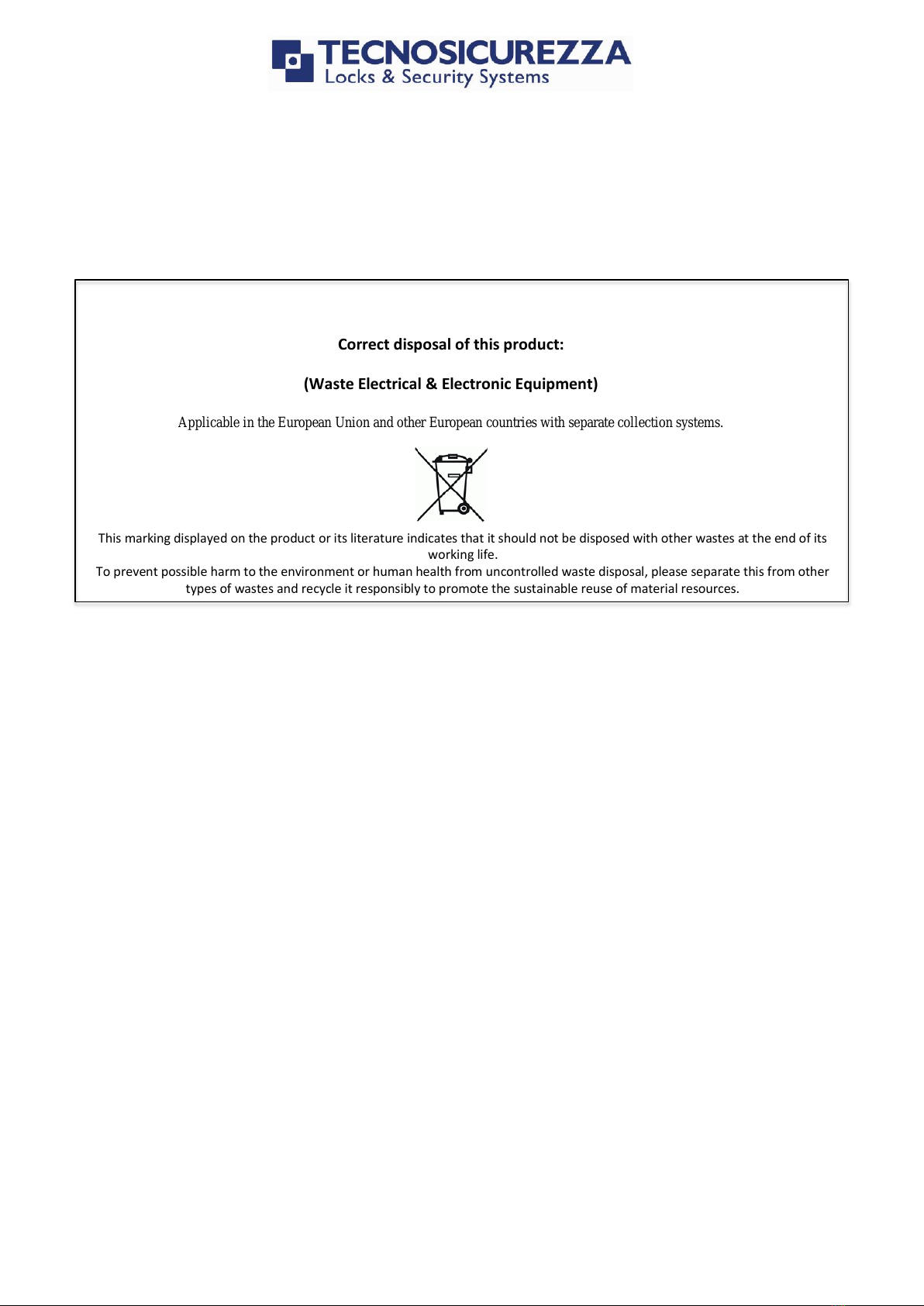

CORRECT DISPOSAL OF THIS PRODUCT: 20
CONTACTS 20

II_PulsePro_05_eng 3 of 20
Installation instructions
Pulse PRO
Models and characteristics
Models
Variants
T6630/GRP Keypad in metal. Satin chrome
colour with rubber membrane foil keypad in
grey colour.
/DL –with Dallas key reader.
Accessories
Code
Description
T3330
Rotating back plate kit.
NL1000
Mounting adapter.
T20019/T
Cabling interface/Adapter.
L4001
Large battery box for 6 size C 1,5V batteries.
N620/A
9V Battery box with alarm interface.
T6006
Power supply interface 12÷24 V with alarm
interface.
L2666
Knob with 6 mm square spindle.
N1982 or N1971
User Dallas key.
Audit and programming accessories
Code
Description
N42180/T
USB interface.
N42170/D
Dallas key reader with molex connector.
N42170/M
Magnetic Dallas key connection cable.
N1996RM
Magnetic Dallas key for audit.

4 of 20 II_PulsePro_05_eng
Installation instructions
Pulse PRO
Certifications
The updated certifications are available on the official websites of Tecnosicurezza:
www.tecnosicurezza.it www.tecnosicurezza.es www.usatecno.com
Important notes!
Before installing this product, please read carefully the installation and operating
instructions.
Locks can be installed in all traditional safes.
Lock has to be mounted on secure storage metal (preferred steel) units only.
Locks must be protected against external attacks, for this reason it is recommended to
install them on the door away from any through holes (except DeadBolt and MotorLock).
If locks are not properly protected by systems belonging to the safe (manganese plates,
glass plate, relocking, etc.) only DeadBolt and MotorLock locks can be mounted behind
the passage hole for the connection cable or the spindle.
Any electronic part must be properly protected and not easily accessible even when the
door is open.
Locks have been developed to work correctly in a temperature range from -5 ° C to + 50
° C and in an environment with non-condensing humidity between 25% and 90%.
The mounting dimensions are standard (magic module).
For the installation of the keypad and lock, use only the screws provided by
Tecnosicurezza. Any other screw must be approved in advance.
Locks are supplied with metric (M6) mounting screws. Upon request, Imperial 1/4-20 UNC
format mounting screws are available.
The type of material and the length of the screws must, in any case, be selected so as to
guarantee long life and reliability.
Tighten the screws so that the lock is firmly fixed to the mounting surface
(recommended torque between 2.5 and 5.5 Nm).
The mounting surface must be perfectly flat.

II_PulsePro_05_eng 5 of 20
Installation instructions
Pulse PRO
In order to prevent loosening of the screws it is recommended the use of LOCTITE®
threadlocker and/or specific washers positioned under the head of the fixing screw.
The diameter of the passage hole for the connection cable or the spindle must not
exceed 11 mm.
The hole must be completely cleaned of drill dust and no edge should be sharp.
Lock must not be lubricated.
In the locked position, the distance between the bolt and the boltwork part that is
moving the lock bolt must comply with the following specifications for each type of lock.
Any component to be fixed to the lock bolt must be previously approved by
Tecnosicurezza before installation. In any case, the maximum load must not exceed 4 N
for T4801/M and 30 N for reinforced model T4801/MP.
Secure the cables away from moving parts by using cable ties and cable ties bases.
If placed in normal domestic or office environments, the locks do not require particular
maintenance; in any case, after 10,000 opening/locking cycles, it is recommended to run
a test that verifies the correct and complete operation of the product.
Use only DURACELL™ 9 Volt Alkaline batteries, or battery holders with DURACELL™ 1.5
Volt Alkaline batteries. Alternatively, it is also possible to use a stabilized power supply
from 12 to 24 V and 1A, with relative power supply interface (p.n. T6006).
A series of acoustic signals during opening indicate a low battery level. In this case, the
battery must be replaced.
Do not use cleaning agents with chemical, abrasive or alcohol-containing additives to
clean the components. Use only a damp cloth.
Do not spray liquid directly onto the components.

6 of 20 II_PulsePro_05_eng
Installation instructions
Pulse PRO
Keypad dimensions

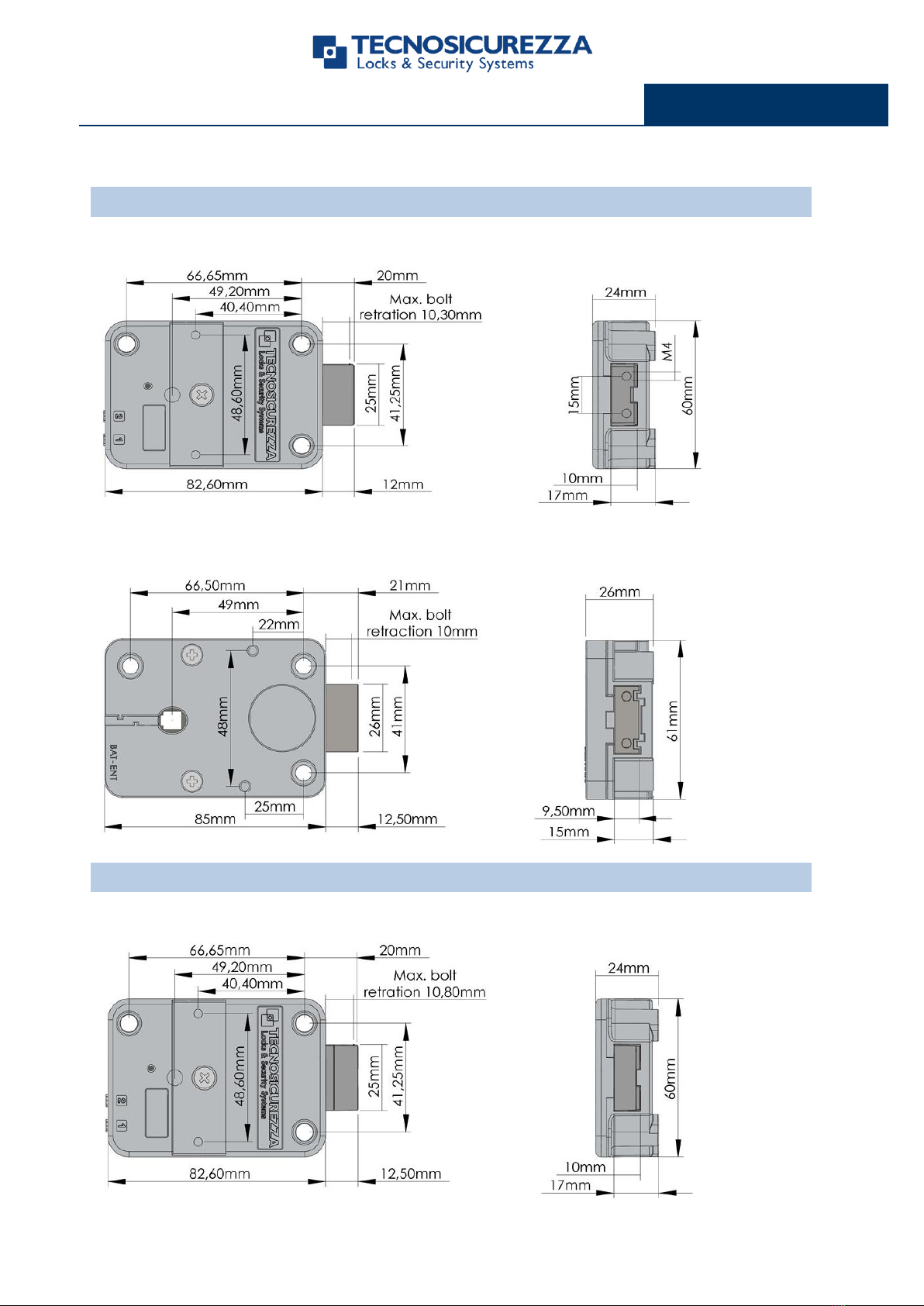

SwingBolt lock dimensions
T4801
T4800

II_PulsePro_05_eng 7 of 20
Installation instructions
Pulse PRO

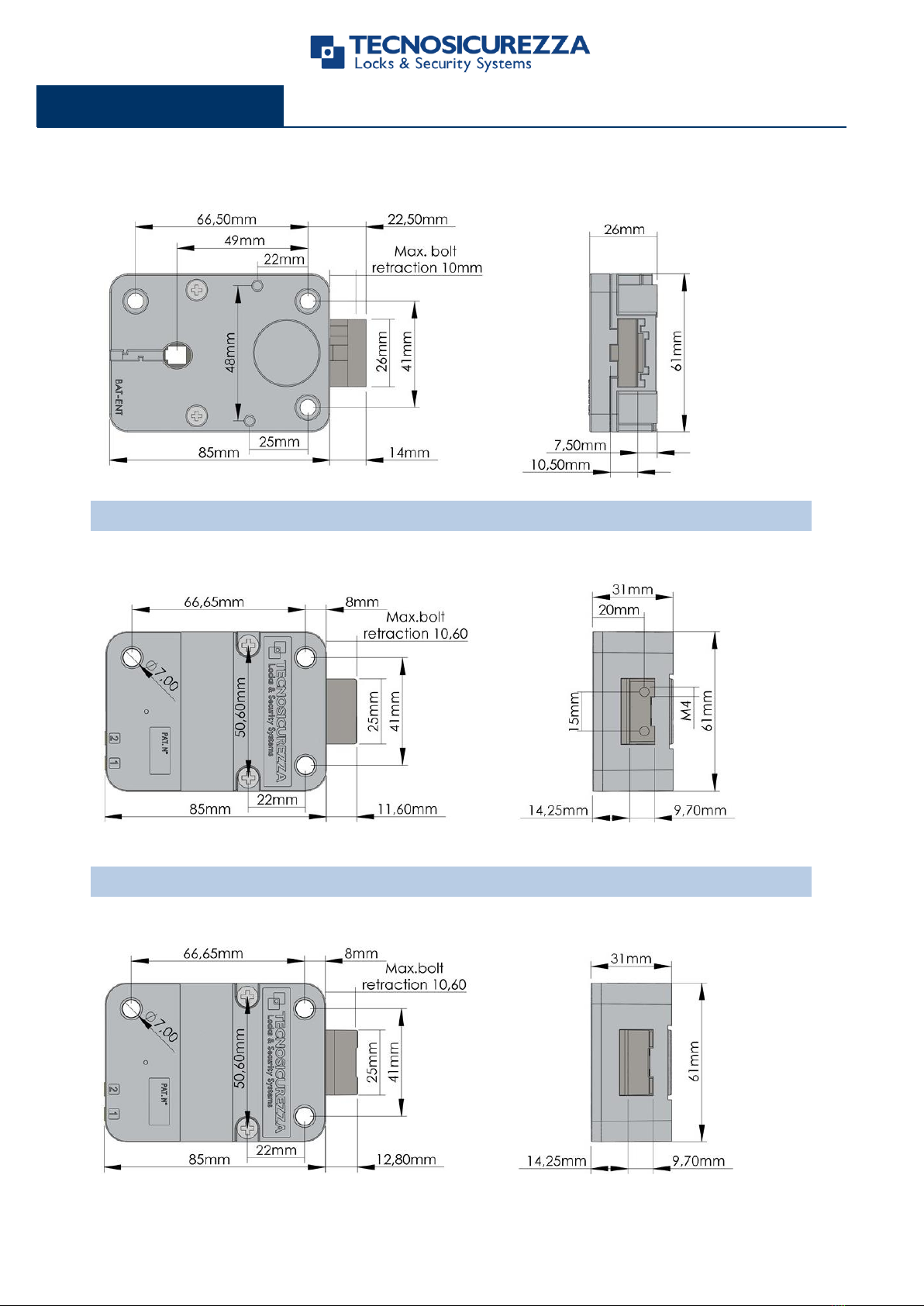

DeadBolt lock dimensions
T4801/D
T4800/D
LatchBolt lock dimensions
T4801/S

8 of 20 II_PulsePro_05_eng
Installation instructions
Pulse PRO
T4800/S
MotorLock lock dimensions
T4801/M & T4801/MP
Motor LatchBolt lock dimensions
T4801/M/S

II_PulsePro_05_eng 9 of 20
Installation instructions
Pulse PRO
Keypad rotating kit installation instructions (accessory, p.n. T3300)
The rotation kit consists of 2 bushings, 2 M4 countersunk screws, 1 plastic pin, 1 spring and 1
rotating backplate.
(Imperial screws 8-32 UNC are available on request.)
Cut the grooved shaft to the appropriate length: measure door thickness (from mounting
surface of the entry unit to the mounting surface of the lock) and add 26 mm (1”). Prepare the
mounting and cable holes.
Fix the screws (M4) and the rotating backplate, positioning the latter on the side marked "UP".
Fix the bushings to the keypad housing using the supplied screws.
Insert the pin completely in the spring and then place it into the specific hole in the case.
Insert the grooved shaft, with the cutting edge first, all the way into the keypad housing.
Place the connection cable inside the groove in the spindle.
Insert the cable and the spindle inside the spindle hole made in the door, keeping the keypad in
angled position (10:00 o’ clock) hook the keypad to the rotating backplate.
Then turn unit clockwise into position at 12:00 o’ clock until you hear a click, reaching the final
position.

10 of 20 II_PulsePro_05_eng
Installation instructions
Pulse PRO

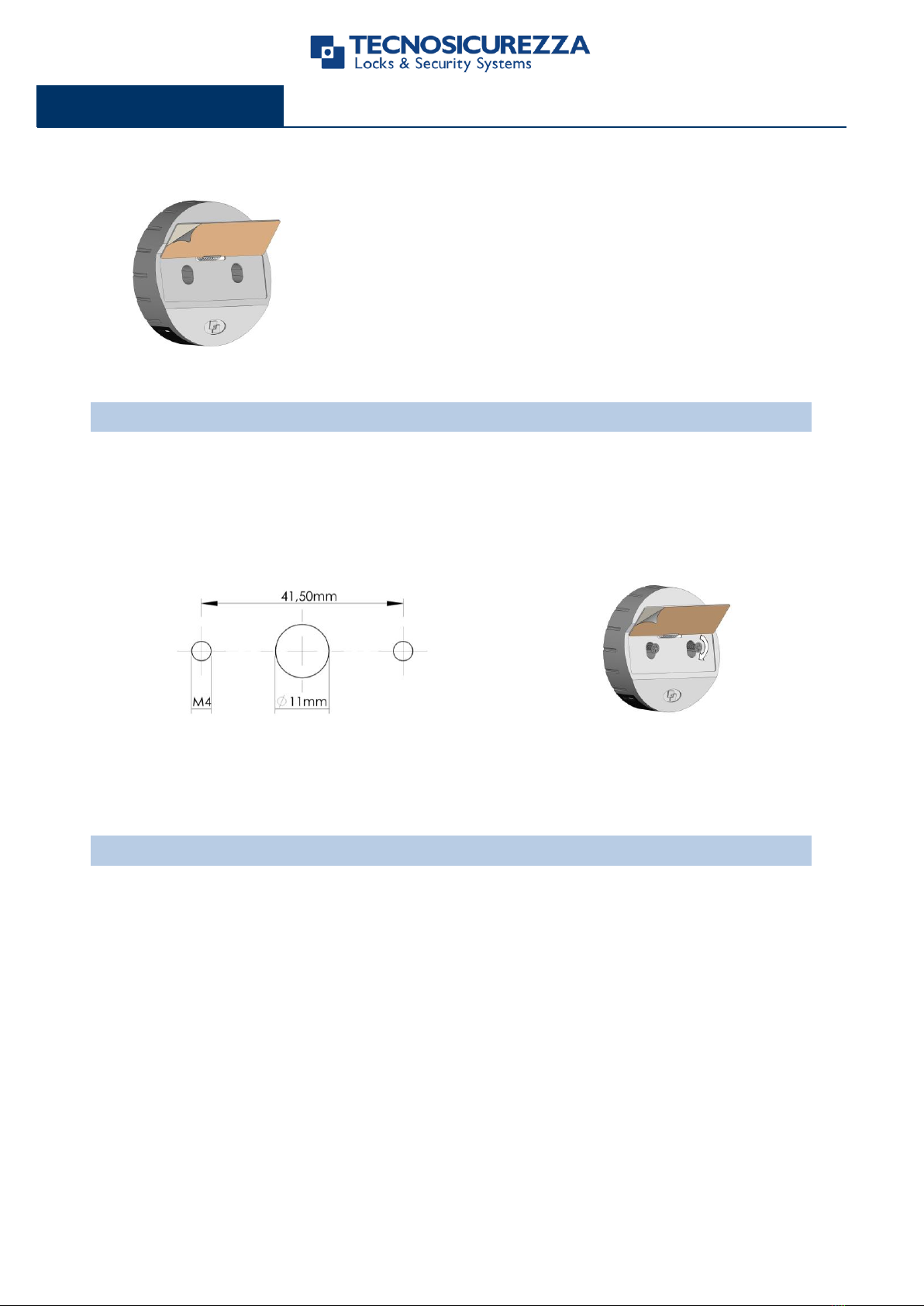

Remove the release liner placed under the membrane and apply
the latter on the keypad case.
Connect a battery to the battery connector inside the keypad
battery compartment or, if provided, connect the battery pack
to the lock connector "2/BAT".
Fixed keypad installation instructions
Insert the keypad cable inside the hole on the safe door and connect it to the lock connector
"1/ENT".
Lift the keypad membrane and, making sure that the connection cable and the battery cable are
not damaged by the keypad case, fix the screws to the relative threaded holes on the safe door.
Remove the release liner placed under the membrane and apply the latter on the keypad case.
Connect a battery to the battery connector inside the keypad battery compartment or, if
provided, connect the battery pack to the lock connector "2/BAT".
SwingBolt lock installation instructions
The SwingBolt lock is a swinging bolt lock whose block is carried out by a motor; it can be
installed in all 4 directions, even upside down.
By entering a valid code, the lock electronic removes the blocking for 3 seconds and the
boltwork can be moved into open position by pushing the bolt inside the lock case.
The bolt automatically secures when the safe handle, or the safe door mechanism, is brought
to the locked position.
If the SwingBolt lock is used in conjunction with other locks, the safe door mechanism must
ensure the closure of the SwingBolt before the other locks.
The lock can be mounted in all four mounting directions (RH, LH, VU, VD).
Furthermore, by flipping over the lock, both locking directions can be realized.

II_PulsePro_05_eng 11 of 20
Installation instructions
Pulse PRO
In the locked position the distance between the lock’s bolt and the lock
part that moves the bolt should be approximately 1 mm.
The bolt must be able to move freely without force being applied to it.
The maximum load applicable to the bolt must not exceed 1KN. Contact Tecnosicurezza in case
of heavier loads.
Connect the keypad cable to the lock connector "1/ENT", making sure it is fully inserted and
locked.
Any alarm interface or battery holder needs to be connected to the lock connector “2/BAT”.
To remove the cable, bring the connector upwards and carefully pull it out.
It’s possible to connect a relocker to the lock cover through the appropriate holes.
DeadBolt and LatchBolt locks installation instructions
DeadBolt and LatchBolt are locks with, respectively, a dead bolt and a spring bolt, whose block
is carried out by a motor.
By entering a valid code, the lock electronic removes the blocking for 3 seconds and the
boltwork can be moved into open position by turning the spindle inserted in the lock.
The spindle can be connected to a knob, a handle or directly to the keypad if equipped with a
rotation kit. In the latter case it must be used the specific rotation kit T3300. When the spindle
is brought to the locked position, the bolt comes out ensuring the lock is locked.
The DeadBolt and LatchBolt locks can be mounted in all four mounting directions (RH, LH, VU,
VD).

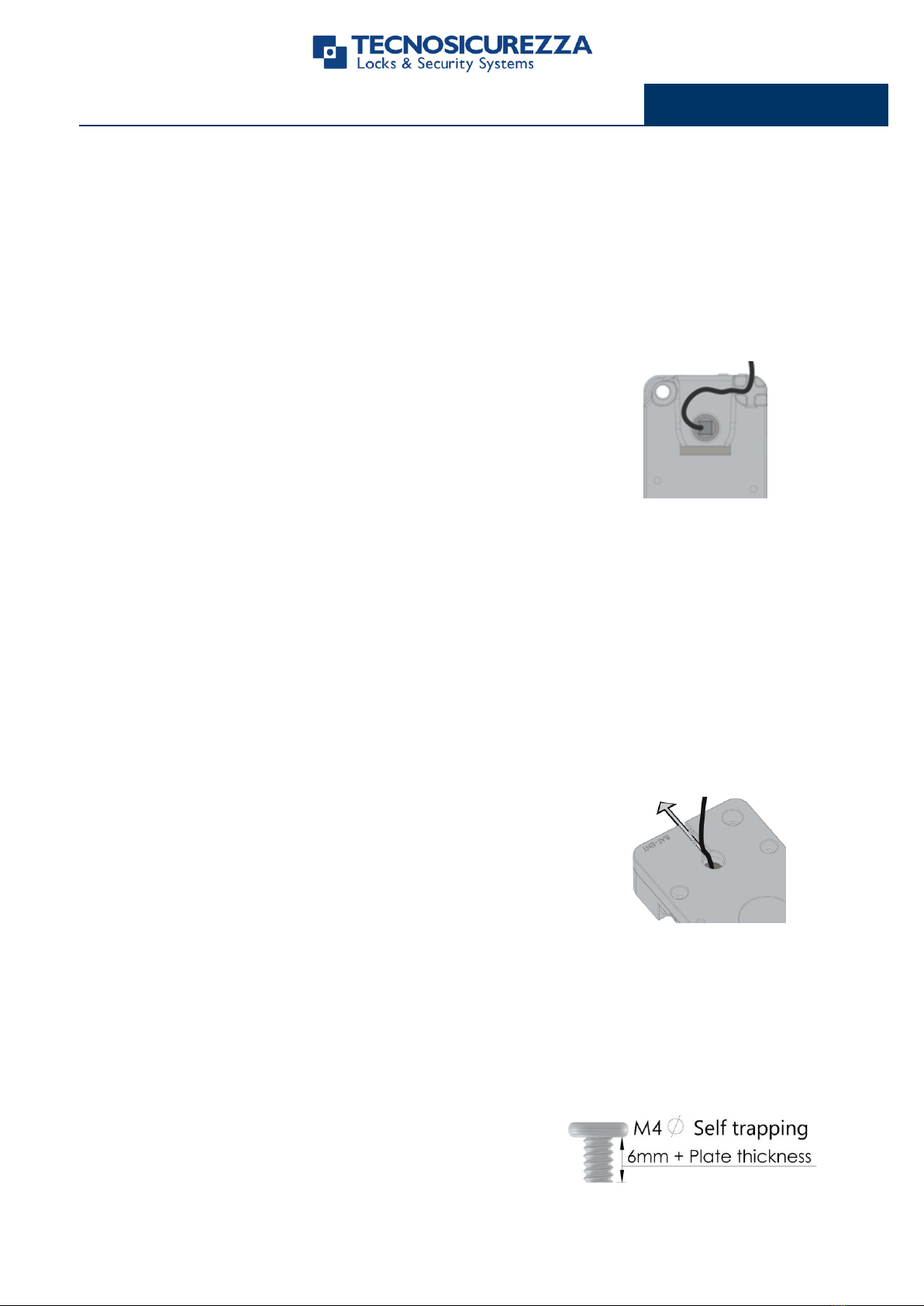

Fix the relocker plate with M4 self tapping flat head screws.
Length must be 6mm + plate thickness.
(i.e. 6mm + 2mm plate = 8mm screw)

12 of 20 II_PulsePro_05_eng
Installation instructions
Pulse PRO

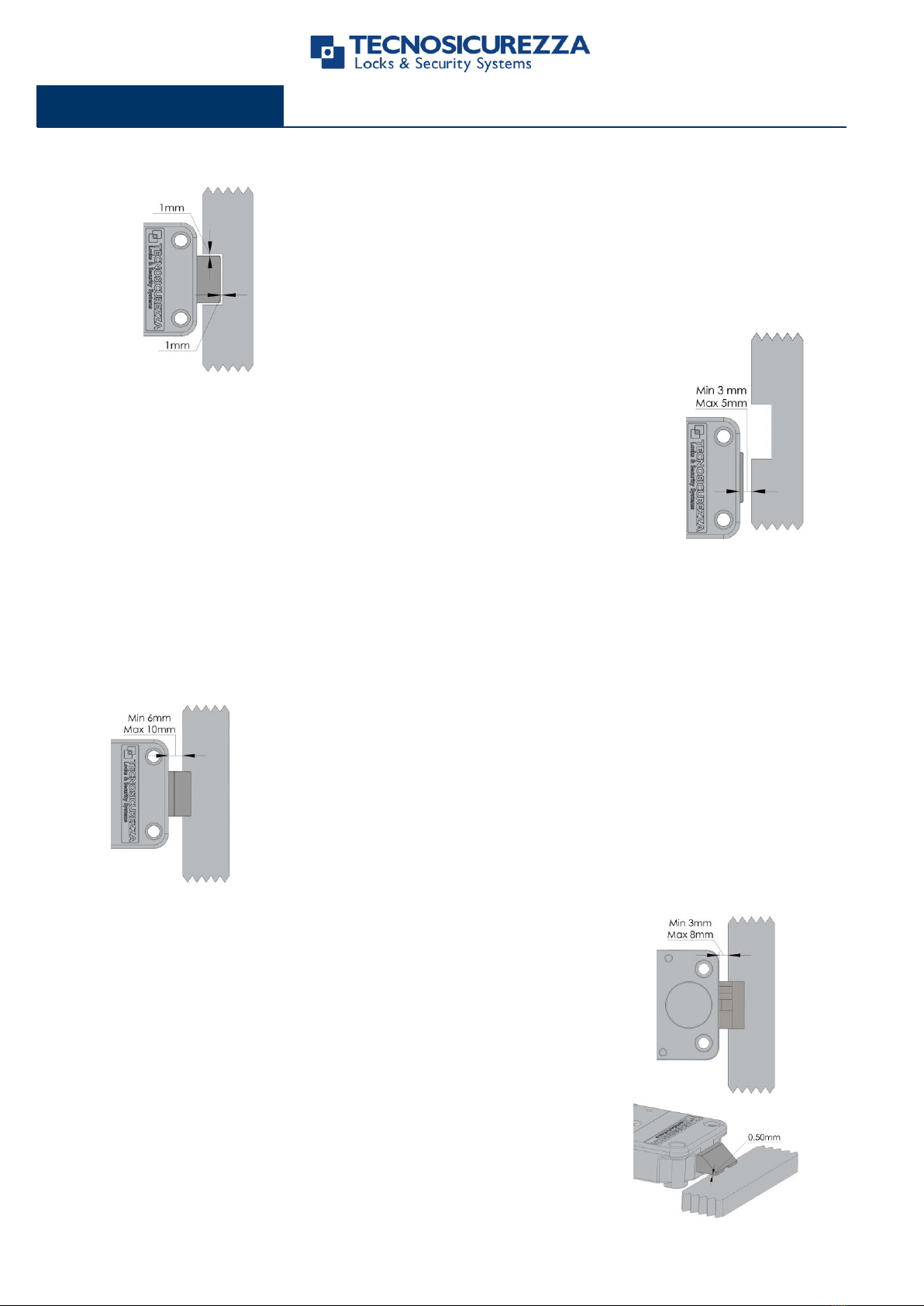

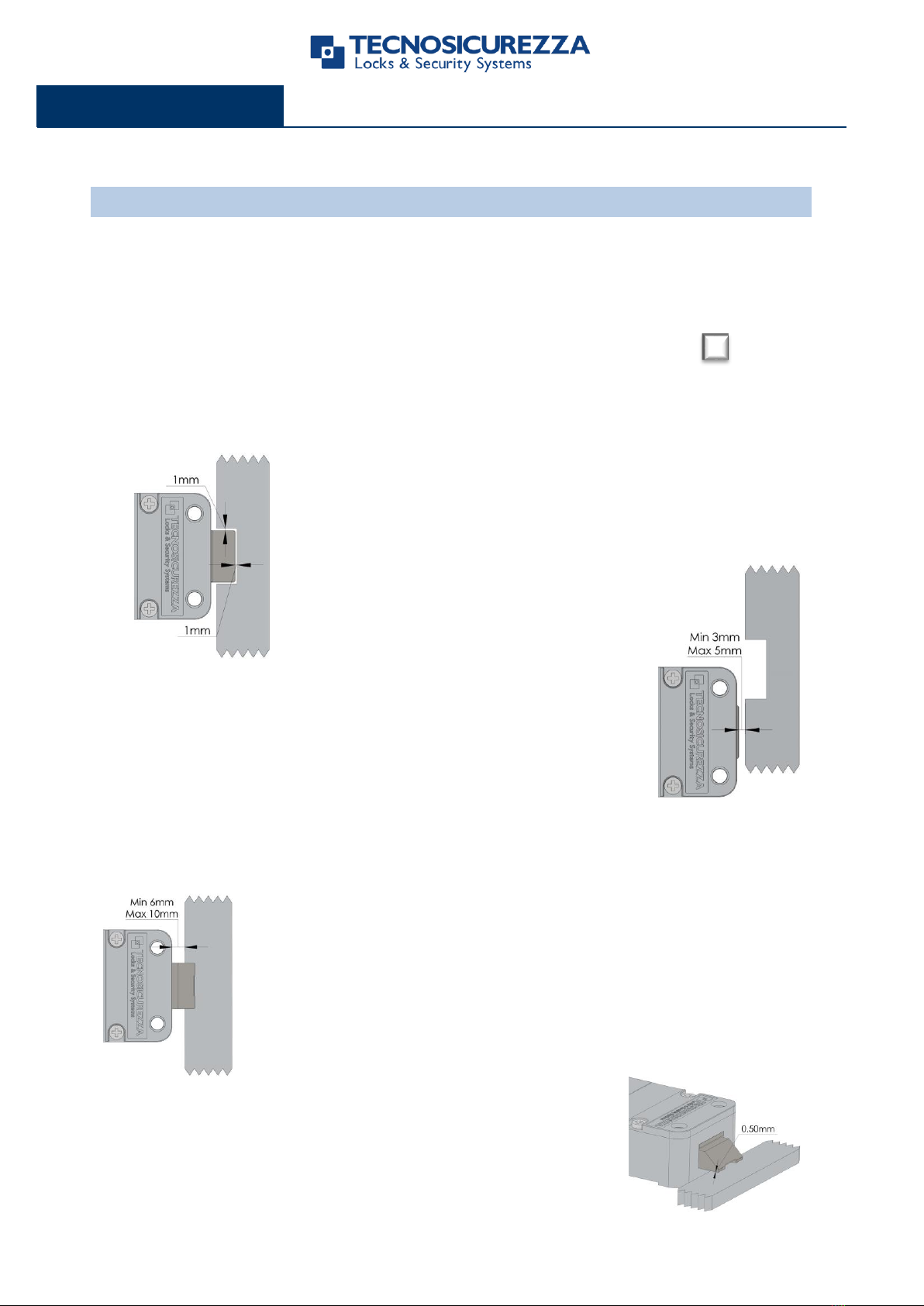

In the locked position, there should be approximately 1 mm
clearance between the lock bolt and the cavity in the blocking
bar of the boltwork. The bolt must be able to move freely
without force being applied to it.
In open position, there should be a minimum of 3mm and maximum of
5 mm clearance between the lock bolt and the blocking bar of the
boltwork.
The maximum load applicable to the bolt must not exceed 1 KN. Contact Tecnosicurezza in case of
heavier loads.
The LatchBolt lock is specially designed to ensure self locking when the door closes.
T4801/S
The distance between the lock and the locking edge must be between a
minimum of 6 mm and a maximum of 10 mm.
The distance between the lock and the locking edge must be
between a minimum of 3 mm and a maximum of 8 mm.
T4800/S
When locked, there must be a 0.5 mm gap between lock bolt and
locking surface.

II_PulsePro_05_eng 13 of 20
Installation instructions
Pulse PRO
Cut the spindle to the correct length (measure door thickness + mounting plate/rotation knob or
handle insert + lock spindle insert).
Remove any cutting residues of the spindle that could damage the cable.
It’s possible to connect a relocker to the lock cover through the appropriate holes.
T4801/D & T4801/S locks
The spindle needs to be fully inserted inside the lock (7 mm).
Place the cable in the groove of the spindle, making sure it’s fully inserted and locked.
Secure the cable inside the special groove located under the lock
body, ensuring that it is not stretched when turning the spindle. Fix
the lock using the appropriate mounting screws.

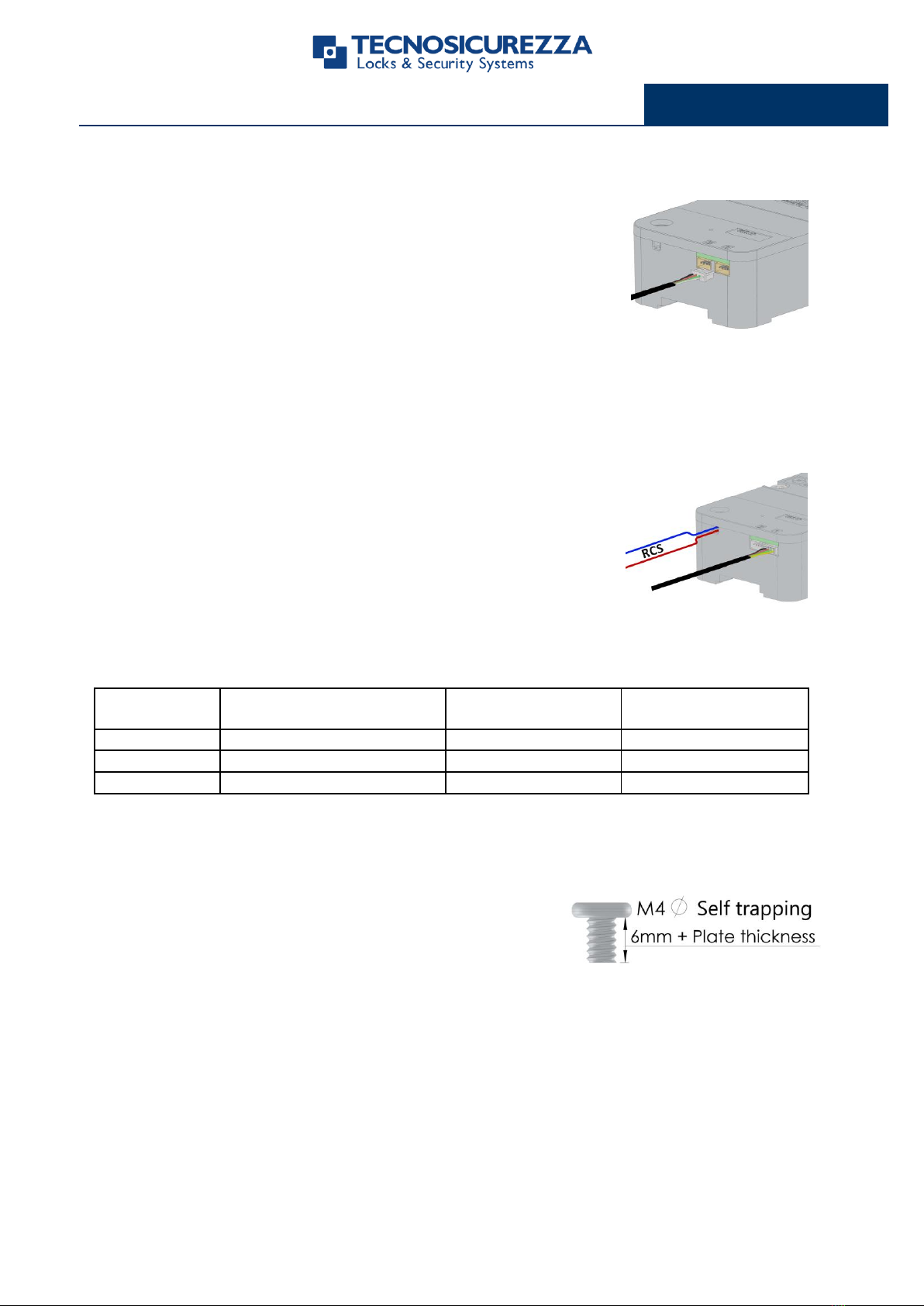

Connect the keypad cable to the lock connector "1", making sure it is fully inserted and
locked. Any alarm interface or battery holder needs to be connected to the lock connector
“2”. To remove the cable, bring the connector upwards and carefully pull it out.
T4800/D & T4800/S locks
The spindle must be inserted between a minimum of 7 mm to a maximum of 12 mm inside
the lock.
WARNING: do not insert the spindle up to the lid of the lock, but leave some margin to
allow the movement of the cable and to prevent any damage
Place the cable in the groove of the spindle, making sure it’s fully inserted and locked.
Insert the cable connector into the square hole present in the bottom of the lock and make it
come out from the opposite side.
Secure the cable inside the special groove located on the lock
cover, ensuring that it is not stretched when turning the spindle.
Fix the lock using the appropriate mounting screws.
Connect the keypad cable to the lock connector "ENT", making sure it is fully inserted and
locked. Any alarm interface or battery holder needs to be connected to the lock connector
“BAT”. To remove the cable, bring the connector upwards and carefully pull it out.
Fix the relocker plate with M4 self tapping flat head screws.
Length must be 6mm + plate thickness.
(i.e. 6mm + 2mm plate = 8mm screw)

14 of 20 II_PulsePro_05_eng
Installation instructions
Pulse PRO
MotorLock and Motor LatchBolt locks installation instructions
MotorLock and Motor LatchBolt locks are locks with, respectively, a motor driven dead bolt and a
motor driven spring bolt, whose block is carried out by a motor.
By entering a valid code, the motor retracts the bolt which remains in the open position for about
8 seconds and then automatically returns to the locked position.
If the manual relocking option is selected, the bolt closes by pressing the button P.
Both lock versions can be mounted in all four mounting directions (RH, LH, VU, VD).
Locks is supplied with metric (M6) mounting screws. Upon request, Imperial 1/4-20 UNC format
mounting screws are available.
The Motor LatchBolt lock is specially designed to ensure self locking when the door closes.
When locked, there must be a 0.5 mm gap between lock bolt and
locking surface.
In the locked position, there should be approximately 1 mm
clearance between the lock bolt and the cavity in the blocking
bar of the boltwork. The bolt must be able to move freely
without applying any force on it.
In open position, there should be a minimum of 3 mm and
maximum of 5 mm clearance between the lock bolt and the
blocking bar of the boltwork.
The distance between the lock and the locking edge must be between
a minimum of 6 mm and a maximum of 10 mm.

II_PulsePro_05_eng 15 of 20
Installation instructions
Pulse PRO
The Push & Pull version (T4801/MP) is supplied by default with RCS option, where closing is
triggered by an external signal (i.e. boltwork switch). This avoids the motor to be activated when
boltworks are not expanded yet.
It’s recommended to correctly use this signal to avoid motor damages.
Lock is also programmed by default with 8 seconds automatic
reclosure, which can be modified upon request. This means that if
the lock will open but the external signal don’t (i.e. boltworks not
expanded), lock will auromatically close after 8 seconds (smart
reclosure).
The maximum load applicable to the bolt must not exceed the limit values specified in the
table below. Contact Tecnosicurezza in case of heavier loads.
Lock reference
Lock version
Maximum force to apply
on the bolt
Maximum load pulled up
and pushed by the bolt
T4801/M
Pull and spring version –Cass B
1KN (100 Kg)
4 N (400 gr)
T4801/MP
Push and pull version –Class B
1KN (100 Kg)
30 N (3Kg)
T4801/M/S
Latch version
1KN (100 Kg)
-
It’s possible to connect a relocker to the lock cover through the appropriate holes.
Connect the keypad cable to the lock connector "1", making sure it
is fully inserted and locked.
Any alarm interface or battery holder needs to be connected to the
lock connector “2”.
To remove the cable, bring the connector upwards and carefully
pull it out.
Fix the relocker plate with M4 self tapping flat head screws.
Length must be 6mm + plate thickness.
(i.e. 6mm + 2mm plate = 8mm screw)

16 of 20 II_PulsePro_05_eng
Installation instructions
Pulse PRO
Functional tests
To be carried out with the door open.
MEMBRANE TEST:
Press and hold button 5 until the double beep (the LED will remain on).
Slowly enter all the buttons according to the sequence below:
[1]-[2]-[3]-[4]-[5]-[6]-[7]-[8]-[9]-[0]-[P]-[OK]
A double beep after pressing each single button indicates that the keypad correctly communicates
with the lock.
A long beep indicates an electronic problem (in this case please contact the technical assistance).
ELECTRONIC / MECHANICAL TEST:
OPENING:
Enter the opening code (standard manager code 60-123456 or simply 1 if the lock is in pre-setup
mode). The lock emits a double beep. You will hear a long beep in case of incorrect code.
With SwingBolt, MotorLock and Motor LatchBolt locks, turn the safe door handle to the open
position.
With DeadBolt and LatchBolt locks, rotate the knob or keypad according to the type of installation
and move the lock bolt to the open position.
For all types of locks the bolt must be able to move freely.
LOCKING:
With SwingBolt and MotorLock locks, turn the safe door handle to the locked position. Lock bolt
must fully extend and ensure locking.
With MotorLock and Motor LatchBolt locks with manual reclosure, turn the door handle towards
the locked position and press the button P .
With DeadBolt locks, turn the knob or keypad to the locked position.
With LatchBolt and Motor LatchBolt locks, push the door to close.
For all types of locks, at the end of the operation the bolt must fully extend and ensure locking.
Repeat the functional test several times before locking the safe door.
Failure to follow these installation instructions or opening the lock by personnel not
authorized by Tecnosicurezza will void the warranty.

II_PulsePro_05_eng 17 of 20
Installation instructions
Pulse PRO
CE declarations
DICHIARAZIONE CE DI CONFORMITA’
CE DECLARATION OF CONFORMITY
Pulse PRO: T66-xx
Il sottoscritto Franco Miller, in veste di Presidente CdA e Legale Rappresentante
della società Tecnosicurezza S.p.A., con sede in San Giovanni Lupatoto (Verona) Via Cesare
Battisti 276, dichiara sotto la propria responsabilità, che il suddetto prodotto soddisfa per
progettazione e costruzione i requisiti delle direttive di: compatibilità elettromagnetica
2014/30/EU e RoHS 2 UE/2015/863. La conformità è stata verificata con l’ausilio delle
seguenti norme armonizzate:
EN 61000-6-3, EN50130-4,EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN
61000-4-6, EN 61000-4-11, EN 61000-6-1, EN55022
The undersigned Mr Franco Miller as Chairman and Legal Representative of the
company Tecnosicurezza S.p.A., located in San Giovanni Lupatoto (Verona) Via Cesare
Battisti 276, declare herewith on our own responsibility that the above-mentioned product
meets the requirements of the UE/2015/863 RoHS 2, 2014/30/EU Electromagnetic
Compatibility for what concerns engineering and construction. Conformity has been controlled
with the aid of the following harmonized standards:
EN 61000-6-3, EN50130-4,EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN
61000-4-6, EN 61000-4-11, EN 61000-6-1, EN55022
Verona - Italy, 02/10/2018
Franco Miller
Board Chairman

18 of 20 II_PulsePro_05_eng
Installation instructions
Pulse PRO
DICHIARAZIONE CE DI CONFORMITA’
CE DECLARATION OF CONFORMITY
Pulse PRO: T48-xx
Il sottoscritto Franco Miller, in veste di Presidente CdA e Legale Rappresentante
della società Tecnosicurezza S.p.A., con sede in San Giovanni Lupatoto (Verona) Via Cesare
Battisti 276, dichiara sotto la propria responsabilità, che il suddetto prodotto soddisfa per
progettazione e costruzione i requisiti delle direttive di: compatibilità elettromagnetica
2014/30/EU e RoHS 2 UE/2015/863. La conformità è stata verificata con l’ausilio delle
seguenti norme armonizzate:
EN 61000-6-3, EN50130-4,EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN
61000-4-6, EN 61000-4-11, EN 61000-6-1, EN55022
The undersigned Mr Franco Miller as Chairman and Legal Representative of the
company Tecnosicurezza S.p.A., located in San Giovanni Lupatoto (Verona) Via Cesare
Battisti 276, declare herewith on our own responsibility that the above-mentioned product
meets the requirements of the UE/2015/863 RoHS 2, 2014/30/EU Electromagnetic
Compatibility for what concerns engineering and construction. Conformity has been controlled
with the aid of the following harmonized standards:
EN 61000-6-3, EN50130-4,EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN
61000-4-6, EN 61000-4-11, EN 61000-6-1, EN55022
Verona - Italy, 02/10/2018
Franco Miller
Board Chairman

II_PulsePro_05_eng 19 of 20
Installation instructions
Pulse PRO

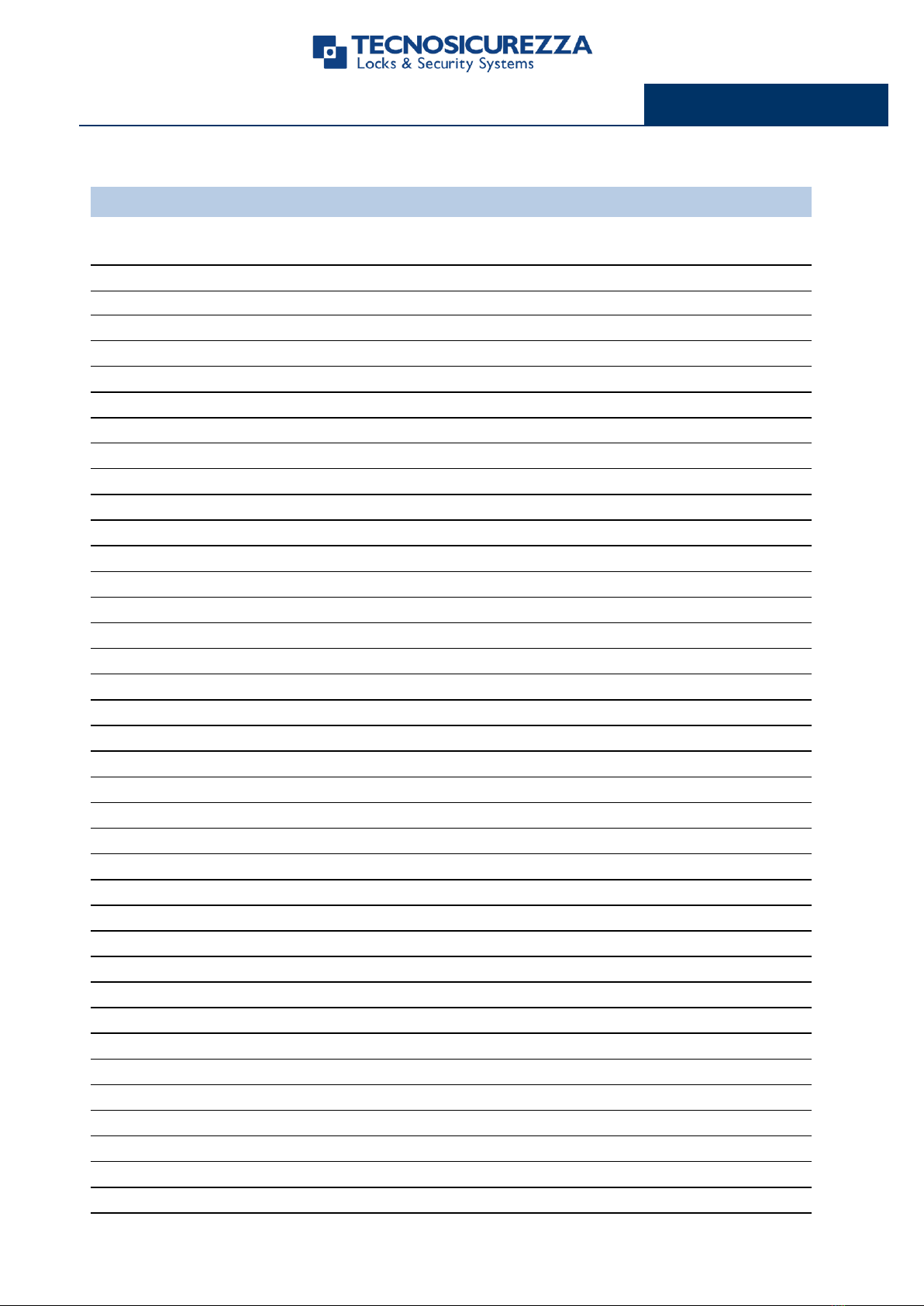

NOTES

Correct disposal of this product:
(Waste Electrical & Electronic Equipment)
Applicable in the European Union and other European countries with separate collection systems.
This marking displayed on the product or its literature indicates that it should not be disposed with other wastes at the end of its
working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other
types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Contacts
GLOBAL HEADQUARTERS
USA HEADQUARTERS
SPAIN HEADQUARTERS
Tecnosicurezza SpA
Tecnosicurezza Inc.
Tecnosicurezza Sa
Via Cesare Battisti. 276
50, Thomas Lane
C/Menor, 4 - Nave 10
37057 San Giovanni Lupatoto
Verona
Versailles, KY 40383
Pol. Ind La Mina 28770
Colmenar Viejo
Tel.[phone]
Tel.[phone]
Tel.[phone]
Fax. [phone]
Fax.[phone]
[e-mail]
[e-mail]
[e-mail]
