Pulse PRO
Company
Founded in 1983 with the aim of providing a complete range of professional products,
Tecnosicurezza is now a consolidated reality in the field of locks and security systems for safes.
The experience gained in over 35 years of activity in the security sector has allowed the
designing and manufacturing of high technology and reliability systems, which continue to
receive the approval of an increasingly demanding clientele.
TECNOSICUREZZA is present directly all over the world through its own branches and with an
extensive distribution network.
TECNOSICUREZZA is aimed at national and international customers of primary importance, such
as banks, safe manufacturers, cash in transit companies, mass market retailers and post offices.
Today TECNOSICUREZZA is a leading company focused on the customers’ needs and
constantly in step with technology.

II_PulsePro_03_eng 3 of 24
Installation instructions
Pulse PRO
Table of contents
COMPANY 2
TABLE OF CONTENTS 3
MODELS AND CHARACTERISTICS 4
ACCESSORIES 4
AUDIT AND PROGRAMMING ACCESSORIES 4
CERTIFICATIONS 5
IMPORTANT NOTES! 7
KEYPAD DIMENSIONS 9
ROTOBOLT LOCK DIMENSIONS 9
STRAIGHTBOLT LOCK DIMENSIONS 9
SPRINGBOLT LOCK DIMENSIONS 10
MOTORLOCK LOCK DIMENSIONS 10
MOTOR LATCHBOLT LOCK DIMENSIONS 11
KEYPAD ROTATING KIT INSTALLATION INSTRUCTIONS (ACCESSORY, P.N. T3300) 12
FIXED KEYPAD INSTALLATION INSTRUCTIONS 13
ROTOBOLT LOCK INSTALLATION INSTRUCTIONS 13
STRAIGHTBOLT AND SPRINGBOLT INSTALLATION INSTRUCTIONS 14
MOTORLOCK AND MOTOR LATCHBOLT LOCKS INSTALLATION INSTRUCTIONS 16
FUNCTIONAL TESTS 18
CE DECLARATIONS 19
CORRECT DISPOSAL OF THIS PRODUCT: 24
(WASTE ELECTRICAL & ELECTRONIC EQUIPMENT) 24
CONTACTS 24

4 of 24 II_PulsePro_03_eng
Installation instructions
Pulse PRO
Models and characteristics
Models
Variants
T6630/GRP Keypad in metal. Satin chrome
colour with rubber membrane foil keypad in
grey colour.
/DL –with Dallas key reader.
Accessories
Code
Description
T3330
Rotating back plate kit.
NL1000
Mounting adapter.
T20019/T
Cabling interface/Adapter.
L4001
Large battery box for 6 size C 1,5V batteries.
N620/A
Battery box with alarm interface.
T6006
Power supply interface (12 V) with alarm
interface.
L2666
Knob with 6 mm square spindle.
N1982 o N1971
User Dallas key.
Audit and programming accessories
Code
Description
N42180/T
USB interface.
N42170/D
Dallas key reader with molex connector.
N42170/M
Magnetic Dallas key connection cable.
N1996RM
Magnetic Dallas key for audit.

II_PulsePro_03_eng 5 of 24
Installation instructions
Pulse PRO

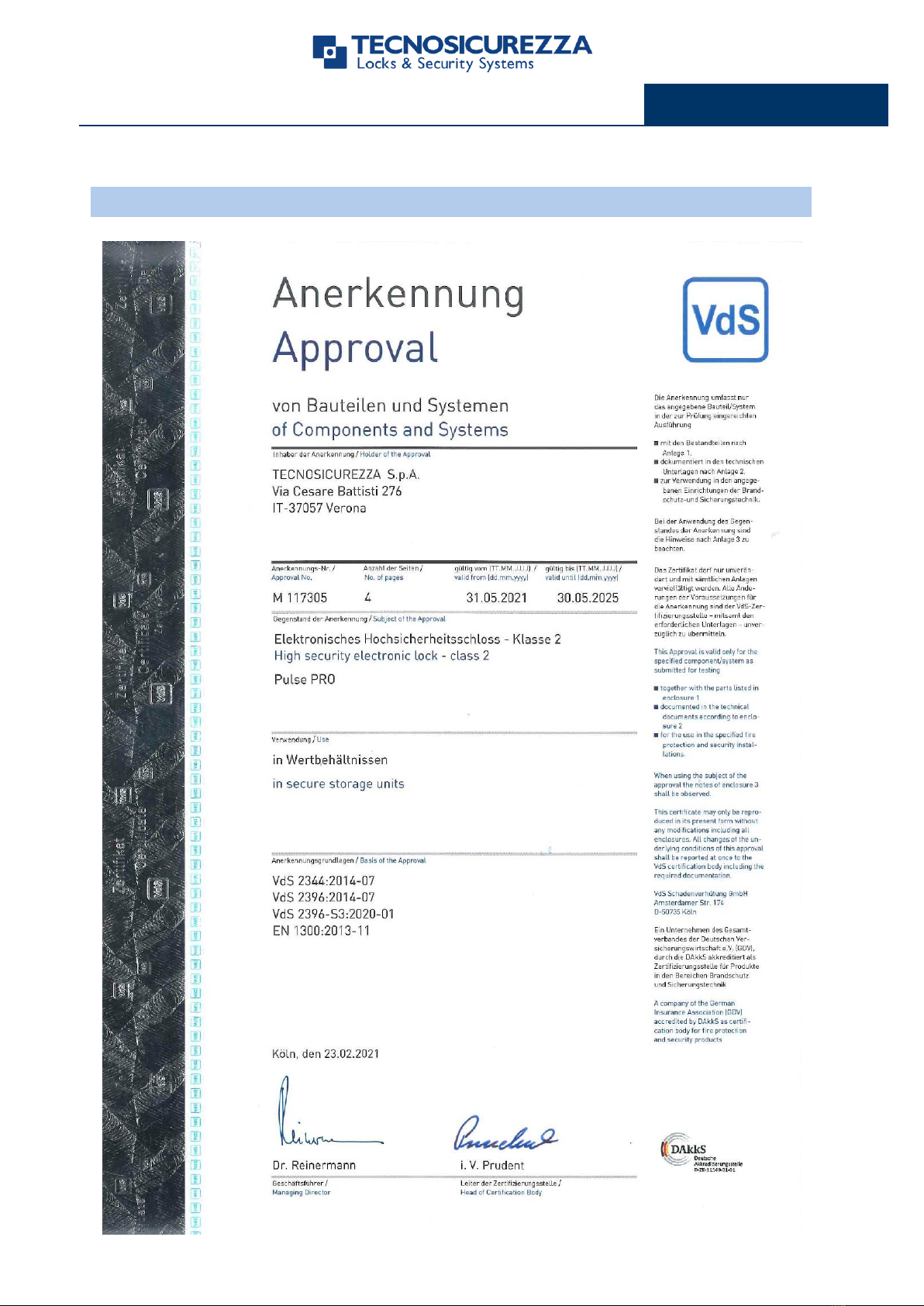

Certifications

6 of 24 II_PulsePro_03_eng
Installation instructions
Pulse PRO
C E R T I F I C A T E O F C O M P L I A N C E
Certificate Number
20170803-BP10647
Report Reference
BP10647-20170718
Issue Date
2017-AUGUST-03
Bruce Mahrenholz,
Director North American Certif ication Program
UL LLC
Any information and documentation involving UL Mark services are provided on behalf of UL LLC (UL) or any authorized licensee of UL. For questions, please
contact a local UL Customer Service Representative at http://ul.com/ aboutul/locations/
Page 1 of 1
Issued to:
TECNOSICUREZZA SRL
Via Cesare Battisti 276,37057 Sangiovanni Lupatoto Vr
ITALY
This is to certify that
representative samples of
HIGH-SECURITY ELECTRONIC LOCKS, TYPE 1
High Security Electronic Lock, Type 1 –
High Security Electronic Lock System; Pulse Pro:
Comprised of Rotobolt Lock with),T6630(Pulse Pro Metal
satin chrome). Units maybe suffixed with /B Black unit,/G
Grey unit,/GR unit with rubber grey keypad,/BR unit with
rubber keypad in black,/DL unit with Dallas Reader. Unit
maybe provided with optional art. T3300 rotation kit.
High Security Electronic Lock System; Pulse Pro:
Comprised of T4800/D Straightbolt Lock with Keypad
T6630(Pulse Pro Metal satin chrome). Units maybe
suffixed with /B Black unit,/G Grey unit,/GR unit with rubber
grey keypad,/BR unit with rubber keypad in black,/DL unit
with Dallas Reader.
Unit maybe provided with optional
art. T3300 unit with rotation kit.
Have been investigated by UL in accordance with the
Standard(s) indicated on this Certificate.
Standard(s) for Safety:
Subject 2058 – High-Security Electronic Locks.
Additional Information:
See the UL Online Certifications Directory at
www.ul.com/database
for additional information
Only those products bearing the UL Certification Mark should be considered as being covered by UL's
Certification and Follow-Up Service.
Look for the UL Certification Mark on the product.

II_PulsePro_03_eng 7 of 24
Installation instructions
Pulse PRO
Important notes!
Before installing this product, please read carefully the installation and operating
instructions.
Locks can be installed in all traditional safes.
Lock has to be mounted on secure storage metal (preferred steel) units only.
Locks must be protected against external attacks, for this reason it is recommended to
install them on the door away from any through holes.
If locks are not properly protected by systems belonging to the safe (manganese plates,
glass plate, relocking, etc.) only StraightBolt (T4800/D) and Motorlock (T4801/M and
T4801/MP) locks can be mounted behind the passage hole for the connection cable or
the spindle.
Any electronic part must be properly protected and not easily accessible even when the
door is open.
Locks have been developed to work correctly in a temperature range from -5 ° C to + 50
° C and in an environment with non-condensing humidity between 25% and 90%.
The mounting dimensions are standard (magic module).
For the installation of the keypad and lock, use only the screws provided by
Tecnosicurezza. Any other screw must be approved in advance.
Locks are supplied with metric (M6) mounting screws. Upon request, Imperial 1/4-20 UNC
format mounting screws are available.
The type of material and the length of the screws must, in any case, be selected so as to
guarantee long life and reliability.
Tighten the screws so that the lock is firmly fixed to the mounting surface
(recommended torque between 2,5 and 5,5 Nm).
The mounting surface must be perfectly flat.
In order to prevent loosening of the screws it is recommended the use of LOCTITE®
threadlocker and/or specific washers positioned under the head of the fixing screw.
The diameter of the passage hole for the connection cable or the spindle must not
exceed 11 mm.
The hole must be completely cleaned of drill dust and no edge should be sharp.

8 of 24 II_PulsePro_03_eng
Installation instructions
Pulse PRO
Do not lubricate lock.
In the locked position, the distance between the bolt and the boltwork part that is
moving the lock bolt must comply with the following specifications for each type of lock.
Any component to be fixed to the lock bolt must be previously approved by
Tecnosicurezza before installation. In any case, the maximum load must not exceed 2,5 N
for T4800/M model, 4 N for T4801/M and 30 N for the reinforced model T4801/MP.
Secure the cables away from moving parts by using cable ties and cable ties bases.
If placed in normal domestic or office environments, the locks do not require particular
maintenance; in any case, after 10,000 opening/locking cycles, it is recommended to run
a test that verifies the correct and complete operation of the product.
Use only DURACELL™ 9 Volt Alkaline batteries, or battery holders with DURACELL™ 1,5
Volt Alkaline batteries. Alternatively, it is also possible to use a stabilized 12 V –1 A
power supply (p.n. N1212) with relative power supply interface (p.n. T6005/W or p.n.
T6005).
A series of acoustic signals during opening indicate a low battery level. In this case, the
battery must be replaced.
Do not use cleaning agents with chemical, abrasive or alcohol-containing additives to
clean the components. Use only a damp cloth.
Do not spray liquid directly onto the components.

II_PulsePro_03_eng 9 of 24
Installation instructions
Pulse PRO
Keypad dimensions
RotoBolt lock dimensions
T4800
StraightBolt lock dimensions
T4800/D

10 of 24 II_PulsePro_03_eng
Installation instructions
Pulse PRO
SpringBolt lock dimensions
T4800/S
MotorLock lock dimensions
T4800/M
T4801/M & T4801/MP

II_PulsePro_03_eng 11 of 24
Installation instructions
Pulse PRO
Motor LatchBolt lock dimensions
T4800/M/S
T4801/M/S

12 of 24 II_PulsePro_03_eng
Installation instructions
Pulse PRO

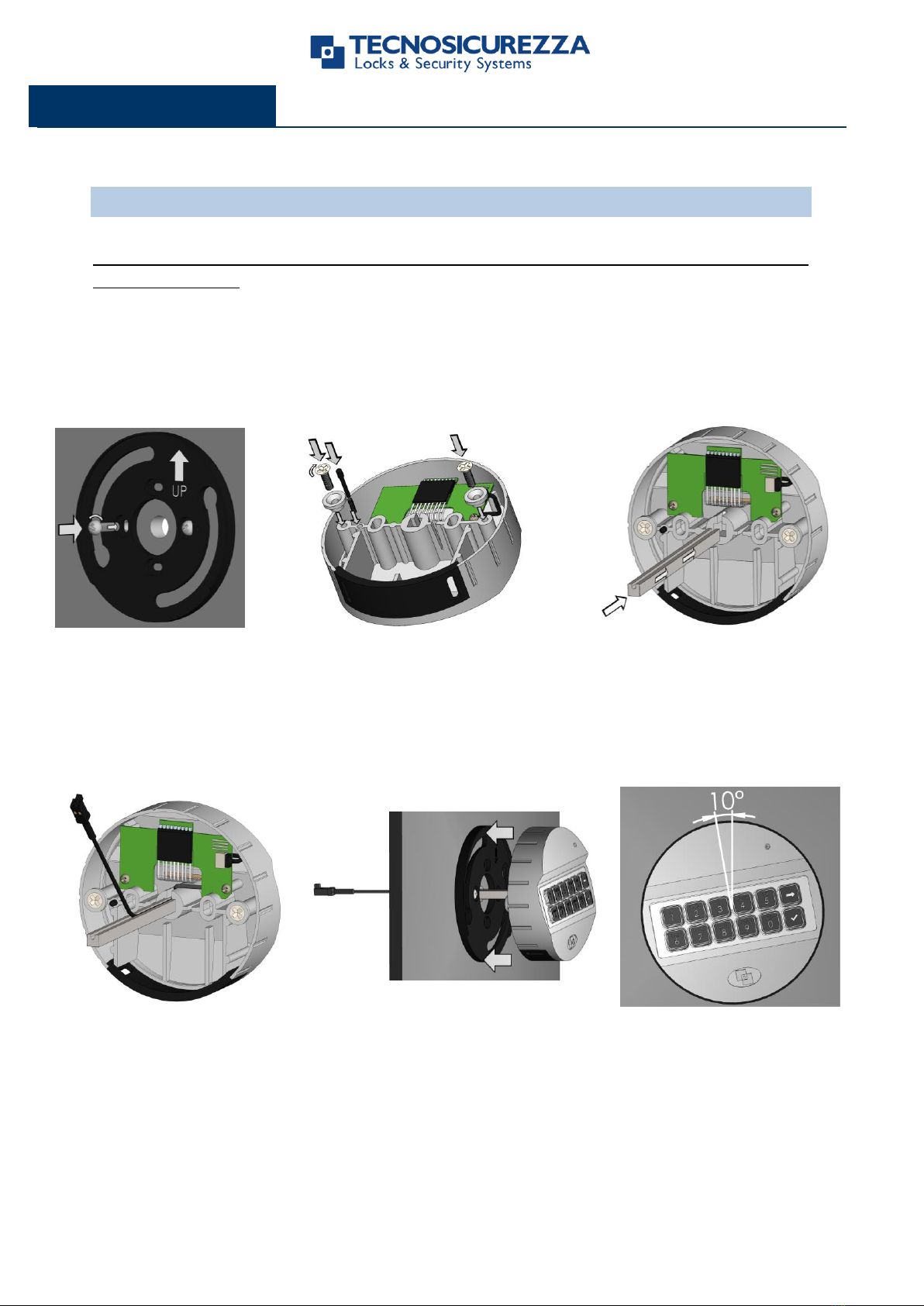

Keypad rotating kit installation instructions (accessory, p.n. T3300)
The rotation kit consists of 2 bushings, 2 M4 countersunk screws, 1 plastic pin, 1 spring and 1
rotating backplate.
(Imperial screws 8-32 UNC are available on request.)
Cut the grooved shaft to the appropriate length: measure door thickness (from mounting
surface of the entry unit to the mounting surface of the lock) and add 26 mm (1”). Prepare the
mounting and cable holes.
Fix the screws (M4) and the rotating backplate, positioning the latter on the side marked "UP".
Fix the bushings to the keypad housing using the supplied screws.
Insert the pin completely in the spring and then place it into the specific hole in the case.
Insert the grooved shaft, with the cutting edge first, all the way into the keypad housing.
Place the connection cable inside the groove in the spindle.
Insert the cable and the spindle inside the spindle hole made in the door, keeping the keypad in
angled position (10:00 o’ clock) hook the keypad to the rotating backplate.
Then turn unit clockwise into straight position at 12:00 o’ clock until you hear a click, reaching
the final position.

II_PulsePro_03_eng 13 of 24
Installation instructions
Pulse PRO

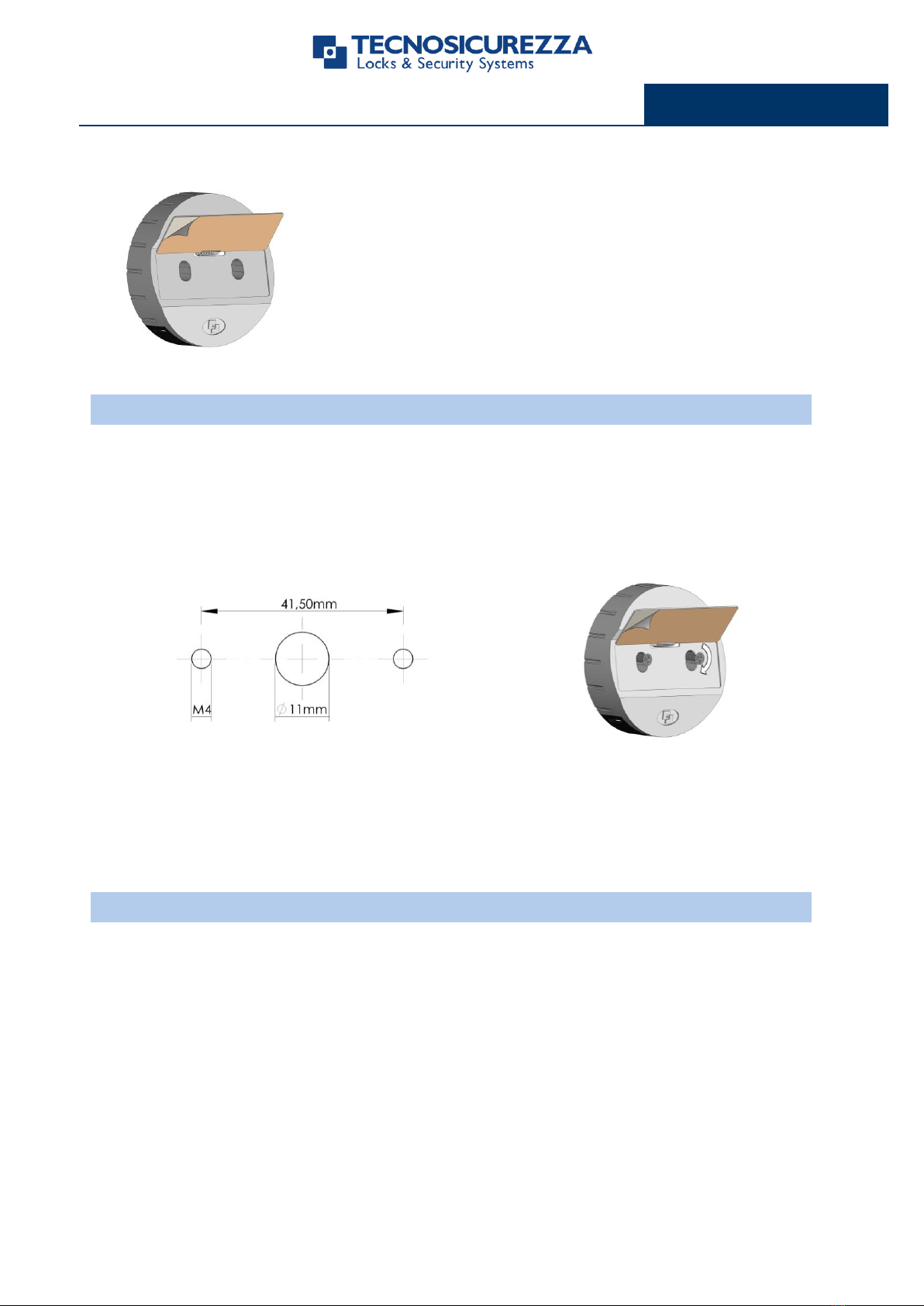

Remove the release liner placed under the membrane and
apply the latter on the keypad case.
Connect a battery to the battery connector inside the keypad
battery compartment or, if provided, connect the battery pack
to the lock connector "BAT" (connector 2 in the case of a
MotorLock or Motor LatchBolt lock).
Fixed keypad installation instructions
Insert the keypad cable inside the hole on the safe door and connect it to the lock connector
"ENT" (connector 1 in the case of a MotorLock or Motor LatchBolt lock).
Lift the keypad membrane and, making sure that the connection cable and the battery cable are
not damaged by the keypad case, fix the screws to the relative threaded holes on the safe door.
Remove the release liner placed under the membrane and apply the latter on the keypad case.
Connect a battery to the battery connector inside the keypad battery compartment or, if
provided, connect the battery pack to the lock connector "BAT" (connector 2 in the case of a
MotorLock or Motor LatchBolt lock).
RotoBolt lock installation instructions
The RotoBolt lock is a swingbolt lock in which the blocking mechanism is carried out by a motor;
it can be installed in all 4 directions, even upside down.
By entering a valid code, the lock electronic removes the blocking mechanism for 3 seconds and
the boltwork can be moved into open position by pushing the bolt inside the lock case.
The bolt automatically secures when the safe handle, or the safe door mechanism, is brought
to the locked position.
If the RotoBolt lock is used in conjunction with other locks, the safe door mechanism must
ensure the closure of the RotoBolt before the other locks are accessed.
The lock can be mounted in all four mounting directions (RH, LH, VU, VD).
Furthermore, by flipping over the lock, both locking directions can be realized (RH/LH).

14 of 24 II_PulsePro_03_eng
Installation instructions
Pulse PRO
The maximum load applicable to the bolt must not exceed 1 KN. Contact Tecnosicurezza in case
of heavier loads.
Connect the keypad cable to the lock connector "ENT", making sure it is fully inserted and
locked.
Any alarm interface or battery holder will be connected to the lock connector “BAT”.
To remove the cable, bring the connector upwards and carefully pull it out.
It’s possible to connect a relocker to the lock cover through the appropriate holes.
StraightBolt and SpringBolt installation instructions
StraightBolt and SpringBolt locks are locks with, respectively, a dead bolt and a spring bolt,
whose block is carried out by a motor.
By entering a valid code, the lock electronic removes the blocking mechanism for 3 seconds and
the boltwork can be moved into open position by turning the spindle inserted in the lock.
The spindle can be connected to a knob, a handle or directly to the keypad if equipped with a
rotation kit. In the latter case it must be used the specific rotation kit T3300. When the spindle
is brought to the locked position, the bolt comes out ensuring the lock is locked.
The StraightBolt and SpringBolt locks can be mounted in all four mounting directions.
In the locked position the distance between the RotoBolt
bolt and the RotobBolt part that is moving the lock bolt
should be approximately 1 mm.
The bolt must be able to move freely
without force being applied to it.
Fix the relocker plate with M4 self tapping flat head screws.
Length must be 6 mm + plate thickness.
(i.e. 6 mm + 2 mm plate = 8 mm screw)

II_PulsePro_03_eng 15 of 24
Installation instructions
Pulse PRO
In the locked position, there should be approximately 1 mm
clearance between the lock bolt and the cavity in the blocking
bar of the boltwork. The bolt must be able to move freely
without force being applied to it.
In open position, there should be minimum
3 mm and maximum 5 mm clearance
between the lock bolt and the
blocking bar of the boltwork.
The maximum load applicable to the bolt must not exceed 1 KN. Contact Tecnosicurezza in case of
heavier loads.
Connect the keypad cable to the lock connector "ENT", making sure it is fully inserted and
locked.
Any alarm interface or battery holder will be connected to the lock connector “BAT”.
To remove the cable, bring the connector upwards and carefully pull it out.
The spring-latch version (SpringBolt) is specially designed to ensure self locking when the door
closes.
The spindle must be inserted between a minimum of 7 mm to a maximum of 12 mm inside the
lock.
WARNING: do not insert the spindle up to the lid of the lock, but leave some room to allow the
movement of the cable and to prevent any damage.
Make sure the cable is fully inserted and locked in the groove of the spindle.
Remove any residues deriving from the cutting of the spindle that could damage the cable.
Insert the cable connector into the square hole present in the bottom of the lock and make it
come out from the opposite side.
The distance between the SpringBolt lock and the locking edge must
be between a minimum of 3 mm and a maximum of 8 mm.
When locked, there must be a 0,5 mm
gap between lock bolt and locking
surface.

16 of 24 II_PulsePro_03_eng
Installation instructions
Pulse PRO
It’s possible to connect a relocker to the lock cover through the appropriate holes.
MotorLock and Motor LatchBolt locks installation instructions
MotorLock and Motor LatchBolt locks are locks with, respectively, a motor driven dead bolt
and a motor driven spring bolt, whose block is carried out by a motor.
By entering a valid code, the motor retracts the bolt which remains in the open position for about
8 seconds and then automatically returns to the locked position.
If the manual relocking option is selected, the bolt closes by pressing the button P.
T4800/M
T4801/M & T4801/MP
In the locked position, there should be
approximately 1 mm clearance between the
lock bolt and the cavity in the blocking bar of
the boltwork. The bolt must be able to move
freely without applying any force on it.
In open position, there should be a minimum
of 3 mm and maximum of 5 mm clearance
between the lock bolt and the blocking
bar of the boltwork.
T4800/M
T4801/M & T4801/MP
Secure the cable inside the specific groove on the lock cover and
fix the lock using the appropriate mounting screws. Avoid
stretching the cable.
Connect the keypad cable to the lock connector "ENT", making sure it is fully inserted and locked.
Any alarm interface or battery holder will be connected to the lock connector “BAT”.
To remove the cable, bring the connector upwards and carefully pull it out.
Fix the relocker plate with M4 self tapping flat head screws.
Length must be 6 mm + plate thickness.
(i.e. 6 mm + 2 mm plate = 8 mm screw)

II_PulsePro_03_eng 17 of 24
Installation instructions
Pulse PRO
The spring-latch version (Motor LatchBolt) is specially designed to ensure self locking when
the door closes.
T4800/M/S
T4801/M/S
In depending of the motor lock type, the distance
between the SpringBolt lock and the locking edge
must be between a minimum of 3 mm and a
maximum of 8 mm or between minimum of 6 mm
and a maximum of 10 mm.
When locked, there must be a 0,5 mm gap
between lock bolt and locking surface.
T4800/M/S
T4801/M/S
Insert the keypad cable into the lock
connector "1", making sure it is fully
inserted and locked.
Any alarm interface or battery holder will
be connected to the lock connector “2”.
To remove the cable, bring the connector
upwards and carefully pull it out.
T4800/M/S
T4801/M/S
The maximum load applicable to the bolt must not exceed the limit values specified in the
table below. Contact Tecnosicurezza in case of heavier loads.
Lock reference
Lock version
Maximum force to apply
on the bolt
Maximum load pulled up
by the bolt
T4801/M/xx
Pull and spring version –Cass B
1 KN (100 Kg)
4 N (400 gr)
T4801/MP/xx
Pull and push version –Class B
1 KN (100 Kg)
30 N (3 Kg)
T4801/M/S/xx
Latch version
1 KN (100 Kg)
-
On the T4801/M lock (and the relative versions above) it’s possible to connect a relocker to the
lock cover through the appropriate holes.
Fix the relocker plate with M4 self tapping flat head screws.
Length must be 6 mm + plate thickness.
(i.e. 6 mm + 2 mm plate = 8 mm screw)

18 of 24 II_PulsePro_03_eng
Installation instructions
Pulse PRO
Functional tests
To be carried out with the door open.
MEMBRANE TEST:
Press and hold button 5 until the double beep (the LED will remain on).
Slowly enter all the buttons according to the sequence below:
[1]-[2]-[3]-[4]-[5]-[6]-[7]-[8]-[9]-[0]
A double beep after pressing each single button indicates that the keypad correctly communicates
with the lock.
A long beep indicates an electronic problem (in this case please contact the technical assistance).
ELECTRONIC / MECHANICAL TEST:
OPENING:
Enter the opening code (ID60 standard manager code 123456 or simply 1 if the lock is in pre-setup
mode). The lock emits a double beep. You will hear a long beep in case of incorrect code.
With RotoBolt and MotorLock locks, turn the safe door handle to the open position.
With StraightBolt and SpringBolt locks, rotate the knob or the keypad according to the type of
installation and move the lock bolt to the open position.
For all types of locks the bolt must be able to move freely.
LOCKING:
With RotoBolt and MotorLock locks, turn the safe door handle to the locked position. Lock bolt
must fully extend and ensure locking.
With MotorLock locks with manual relocking, turn the door handle towards the locked position and
press the button P.
With StraightBolt locks, turn the knob/keypad to the locked position.
For all types of locks, at the end of the operation the bolt must fully extend and ensure locking.
Repeat the functional test several times before locking the safe door.
Failure to follow these installation instructions or opening the lock by personnel not
authorized by Tecnosicurezza will void the warranty.

II_PulsePro_03_eng 19 of 24
Installation instructions
Pulse PRO
CE declarations
DICHIARAZIONE CE DI CONFORMITA’
CE DECLARATION OF CONFORMITY
Pulse PRO: T66-xx
Il sottoscritto Franco Miller, in veste di Presidente CdA e Legale Rappresentante della società
Tecnosicurezza S.p.A., con sede in San Giovanni Lupatoto (Verona) Via Cesare Battisti 276,
dichiara sotto la propria responsabilità, che il suddetto prodotto soddisfa per progettazione e
costruzione i requisiti delle direttive di: compatibilità elettromagnetica 2014/30/EU e RoHS 2
UE/2015/863. La conformità è stata verificata con l’ausilio delle seguenti norme armonizzate:
EN 61000-6-3, EN50130-4,EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN
61000-4-6, EN 61000-4-11, EN 61000-6-1, EN55022
The undersigned Mr Franco Miller as Chairman and Legal Representative of the
company Tecnosicurezza S.p.A., located in San Giovanni Lupatoto (Verona) Via Cesare
Battisti 276, declare herewith on our own responsibility that the above-mentioned product
meets the requirements of the UE/2015/863 RoHS 2, 2014/30/EU Electromagnetic
Compatibility for what concerns engineering and construction. Conformity has been controlled
with the aid of the following harmonized standards:
EN 61000-6-3, EN50130-4,EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN
61000-4-6, EN 61000-4-11, EN 61000-6-1, EN55022
Verona - Italy, 02/10/2018
Franco Miller
Board Chairman

20 of 24 II_PulsePro_03_eng
Installation instructions
Pulse PRO
DICHIARAZIONE CE DI CONFORMITA’
CE DECLARATION OF CONFORMITY
Pulse PRO: T48-xx
Il sottoscritto Franco Miller, in veste di Presidente CdA e Legale Rappresentante della società
Tecnosicurezza S.p.A., con sede in San Giovanni Lupatoto (Verona) Via Cesare Battisti 276,
dichiara sotto la propria responsabilità, che il suddetto prodotto soddisfa per progettazione e
costruzione i requisiti delle direttive di: compatibilità elettromagnetica 2014/30/EU e RoHS 2
UE/2015/863. La conformità è stata verificata con l’ausilio delle seguenti norme armonizzate:
EN 61000-6-3, EN50130-4,EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN
61000-4-6, EN 61000-4-11, EN 61000-6-1, EN55022
The undersigned Mr Franco Miller as Chairman and Legal Representative of the
company Tecnosicurezza S.p.A., located in San Giovanni Lupatoto (Verona) Via Cesare
Battisti 276, declare herewith on our own responsibility that the above-mentioned product
meets the requirements of the UE/2015/863 RoHS 2, 2014/30/EU Electromagnetic
Compatibility for what concerns engineering and construction. Conformity has been controlled
with the aid of the following harmonized standards:
EN 61000-6-3, EN50130-4,EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN
61000-4-6, EN 61000-4-11, EN 61000-6-1, EN55022
Verona - Italy, 02/10/2018
Franco Miller
Board Chairman
