Tecnosicurezza T9510/BR User manual

DigiTech
Installation instructions

2 of 20 II_ DigiTech_05_eng
Installation instructions
DigiTech
Table of contents
TABLE OF CONTENTS 2
MODELS AND CHARACTERISTICS 3
ACCESSORIES 3
AUDIT AND PROGRAMMING ACCESSORIES 3
CERTIFICATIONS 4
IMPORTANT NOTES! 4
KEYPAD DIMENSIONS 6
SWINGBOLT LOCK DIMENSIONS 6
DEADBOLT LOCK DIMENSIONS 7
LATCHBOLT LOCK DIMENSIONS 8
MOTORLOCK DIMENSIONS 8
MOTOR LATCHBOLT LOCK DIMENSIONS 9
FIXED KEYPAD INSTALLATION INSTRUCTIONS 9
SWINGBOLT LOCK INSTALLATION INSTRUCTIONS 10
DEADBOLT AND LATCHBOLT LOCKS INSTALLATION INSTRUCTIONS 11
MOTORLOCK AND MOTOR LATCHBOLT LOCKS INSTALLATION INSTRUCTIONS 13
FUNCTIONAL TEST 15
CE DECLARATIONS 16

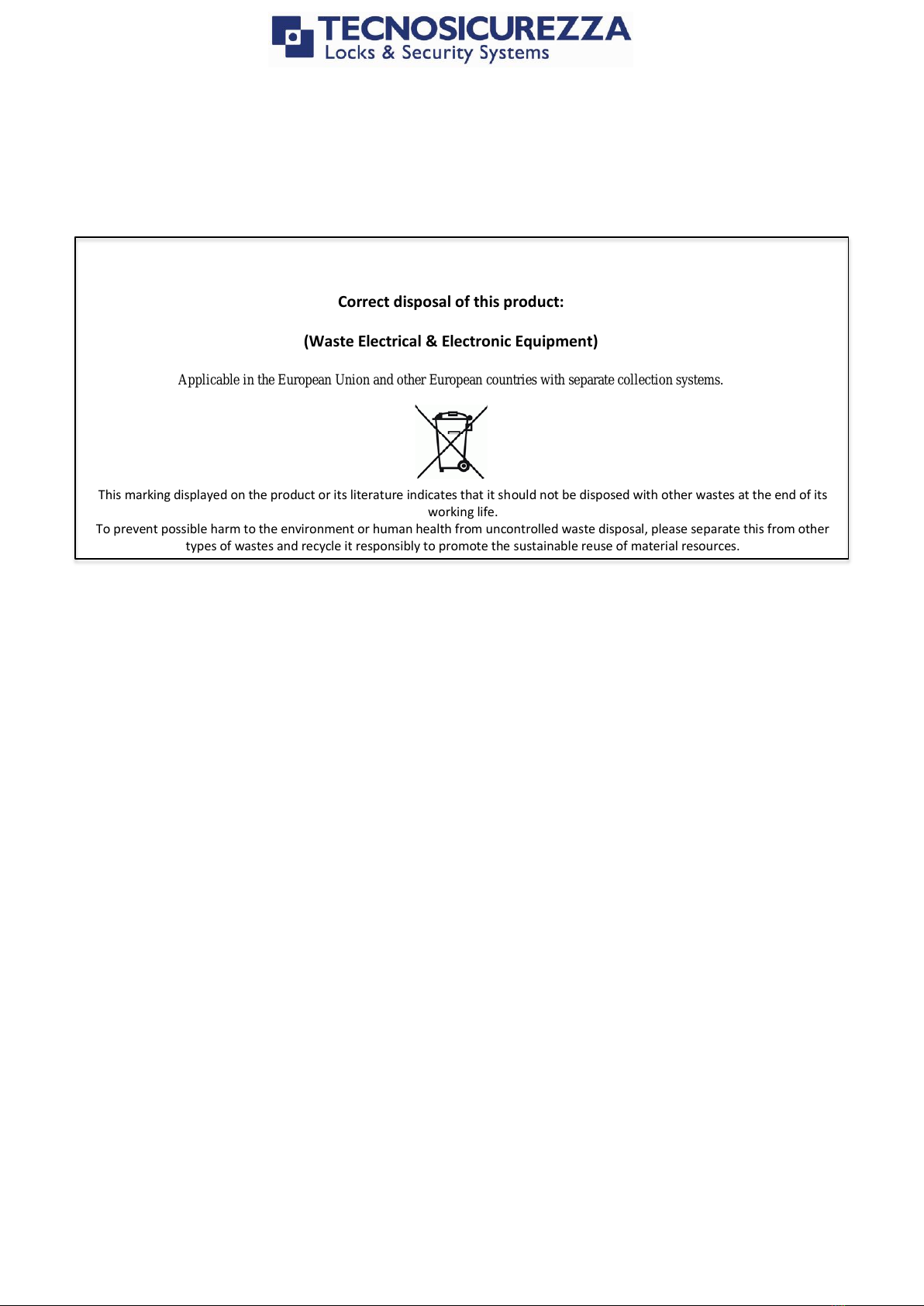

CORRECT DISPOSAL OF THIS PRODUCT: 20
(WASTE ELECTRICAL & ELECTRONIC EQUIPMENT) 20
CONTACTS 20

II_DigiTech_05_eng 3 of 20
Installation instructions
DigiTech
Models and characteristics
Model
Variant
T9510/BR –Keypad in metal. Black color
with rubber membrane foil keypad in black
color.
/DL with Dallas key reader.
Accessories
Code
Description
T20019/T
Cabling interface/Adapter.
L4001
Large battery box for 6 size C 1,5V batteries.
N620/A
9V Battery box with alarm interface.
T6006
Power supply interface 12 ÷ 24 V with alarm
interface.
L2666
Knob with 6 mm square spindle.
N1982
User Dallas key.
Audit and programming accessories
Code
Description
N42180/T
USB interface.
N42170/D
Dallas key reader with molex connector.
N42170/J
Dallas key reader with jack connector.
N42170/M
Magnetic Dallas key connection cable.
N1996RM
Magnetic Dallas key for audit.
T42146/J
Setup and audit cable.

4 of 20 II_ DigiTech_05_eng
Installation instructions
DigiTech
Certifications
The updated product certifications are available on the official websites of Tecnosicurezza:
www.tecnosicurezza.it www.tecnosicurezza.es www.usatecno.com
Important notes!
Before installing this product, please read carefully the installation and operating
instructions.
Locks can be installed in all traditional safes.
Locks have to be mounted on secure storage metal (preferred steel) units only.
Locks must be protected against external attacks, for this reason it is recommended to
install them on the door away from any through holes (except DeadBolt and MotorLock).
If locks are not properly protected by systems belonging to the safe (manganese plates,
glass plate, relocking, etc.) only DeadBolt and MotorLock locks can be mounted behind
the passage hole for the connection cable or the spindle.
Any electronic part must be properly protected and not easily accessible even when the
door is open.
Locks have been developed to work correctly in a temperature range from -5 ° C to + 50
° C and in an environment with non-condensing humidity between 25% and 90%.
The mounting dimensions are standard (magic module).
For keypad and lock installation, use only the screws provided by Tecnosicurezza. Any
other screw must be approved in advance.
Locks are supplied with metric (M6) mounting screws. Upon request, Imperial 1/4-20 UNC
format mounting screws are available.
The type of material and the length of the screws must, in any case, be selected so as to
guarantee long life and reliability.
Tighten the screws so that the lock is firmly fixed to the mounting surface
(recommended torque between 2,5 and 5,5 Nm).
The mounting surface must be perfectly flat.

II_DigiTech_05_eng 5 of 20
Installation instructions
DigiTech
In order to prevent the screws from loosening, it is recommended the use of LOCTITE®
threadlocker and/or specific washers positioned under the head of the fixing screw.
The diameter of the passage hole for the connection cable or the spindle must not
exceed 11 mm.
The hole must be completely cleaned of drill dust and sharp edges.
Do not lubricate locks.
In the locked position, the distance between the bolt and the boltwork part which moves
the lock bolt must comply with the following specifications for each type of lock.
Any component to be fixed to the lock bolt must be previously approved by
Tecnosicurezza before installation. In any case, the maximum load must not exceed 4 N
for T5101/M and 30 N for the reinforced model T5101/MP.
Secure the cables away from moving parts by using cable ties and cable ties bases.
If placed in normal domestic or office environments, the locks do not require particular
maintenance; in any case, after 10,000 opening/closing cycles, it is recommended to run
a test that verifies the correct and complete operation of the product.
Use only DURACELL™ 9 Volt Alkaline batteries, or battery holders with DURACELL™ 1,5
Volt Alkaline batteries. Alternatively it is also possible to use a stabilized power supply
from 12 V to 24 V and 1 A, with relative power supply interface (p.n. T6006).
A series of acoustic signals during opening indicate a low battery level. In this case, the
battery must be replaced.
Do not use cleaning agents with chemical, abrasive or alcohol-containing additives to
clean the components. Use only a damp cloth.
Do not spray liquid directly onto the components.

6 of 20 II_ DigiTech_05_eng
Installation instructions
DigiTech

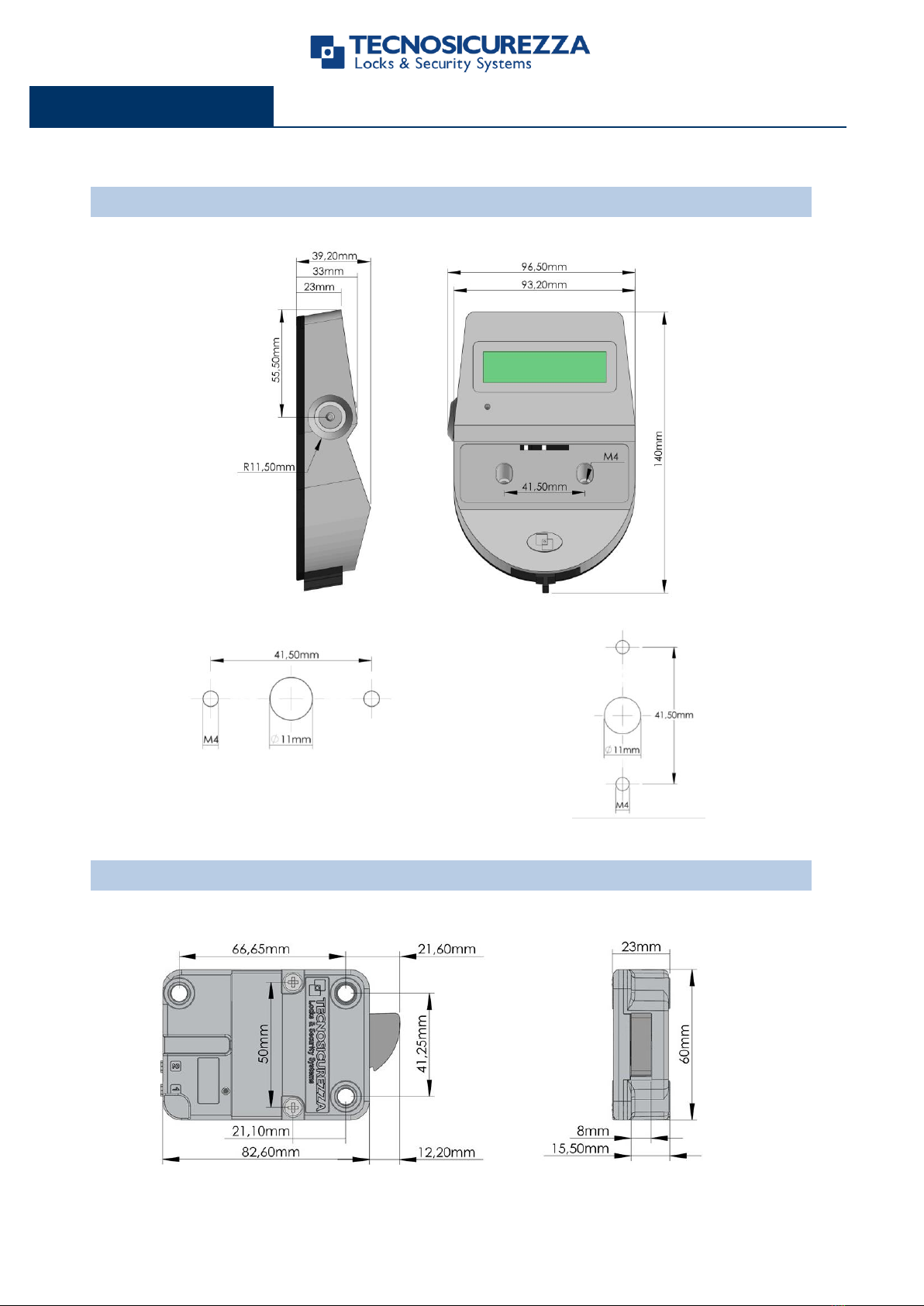

Keypad dimensions
STANDARD mounting
VERTICAL mounting

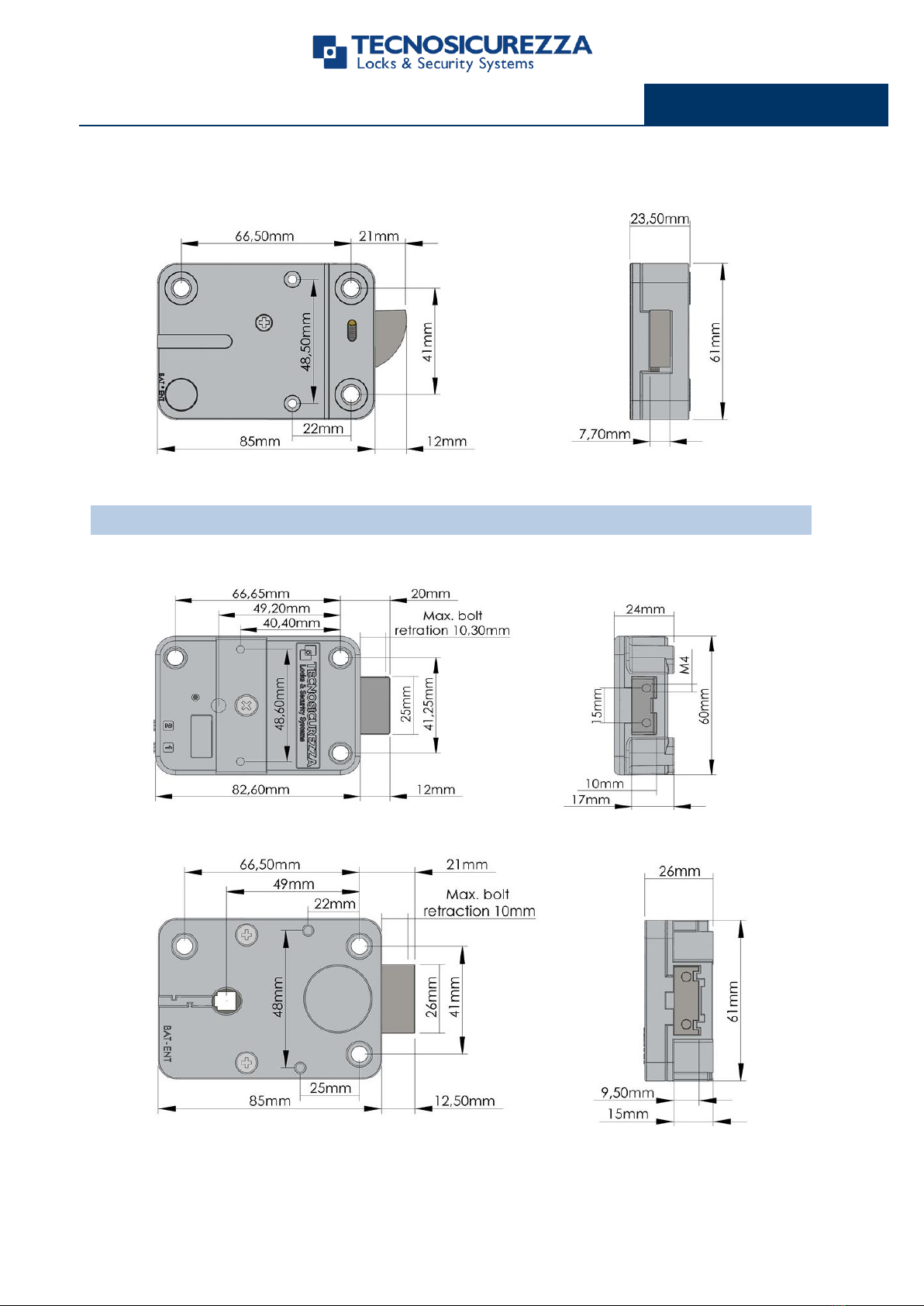

SwingBolt lock dimensions
T5101

II_DigiTech_05_eng 7 of 20
Installation instructions
DigiTech
T5100
DeadBolt lock dimensions
T5101/D
T5100/D

8 of 20 II_ DigiTech_05_eng
Installation instructions
DigiTech
LatchBolt lock dimensions
T5101/S
T5100/S
MotorLock dimensions
T5101/M & T5101/MP

II_DigiTech_05_eng 9 of 20
Installation instructions
DigiTech
Motor LatchBolt lock dimensions
T5101/M/S
Fixed keypad installation instructions
Insert the keypad cable inside the hole on the safe door and connect it to the lock connector
"1/ENT". Lift the keypad membrane and, making sure that the connection cable and the
battery cable are not damaged by the keypad case, fix the screws to the relative threaded
holes on the safe door.
STANDARD mounting
VERTICAL mounting
The keypad can also be installed in a quick hooking/unhooking mode (vertical mounting).
Remove the release liner placed under the membrane
and apply the latter on the keypad case. Connect a
battery to the battery connector inside the keypad
battery compartment or, if provided, connect the
battery pack to the lock connector "2/BAT".

10 of 20 II_ DigiTech_05_eng
Installation instructions
DigiTech
SwingBolt lock installation instructions
The SwingBolt lock is a swinging bolt lock whose block is carried out by a motor; it can be
installed in all 4 directions, even upside down.
By entering a valid code, the lock electronic removes the blocking for 3 seconds and the
boltwork can be moved into open position by pushing the bolt inside the lock case.
The bolt automatically secures when the safe handle, or the safe door mechanism, is brought
to the locked position.
If the SwingBolt lock is used in conjunction with other locks, the safe door mechanism must
ensure the closure of the SwingBolt before the other locks.
The lock can be mounted in all four mounting directions (RH, LH, VU, VD).
Furthermore, by flipping over the lock, both locking directions can be realized.
In the locked position the distance between the lock’s bolt and the lock part
that moves the lock bolt should be approximately 1 mm.
The bolt must be able to move freely without force being applied to it.
The maximum load applicable to the bolt must not exceed 1KN. Contact Tecnosicurezza in
case of heavier loads.
Connect the keypad cable to the lock connector "1/ENT", making sure it is fully inserted and
locked.
Any alarm interface or battery holder needs to be connected to the lock connector “2/BAT”.
To remove the cable, bring the connector upwards and carefully pull it out.
It’s possible to connect a relocker to the lock cover through the appropriate holes.

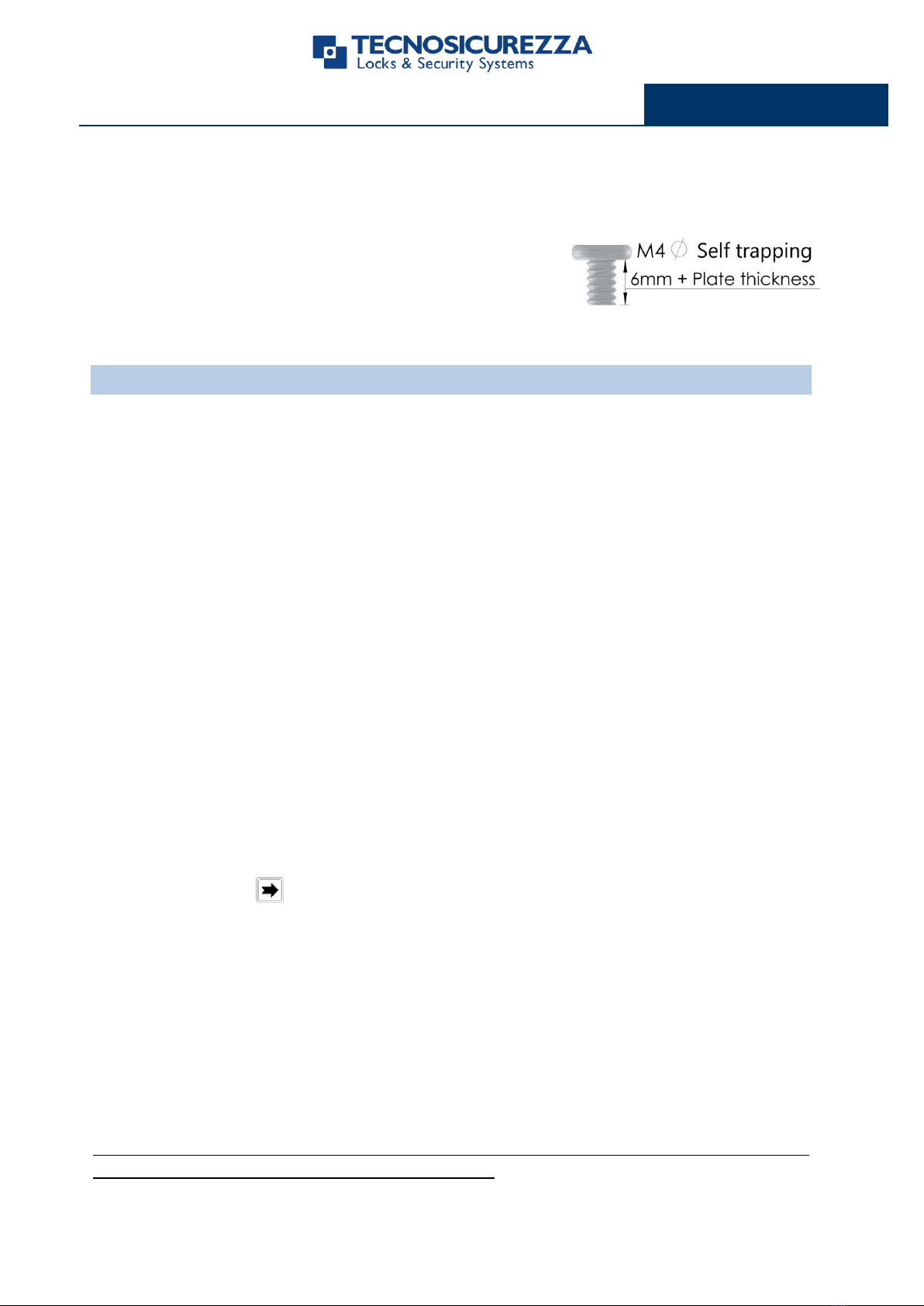

Fix the relocker plate with M4 self tapping flat head screws.
Length must be 6 mm + plate thickness.
(i.e. 6 mm + 2 mm plate = 8 mm screw)

II_DigiTech_05_eng 11 of 20
Installation instructions
DigiTech
DeadBolt and LatchBolt locks installation instructions
DeadBolt and LatchBolt locks are locks with, respectively, a dead bolt and a spring bolt, whose
block is carried out by a motor.
By entering a valid code, the lock electronic removes the blocking for 3 seconds and the
boltwork can be moved into open position by turning the spindle inserted in the lock.
The spindle can be connected to a knob, a handle or directly to the keypad if equipped with a
rotation kit. When the spindle is brought to the locked position, the bolt comes out ensuring
the lock is locked.
The DeadBolt and LatchBol locks can be mounted in all four mounting directions (RH, LH, VU,
VD).
In the locked position, there should be approximately 1 mm clearance
between the lock bolt and the cavity in the blocking bar of the boltwork.
The bolt must be able to move freely without force being applied to it.
In open position, there should be a minimum of 3 mm and maximum
of 5 mm clearance between the lock bolt and the blocking bar of the
boltwork.
The maximum load applicable to the bolt must not exceed 1 KN. Contact Tecnosicurezza in case of
heavier loads.
The LatchBolt lock is specially designed to ensure self locking when the door closes.
T5101/S

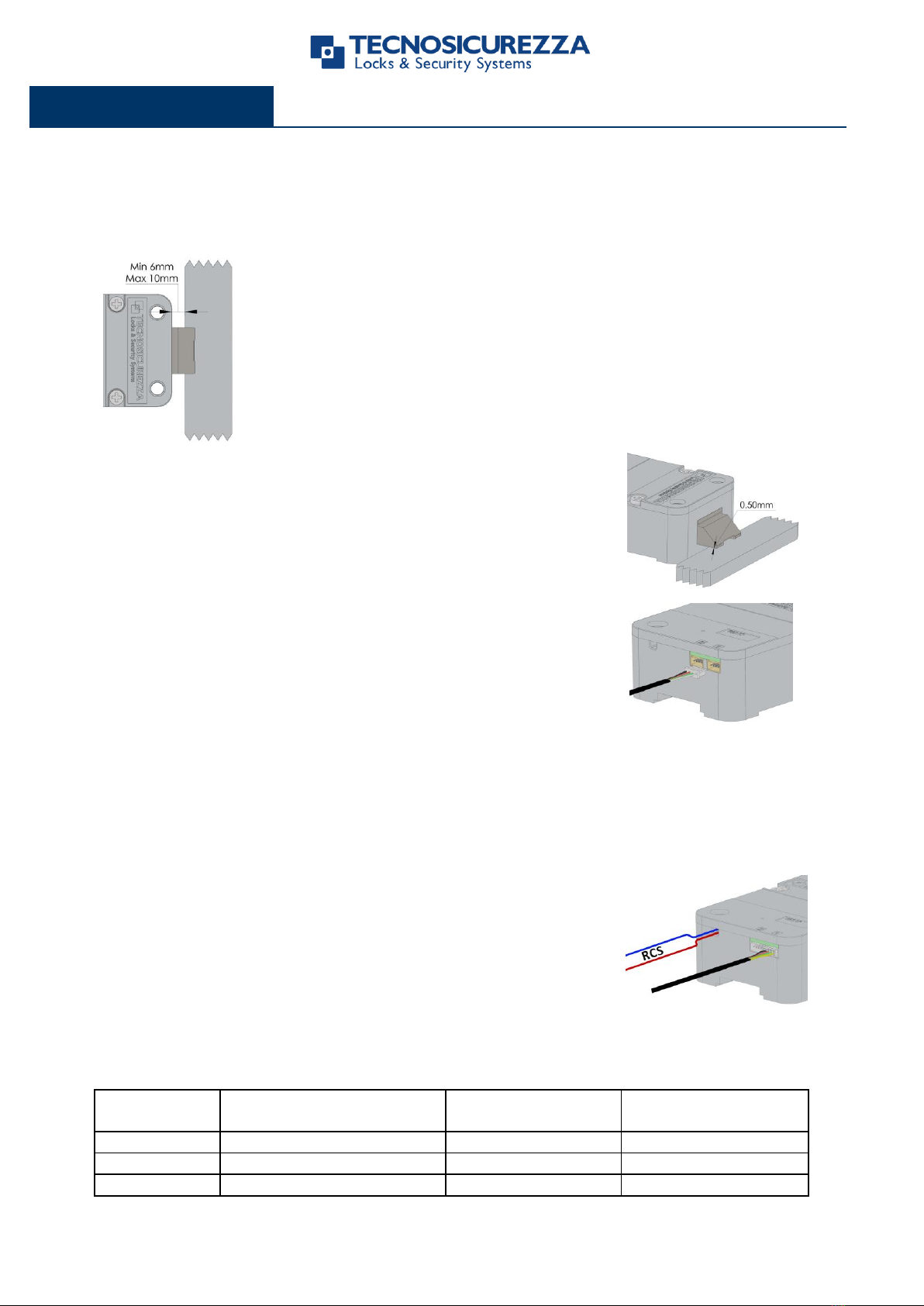

The distance between the LatchBolt lock and the locking edge must be
between a minimum of 6 mm and a maximum of 10 mm.

12 of 20 II_ DigiTech_05_eng
Installation instructions
DigiTech
The distance between the LatchBolt lock and the locking edge must be
between a minimum of 3 mm and a maximum of 8 mm.
T5100/S
When locked, there must be a 0.5 mm gap between lock bolt and
locking surface.
Cut the spindle to the correct length (measure door thickness + mounting plate/rotation knob or
handle insert + lock spindle insert).
Remove any cutting residues of the spindle that could damage the cable.
T5101/D & T5101/S locks
The spindle needs to be fully inserted inside the lock (7 mm).
Place the cable in the groove of the spindle, making sure it’s fully inserted and locked.
Secure the cable inside the special groove located under the lock
body, ensuring that it is not stretched when turning the spindle.
Fix the lock using the appropriate mounting screws.
Connect the keypad cable to the lock connector "1", making sure it is fully inserted and
locked. Any alarm interface or battery holder needs to be connected to the lock connector “2”.
To remove the cable, bring the connector upwards and carefully pull it out.
T5100/D & T5100/S locks
The spindle must be inserted between a minimum of 7 mm to a maximum of 12 mm inside
the lock.
WARNING: do not insert the spindle up to the lid of the lock, but leave some margin to
allow the movement of the cable and to prevent any damage.
Place the cable in the groove of the spindle, making sure it’s fully inserted and locked.
Insert the cable connector into the square hole present in the bottom of the lock and make it
come out from the opposite side.

II_DigiTech_05_eng 13 of 20
Installation instructions
DigiTech
It’s possible to connect a relocker to the lock cover through the appropriate holes.
MotorLock and Motor LatchBolt locks installation instructions
MotorLock and Motor LatchBolt locks are locks with, respectively, a motor driven dead bolt and
a motor driven spring bolt, whose block is carried out by a motor.
By entering a valid code, the motor retracts the bolt which remains in the open position for about
8 seconds and then automatically returns to the locked position.
If the manual relocking option is selected, the bolt closes by pressing and holding the button .
Both lock versions can be mounted in all four mounting directions (RH, LH, VU, VD).
Locks are supplied with metric (M6) mounting screws. Upon request, Imperial 1/4-20 UNC
format mounting screws are available.
Secure the cable inside the special groove located on the lock
cover, ensuring that it is not stretched when turning the spindle.
Fix the lock using the appropriate mounting screws.
Connect the keypad cable to the lock connector "ENT", making sure it is fully inserted and
locked. Any alarm interface or battery holder needs to be connected to the lock connector
“BAT”. To remove the cable, bring the connector upwards and carefully pull it out.
Fix the relocker plate with M4 self tapping flat head screws.
Length must be 6 mm + plate thickness.
(i.e. 6 mm + 2 mm plate = 8 mm screw)
In the locked position, there should be approximately 1 mm clearance
between the lock bolt and the cavity in the blocking bar of the boltwork.
The bolt must be able to move freely without applying any force on it.
In open position, there should be aminimum of 3 mm and maximum
of 5 mm clearance between the lock bolt and the blocking bar of the
boltwork.

14 of 20 II_ DigiTech_05_eng
Installation instructions
DigiTech
The latch version (Motor LatchBolt lock) is specially designed to ensure self-locking when the
door closes.
When locked, there must be a 0.5 mm gap between lock bolt and
locking surface.
Insert the keypad cable into the lock connector "1", making sure it
is fully inserted and locked.
Any alarm interface or battery holder Needs to be connected to the
lock connector “2”. To remove the cable, bring the connector
upwards and carefully pull it out.
The Push & Pull version (T5101/MP) is supplied by default with RCS option, where closing is
triggered by an external signal (i.e. boltwork switch). This avoids the motor to be activated when
boltworks are not expanded yet.
It’s recommended to correctly use this signal to avoid motor damages.
Lock is also programmed by default with 8 seconds automatic
reclosure, which can be modified upon request. This means that if
the lock will open but the external signal don’t (i.e. boltworks not
expanded), lock will auromatically close after 8 seconds (smart
reclosure).
The maximum load applicable to the bolt must not exceed the limit values specified in the
table below. Contact Tecnosicurezza in case of heavier loads.
Lock reference
Lock version
Maximum force to apply
on the bolt
Maximum load pulled up
and pushed by the bolt
T5101/M
Pull and spring version –Cass B
1KN (100 Kg)
4N (400 gr)
T5101/MP
Push and pull version –Class B
1KN (100 Kg)
30 N (3 Kg)
T5101/M/S
Latch version
1KN (100 Kg)
-
The distance between the lock and the locking edge must be between
a minimum of 6 mm and a maximum of 10 mm.

II_DigiTech_05_eng 15 of 20
Installation instructions
DigiTech
It’s possible to connect a relocker to the lock cover through the appropriate holes.
Functional test
To be carried out with the door open.
MEMBRANE TEST:
Press and hold the button 5 to access the "Membrane Test" function.
Press slowly all the buttons according to the sequence shown on the display.
ELECTRONIC / MECHANICAL TEST:
OPENING:
Enter the opening code (standard manager code 123456). The display will show "open" and the
green LED will light up.
With SwingBolt and MotorLock locks, turn the safe door handle to the open position.
With DeadBolt and LatchBolt locks, rotate the knob or handle according to the type of installation
and move the lock bolt to the open position.
For all types of locks the bolt must be able to move freely.
LOCKING:
With SwingBolt and MotorLock locks, turn the safe door handle to the locked position. Lock bolt
must fully extend and ensure locking.
With MotorLock locks with manual relocking, turn the door handle towards the locked position
and press the button .
Lock bolt must fully extend and ensure locking.
With DeadBolt lock, rotate the knob or handle according to the type of installation and move the
lock bolt to the locked position.
Lock bolt must fully extend and ensure locking.
Make sure that there is free space in all directions around the bolt when the movement is
brought to the locked position.
Repeat the functional test several times before closing the safe door.
Failure to follow these installation instructions or opening the lock by personnel not
authorized by Tecnosicurezza will void the warranty
Fix the relocker plate with M4 self tapping flat head screws.
Length must be 6 mm + plate thickness.
(i.e. 6 mm + 2 mm plate = 8 mm screw)

16 of 20 II_ DigiTech_05_eng
Installation instructions
DigiTech
CE declarations
DICHIARAZIONE CE DI CONFORMITA’
CE DECLARATION OF CONFORMITY
DigiTech: T951-x
Il sottoscritto Franco Miller, in veste di Presidente CdA e Legale Rappresentante
della società Tecnosicurezza S.p.A., con sede in San Giovanni Lupatoto (Verona) Via Cesare
Battisti 276, dichiara sotto la propria responsabilità, che il suddetto prodotto soddisfa per
progettazione e costruzione i requisiti delle direttive di: compatibilità elettromagnetica
2014/30/UE e RoHS 2 2011/65/UE. La conformità è stata verificata con l’ausilio delle seguenti
norme armonizzate:
EN 61000-6-3, EN50130-4,EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN
61000-4-6, EN 61000-4-11, EN 61000-6-1, EN55022
The undersigned Mr Franco Miller as Chairman and Legal Representative of the
company Tecnosicurezza S.p.A., located in San Giovanni Lupatoto (Verona) Via Cesare
Battisti 276, declare herewith on our own responsibility that the above-mentioned product
meets the requirements of the 2011/65/UE RoHS 2, 2014/30/UE Electromagnetic
Compatibility for what concerns engineering and construction. Conformity has been controlled
with the aid of the following harmonized standards:
EN 61000-6-3, EN50130-4,EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN
61000-4-6, EN 61000-4-11, EN 61000-6-1, EN55022
Verona - Italy, 25/07/2018
Franco Miller
Board Chairman

II_DigiTech_05_eng 17 of 20
Installation instructions
DigiTech
DICHIARAZIONE CE DI CONFORMITA’
CE DECLARATION OF CONFORMITY
DigiTech: T51-xx
Il sottoscritto Franco Miller, in veste di Presidente CdA e Legale Rappresentante
della società Tecnosicurezza S.p.A., con sede in San Giovanni Lupatoto (Verona) Via Cesare
Battisti 276, dichiara sotto la propria responsabilità, che il suddetto prodotto soddisfa per
progettazione e costruzione i requisiti delle direttive di: compatibilità elettromagnetica
2014/30/UE e RoHS 2 2011/65/UE. La conformità è stata verificata con l’ausilio delle seguenti
norme armonizzate:
EN 61000-6-3, EN50130-4,EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN
61000-4-6, EN 61000-4-11, EN 61000-6-1, EN55022
The undersigned Mr Franco Miller as Chairman and Legal Representative of the
company Tecnosicurezza S.p.A., located in San Giovanni Lupatoto (Verona) Via Cesare
Battisti 276, declare herewith on our own responsibility that the above-mentioned product
meets the requirements of the 2011/65/UE RoHS 2, 2014/30/UE Electromagnetic
Compatibility for what concerns engineering and construction. Conformity has been controlled
with the aid of the following harmonized standards:
EN 61000-6-3, EN50130-4,EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN
61000-4-6, EN 61000-4-11, EN 61000-6-1, EN55022
Verona - Italy, 25/07/2018
Franco Miller
Board Chairman

18 of 20 II_ DigiTech_05_eng
Installation instructions
DigiTech
NOTES

II_DigiTech_05_eng 19 of 20
Installation instructions
DigiTech
NOTES

Correct disposal of this product:
(Waste Electrical & Electronic Equipment)
Applicable in the European Union and other European countries with separate collection systems.
This marking displayed on the product or its literature indicates that it should not be disposed with other wastes at the end of its
working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other
types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Contacts
GLOBAL HEADQUARTERS
USA HEADQUARTERS
SPAIN HEADQUARTERS
Tecnosicurezza SpA
Tecnosicurezza Inc.
Tecnosicurezza Sa
Via Cesare Battisti, 276
50, Thomas Lane
C/Menor, 4 - Nave 10
37057 San Giovanni Lupatoto
Verona, Italy
Versailles, KY 40383, United States
Pol. Ind La Mina 28770
Colmenar Viejo, Spain
Tel.[phone]
Tel.[phone]
Tel.[phone]
Fax. [phone]
Fax.[phone]
[e-mail]
[e-mail]
[e-mail]
