Tele Radio Panther PN-R8-1 Installation instructions

Tele Radio Panther
SAFETY INSTRUCTIONS
IM-PN-TX001-A02-EN
ARTICLE CODE: PN-R8-1, PN-R8-2, PN-R8-6, PN-T7-3, PN-T7-4, PN-T7-5.
LANGUAGE: ENGLISH (ORIGINAL)

Thank you for puchasing a Tele Radio product
PN-R8-1, PN-R8-2, PN-R8-6, PN-T7-3, PN-T7-4, PN-T7-5
INSTRUCTIONS ARE AVAILABLE FOR DOWNLOAD AT: www.tele-radio.com
READ ALL INSTRUCTIONS CAREFULLY BEFORE MOUNTING, INSTALLING AND
CONFIGURATING THE PRODUCT.
These instructions are published by Tele Radio AB without any guarantee.These
instructions are solely directed towards qualied installers. The instructions may be
removed or revised by Tele radio AB at any time and without any further notice.
Corrections and additions will be added to the updated versions of the instructions.
The instructions that contain information on the installation and conguration of the
remote radio control unit on the machine are not intended to be passed on to the end
user. Only such information may be passed on to the end user, that is needed to operate
the machine correctly by radio remote control.
Tele Radio AB products are covered by a guarantee against material, construction or
manufacturing faults. During the guarantee period,Tele Radio AB may replace the product
or faulty parts with new. Work under guarantee must be carried out by Tele Radio AB
or by an authorized service centre specied by Tele Radio AB. Make sure that repairs and
maintenance are only carried out by qualied personnel. Use only spare parts from Tele
Radio AB. Contact your Tele Radio representative if you need service or support.The EC
declaration of conformity can be downloaded from our website.
©Tele Radio AB, 2010
TELE RADIO AB
Datavägen 21, SE-436 32 Askim. Sweden
Tel: [phone]
Fax: [phone]
www.tele-radio.com.
[e-mail]
The helpdesk group can help you with questions
regarding service and technical support.
[e-mail]

5

6Contents
CONTENTS
TECHNICAL DATA RECEIVER
Receiver (base board) 7
Receiver (base + relay expansion board) 8
Receiver (base + high voltage expansion board) 9
Current consumption 10
Receiver data 11
TECHNICAL DATA TRANSMITTER
Transmitter 10
Batteries 13
Change the batteries 13
SETTINGS
Start the transmitter 14
Turn the transmitter off 14
Register the transmitter in the receiver 15
Erase all transmitters from the receiver 15
LED indications 17
Placement of labels with IC and FCC information 19
FCC statement 21
Guarantee, service, repairs and maintenance 21
Battery precautions 22
Disposal of batteries 23
Disposal of electronics 23

6
18
19
20
LED7 LED8
LED6
LED9
LED10
F
S
Relay 5 Relay 1 Relay 3Relay 2 Relay 4
5 1 2 3 4
+ -
12-24 V DC
CO NO NC
WR/5
CO NO NC
1 (on/off)
CO NO NC
2
CO NO NC
3 (kill)
CO NO NC
4 (Buzzer)
1 2 3 4 5 6 7 8 9
10
11
12 13 14 15 16 17
LEDs
TECHNICAL DATA RECEIVER
R8-1 (BASE BOARD)
1. Relay 1- on/off relay
2. Relay 5- working relay
3. Relay 2
4. Relay 3- kill relay
5. Relay 4- buzzer relay
6. Power supply connection
6-30 V DC
7. Relay LED 5
8. Relay LED 1
9. Relay LED 2
10. Relay LED 3
11. Relay LED 4
12. Power supply LED 6
13.Trabus programming connector
14.Terminal block for RS232
15. Function button (Cancel)
16. Select button (OK)
17. LED 8
18. Base board communication
LED 9
19. LED 10
20. LED 7
1
2
3
4
5
6
78910 11 13
12
14
15
16
17
18
19
20

7
R8-6 (BASE + RELAY EXPANSION BOARD)
21. Expansion board
communication LED 11
22. Relay LED 6
23. Relay LED 7
24. Relay LED 8
25. Relay LED 9
26. Relay LED 10
27. Relay LED 11
28. Relay 6
29. Relay 7
30. Relay 8
31. Relay 9
32. Relay 10
33. Relay 11
34.Trabus programming connector
18
19
20
LED7 LED8
LED6
LED9
LED10
F
S
Relay 5 Relay 1 Relay 3Relay 2 Relay 4
5 1 2 3 4
+ -
12-24 V DC
CO NO NC
WR/5
CO NO NC
1 (on/off)
CO NO NC
2
CO NO NC
3 (kill)
CO NO NC
4 (Buzzer)
1 2 3 4 5 6 7 8 9
10
11
12 13 14 15 16 17
LEDs
Relay 6 Relay 7 Relay 8 Relay 10
Relay 9 Relay 11
LED
LED6
LED7
LED8
LED9
LED10
LED11
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
CO NO NC
CO CO NO NC CO NO NC CO NO NC CO NO NC CO NO NC
678910 11
21
28 29 30 31 32 33
34
22
23
24
25
26
27

8
18
19
20
LED7 LED8
LED6
LED9
LED10
F
S
Relay 5 Relay 1 Relay 3Relay 2 Relay 4
5 1 2 3 4
+ -
12-24 V DC
CO NO NC
WR/5
CO NO NC
1 (on/off)
CO NO NC
2
CO NO NC
3 (kill)
CO NO NC
4 (Buzzer)
1 2 3 4 5 6 7 8 9
10
11
12 13 14 15 16 17
LEDs
21 22 23 24
COMMON
24-110 V AC
230 V AC
LED
R8-2 (BASE + HIGH VOLTAGE EXPANSION BOARD)
Recommended cable for RS232 is a twisted or shielded cable.
22
21 23 24
COMMON 24-110 V AC 230 V AC
35
35. Power supply LED 12

9
Current consumption
RX MODEL SUPPLY VOLTAGE MAX. CURRENT CONSUMPTION
R8-1 12-24 V DC <200 mA.
R8-2 24-230 V AC <200 mA.
R8-6 12-24 V DC <300 mA.
Technical data
FUNCTIONAL RELAYS: 5/ 11 potential free* functional relays
makes/ breaks 8A ACI
NUMBER OF CHANNELS: 16
SIZE: 120 x 116 x 50 mm./
4.7” x 4.6” x 2”
WEIGHT: 400-500 grams/ 14-18 oz.
IP CLASS: IP66

10 Technical data transmitter
17 18 19
3
2
1
1st step
2nd step
TECHNICAL DATA TRANSMITTER
3-BUTTONS TRANSMITTER T5
1. Top LED (red/green)
2. LED 2 (red)
3. LED 1 (red)
4. 2-step buttons 1-3
NOTE! The right transmitter shows the
button positions for the second step on
the 3-button transmitter.
1
2
3
4
Frequency: 2405-2480 MHz.

11
Technical data transmitter
222120
17 18 19
6
5
4
3
2
1
1st step
2nd step

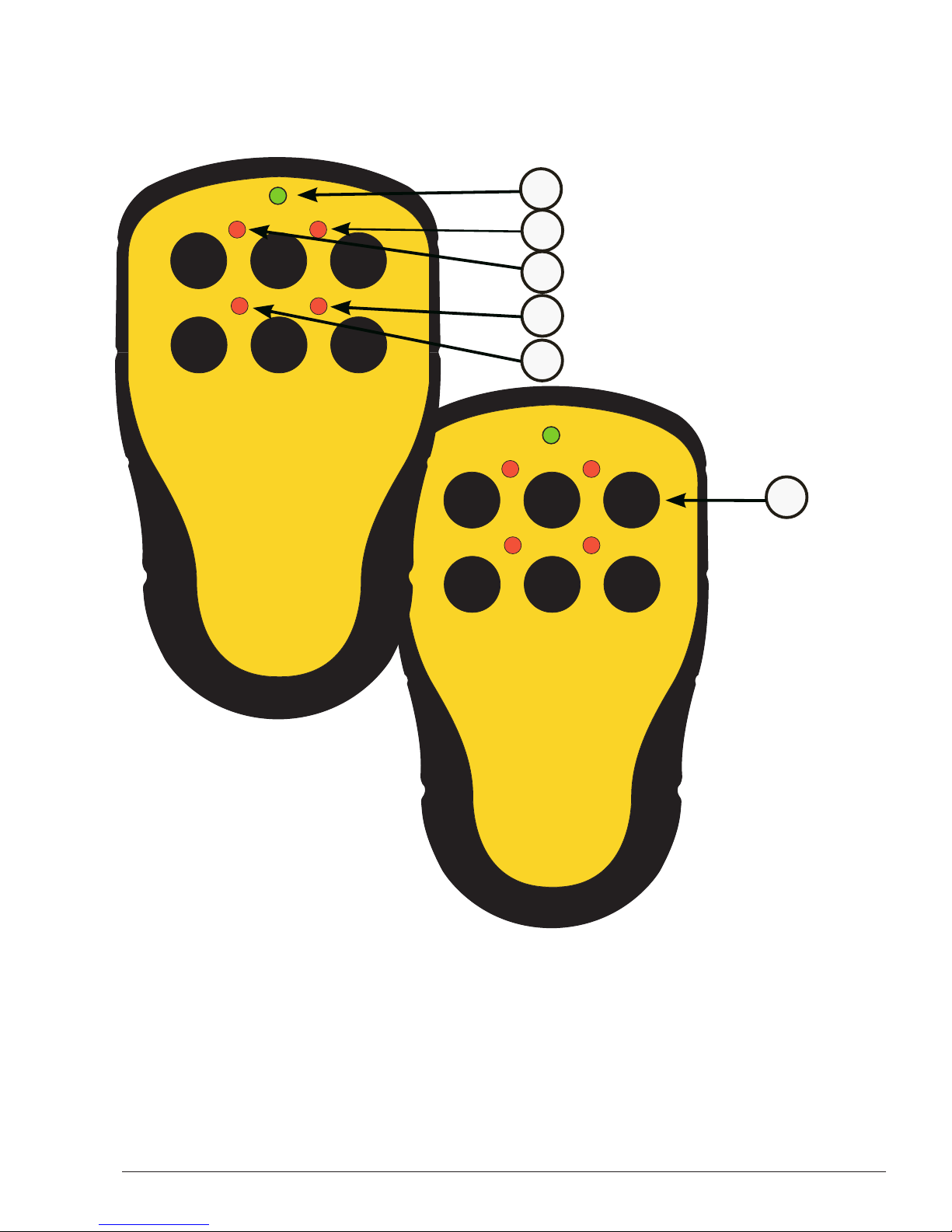

6-BUTTONS TRANSMITTER T4
1. Top LED (red/green)
2. LED 2 (red)
3. LED 1 (red)
4. LED 4 (red)
5. LED 3 (red)
6. 2-step buttons 1-6
NOTE! The right transmitter shows the
button positions for the second step on the
6-button transmitter.
1
2
3
4
5
6
Frequency: 2405-2480 MHz.

12 Technical data transmitter
8-BUTTONS TRANSMITTER T3
1. Top LED (red/green)
2. LED 2 (red)
3. LED 1 (red)
4. LED 4 (red)
5. LED 3 (red)
6. 2-step buttons 1-8
NOTE! The right transmitter shows the
button positions for the second step on
the 8-button transmitter.
2423
222120
17 18 19
78
6
5
4
3
2
1
1st step
2nd step
1
2
3
4
5
6
Frequency: 2405-2480 MHz.

13
Technical data transmitter
BATTERIES
BATTERY TYPE: 3 x 1.5 V
AAA alkaline
OPERATING TIME: Approx. 15 h. with continuous usage
WARNING! Do not recharge! Attempts to recharge may cause rupture,
or the leaking of hazardous liquids which will corrode the equipment.
CHANGE THE BATTERIES
1. Remove the clip (2 screws).
2. Remove the battery cover (2
screws).
3. Remove the batteries,
starting with the one in the
middle.
4. Put the new batteries (3 x
1.5V AAA batteries) in, start-
ing with the battery to the
left or to the right.
5. Put back the battery cover (2
screws).
PROGRAM THE TRANSMITTER
1. Remove the clip (2 screws).
2. Remove the battery cover (2 screws).
3. Remove the right battery.The program-
ming connector is placed behind the
battery.

14 Settings
SETTINGS
• discontinuous radiotransmission
• no on/off function
The system will start transmitting as soon as the batteries are inserted
and a transmitter button is pressed. Radio transmission will end as soon
as no transmitter button is being pressed.
DEFAULT STATE
START THE TRANSMITTER
TURN THE TRANSMITTER OFF
1. Start the transmitter by pressing any transmitter button.
1. The transmitter turns off when no transmitter button is pressed.

15
Settings
1. Press the receiver Function button and the Select button at the
same time until red LED 1-5 go out.
NOTE! If red LED 7 ashes slowly, one or several transmitters are still
registered in the receiver.
REGISTER THE TRANSMITTER IN THE RECEIVER
ERASE ALL TRANSMITTERS FROM THE RECEIVER
1. Press the receiver Function button until red LED 7 lights up.
2. Press the receiver Select button until LEDs 1-5 light.
3. Press any transmitter button, e.g. button 1 until LEDs 1-10 ash 3
times before going out.

16 Settings
All buttons (step 1 and/ or 2) as well as all relays can be re-mapped using
the PC program Settings manager. At delivery, the default relay setting is:
R8-1:
Transmitter button 1 (1st + 2nd step) activates relay 1
Transmitter button 2 (1st + 2nd step) activates relay 2
Transmitter button 3 (1st + 2nd step) activates relay 3
Transmitter button 4 (1st + 2nd step) activates relay 4
Transmitter button 5 (1st + 2nd step) activates relay 5
R8-6 with a 6 relay expansion board connected:
Transmitter button 6 (1st + 2nd step) activates relay 6
Transmitter button 7 (1st + 2nd step) activates relay 7
Transmitter button 8 (1st + 2nd step) activates relay 8
RELAY SETTINGS

17
LED INDICATIONS
LED INDICATIONS DURING START UP
1. All receiver relay-LEDs lit up for 0.5 sec.
2. Indications for settings are shown for 2 sec. Contact your
representative if you have problems starting the system.
LED INDICATIONS IN PROGRAMMING MODE
LED 7 red ON
LED 8 yellow ON
LED 9 green ON
LED 10 orange ON
LED INDICATIONS DURING OPERATION
LED 7 red OFF No transmitter registered
ashes
(on 500 ms./ off 1.5 s.)
Transmitter logged in.
ashes
(on 1 s./ off 1 s.)
At least one
transmitter registered.
No radio transmission.
ON Valid radio packages from
transmitter received.

18
ERROR LED INDICATIONS
LED 7
(red)
+ LED 8
(yellow)
ON The receiver can not read the start-up
information. Contact your
representative.
LED 7
(red)
ON Radio module setup failed. Contact
your representative.
LED 8 ON A radio package not coming from a
Panther transmitter is received.
LED 8 + LED 9 ON A radio package is received, but is not
accepted. Contact your representative.
LED 8 + LED 10 ON A radio package is received from a
transmitter that is not registered.
Register the transmitter, or switch to
another frequency.
LED 9 ON A radio package is received, but the
radio signal strength is too weak.
Contact your representative for more
information.
LED 10 ON A radio package is received, but is not
accepted. Contact your representative.

19
PLACEMENT OF LABELS WITH IC AND FCC
INFORMATION
1. Product label
The product label is placed under the clip on the battery lid. Remove the
clip (2 screws).
1.
Pb
Model: T00007-03
Freq.: 2405-2480MHz
Sn.:XXXXXX
www.tele-radio.com
2150
Pb
Model: T00007-04
Freq.: 2405-2480MHz
Sn.:XXXXXX
www.tele-radio.com
2150
Pb
Model: T00007-05
Freq.: 2405-2480MHz
Sn.:XXXXXX
www.tele-radio.com
2150
Pb
Model: T00007-05 Freq.: 2405-2480MHz Sn.:XXXXXX
www.tele-radio.com
2150
