Tele Radio PN-RX-MNB5 User manual

TELE RADIO



PANTHER

Installation instructions

PN-RX-MNB5 (PN-R15-1), PN-RX-MDB11 (PN-R15-2), PN-RX-MNA5 (PN-R15-7),
PN-RX-MDA11 (PN-R15-8), PN-TX-MX8B (PN-T19-2)



Language: English (original)



IM-PN-RX011-A03-EN

CONTENTS
Chapter 1: CUSTOMER INFORMATION 1
Chapter 2: FUNCTIONAL SAFETY 3
Chapter 3: PRODUCT PAGES 5
PN-RX-MNB5, PN-RX-MNA5 Base board receiver 5
PN-RX-MDB11, PN-RX-MDA11 Base board receiver with a Relay expansion board 8
PN-TX-MX8B Transmitter 13
Chapter 4: INSTALLERS GUIDE 17
Default radio mode 17
Switchradio mode in the transmitter 17
Start the transmitter 18
Start the transmitter in menu mode 18
Register the transmitter in the receiver 19
Erase all transmitters from the receiver 21
Turn the transmitter off 21
Replace 21
Frequencies and channels 23
Automatic shutdown 25
Logout 26
Relay functionality 27
Chapter 5: OPERATING MODES 28
Chapter 6: LOAD SELECT MODES 34
Chapter 7: BATTERY GUIDE 38
Chapter 8: CERTIFICATIONS CHAPTER 41
-2-

Chapter 1: CUSTOMER INFORMATION
CHAPTER 1: CUSTOMER INFORMATION

THANK YOU FOR PURCHASING A TELE RADIO AB PRODUCT

READALLINSTRUCTIONS ANDWARNINGS CAREFULLY BEFOREMOUNTING, INSTALLING
ANDCONFIGURATING THEPRODUCTS.

These instructions are published by Tele Radio AB without any guarantee. The instructions may be
removed or revised by Tele Radio AB at any time and without further notice. Corrections and additions
will be added to the latest version of the instruction.

IMPORTANT! These instructions are directed to installers. There are separate instructions directed
towards end users. The instructions that contain information on the installation and configuration of the
radio remote control unit on the machine are not intended to be passed on to the end user. Only such
information may be passed on to the end user that is needed to operate the machine correctly by radio
remote control.

Tele Radio AB products are covered by a guarantee/ warranty against material, construction or
manufacturing faults. During the guarantee/ warranty period, Tele Radio AB may replace the product or
faulty parts with new. Work under guarantee/ warranty must be carried out by Tele Radio AB or by an
authorized service center specified by Tele Radio AB. Contact your Tele Radio AB representative if you
need support or service.

©Tele Radio AB
Datavägen 21
SE-436 36 ASKIM
SWEDEN
Tel: [phone]
Fax: [phone]
www.tele-radio.com
-1-

WARNINGS & RESTRICTIONS

WARNING! Tele Radio remote controls are often built into wider applications. We recommend that
the system is provided with a wired emergency stop where necessary.

NOTE! We recommend that the functionality of the stop button is being tested at a regular basis: At a
minimum, when used for 200 hours. Test the stop button by pressing it and pulling it out.

INSTALLING, CONNECTING AND MOUNTING
nAllow only licensed or qualified personnel to install the product.
nSwitch the power supply off to the receiver before connecting the equipment.
nCheck that you have connected the power supply to the correct connection terminal.
nTo utilize the safety of the system, use the stop relays in the safety circuitry of the object that you
want to control.
nUse undamaged cables. No cables should hang loose.
nAvoid installing in areas affected by strong vibrations.
nPlace the receiver well away from wind, damp and water.
nCable glands and vent plugs must face down to prevent water from seeping in.

THE USER
nMake sure that the user is following the instructions.
nMake sure that the user has reached the certified age of your country to operate the equipment.
nMake sure that the user is not under the influence of drugs, alcohol and medicines.
nAllow only qualified personnel to have access to the transmitter and operate the equipment.
nMake sure that the user does not leave the transmitter unsupervised.
nMake sure that the user always turns the transmitter off when not in use.
nMake sure that the user keeps a good overview of the work area.

MAINTENANCE
nUse the stop button to start and turn off the transmitter as often as possible.
nWhen error messages are shown, it is very important to find out what caused them.
nIf the stop button is mechanically damaged, contact your representative for service immediately.
nAlways contact your representative for service and maintenance work on the product.
nWrite down the serial numbers/ ID codes of the receivers and transmitters used. This inform-
ation should be recorded on the “Settings document” for your product (download from our web-
site).
nAvoid registering transmitters to receivers where it is not being used.
nKeep the safety instruction for future reference. Always download the configurations instruction
from our web site for the latest version available.
-2-

Chapter 2: FUNCTIONAL SAFETY
CHAPTER 2: FUNCTIONAL SAFETY

FUNCTIONAL SAFETY

Safety function
The safety-related stop function in the radio system complies with EN 13849-1:2008 Category 3 PL d.
The stop relays on the receiver unit are controlled by the stop button on the transmitter unit. When the
stop button is pressed, the stop relays break the power to the safety-related application. The complete
end-user system, including the radio system, enters a safe state. The maximum response time for the
safety-related stop function is 500ms.

Applicable products
The following transmitter and receiver units are prepared to comply with the appointed safety
requirements:
PN-RX-MNB5 (PN-R15-1)
PN-RX-MDB11 (PN-R15-2)
PN-RX-MNA5 (PN-R15-7)
PN-RX-MDA11 (PN-R15-8)
PN-TX-MX8B (PN-T19-2)

NOTE! Both the receiver and the transmitter used in the specific end-user system must be compliant.

Installation
The stop relays on the receiver unit shall be correctly installed on the end-user system, so that
opened/deactivated stop relays break the power to the safety-related application. The safety level of the
stop function can only be credited when used in a complete end-user system which complies with EN
13849-1:2008 Category 3 PL d.

Configuration
The default configuration of the receiver unit complies with the appointed safety requirements. Any re-
configuration that oversteps the safety requirements will be indicated by a LED on the main board of the
receiver unit. Before commissioning the radio system, the installer must check the LED indication.


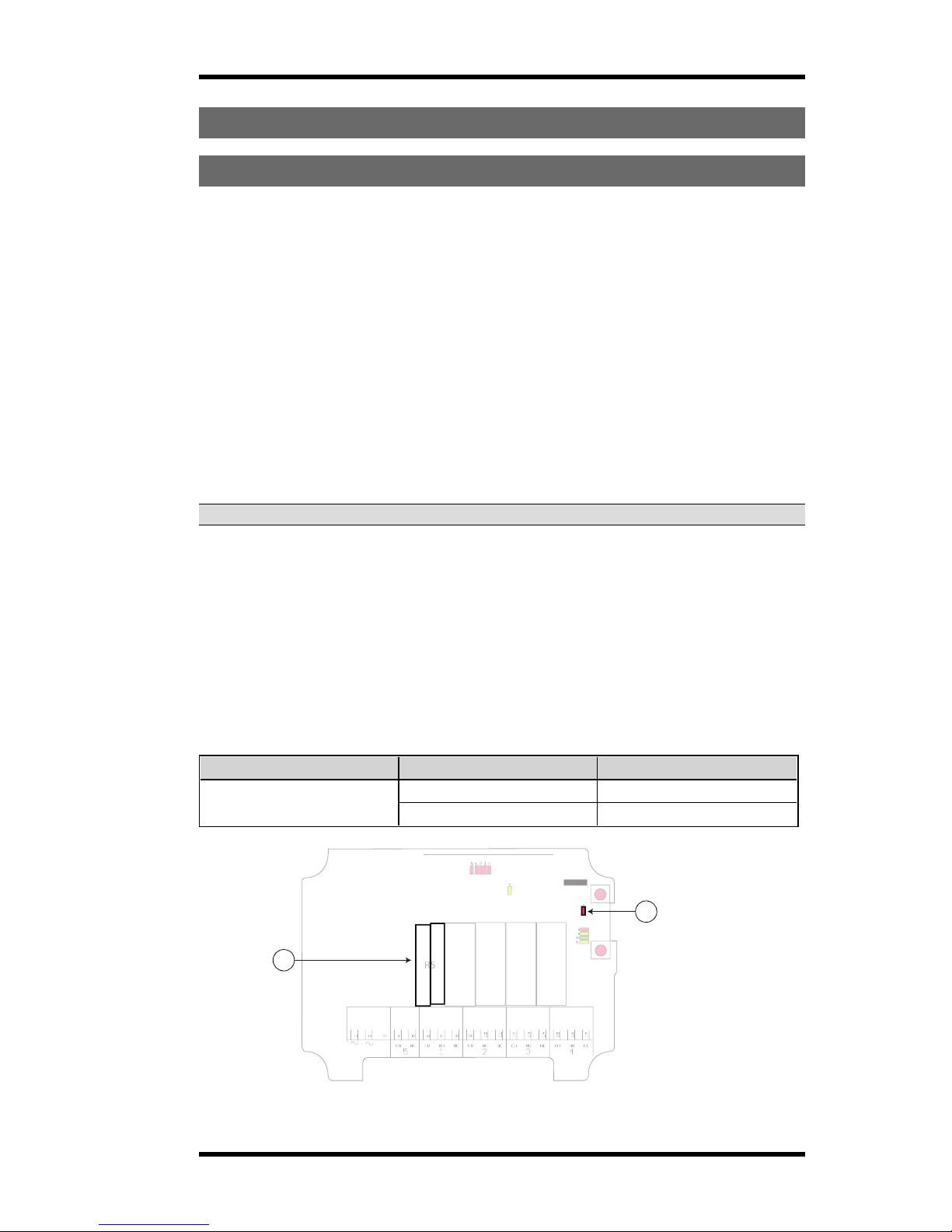

Function LED Status Indicates
PL d status LED (red) ON Not compliant with PL d
OFF Compliant with PL d

R1
R2
R5
R5
R5
R4
R3
1
2
R5
1. Stop relays
2. PL dstatus LED

-3-

Chapter 2: FUNCTIONAL SAFETY

WARNING!

All safety related parameters shall be configured in the following way in order to comply with the
appointed safety requirements:

nThe system shall be configured in continuous radio mode
nAll relays shall be switched off when the radio link is down
nThe radio link timeout shall be set to maximum 500ms
nThe login/logout function shall be activated
nCustom ID setting shall be deactivated, i.e. the receiver shall always use the unique transmitter
ID code
-4-

Chapter 3: PRODUCT PAGES
CHAPTER 3: PRODUCT PAGES

PN-RX-MNB5, PN-RX-MNA5 BASE BOARD RECEIVER

WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to
turn the electricity off before opening the receiver.


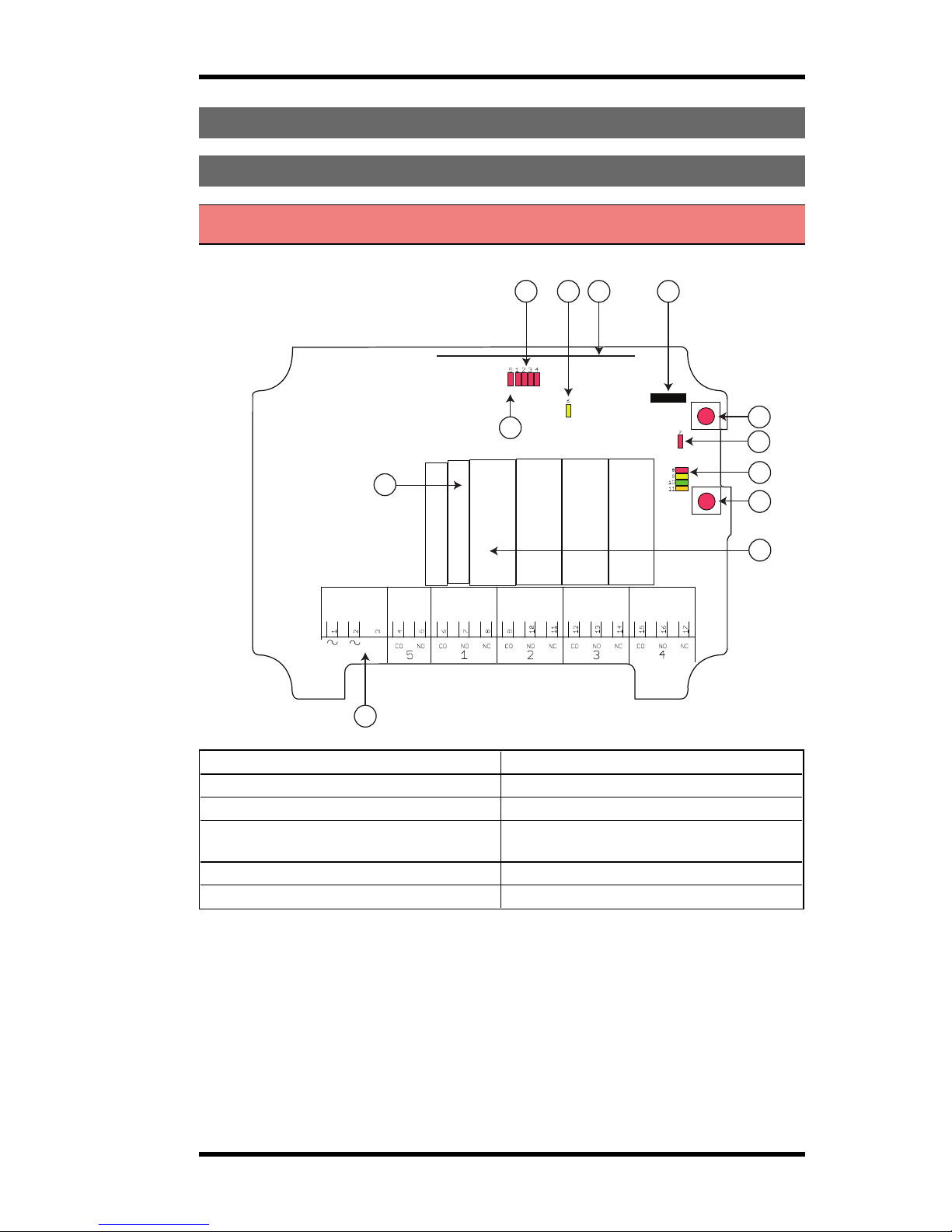

Base board:
R1 R2R5 R4
R3
5
8
10
12
9
7
6
11
4
3
1
2

1. Stop relays 5 7. Programming connector
2. Function relays 1-4 8. Function button (Cancel)
3. Function relay LEDs 1-4 (red) 9. Select button (OK)
4. Stop relay LED (red) 10. Function LEDs (8=red, 9=yellow, 10=green,
11=orange)
5. Power LED (yellow) 11. Terminal block for input power
6. Radio module 12. PL d status LED



-5-

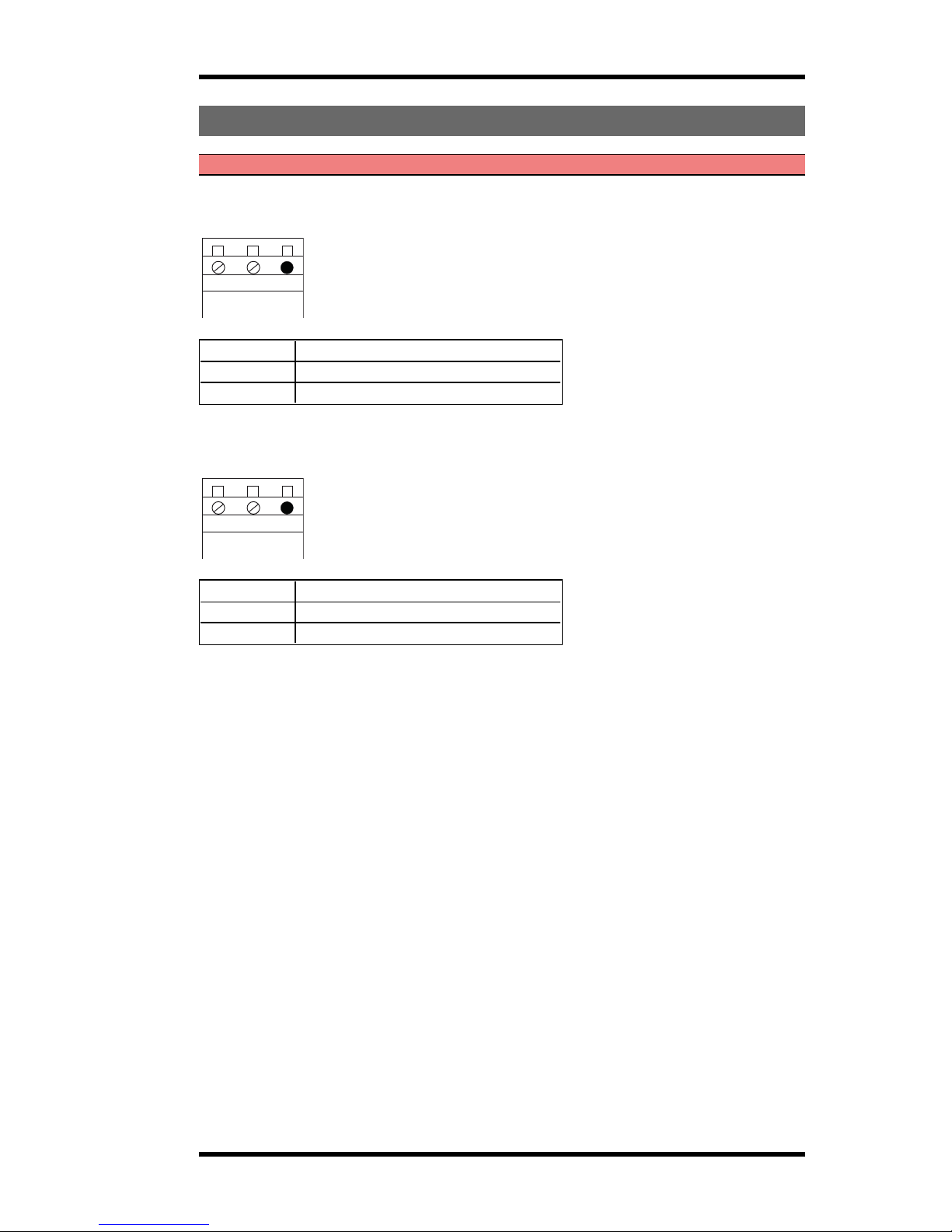

TERMINAL BLOCK FOR INPUT POWER ON BASE BOARD

WARNING! Make sure to connect the input power according to the tables below.
PN-RX-MNB5, PN-RX-MDB11

3
2
1
48 - 230V AC

1 48 - 230V AC
2 48 - 230V AC
3 Not used


PN-RX-MNA5, PN-RX-MDA11

3
2
1
24 - 48V AC

1 24 - 48V AC
2 24 - 48V AC
3 Not used
-6-

FUNCTION LEDS INDICATION IN OPERATING MODE

FunctionLED Off On Indicates
7 (red)  x Not compliant with PL d
x  Compliant with PL d
8 (red)
x  No transmitter is registered.
 x Flashes once: One or more transmitters are registered. No radio transmission
established.
 x Double flash: One or more transmitters are registered and logged in. No radio
transmission established.
 x Radio transmission established.
9 (yellow)  x Receiving a radio packet from a transmitter other than a Panther.
9 (yellow)
10 (green)   Receiving a radio packet from a transmitter set to the radio mode different from
that of a receiver.
9 (yellow)
11 (orange)  x Received a radio packet from a transmitter that is not registered.
10 (green)  x Received a radio packet, low signal (RSSI).
11 (orange)  x Received a radio packet, configuration ID not accepted.
10 (green)
11 (orange)  x Received a radio packet, custom ID not accepted.
9 (yellow)
10 (green)
11 (orange)
 x
1. A radio packet from a registered transmitter received. Another registered
transmitter already controlling the transmitter. NOTE! "Radio link" must be
activated in the receiver.
2. Active load selection is activated.
-7-

PN-RX-MDB11, PN-RX-MDA11 BASE BOARD RECEIVER WITH A
RELAY EXPANSION BOARD

WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to
turn the electricity off before opening the receiver.

R1 R2R5 R4
R3
5
8
10
12
9
7
6
11
4
3
1
2


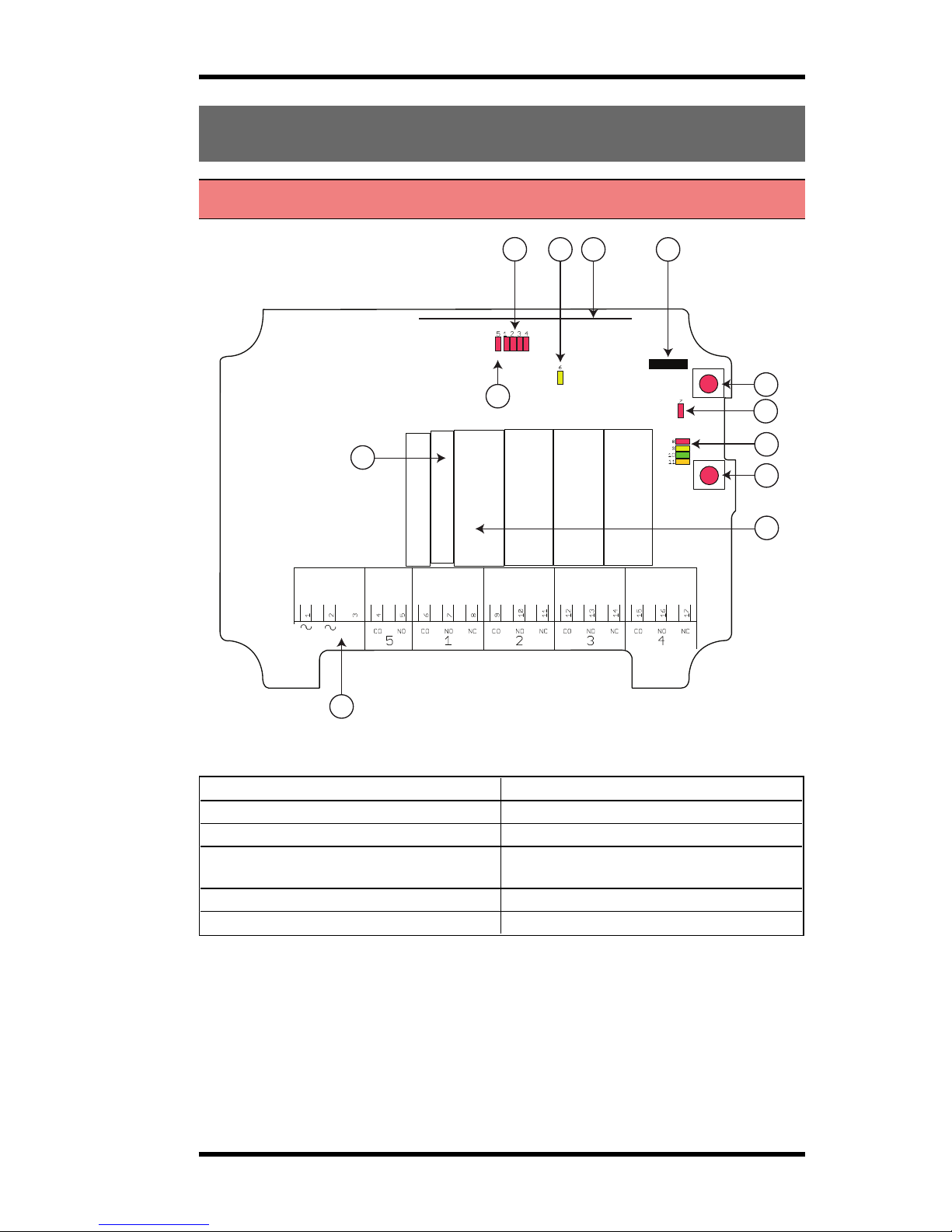

Base board:

1. Stop relays 5 7. Programming connector
2. Function relays 1-4 8. Function button (Cancel)
3. Function relay LEDs 1-4 (red) 9. Select button (OK)
4. Stop relay LED (red) 10. Function LEDs (8=red, 9=yellow, 10=green,
11=orange)
5. Power LED (yellow) 11. Terminal block for input power
6. Radio module 12. PLd status LED

-8-

R1
R2
R5
R5
R5
R5
R4
R3
R9 R11R10R8R7R6
678 9 10 11
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39
11
14
12
13



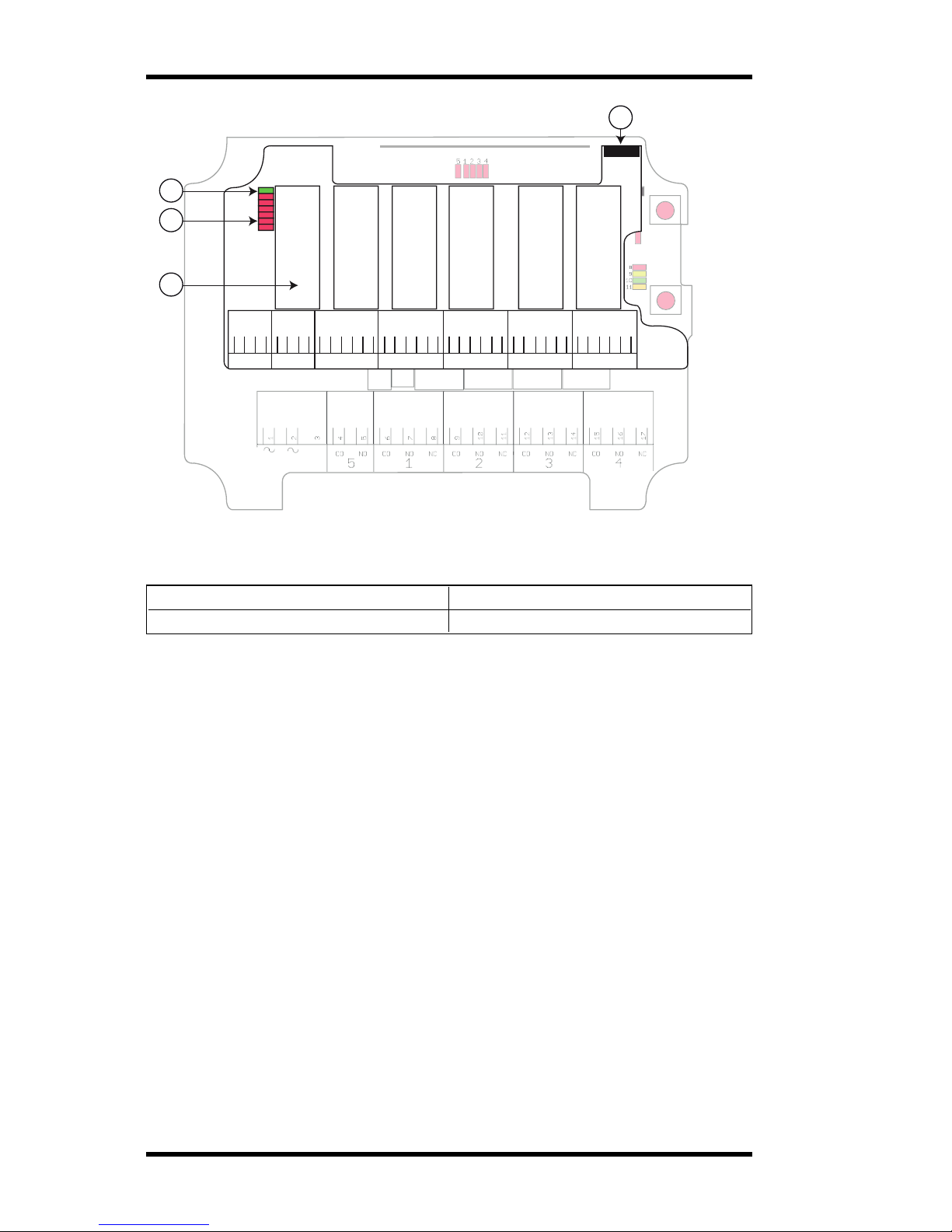

Relay expansion board:

11. Function relays 6-11 13. Communication LED (green)
12. Function relay LEDs 6-11 (red) 14. Programming connector



-9-

TERMINAL BLOCK FOR INPUT POWER ON BASE BOARD

WARNING! Make sure to connect the input power according to the tables below.
PN-RX-MNB5, PN-RX-MDB11

3
2
1
48 - 230V AC

1 48 - 230V AC
2 48 - 230V AC
3 Not used


PN-RX-MNA5, PN-RX-MDA11

3
2
1
24 - 48V AC

1 24 - 48V AC
2 24 - 48V AC
3 Not used
-10 -

FUNCTION LEDS INDICATION IN OPERATING MODE

FunctionLED Off On Indicates
7 (red)  x Not compliant with PL d
x  Compliant with PL d
8 (red)
x  No transmitter is registered.
 x Flashes once: One or more transmitters are registered. No radio transmission
established.
 x Double flash: One or more transmitters are registered and logged in. No radio
transmission established.
 x Radio transmission established.
9 (yellow)  x Receiving a radio packet from a transmitter other than a Panther.
9 (yellow)
10 (green)   Receiving a radio packet from a transmitter set to the radio mode different from
that of a receiver.
9 (yellow)
11 (orange)  x Received a radio packet from a transmitter that is not registered.
10 (green)  x Received a radio packet, low signal (RSSI).
11 (orange)  x Received a radio packet, configuration ID not accepted.
10 (green)
11 (orange)  x Received a radio packet, custom ID not accepted.
9 (yellow)
10 (green)
11 (orange)
 x
1. A radio packet from a registered transmitter received. Another registered
transmitter already controlling the transmitter. NOTE! "Radio link" must be
activated in the receiver.
2. Active load selection is activated.


TECHNICAL DATA

Number of stop relays 2 (potential free*, 6A, 250V AC)
Number of function relays
PN-RX-MNA5, PN-RX-MNB5: 4
PN-RX-MDA11, PN-RX-MDB11: 10
(potential free*, 10A, 250V AC)
Input power PN-RX-MNB5, PN-RX-MDB11: 48-230V AC
PN-RX-MNA5, PN-RX-MDA11: 24-48V AC
Digital inputs 0
Duplex communication No
Max. number of registered transmitters 8
IP class 66
Size 120 x 117 x 51 mm/4.7 x 4.6 x 2"
Weight 400 g/0.8 lbs
Operating temperature -20 - +55°C / -4 - +130°F
Operating frequency 2405-2480 MHz
Number of channels 16 (channel 11-26)
Channel separation 5 MHz
Antenna 1 internal PCB antenna
* potential free means that you have to supply voltage to get voltage out of a relay.
-11 -

CURRENT CONSUMPTION

Input power Receivers Min.* Max.**
24V AC PN-RX-MNA5, PN-RX-
MDA11, 0.02A 0.2A
48V AC
PN-RX-MNA5, PN-RX-
MDA11,
PN-RX-MNB5, PN-RX-
MDB11
0.01A 0.09A
115V AC PN-RX-MNB5, PN-RX-
MDB11 0.005A 0.03A
230V AC PN-RX-MNB5, PN-RX-
MDB11 0.003A 0.02A
*Minimum current consumption= Receiver powered, no radio session established, nothing else
activated on the receiver.
**Maximum current consumption= All relays activated on the receiver.



RECEIVER MEASUREMENTS

120.5 mm. (4.744 in.)
102 mm. (4.016 in.)
116.3 mm. (4.578 in.)
90.4 mm. (3.559 in.)
104 mm. (4.094 in.)
Ø
5 mm. (0.197 in.)
51 mm. (2.007 in.)
-12 -

PN-TX-MX8B TRANSMITTER

1
2
3
4
11
6
5
7
13
12
14
8
9
10
15


1. Rubber cover 9. Button 3
2. Stop button 10. Button 5
3. LED 2 (red) 11. Button 7 - left start button
4. LED 4 (red) 12. Button 2
5. LED 1 (red) 13. Button 4
6. LED 3 (red) 14. Button 6
7. Top LED (red, green) 15. Button 8 - right start button
8. Button 1 
-13 -

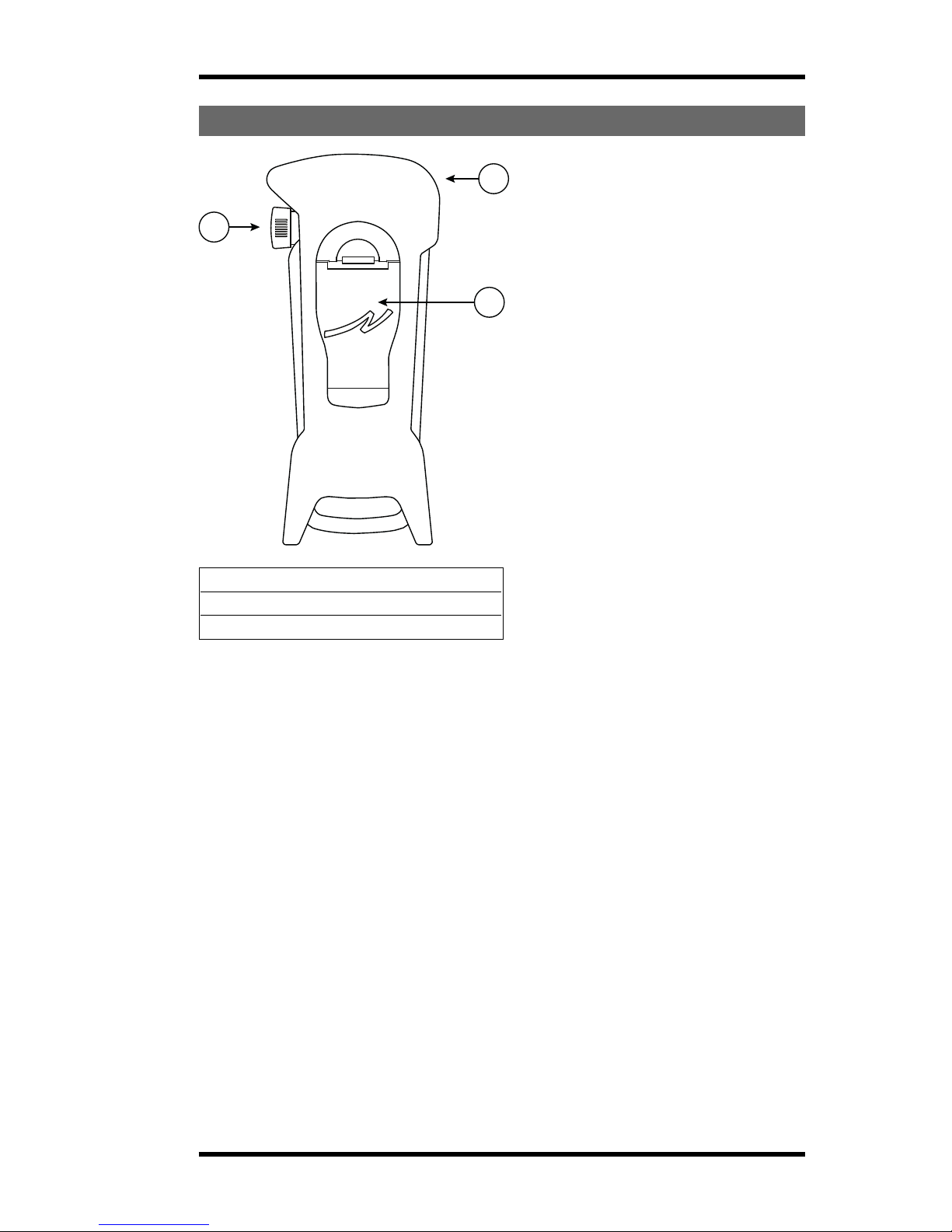

TRANSMITTER BACKSIDE

1
2
3

1. Rubber cover
2. Stop button
3. Battery pack
-14 -

TECHNICAL DATA

NO. OFBUTTONS
PN-TX-MX8B 8 x 2-step buttons

BATTERY
PN-TX-MX8B 3 x 1.5V AAA/LR03 in battery pack D4-3

ON/OFF SWITCH
PN-TX-MX8B No

DUPLEX COMMUNICATION
PN-TX-MX8B No

SIZE
PN-TX-MX8B 85 x 193 x 43 mm/3.4 x 7.7 x 1.7 in.

WEIGHT
PN-TX-MX8B 300 g./ 0.7 lbs.

OPERATING FREQUENCY
PN-TX-MX8B 2405-2480 MHz

NO. OF CHANNELS
PN-TX-MX8B 16 (channel 11-26)

CHANNEL SEPARATION
PN-TX-MX8B 5 MHz

OPERATING TIME (WITH CONTINUOUS USAGE)
PN-TX-MX8B Approx. 100 h. with alkaline (depending on
settings)

IP CLASS
PN-TX-MX8B 65

OPERATING TEMPERATURE
PN-TX-MX8B -20 - +55°C/ -4 - +130°F

NO. OF PIN CODES POSSIBLE
PN-TX-MX8B 1
-15 -

TRANSMITTER MEASUREMENTS


43 mm (1.7 in.)
193 mm (7.7 in.)
85 mm (3.4 in.)
-16 -

Chapter 4: INSTALLERS GUIDE
CHAPTER 4: INSTALLERS GUIDE

DEFAULT RADIO MODE

This transmitter is set to continuous radio mode by default. The transmitter starts to transmit
continuously as soon as it has been started up. The radio transmission ends when the stop button is
pressed. When the system is in continuous radio mode, button 7 + 8 are used as start buttons. When
the system is in discontinuous radio mode, no start buttons are used.

To establish a radio link between the transmitter and the receiver, both units need to be set to the same
radio mode. If you want to switch to discontinuous radio mode:
1. Set the receiver to an Operating mode that supports discontinuous radio mode.
2. Switch to discontinuous radio mode in the transmitter.

Note that some settings can only be made when the products are transmitting continuously. Those
sections are marked with the text: "Only for continuous radio mode".

When selecting Operating mode you have to know if the products are transmitting continuously or
discontinuously. Therefore you will find information on the Operating modes pages.



SWITCH RADIO MODE IN THE TRANSMITTER

NOTE! For discontinuous radio mode in the transmitter, the receiver must be set to an Operating mode
that supports discontinuous radio mode.

1. Make sure that the stop button is pressed.

2. Press button 8. Keep pressed.

3. Twist and pull out the stop button.

4. Release button 8.
Top LED flashes (green).

5. WITHIN 1 MINUTE FROM PULLING OUT THE STOP BUTTON:
Enter the code: 1-2-3-4 (press the buttons 1, 2, 3, 4).
The transmitter LEDs 1- 4 (red) light up. If the code is invalid, the transmitter turns off. If the code is
accepted, the top LED flashes (green), The transmitter LEDs 1-4 (red) starts to flash.

6. WITHIN 1 MINUTE FROM ENTERING THE CODE: Press button 1.
The top LED lights (green). LED 2 flashes (red).

7. Press a button to select radio mode:
Button 1 = continuous radio mode
Button 2 = discontinuous radio mode

8. The top LED flashes (green) 3 times. The transmitter turns off.



-17 -

Chapter 4: INSTALLERS GUIDE
START THE TRANSMITTER

NOTE! Only for continuous radio mode.

1. Make sure that the stop button is pressed.

2. Twist and pull out the stop button.
The top LED lights (green when the battery capacity is good, red when the battery capacity is poor),
LEDs 3 + 4 flash (red).
3. Press the start buttons (buttons 7 + 8) at the same time for at least 1 second.
LEDs 3 + 4 light (red).

4. Release the start buttons.
LEDs 3 + 4 go out.
The top LED flashes green.



START THE TRANSMITTER IN MENU MODE
1. Make sure that the stop button is pressed.

2. Press button 8. Keep pressed.

3. Twist and pull out the stop button.

4. Release button 8.
Top LED flashes (green).

5. WITHIN 1 MINUTE FROM PULLING OUT THE STOP BUTTON:
Enter the code: 1-2-3-4 (press the buttons 1, 2, 3, 4).
The transmitter LEDs 1- 4 (red) light up. If the code is invalid, the transmitter turns off. If the code is
accepted, the top LED flashes (green), The transmitter LEDs 1-4 (red) starts to flash.

6. WITHIN 1 MINUTE FROM ENTERING THE CODE: Enter a menu by pressing the buttons according
to the table below:

-18 -
