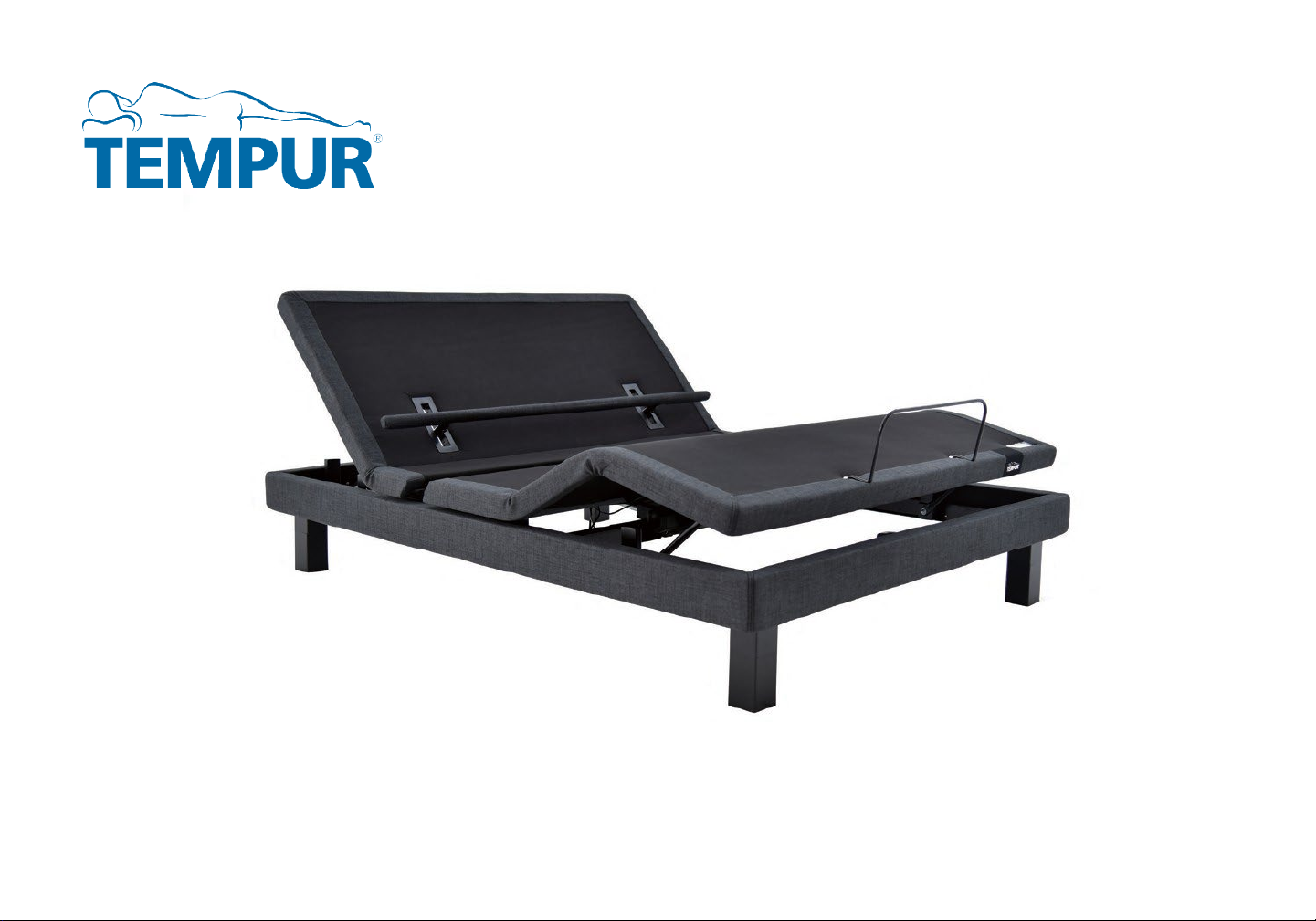

TEMPUR Zero-G Luxury Adapt User manual

Zero-G Luxury Adapt
Owner’s Manual
Actual product appearance and functionality may vary from photographs, illustrations and descriptions included in this manual.

table of contents
Safety Precautions and Usage Statements .............................................................1-2
Parts List ........................................................................................ 3
Base Overview ................................................................................... 4
Quick Reference Guide ............................................................................. 5
Installation Guide ................................................................................6-7
Remote Control ..................................................................................8-9

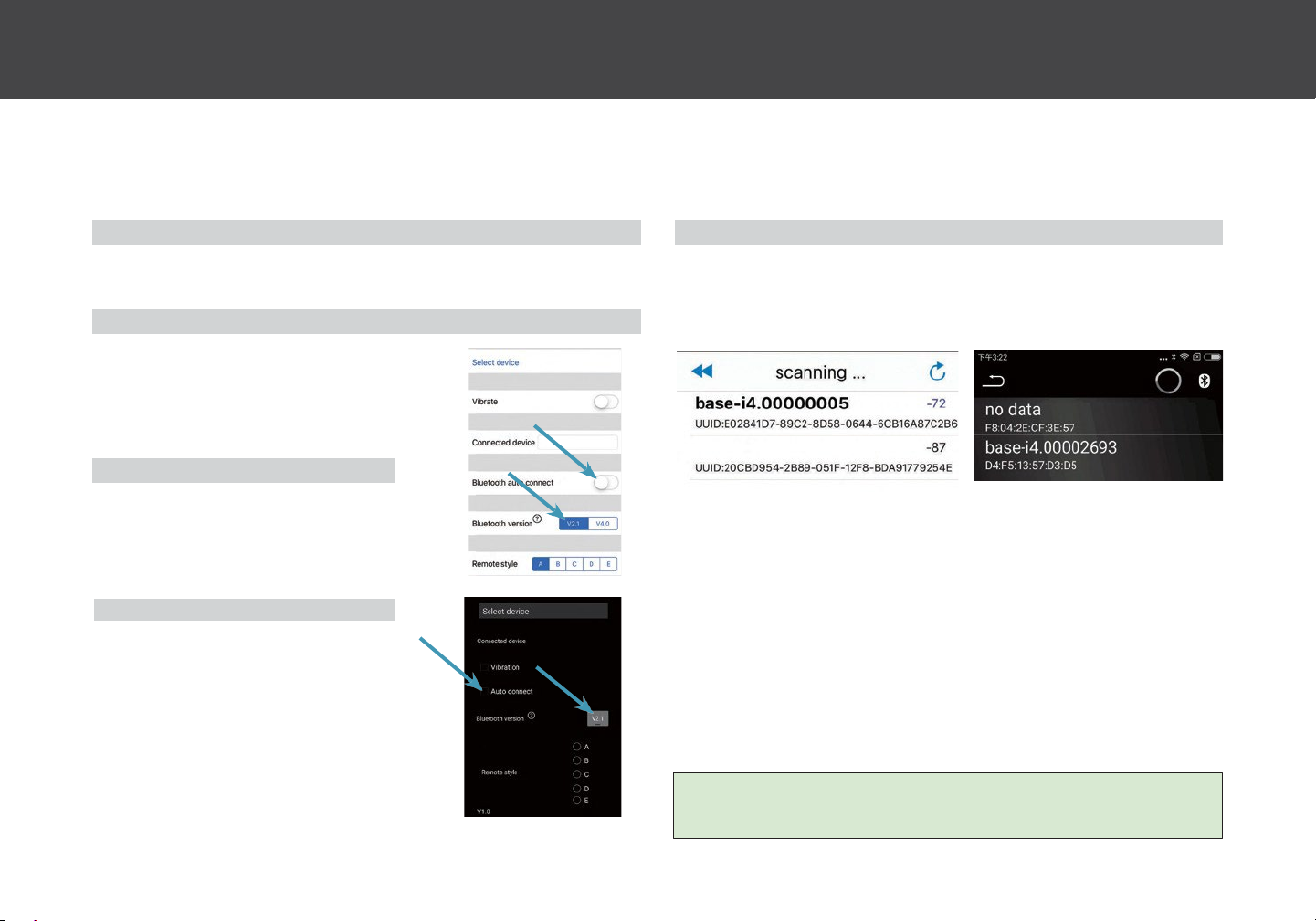

Bluetooth Remote Control Setup ......................................................................10

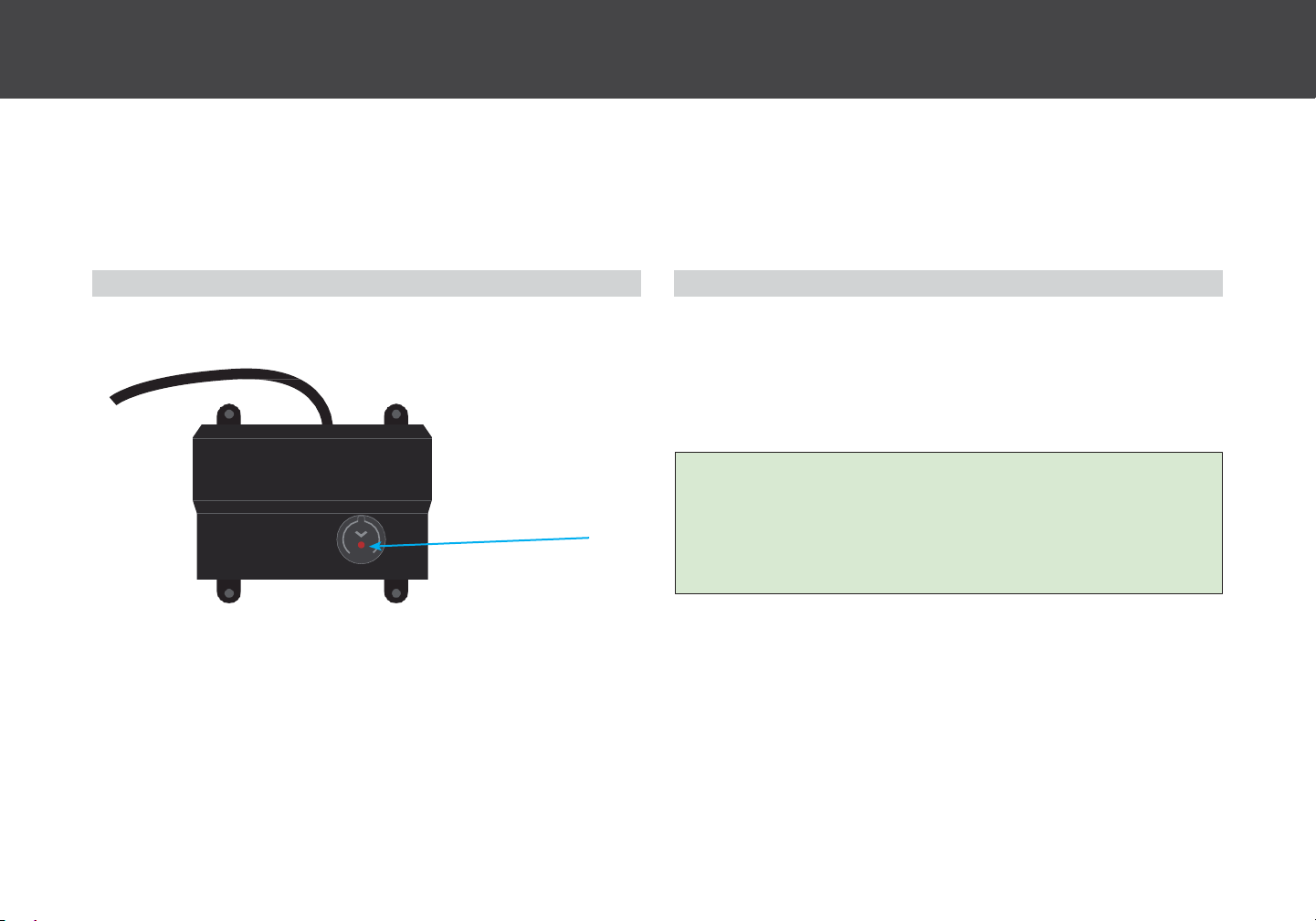

Emergency Power Down Box ........................................................................11
Pair Remote ......................................................................................12

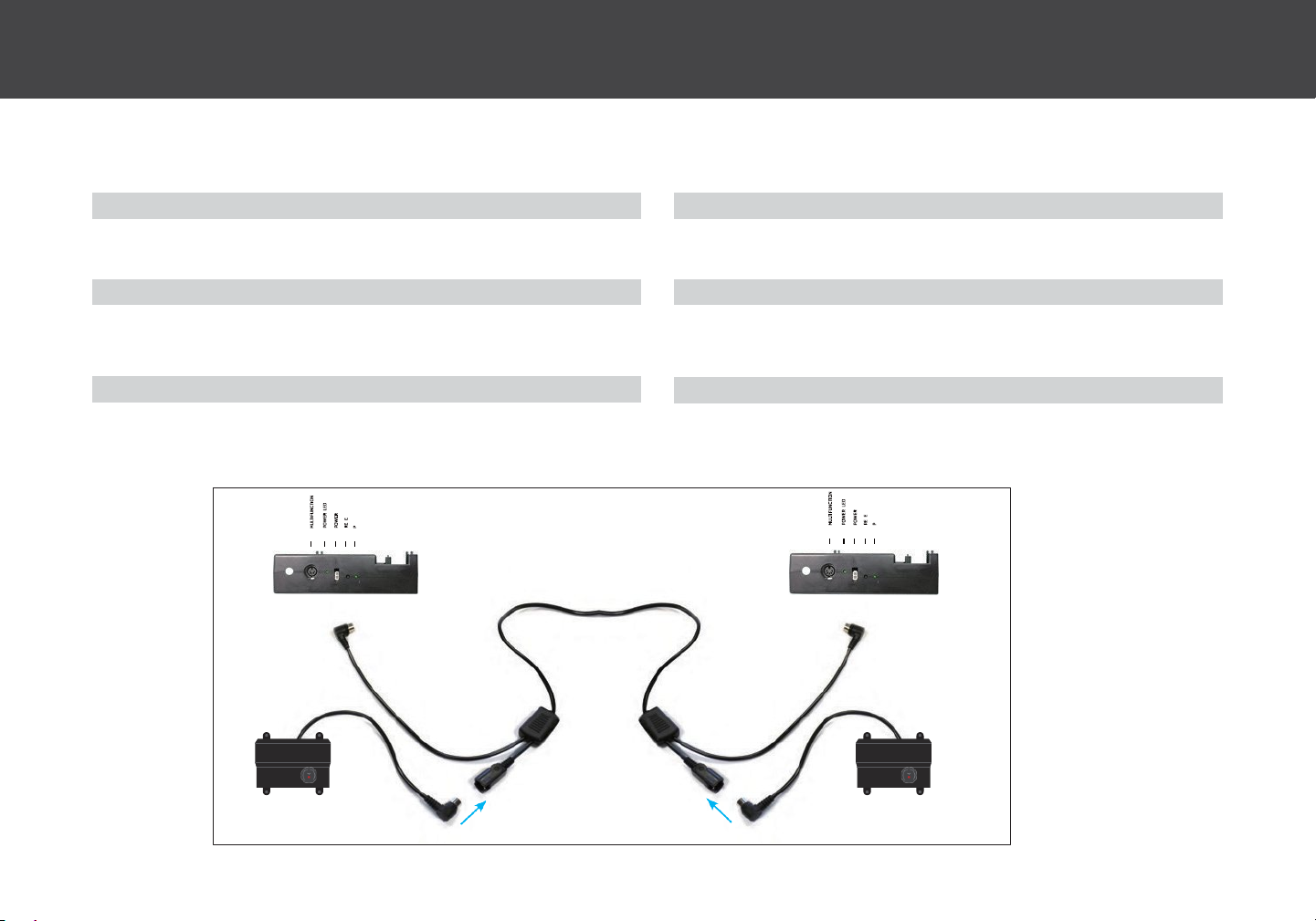

Setting Up Two Bases ........................................................................... 13-14
Headboard Brackets. . ..............................................................................15
Troubleshooting ...................................................................................16
Notes . ..........................................................................................17

1
safety precautions and usage statements
Attention: Important Safety Disclaimers
Read all instructions before using your adjustable base. Save these instructions.
To reduce the risk of shock, burns, fire or injury:
•Always unplug the base from the electrical outlet before servicing any
part of the base. To reduce risk of electric shock, unplug the base before
cleaning. To safely disconnect, ensure the base is in aflat position with all
motors off, and unplug from power source.
•Keep the power cord away from heated surfaces. Never operate the base
when the air openings are blocked. Keep air openings free of lint, hair
and the like. Do not drop or insert any object into any opening.
•Discontinue use of the bed base and contact aqualified service center
if:it has adamaged cord or plug, if it is not working properly, or it has
been dropped into water.
•Only use this bed base for its intended use as described in this manual.
Do not use accessories/attachments that are not recommended by the
manufacturer.
•Close supervision is required when the bed base is used by or near
children, convalescents or disabled persons.
Outlet Safety:
For optimal safety and operation, plug bed base into asurge
protector (not included).
The bed base should only be plugged directly into awall outlet or surge
protector (strongly recommended). Improper connection of the equipment can
result in the risk of electrical shock, electrical fire or faulty operation of this bed
base. If the plug does not fit your outlet, contact aqualified electrician to install
asuitable outlet. Unauthorized modification or failure to use awall outlet or
surge protector could void the electrical portion of your warranty.
Warranty Warning:
Do not open or tamper with control box, motors, or remote (with the exception
of battery compartments). The warranty will be void if the internal workings of
these components are tampered with. For complete warranty information visit
www.ergomotion.com or refer to the warranty card included with the base.
In-Home Use and Hospital Disclaimer:
Ergomotion adjustable bed bases are designed solely for in-home use. This
base was not designed as ahospital bed and is not designed to meet hospital
standards. Do not use this base with TENT TYPE oxygen therapy equipment or
near explosive gases.
Pacemaker Notice:
It is possible that some pacemakers may falsely interpret the optional massage
feature vibrations as movement/exercise. This is acommon occurrence
with any product that creates avibrating movement and may not affect the
pacemaker. Please consult your physician before using the massage feature.
Pets and Small Children:
Immediately dispose of all packing materials as it may pose asmothering risk
to small children and pets. To avoid injury, it is not advised to allow children and
small pets to play on or under the bed. Children should not operate the bed base
without adult supervision.
Safety Features:
Casters (optional leg accessory) are equipped with locking wheels to prevent
unwanted movement.Even when locked and unable to roll, it is possible for
the casters to slide.Free release head and foot motors are designed to lower
the mattress by retracting only with gravity, never pulling downwards, which
minimizes pinch points.

2
safety precautions and usage statements
Product Ratings:
The lift motors are not designed to operate continuously for more than [2]
minutes in an [18] minute time period or approximately 10% duty cycle.
Attempting to circumvent or exceed this rating will shorten the life expectancy of
the product and may void the warranty.
Weight Limits:
This product is not rated to support weights exceeding 750 pounds. This product is not
rated to support weights in excess of 750 pounds inclusive of the mattress and bedding.
The base will structurally support this weight, provided it is evenly distributed
across the bed base. The adjustable base is not designed to support or lift this
amount in the head or foot sections alone. Exceeding this weight restriction could
damage the bed and/or cause injury and will void the warranty.
Acoustics:
The massage function will emit anoticeable tone during operation.As the
massage intensity level is increased, the tone will intensify.The volume of
this tone is directly related to the location environment.For example, when
demonstrated in ashow room, the surrounding environmental noise will cover
some of the massage noise. However, when installed in ahome setting with
wooden floors, carpeted or not, the massage volume will be more noticeable.
In normal base operation, the wheels which allow the bed to maintain its
distance from the wall, will make contact with the steel platform supports of
the base creating acontact noise. When entering, exiting or shifting weight on
the base, this contact noise may be audible as the wheels make contact. This
is normal.
Fabric Care:
To prolong the life of your fabric, protect from direct sunlight whenever
possible. For spot cleaning, wipe area with alight damp sponge or vacuum
with asoft brush attachment to remove particles. Keep at aminimum of 30cm
(12 inches) away from direct heat sources.
For deeper cleaning, blot liquid spills with aclean dry cloth. Wipe with aclean
cloth dampened with warm water. Do not wet excessively. Asoft bristle brush
may be used to remove ingrained soil. Avoid scratching by gentle brushing.
Wipe with aclean cloth dampened with warm water to remove residues. Dry in
shade away from direct heat.
If persistent marks remain visible after cleaning, seek professional advice.
SAVE THESE INSTRUCTIONS.

3
I)
J)
9Volt Batteries (2) ‡
Surge Protector
*These items are attached to the base for shipping purposes.
Carefully remove from base and set aside.
‡Only included in the long single bases.
A) B)* C)
D) E) F) G)* ‡
H) ‡
MISC (NOT INCLUDED)
I) J)

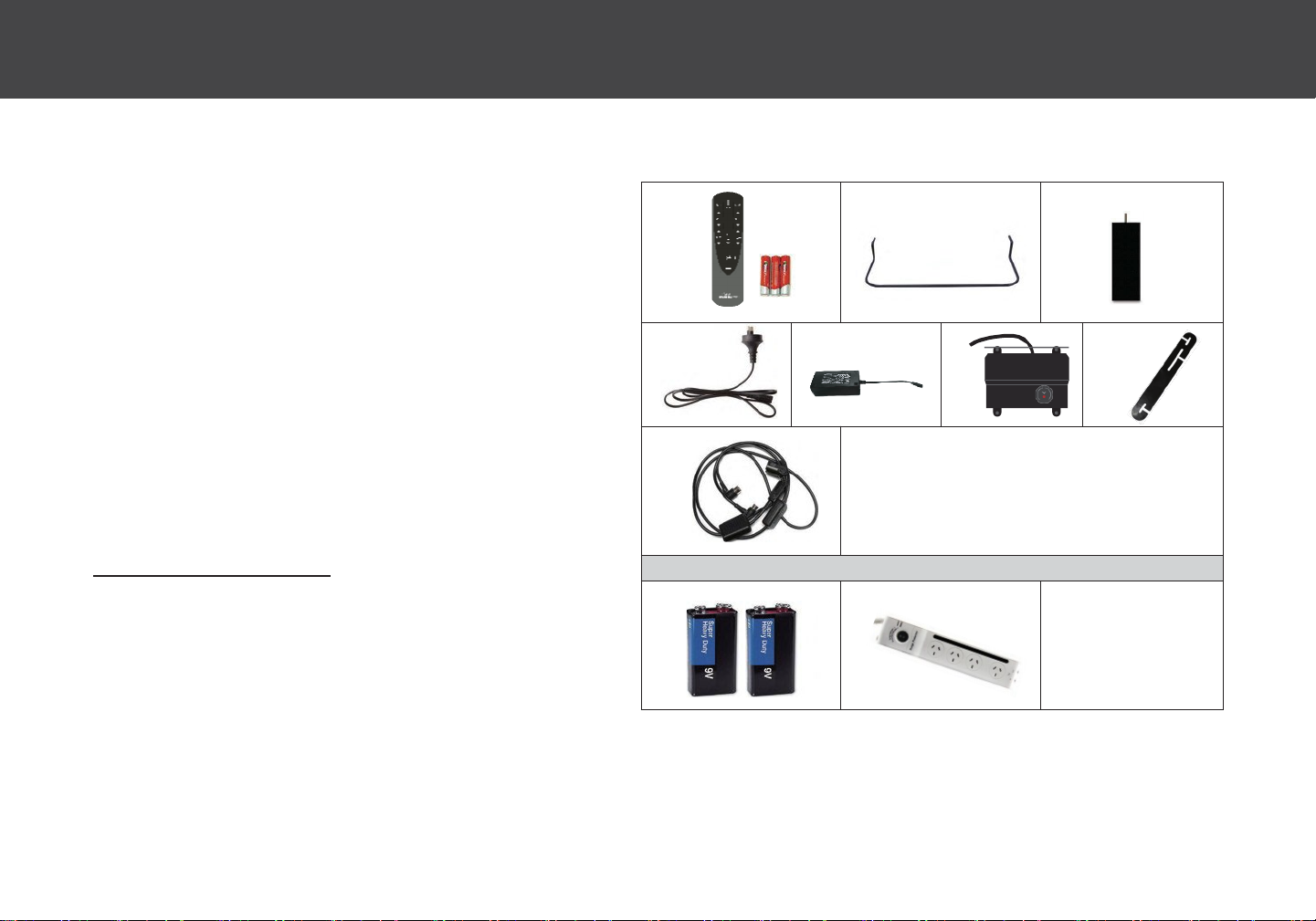

parts list
Before discarding the packing materials-ensure all the parts are accounted for.
All electronics and components that need to be
installed are located in boxes under the base or
attached to the frame.
A) Wireless Remote Control and (3) AAA
batteries
B) Mattress Retainer Bar (1)*
C) Legs (4)
D) Power Cord (1)
E) Power Supply (1)
F) Power Down Box (1)*

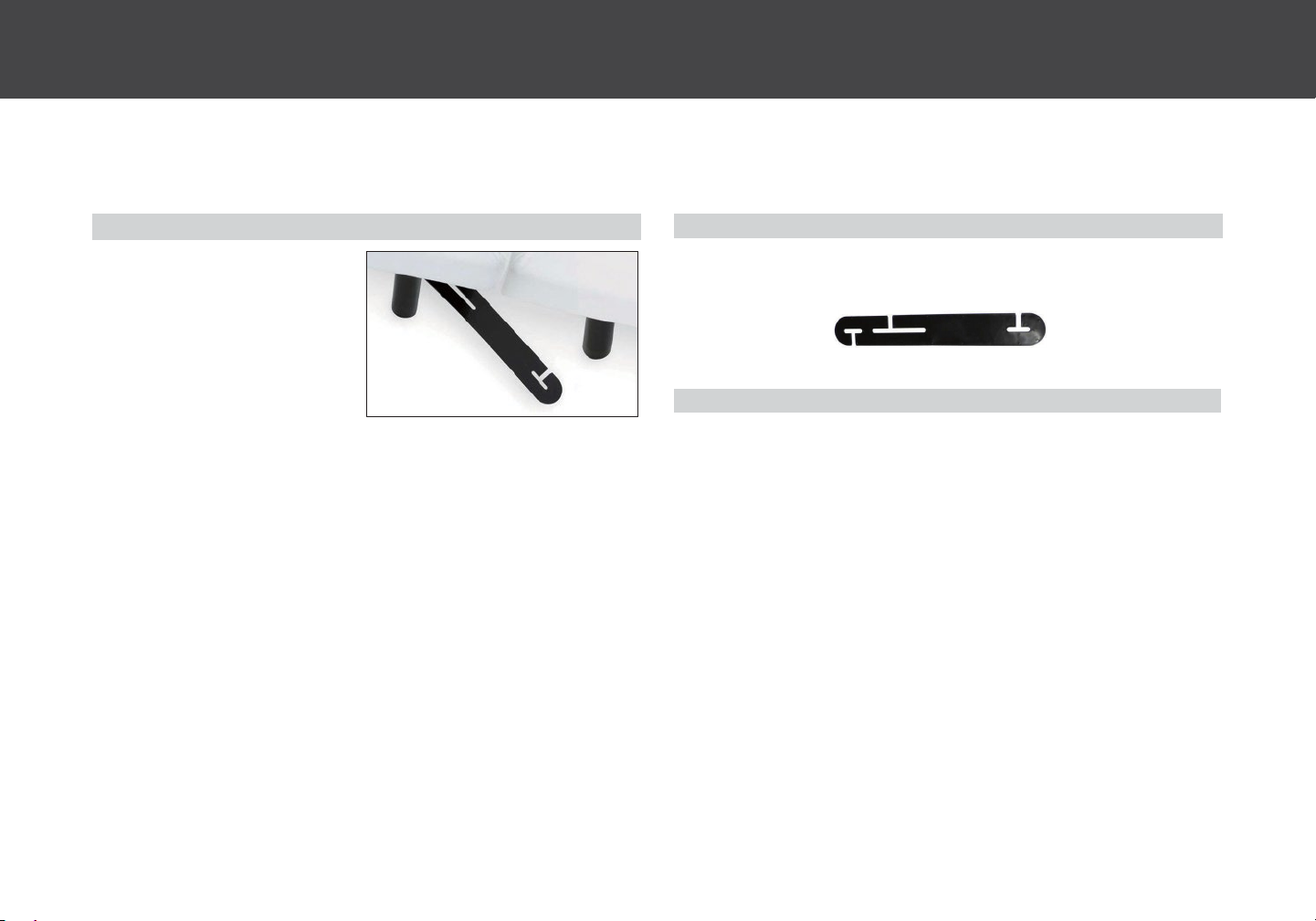

G) Connecting Strap*‡
H) SmartSync™Cord (1) ‡
Misc Parts (not included):

4

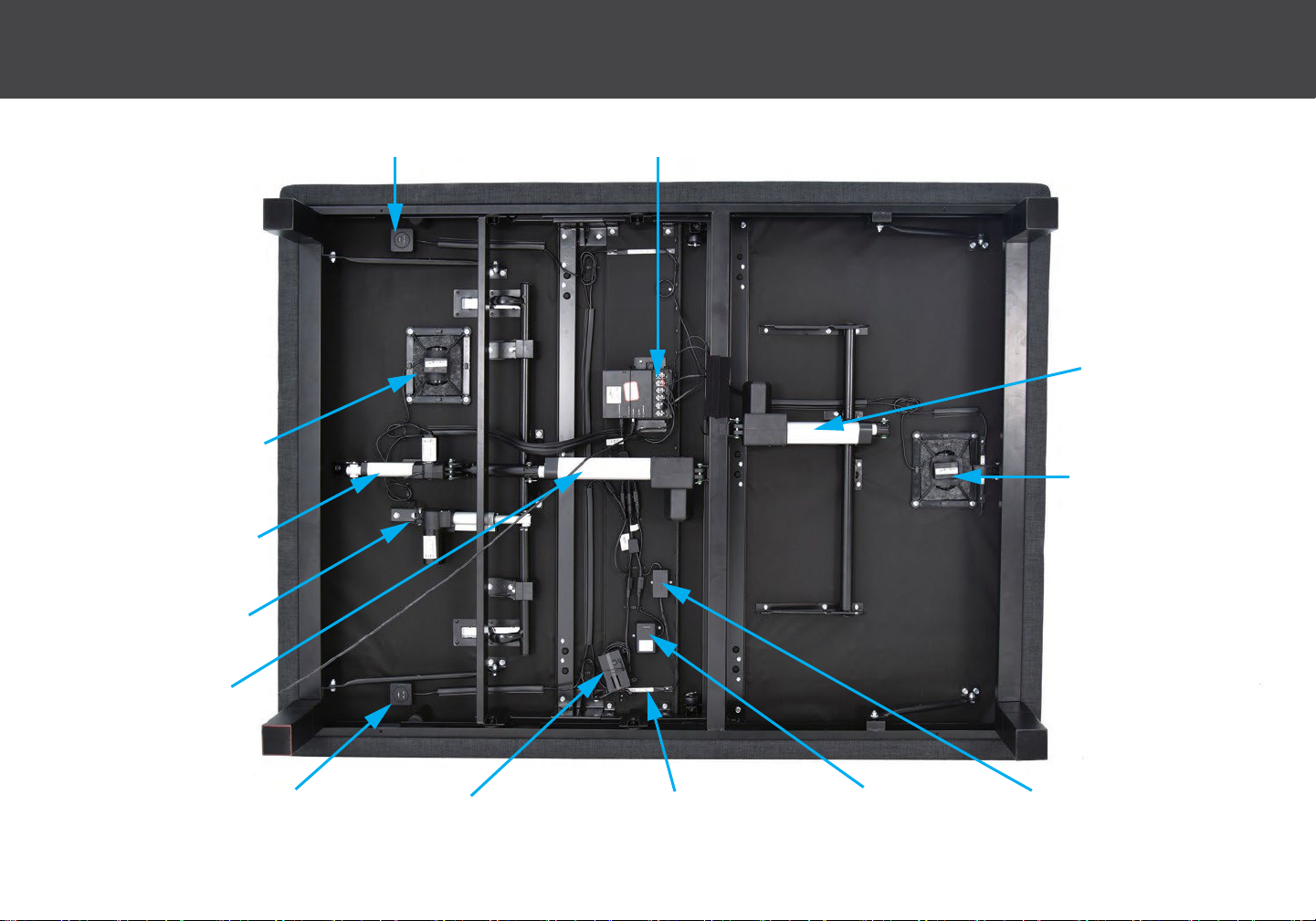

base overview
Power Down Box
USB Ports
Head Motor
Lumbar Motor
Head Tilt Motor
USB Ports
Massage Motor
Control Box
Massage Motor
Foot Motor
Bluetooth® Dongle USB ChargingUnder bed Lighting*

5

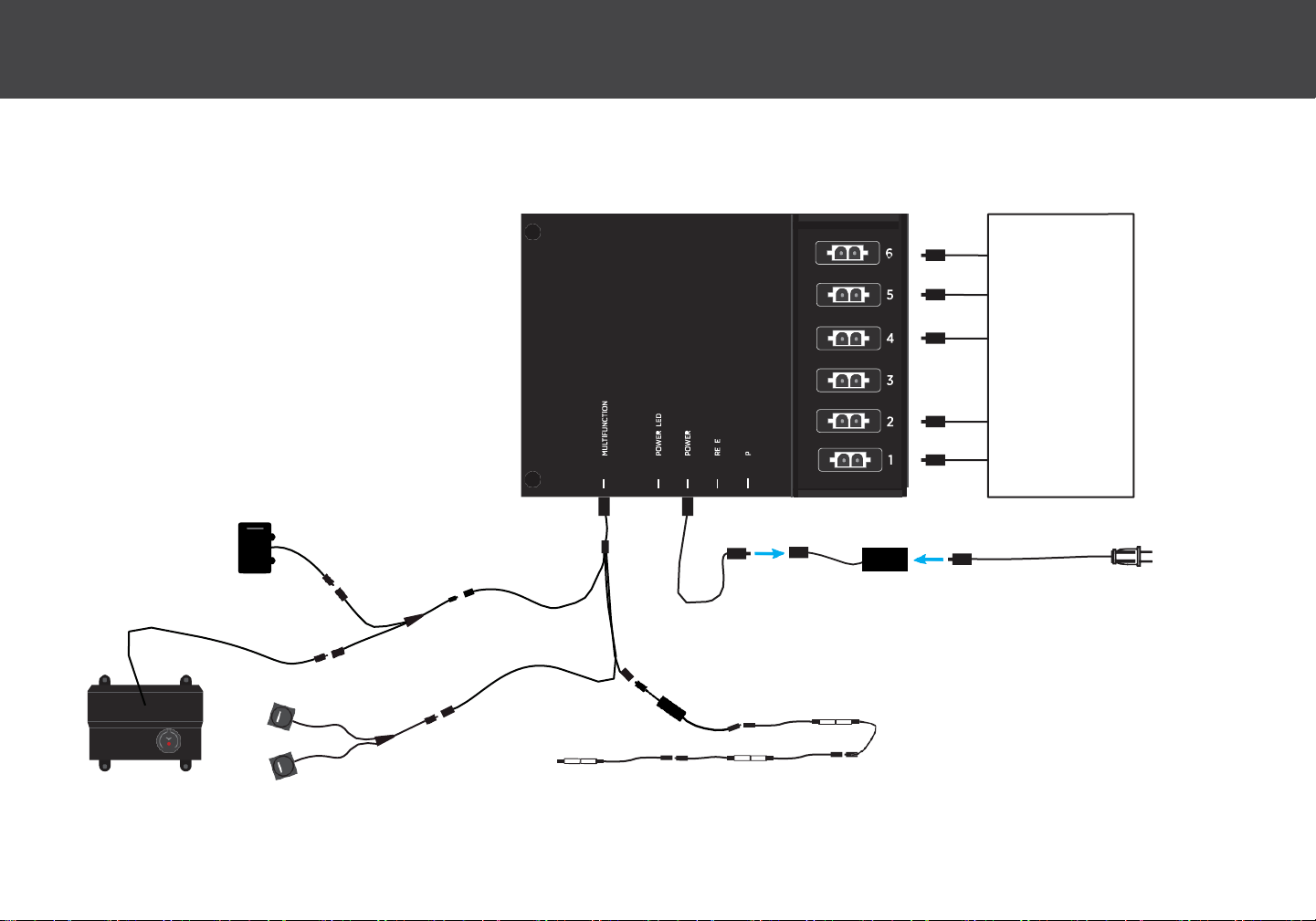

quick reference guide
Not to scale. For illustration purposes only. Read all instructions before beginning installation.
Power Cord
Control Box
Power Supply
Input Cable DC
Power Down
Box
7
sT
AIRING LED
8 9 10 11
HEAD VIBRATION
FOOT VIBRATION
LUMBAR
TILT
FOOT
HEAD
USB Charger
Bluetooth® Dongle
Underbed Light
Connection
ports to all
motors

6
STEP 2
Place the bed base box in adesired location with the bottom of the
box facing up.
Remove the binding straps and packing materials, making sure not
to puncture the box with any sharp objects.
Remove the bed base from the box keeping the bottom of the base
facing upwards.
STEP 4
To sync two bases with the SmartSync™cord -see page 14.
Uncoil the Power Down Box from the frame and
install (2) 9Volt batteries-not included.
Place box on the ground. Ensure that it is easily
accessible when the base is turned to its upright
position.
For customer support call: 1300 306 062 |NZ: 0800 483 6789

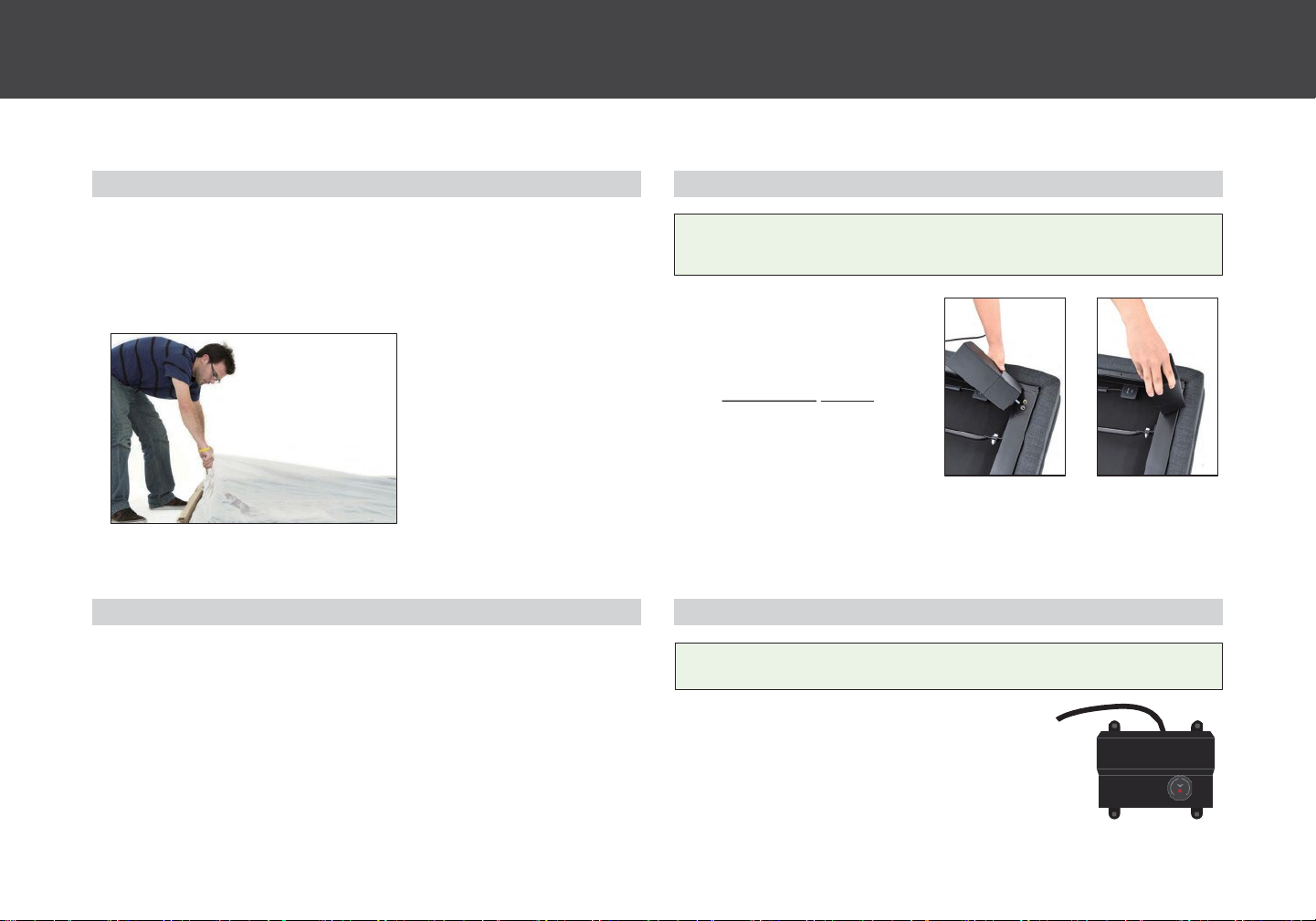

installation guide
STEP 1
Always use two people when setting up the base.
To install the legs, thread the
washer over the bolt of the
leg with the recessed side
facing the leg, and tighten by
hand. Do not over tighten.
STEP 3

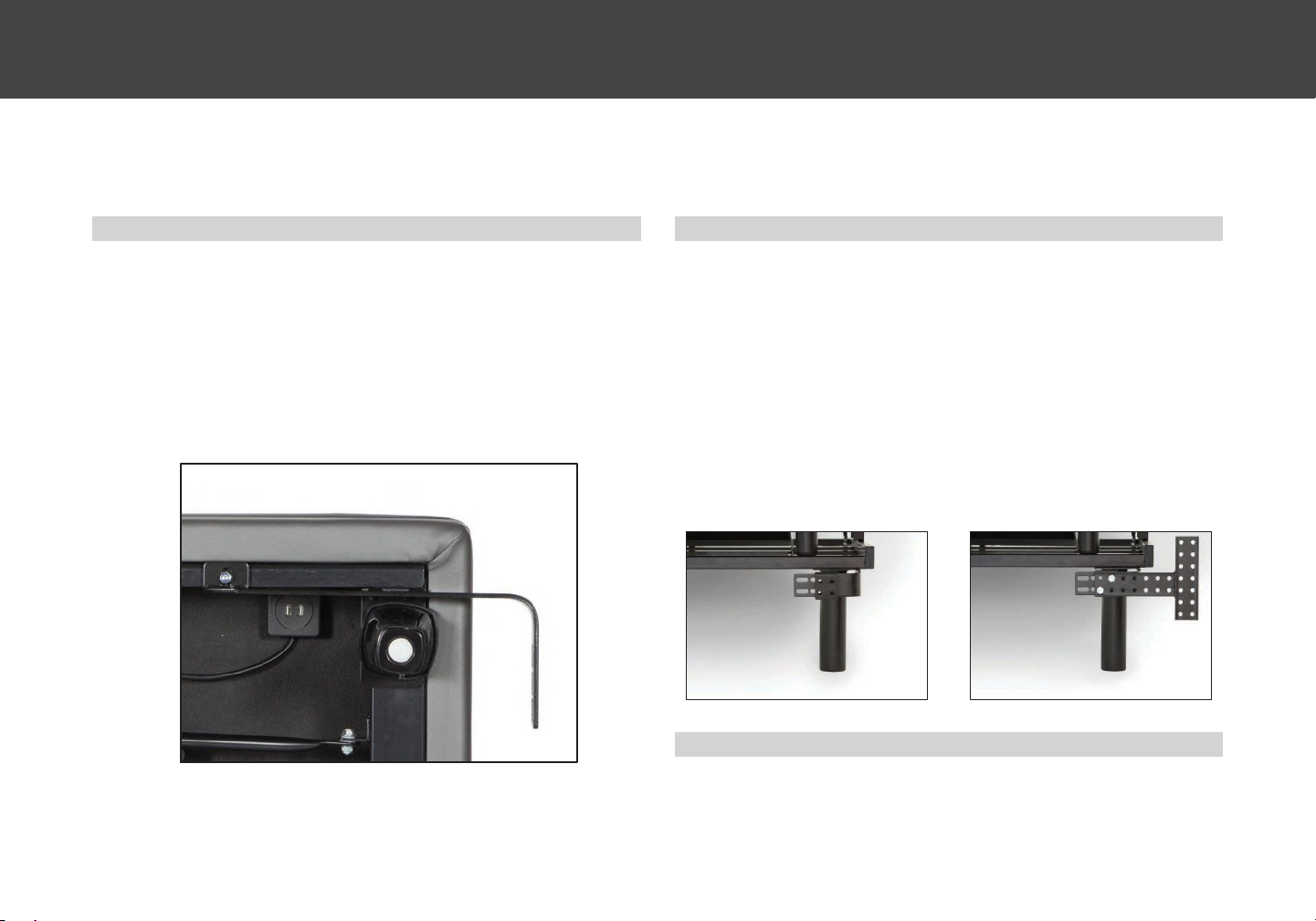

To install headboard brackets: See detailed installation
instructions on page 15.

7
STEP 5
STEP 6
STEP 7
STEP 8
STEP 9
STEP 11

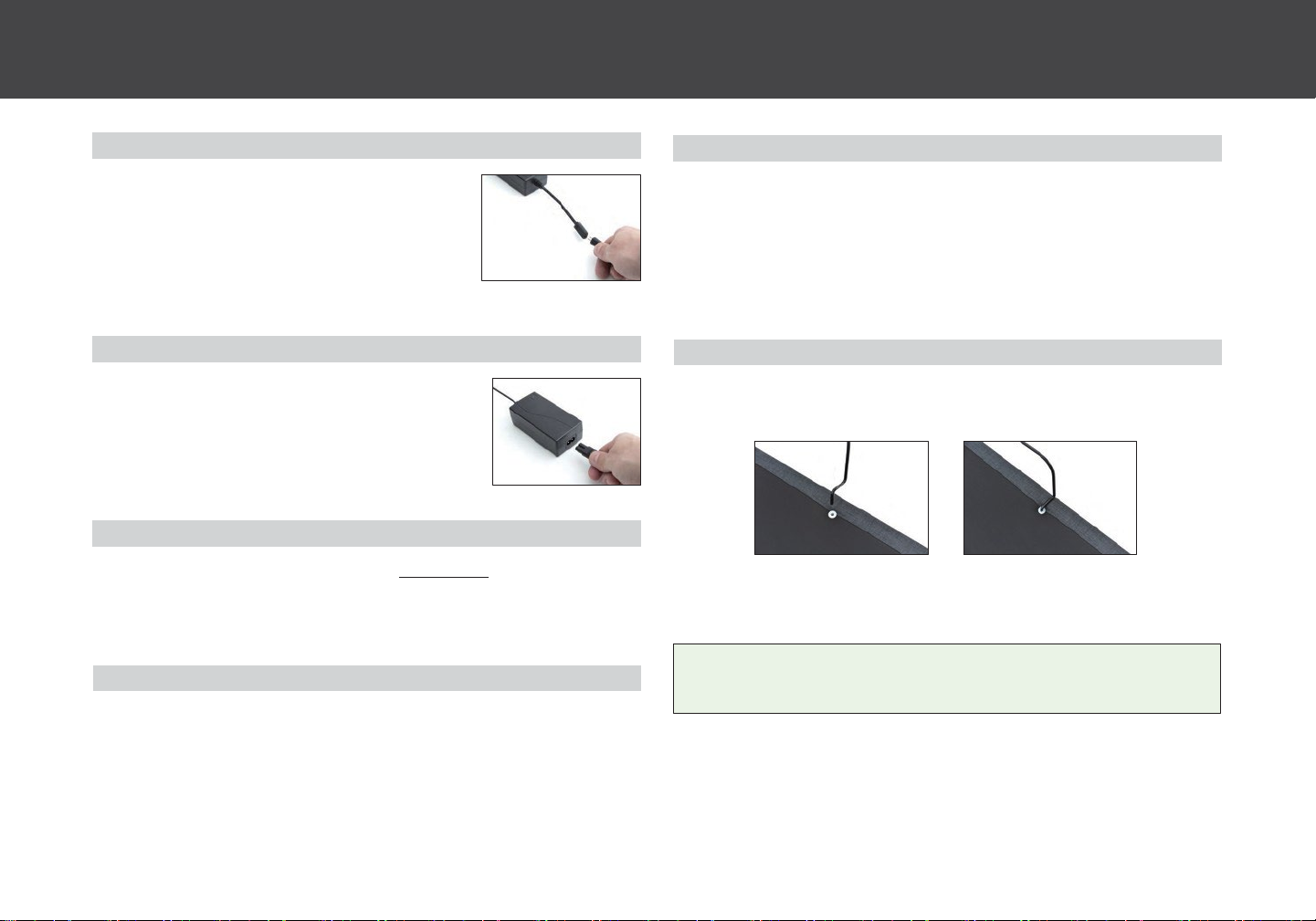

Uncoil input cord (connected to control box’s
power port) and plug into Power Supply.
Carefully flip the base over on to its legs. IMPORTANT: Two people are
required to move the bed base. Do not drag across the floor. Do not rest
frame on its side, excessive pressure may damage the legs.
Plug the base and audio power cord into apower source. Asurge
protector is strongly recommended.
Ensure batteries are correctly installed in the back of the remote.
Quickly test functions to verify proper setup before placing mattress on base.
Press FLAT to return the base to aflat position.
Basic setup is now complete! See page 8-9 for remote control
operating instructions.
Uncoil the Power Cord and connect to the Power
Supply. Place Power Supply on the ground and
extend from the base. Ensure that the Power
Supply and all attached cords are directed toward
the desired surge protector.
For customer support call: 1300 306 062 |NZ: 0800 483 6789
installation guide
To install the mattress retainer bar, insert each end of the bar into the
holes at the foot of the platform.

8

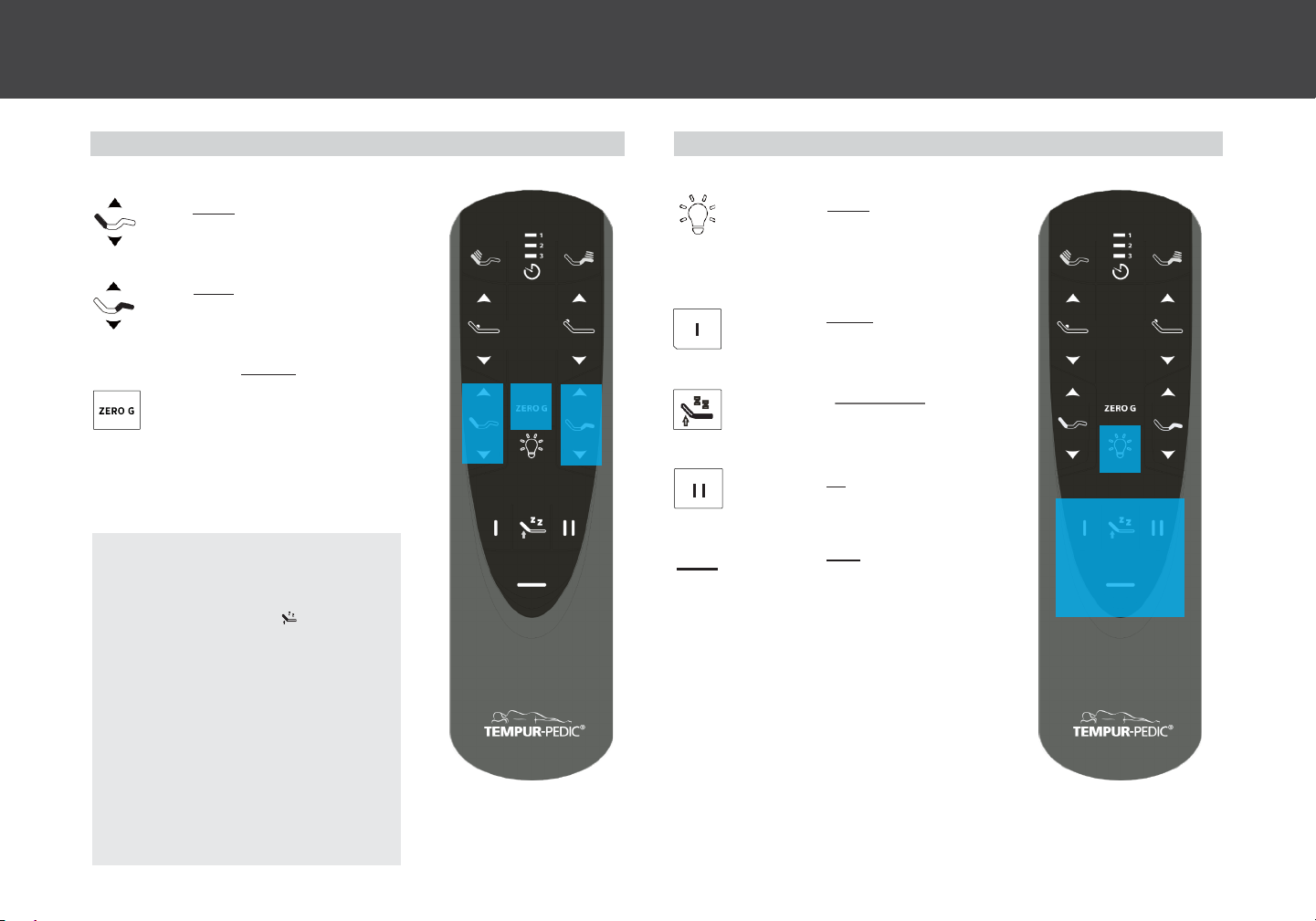

remote control

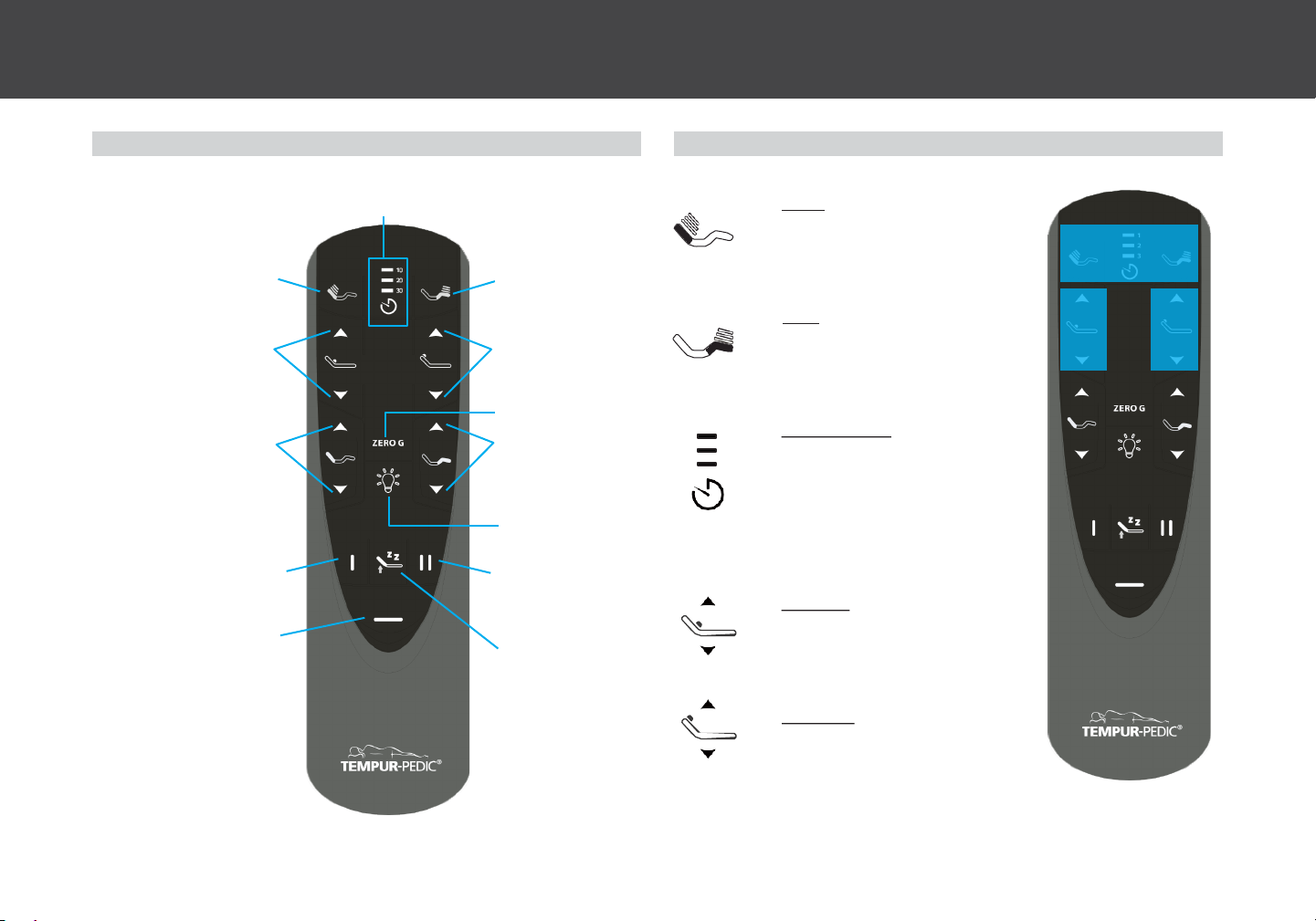

The HEAD + and -buttons adjust
the head massage intensities.
Levels 1-3.
The FOOT +and -buttons adjust
the foot massage intensities.
Levels 1-3.
The TIMER/ALL OFF button selects
a10, 20 or 30 minute massage
interval. Pressing afourth time
will turn off massage. The
lights on the top of the remote
indicates a10,20 or 30 minute
timer setting.
The LUMBAR arrows
customize the level of lumbar
support.
The HEAD TILT arrows
customize the level of head
support.
FUNCTIONSREMOTE OVERVIEW
Head Massage Intensity Foot Massage Intensity
Head Tilt Adjustment
Zero-G Preset Position
Lifts and Lowers Foot
Underbed Lighting
TV Preset Position
Anti-Snore Preset
Lumbar Adjustment
Lifts and Lowers Head
Flat Preset Position
Relax Preset Position
10, 20, 30 Minute
Massage Timer &Lights
10
20
30

9
remote control
One touch LIGHT button
activates and turns off the
safety lighting feature.
One touch RELAX preset
position.
One touch ANTI-SNORE
preset position.
One touch TV preset position.
One touch FLAT preset
position.
The HEAD arrows lift and
lower the head section of the
base.
The FOOTarrows lift and
lower the foot section of the
base.
One touch ZERO G®preset
position. Zero G®adjusts your
legs to ahigher level than
your heart helping to relieve
pressure off the lower back
and promote circulation.
REMOTE FUNCTIONSREMOTE FUNCTIONS
SAVE UP TO FOUR FAVORITE POSITIONS
To program:
Press and hold one of the I, ,II buttons
for at least 5seconds. The LED lights at top of
remote will flash in succession 3times.
Position is now saved.
To restore the preset buttons back to
their original factory settings:
Hold FLAT and ZERO-G simultaneously for
at least 5seconds. The LED lights at top of
remote will flash in succession 3times.
The original presets will be restored.

10
bluetooth®remote control setup
To operate the base from asmart device, the “Tempur ZeroG” application must be downloaded to the desired smart
device from the App Store (Apple) or Google Play Store(Android).
STEP 3
STEP 2
STEP 1
STEP 4
STEP 5
Select Menu icon.
Select desired base. Tap back arrow to return to settings and select Remote
to return to remote control screen.
*See page 8-9 for remote instructions.
NOTES:
•If operating multiple bases: the Unique ID number will be listed on
the sticker located on the adapter
•Press and hold RESET for 5seconds to reset customized presets back
to factory default settings.
•To disconnect: Turn off the Bluetooth® function on your device.
•For assistance establishing aBluetooth® connection please refer to
your device’s owners manual or contact the manufacturer directly.
Select remote style and “auto connect”.
Plug the bed into power supply.
Tap Select device.
For assistance setting up aBluetooth®connection, refer to your
smart device's owners manual or contact the manufacturer directly.

11
In the event that the base is stuck in an articulated position during apower outage-the Power Down Box
will return the base to a flat position.
(2) 9Volt batteries are required to operate the power down feature and are NOT included.
Press and hold the button until the base is flat.
Note: The button on the power down box can be pressed at any time
during the loss of power to bring the base flat.
For emergency use only.
The Power Down Box can only be used to bring the base to aflat
position. It will not bring the base to aflat position when the
base is connected to aworking power source.
STEP 1STEP 2
emergency power down box
Locate the Power Down Box under the base.

12
pair remote
The original remote that comes in the box is already paired to the bed base. No further action is required.
In the event that the remote is not paired with the base, follow the steps below.
Remove back cover from remote control.
Remove and replace batteries.
Press and hold button on the back of the remote.
The light will begin to flash then become a
continuous solid light.
Both lights on the Power Down Box and the Remote
will be continuously lit, then simultaneously turn off.
Replace back cover of the remote.
The remote is now paired with the base.
Double click the button on the Power Down
Box (this will not cause the base to move).
The light will illuminate.
If the Power Down Box is not available -Remove back cover of the remote, locate the rubber button in the center of the back. On the control box
located underneath the bed, double click the RESETbutton. Press and hold the back rubber button on the remote. The button will begin to flash then
become acontinuous solid light for 1to 2seconds and then turn off. Once the remote is paired, replace back cover of the remote and test base
functionality.
STEP 4
STEP 1
STEP 2
STEP 3

13
If any split setup is being installed, plastic connecting straps are provided (one per base) to secure the bases to-
gether. Use both straps to secure the head and foot portions together.
With the bases in their desired
location, slightly loosen both legs
to allow the strap to fit on the
leg bolt, between the leg washer
and frame.
Slide side (a) of the connecting strap onto leg bolt. Swing the strap and
connect side (b) to the leg bolt. Secure the strap by shifting to the left.
Re-tighten legs. Do not over tighten. Use the remaining strap and
repeat on other end of the base.
STEP 2
STEP 1
STEP 3
a b
setting up two bases

14
Unplug base from power source.
Disconnect the power-down box cable from each control box. Make
note where the cable was plugged in.
Connect the male end of the sync cord to the multifunction port on
control box. Insert it into the same port that you disconnected the
power-down box from in Step 2.
Connect each power-down box male connection to the sync cord
female connection (Refer to the illustration below).
Plug base back into the power source.
Check to ensure all cords are securely attached. Both remotes will now
operate both bases simultaneously (If the remotes become unpaired,
see page 12).
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
If simultaneous operation of two bases is desired, use the SmartSync™Cord to connect the
electronics of both bases together.
setting up two bases
Power-Down Box Power-Down Box
Sync Cord
Splitter
Splitter
Control Box Control Box
sT
AIRING LED
7 8 9 10 11
sT
AIRING LED
7 8 9 10 11

You may now connect your headboard to the attachment plates using
the remaining short bolts and nuts to secure it to the brackets. The
heads of the bolts will face outward. Use a9/16" (14mm) socket and
1/2" (13mm) wrench to tighten the bolts.
15
headboard bracket installation guide (optional)
STEP 1STEP 2
STEP 3
a) Align the hole in the bracket to the brass sleeve into which the leg
threads. Hold the bracket in place and screw the leg into the base
until it is snug. DO NOT OVERTIGHTEN. Too much force may cause the
leg to spin freely.
b) Align the tab with the hole in the frame (located towards the foot
of the base) and use ashort bolt and nut to secure the bracket.
Make sure the bolt is tight.
Attach the plastic spacer and T-Bracket.
a) Measure the distance between the mounting holes on the
headboard and install the spacer and attachment plate to
accommodate the headboard.
b) To install the plastic spacer and attachment plate, you will need (2)
long bolts and (2) nuts. Place the spacer and attachment plate in
the desired location and slip the bolts through the holes with the
head of the bolt facing outward. Position the bolts diagonally on
the spacer. Use the 9/16” (14 mm) socket and wrench to tighten the
bolts.
Headboard Brackets are optional accessories and are not included.
A9/16” (14 mm) &1/2” (13 mm) socket or wrench and legs are necessary to complete installation.

If one or more functions on the bed base have stopped operating:
•Check under the bed base to verify that the wired connections are secure and that there are no
cords or bedding obstructing the movement of the base.
•Check to ensure the green LED light is illuminated on the control box. If there is no light, verify
that the input and power cords are properly connected.
•Unplug the base for 1hour to reset the electronic components.
•Plug bed base into adifferent electrical outlet, or test current outlet with another working
appliance (a grounded, electrical surge protector is recommended).
•Remove and replace full batteries in the remote control and re-pair the remote to the base
(see page 12).
If issue is not resolved by following the instructions above,
locate serial number on warranty card or back of remote and call
Customer Service: AUS 1300 306 062
NZ: 0800 483 6789
16

17
notes

©2019 Ergomotion Inc
V001_08/2019
35008510
Tempur Customer Service
Australia:
New Zealand:
Email:
Web:
1300306 062
0800 483 6789
[e-mail]
[e-mail]
www.tempur.com
