safety precautions and usage statements
Attention: Important Safety Disclaimers
Read all instructions before using your TEMPUR-PEDIC ACTIVEbreeze°ERGO EXTENDTM adjustable base.
SAVE THESE INSTRUCTIONS.
To reduce the risk of shock, burns, fire or injury:
Always unplug the base from the electrical outlet before servicing
any part of the base. To reduce risk of electric shock, unplug the
base before cleaning. To safely disconnect, ensure the base is in a
flat position with all motors off, and unplug from power source.
Keep the power cord away from heated surfaces. Never operate
the base when the air openings are blocked. Keep air openings free
of lint, hair and the like. Do not drop or insert any object into any
opening.
Discontinue use of the bed base and contact a qualified service
center if: it has adamaged cord or plug, is not working properly, or
has been dropped into water.
Only use this bed base for its intended use as described in
this manual. Do not use accessories/attachments that are not
recommended by the manufacturer.
Close supervision is required when the bed base is used by or near
children, convalescents or disabled persons.
Outlet Safety:
For optimal safety and operation, plug bed base into a
surge protector (not included).
The bed base should only be plugged directly into a wall outlet
or surge protector (recommended). Improper connection of the
equipment can result in the risk of electrical shock, electrical fire
or faulty operation of this bed base. If the plug does not fit your
outlet, contact a qualified electrician to install a suitable outlet.
Unauthorized modification or failure to use awall outlet or surge
protector could void the electrical portion of your warranty.
In-Home Use and Hospital Disclaimer:
The TEMPUR-PEDIC ACTIVEbreeze°ERGO EXTENDTM adjustable
bases are designed solely for in-home use. This base was not
designed as a hospital bed and is not designed to meet hospital
standards. Do not use this base with TENT TYPE oxygen therapy
equipment or near explosive gases.
Pets and Small Children:
Immediately dispose of all packing materials as they may pose a
smothering risk to small children and pets. To avoid injury, it is not
advised to allow children and small pets to play on or under the bed.
Children should not operate the bed base without adult supervision.
Safety Features:
Free-release head and foot motors are designed to lower the
mattress by retracting only with gravity, never pulling downwards,
which minimizes pinch points.
Power Ratings:
INPUT:
OUTPUT:
WATTS:
AC 100–240V 50/60 HZ 2.0A
DC 29V 2.0A
58W
Product Ratings:
The lift motors are not designed to operate continuously for more
than two [2] minutes in an eighteen [18] minute time period or
approximately 10% duty cycle. Attempting to circumvent or exceed

this rating will shorten the life expectancy of the product and may
void the warranty.
The massage motors are not designed to operate continuously for
more than 30 minutes at atime. Please allow the massaging system
to rest for 30 minutes after automatic massage shut off before
restarting.
The fans are not designed to operate continuously for more than
600 minutes (10 hours). Please allow the fan system to rest for at
least 60 minutes after automatic fan shut off before restarting.
Weight Limits:
The recommended weight limits on the TEMPUR-PEDIC
ACTIVEbreeze°ERGO EXTENDTM are:
Queen/Long Single/Single: 850 pounds.
Maximum weight the bed can support per person is 350 pounds
with the weight evenly distributed across the head and foot
sections. This product is not designed to support or lift this amount
of weight in the head or foot sections alone. NOTE: Exceeding the
recommended weight restrictions could damage your TEMPUR-
PEDIC ACTIVEbreeze°ERGO EXTENDTM and void your warranty. For
best performance, you should enter and exit the TEMPUR-PEDIC
ACTIVEbreeze°ERGO EXTENDTM while it is in the flat or fully lowered
position.
TEMPUR-PEDIC ACTIVEbreeze°ERGO EXTENDTM fits easily inside
bed frames, furniture beds and platform beds that are certified
to hold a minimum of 1000 pounds. If using this adjustable base
without the legs and placing directly on a bed frame or platform
bed, cross-bed supports (slats) are strongly recommended to
ensure TEMPUR-PEDIC ACTIVEbreeze°ERGO EXTENDTM maintains
2
stability during operation.
Acoustics:
In normal base operation the wheels, which allow the bed to maintain
its distance from the wall, will make contact with the steel platform
supports of the base creating a contact noise. When entering, exiting
or shifting weight on the base, this contact noise may be audible as
the wheels make contact. This is normal.
In normal operation of the Activebreeze system, fan noise from the
system can be expected especially at higher speeds. When entering,
exiting, shifting weight or articulating the base, fan noise may change
slightly due to change of position. This is normal.
Fabric Care:
To prolong the life of your fabric, protect from direct sunlight
whenever possible. For spot cleaning, wipe area with a light damp
sponge or vacuum with a soft brush attachment to remove particles.
Keep at aminimum of 30cm (12 inches) away from direct heat
sources.
For deeper cleaning, blot liquid spills with a clean dry cloth.
Wipe with a clean cloth dampened with warm water. Do not wet
excessively. Asoft bristle brush may be used to remove ingrained
soil. Avoid scratching by gentle brushing. Wipe with a clean cloth
dampened with warm water to remove residues after brushing. Dry
in shade away from direct heat.
If persistent marks remain visible after cleaning, seek professional
safety precautions and usage statements
Exceeding this weight restriction could damage the bed
and/or cause injury and will void the warranty.

3
advice.
• Step 5: Return the base to flat position.
ACTIVEbreeze°Care:
TEMPUR-PEDIC ACTIVEbreeze°ERGO EXTENDTM are equipped with
removeable, washable fan filters. Recommended cleaning interval for
the filters is every 6 months or more frequent if necessary. Water and
mild detergent can be used to clean the filters. Please dry the filter
prior to re-installing. Filters can be removed, cleaned and re-installed
following the steps shown below. Note that it is not required to
disconnect the hoses prior to cleaning the filter.
• Step 1: Raise the bed to TV Favorite position to provide access to
the fan unit.
• Step 2: Remove the filter by grasping the handle and gently
pulling up.
• Step 3: Clean the filter with mild detergent and water, drying
prior to installation.
• Step 4: Re-install the filter by pushing down until the filter clicks
in place.
FCC Compliance:
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
To comply with the FCC RF exposure compliance requirements, no
change to the antenna or the device is permitted. Any change to the
antenna or the device could result in the device exceeding the RF
exposure requirements and void user’s authority to operate the device.
Radio Frequency: 2.4 GHz
CAN ICES-3 (B)/NMB-3(B)

4
parts list

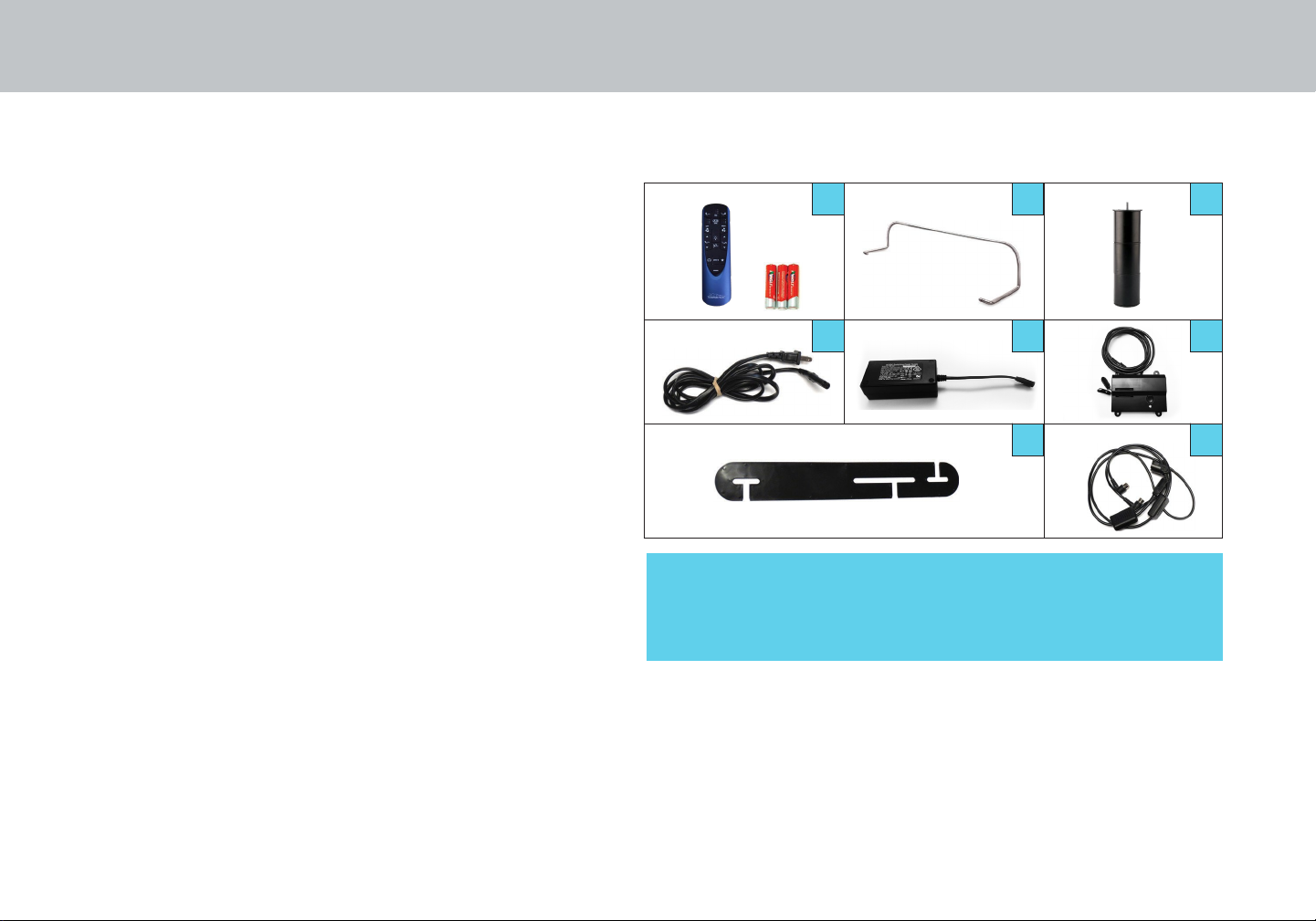

Before discarding the packing materials, ensure all the parts are accounted for.
All electronics and components that need to be installed
are located in boxes under the base or attached to the
frame.
A) Wireless Remote Control (1) AAA Batteries (3)
B) Mattress Retainer Bar (1)*
C) Legs (4)
D) Power Cord (1)
E) Power Supply (1)
F) Battery Backup Box (1) (9-Volt batteries not included)
G) Connecting Strap ‡*
H) Sync Cord ‡
** A*B C
D E F
‡* G‡H
Miscellaneous Parts (not included):
Surge Protector (1)
9Volt Batteries (2)
*These items are attached to the base for shipping
purposes. Carefully remove from base and set aside.
** Two remotes are included with aQueen sized base.
‡Only included in Single and Single Long bases
IMPORTANT!: For your safety, read the owner’s manual
carefully and completely before operating this product.
Electric shock may occur if electrical components are not
installed or operated according to these guidelines.

5

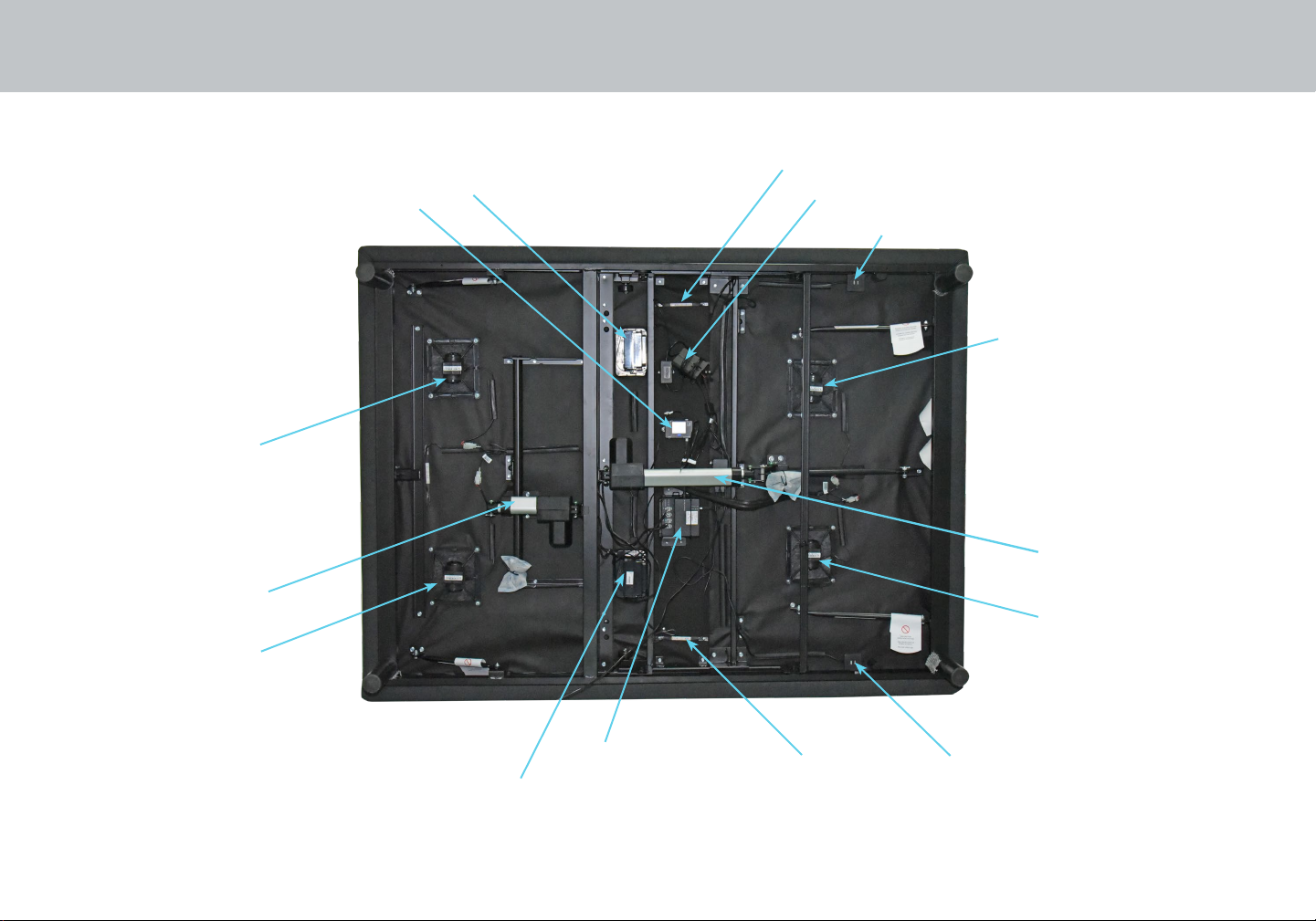

base overview
Foot Motor
Head Motor
Control Box
USB Ports
Fan Motor
Fan Motor
Fan Control Box
Massage Motor
Massage Motor
Massage Motor
Massage Motor
Underbed Light USB Port
Underbed Light
Battery Backup Box

6
Not to scale. For illustration purposes only. Read all instructions before beginning installation.
If installing a split unit, see page 16.

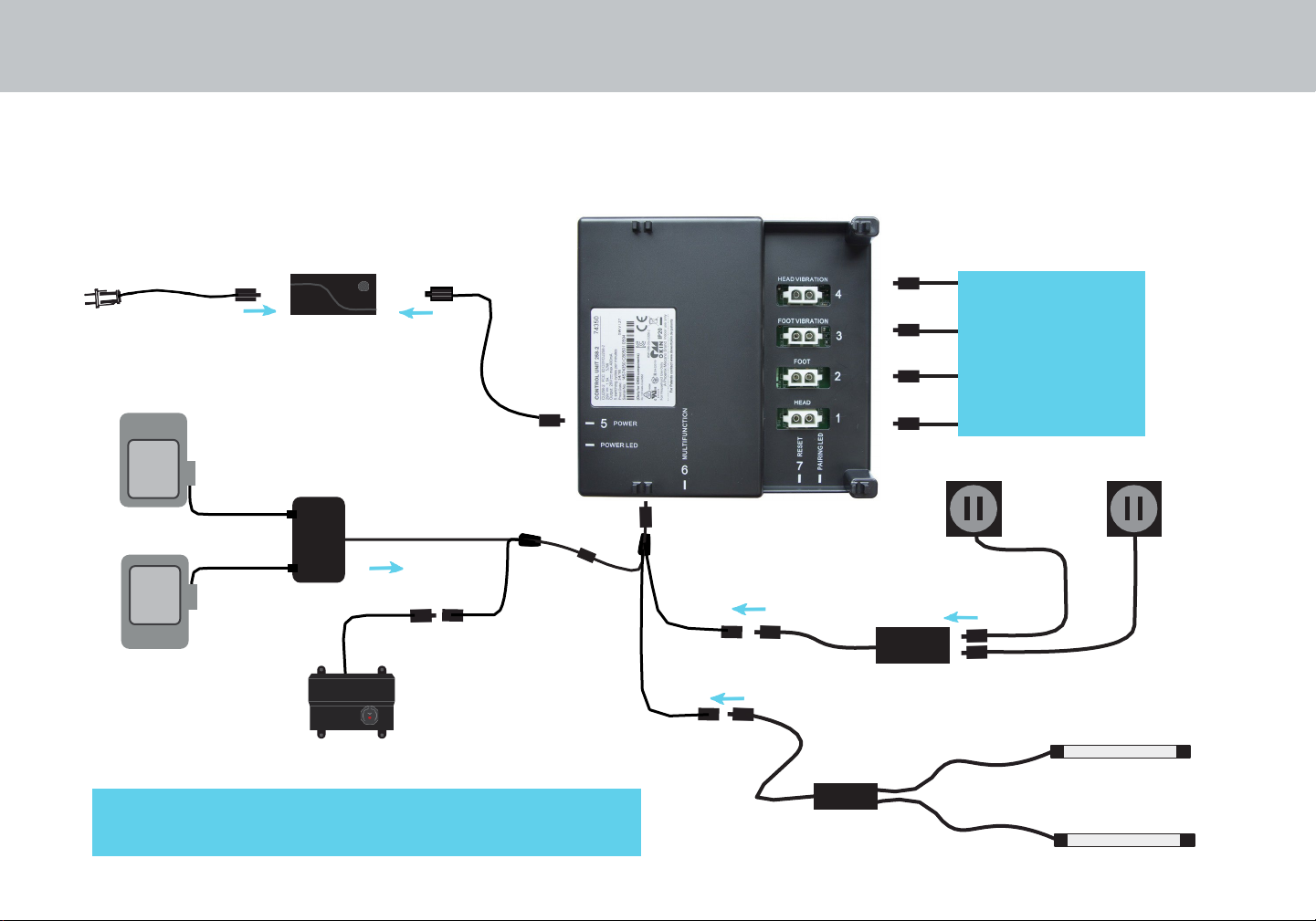

quick reference guide
Power Cord
Input
Power Cord
Power Supply
Control Box
connection
ports
to head and
foot motors
(massage and
lift). Installed
under the base.
Battery Backup Box
Fan Motor
Fan Motor
USB Charging Ports
USB Charger
Fan Control
Box
Splitter
Splitter
Underbed Lighting
Splitter

7
Legs are shipped fully assembled. Alternative heights in 3"
increments can be achieved by removing leg segments.
To install the legs, thread the washer over the bolt of the leg
with the recessed side facing the leg, and tighten by hand.
Do not over tighten.
STEP 1
STEP 2
installation guide
Always use two people when setting up the base.
Place the bed base box in adesired location with the
bottom of the box facing up.
Remove the binding straps and packing materials,
making sure not to puncture the box with any sharp
objects.
Remove the bed base from the box keeping the bottom
of the base facing upwards.
STEP 3
STEP 4
STEP 5
STEP 6
Uncoil input power cord (connected
to control box's power port) and
plug into power supply.
If installing a split unit, see page 16.
To install headboard brackets (sold separately), see
instructions on page 17.
Locate the battery backup box
and install (2) 9-Volt batteries (not
included).
(For operating instructions see page
14).
Uncoil the power cord and connect to
the power supply. Place power supply
on the ground and extend from the
base. Ensure that the power supply
and all attached cords are directed
toward the desired surge protector.
For TEMPUR customer service call AU: 1300 306 062 |NZ: 0800 483 6789

8
STEP 7
STEP 8
STEP 9
Carefully flip the base over on to its legs. Important: Two
people are required to move the bed base. Do not drag
across the floor. Do not rest frame on its side, excessive
pressure may damage the legs.
Plug the power cord into apower source. Asurge
protector is recommended.
Ensure batteries are correctly installed in the back of the
remote.
Quickly test functions to verify proper setup before placing
mattress on base. Return the base to aflat position before
placing the mattress on top.
Slide the left side of the mattress retainer bar into the
bracket. Pull the retainer bar to the opposite bracket and
secure the right side.
installation guide
STEP 10
For TEMPUR customer service call AU: 1300 306 062 |NZ: 0800 483 6789

9
Setup is now complete! Test all functions on remote.
STEP 1
STEP 2
STEP 3
STEP 4
Always use two people when setting
up the mattress. Place the mattress
box in adesired location and remove
the mattress from the box and bag,
making sure not to puncture the box
or mattress bag with any sharp objects
while removing mattress from packing
materials. Place the mattress on the
bed base and ensure head and foot
ends are properly aligned.

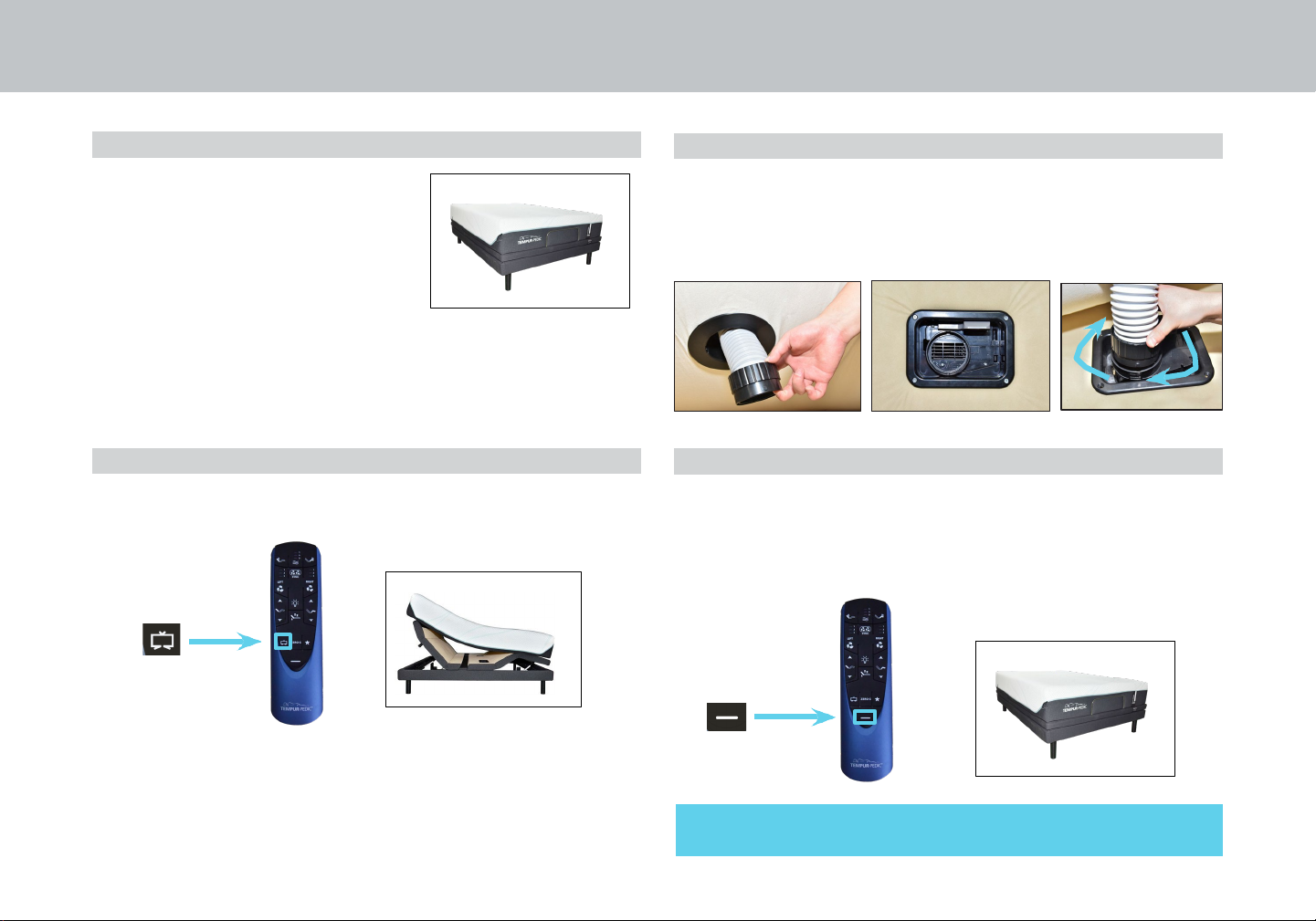

Raise the mattress on the bed base to make hose connections by
adjusting the bed base to TV preset using the remote control.
Connect the mattress hoses to the bed base. Reach under the
mattress and pull the hose and connector down to the bed base.
Align the connector tabs of the mattress hose with the fan outlet of
the bed base. Insert and twist until the connector is locked in place.
Return the mattress and bed base to the flat position using the
remote control flat button. Setup is now complete. Refer to remote
control guide and user manual pages 10-13 and 16 for complete
information regarding tandem setups and operation of the
adjustable bed base and ACTIVEbreeze°systems.
mattress setup

10

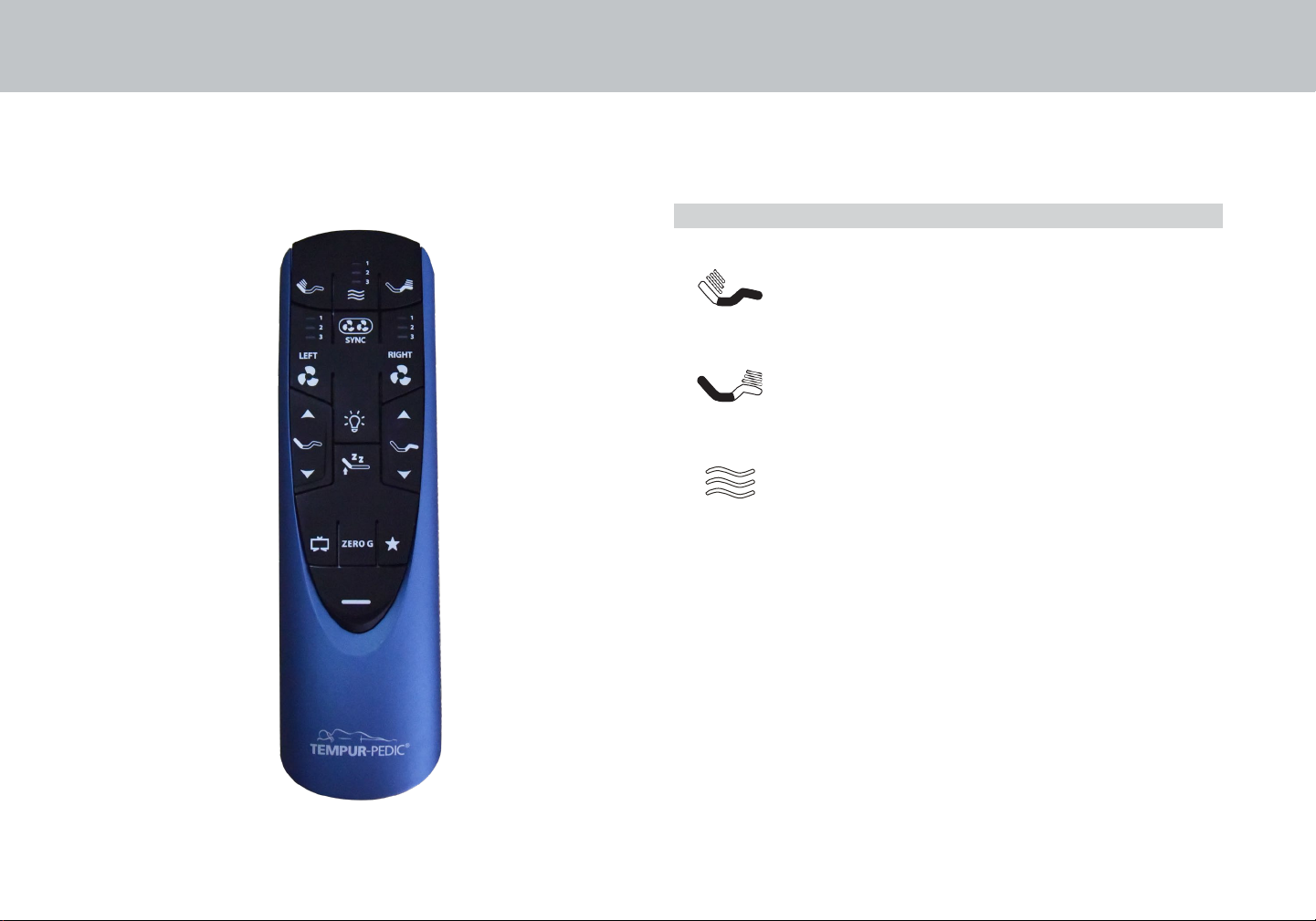

Remote Control arrives paired to the adjustable base.
Three (3) AAA batteries are required to operate the
remote.
remote control
MASSAGE
Head Zone Massage Control
Activates simple steady-state massage and
toggles through 2intensity levels.Low, high
and off.
Foot Zone Massage Control
Activates simple steady-state massage and
toggles through 2intensity levels. Low, high
and off.
Massage Wave Mode Control
Turns on and activates programmed
massage mode. Toggles wave modes 1, 2,3
and off. Intensity default to low.
There are 3possible wave massage modes and 2 intensity levels
to choose from. Press the Wave Massage Mode Selector to choose
the desired mode (1,2,or 3), then use the Head Massage and/or the
Foot Massage buttons to cycle through the available intensity levels.
Once the massage mode is chosen, it will run for 30 minutes unless
it is cancelled by pressing the Wave Massage Mode Selector button
repeatedly until massage stops.
If one of the wave massage modes is not needed, pressing Head
and/or Foot Massage buttons will initiate massage for those sections
and cycle through 2 different intensity levels as well as "OFF".

11
remote control
ADJUST
Head Position Adjustments
Use to raise and lower the head section of
your adjustable base.
Foot Position Adjustments
Use to raise and lower the foot section of
your adjustable base.
PRESET
Zero G‡
Adjusts your legs to relieve pressure off the
lower back.
Flat *
One-Touch Flat lowers head and foot to flat
position and turns off massage (if running).
TV in Bed Preset Position ‡
Brings head and foot into position for
viewing TV.
Anti-Snore Preset Position ‡
Raises the head of the bed slightly to help
open airways.
Favorite 1Preset Position ‡
Reprogrammable Preset Position.
Underbed LED lighting *
Turn on/off underbed LED lighting.
*Not user programmable.
‡Can be reprogrammed to user desired position.
The ZERO G,TV in Bed, Anti-Snore, and Favorite 1in
bed presets can be re-programmed to any position
chosen by the user. Simply adjust the bed to the desired
position, then hold any of the 4buttons down until the
remote backlight flashes twice. The button is now re-
programmed.
To restore the buttons to their original positions, depress
the One-touch Flat and Zero-G buttons simultaneously
for 5seconds. The remote backlight will flash twice to
indicate the original positions have been restored.
Remote Control arrives paired to the adjustable base.
Three (3) AAA batteries are required to operate the
remote.

12
remote control

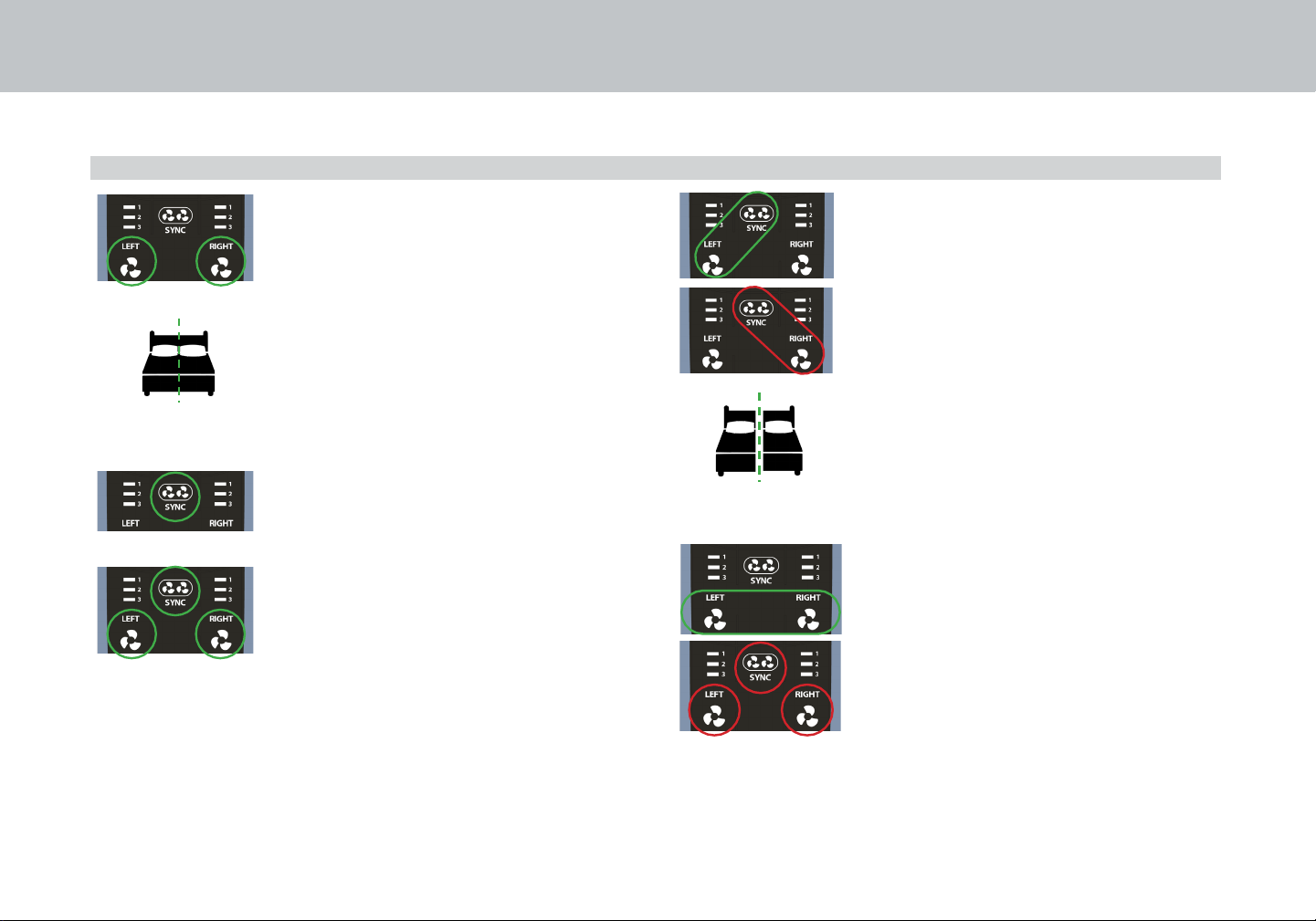

Standard Fan Operation
Fan buttons will operate the fan(s) at the selected
speed for up to 10 hours. Simply tap the LEFT or
RIGHT Fan buttons to cycle through the levels of
intensity. The LEFT and RIGHT side of the bed are
identified below. For fan operation in adual/sync
setup, please refer to Tandem Mode.
• 1 = Low
• 2 = Medium
• 3 = High
*There is 1fan in aTXL or CSK base. Any one of
the 3fan buttons will control the single fan.
Fan Sync Mode
Pressing the SYNC button will simultaneously cycle
the left and right fans through the fan speeds (Low/
Medium/High/Off).
Step-Down Mode
This mode will operate the fan at the selected speed
selection for 5hours, and then “step-down” to a
lower speed for an additional 5hours.
To access this mode, once the desired speed has
been selected, press and hold the corresponding fan
button for 3seconds. The selected fan speed LED
will blink twice (2x) to indicate that the “step-down”
mode is activated.
•Low (for 5hours) →Off
•Medium (for 5hours) →Low (for 5hours)
•High (for 5hours) →Medium (for 5hours)
Tandem Mode
This mode applies to async setup of TXL and
CKS sizes only. When activated, the fan on the
base assigned “left side” will be controlled by
the LEFT fan button, and the fan on the base
assigned the “right side” will be controlled by the
right fan button. Please note, all other remote
functions will control both bases simultaneously.
To activate this mode, press and hold the LEFT
Fan and SYNC button at the same time on the
remote control paired to the left side base.
Backlight LED flash (2x) after 6seconds indicates
that Tandem Setup is on.
To Deactivate Tandem Mode and revert the
system to normal setup, press and hold the RIGHT
Fan and SYNC button at the same time. Backlight
LED flash (2x) after 6seconds indicates that
Tandem Setup is off.
Retail Demo Mode
Press and hold the LEFT and RIGHT buttons
simultaneously for 3seconds, after which
backlighgt LED will flash 2x. The fans will
operate at maximum intensity, and then shutoff
automatically after 5minutes.
To deactivate Retail Demo mode, press any one
of the 3fan control buttons to turn retail demo
mode off.
FAN MODES
Right Side Left Side
Right Side Left Side

13
remote control pairing
Remote Pairing
The original remote that comes in the box is already paired to the adjustable base. No further action is required. In the event
that the remote is not paired with the base, follow the steps below.
*ALTERNATE REMOTE PAIRING PROCESS
Locate the control box (see parts list on page 5) and
press the button twice. Agreen LED light will illuminate
on the control box. On the back of the remote, press and
hold the PAIR button. The PAIR button will illuminate
blue and start flashing. When the PAIR button stops
flashing, the green LED light on the control box will go
out. Release the PAIR button. The remote is now paired
to the adjustable base. For queen size, return to step 2b
to pair the 2nd remote control.
PAIR
Button
Test all remote functions. If the remote buttons do not impact
the adjustable base movements, please repeat the process again
or call Tempur-Pedic customer service:
AU:1300 306 062 |NZ:0800 483 6789
STEP 1
STEP 2
Locate the battery backup box and press
the button TWICE. A light on the battery
back up box will illuminate.
Remove the back cover of the remote, press
and hold down the PAIR button. The PAIR
button will illuminate blue and start flashing.
When the PAIR button stops flashing, the
illuminated light on the battery backup box will
go out. Release the PAIR button. The remote
is now paired to the adjustable base.
2b. *For pairing two Queen remotes only:
• With the remote that you just paired,
press and hold Head Massage button for
6 seconds to activate "send mode". The
backlights will begin flashing.
• Within 30 seconds, take the second remote and hold down
the Foot Massage button for 6 seconds to activate "receive
mode". Backlight will begin flashing and receive pairing from
the first remote.
STEP 3
Child Lock Feature
Press and hold HEAD UP and HEAD DOWN buttons
together for approximately six (6) seconds.The remote
backlight will flash twice.When the backlight light goes
away, the remote is now in Child Lock.Pressing any
buttons while in Child Lock will yield no movement to
your adjustable base.
Press and hold FOOT UP and FOOT DOWN buttons
together for approximately six (6) seconds.The remote
backlight will flash twice.When the backlight light goes
away, the remote is no longer in Child Lock.The remote
and adjustable base will work normally.
Activate Child Lock
Deactivate Child Lock

14

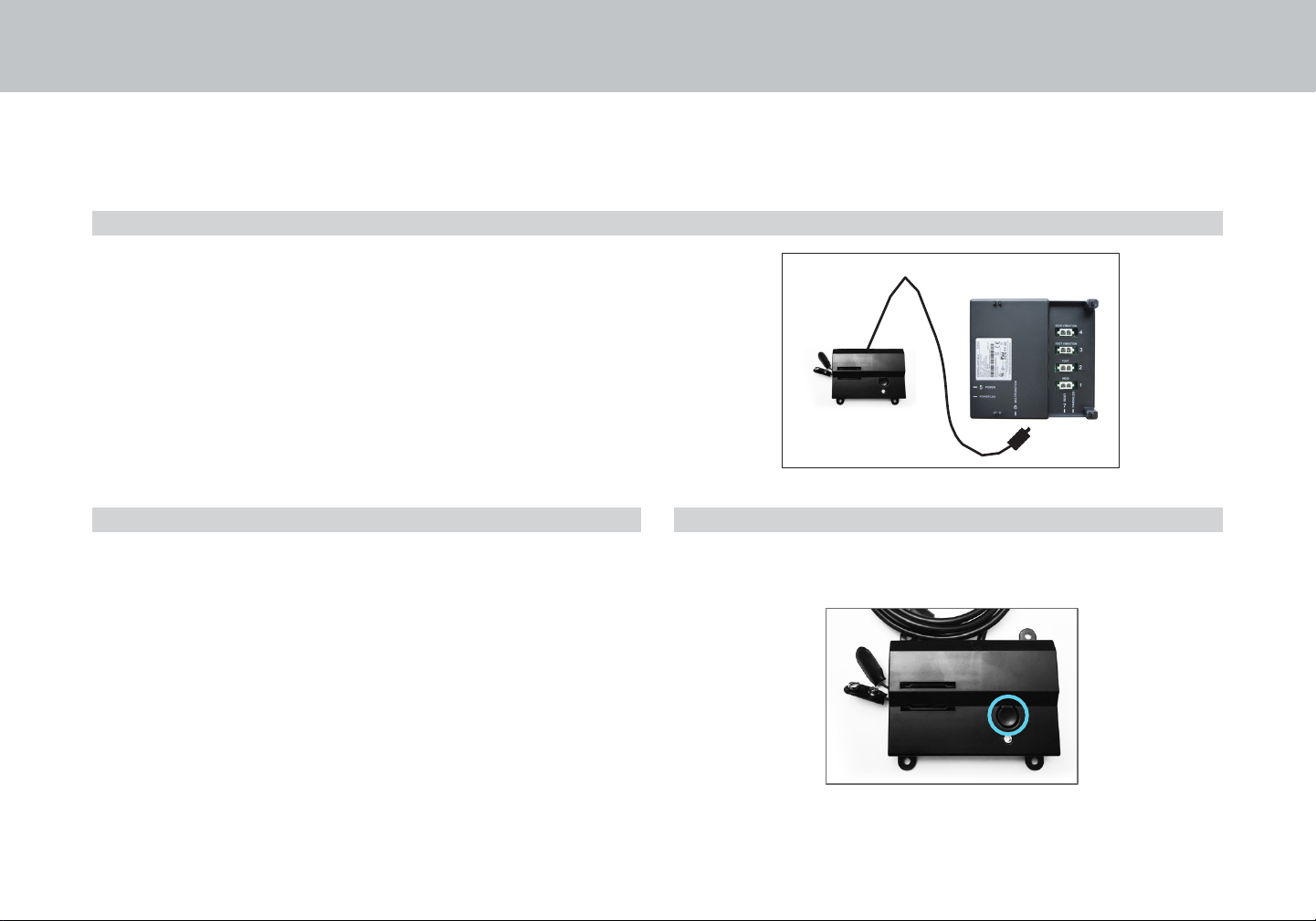

emergency battery backup box
Two (2) 9 Volt batteries are required to operate the battery backup box feature and are NOT included.
For emergency use only, in case of apower outage.
In the event that the base is stuck in an articulated
position during apower outage, the battery backup
box will return the base to aflat position. Batteries
are not to be used for normal operation of the base.
Install the 9Volt batteries into the provided battery
backup box.
Do not mix brand name batteries.
Press and hold the button on the battery backup
box to lower the base to flat position.
OVERVIEW
STEP 2STEP 1
Control Box
Battery
Backup Box
For Tempur-Pedic customer service call AU: 1300 306 062 |NZ: 0800 483 6789

15
Connecting straps are secured to the base frame upon
delivery.
If asplit setup is being installed, plastic connecting straps are provided (one per
base) to secure the bases together.Use both straps to secure the head and foot
portions together.
With the bases in their desired location, slightly
loosen both legs to allow the strap to fit on the leg
bolt, between the leg washer and frame.
Slide side (a) of the connecting strap onto leg bolt.
Swing the strap and connect side (b) to the leg bolt.
Secure the strap by shifting to the left.
Re-tighten legs. Do not over tighten. Use the
remaining strap on other end of the base.
OVERVIEW
STEP 2STEP 1
connecting strap (optional)
ab
STEP 3

16
syncing two bases (optional)

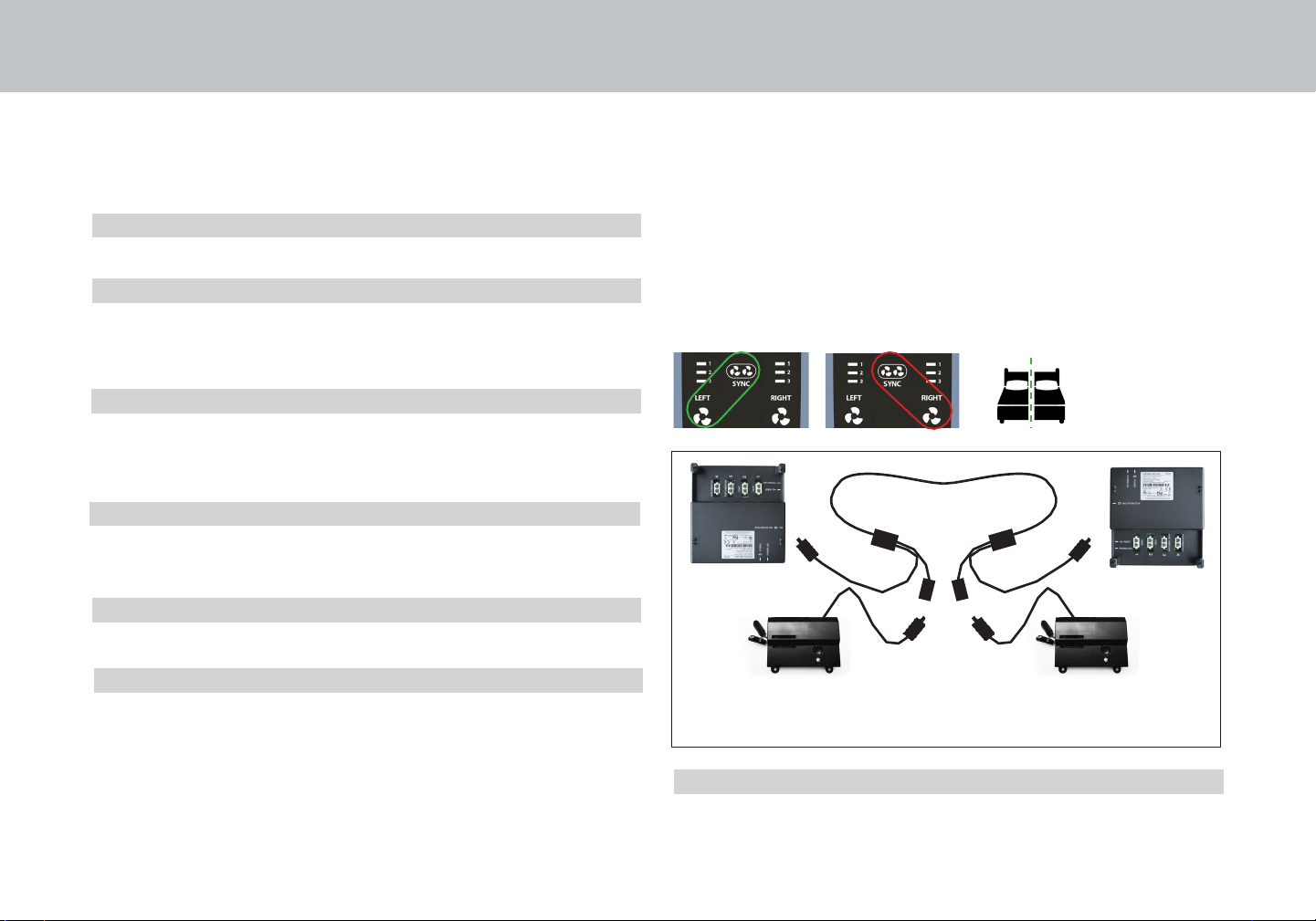

ASync Cord is included with Single and Single Long size bases.
The Sync Cord connects the two control boxes to asingle remote for the synchronization of two bases.
Disconnect the battery backup box cable from each
control box or splitter cable (make note where the cable
was plugged in).
Plug bases back into the power source.
Tandom mode applies to async setup of Single and
Single Long sizes only. When activated, the fan on the
base assigned “left side” will be controlled by the LEFT
fan button, and the fan on the base assigned the “right
side” will be controlled by the right fan button. Please
note, all other remote functions will control both bases
simultaneously. To activate this mode, press and hold the
If bases become mismatched, return both bases to the flat
position to re-sync the bases.
Connect the male end of each sync cord to control box
or splitter cable. Insert it into the same port that you
disconnected the battery backup box from in Step 2.
Unplug the base(s) from power source.
Connect each battery backup box male connection to the
sync cord female connection (Refer to illustration at right).
STEP 3
STEP 2
STEP 5
STEP 6
STEP 1
STEP 4
PERFORMANCE NOTES
Battery
Backup
Box 1
Sync Cord
Battery
Backup
Box 2
Control Box 1 Control Box 2
LEFT Fan and SYNC button at the same time.Backlight LED
flash (2x) after 6seconds indicates that Tandem Setup is on.
To Deactivate Tandem Mode and revert the system to normal
setup, press and hold the RIGHT Fan and SYNC button at the
same time.Backlight LED flash (2x) after 6seconds indicates
that Tandem Setup is off.
Right Side Left Side

17
headboard bracket installation guide (optional)
Headboard Brackets are an optional accessory and are not included. Ahex key is included with the accessory kit
to complete installation. To install the headboard bracket, place the base on it’s side.
STEP 2
STEP 1
STEP 3
a) Align the hole in the bracket to the brass sleeve into which
the leg threads.Hold the bracket in place and screw the
leg into the base until it is snug.DO NOT OVERTIGHTEN.
Too much force may cause the leg to spin freely.
b) Align the tab with the hole in the frame (located towards
the foot of the base) and use ashort bolt and wingnut to
secure the bracket.Make sure the bolt is tight.
a) Measure the distance between the mounting holes on the
headboard and install the T-Bracket to accommodate the
headboard.
b) To install the T-Bracket, slide the T-Bracket through the
end of the headboard bracket.Align the flat side of the
T-Bracket plate to the mounting holes on the headboard.
Connect your headboard to the attachment plate using the
remaining long screws or hardware that came with your
headboard.The heads of the bolts will face outward.Use
hex key to tighten bolts.
c) Secure T-Bracket in place by inserting two short screws
through top of bracket. Use hex key to tighten screws.

18
troubleshooting
•Check under the bed base to verify that the wired
connections are secure and that there are no cords or
bedding obstructing the movement of the base.
•Check to ensure the LED light is illuminated on the control
box. If there is no light, verify that the input and power
cords are properly connected.
•Check to ensure Child Lock is not activated. To deactivate
Child Lock, press and hold FOOT UP and FOOT DOWN
buttons together for approximately six (6) seconds. The
remote backlight will flash twice. When the backlight light
goes away, the remote is no longer in Child Lock. The
remote and adjustable base will work normally.
• Unplug the base for 60 seconds to reset the electronic
components.
•Plug bed base into a different electrical outlet, or test
current outlet with another working appliance (a grounded,
electrical surge protector is recommended).
ADJUSTABLE BASE
If your issue is not resolved by following the instructions above, please locate the serial number on the warranty card
or back of the remote control and call the customer service team for your region.
REMOTE
ACTIVEbreeze°
• Ensure that the remote batteries are properly installed and
do not need replacing.
•Check to ensure the LED light is illuminated on the fan
control box. If there is no light, verify that the input and
connecting cords are properly connected.
• Unplug the base for 60 seconds to reset the electronic
components.
•Plug bed base into a different electrical outlet, or test
current outlet with another working appliance (a grounded,
electrical surge protector is recommended).
•Check to ensure the remote control you are using is paired
to the bed base. If not, repeat the pairing instructions found
on page 13.
If one or more functions on the bed base have stopped operating:
For TEMPUR customer service call AU: 1300 306 062 |NZ: 0800 483 6789
