INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts
List in the appropriate place in your machine manual for future reference.
Retaining the Parts List will make it easier to reorder individual parts and will
save you the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 391041
SYNOPSIS / PROBLEM:
This kit contains the parts needed to install an Extended Scrub kit on the model 7100
scrubber.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 3 hours)
PREPARATION:
(Refer to FIG. 1 thru 5)
1. Check solution and recovery tanks. If tanks are not empty, drive machine to a proper
solution drain. Empty the solution and recovery tanks.
FOR SAFETY: Before leaving or servicing machine, stop on level surface and set parking
brake. Then turn off machine and remove key.
2. Drive machine to a clean and level work area. Disconnect battery cables from machine.
WARNING: Always disconnect battery cables from machine before working
on electrical components.
ESt
tt
tKIT INSTALLATION:
(Refer to FIG. 1 thru 5)
1. Disconnect, remove and set aside the drain caps
and hoses from both tanks. Remove and set aside
the drip shield and two mounting bolts.

IB 340425 (1-01)2
2. Remove and set aside the machine tank cover, cable
and mounting bolts.

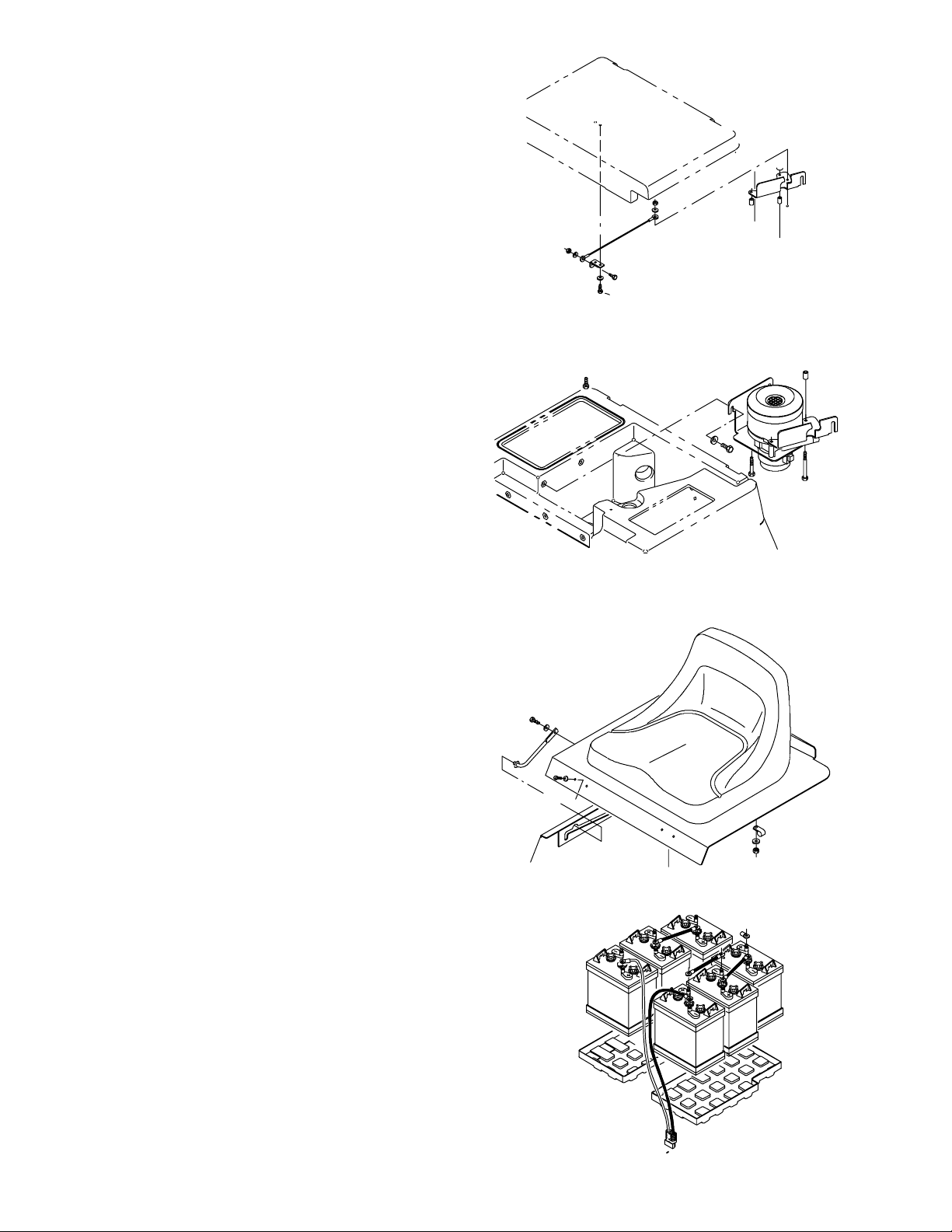

3. Disconnect the vacuum fan connector from the main
harness. Remove and set aside the vacuum fan
assembly and three mounting bolts.
(Refer to FIG. 4 and 5)
4. Lift the operator seat, and disconnect the seat
pressure switch from the main harness. Disconnect
the seat prop rod from the machine frame. Disconnect
and remove the seat support weldment and operator’s
seat from the machine frame. Set the seat, weldment
and mounting hardware aside.
5. Disconnect the battery cables from the front and
middle batteries on the left hand side of the machine.
Remove the middle battery from the battery
compartment and set it aside. Slide the front battery
back to access the two solution tank mounting bolts in
the left wall of the seat support.

IB 340425 (1-01) 3
6. Locate, remove and set aside two solution tank
mounting bolts in the battery compartment. Locate,
remove and set aside the L bracket on top and the
mounting bolt under the tank, securing the solution
tank to the machine. (Refer to FIG. 1)
7. Disconnect 0.62 in Æsolution hose under the frame
at the 90°elbow. (Refer to FIG. 1)
8. Remove and set aside the solution tank.
9. Install the new dual pressure switch (15) and 14” tube
(14) in the recovery tank. Connect the vacuum hose to
the new dual pressure switch (15). Connect the dual
pressure switch (15) to 22/BRN and 13W/BLK from
the main harness. (Refer to FIG. 2,4 and 5)
10.Remove the plastic plug from the inside bottom of the
recovery tank. (Refer to FIG. 1)
14
15

IB 340425 (1-01)4

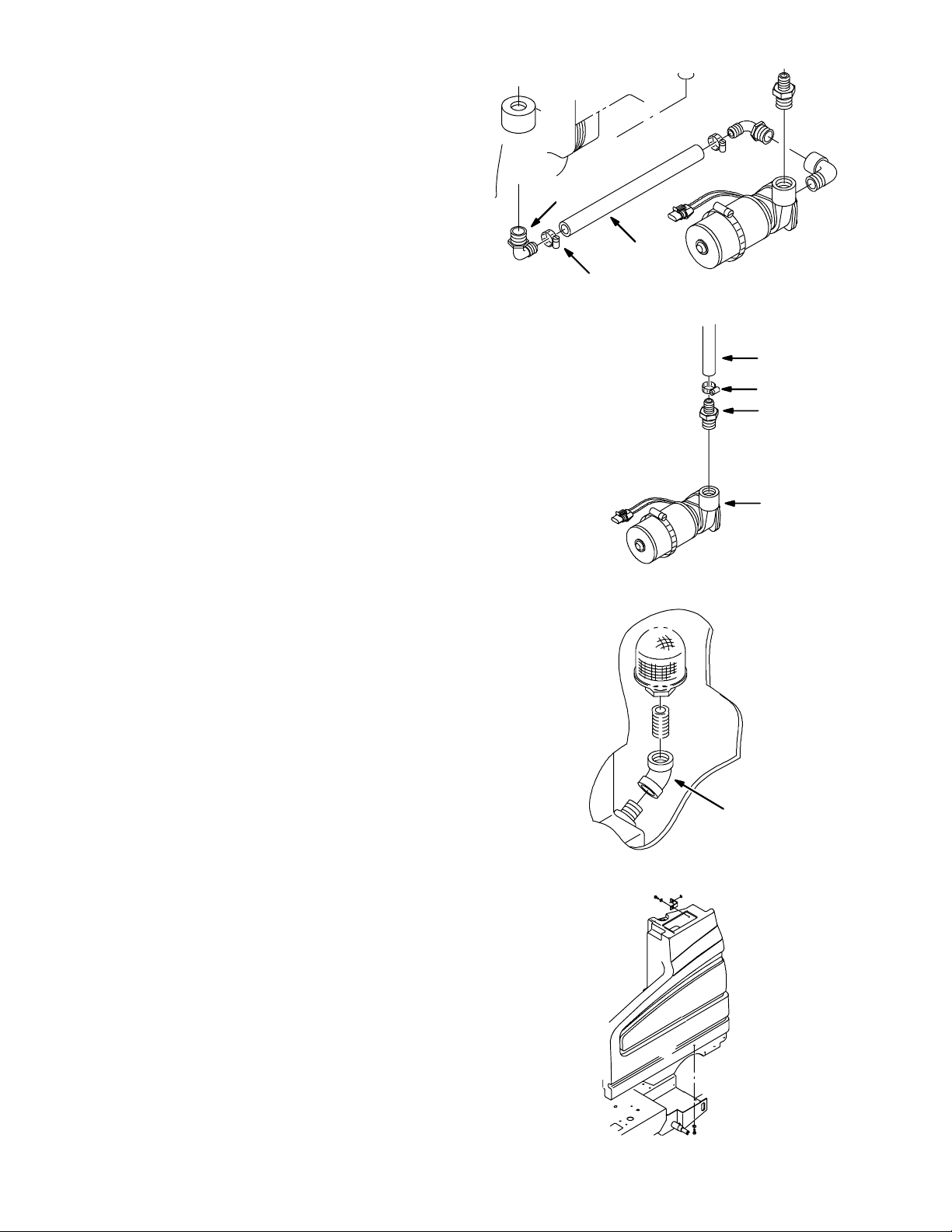

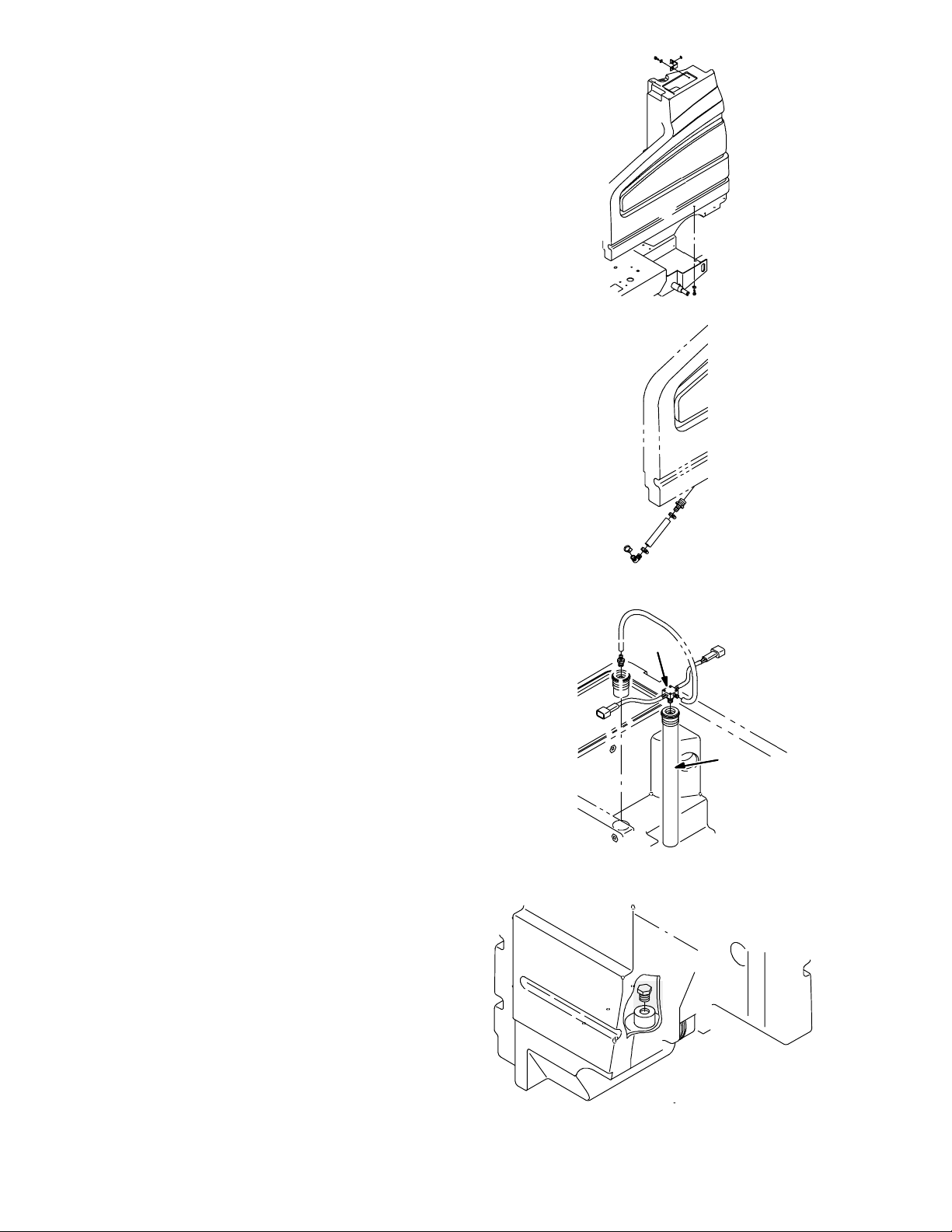

11. Install the new solution screen (1) with the male (2)
and female plastic fittings (3), in the bottom of the
recovery tank, in place of the plastic plug. Apply ’No
more leaks’ to seal the end of the male fitting going
into the tank. (Refer to FIG. 2)
12.Apply ’No more leaks’ to the threaded end of one 90°
fitting (5). Thread the 90°fitting (5) into the drain hole
on the underside of the recovery tank.
(Refer to FIG. 2)
13.Apply ’No more leaks’ to the end of the 90°fitting (6).
Thread the 90°fitting (6) into the end of the solution
pump (4). Thread the 90°fitting (5) into the open end
of 90°fitting (6), using ’No more leaks’ to seal the
fittings. Thread the straight fitting (7) into the top side
of the solution pump (4), using ’No more leaks to seal
the connection. Connect one end of the 8” braided
hose (10) to the 90°fitting (5) with a hose clamp (11).
(Refer to FIG. 2)
14.Mount the solution pump (4) to the rear of the
machine frame with pump bracket (8), hex screws
(18) and washers (19). Connect the solution pump to
23J/ORA and 31/PNK from the main harness.
(Refer to FIG. 2, 4 and 5)
1
2
3
5
4
5
6
11
10
7
4
8
18
19

IB 340425 (1-01) 5
15.Connect the open end of the 8” braided hose (10) to
the open end of the 90°fitting (5) under the recovery
tank with a hose clamp (11). (Refer to FIG. 2)
16.Connect one end of the 36” long braided hose (12) to
the straight fitting (7) in the top of the solution pump
(4) with a hose clamp (11). (Refer to FIG. 2)
17.Disassemble the straight fittings securing the mesh
filter in the bottom of the solution tank. Insert the 45°
plastic fitting (13) between the straight fittings, so the
mesh filter will sit level when the solution tank is
remounted. (Refer to FIG. 2)
18.Remount the solution tank back onto the machine
frame with set aside mounting hardware. (Check that
the 0.62 in Æhose is routed through the frame
opening).
10
11
5
12
11
7
4
13

IB 340425 (1-01)6
19.Reconnect the 0.62 in. Æsolution tank hose below the
frame to elbow.

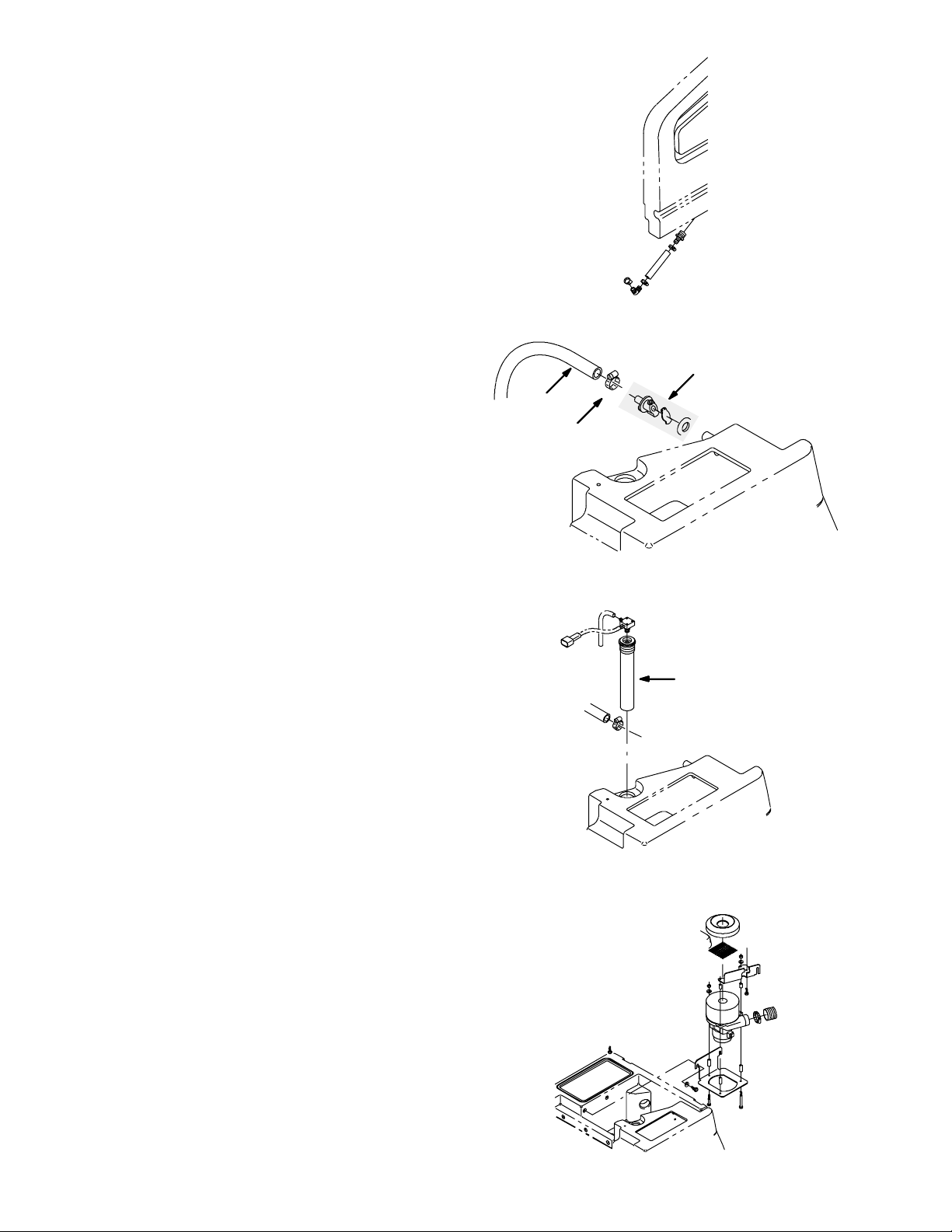

20.Remove the rubber plug 390994 covering the check
valve opening in the side of the solution tank. Install
the check valve (20) in the opening, so the check
valve flapper will empty into the solution tank. Connect
the open end of the 36” long braided hose (12) from
the solution pump to the check valve, with a hose
clamp (11). (Refer to FIG. 2)
21.Remove and discard the old pressure switch
assembly from the solution tank. Install the new 8”
tube and switch assembly (16). Connect the switch
wire BRN to main harness 35/GRN and switch wire
BLK to 13Y/BLK on the main harness.
(Refer to FIG. 2, 4 and 5)
22.Reinstall the vacuum fan assembly with the three set
aside mounting bolts. Reconnect the vacuum fan
harness to the main harness. (Refer to FIG. 3)
20
11
12
16

IB 340425 (1-01) 7

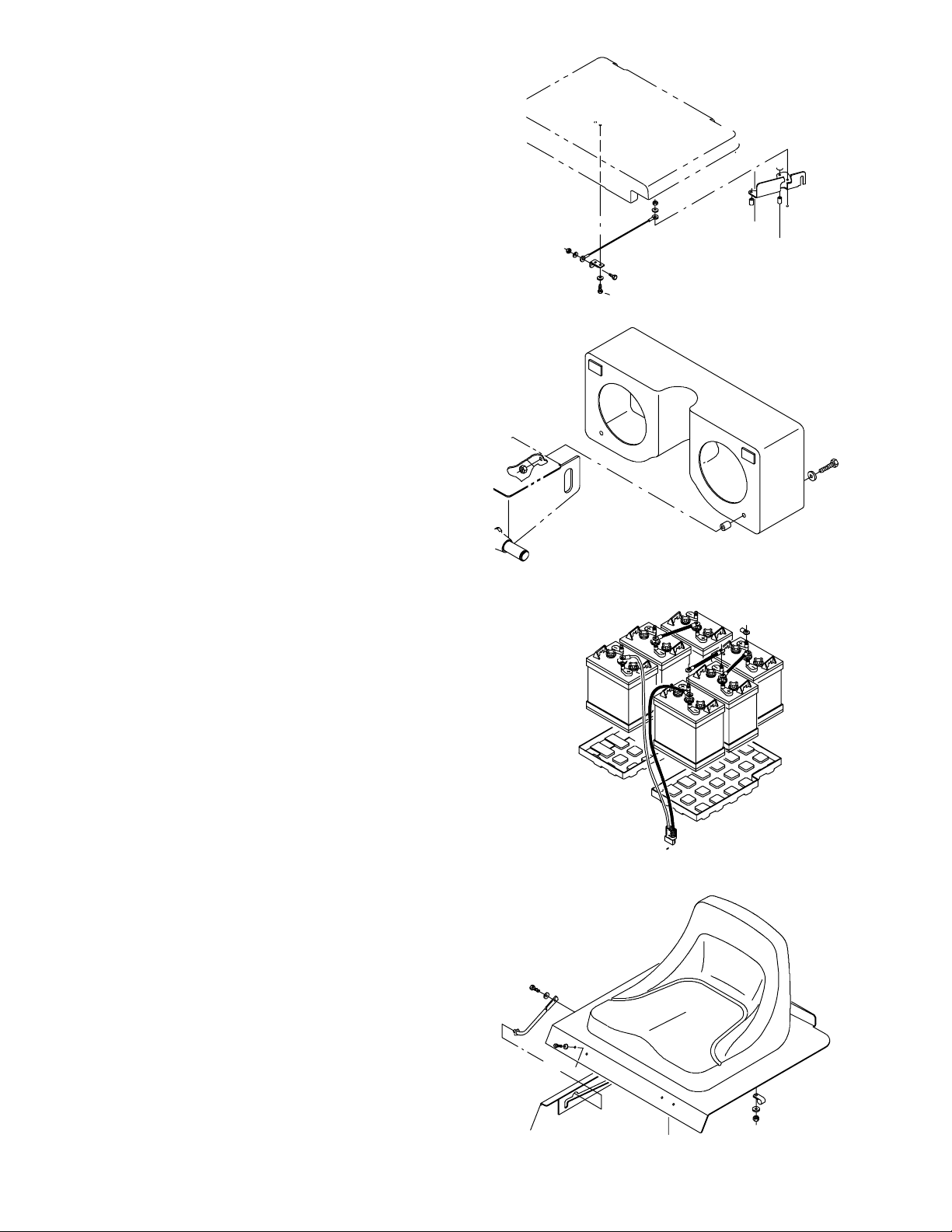

23.Replace the machine tank cover and cable with the
set aside mounting bolts.
24.Replace the drip shield with the two set aside
mounting bolts. Replace the set aside drain caps and
hoses on both tanks.
25.Slide the battery in the middle position, back to the
front of the machine. Replace the set aside battery
back in the left, middle opening. Reconnect the battery
cables to the front and middle batteries on the left
hand side of the machine.
26.Reinstall the operator’s seat, and seat support
weldment with the set aside mounting hardware. Lift
the operator seat, and reconnect the seat prop rod to
the seat support frame, and the safety pressure switch
to the main harness. Disengage the seat prop rod,
and lower the operator’s seat.

IB 340425 (1-01)8
ESt
tt
tDRAIN KIT INSTALLATION:
(Refer to FIG. 3)

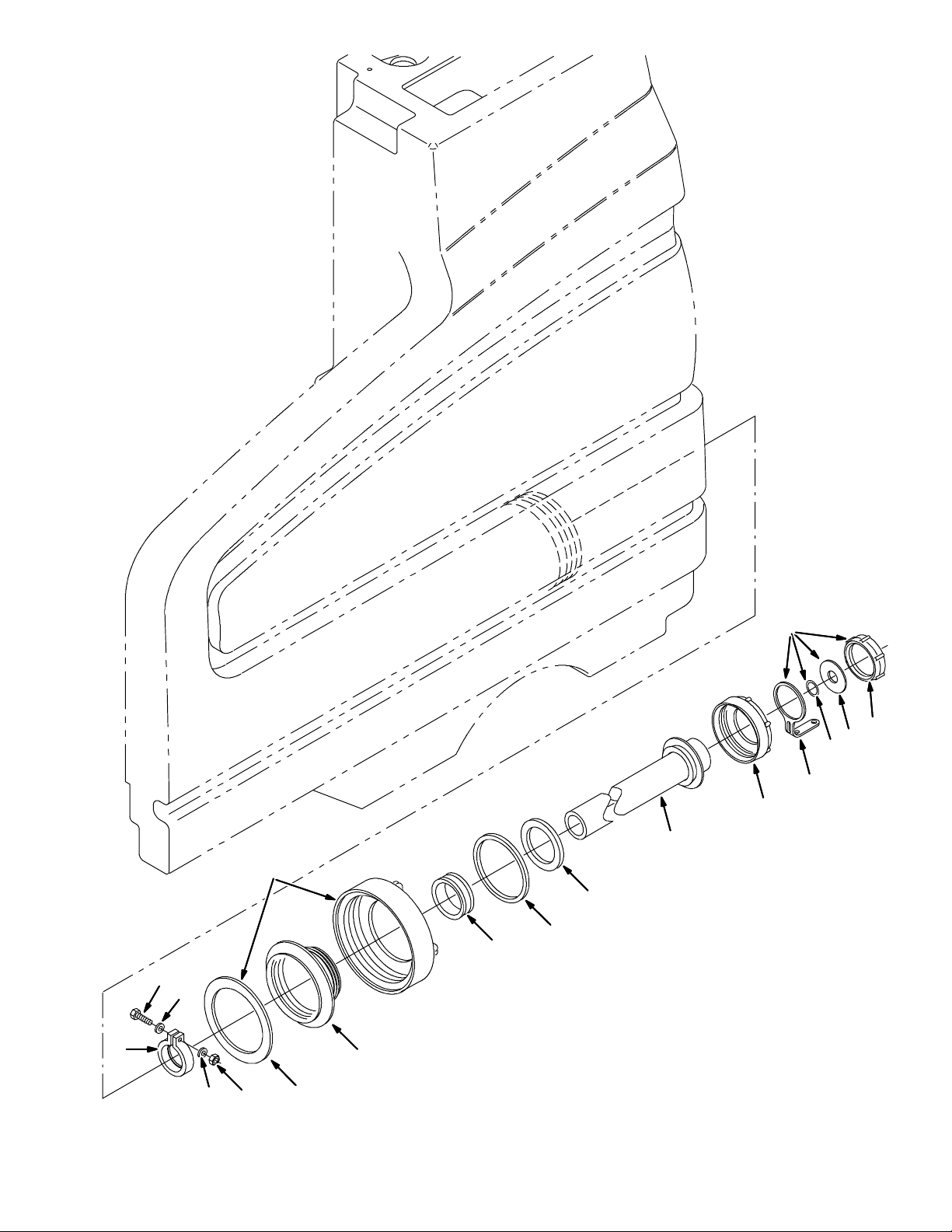

27.Mount the hose seal (10) in the center of the cover
insert (11). Mount the lid gasket (8) around the edge
of the cover insert (11). (Refer to FIG. 3)
28.Slide the lid gasket (16) over the hose, and onto the
end of the drain hose assembly (17).
(Refer to FIG. 3)
29.Install the new lid assembly onto the drain hose
assembly (17). (Refer to FIG. 3)

IB 340425 (1-01) 9
30.Mount the hose clamp (12) to the end of the drain
hose assembly (17) with the hex screw (13), flat
washers (14) and lock nut (15). (Refer to FIG. 3)
31.Mount the assembly cover (7) over top of the new
lid assembly with the drain cap gasket (9).
Thread the drain cap (6) onto the insert cover (11)
Mount the cap retainer strap (5) to the drain
hose (17). (Refer to FIG. 3)
32.Mount the cap gasket (3) inside of the tank drain
cap (2) with the retaining ring (4). Secure the tank
drain cap to the retaining strap (5). (Refer to FIG. 3)
33.Close both tanks, and reconnect the battery cables
to the machine. Start the machine and drive the
machine to the tank filling station.
34.Turn the machine power off and fill the solution
and recovery tanks accordingly.
35.Turn the machine power on, and check the scrubbing
systems for proper operation.

IB 340425 (1-01)10

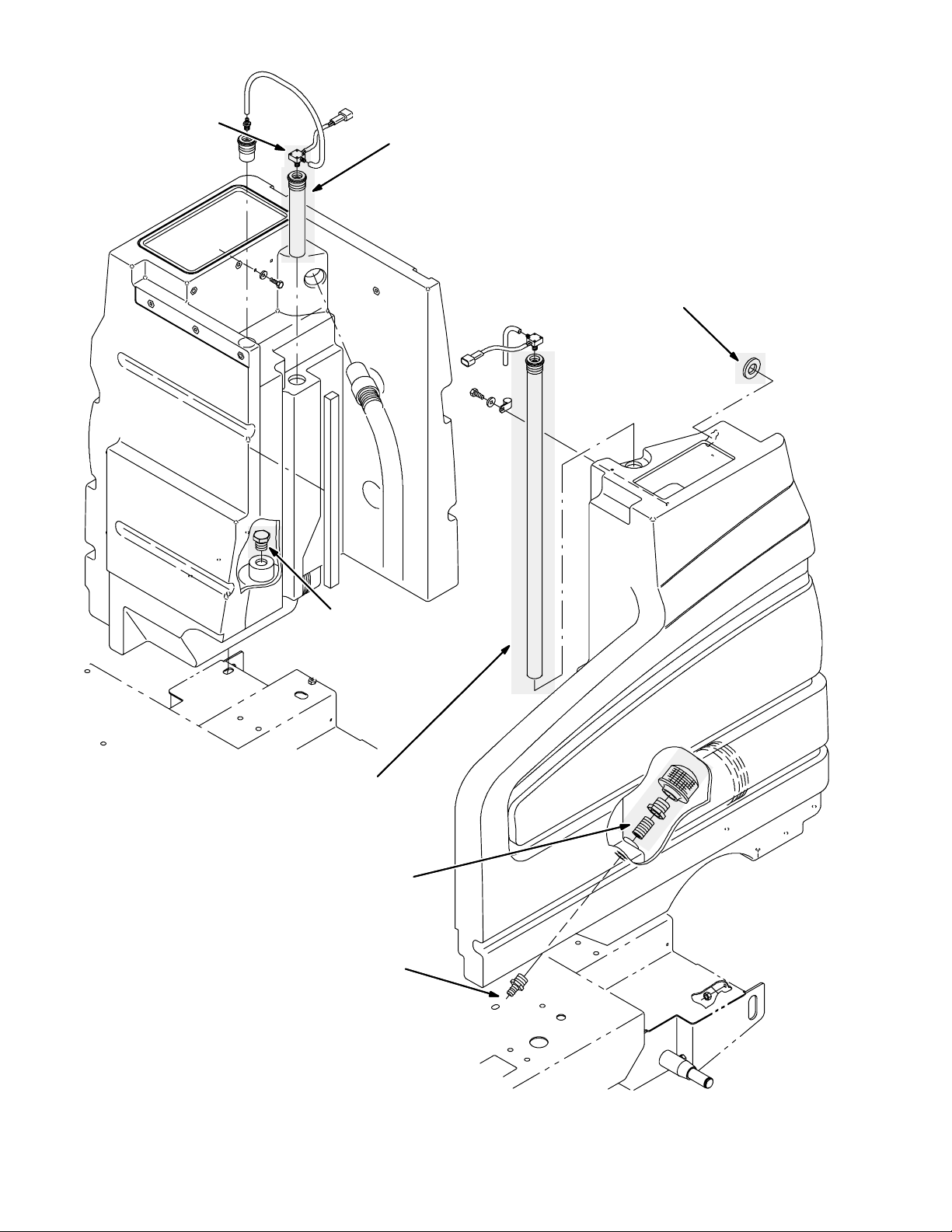

Replace 34” tube assembly
with 8” tube assembly
Remove rubber plug 390994
and install check valve
Install 45°
°°
°plastic fitting between
straight fittings to level mesh filter
Replace pressure
switch with dual
pressure switch
Replace 8” tube assembly
with 14” tube assembly
Remove plastic plug
Disconnect short braided hose
before removing solution tank
FIG. 1 -- STANDARD SOLUTION AND RECOVERY TANK ASSEMBLY

IB 340425 (1-01) 11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
11
5
11
11
20
FIG. 2 -- ESt
tt
tKIT INSTALLATION

IB 340425 (1-01)12
BILL OF MATERIALS FOR FIG. 2 ESt
tt
tKIT
NOTE: Extended Scrub Kit, Tennant Part Number 391041, includes; Fig. 2 and Fig. 3.
TENNANT
Ref. Part No. Description Qty.
1 10573 Screen, soltn, 20 mesh, dbl cyl 1
2 05134 Fitting, plstc, str, Pf12/Pf12 1
3 385665 Fitting, plstc, str, Pm12/Pm12 03.0I 1
4 369865 Pump, solution, impeller, 36vdc 1
5 73468 Fitting, plstc, E90, Bm10/Pm12 2
6 69785 Fitting, plstc, E90, Pm12/Pf12 1
7 365095 Fitting, plstc, str, Bm10/Pm12 1
8 391115 Bracket, pump, ESt1
9 17188 Clamp, hose, wormdrive, 1.62--3.50d 1
10 390925 Hose, vyl, brd 0.62id 0.88od 8.0 L 1
11 63810 Clamp, hose, wormdrive, 0.56--1.06d 4
12 390797 Hose, braided, vynl, 36.0L 1
13 10575 Fitting, plstc, E45, Pf12/Pf12 1
14 385747 Tube assy, 14 inch 1
15 385730 Switch assy, dual press, 10 inch & 4 inch 1
16 385744 Tube assy, 8 inch 1
17 390620 Harness, jumper 1
18 12273 Screw, hex, M08 X 1.25 X 20, Ss, NI 2
19 01685 Washer, flt, 0.31 Ss 2
20 78842 Valve, ESt1

IB 340425 (1-01) 13
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15
16
17
14
FIG. 3 -- ESt
tt
tDRAIN KIT INSTALLATION

IB 340425 (1-01)14
BILL OF MATERIALS FOR FIG. 3 ESt
tt
tDRAIN GROUP
NOTE: Extended Scrub Kit, Tennant Part Number 391041, includes; Fig. 2 and Fig. 3.
TENNANT
Ref. Part No. Description Qty.
1 32501 Kit, cap, drain 1
2 32613 Cap, tank, drain, 2.25 thread pye 1
3 32614 Gasket, cap 1
4 32669 Ring, retaining, ext, 0.75d Ss 1
5 32508 Strap 1
6 14880 Cap, tank, drain, 3.85 thread pye 1
7 24358 Cap, tank 1
8 375200 Gasket, lid 1
9 79320 Gasket, cap, drain 1
10 41421 Seal 1
11 14864 Cover, insert 1
12 41454 Clamp, hose, plstc, 1.60d X 0.62w 1
13 12316 Screw, hex, M05 X 0.8 X 25, Ss 1
14 01683 Washer, flt, #10 Ss 2
15 09739 Nut, hex, lock, M05 X 0.8, NI, Ss 1
16 41451 Gasket, lid 1
17 390884 Hose, drain 1
TENNANT COMPANY
P. O. Box 1452
Minneapolis, MN 55440-1452

IB 340425 (1-01) 15

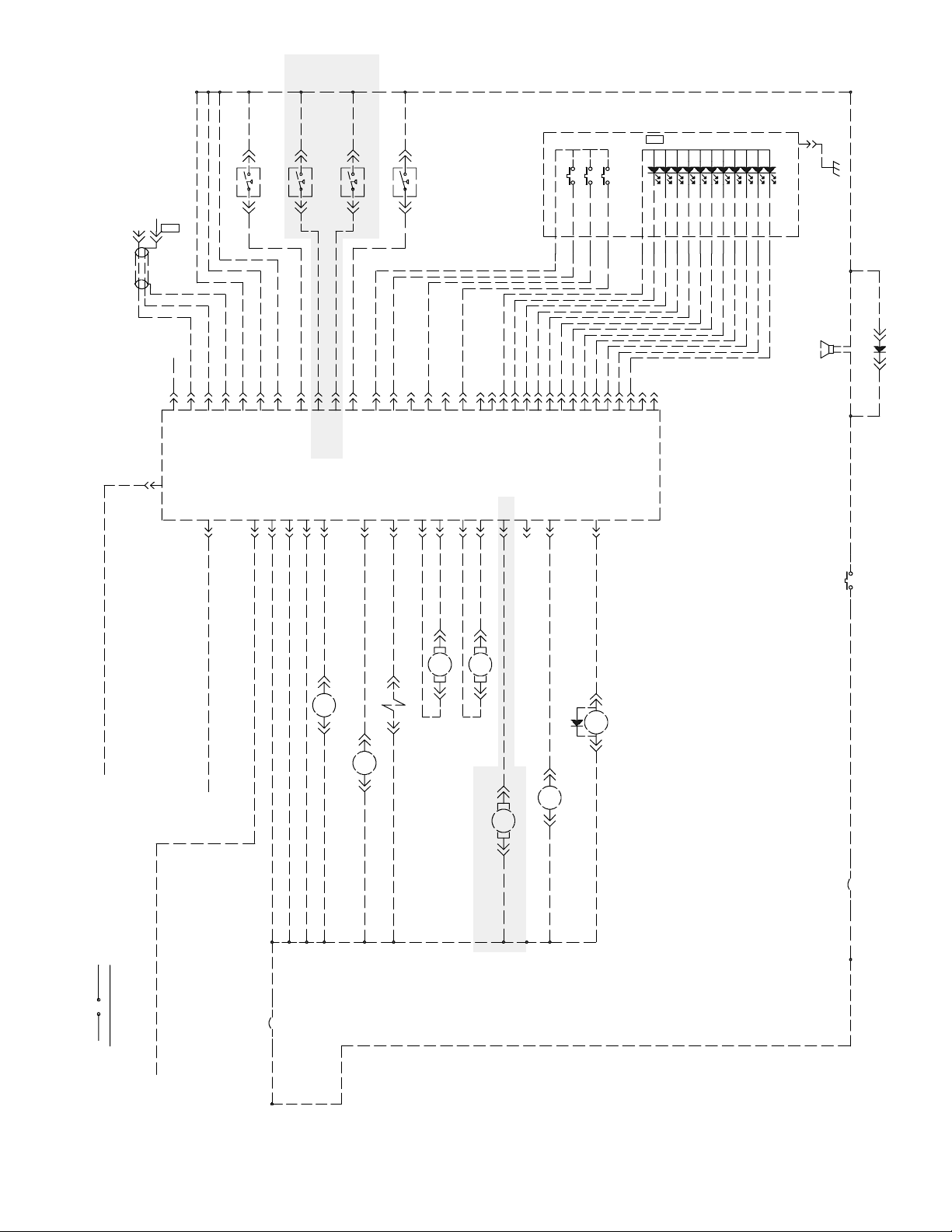

13AG/SHLD
88/BLK 87/CLR
14/YEL
23/ORA
24/YEL 25/GRN
26/BLU
27/PUR 28/GRY 29/WHT 30/TAN
31/PNK
33/ORA 34/YEL
20/TAN 22/BRN 35/GRN 36/BLU
37/PUR 38/GRY
43/ORA
38A/GRY
17A/PUR
23A/ORA 23B/ORA 23D/ORA
23E/ORA
23C/ORA
SCRUB SYSTEM SHUT OFF
START ES PUMP
STOP ES PUMP
13X/BLK 13W/BLK 13Y/BLK 13Z/BLK
13AE/BLK 13AF/BLK 13AD/BLK
13J/BLK
13H/BLK
6A/BLU 23K/ORA
23G/ORA
2.3 AMPS
23J/ORA 23F/ORA
6B/BLU
TURN ON DASH LITE
9A/WHT
x = CLOSED C ONTACT
KEYSW
BRN BLK
S3
SOL.LOWSW
A B
BRN BLK
S6
REC.TANK1/2FULLSW
AB
S7
HORN BUTTON
M1A
BRUSH MOTOR CONTACTOR
BRN BLK
S1
REC.TANKFULLSW
AB
D5
HORN
BRN BLK
S2
SOL.TANKFULLSW
A B
SOL1
SOLUTION VAL VE
M7A
BACK-- UP ALARM RELAY
8586
MTR1
ES PUMP
(OPTIONAL)
3198
HOUR METER
CB3
10A
MTR?
SQGE UP/DN
M3A
VAC FA N
MTR?
BR HD UP/DN
CB5
10A
cable-- shld
CA1
LINE
FWD SENSE
SHUNT HIGH
SHUNT LOW
SHIELD
POWER GND
POWER GND
CNTRL GND REC. TANK FULL
REC. TANK 1/2 FULL SOL. TANK FULL
LED +5VDC
ES LED
REC. TANK FULL LED
HOUR METER ENABLE (VAC OR
PROPEL)
ES
BR DN PRESS
ES FILTER
FLUSH
ES PUMP
BRUSH HD ACT.
SQUEEGEE ACT.
SQUEEGEE
ACT.
WATER SOL.
MAIN BRUSH VAC FAN
+36VDC --
CONTROL
+36VDC --
POWER
BATT. SENSE
BRUSH MTR FAULT SENSE +36VDC --
POWER
NEUTRAL SENSE
BRUSH HD ACT.
BATT.
LEDS
LED #2 LED #1 LED #4
SQ/VAC LED
SOL. TANK
LOW
PULL--UP
RESISTOR
PULL--DN
RESISTOR
SCRUB
DOWN
PRESS.
LEDS
LED #1 LED #2 LED #3
TOUCH PNL GND.
SQUEEGEE
BACK-- UP
ALARM
SOL. LOW LED
LED #3
CTRL? ELECTRONIC CONTROL CIRCUIT BOARD
P1-- 1 P1-- 2 P1-- 3 P1-- 6 P2-- 1 P2-- 2 P2-- 3 P2-- 4 P2-- 5 P2-- 6 P2-- 7 P2-- 8 P2-- 9 P2-- 10 P2-- 11 P2-- 12
P3-- 1 P3-- 2
P3-- 3
P3-- 4 P3-- 5 P3-- 7
P3-- 8
P3-- 9 P3-- 10 P3-- 11 P3-- 12 P3-- 13 P3-- 14 P3-- 15 P4-- 1
P4-- 2 P4-- 3 P4-- 5
P4-- 6
P4-- 9
P4-- 10 P4-- 11
P5-- 1 P5-- 2 P5-- 3 P4-- 12 P4-- 8 P2-- 13 P2-- 14 P2-- 15 P2-- 16 P1-- 4 P1-- 5
P3-- 6
PAN EL L EDSPANEL SWI TCHES
ES
BRU SH PRE SS
SQ GE
BATT1 BA TT2 BATT3 BATT4
REC FULL
SQ/VFAN
SCR UB1 SCRUB2 SCRUB3
ES
SOL LOW
TP1
MEMBRANE TOUCH PANEL
P2-- 1 P2-- 2
P3-- 1
P1-- 1 P1-- 2 P1-- 4 P2-- 3 P2-- 4 P2-- 5 P2-- 6 P2-- 7 P2-- 8 P2-- 9 P2-- 10 P2-- 11 P2-- 12 P1-- 6
FIG. 4 -- ESt
tt
tCONNECTIONS -- 7100 SCHEMATIC

IB 340425 (1-01)16
FIG. 5 -- ESt
tt
tCONNECTIONS -- 7100 WIRE HARNESS GROUP
