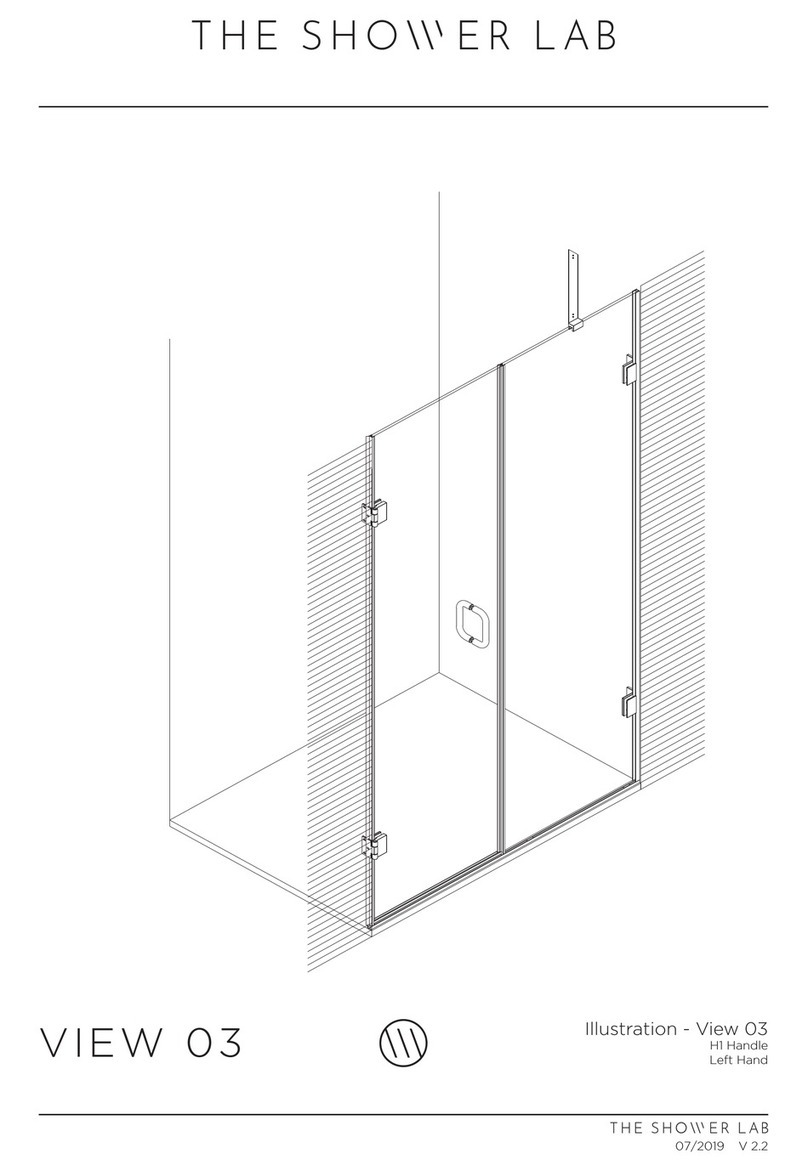

THE SHOWER LAB VIEW 03 User manual

10/2021 V 1.1
VIEW 03 Illustration - View 03
H1 Handle
Left Hand

10/2021 V 1.1
VIEW 03
IMPORTANT
•This shower screen / enclosure must be installed by suitably qualified individuals. We
recommend a minimum of two people for safe assembly of certain sections of this screen.
•Ensure all appropriate safety equipment, especially protective footwear, safety glasses
and gloves are used.
•When drilling holes in ceramic tiles, use masking tape to prevent the drill from slipping:
DO NOT use hammer action as this will crack the tiles. Use a high quality drill bit to ensure
a clean, precise hole.
Tighten hinges and brackets to the recommended 15.6N.
•
•
Please leave these instructions with the customer following installation.
PRIOR TO INSTALLATION
•Before disposing of the packaging and prior to commencing assembly, please check all
the components to ensure that they have been supplied correctly and are undamaged.
Subsequent claims for missing or damaged pieces will not be accepted once the
packaging has been disposed of and installation commenced.
•In the event of any queries please contact your supplier quoting the relevant model
information.
•The Tray / Tiled floor on which this screen is to be installed must be level on all sides.
•It may be necessary to use alternate fixings to those supplied, depending on the properties
of the walls to be fixed to.
•Use the protective corners supplied at all times until the glass is moved to its final position.
•Ensure that the glass is installed correctly, taking care to avoid installing the glass upside
down. On certain panels an easy clean coating is applied to one side only, this is clearly
marked with a sticker on the non-coated side. The coated surface is to be fitted inwards
towards the inside (wet side) of the screen.
•Ensure that all surfaces to be sealed are clean and dry prior to applying the silicone
sealant. Use a high grade fungal resistant sealant.
•Allow a minimum of 24 hours after application of the silicone sealant prior to using the
screen.
TOOLS & MATERIALS REQUIRED
Junior Hacksaw
Straight Edge (Steel
Rule)
Fine Tooth File
Set or Roofing
Square
Masking Tape
Modelling Knife
Spirit Level
Pencil
Silicone Gun
Power Drill
Ø6mm Masonry Drill Bit
2x Suction Glass Lifters
High Quality Silicone Sealant
Tape Measure
Pozi-drive
Screwdrivers, PZ1&2
Safety Glasses and
Gloves
CARE AND MAINTENANCE
(please ensure that these instructions are left with the installed unit)
•We recommend routine cleaning of your screen / enclosure with hot water using a soft
cloth, then drying with a dry soft cloth or chamois leather.
Ritec Aftercare for Shower Glass is recomended for best results.
•All glass has been treated with EASY CLEAN glass finish and care must be taken to avoid
any abrasive cleaning products that may damage the special surface protection.
•DO NOT use acidic based de-scaler products or products containing bleaches or solvents.
Digital Torque Wrench

10/2021 V 1.1
VIEW 03
Supplied Parts
Inline xed panel
x1
Glass to wall hinge
(Option dependant)
x2
(Each hinge includes
3x screws and wall plugs)
Open Out
Open In
Door Handle
(Option dependant)
x1
Door
x1
Nylon Block
x1
Glass support
x2

10/2021 V 1.1
VIEW 03
Supplied Parts
Underframe Wedge Gasket
x2
Underframe
x1
Underframe Gasket
x1
Wall Prole
x1
Wall Prole Soft Seal
x1
Wall Prole Rigid Seal
x1
Wall Prole End Cap
x1
Underframe Top
x1

10/2021 V 1.1
VIEW 03
Supplied Parts
Hinge Template
x1
Bottom Door Seal
x1
Glass to Glass Seal
x1
Glass to Wall Seal
x1
Spacers
Packers

10/2021 V 1.1
VIEW 03
Supplied Parts
Please use this page to nd which stay bar your enclosure has been supplied with.
SB9 - With Wall Connectors
and T Connector
SB2 45° - With Glass clamp

10/2021 V 1.1
VIEW 03
These instructions are for the View 03. An SB2 Stay Bar is used for this illustration.
The following instructions are valid for both the 20mm and 30mm proles. The 30mm prole is
used in the following instructions.
Please use the below diagram to reference the list of parts.
A
B
I
C
H
D
F
E
G
Door Panel
Inline Fixed Panel
Wall Prole
Wall Prole Soft Seal
Wall Prole Rigid Seal
Underframe Wedge Gasket
Underframe
Underframe Gasket
JBottom Door Seal
Wall Prole End Cap
N
M
K
L
Underframe Top
Underframe Wedge Gasket
Glass to Glass Bubble “h” Seal
Glass to Wall Hinge
OHandle (H1 Shown)
PStay Bar (SB2 Shown)
A
P
D
E
C
H
I
K
L
F
B
N
O
G
J
M

10/2021 V 1.1
VIEW 03
]GI 7QGjP IQOPj
6.ÁÄ/ÉÁ ÈÈÁÈÉÅ ÃÁÁÁ
6.ÁÄ/ÊÁ ÉÈÁÉÉÅ ÃÁÁÁ
6.ÁÄ/ÂÁÁ ÊÈÁÊÉÅ ÃÁÁÁ
6.ÁÄ/ÂÂÁ ÂÁÈÁÂÁÉÅ ÃÁÁÁ
6.ÁÄ/ÂÃÁ ÂÂÈÁÂÂÉÅ ÃÁÁÁ
6.ÁÄ/ÂÄÁ ÂÃÈÁÂÃÉÅ ÃÁÁÁ
6.ÁÄ/ÂÅÁ ÂÄÈÁÂÄÉÅ ÃÁÁÁ
6.ÁÄ/ÂÆÁ ÂÅÈÁÂÅÉÅ ÃÁÁÁ
6.ÁÄ/ÂÇÁ ÂÆÈÁÂÆÉÅ ÃÁÁÁ
6.ÁÄ/ÂÈÁ ÂÇÈÁÂÇÉÅ ÃÁÁÁ
6.ÁÄ/ÂÉÁ ÂÈÈÁÂÈÉÅ ÃÁÁÁ
ADJUSTMENT SHEET
STANDARD ENCLOSURES - 30mm (CH30) Wall Profile
LH RH
If you have a Bespoke Enclosure, reference the Install Sheet for the panel specifica�ons of the Enclosure.
CH30 - Bespoke Enclosure Width: Door Panel + Inline Panel + 25 = Minimum Width + 14 = Maximum Width
CH20 - Bespoke Enclosure Width: Door Panel + Inline Panel + 25 = Minimum Width + 4 = Maximum Width
BESPOKE ENCLOSURES - 30mm (CH30)/ 20mm (CH20) Wall Profiles

10/2021 V 1.1
VIEW 03
01/18
Ensure the base is level.
Measure the width of the opening

Mark this measurement on the

It is recommended to use masking tape
on the Underframe to mark your
measurement.
Cut squarely using a chop saw.

burrs, be careful not to damage the


tray edge.
If using a raised shower tray, leave a
minimum 3mm gap from the edge of
the tray (5mm is recommended). This is
the lip distance.

the tray at this stage.


tape.


3mm minimum
Shower Tray
X
01 02
03 04

10/2021 V 1.1
VIEW 03
02/18
Place the Underframe Gasket into the

wall.









Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
05 06
07 08

10/2021 V 1.1
VIEW 03
03/18



















Wet Side





(No 8) Prole - Wall
(No 6) Prole - Top Cap
09 10
11 12

10/2021 V 1.1
VIEW 03
04/18



























x





Silicone the
inside corner
 
 

10/2021 V 1.1
VIEW 03
05/18
Measure and check the distance from
the Inline Panel to the opposite wall

equal.


=
=
6mm min
Wall ProleGlass Panel
17 18
Place the Door Supports evenly over
the Frame.


Outward opening Inward opening
19 








Clamping Plate
Cover
Plate


10/2021 V 1.1
VIEW 03
06/18
With one person inside the enclosure,

supports as indicated.
21 First, check there is a gap of 9mm


Mark the accessible holes where the

It is recommended to use masking tape

22
9
Hole “B”
See step 23

side.
If OUTWARD opening, use the supplied
Marking Template to locate Hole “B”.
Use masking tape on the wall to mark
the measurements.
23 
a clean and precise hole, drill all holes

Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
24

10/2021 V 1.1
VIEW 03
07/18







25
Flush





26





Inside Enclosure
Open Out
Inside Enclosure
Open In
27 






28

10/2021 V 1.1
VIEW 03
08/18
Apply Rigid Seal to dry side of the Wall



Flush
Rigid Seal
Glass Panel
29 



30






31 




32

10/2021 V 1.1
VIEW 03
09/18
Measure the distance between the


Snap the Underframe Top on to the




the grub screws are not visible when

Outside of
enclosure
x
34
35 36



33

10/2021 V 1.1
VIEW 03
10/18
Measure the width of the Door and
























Trim the aps
Trim only for
OUTWARD
opening door
Outside of
enclosure
37 38
39 40

10/2021 V 1.1
VIEW 03
11/18
Tighten all screws.
Fit all Cover Plates to the Hinges.
With a sharp modelling knife, cut the
Glass to Wall Seal tail above and below
the 90° Glass to Wall Hinges as shown.
Take care to get these cuts as close to
the hinges as possible to allow the Seal
to flex around the Hinge without
leaking.
Using a sharp modelling knife, trim any
excess gasket material from the Hinges
that may have squeezed out when
�ghtening.
Take care not to scratch the glass
surface.
Check which Stay Bar configura�on
your screen has been supplied with and
refer to the relevant instruc�ons below.
(You can find this out at the front of
these instruc�ons).
Config A - SB2 Page 12
Config B - SB9 Page 14
Trim
Cut
Cut
41 42
43 44

10/2021 V 1.1
VIEW 03
12/18
Assemble the Glass Clamp to the Stay
Bar.
Secure the Glass Clamp over the panel,
ensuring it is flush against the wall
(�le).
STAY BAR CONFIGURATION A - SB2
B1 B2
