THE SHOWER LAB VIEW 03 User manual

Illustration - View 03
H1 Handle
Left Hand
VIEW 03
07/2019 V 2.2

VIEW 03
IMPORTANT
•This shower screen / enclosure must be installed by suitably qualified individuals. We
recommend a minimum of two people for safe assembly of certain sections of this screen.
•Ensure all appropriate safety equipment, especially protective footwear, safety glasses
and gloves are used.
•When drilling holes in ceramic tiles, use masking tape to prevent the drill from slipping:
DO NOT use hammer action as this will crack the tiles. Use a high quality drill bit to ensure
a clean, precise hole.
Tighten hinges and brackets to the recommended 15.6N.
•
•
Please leave these instructions with the customer following installation.
PRIOR TO INSTALLATION
•Before disposing of the packaging and prior to commencing assembly, please check all
the components to ensure that they have been supplied correctly and are undamaged.
Subsequent claims for missing or damaged pieces will not be accepted once the
packaging has been disposed of and installation commenced.
•In the event of any queries please contact your supplier quoting the relevant model
information.
•The Tray / Tiled floor on which this screen is to be installed must be level on all sides.
•It may be necessary to use alternate fixings to those supplied, depending on the properties
of the walls to be fixed to.
•Use the protective corners supplied at all times until the glass is moved to its final position.
•Ensure that the glass is installed correctly, taking care to avoid installing the glass upside
down. On certain panels an easy clean coating is applied to one side only, this is clearly
marked with a sticker on the non-coated side. The coated surface is to be fitted inwards
towards the inside (wet side) of the screen.
•Ensure that all surfaces to be sealed are clean and dry prior to applying the silicone
sealant. Use a high grade fungal resistant sealant.
•Allow a minimum of 48 hours after application of the silicone sealant prior to using the
screen.
TOOLS & MATERIALS REQUIRED
Junior Hacksaw
Straight Edge (Steel
Rule)
Fine Tooth File
Set or Roofing
Square
Masking Tape
Modelling Knife
Spirit Level
Pencil
Silicone Gun
Power Drill
Ø6mm Masonry Drill Bit
2x Suction Glass Lifters
High Quality Silicone Sealant
Tape Measure
Pozi-drive
Screwdrivers, PZ1&2
Safety Glasses and
Gloves
CARE AND MAINTENANCE
(please ensure that these instructions are left with the installed unit)
•We recommend routine cleaning of your screen / enclosure with hot water using a soft
cloth, then drying with a dry soft cloth or chamois leather.
Ritec Aftercare for Shower Glass is recomended for best results.
•All glass has been treated with EASY CLEAN glass finish and care must be taken to avoid
any abrasive cleaning products that may damage the special surface protection.
•DO NOT use acidic based de-scaler products or products containing bleaches or solvents.
Digital Torque Wrench
07/2019 V 2.2

Supplied Parts
Door
x1
Inline xed panel
x1
Door Handle
(Option dependant)
x1
Glass support
x2
Square Alignment Jig
x1
90° Glass to
wall bracket
x2
(Each bracket includes
2x screws and wall plugs)
Glass to wall hinge
(Option dependant)
x2
(Each hinge includes
3x screws and wall plugs)
Open Out
Open In
VIEW 03
07/2019 V 2.2

Supplied Parts
Glass to wall seal
x1
Underframe
x1
Underframe top
x1
Wall channel
x1
Bottom door seal
x1
3mm Spacer
x2
1mm Spacer
x4
Glass to glass bubble “h” seal
x1
VIEW 03
07/2019 V 2.2

Please use this page to nd which stay bar your enclosure has been supplied with.
SB9 - With wall connectors
and T connector
SB2 45° - With Glass clamp
VIEW 03
07/2019 V 2.2

These instructions are for all orientations of the Gallium 03. This view shows the door hinged
outwards from the wall with an inline xed panel on the right. An SB2 45° Stay Bar is used for this
illustration.
Please use the below diagram to reference the list of parts.
A
B
I
C
H
D
F
E
G
Fixed Panel
Door (H1 handle option shown)
Handle (H1 shown)
Glass to Wall Bracket
Underframe Bottom
Underframe Top
Wall Channel
Glass to Wall Seal
L
K
JGlass to Glass Bubble “h” Seal
Bottom Door Seal
Stay Bar (SB2 shown)
Glass to Wall Hinge
L
A
B
D
I
E
H
E
C
J
F
K
G
D
VIEW 03
07/2019 V 2.2

Ensure the base is level. Measure the
width of the opening where the door is









point.






12
3 4










01/17
3mm minimum
Shower Tray
X
VIEW 03
07/2019 V 2.2

Remove the channel.
Using a 6mm high quality drill bit for a
clean and precise hole, drill the three
marked areas, fully insert the wall plugs

Remove and replace the panel adding


of 5mm inside the underframe).
Check the panel is level using a Spirit
Level.
56
7 8
Place spacers into the underframe
evenly, as shown below. Begin with the
4mm spacers.
NOTE: There must always be a
minimum set of 1mm spacers used
under the glass panel.

the inline panel, this can be
determined by the number and size of


squarely insert the panel into the wall
channel and lower onto the spacers.
Take great care NOT to knock the
corners as this can cause the panel to

02/17
Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
WARNING
The glass is heavy and may
damage the oor or underframe if
handled incorrectly. It is advisable
to use a suitable non-slip
protective mat or piece of carpet.
Never rest the glass across the
underframe as this may cause
damage.
4mm
4mm
VIEW 03
07/2019 V 2.2

Measure the width of the door. Add
15mm to this dimension. This is your
door gap.
Adjust the inline panel to achieve the
door gap.
910
11 12
03/17
Using a straight edge, mark where the
wall channel needs to be trimmed.
To protect the channel finish, it is
recommended to mark on masking
tape.
Using a pencil, mark the holes where
the 90° glass to wall brackets will be
a�ached.
Use masking tape on the wall to mark
your measurements.
Loosely assemble the 90° glass to wall
brackets onto the panel. The
face that a�aches to the wall should be
located inside the enclosure.
DO NOT fit the cover plates.
X
VIEW 03
07/2019 V 2.2

13 14
15 16
04/17
Carefully remove the channel and
trim using a fine toothed junior
hacksaw.
Use a fine file to remove any burrs.
Be careful not to damage the channel
finish.
Leaving the brackets on the panel, li�
the glass out and put to one side.
Note and leave the spacers in the
underframe.
Check there are no spacers stuck
underneath the panel.
Using a 6mm high quality drill bit for a
clean and precise hole, drill the marked
areas and fully insert the wall plugs.
Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
Spacer
4mm
4mm
VIEW 03
07/2019 V 2.2

17 18
19 20
05/17
It is very important to put a good
amount of silicone in the corner where
the wall channel meets the base
channel. This area needs to
be properly sealed to prevent any
water leakage.


Carefully lower the glass panel back
into the wall channel and onto the
spacers.
Remember to leave the previously
measured door gap in Step 9.
WARNING
The glass is heavy and may
damage the oor or underframe if
handled incorrectly. It is advisable
to use a suitable non-slip
protective mat or piece of carpet.
Never rest the glass across the
underframe as this may cause
damage.


tape for the base channel and
silicone sealant as indicated for the wall
channel.
Run a bead of silicone sealant down
the back face of the wall channel to

Silicone
Once installed, run beads of silicone
sealant down the inside walls of the
wall channel as shown.

channel with silicone.
VIEW 03
07/2019 V 2.2

21 22
23 24
06/17
With one person inside the enclosure,

supports as indicated.
Place the door supports evenly over
the frame.


Screw the brackets to the wall.








should be located inside the enclosure.


Inward opening Outward opening
VIEW 03
07/2019 V 2.2

25 26
27 28
07/17
















Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
9
Hole “B”
See step 8
Tear Here
Tear Here
40mm
70mm
27mm
15mm
Hole “B”
See last page for full scale template






Flush
VIEW 03
07/2019 V 2.2

29 30
31 32
08/17










Inside Enclosure
Open Out
Inside Enclosure
Open In












VIEW 03
07/2019 V 2.2

33 34
35 36
09/17

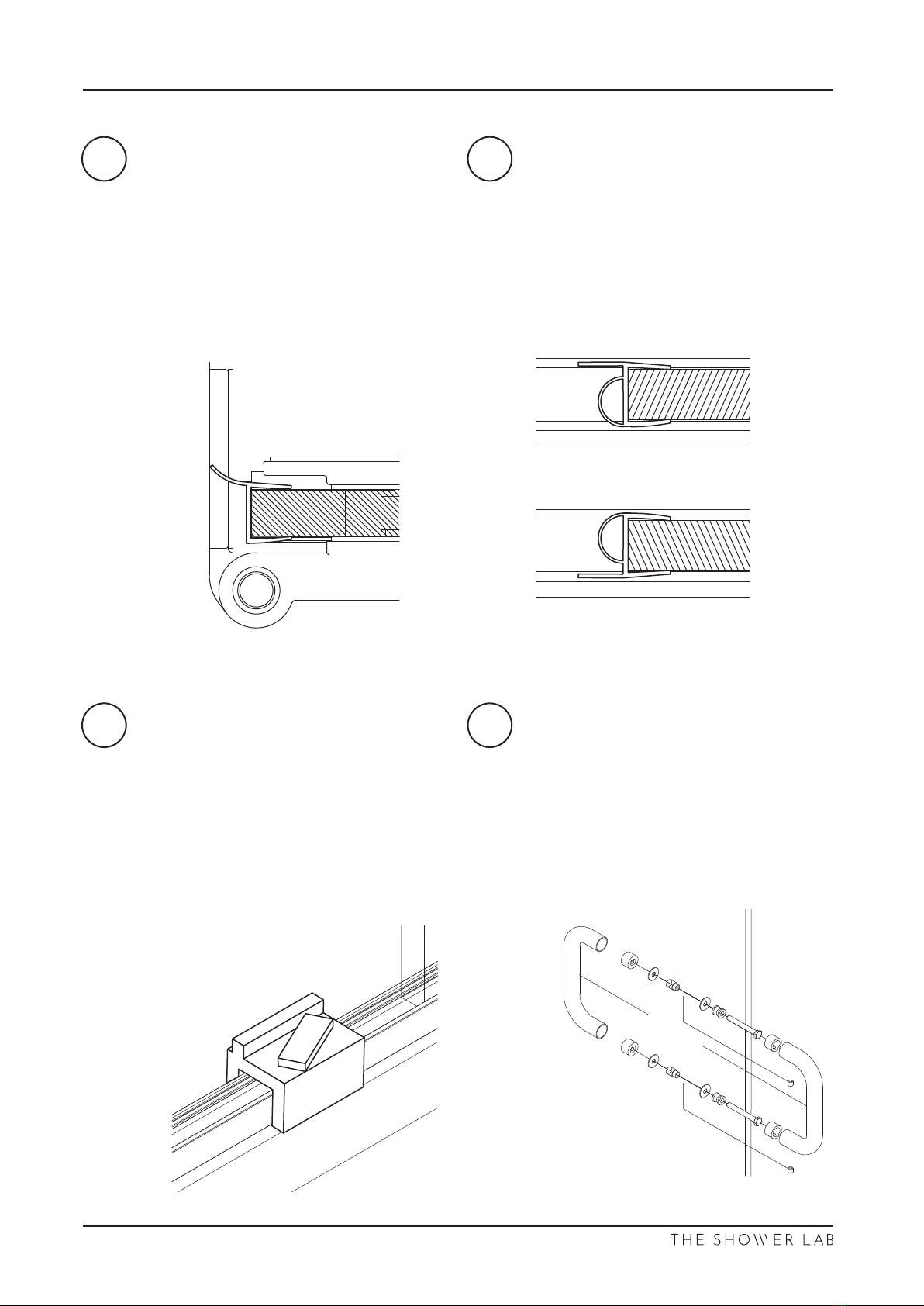

Measure the width of the door and







X



Silicone
Outside of
enclosure



Trim the aps
VIEW 03
07/2019 V 2.2

37 38
39 40
10/17
Measure the overlap between the







Trim only for
OUTWARD
opening door
















Cut
Cut
VIEW 03
07/2019 V 2.2

41
11/17
Check which stay bar configura�on
your screen has been supplied with and
refer to the relevant instruc�ons below.
(You can find this out at the front of
these instruc�ons).
Cong A - SB2 Page 12
Cong B - SB9 Page 14
42
Using a sharp modelling knife, trim any
excess gasket material from the hinges
that may have squeezed out when
�ghtening. Take care not to scratch the
glass surface.
Trim
VIEW 03
07/2019 V 2.2

Secure the glass clamp over the inline
panel, ensuring it is flush against the
wall (�le).
A1 A2
Stay Bar Conguration A - SB2
Assemble the glass clamp to the stay
bar.
12/17
VIEW 03
07/2019 V 2.2

Ensure the stay bar is level and square.
Mark the loca�on on the wall and
remove the stay bar.
A3 A4
Stay Bar Conguration A - SB2
Posi�on the stay bar connector central
to the marking. With a small drill bit
mark the holes for drilling.
Use masking tape on the �les to mark.
13/17
A5 Using a 5mm high quality drill bit for a
clean and precise hole, drill the marked
areas, fully insert the wall plugs and fix
the connector to the wall.
Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
07/2019 V 2.2

B1 B2
Stay Bar Conguration B - SB9
14/17
Secure the T Connector to the inline
panel as shown, 15mm from the edge.
Measure the distance from �le to �le.
Ensure this measurement is truly
horizontal.
Subtract 30mm to get your final
dimension.
X
VIEW 03
07/2019 V 2.2
