THE SHOWER LAB VIEW 11 User manual

10/2021 V 1.1
VIEW 11 Illustration - View 11
H1 Handle
SB11 Stay Bar
Right Hand

10/2021 V 1.1
VIEW 11
IMPORTANT
•This shower screen / enclosure must be installed by suitably qualified individuals. We
recommend a minimum of two people for safe assembly of certain sections of this screen.
•Ensure all appropriate safety equipment, especially protective footwear, safety glasses
and gloves are used.
•When drilling holes in ceramic tiles, use masking tape to prevent the drill from slipping:
DO NOT use hammer action as this will crack the tiles. Use a high quality drill bit to ensure
a clean, precise hole.
Tighten hinges and brackets to the recommended 15.6N.
•
•
Please leave these instructions with the customer following installation.
PRIOR TO INSTALLATION
•Before disposing of the packaging and prior to commencing assembly, please check all
the components to ensure that they have been supplied correctly and are undamaged.
Subsequent claims for missing or damaged pieces will not be accepted once the
packaging has been disposed of and installation commenced.
•In the event of any queries please contact your supplier quoting the relevant model
information.
•The Tray / Tiled floor on which this screen is to be installed must be level on all sides.
•It may be necessary to use alternate fixings to those supplied, depending on the properties
of the walls to be fixed to.
•Use the protective corners supplied at all times until the glass is moved to its final position.
•Ensure that the glass is installed correctly, taking care to avoid installing the glass upside
down. On certain panels an easy clean coating is applied to one side only, this is clearly
marked with a sticker on the non-coated side. The coated surface is to be fitted inwards
towards the inside (wet side) of the screen.
•Ensure that all surfaces to be sealed are clean and dry prior to applying the silicone
sealant. Use a high grade fungal resistant sealant.
•Allow a minimum of 24 hours after application of the silicone sealant prior to using the
screen.
TOOLS & MATERIALS REQUIRED
Junior Hacksaw
Straight Edge (Steel
Rule)
Fine Tooth File
Set or Roofing
Square
Masking Tape
Modelling Knife
Spirit Level
Pencil
Silicone Gun
Power Drill
Ø6mm Masonry Drill Bit
2x Suction Glass Lifters
High Quality Silicone Sealant
Tape Measure
Pozi-drive
Screwdrivers, PZ1&2
Safety Glasses and
Gloves
CARE AND MAINTENANCE
(please ensure that these instructions are left with the installed unit)
•We recommend routine cleaning of your screen / enclosure with hot water using a soft
cloth, then drying with a dry soft cloth or chamois leather.
Ritec Aftercare for Shower Glass is recomended for best results.
•All glass has been treated with EASY CLEAN glass finish and care must be taken to avoid
any abrasive cleaning products that may damage the special surface protection.
•DO NOT use acidic based de-scaler products or products containing bleaches or solvents.
Digital Torque Wrench

10/2021 V 1.1
VIEW 11

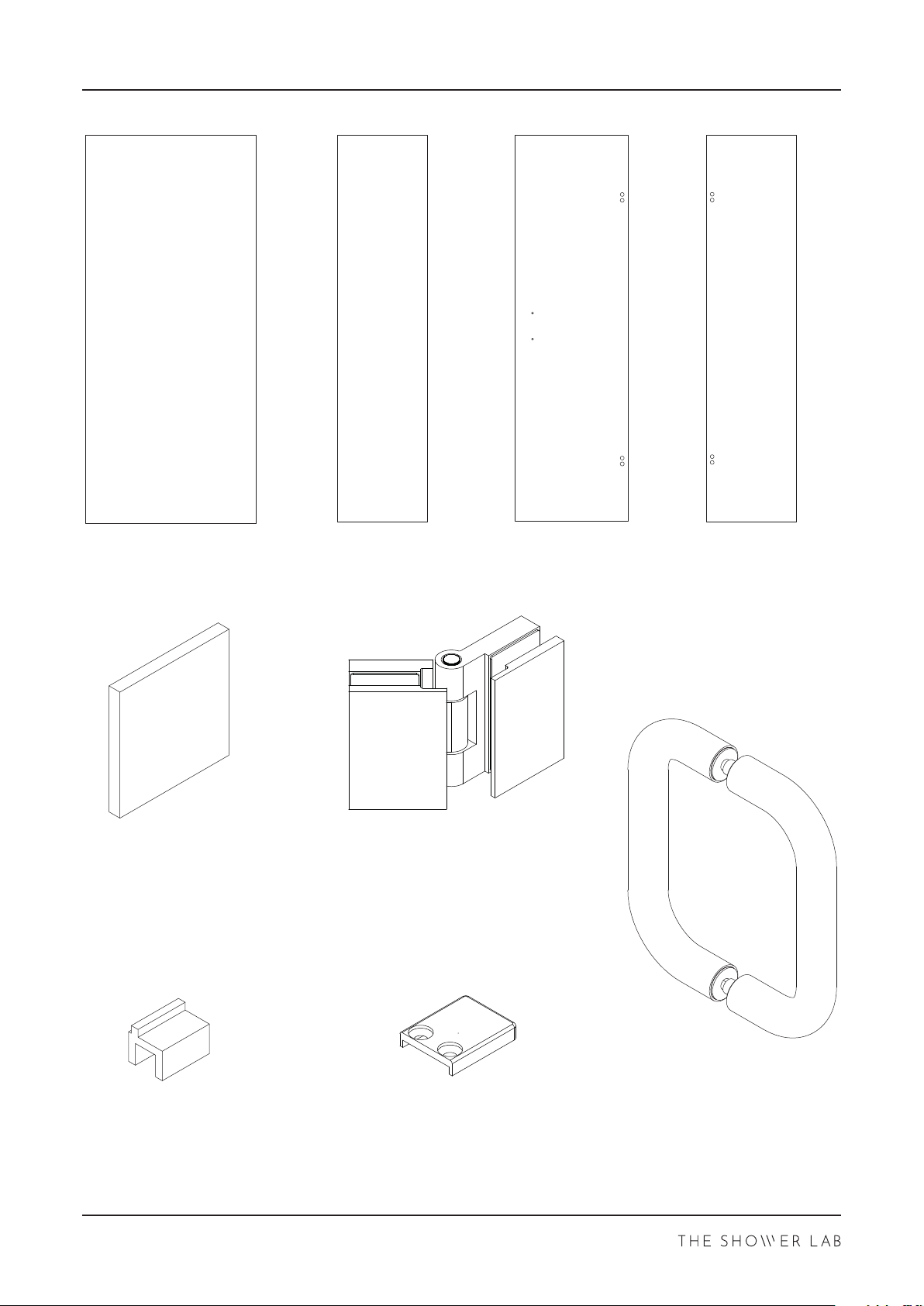

Supplied Parts
Inline Fixed Panel
(Hinge Side)
x1
Door
x1
Nylon Block
x1
Glass Support
x2
Return panel
x1
Glass to Glass Hinge
x2
Wall Prole End Cap
x2
Door Handle
(Option dependant)
x1
Inline Fixed Panel
(Handle Side)
x1

10/2021 V 1.1
VIEW 11

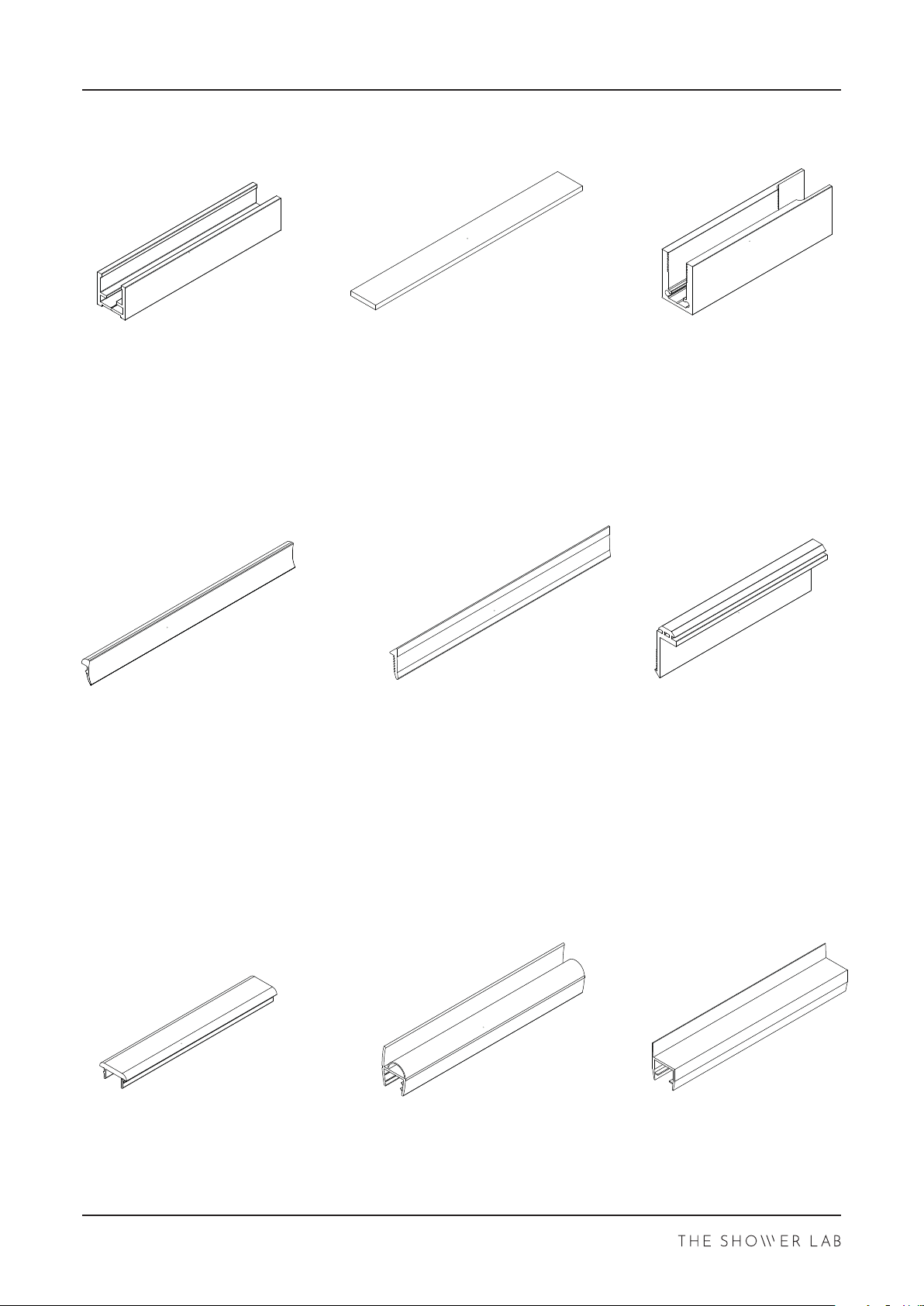

Supplied Parts
Underframe Wedge Gasket
x4
Underframe
x2
Underframe Gasket
x3
Wall Prole
x2
Wall Prole Soft Seal
x2
Wall Prole Rigid Seal
x2
Underframe Top
x1
Glass to Glass Bubble “h” Seal
x1
Glass to Glass Seal
x1

10/2021 V 1.1
VIEW 11
Supplied Parts
Bottom Door Seal
x1
Spacers
Underframe 90°Connector
x1
Glass to Glass Adhesive Gasket
x1
Packers

10/2021 V 1.1
VIEW 11
Supplied Parts

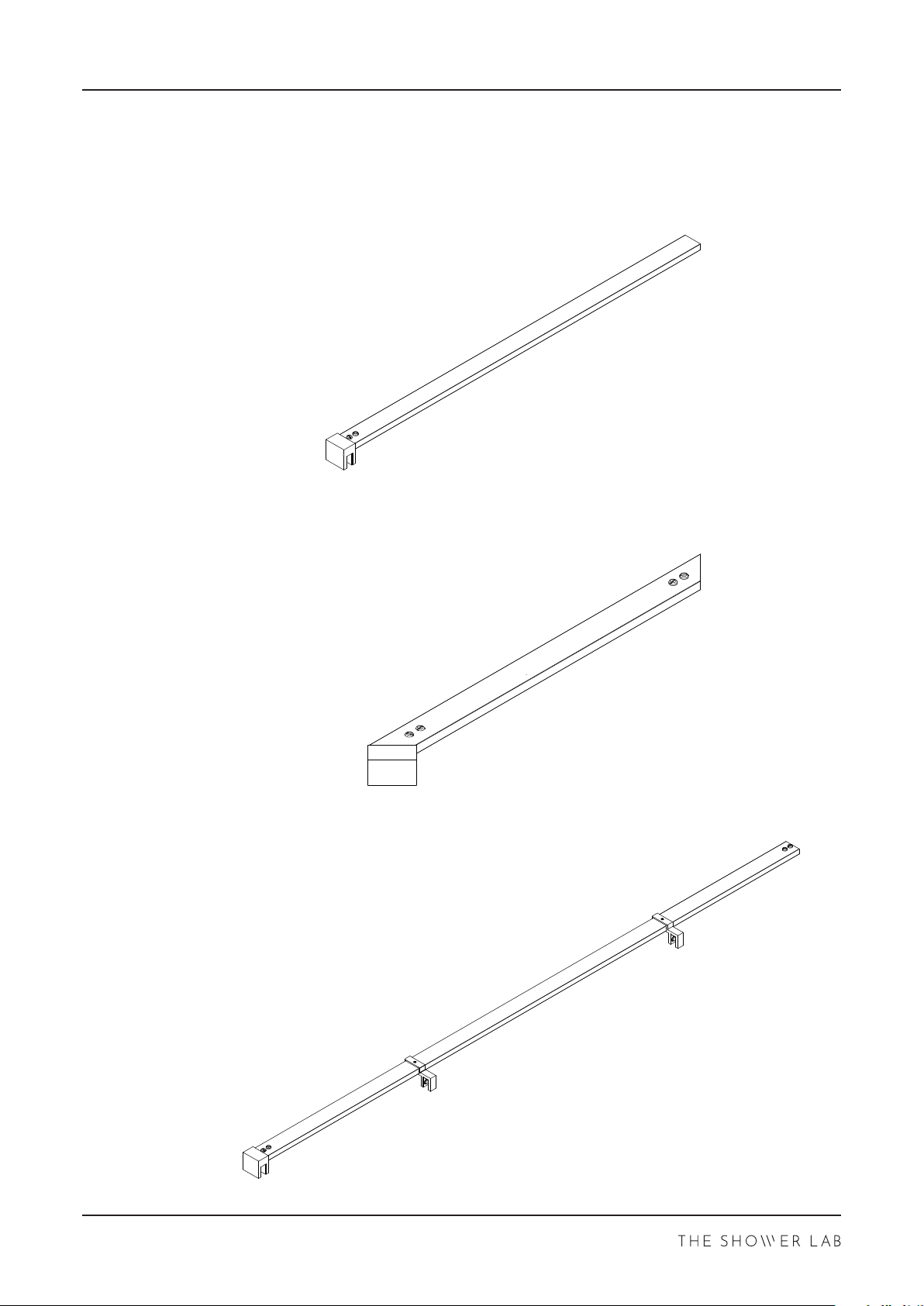

Please use this page to nd which stay bar your enclosure has been supplied with.
SB11 - With Glass Clamp
and T Connectors
SB1 - With Glass Clamp
SB2 45° - With Glass Clamp

10/2021 V 1.1
VIEW 11
These instructions are for the View 11. An SB11 Stay Bar is used for this illustration.
The following instructions are valid for both the 20mm and 30mm proles. The 30mm prole is
used in the following instructions.
Please use the below diagram to reference the list of parts.
D
E
K
JN
M
T
I
L
Q
P
A
F
B
H
G
R
S
A
B
I
C
H
D
F
E
G
Return Panel
Inline Panel (Handle Side)
Door Panel
Wall Prole
Wall Prole End Cap
Wall Prole Soft Seal
Wall Prole Rigid Seal
Underframe Wedge Gasket
JUnderframe
Inline Panel (Hinge Side)
N
M
K
L
Underframe Gasket
Underframe Top
Underframe 90°Connector
Bottom Door Seal
OGlass to Glass Bubble Seal
PGlass to Glass Hinge
QGlass to Glass Seal
RGlass Adhesive Tape
SHandle (H1 Shown)
TStay Bar (SB11 Shown)
C
O

10/2021 V 1.1
VIEW 11
]GI 7QGjP .Ijkg[ IQOPj
6.ÂÂ/ÂÁÁÈÇÆÉ ÊÆÄÊÇÈ ÈÄÇÈÆÁ ÃÁÁÁ
6.ÂÂ/ÂÁÁÉÁÆÉ ÊÆÄÊÇÈ ÈÈÇÈÊÁ ÃÁÁÁ
6.ÂÂ/ÂÁÁÊÁÆÉ ÊÆÄÊÇÈ ÉÈÇÉÊÁ ÃÁÁÁ
6.ÂÂ/ÂÁÁÂÁÁÆÉ ÊÆÄÊÇÈ ÊÈÇÊÊÁ ÃÁÁÁ
6.ÂÂ/ÂÁÁÂÃÁÆÉ ÊÆÄÊÇÈ ÂÂÈÇÂÂÊÁ ÃÁÁÁ
6.ÂÂ/ÂÁÁÈÇÇÁ ÊÇÊÊÉÄ ÈÄÇÈÆÁ ÃÁÁÁ
6.ÂÂ/ÂÁÁÉÁÇÁ ÊÇÊÊÉÄ ÈÈÇÈÊÁ ÃÁÁÁ
6.ÂÂ/ÂÁÁÊÁÇÁ ÊÇÊÊÉÄ ÉÈÇÉÊÁ ÃÁÁÁ
6.ÂÂ/ÂÁÁÂÁÁÇÁ ÊÇÊÊÉÄ ÊÈÇÊÊÁ ÃÁÁÁ
6.ÂÂ/ÂÁÁÂÃÁÇÁ ÊÇÊÊÉÄ ÂÂÈÇÂÂÊÁ ÃÁÁÁ
6.ÂÂ/ÂÃÁÈÇÆÉ ÂÂÆÄÂÂÇÈ ÈÄÇÈÆÁ ÃÁÁÁ
6.ÂÂ/ÂÃÁÉÁÆÉ ÂÂÆÄÂÂÇÈ ÈÈÇÈÊÁ ÃÁÁÁ
6.ÂÂ/ÂÃÁÊÁÆÉ ÂÂÆÄÂÂÇÈ ÉÈÇÉÊÁ ÃÁÁÁ
6.ÂÂ/ÂÃÁÂÁÁÆÉ ÂÂÆÄÂÂÇÈ ÊÈÇÊÊÁ ÃÁÁÁ
6.ÂÂ/ÂÃÁÂÃÁÆÉ ÂÂÆÄÂÂÇÈ ÂÂÈÇÂÂÊÁ ÃÁÁÁ
6.ÂÂ/ÂÃÁÈÇÇÁ ÂÂÇÊÂÂÉÄ ÈÄÇÈÆÁ ÃÁÁÁ
6.ÂÂ/ÂÃÁÉÁÇÁ ÂÂÇÊÂÂÉÄ ÈÈÇÈÊÁ ÃÁÁÁ
6.ÂÂ/ÂÃÁÊÁÇÁ ÂÂÇÊÂÂÉÄ ÉÈÇÉÊÁ ÃÁÁÁ
6.ÂÂ/ÂÃÁÂÁÁÇÁ ÂÂÇÊÂÂÉÄ ÊÈÇÊÊÁ ÃÁÁÁ
6.ÂÂ/ÂÃÁÂÃÁÇÁ ÂÂÇÊÂÂÉÄ ÂÂÈÇÂÂÊÁ ÃÁÁÁ
]GI 7QGjP .Ijkg[ IQOPj
6.ÂÂ/ÂÅÁÈÇÆÉ ÂÄÆÄÂÄÇÈ ÈÄÇÈÆÁ ÃÁÁÁ
6.ÂÂ/ÂÅÁÉÁÆÉ ÂÄÆÄÂÄÇÈ ÈÈÇÈÊÁ ÃÁÁÁ
6.ÂÂ/ÂÅÁÊÁÆÉ ÂÄÆÄÂÄÇÈ ÉÈÇÉÊÁ ÃÁÁÁ
6.ÂÂ/ÂÅÁÂÁÁÆÉ ÂÄÆÄÂÄÇÈ ÊÈÇÊÊÁ ÃÁÁÁ
6.ÂÂ/ÂÅÁÂÃÁÆÉ ÂÄÆÄÂÄÇÈ ÂÂÈÇÂÂÊÁ ÃÁÁÁ
6.ÂÂ/ÂÅÁÈÇÇÁ ÂÄÇÊÂÄÉÄ ÈÄÇÈÆÁ ÃÁÁÁ
6.ÂÂ/ÂÅÁÉÁÇÁ ÂÄÇÊÂÄÉÄ ÈÈÇÈÊÁ ÃÁÁÁ
6.ÂÂ/ÂÅÁÊÁÇÁ ÂÄÇÊÂÄÉÄ ÉÈÇÉÊÁ ÃÁÁÁ
6.ÂÂ/ÂÅÁÂÁÁÇÁ ÂÄÇÊÂÄÉÄ ÊÈÇÊÊÁ ÃÁÁÁ
6.ÂÂ/ÂÅÁÂÃÁÇÁ ÂÄÇÊÂÄÉÄ ÂÂÈÇÂÂÊÁ ÃÁÁÁ
6.ÂÂ/ÂÇÁÈÇÆÉ ÂÆÆÄÂÆÇÈ ÈÄÇÈÆÁ ÃÁÁÁ
6.ÂÂ/ÂÇÁÉÁÆÉ ÂÆÆÄÂÆÇÈ ÈÈÇÈÊÁ ÃÁÁÁ
6.ÂÂ/ÂÇÁÊÁÆÉ ÂÆÆÄÂÆÇÈ ÉÈÇÉÊÁ ÃÁÁÁ
6.ÂÂ/ÂÇÁÂÁÁÆÉ ÂÆÆÄÂÆÇÈ ÊÈÇÊÊÁ ÃÁÁÁ
6.ÂÂ/ÂÇÁÂÃÁÆÉ ÂÆÆÄÂÆÇÈ ÂÂÈÇÂÂÊÁ ÃÁÁÁ
6.ÂÂ/ÂÇÁÈÇÇÁ ÂÆÇÊÂÆÉÄ ÈÄÇÈÆÁ ÃÁÁÁ
6.ÂÂ/ÂÇÁÉÁÇÁ ÂÆÇÊÂÆÉÄ ÈÈÇÈÊÁ ÃÁÁÁ
6.ÂÂ/ÂÇÁÊÁÇÁ ÂÆÇÊÂÆÉÄ ÉÈÇÉÊÁ ÃÁÁÁ
6.ÂÂ/ÂÇÁÂÁÁÇÁ ÂÆÇÊÂÆÉÄ ÊÈÇÊÊÁ ÃÁÁÁ
6.ÂÂ/ÂÇÁÂÃÁÇÁ ÂÆÇÊÂÆÉÄ ÂÂÈÇÂÂÊÁ ÃÁÁÁ

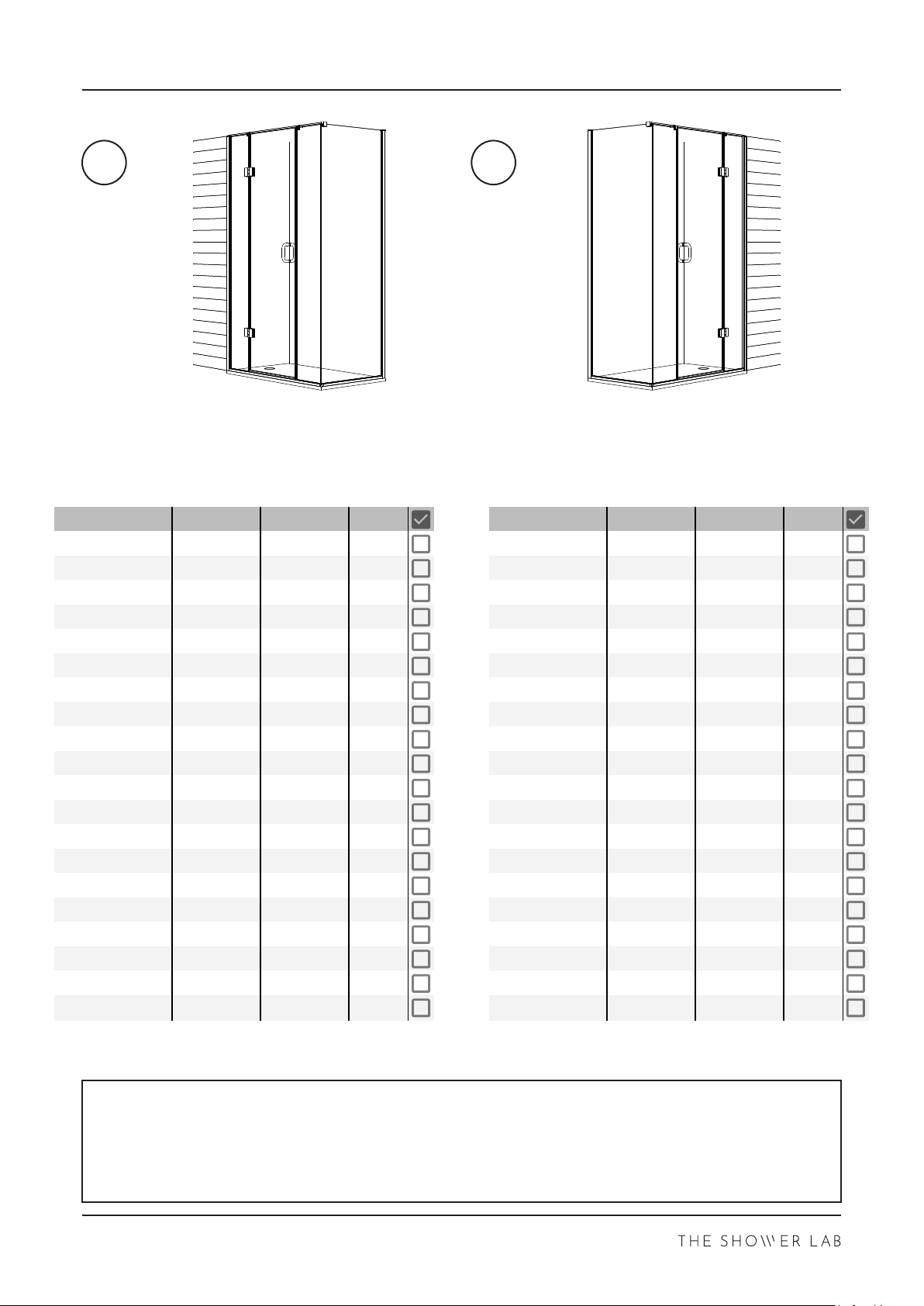

ADJUSTMENT SHEET
LH RH
Enclosure dimensions to OUTSIDE of Wall Profiles - See spec below
Underframe dimensions - (See spec below -3mm Wall Profile Overlap)
STANDARD ENCLOSURES - 30mm (CH30) Wall Profiles
If you have a Bespoke Enclosure, reference the Install Sheet for the panel specifica�ons of the Enclosure.
CH30 - Bespoke Front Width: Door + Panels + 41 = Minimum Width + 14 = Maximum Width
CH30 - Bespoke Return Width: Return Panel + 17 = Minimum Width + 14 = Maximum Width
CH20 - Bespoke Front Width: Door + Panels + 41 = Minimum Width + 4 = Maximum Width
CH20 - Bespoke Return Width: Return Panel + 17 = Minimum Width + 4 = Maximum Width
BESPOKE ENCLOSURES - 30mm (CH30)/ 20mm (CH20) Wall Profiles

10/2021 V 1.1
VIEW 11
01/23












   












3mm minimum
Shower Tray
x - 22mm
F
R
01 
 04

10/2021 V 1.1
VIEW 11
02/23
Place the Underframe Gaskets where
the glass will sit into the Underframe







together using the Underframe 90°

Add a small amount of silicone to the
ends of the Undeframe before



Silicone
05 06
07 08

10/2021 V 1.1
VIEW 11
03/23

















Wet Side
Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.





(No 8) Prole - Wall
(No 6) Prole - Top Cap
09 10
11 12

10/2021 V 1.1
VIEW 11
4mm
04/23
Remove and replace the Panel adding
or subtrac�ng spacers as necessary to
level the Panel (to a maximum height
of 5mm inside the Underframe).
Check the Panel is level using a Spirit
Level.
Check the Return Panel has a 4mm gap
between the Panel and the front face
of the Front Underframe.
Ensure there is adequate glass in both
the Wall Profiles. (6mm is
recommended)
If the Wall Profile are flush with the
Return Panel, move on to step 18.
If the Wall Profile is not flush with the
top of the Return Panel, mark the Wall
Profile. Using a straight edge, mark
where the wall channel needs to be
trimmed.
To protect the channel finish, it is
recommended to mark on masking
tape.
6mm min
Wall ProleGlass Panel
13 14
15 16

10/2021 V 1.1
VIEW 11

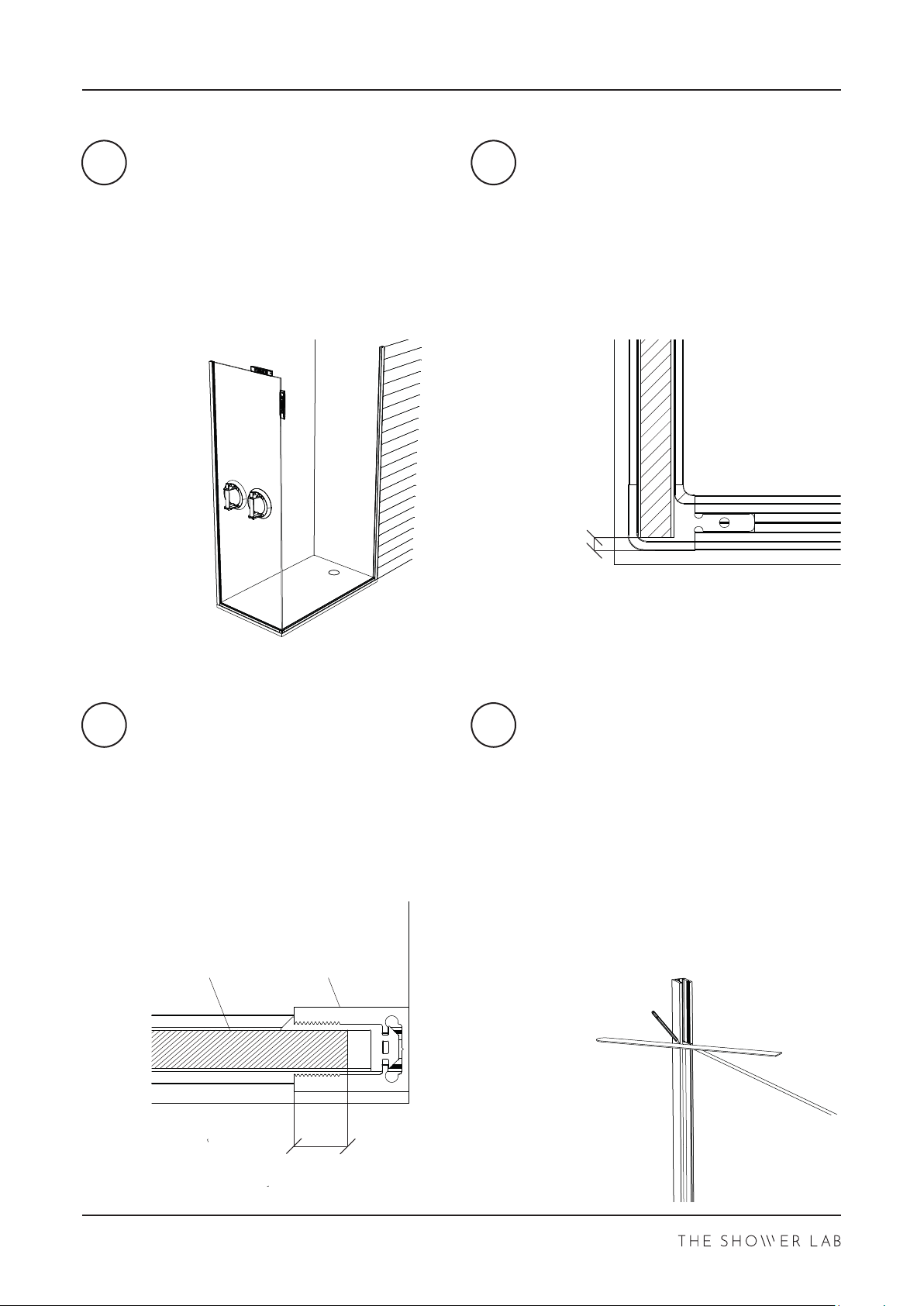

05/23
To centre the panel, add 1mm Packers
on both sides of Return Panel in the
Underframe.
Apply the Rigid Seal to the dry side of


top.




careful not to damage the channel






Add silicone in the corner where the

the back.
Re-install the Glass.
Silicone the
inside corner
17 18
19 20
Flush
Rigid Seal
Glass Panel

10/2021 V 1.1
VIEW 11
Glass Inline Panel
Glass Return Panel
Glass to Glass Adhesive Tape
06/23
Gently tap the Wall Profile Rigid Seal
into place using a rubber mallet with
the Nylon Block to protect the Glass
and the Wall Profile.
Clean the edges of the Glass Inline
Panels and Return Panels where the
Glass to Glass Adhesive Tape will be
applied.
Before Installing the Glass to Glass
Adhesive Tape, ensure that the Tape is
orientated and posi�oned correctly on
the Glass Inline Panel as shown below.
Posi�on the Glass to Glass Adhesive
tape on the correct edge of the Inline
Panel. Using a cloth or towel, apply the
Tape to the Panel.
Peel back the protec�ve adhesive strip
while firmly applying the Tape.
Cut excess Tape using a blade.
21 22
23 24

10/2021 V 1.1
VIEW 11

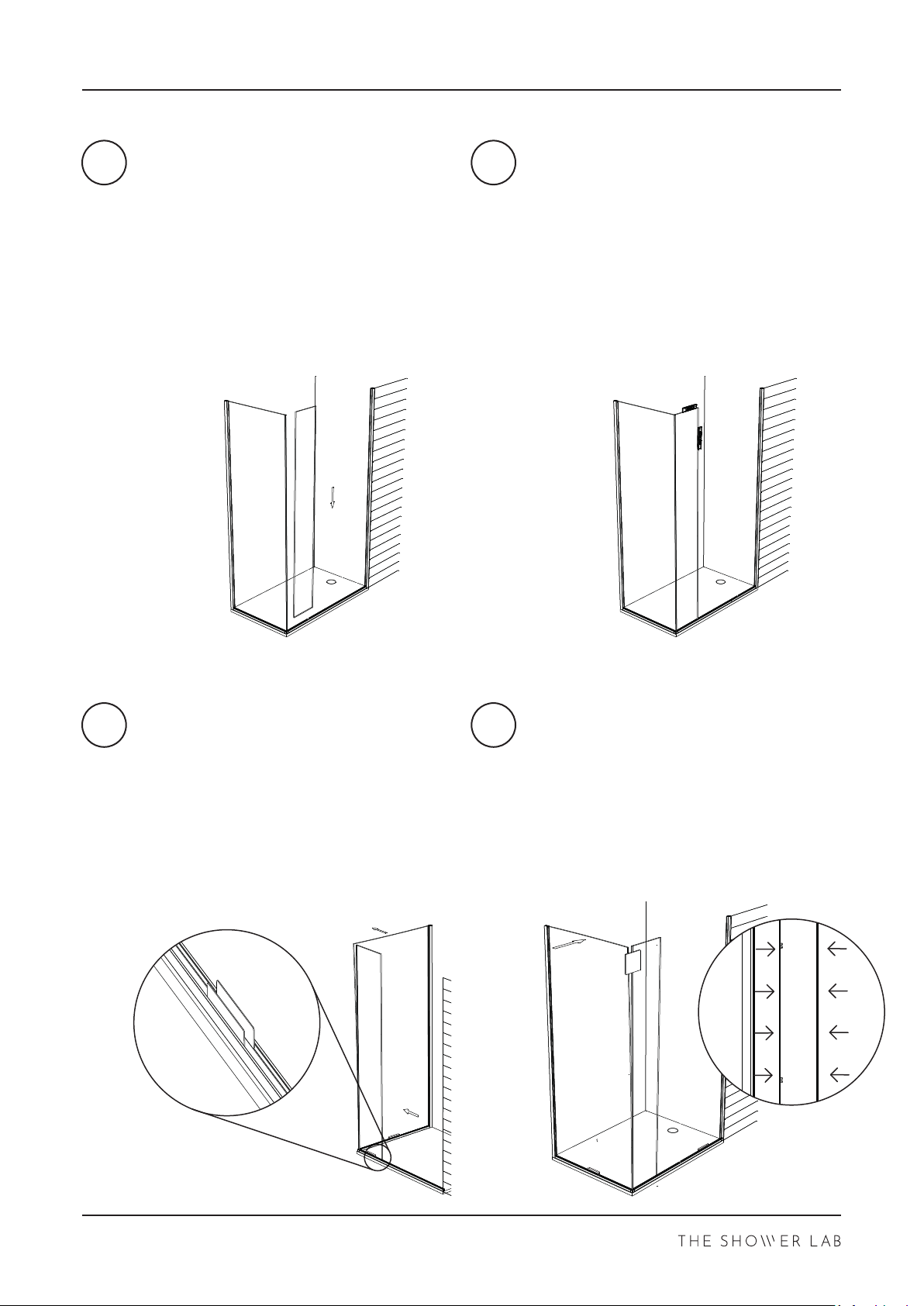

07/23

carefully place the Inline Panel on to
the Underframe Gasket and push
against the Return Panel.



Remove and replace the Panel adding

level the Panel (to a maximum height
of 5mm inside the Underframe).
Check the Panel is level using a Spirit



Panel.

Panel. Add 1mm Packers to both sides
of Inline Panel in the Underframe.

from the Tape. Gently push the top of



Start to pull the Return Panel back

Use the Nylon Block to ensure that the

the Return Panel.

together and remove Inline Packers.
25 26
27 28

10/2021 V 1.1
VIEW 11
x
08/23



























29 30
31 32

10/2021 V 1.1
VIEW 11
Flush
Rigid Seal
Glass Panel
6mm min
Wall ProleGlass Panel
=
=
09/20

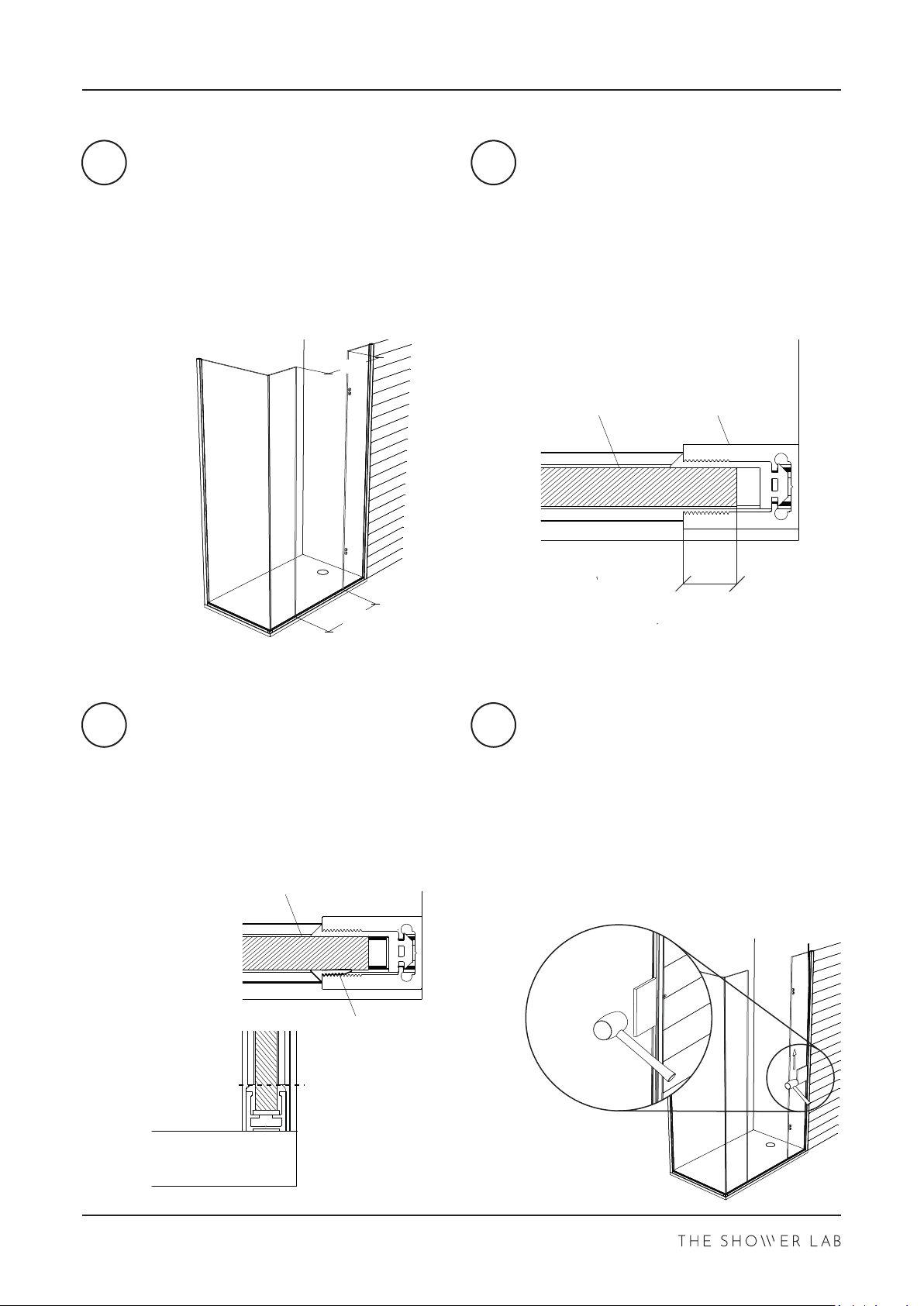

Measure and check the distance from
the Inline Panel to the Return Panel at











33 34
35 

10/2021 V 1.1
VIEW 11
10/23
Trim both of the Wall Profile seals at
the top face of each Wall Profile using a
blade.
Check which Stay Bar configura�on
your screen has been supplied with and
refer to the relevant instruc�ons below.
(You can find this out at the front of
these instruc�ons).
Config A - SB1 Page 11
Config B - SB2 Page 14
Config C - SB11 Page 16
37 38

X
X - 6.5mm
10/2021 V 1.1
VIEW 11
11/23

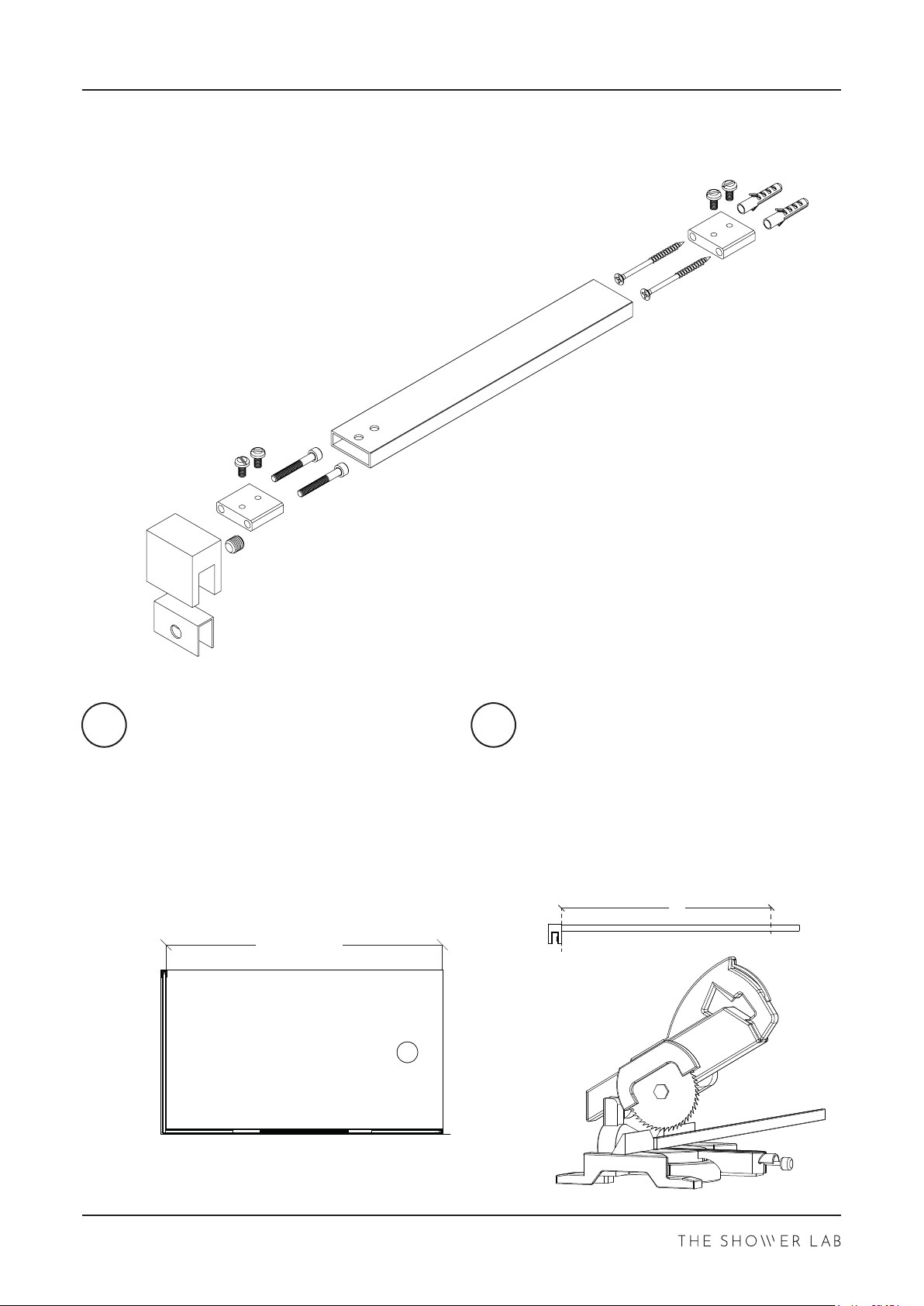

Measure the distance from the inside
face (wet side) of the Return Panel to
the wall opposite. Ensure this
measurement is truly horizontal.
Subtract 6.5mm to get your final
dimension.
Mark the final dimension on the Stay
Bar Tube, wrapped with some masking
tape. Carefully use a chop saw and fine
file to cut and finish the edge.
STAY BAR CONFIGURATION A - SB1
A1 A2

10/2021 V 1.1
VIEW 11
Drill 1 side only
12/23
With masking tape applied, place the
supplied Stay Bar Jig firmly at the
trimmed end of the Stay Bar and mark
the 2 holes with a pen.
Drill holes using a 5mm drill bit.
Assemble the Glass Clamp to the Stay
Bar as shown.
Secure the Glass Clamp over the panel
making sure the glass is fully inserted
into the groove.
Ensure the Stay Bar is square and level.
Mark the end loca�on on the wall.
Remove the Stay Bar.
STAY BAR CONFIGURATION A - SB1
A3 A4
A5 A6
