THE SHOWER LAB VIEW 22 User manual

10/2021 V 1.1
VIEW 22 Illustration - View 22
H1 Handle
SB12 Stay Bar
Right Hand

10/2021 V 1.1
VIEW 22
IMPORTANT
•This shower screen / enclosure must be installed by suitably qualified individuals. We
recommend a minimum of two people for safe assembly of certain sections of this screen.
•Ensure all appropriate safety equipment, especially protective footwear, safety glasses
and gloves are used.
•When drilling holes in ceramic tiles, use masking tape to prevent the drill from slipping:
DO NOT use hammer action as this will crack the tiles. Use a high quality drill bit to ensure
a clean, precise hole.
Tighten hinges and brackets to the recommended 15.6N.
•
•
Please leave these instructions with the customer following installation.
PRIOR TO INSTALLATION
•Before disposing of the packaging and prior to commencing assembly, please check all
the components to ensure that they have been supplied correctly and are undamaged.
Subsequent claims for missing or damaged pieces will not be accepted once the
packaging has been disposed of and installation commenced.
•In the event of any queries please contact your supplier quoting the relevant model
information.
•The Tray / Tiled floor on which this screen is to be installed must be level on all sides.
•It may be necessary to use alternate fixings to those supplied, depending on the properties
of the walls to be fixed to.
•Use the protective corners supplied at all times until the glass is moved to its final position.
•Ensure that the glass is installed correctly, taking care to avoid installing the glass upside
down. On certain panels an easy clean coating is applied to one side only, this is clearly
marked with a sticker on the non-coated side. The coated surface is to be fitted inwards
towards the inside (wet side) of the screen.
•Ensure that all surfaces to be sealed are clean and dry prior to applying the silicone
sealant. Use a high grade fungal resistant sealant.
•Allow a minimum of 24 hours after application of the silicone sealant prior to using the
screen.
TOOLS & MATERIALS REQUIRED
Junior Hacksaw
Straight Edge (Steel
Rule)
Fine Tooth File
Set or Roofing
Square
Masking Tape
Modelling Knife
Spirit Level
Pencil
Silicone Gun
Power Drill
Ø6mm Masonry Drill Bit
2x Suction Glass Lifters
High Quality Silicone Sealant
Tape Measure
Pozi-drive
Screwdrivers, PZ1&2
Safety Glasses and
Gloves
CARE AND MAINTENANCE
(please ensure that these instructions are left with the installed unit)
•We recommend routine cleaning of your screen / enclosure with hot water using a soft
cloth, then drying with a dry soft cloth or chamois leather.
Ritec Aftercare for Shower Glass is recomended for best results.
•All glass has been treated with EASY CLEAN glass finish and care must be taken to avoid
any abrasive cleaning products that may damage the special surface protection.
•DO NOT use acidic based de-scaler products or products containing bleaches or solvents.
Digital Torque Wrench

10/2021 V 1.1
VIEW 22
Supplied Parts
Inline Fixed Panel
x1
Door
x1
Nylon Block
x1
Glass Support
x2
Return Panel
x2
Glass to Glass Hinge
x2
Wall Prole End Cap
x2
Door Handle
(Option dependant)
x1

10/2021 V 1.1
VIEW 22
Supplied Parts
Underframe Wedge Gasket
x4
Underframe
x3
Underframe Gasket
x3
Wall Prole
x2
Wall Prole Soft Seal
x2
Wall Prole Rigid Seal
x2
Underframe Top
x1
Return Panel to Door Bubble Seal
x1
Glass to Glass Seal
x1

10/2021 V 1.1
VIEW 22
Supplied Parts
Bottom Door Seal
x1
Spacers
Underframe 90°Connector
x2
Packers
Glass to Glass Adhesive Gasket
x1

10/2021 V 1.1
VIEW 22
Supplied Parts
Please use this page to nd which stay bar your enclosure has been supplied with.
SB12 - With Glass Clamp
and T Connectors

10/2021 V 1.1
VIEW 22
These instructions are for the View 22. An SB12 Stay Bar is used for this illustration.
The following instructions are valid for both the 20mm and 30mm proles. The 30mm prole is
used in the following instructions.
Please use the below diagram to reference the list of parts.
A
B
I
C
H
D
F
E
G
Return Panel (Door Side)
Door Panel
Fixed Inline Prole
Wall Prole
Wall Prole End Cap
Wall Prole Soft Seal
Wall Prole Rigid Seal
Underframe Wedge Gasket
JUnderframe
Return Panel
N
M
K
L
Underframe Gasket
Bottom Door Seal
Underframe Top
Underframe 90°Connector
OGlass to Glass Hinge
PGlass to Glass Return Seal
QGlass to Glass Bubble Seal
RHandle (If Supplied)
SStay Bar (SB12 Shown)
D
E
O
L
N
F
M
A
B
H
G
S
Q
R
P
J
K
I
C

10/2021 V 1.1
VIEW 22
]GI 7QGjP .Ijkg[ IQOPj
6.ÃÃ/ÉÁÉÁ ÈÉÆ ÈÈÄÈÉÈ ÃÁÁÁ
6.ÃÃ/ÉÁÊÁ ÈÉÆ ÉÈÄÉÉÈ ÃÁÁÁ
6.ÃÃ/ÉÁÂÁÁ ÈÉÆ ÊÈÄÊÉÈ ÃÁÁÁ
6.ÃÃ/ÊÁÉÁ ÉÉÆ ÈÈÄÈÉÈ ÃÁÁÁ
6.ÃÃ/ÊÁÊÁ ÉÉÆ ÉÈÄÉÉÈ ÃÁÁÁ
6.ÃÃ/ÊÁÂÁÁ ÉÉÆ ÊÈÄÊÉÈ ÃÁÁÁ
6.ÃÃ/ÂÁÁÉÁ ÊÉÆ ÈÈÄÈÉÈ ÃÁÁÁ
6.ÃÃ/ÂÁÁÊÁ ÊÉÆ ÉÈÄÉÉÈ ÃÁÁÁ
6.ÃÃ/ÂÁÁÂÁÁ ÊÉÆ ÊÈÄÊÉÈ ÃÁÁÁ
6.ÃÃ/ÂÂÁÉÁ ÂÁÉÆ ÈÈÄÈÉÈ ÃÁÁÁ
6.ÃÃ/ÂÂÁÊÁ ÂÁÉÆ ÉÈÄÉÉÈ ÃÁÁÁ
6.ÃÃ/ÂÂÁÂÁÁ ÂÁÉÆ ÊÈÄÊÉÈ ÃÁÁÁ
]GI 7QGjP .Ijkg[ IQOPj
6.ÃÃ/ÂÃÁÉÁ ÂÂÉÆ ÈÈÄÈÉÈ ÃÁÁÁ
6.ÃÃ/ÂÃÁÊÁ ÂÂÉÆ ÉÈÄÉÉÈ ÃÁÁÁ
6.ÃÃ/ÂÃÁÂÁÁ ÂÂÉÆ ÊÈÄÊÉÈ ÃÁÁÁ
6.ÃÃ/ÂÅÁÉÁ ÂÄÉÆ ÈÈÄÈÉÈ ÃÁÁÁ
6.ÃÃ/ÂÅÁÊÁ ÂÄÉÆ ÉÈÄÉÉÈ ÃÁÁÁ
6.ÃÃ/ÂÅÁÂÁÁ ÂÄÉÆ ÊÈÄÊÉÈ ÃÁÁÁ
6.ÃÃ/ÂÇÁÉÁ ÂÆÉÆ ÈÈÄÈÉÈ ÃÁÁÁ
6.ÃÃ/ÂÇÁÊÁ ÂÆÉÆ ÉÈÄÉÉÈ ÃÁÁÁ
6.ÃÃ/ÂÇÁÂÁÁ ÂÆÉÆ ÊÈÄÊÉÈ ÃÁÁÁ
6.ÃÃ/ÂÉÁÉÁ ÂÈÉÆ ÈÈÄÈÉÈ ÃÁÁÁ
6.ÃÃ/ÂÉÁÊÁ ÂÈÉÆ ÉÈÄÉÉÈ ÃÁÁÁ
6.ÃÃ/ÂÉÁÂÁÁ ÂÈÉÆ ÊÈÄÊÉÈ ÃÁÁÁ
ADJUSTMENT SHEET
Enclosure dimensions to OUTSIDE of Wall Profiles - See spec below
Underframe dimensions - (See spec below -3mm Wall Profile Overlap)
STANDARD ENCLOSURES - 30mm (CH30) Wall Profiles
LH RH
If you have a Bespoke Enclosure, reference the Install Sheet for the panel specifica�ons of the Enclosure.
CH30 - Bespoke Front Width: Door + Panel + 48 = Minimum Width + 14 = Maximum Width
CH30 - Bespoke Return Width: Return Panel + 14 = Minimum Width + 14 = Maximum Width
CH20 - Bespoke Front Width: Door + Panel + 48 = Minimum Width + 4 = Maximum Width
CH20 - Bespoke Return Width: Return Panel + 14 = Minimum Width + 4 = Maximum Width
BESPOKE ENCLOSURES - 30mm (CH30)/ 20mm (CH20) Wall Profiles

10/2021 V 1.1
VIEW 22
Return UF = R - 22mm
Inline UF = F - 44mm
01/17












   













3mm minimum
Shower Tray
F
R
01 
 

10/2021 V 1.1
VIEW 22
02/17
Place the Underframe Gaskets where
the glass will sit into the Underframe







together using the Underframe 90°

Add a small amount of silicone to the
ends of the Undeframe before



Silicone
05 06
07 08

10/2021 V 1.1
VIEW 22
03/17

















Wet Side
Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.





(No 8) Prole - Wall
(No 6) Prole - Top Cap
09 10
11 12

10/2021 V 1.1
VIEW 22
6mm min
Wall ProleGlass Panel
04/17
Remove and replace the Panels adding
or subtrac�ng spacers as necessary to
level the Panel (to a maximum height
of 5mm inside the Underframe).
Check the Panel is level using a Spirit
Level.
Check the Return Panels has a 4mm
gap between the Panel and the front
face of the Front Underframe.
Ensure there is adequate glass in both
the Wall Profiles. (6mm is minimum)
If the Wall Profiles are flush with the
Glass Panels, move on to step 18.
If the Wall Profiles are not flush with
the top of the Glass Panels, mark the
Wall Profile. Using a straight edge,
mark where the wall channel needs to
be trimmed.
To protect the channel finish, it is
recommended to mark on masking
tape.
13 14
15 16
4mm

10/2021 V 1.1
VIEW 22
Flush
Rigid Seal
Glass Panel










05/17












Silicone the
inside corner
 
 20

10/2021 V 1.1
VIEW 22
Glass Inline Panel
Glass Return Panel
Glass to Glass Adhesive Tape
06/17
Gently tap the Wall Profile Rigid Seal
into place using a rubber mallet with
the Nylon Block to protect the Glass
and the Wall Profile.
Clean the edges of the Glass Inline
Panel and Return Panel where the
Glass to Glass Adhesive Tape will be
applied.
Before Installing the Glass to Glass
Adhesive Tape, ensure that the Tape is
orientated and posi�oned correctly on
the Glass Inline Panel as shown below.
Posi�on the Glass to Glass Adhesive
tape on the correct edge of the Inline
Panel. Using a cloth or towel, apply the
Tape to the Panel.
Peel back the protec�ve adhesive strip
while firmly applying the Tape.
Cut excess Tape using a blade.
21 22
23 24

10/2021 V 1.1
VIEW 22
07/17

carefully place the Inline Panel on to
the Underframe Gasket and push
against the Return Panel.



Remove and replace the Panel adding

level the Panel (to a maximum height
of 5mm inside the Underframe).
Check the Panel is level using a Spirit



Panel.

Panel. Add 1mm Packers to both sides
of Inline Panel in the Underframe.

from the Tape. Gently push the top of



Start to pull the Return Panel back

Use the Nylon Block to ensure that the

the Return Panel.

together and remove Inline Packers.
25 26
27 28

10/2021 V 1.1
VIEW 22
08/17
Remove Inline Panel Packers and feed
the Underframe Wedge Gasket into the
archway gap of the Return Panel and
Inline Panel and trace along the Glass
on both sides.
Spray water on Glass Panel and use
Nylon Block to help feed Gasket.
Leave gaskets oversized un�l the
Underframe Top has been installed.
Trim both of the Wall Profile seals at
the top face of each Wall Profile using a
blade.
Check which Stay Bar configura�on
your screen has been supplied with and
refer to the relevant instruc�ons below.
(You can find this out at the front of
these instruc�ons).
Config A - SB12 Page 09
29 30
31 32

X
X - 13mm
10/2021 V 1.1
VIEW 22
09/17
Measure the distance from the inside
face (wet side) of the Return Panel to
the inside face of the opposite Return
Panel. Ensure this measurement is truly
horizontal.
Subtract 13mm to get your final
dimension.
Mark the final dimension on the Stay
Bar Tube, wrapped with some masking
tape. Carefully use a chop saw and fine
file to cut and finish the edge.
STAY BAR CONFIGURATION A - SB12
A1 A2

10/2021 V 1.1
VIEW 22

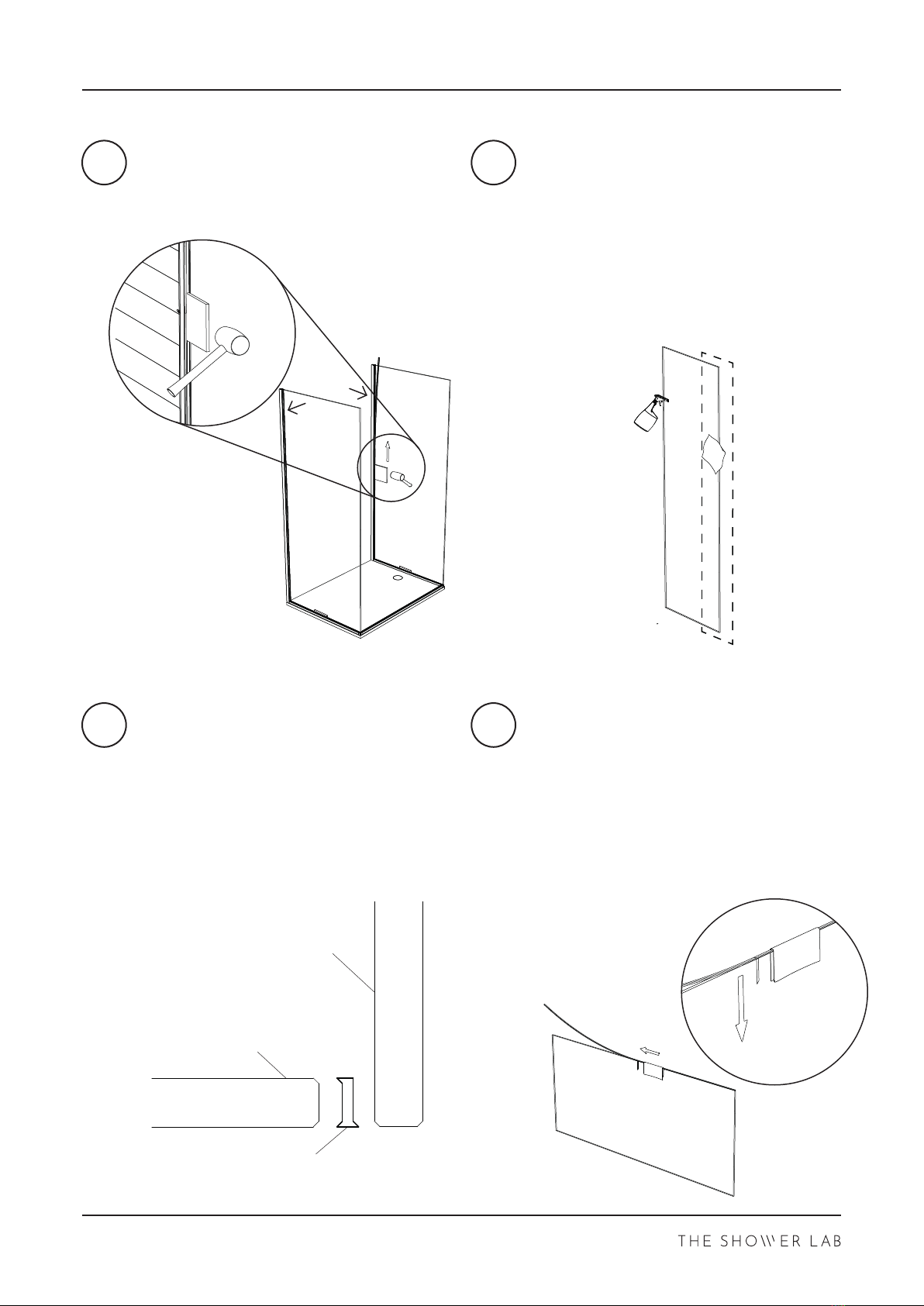

10/17
With masking tape applied, place the
supplied Stay Bar Jig firmly on both
ends of the Stay Bar and mark the 2
holes with a pen.
Drill holes using a 5mm drill bit.
Assemble the Glass Clamp to the Stay
Bar on both sides as shown.
Secure the T Connector to the Inline
Panel as shown.
Secure the Stay Bar to the Return
Panels, ensuring the Glass is fully
inserted into the Clamps.
STAY BAR CONFIGURATION A - SB12
Drill 1 side only
A3 A4
A5 A6

10/2021 V 1.1
VIEW 22
11/17
Ensure that the Stay Bar is fully
assembled to the Enclosure as shown
below.
STAY BAR CONFIGURATION A - SB12
A7

Outside of
enclosure
10/2021 V 1.1
VIEW 22
Cover Plate
Clamping
Plate
x
12/17
Measure the distance between the
Inline Panel and the inside face (wet
side) of the Return Panel.
Mark and cut the Underframe Top.
Snap the Underframe Top on to the
Underframe.
Spray water on Glass Panel and use
Nylon Block to help feed Gasket. Trim
the Wedge Gasket where it meets the
Underframe Top.a




Gaskets are just “nipping” the Glass.
Tighten all the screws to 15.6N.

Plates. Adjust Clamping Plate to Suit.

33 34
35 36
