THE SHOWER LAB VIEW 23 User manual

05/2021 V 1.0

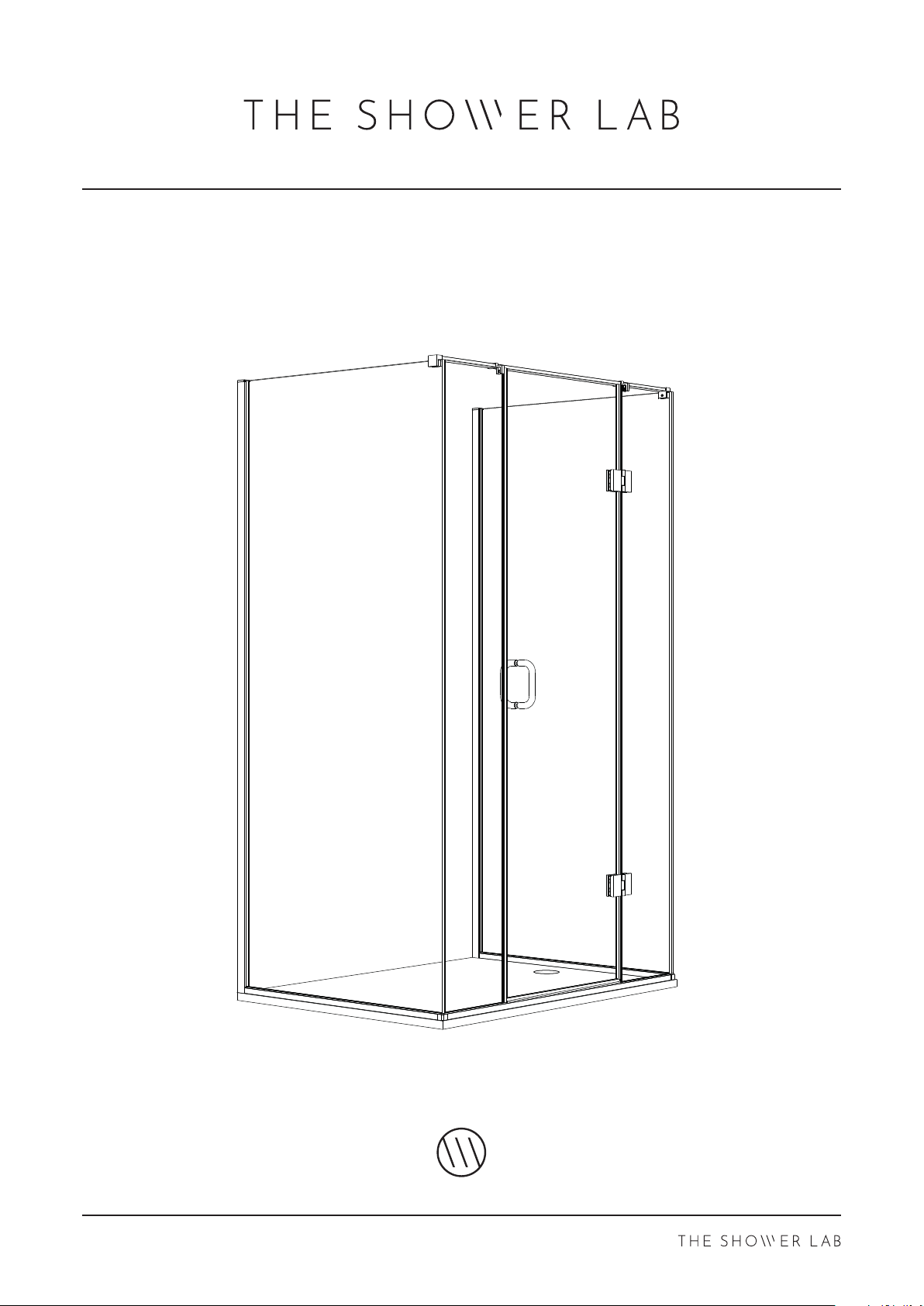

VIEW 23 Illustration - View 23
H1 Handle
SB8 Stay Bar
Right Hand

05/2021 V 1.0
VIEW 23
IMPORTANT
•This shower screen / enclosure must be installed by suitably qualified individuals. We
recommend a minimum of two people for safe assembly of certain sections of this screen.
•Ensure all appropriate safety equipment, especially protective footwear, safety glasses
and gloves are used.
•When drilling holes in ceramic tiles, use masking tape to prevent the drill from slipping:
DO NOT use hammer action as this will crack the tiles. Use a high quality drill bit to ensure
a clean, precise hole.
Tighten hinges and brackets to the recommended 15.6N.
•
•
Please leave these instructions with the customer following installation.
PRIOR TO INSTALLATION
•Before disposing of the packaging and prior to commencing assembly, please check all
the components to ensure that they have been supplied correctly and are undamaged.
Subsequent claims for missing or damaged pieces will not be accepted once the
packaging has been disposed of and installation commenced.
•In the event of any queries please contact your supplier quoting the relevant model
information.
•The Tray / Tiled floor on which this screen is to be installed must be level on all sides.
•It may be necessary to use alternate fixings to those supplied, depending on the properties
of the walls to be fixed to.
•Use the protective corners supplied at all times until the glass is moved to its final position.
•Ensure that the glass is installed correctly, taking care to avoid installing the glass upside
down. On certain panels an easy clean coating is applied to one side only, this is clearly
marked with a sticker on the non-coated side. The coated surface is to be fitted inwards
towards the inside (wet side) of the screen.
•Ensure that all surfaces to be sealed are clean and dry prior to applying the silicone
sealant. Use a high grade fungal resistant sealant.
•Allow a minimum of 24 hours after application of the silicone sealant prior to using the
screen.
TOOLS & MATERIALS REQUIRED
Junior Hacksaw
Straight Edge (Steel
Rule)
Fine Tooth File
Set or Roofing
Square
Masking Tape
Modelling Knife
Spirit Level
Pencil
Silicone Gun
Power Drill
Ø6mm Masonry Drill Bit
2x Suction Glass Lifters
High Quality Silicone Sealant
Tape Measure
Pozi-drive
Screwdrivers, PZ1&2
Safety Glasses and
Gloves
CARE AND MAINTENANCE
(please ensure that these instructions are left with the installed unit)
•We recommend routine cleaning of your screen / enclosure with hot water using a soft
cloth, then drying with a dry soft cloth or chamois leather.
Ritec Aftercare for Shower Glass is recomended for best results.
•All glass has been treated with EASY CLEAN glass finish and care must be taken to avoid
any abrasive cleaning products that may damage the special surface protection.
•DO NOT use acidic based de-scaler products or products containing bleaches or solvents.
Digital Torque Wrench

05/2021 V 1.0
VIEW 23

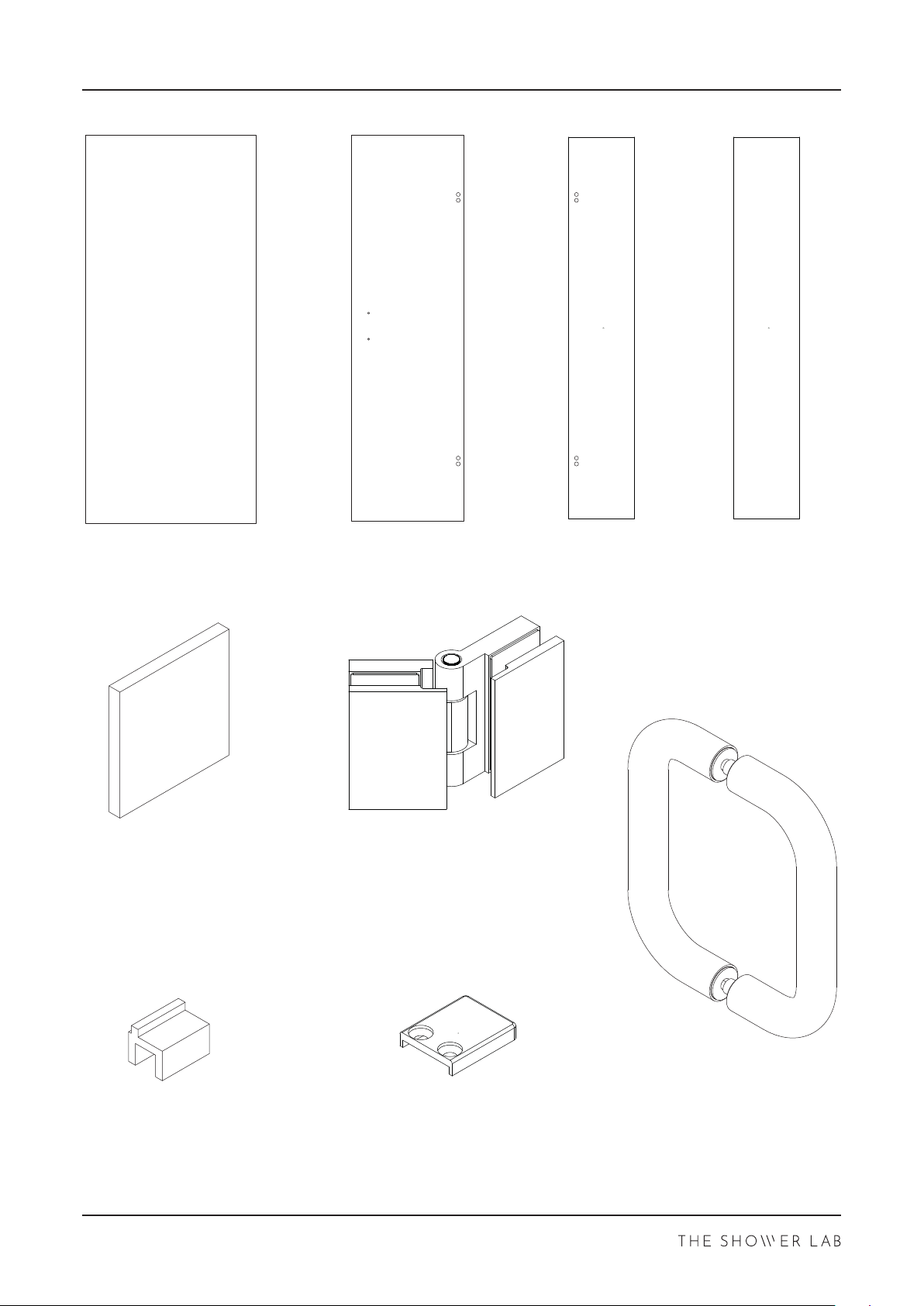

Supplied Parts
Inline xed panel
x1
Door
x1
Nylon Block
x1
Glass Support
x2
Return panel
x2
Glass to Glass Hinge
x2
Wall Prole End Cap
x2
Door Handle
(Option dependant)
x1
Inline xed panel
x1

05/2021 V 1.0
VIEW 23
Supplied Parts
Underframe Wedge Gasket
x4
Underframe
x3
Underframe Gasket
x3
Wall Prole
x2
Wall Prole Soft Seal
x2
Wall Prole Rigid Seal
x2
Underframe Top
x1
Glass to Glass Bubble “h” Seal
x1
Glass to Glass Seal
x1

05/2021 V 1.0
VIEW 23
Supplied Parts
Bottom Door Seal
x1
Spacers
Underframe 90°Connector
x2
Packers
Glass to Glass Adhesive Gasket
x2

05/2021 V 1.0
VIEW 23
Supplied Parts
Please use this page to nd which stay bar your enclosure has been supplied with.
SB8 - With Glass Clamp
and T Connectors

05/2021 V 1.0
VIEW 23
These instructions are for the View 23. An SB8 Stay Bar is used for this illustration.
The following instructions are valid for both the 20mm and 30mm proles. The 30mm prole is
used in the following instructions.
Please use the below diagram to reference the list of parts.
A
B
I
C
H
D
F
E
G
Return Panel
Door Panel
Fixed Inline Panel (Handle Side)
Wall Prole
Wall Prole End Cap
Wall Prole Soft Seal
Wall Prole Rigid Seal
Underframe Wedge Gasket
JUnderframe
Fixed Inline Panel (Hinge Side)
N
M
K
L
Underframe Gasket
Bottom Door Seal
Underframe Top
Underframe 90°Connector
OGlass to Glass Hinge
PGlass to Glass Seal
QGlass to Glass Bubble Seal
RGlass to Glass Adhesive Gasket
SHandle (If Supplied)
TStay Bar (SB2 Shown)
E
O
L
N
F
M
A
C
H
G
T
P
R
J
K
I
B
Q
D
S

05/2021 V 1.0
VIEW 23
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
   
ADJUSTMENT SHEET
STANDARD ENCLOSURES
Please Note
Only Standard Enclosures are shown above. If you have a Bespoke Enclosure, reference the delivery
note for the panel specificaons of the Enclosure.
BESPOKE ENCLOSURES
LH RH

05/2021 V 1.0
VIEW 23
Return UF = R - 22mm
Inline UF = F - 44mm
01/17

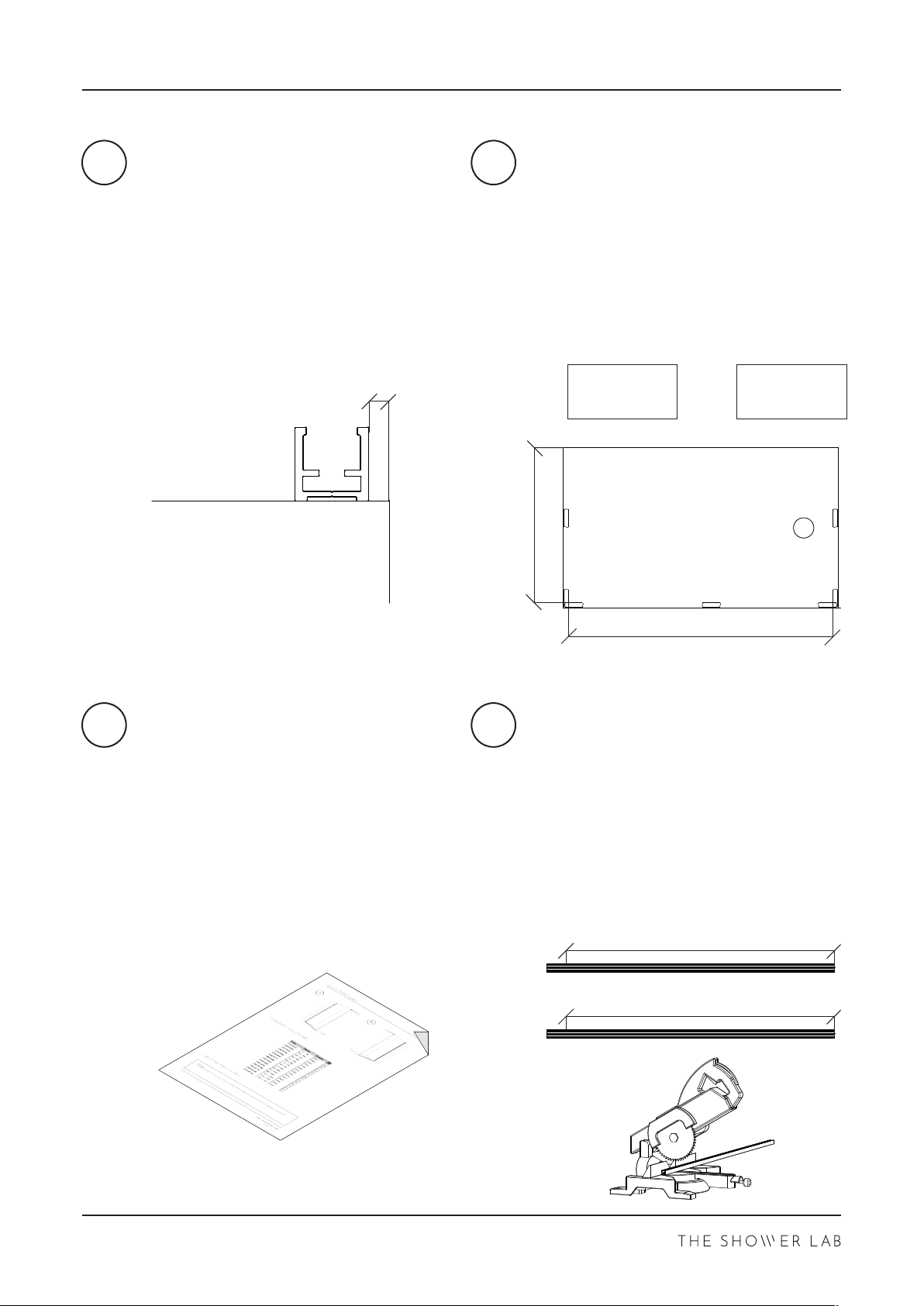

Posion the Underframe parallel to
tray edge. If using a raised shower tray,
leave a minimum 3mm gap from the
edge of the tray (5mm is
recommended).
Use tape to mark this dimension.
Repeat for the Return Underframe
Profile.
Measure the distance from the tape
edge to the ling and take note of this
distance.
Repeat for the Return Underframe.
F = R =
Check the dimensions are within the
allowed adjustments by referencing the
aached adjustment sheet.
Subtract 44mm from the Front
Underframe dimension and 22mm
from Return Underframe dimension.
This is the profile width. Mark this
measurement on the Underframe.
Cut squarely using a chop saw. Use a
fine toothed file to remove any burrs,
be careful not to damage the surface
finish.
3mm minimum
Shower Tray
F
R
01 02
03 04

05/2021 V 1.0
VIEW 23
02/17

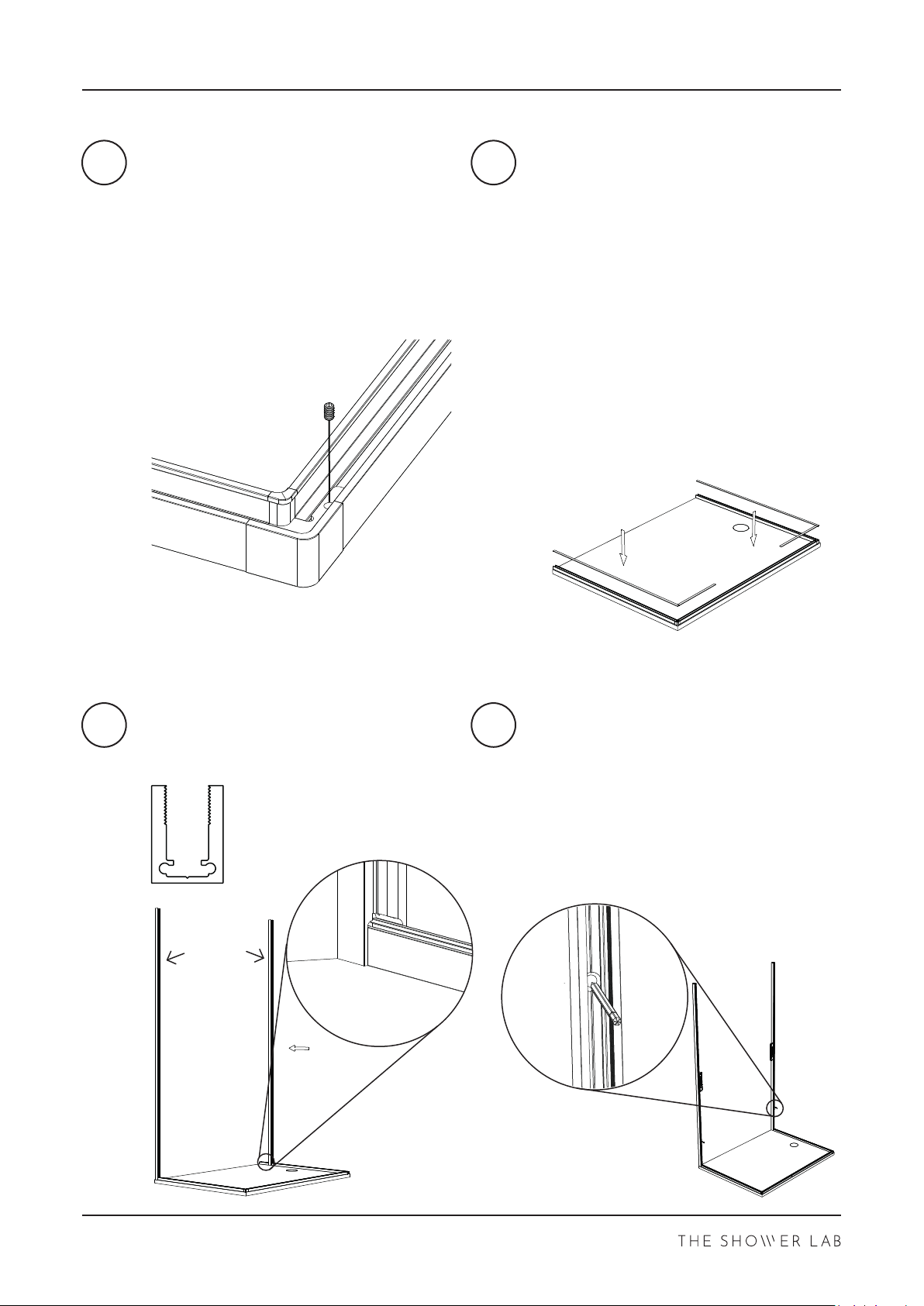

Connect the Underframe Profiles
together using the Underframe 90°
Connector and supplied screws.
Remove the backing strips from the self
adhesive and fix firmly to the tray.
Place the Underframe Gaskets where
the glass will sit into the Underframe
and bu up against the wall.
Place the Wall Profiles over the
Underframe and up against the wall.
Ensure the Wall Profiles are vercal by
using a spirit level. Mark the posions
of the pre-drilled holes.
05 06
07 08

05/2021 V 1.0
VIEW 23
03/17
Remove the Wall Profiles and drill holes
with a 6mm high quality drill bit for a
clean and precise hole.
Fully insert the wall plugs.
Pre drill the screws in to the Wall
Profiles to create the thread to ease
later steps.
Remove screws aer drilling.
Fix the Wall Profiles in place.
Take the Wall Profile So Seals and
push the seal into place on each Wall
Profile to cover the screws.
Ensure the fin is on the inside (wet
side).
Use the Nylon Block to help.
Using purpose built "Glass Liers",
posion and sit the Return Glass Panels
on to the Underframe Gasket and push
against the Wall Profiles.
Note the orientaon and posion of
the Panels, this can be determined by
any holes or aached labels.
Wet Side
Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
09 10
11 12

05/2021 V 1.0
VIEW 23
6mm min
Wall ProleGlass Panel
04/17
Remove and replace the Panels adding
or subtracng spacers as necessary to
level the Panel (to a maximum height
of 5mm inside the Underframe).
Check the Panel is level using a Spirit
Level.
Align the Return Panels so there is a
4mm gap between the Panel and the
front face of the Front Underframe.
Ensure there is adequate glass in both
the Wall Profiles. (6mm is
recommended)
If the Wall Profiles are flush with the
Glass Panels, move on to step 19.
If the Wall Profiles are not flush with
the top of the Glass Panels, mark the
Wall Profile. Using a straight edge,
mark where the wall channel needs to
be trimmed.
To protect the channel finish, it is
recommended to mark on masking
tape.
13 14
15 16
4mm

05/2021 V 1.0
VIEW 23
Flush
Rigid Seal
Glass Panel
05/17
Remove the Panels, Wall Profile So
Seals, and the Wall Profiles.
Trim the Wall Profiles.
Use a fine file to remove any burrs. Be
careful not to damage the channel
finish.
Re drill the screws in to the Wall
Profiles and remove aer drilling.
Reinstall the Wall Profiles, Wall Profile
So Seals, and Glass Panels.
To centre the panels, add 1mm Packers
on both sides of the Return Panels in
the Underframe.
Apply the Rigid Seals to the dry side of
the Wall Profiles starng from the
archway of the Wall Profile up to the
top.
WARNING
The glass is heavy and may
damage the oor or underframe if
handled incorrectly. It is advisable
to use a suitable non-slip
protective mat or piece of carpet.
Never rest the glass across the
underframe as this may cause
damage.
17 18
19 20

05/2021 V 1.0
VIEW 23
Glass Inline Panel
Glass Return Panel
Glass to Glass Adhesive Tape
06/17

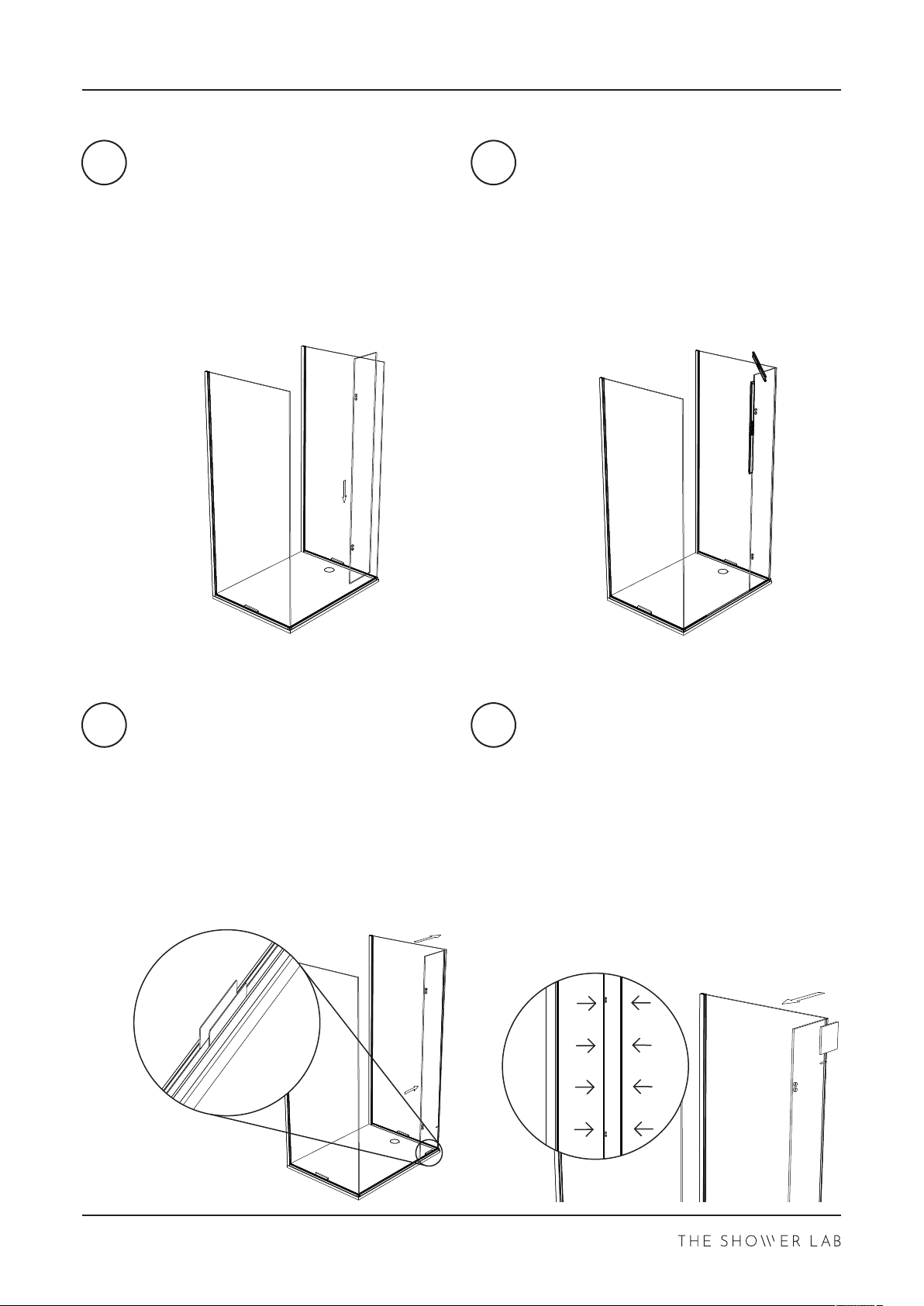

Gently tap the Wall Profile Rigid Seal
into place using a rubber mallet with
the Nylon Block to protect the Glass
and the Wall Profile.
Clean the edges of the Glass Inline
Panels and Return Panels where the
Glass to Glass Adhesive Tape will be
applied.
Before Installing the Glass to Glass
Adhesive Tape, ensure that the Tape is
orientated and posioned correctly on
the Glass Inline Panel as shown below.
Posion the Glass to Glass Adhesive
tape on the correct edge of the Inline
Panel. Using a cloth or towel, apply the
Tape to the Panel.
Peel back the protecve adhesive strip
while firmly applying the Tape.
Cut excess Tape using a blade.
21 22
23 24

05/2021 V 1.0
VIEW 23
07/17
Using purpose built “Glass Liers”,
carefully place the Inline Panel on to
the Underframe Gasket and push
against the Return Panel.
Note the orientaon and posion of
the Panel, this can be determined by
any holes or aached labels.
Remove and replace the Panel adding
or subtracng spacers as necessary to
level the Panel (to a maximum height
of 5mm inside the Underframe).
Check the Panel is level using a Spirit
Level. If the difference between the
two Panels is greater than 5mm, it may
be necessary to lower the Return
Panel.
Pull Inline Panel away from the Return
Panel. Add 1mm Packers to both sides
of Inline Panel in the Underframe.
Remove the protecve adhesive strip
from the Tape. Gently push the top of
Return Panel away from Inline Panel.
From the boom, push the Inline Panel
towards the Return Panel.
Start to pull the Return Panel back
when approaching the top.
Use the Nylon Block to ensure that the
Inline Panel is level with the edge of
the Return Panel.
Ensure the two panels are firmly fixed
together and remove Inline Packers.
Repeat steps 25-28 for the installaon
of the opposite Inline Panel.
25 26
27 28

05/2021 V 1.0
VIEW 23
08/17

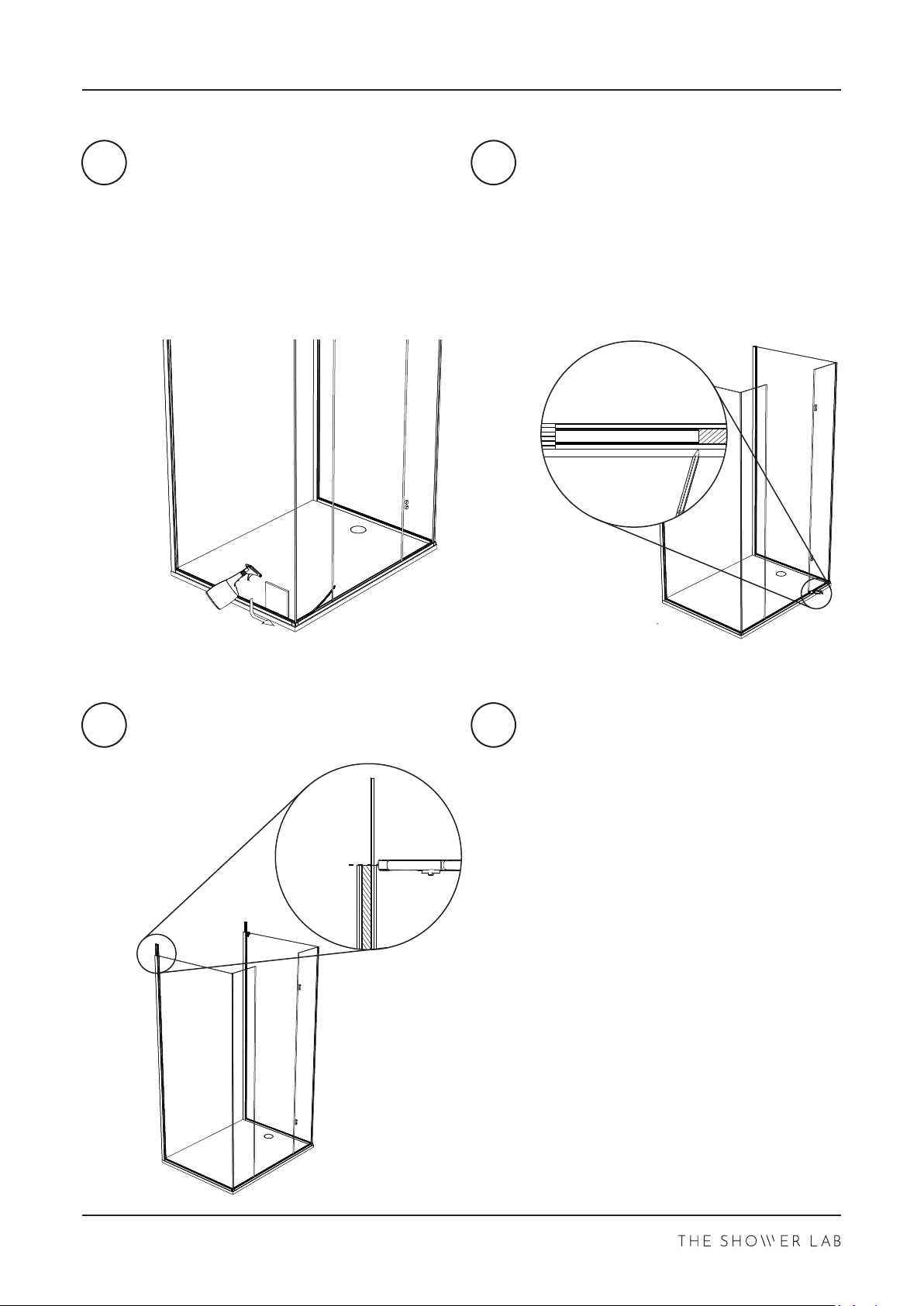

Remove Inline Panel Packers and feed
the Underframe Wedge Gasket into the
archway gap of the Return Panel and
Inline Panel and trace along the Glass
on both sides.
Spray water on Glass Panel and use
Nylon Block to help feed Gasket.
Mark the Wedge Gaskets at the edge of
the Inline Panel.
Remove both Wedge Gaskets and trim.
Reinstall Wedge Gaskets aer
trimming.
Trim both of the Wall Profile seals at
the top face of each Wall Profile using a
blade.
Check which Stay Bar configuraon
your screen has been supplied with and
refer to the relevant instrucons below.
(You can find this out at the front of
these instrucons).
Config A - SB8 Page 09
29 30
31 32

X
X - 13mm
05/2021 V 1.0
VIEW 23
09/17
Measure the distance from the inside
face (wet side) of the Return Panel to
the inside face of the opposite Return
Panel. Ensure this measurement is truly
horizontal.
Subtract 13mm to get your final
dimension.
Mark the final dimension on the Stay
Bar Tube, wrapped with some masking
tape. Carefully use a chop saw and fine
file to cut and finish the edge.
STAY BAR CONFIGURATION A - SB8
A1 A2

05/2021 V 1.0
VIEW 23
10/17
With masking tape applied, place the
supplied Stay Bar Jig firmly on both
ends of the Stay Bar and mark the 2
holes with a pen.
Drill holes using a 5mm drill bit.
Assemble the Glass Clamp to the Stay
Bar on both sides as shown.
Secure the T Connector to the Inline
Panel as shown.
Secure the Stay Bar to the Return
Panels, ensuring the Glass is fully
inserted into the Clamps.
STAY BAR CONFIGURATION A - SB8
Drill 1 side only
A3 A4
A5 A6

05/2021 V 1.0
VIEW 23
11/17

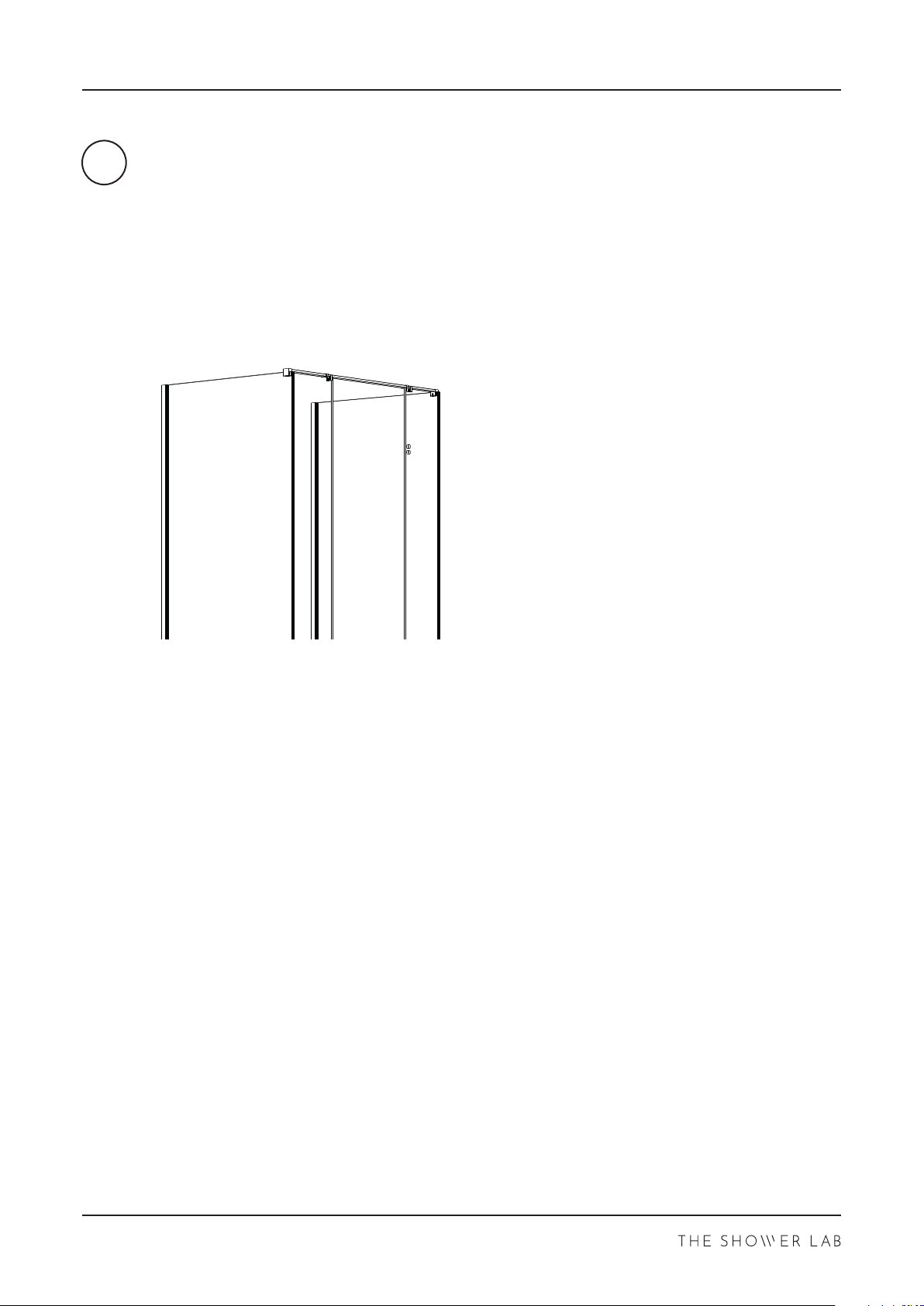

Ensure that the Stay Bar is fully
assembled to the Enclosure as shown
below.
STAY BAR CONFIGURATION A - SB8
A7

Outside of
enclosure
05/2021 V 1.0
VIEW 23
Cover Plate
Clamping
Plate
x
12/17
Measure the distance between the
Inline Panels.
Mark and cut the Underframe Top.
Snap the Underframe Top on to the
Underframe.
Aach the Glass to Glass Hinges in the
direcon your door will open and
ghten to the Inline Panel.
Evenly ghten the screws unl the
Gaskets are just “nipping” the Glass.
Tighten all the screws to 15.6N.
Check the orientaon of the Cover
Plates. Adjust Clamping Plate to Suit.
DO NOT fit the Cover Plates yet.
Aach the Glass to Glass seal to the
Inline Panel.
Ensure a good seal along the edge of
the door.
Check the orientaon is correct.
Remove the seals aer checking.
Inside Enclosure
Inward Opening
Outward Opening
Inside Enclosure
33 34
35 36
