THE SHOWER LAB VIEW 31DW User manual
10/2021 V 1.1

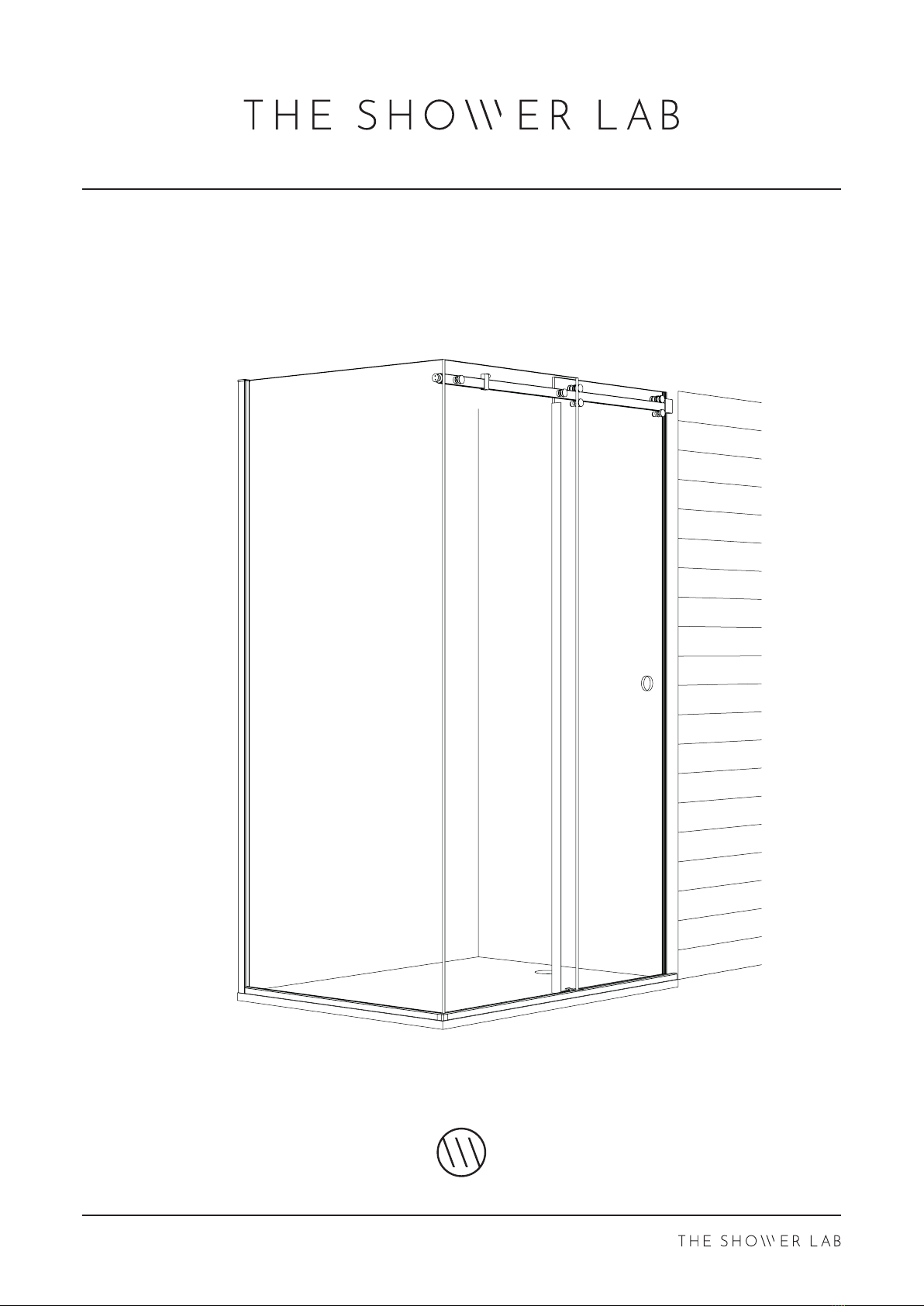

VIEW 31DW Illustration - View 31DW
Left Hand
10/2021 V 1.1
VIEW 31DW
IMPORTANT
•This shower screen / enclosure must be installed by suitably qualified individuals. We
recommend a minimum of two people for safe assembly of certain sections of this screen.
•Ensure all appropriate safety equipment, especially protective footwear, safety glasses
and gloves are used.
•When drilling holes in ceramic tiles, use masking tape to prevent the drill from slipping:
DO NOT use hammer action as this will crack the tiles. Use a high quality drill bit to ensure
a clean, precise hole.
Tighten hinges and brackets to the recommended 15.6N.
•
•
Please leave these instructions with the customer following installation.
PRIOR TO INSTALLATION
•Before disposing of the packaging and prior to commencing assembly, please check all
the components to ensure that they have been supplied correctly and are undamaged.
Subsequent claims for missing or damaged pieces will not be accepted once the
packaging has been disposed of and installation commenced.
•In the event of any queries please contact your supplier quoting the relevant model
information.
•The Tray / Tiled floor on which this screen is to be installed must be level on all sides.
•It may be necessary to use alternate fixings to those supplied, depending on the properties
of the walls to be fixed to.
•Use the protective corners supplied at all times until the glass is moved to its final position.
•Ensure that the glass is installed correctly, taking care to avoid installing the glass upside
down. On certain panels an easy clean coating is applied to one side only, this is clearly
marked with a sticker on the non-coated side. The coated surface is to be fitted inwards
towards the inside (wet side) of the screen.
•Ensure that all surfaces to be sealed are clean and dry prior to applying the silicone
sealant. Use a high grade fungal resistant sealant.
•Allow a minimum of 24 hours after application of the silicone sealant prior to using the
screen.
TOOLS & MATERIALS REQUIRED
Junior Hacksaw
Straight Edge (Steel
Rule)
Fine Tooth File
Set or Roofing
Square
Masking Tape
Modelling Knife
Spirit Level
Pencil
Silicone Gun
Power Drill
Ø6mm Masonry Drill Bit
2x Suction Glass Lifters
High Quality Silicone Sealant
Tape Measure
Pozi-drive
Screwdrivers, PZ1&2
Safety Glasses and
Gloves
CARE AND MAINTENANCE
(please ensure that these instructions are left with the installed unit)
•We recommend routine cleaning of your screen / enclosure with hot water using a soft
cloth, then drying with a dry soft cloth or chamois leather.
Ritec Aftercare for Shower Glass is recomended for best results.
•All glass has been treated with EASY CLEAN glass finish and care must be taken to avoid
any abrasive cleaning products that may damage the special surface protection.
•DO NOT use acidic based de-scaler products or products containing bleaches or solvents.
Digital Torque Wrench
10/2021 V 1.1
VIEW 31DW
Spacers Wall Prole End Cap
x2
Supplied Parts
Inline Panel
x1
Door
x1
Nylon Block
x1
Pig Nose Adapter
x1
Return Panel
x1
Underframe 90°Connector
x1
Packers
Glass to Glass Adhesive Gasket
x1
Slider Bar Return Jig
x1
10/2021 V 1.1

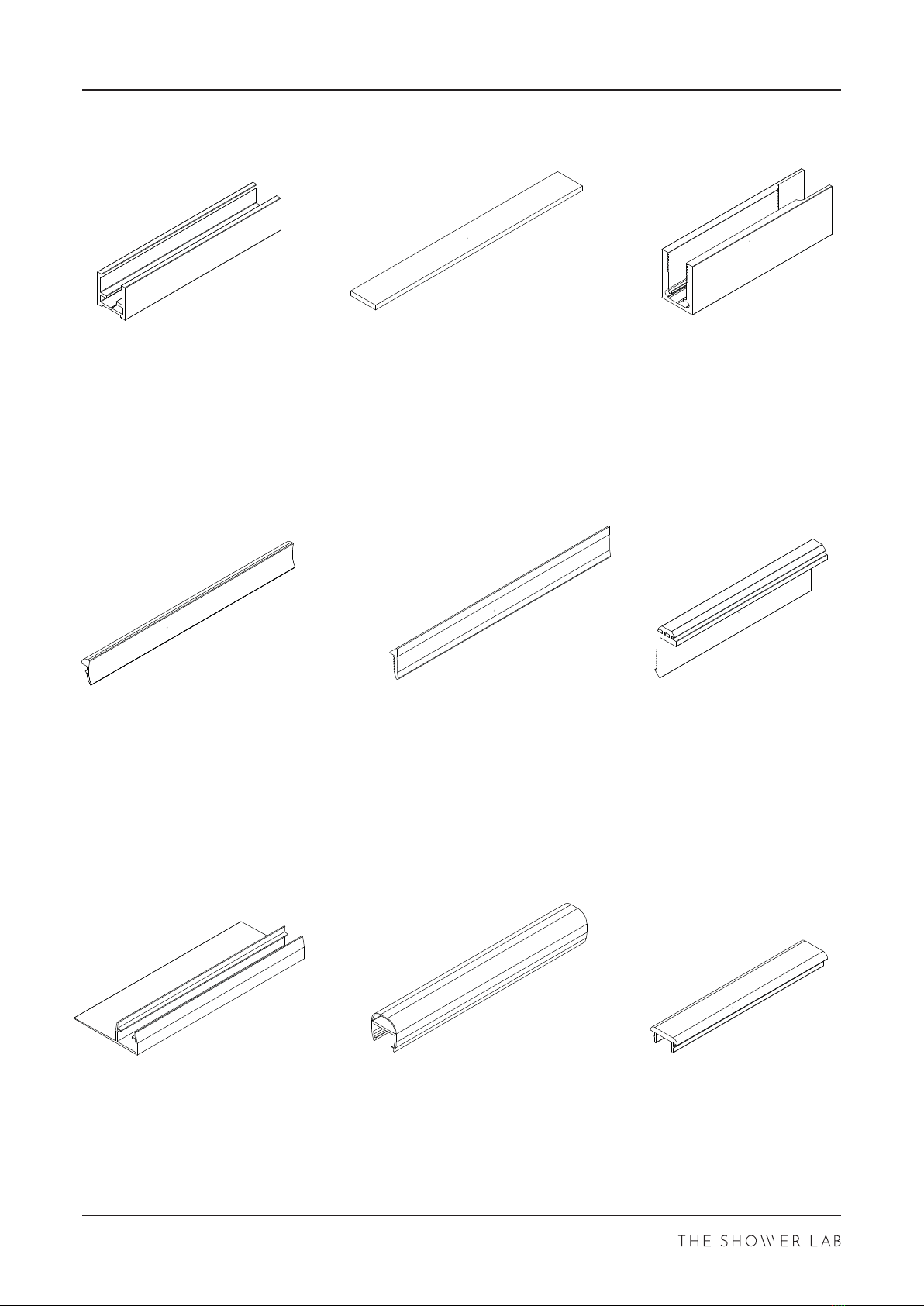

VIEW 31DW
Supplied Parts
Underframe Wedge Gasket
x2
Underframe
x2
Underframe Gasket
x2
Wall Prole
x1
Wall Prole Soft Seal
x1
Wall Prole Rigid Seal
x1
Underframe Top
x1
Glass to Wall Seal
x1
Glass to Glass Slider Seal
x1
10/2021 V 1.1

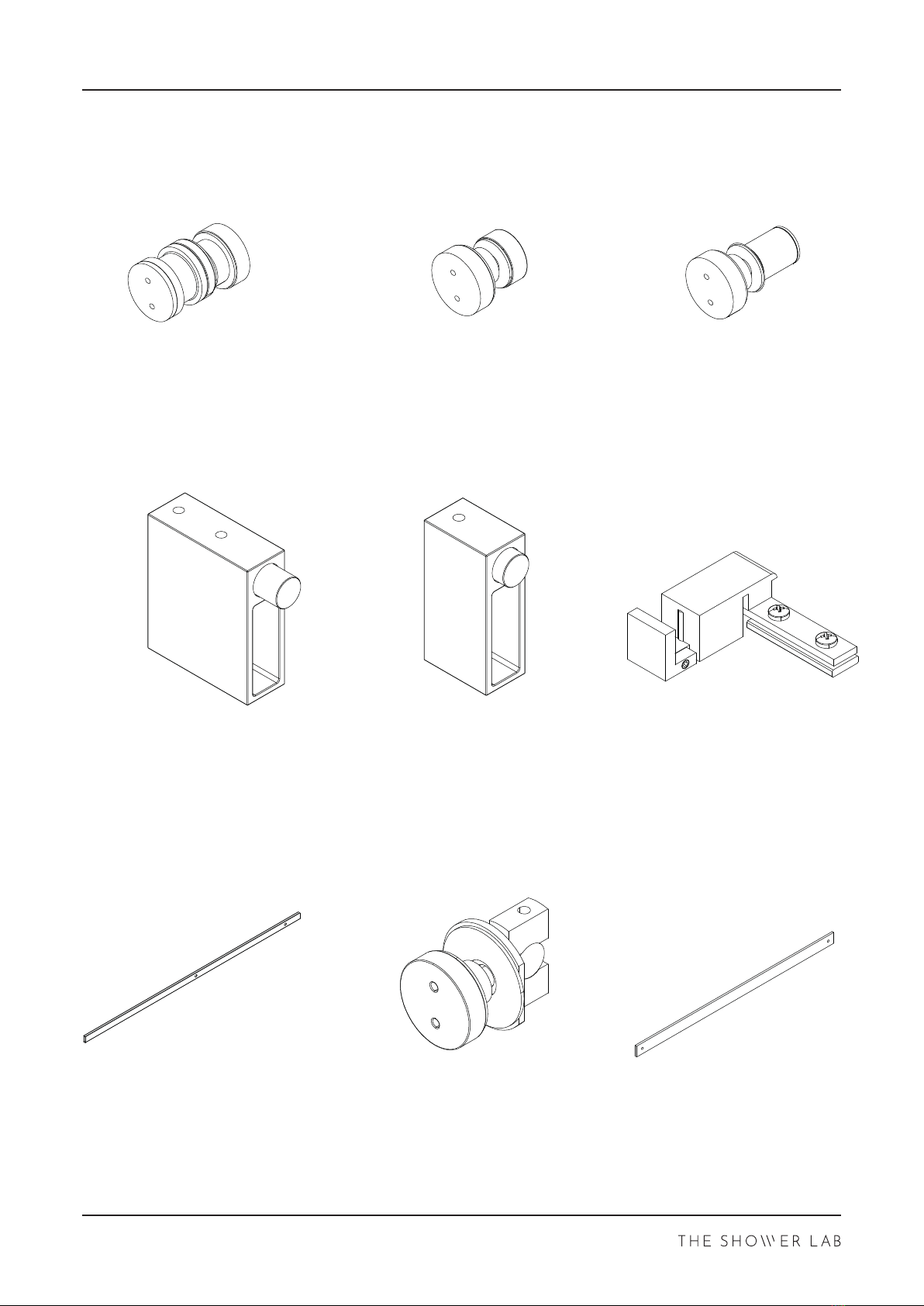

VIEW 31DW
Slider Door Roller
x2
Slider Panel Fixing
x2
Slider Door Retainer
x2
Slider Door Stop
x1
Bottom Door Guide
x1
Slider Wall Bracket with Stop
x1
Supplied Parts
Slider Bar
x1
Slider Bar
x1
Slider Bar Insert
x1
10/2021 V 1.1
VIEW 31DW
These instructions are for the View 31DW.
The following instructions are valid for both the 20mm and 30mm proles. The 30mm prole is
used in the following instructions.
Please use the below diagram to reference the list of parts.
A
B
I
C
H
D
F
E
G
Return Panel
Inline Fixed Panel
Door Panel
Wall Prole End Cap
Wall Prole Soft Seal
Wall Prole Rigid Seal
Underframe Wedge Gasket
Underframe
JUnderframe Top
Wall Prole
N
M
K
L
Underframe 90 Connector
Underframe Gasket
Bottom Door Guide
Glass to Glass Slider Seal
OGlass to Wall Bubble Seal
PSlider Bar
QSlider Bar Insert
RSlider Door Stop
SSlider Wall Bracket (with Adjustable Stop)
TSlider Door Retainer
USlider Door Roller
VSlider Panel Fixing
WSlider Return Panel Fixing
Q
U
O
N
J
M
B
L
V
P
T
S
A
l
H
K
W
C
R
O
D
G
F
E
10/2021 V 1.1
VIEW 31DW
]GI 7QGjP .Ijkg[ $dI[Q[O<d $pIgY<d IQOPj
6.ÄÂ/ÂÂÁÉÁ ÂÁÅÃÂÁÉÃ ÈÈÅÈÉÉ ÅÄÁÅÈÁ ÈÁÄÁ ÃÁÁÁ
6.ÄÂ/ÂÂÁÊÁ ÂÁÅÃÂÁÉÃ ÉÈÅÉÉÉ ÅÄÁÅÈÁ ÈÁÄÁ ÃÁÁÁ
6.ÄÂ/ÂÃÁÉÁ ÂÂÅÃÂÂÉÃ ÈÈÅÈÉÉ ÅÉÁÆÃÁ ÈÁÄÁ ÃÁÁÁ
6.ÄÂ/ÂÃÁÊÁ ÂÂÅÃÂÂÉÃ ÉÈÅÉÉÉ ÅÉÁÆÃÁ ÈÁÄÁ ÃÁÁÁ
6.ÄÂ/ÂÄÁÉÁ ÂÃÅÃÂÃÉÃ ÈÈÅÈÉÉ ÆÄÁÆÈÁ ÈÁÄÁ ÃÁÁÁ
6.ÄÂ/ÂÄÁÊÁ ÂÃÅÃÂÃÉÃ ÉÈÅÉÉÉ ÆÄÁÆÈÁ ÈÁÄÁ ÃÁÁÁ
6.ÄÂ/ÂÅÁÉÁ ÂÄÅÃÂÄÉÃ ÈÈÅÈÉÉ ÆÉÁÇÃÁ ÈÂÄÁ ÃÁÁÁ
6.ÄÂ/ÂÅÁÊÁ ÂÄÅÃÂÄÉÃ ÉÈÅÉÉÉ ÆÉÁÇÃÁ ÈÃÄÁ ÃÁÁÁ
6.ÄÂ/ÂÆÁÉÁ ÂÅÅÃÂÅÉÃ ÈÈÅÈÉÉ ÇÄÁÇÈÁ ÈÄÄÁ ÃÁÁÁ
6.ÄÂ/ÂÆÁÊÁ ÂÅÅÃÂÅÉÃ ÉÈÅÉÉÉ ÇÄÁÇÈÁ ÈÅÄÁ ÃÁÁÁ
6.ÄÂ/ÂÇÁÉÁ ÂÆÅÃÂÆÉÃ ÈÈÅÈÉÉ ÇÉÁÈÃÁ ÈÆÄÁ ÃÁÁÁ
6.ÄÂ/ÂÇÁÊÁ ÂÆÅÃÂÆÉÃ ÉÈÅÉÉÉ ÇÉÁÈÃÁ ÈÇÄÁ ÃÁÁÁ
ADJUSTMENT SHEET
STANDARD ENCLOSURES
Please Note
Only Standard Enclosures are shown above. If you have a Bespoke Enclosure, reference the delivery
note for the panel specifica�ons of the Enclosure.
BESPOKE ENCLOSURES
LH RH
10/2021 V 1.1
VIEW 31DW

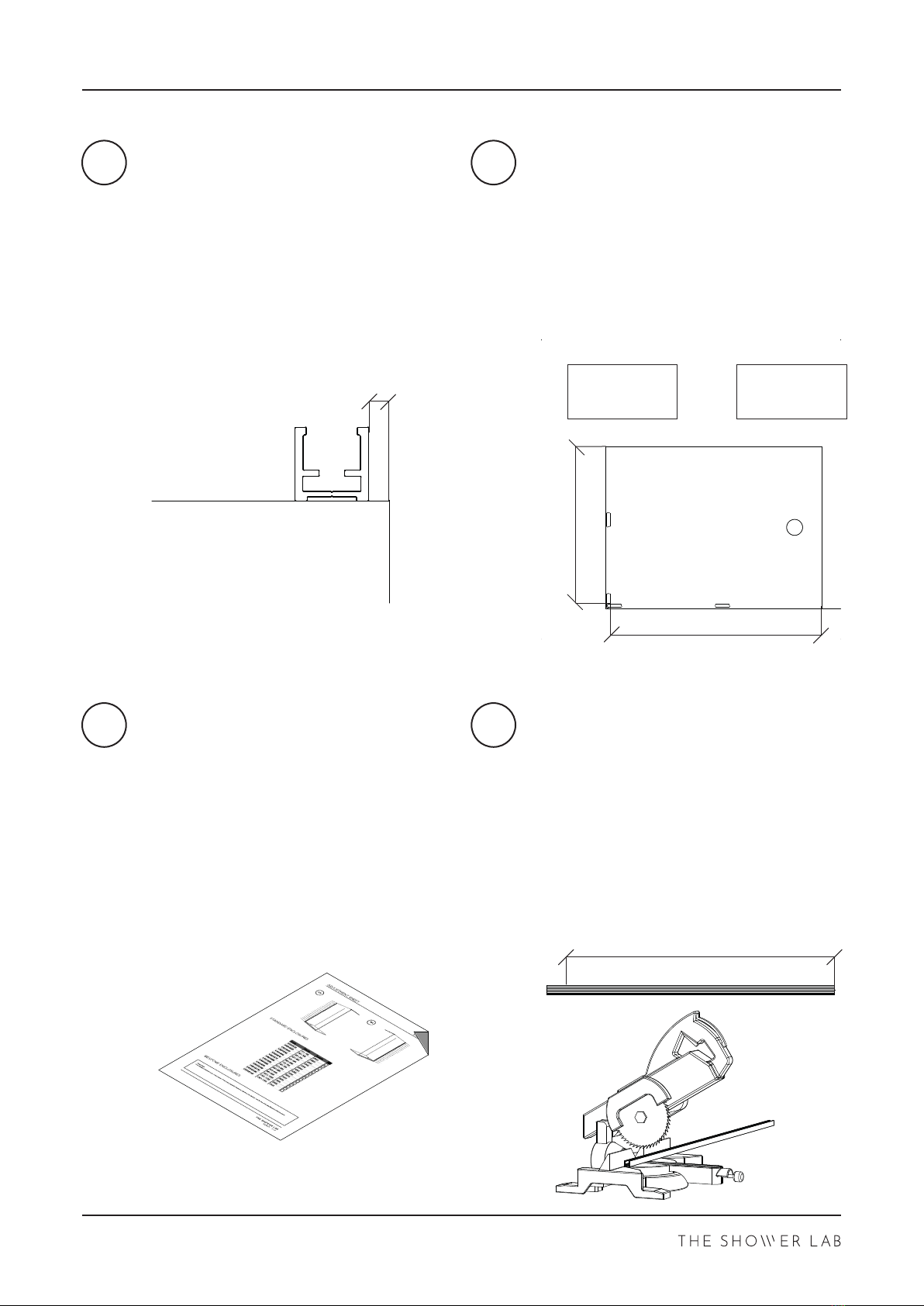

01/16
3mm minimum
Shower Tray
x - 22mm
F
R
01
04
10/2021 V 1.1
VIEW 31DW
02/16
Silicone
IMPORTANT STEP
10/2021 V 1.1

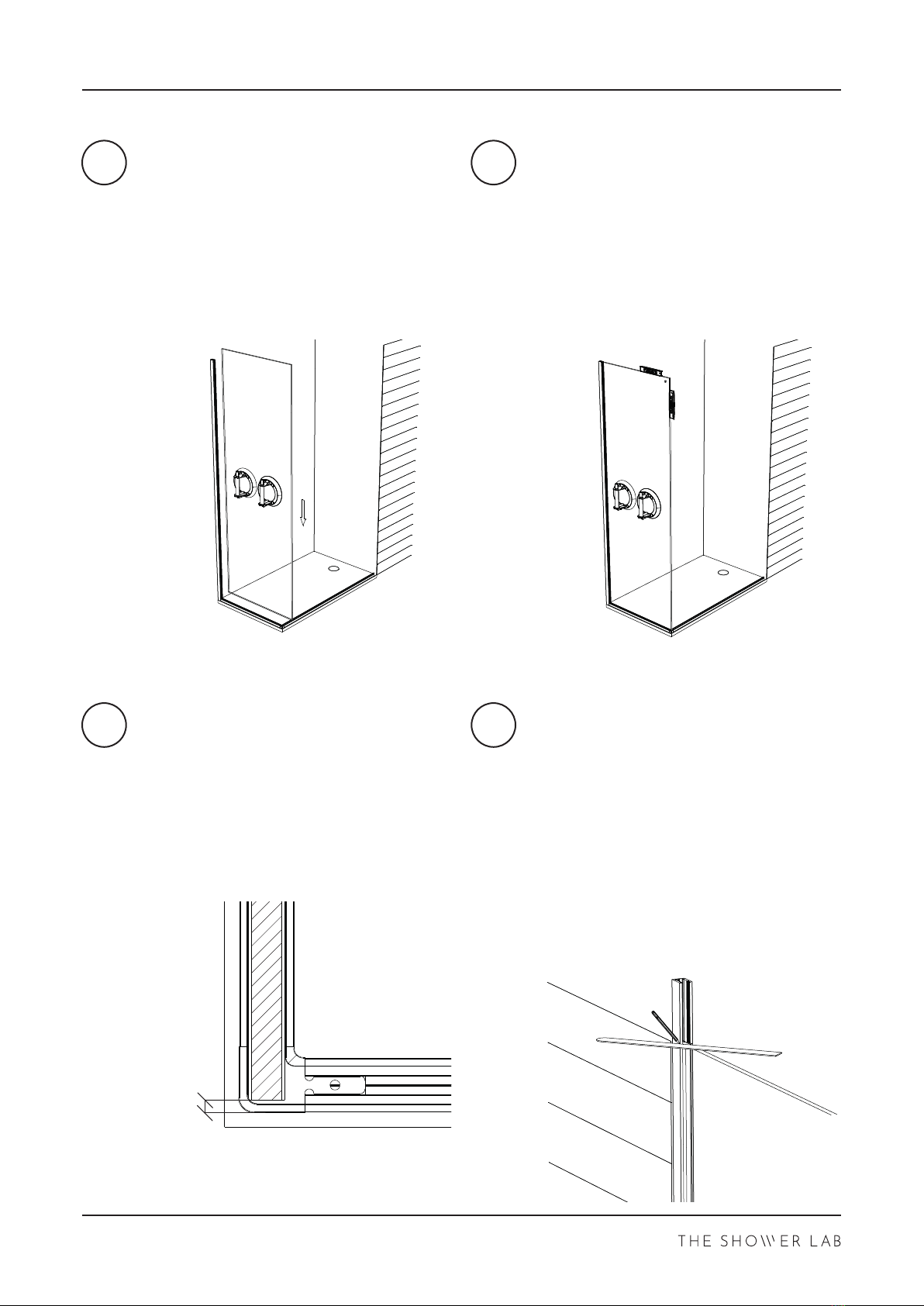

VIEW 31DW
Wet Side
03/16
Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
(No 8) Prole - Wall
(No 6) Prole - Top Cap
09 10
11 12
10/2021 V 1.1
VIEW 31DW
04/16
13 14
16
4mm
10/2021 V 1.1
VIEW 31DW
6mm min
Wall ProleGlass Panel
05/16
Remove the Panels, Wall Profile So�
Seals, and the Wall Profiles.
Trim the Wall Profile.
Use a fine file to remove any burrs. Be
careful not to damage the channel
finish.
Re drill the screws in to the Wall Profile
and remove a�er drilling.
Ensure there is adequate glass in the
Wall Profile. (6mm is recommended)
To centre the panel, add 1mm Packers
on both sides of Return Panel in the
Underframe.
Reinstall the Wall Profiles and Wall
Profile So� Seals.
Add silicone in the corner where the
Wall profile Meets the Underframe at
the back.
Re-install the Glass.
Silicone the
inside corner
17 18
19 20
10/2021 V 1.1
VIEW 31DW
Flush
Rigid Seal
Glass Panel

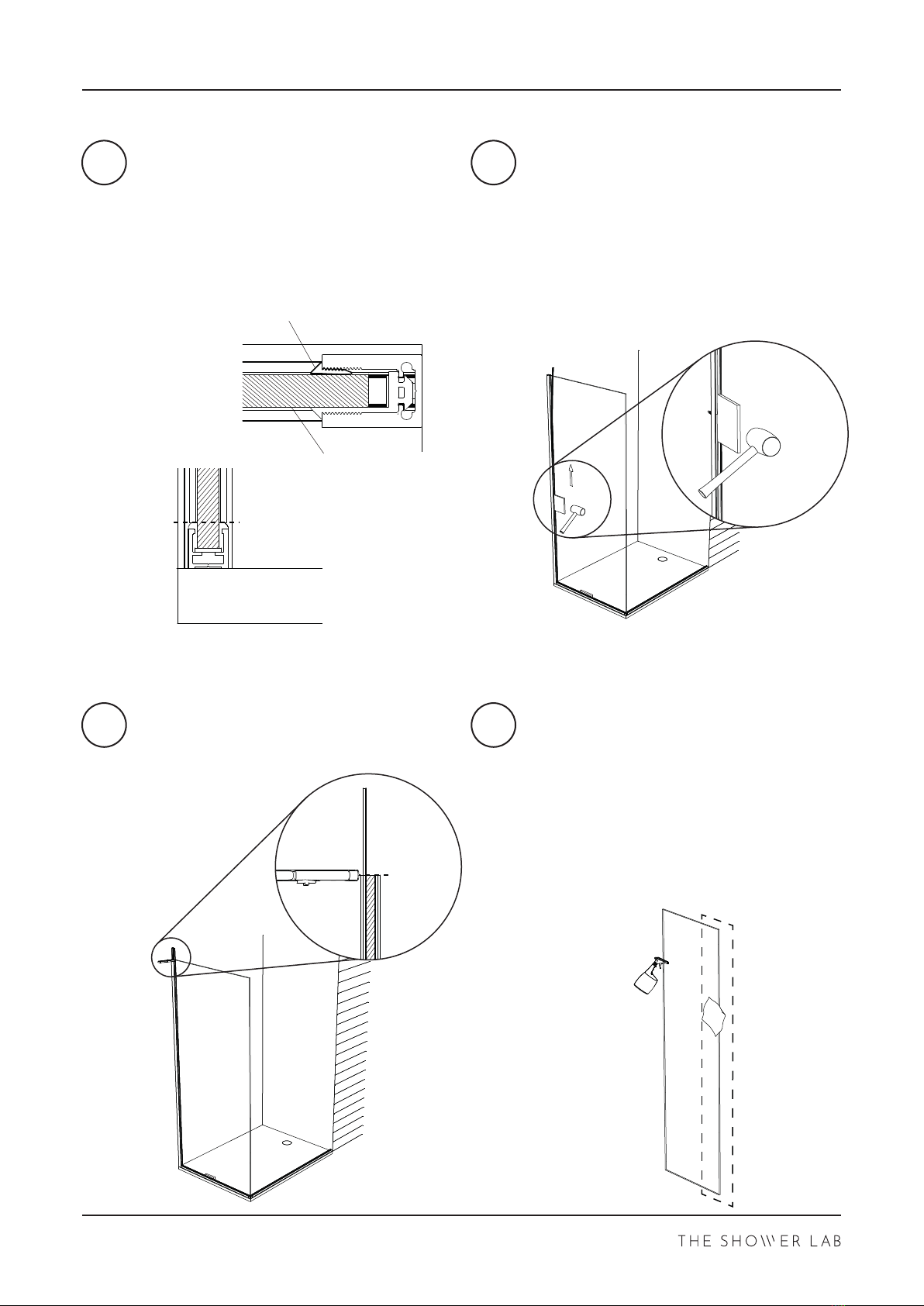

06/16
Apply the Rigid Seal to the dry side of
the Wall Profile star�ng from the
archway of the Wall Profile up to the
top.
Gently tap the Wall Profile Rigid Seal
into place using a rubber mallet with
the Nylon Block to protect the Glass
and the Wall Profile.
Trim the Wall Profile Seal at the top
face of the Wall Profile using a blade.
Clean the edges of the Glass Inline
Panels and Return Panels where the
Glass to Glass Adhesive Tape will be
applied.
21 22
23 24
10/2021 V 1.1
VIEW 31DW
Glass Inline Panel
Glass Return Panel
Glass to Glass Adhesive Tape
07/16
Before Installing the Glass to Glass
Adhesive Tape, ensure that the Tape is
the Glass Inline Panel as shown below.
Tape to the Panel.
against the Return Panel.
Panel.
25 26
27 28
10/2021 V 1.1
VIEW 31DW

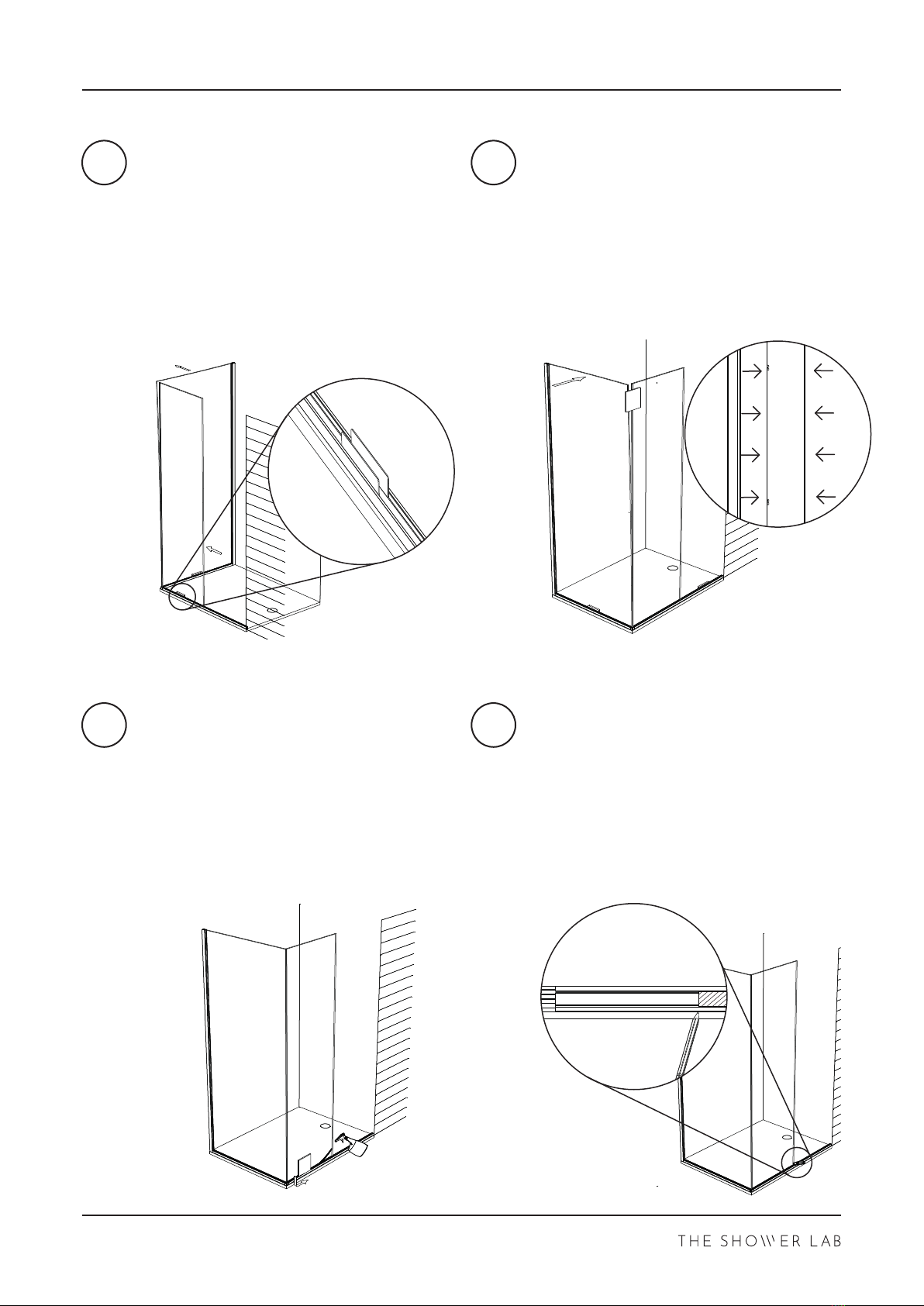

08/16
Pull Inline Panel away from the Return
Panel. Add 1mm Packers to both sides
of Inline Panel in the Underframe.
from the Tape. Gently push the top of
Return Panel away from Inline Panel.
towards the Return Panel.
Start to pull the Return Panel back
when approaching the top.
Use the Nylon Block to ensure that the
Inline Panel is level with the edge of
the Return Panel.
together and remove Inline Packers.
Remove Packers and feed the
Underframe Wedge Gasket into the
archway gap of the Return Panel and
Inline Panel and trace along the Glass
on both sides.
Spray water on Glass Panel and use
Nylon Block to help feed Gasket.
Trim the Wedge Gaskets at the edge of
the Inline Panel.
29 30
31 32
10/2021 V 1.1
VIEW 31DW
Fixing Holes

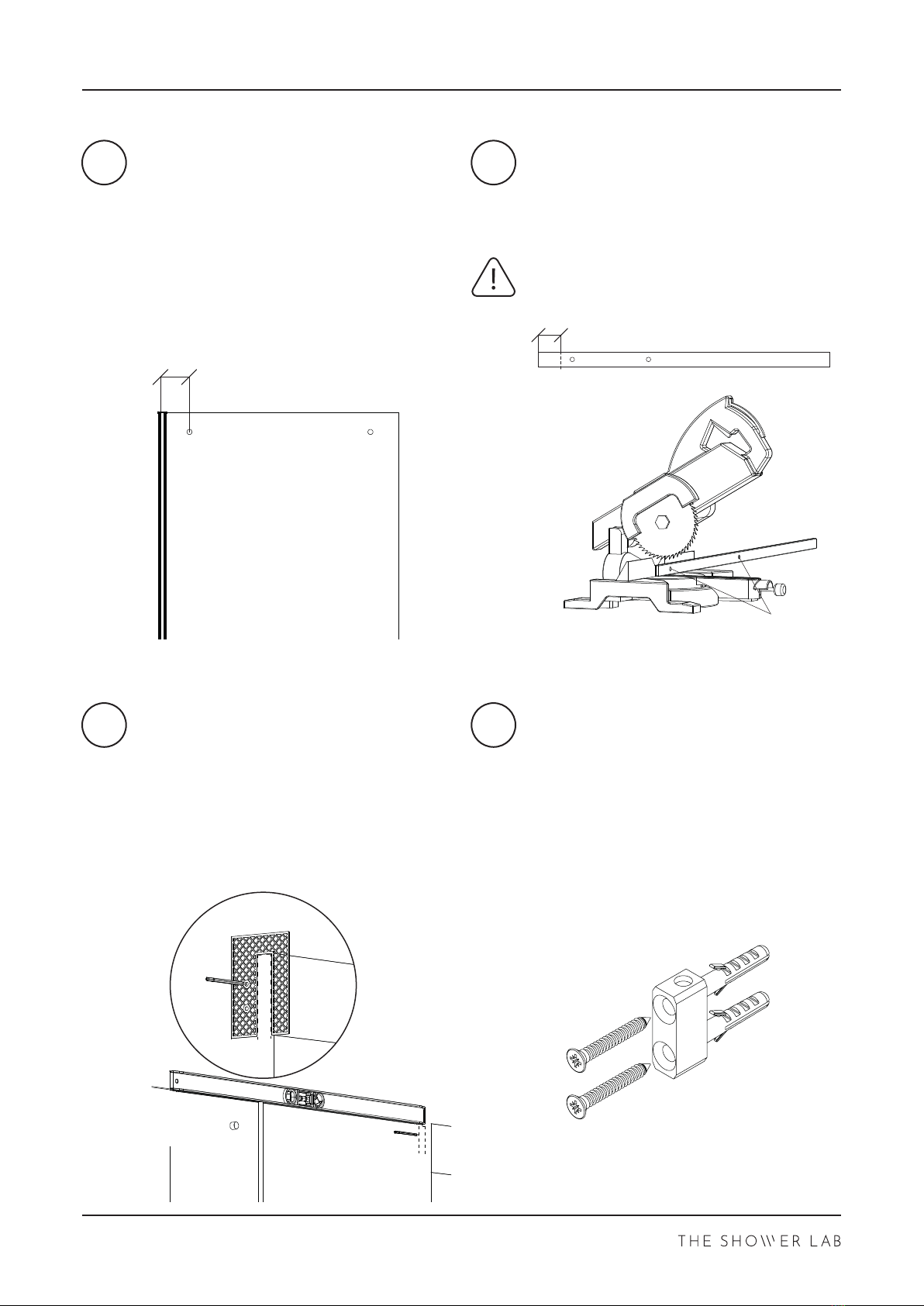

09/16
Measure the distance from the ou�de
face of the Return Panel to the nearest
fixing hole on the Inline Panel. Ensure
this measurement is truly horizontal.
Subtract 12mm to get your final
dimension.
Trace the Wall Profile on the door side
wall. Use the Spirit Level against the
Inline Panel to accurately trace the
Profile.
Align the Slider Rail Bracket Template
to the sketch and mark the holes.
Using a Ø6mm high quality drill bit for
a clean and precise hole, drill all holes
and fully insert the wall plugs.
Fix the Slider Wall Bracket in place
using the supplied screws.
x - 12mm
x - 12mm
Mark the final dimension on the Slider
Bar on the fixing hole side.
Cut squarely using a chop saw and
finish the edge.
SLIDER BAR IS STAINLESS STEEL
33 34
35 36
10/2021 V 1.1
VIEW 31DW
Fixing Holes
Drill 1 side only
Fixing Holes
Slider Bar Insert
x - 15mm
x - 15mm
10/16
Measure the distance from the wall to
the nearest fixing hole on the Inline
Panel. Ensure this measurement is truly
horizontal.
Subtract 15mm to get your final
dimension.
With masking tape applied, place the
supplied Slider Bar Jig firmly at the
trimmed end of the Stay Bar and mark
the hole with a pen.
Drill holes using a 5mm drill bit.
Insert the Slider Bar Insert into the
Slider Bar and ensure that the threaded
holes in the Slider Bar Insert align with
the clearance holes on the Slider Bar.
Mark the final dimension on the Slider
Bar on the opposite side of the Slider
Bar.
Cut squarely using a chop saw and
finish the edge.
SLIDER BAR IS STAINLESS STEEL
37 38
39 40
10/2021 V 1.1
VIEW 31DW
11/16
two corners of the Door Panel.
against the back wall.
41 42
43 44
Door Stop
installing the bar. The stops will be
FIXED PANEL
10/2021 V 1.1
VIEW 31DW
12/16
Fix the Inline Panel to the Slider Bar by
using the supplied Fixed Panel Fixings.
Use the supplied Pig Nose Adapter to
Rollers on to the Door.
the Slider.
Ensure that the Door is level by
Use two allen keys and the supplied Pig
Nose Adapter to adjust.
Plate.
PZ1 Screws
45 46
47 48
10/2021 V 1.1
VIEW 31DW
13/16
x
49 50
51 52
Other manuals for VIEW 31DW
1
Table of contents
Other THE SHOWER LAB Bathroom Fixture manuals
THE SHOWER LAB
THE SHOWER LAB VIEW 19.3F User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 19.3H User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 31DW User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 19H User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 22 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 06 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 02 User manual
THE SHOWER LAB
THE SHOWER LAB VR01S20 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 11 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 03 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 31DP User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 03 User manual
THE SHOWER LAB
THE SHOWER LAB PORTRAIT SLIDER User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 30 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 23 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 25 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 20 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 02 VR02S59 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 19F User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 19.3H User manual
Popular Bathroom Fixture manuals by other brands
UBERHAUS DESIGN
UBERHAUS DESIGN 98495021 Operator's manual
ZURN
ZURN Sundara Z5006.03 Installation, Maintenance, and Parts Manual
Glacier bay
Glacier bay HD51716-X0001 Use and care guide
Lefroy Brooks
Lefroy Brooks M2-4405 Installation, operating, & maintenance instructions
Kohler
Kohler K-T10087 Homeowner's guide
Grohe
Grohe 49 113 manual
Fantini Rubinetti
Fantini Rubinetti PARTI INCASSO M685A instructions
Brodware
Brodware 2.2705.00 Installation & maintenance guide
Graff
Graff AMETIS E-8750-T Instructions for assembly and use
HEALLUX
HEALLUX LANAU ETC05-0310E Assembly sheet
Kohler
Kohler K-8013 Installation and care guide
Kohler
Kohler K-8052 Homeowner's guide
