THE SHOWER LAB VIEW 31DW User manual

05/2021 V 1.0
VIEW 31DW Illustration - View 31DW
Left Hand

05/2021 V 1.0
VIEW 31DW
IMPORTANT
•This shower screen / enclosure must be installed by suitably qualified individuals. We
recommend a minimum of two people for safe assembly of certain sections of this screen.
•Ensure all appropriate safety equipment, especially protective footwear, safety glasses
and gloves are used.
•When drilling holes in ceramic tiles, use masking tape to prevent the drill from slipping:
DO NOT use hammer action as this will crack the tiles. Use a high quality drill bit to ensure
a clean, precise hole.
Tighten hinges and brackets to the recommended 15.6N.
•
•
Please leave these instructions with the customer following installation.
PRIOR TO INSTALLATION
•Before disposing of the packaging and prior to commencing assembly, please check all
the components to ensure that they have been supplied correctly and are undamaged.
Subsequent claims for missing or damaged pieces will not be accepted once the
packaging has been disposed of and installation commenced.
•In the event of any queries please contact your supplier quoting the relevant model
information.
•The Tray / Tiled floor on which this screen is to be installed must be level on all sides.
•It may be necessary to use alternate fixings to those supplied, depending on the properties
of the walls to be fixed to.
•Use the protective corners supplied at all times until the glass is moved to its final position.
•Ensure that the glass is installed correctly, taking care to avoid installing the glass upside
down. On certain panels an easy clean coating is applied to one side only, this is clearly
marked with a sticker on the non-coated side. The coated surface is to be fitted inwards
towards the inside (wet side) of the screen.
•Ensure that all surfaces to be sealed are clean and dry prior to applying the silicone
sealant. Use a high grade fungal resistant sealant.
•Allow a minimum of 24 hours after application of the silicone sealant prior to using the
screen.
TOOLS & MATERIALS REQUIRED
Junior Hacksaw
Straight Edge (Steel
Rule)
Fine Tooth File
Set or Roofing
Square
Masking Tape
Modelling Knife
Spirit Level
Pencil
Silicone Gun
Power Drill
Ø6mm Masonry Drill Bit
2x Suction Glass Lifters
High Quality Silicone Sealant
Tape Measure
Pozi-drive
Screwdrivers, PZ1&2
Safety Glasses and
Gloves
CARE AND MAINTENANCE
(please ensure that these instructions are left with the installed unit)
•We recommend routine cleaning of your screen / enclosure with hot water using a soft
cloth, then drying with a dry soft cloth or chamois leather.
Ritec Aftercare for Shower Glass is recomended for best results.
•All glass has been treated with EASY CLEAN glass finish and care must be taken to avoid
any abrasive cleaning products that may damage the special surface protection.
•DO NOT use acidic based de-scaler products or products containing bleaches or solvents.
Digital Torque Wrench

05/2021 V 1.0
VIEW 31DW
Spacers Wall Prole End Cap
x2
Supplied Parts
Inline Panel
x1
Door
x1
Nylon Block
x1
Pig Nose Adapter
x1
Return Panel
x1
Underframe 90°Connector
x1
Packers
Glass to Glass Adhesive Gasket
x1
Slider Bar Return Jig
x1

05/2021 V 1.0
VIEW 31DW
Supplied Parts
Underframe Wedge Gasket
x2
Underframe
x2
Underframe Gasket
x2
Wall Prole
x1
Wall Prole Soft Seal
x1
Wall Prole Rigid Seal
x1
Underframe Top
x1
Glass to Wall Seal
x1
Glass to Glass Slider Seal
x1

05/2021 V 1.0
VIEW 31DW
Slider Door Roller
x2
Slider Panel Fixing
x2
Slider Door Retainer
x2
Slider Door Stop
x1
Slider Wall Bracket
x1
Bottom Door Guide
x1
Supplied Parts
Slider Bar
x1
Slider Bar
x1
Slider Bar Insert
x1

05/2021 V 1.0
VIEW 31DW
These instructions are for the View 31DW.
The following instructions are valid for both the 20mm and 30mm proles. The 30mm prole is
used in the following instructions.

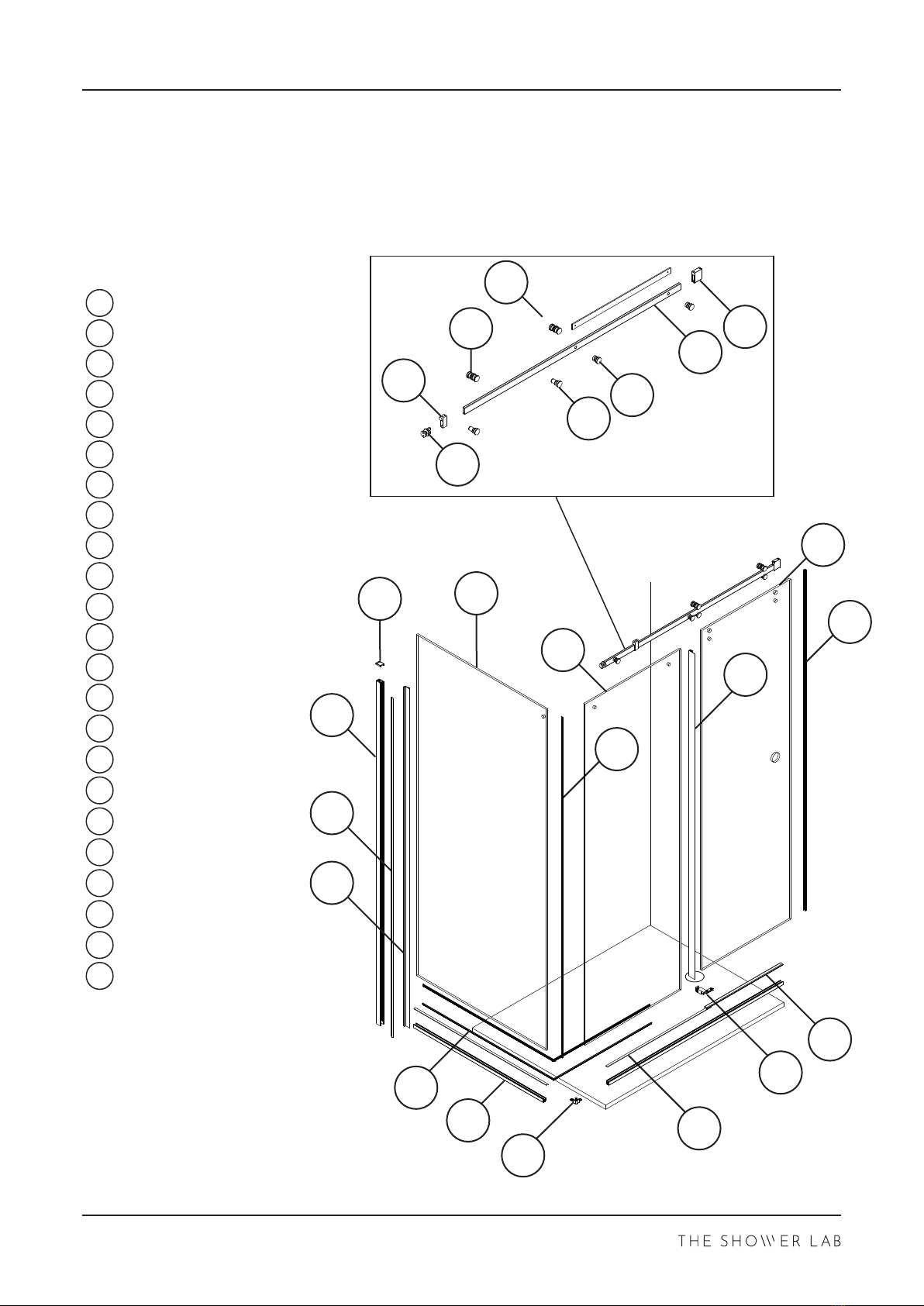

Please use the below diagram to reference the list of parts.
A
B
I
C
H
D
F
E
G
Return Panel
Inline Fixed Panel
Door Panel
Wall Prole End Cap
Wall Prole Soft Seal
Wall Prole Rigid Seal
Underframe Wedge Gasket
Underframe
JUnderframe Top
Wall Prole
N
M
K
L
Underframe 90 Connector
Underframe Gasket
Bottom Door Guide
Glass to Glass Slider Seal
OGlass to Wall Bubble Seal
PSlider Bar
QSlider Bar Insert
RSlider Door Stop
SSlider Wall Bracket
TSlider Door Retainer
USlider Door Roller
VSlider Panel Fixing
WSlider Return Panel Fixing
Q
U
O
N
J
M
B
L
V
P
T
S
A
l
H
K
W
C
R
O
D
G
F
E

05/2021 V 1.0
VIEW 31DW
     
     
     
     
     
     
     
     
     
     
     
     
     

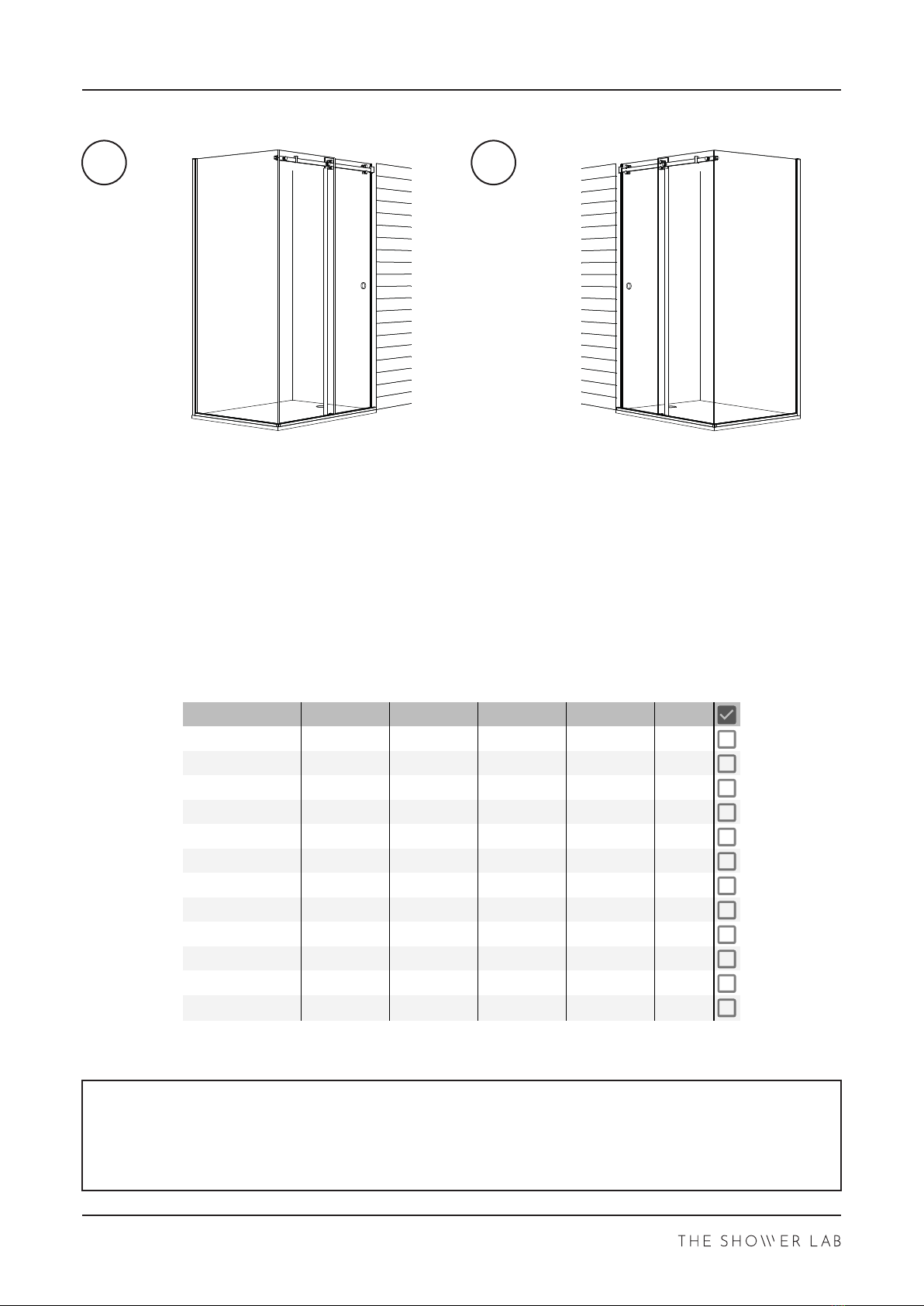

ADJUSTMENT SHEET
STANDARD ENCLOSURES
Please Note
Only Standard Enclosures are shown above. If you have a Bespoke Enclosure, reference the delivery
note for the panel specificaons of the Enclosure.
BESPOKE ENCLOSURES
LH RH

05/2021 V 1.0
VIEW 31DW
01/16

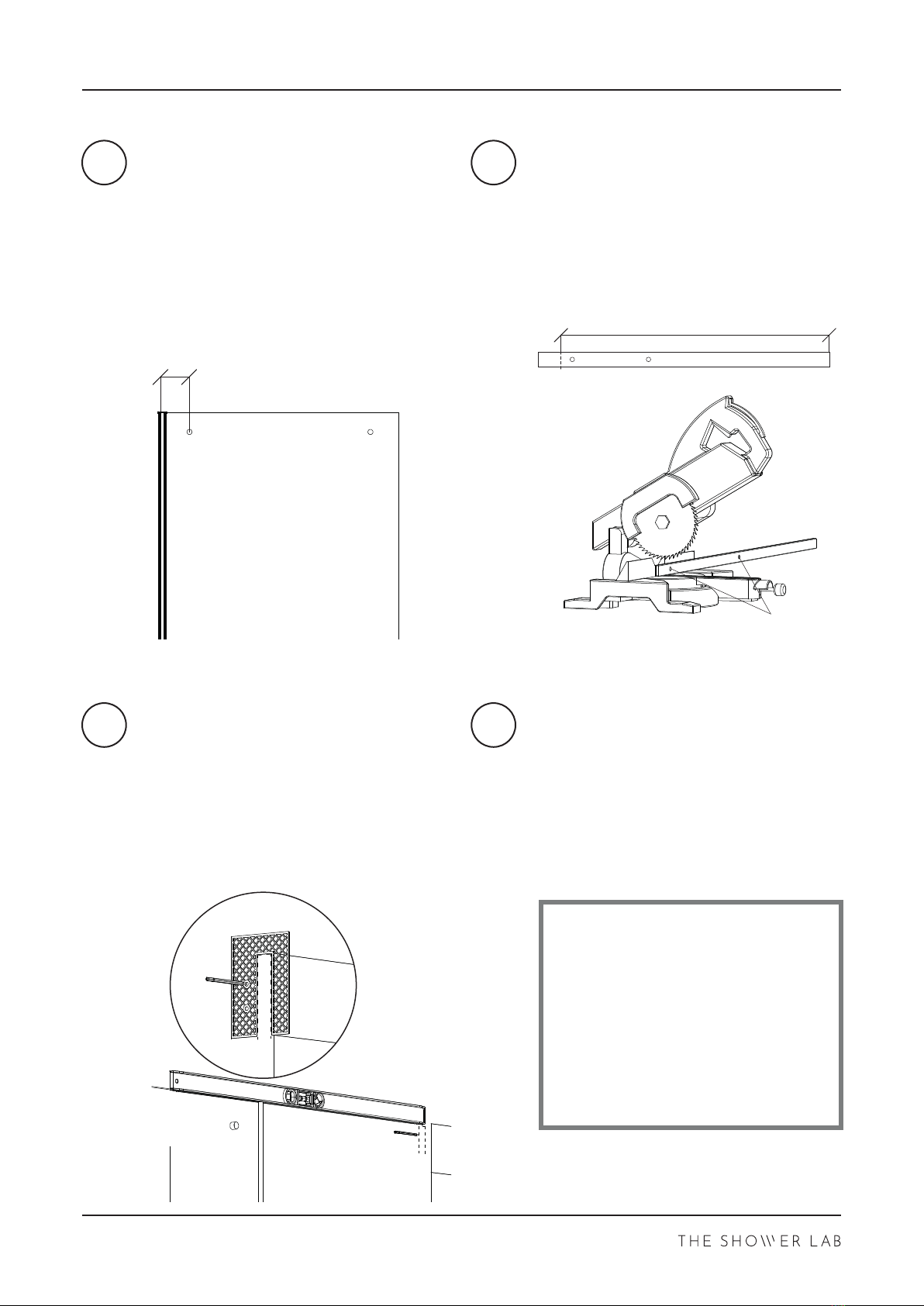

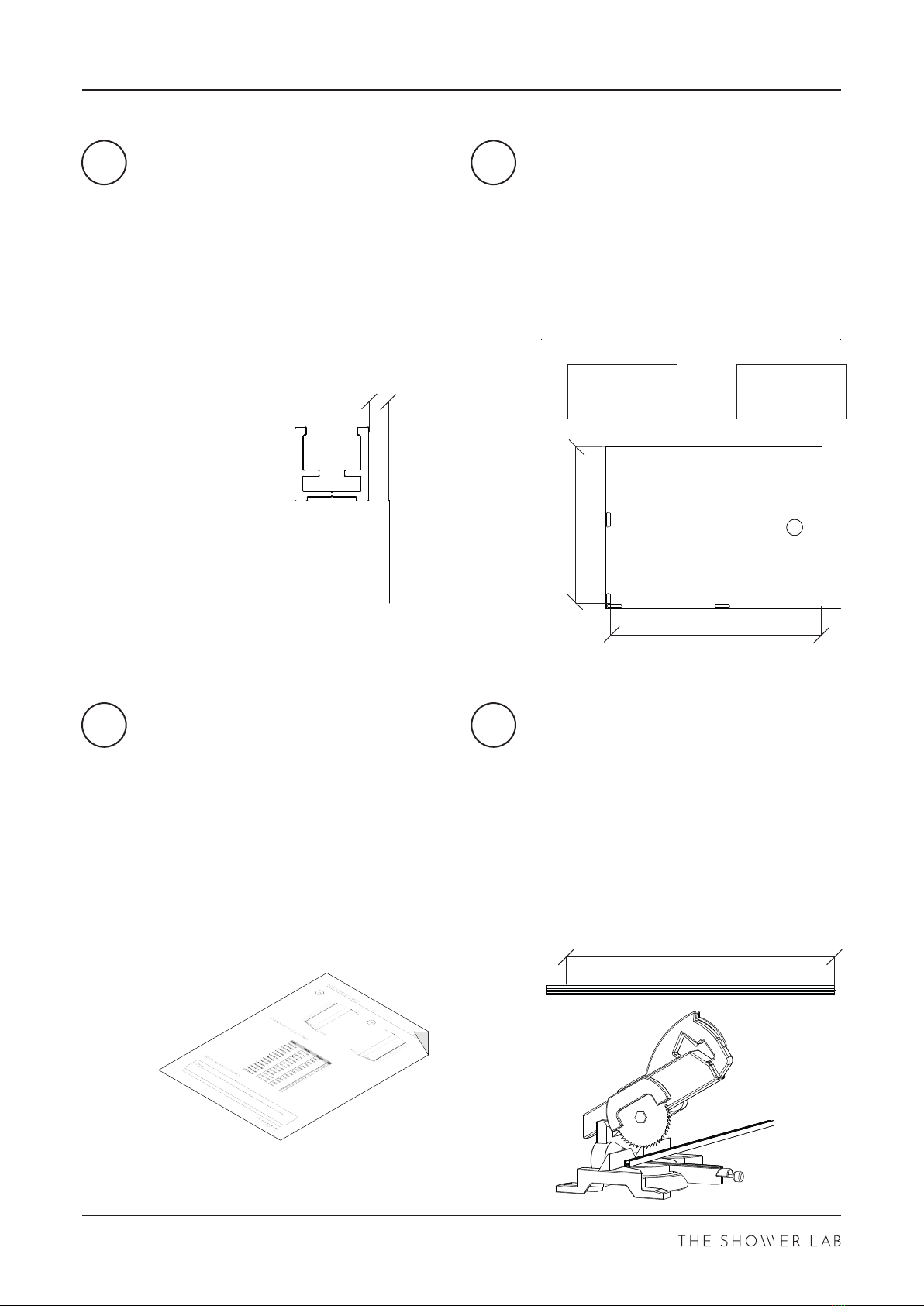

Posion the Underframe parallel to
tray edge. If using a raised shower tray,
leave a minimum 3mm gap from the
edge of the tray (5mm is
recommended).
Use tape to mark this dimension.
Repeat for the Return Underframe
Profile.
Measure the distance from the tape
edge to the ling and take note of this
distance.
Repeat for the Return Underframe.
F = R =
Check the dimensions are within the
allowed adjustments by referencing the
aached adjustment sheet.
Subtract 22mm from the Front and
Return Underframe dimension. This is
the profile width. Mark this
measurement on the Underframe.
Cut squarely using a chop saw.
Use a fine toothed file to remove any
burrs, be careful not to damage the
surface finish.
3mm minimum
Shower Tray
x - 22mm
F
R
01 02
03 04

05/2021 V 1.0
VIEW 31DW
02/16
Slide the Boom Door Guide Fixing
Plate into the T Slot of the Front
Underframe profile.
Connect the Underframe Profiles
together using the Underframe 90°
Connector and supplied screws.
Remove the backing strips from the self
adhesive and fix firmly to the tray.
Place the Underframe Gasket where
the glass will sit into the Underframe
and bu up against the wall.
Place the Wall Profile over the
Underframe and up against the wall.
05 06
07 08

05/2021 V 1.0
VIEW 31DW
Wet Side
03/16
Ensure the Wall Profiles are vercal by
using a spirit level. Mark the posions
of the pre-drilled holes.
Remove the Wall Profiles and drill holes
on each wall with a 6mm high quality
drill bit for a clean and precise hole.
Fully insert the wall plugs.
Pre drill the screws in to the Wall
Profiles to create the thread to ease
later steps.
Remove screws aer drilling.
Fix the Wall Profiles in place.
Take the Wall Profile So Seal and push
the seal into place on each Wall Profile
to cover the screws.
Ensure the fin is on the inside (wet
side).
Use the Nylon Block to help.
Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
09 10
11 12

05/2021 V 1.0
VIEW 31DW
04/16

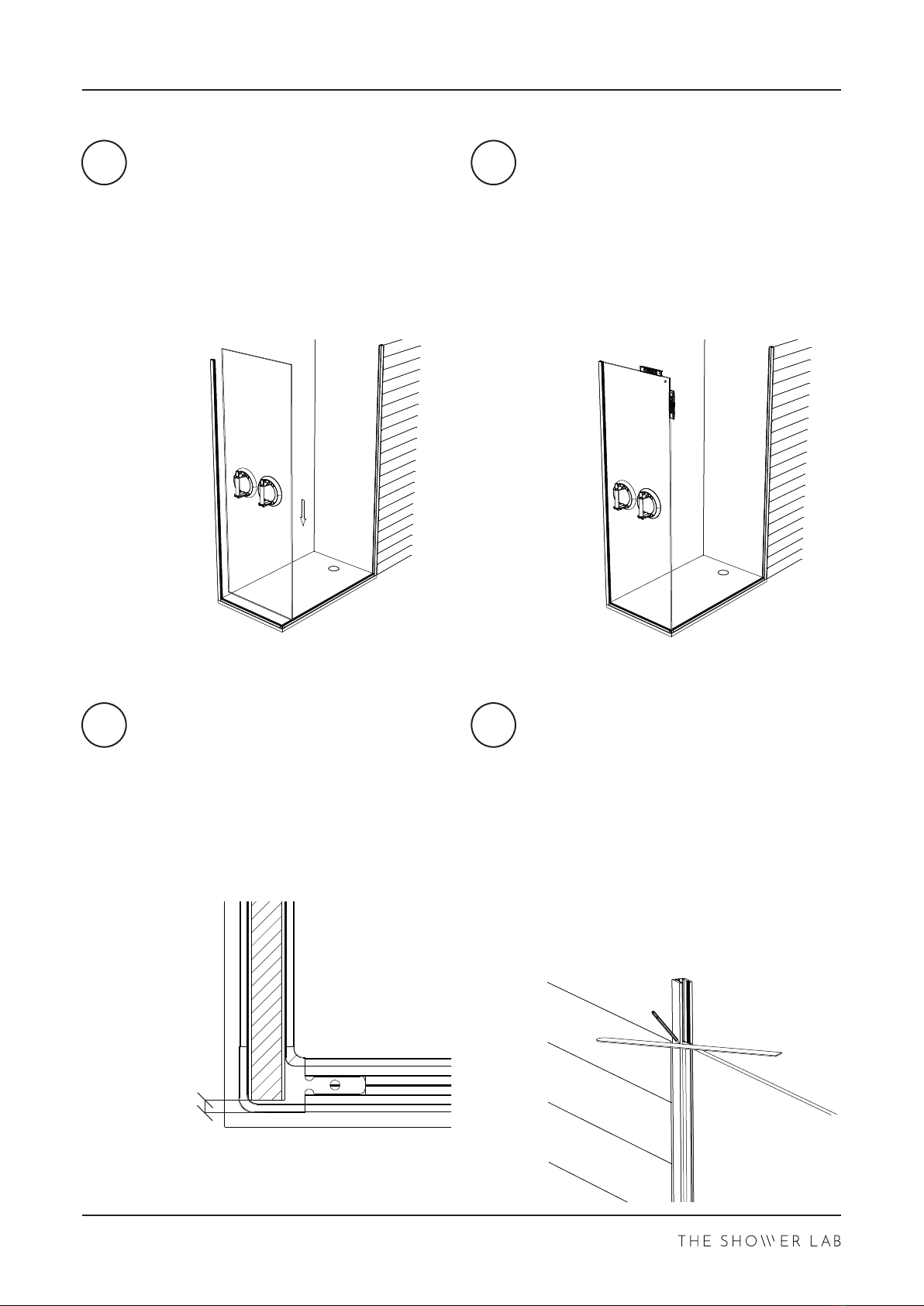

Using purpose built "Glass Liers",
posion and sit the Return Glass Panel
on to the Underframe Gasket and push
against the Wall Profile.
Note the orientaon and posion of
the Panel, this can be determined by
any holes or aached labels.
Remove and replace the Panel adding
or subtracng spacers as necessary to
level the Panel (to a maximum height
of 5mm inside the Underframe).
Check the Panel is level using a Spirit
Level.
Align the Return Panel so there is a
4mm gap between the Panel and the
front face of the Front Underframe.
If the Wall Profile IS flush with the
Glass Panel, move on to step 20.
If the Wall Profile IS not flush with the
top of the Glass Panel, mark the Wall
Profile. Using a straight edge, mark
where the wall channel needs to be
trimmed.
To protect the channel finish, it is
recommended to mark on masking
tape.
13 14
15 16
4mm

05/2021 V 1.0
VIEW 31DW
6mm min
Wall ProleGlass Panel
05/16
Remove the Panels, Wall Profile So
Seals, and the Wall Profiles.
Trim the Wall Profile.
Use a fine file to remove any burrs. Be
careful not to damage the channel
finish.
Re drill the screws in to the Wall Profile
and remove aer drilling.
Reinstall the Wall Profiles, Wall Profile
So Seals, and Glass Panels.
Ensure there is adequate glass in the
Wall Profile. (6mm is recommended)
To centre the panel, add 1mm Packers
on both sides of Return Panel in the
Underframe.
WARNING
The glass is heavy and may
damage the oor or underframe if
handled incorrectly. It is advisable
to use a suitable non-slip
protective mat or piece of carpet.
Never rest the glass across the
underframe as this may cause
damage.
17 18
19 20

05/2021 V 1.0
VIEW 31DW
Flush
Rigid Seal
Glass Panel
06/16
Apply the Rigid Seal to the dry side of
the Wall Profile starng from the
archway of the Wall Profile up to the
top.
Gently tap the Wall Profile Rigid Seal
into place using a rubber mallet with
the Nylon Block to protect the Glass
and the Wall Profile.
Trim the Wall Profile Seal at the top
face of the Wall Profile using a blade.
Clean the edges of the Glass Inline
Panels and Return Panels where the
Glass to Glass Adhesive Tape will be
applied.
21 22
23 24

05/2021 V 1.0
VIEW 31DW
Glass Inline Panel
Glass Return Panel
Glass to Glass Adhesive Tape
07/16

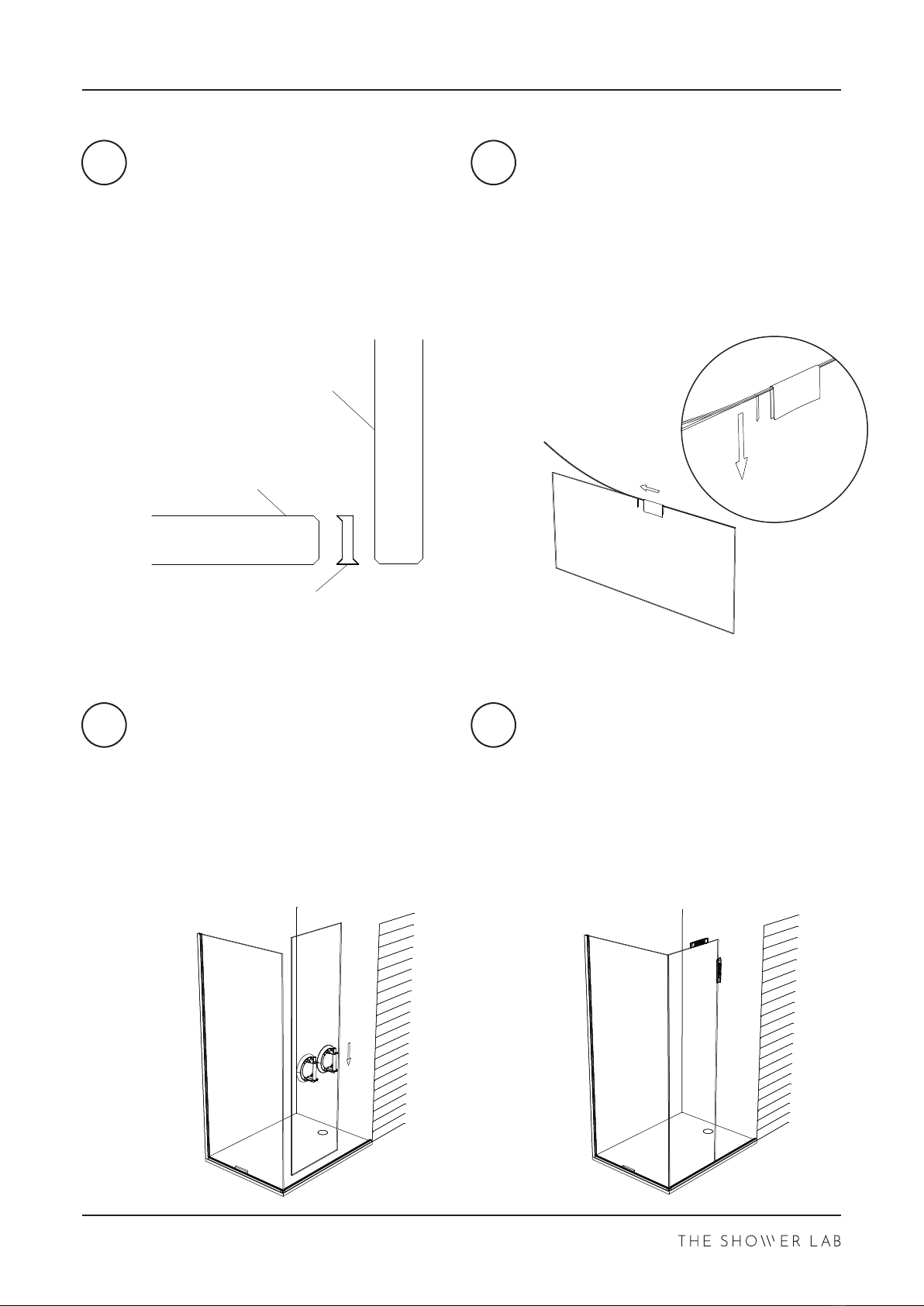

Before Installing the Glass to Glass
Adhesive Tape, ensure that the Tape is
orientated and posioned correctly on
the Glass Inline Panel as shown below.
Posion the Glass to Glass Adhesive
tape on the correct edge of the Inline
Panel. Using a cloth or towel, apply the
Tape to the Panel.
Peel back the protecve adhesive strip
while firmly applying the Tape.
Cut excess Tape using a blade.
Using purpose built “Glass Liers”,
carefully place the Inline Panel on to
the Underframe Gasket and push
against the Return Panel.
Note the orientaon and posion of
the Panel, this can be determined by
any holes or aached labels.
Remove and replace the Panel adding
or subtracng spacers as necessary to
level the Panel (to a maximum height
of 5mm inside the Underframe).
Check the Panel is level using a Spirit
Level. If the difference between the
two Panels is greater than 5mm, it may
be necessary to lower the Return
Panel.
25 26
27 28

05/2021 V 1.0
VIEW 31DW
08/16
Pull Inline Panel away from the Return
Panel. Add 1mm Packers to both sides
of Inline Panel in the Underframe.
Remove the protecve adhesive strip
from the Tape. Gently push the top of
Return Panel away from Inline Panel.
From the boom, push the Inline Panel
towards the Return Panel.
Start to pull the Return Panel back
when approaching the top.
Use the Nylon Block to ensure that the
Inline Panel is level with the edge of
the Return Panel.
Ensure the two panels are firmly fixed
together and remove Inline Packers.
Remove Packers and feed the
Underframe Wedge Gasket into the
archway gap of the Return Panel and
Inline Panel and trace along the Glass
on both sides.
Spray water on Glass Panel and use
Nylon Block to help feed Gasket.
Mark the Wedge Gaskets at the edge of
the Inline Panel.
Remove both Wedge Gaskets and trim.
Reinstall Wedge Gaskets aer
trimming.
29 30
31 32

05/2021 V 1.0
VIEW 31DW
Fixing Holes
09/16
Measure the distance from the oude
face of the Return Panel to the nearest
fixing hole on the Inline Panel. Ensure
this measurement is truly horizontal.
Subtract 12mm to get your final
dimension.
Mark the final dimension on the Slider
Bar on the fixing hole side.
Cut squarely using a chop saw and
finish the edge.
Trace the Wall Profile on the door side
wall. Use the Spirit Level against the
Inline Panel to accurately trace the
Profile.
Align the Slider Rail Bracket Template
to the sketch and mark the holes.
Using a Ø6mm high quality drill bit for
a clean and precise hole, drill all holes
and fully insert the wall plugs.
Fix the Slider Wall Bracket in place
using the supplied screws.
Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
x - 12mm
x - 12mm
33 34
35 36

05/2021 V 1.0
VIEW 31DW
Fixing Holes
x
Drill 1 side only
Fixing Holes
Slider Bar Insert
x - 15mm
10/16
Measure the distance from the wall to
the nearest fixing hole on the Return
Panel. Ensure this measurement is truly
horizontal.
Subtract 15mm to get your final
dimension.
Mark the final dimension on the Slider
Bar on the opposite side of the Slider
Bar.
Cut squarely using a chop saw and
finish the edge.
With masking tape applied, place the
supplied Slider Bar Jig firmly at the
trimmed end of the Stay Bar and mark
the hole with a pen.
Drill holes using a 5mm drill bit.
Insert the Slider Bar Insert into the
Slider Bar and ensure that the threaded
holes in the Slider Bar Insert align with
the clearance holes on the Slider Bar.
37 38
39 40

05/2021 V 1.0
VIEW 31DW
11/16

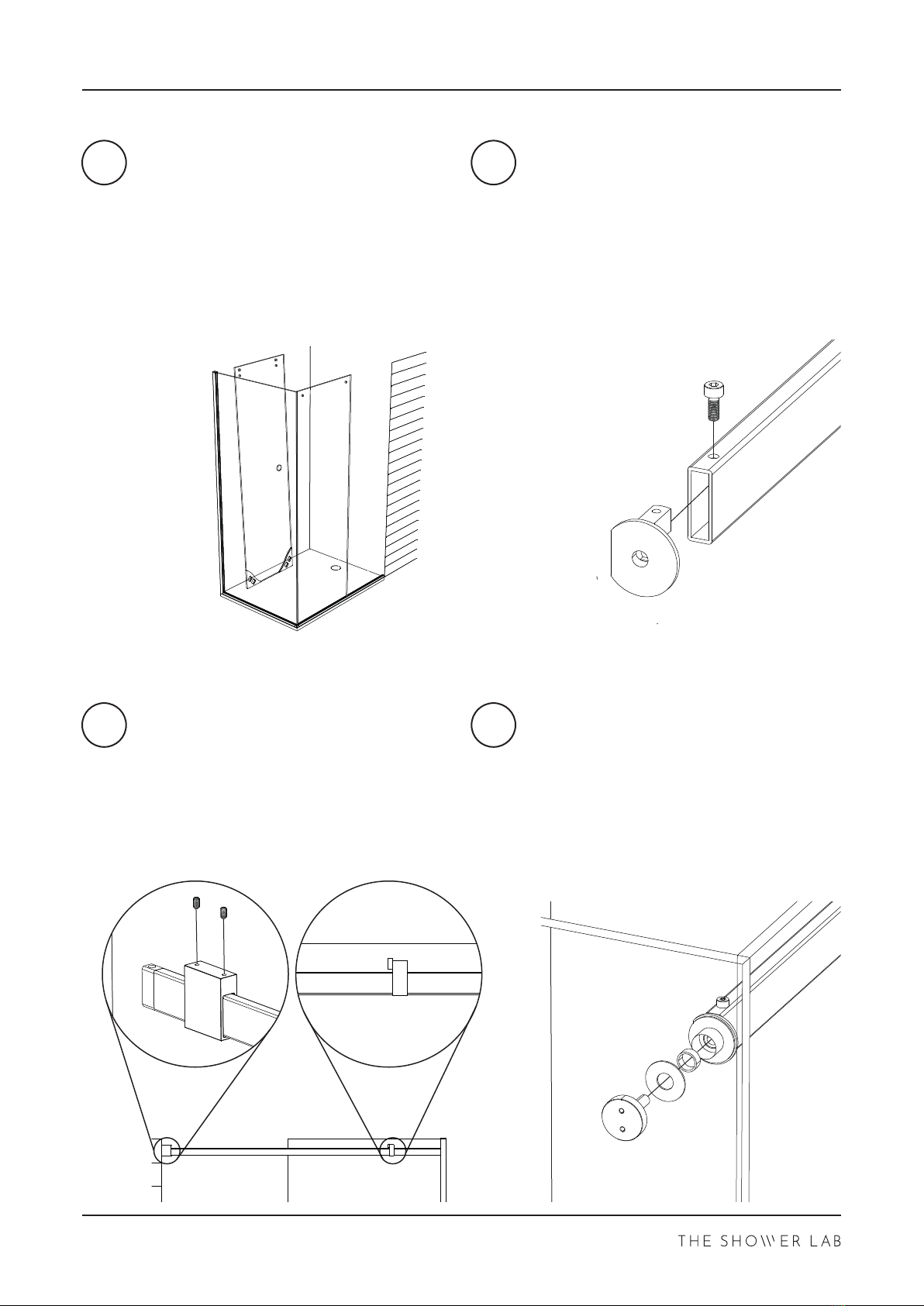

Put the Glass Protectors on the boom
two corners of the Door Panel.
Using purpose built “Glass Liers”,
posion the Door Panel inside the
Enclosure and securely rest the Panel
against the back wall.
Use the supplied Pan Head Screw to fix
the Slider Return Panel Fixing Bracket
into the Slider Bar.
Slide the Collar over the Wall Bracket
and fix in place using the supplied Grub
Screws.
Ensure the Door Stop is posioned and
orientated as shown. This will be
adjusted in a later step.
Fix the Slider Return Panel Fixing to the
Return Panel using the Pig Nose
Adapter.
41 42
43 44

05/2021 V 1.0
VIEW 31DW
12/16
Fix the Inline Panel to the Slider Bar by
using the supplied Door Retainers.
Use the supplied Pig Nose Adapter to
fix in place.
Fix the Boom Door Guide to the
Underframe by fixing the supplied
screws into the Boom Door Guide
Plate.
Ensure that the Boom Door Guide
bus up against the Inline Panel.
Use the Pig Nose Adapter to fix the Top
Rail Guides on to the Door.
Using purpose built “Glass Liers”,
carefully posion the Door Panel on
the Slider.
Ensure that the Door is level by
adjusng the eccentric runners.
Use two allen keys and the supplied Pig
Nose Adapter to adjust.
45 46
47 48

05/2021 V 1.0
VIEW 31DW
13/16
Use the supplied Pig Nose Adapter to
fix Boom Door Rail in place.
Fix the Boom Door Guide bracket in
place using the supplied Grub Screws.
Ensure that the Boom Door Guide
Bracket is lightly touching the Door
before fixing in place.
Adjust the Door Stop to ensure that the
Door does not travel too far. Pay
parcular aenon to the Handle (if
supplied) to ensure that it does not
clash with the Fixed Inline Panel.
Fix in place by ghtening the Grub
Screws located on top of the Door Stop.
Measure the distance between the wall
and the edge of the Boom Door
Guide.
Mark and cut the Underframe Top.
x
49 50
51 52
