THE SHOWER LAB VIEW 31DP User manual
10/2021 V 1.1

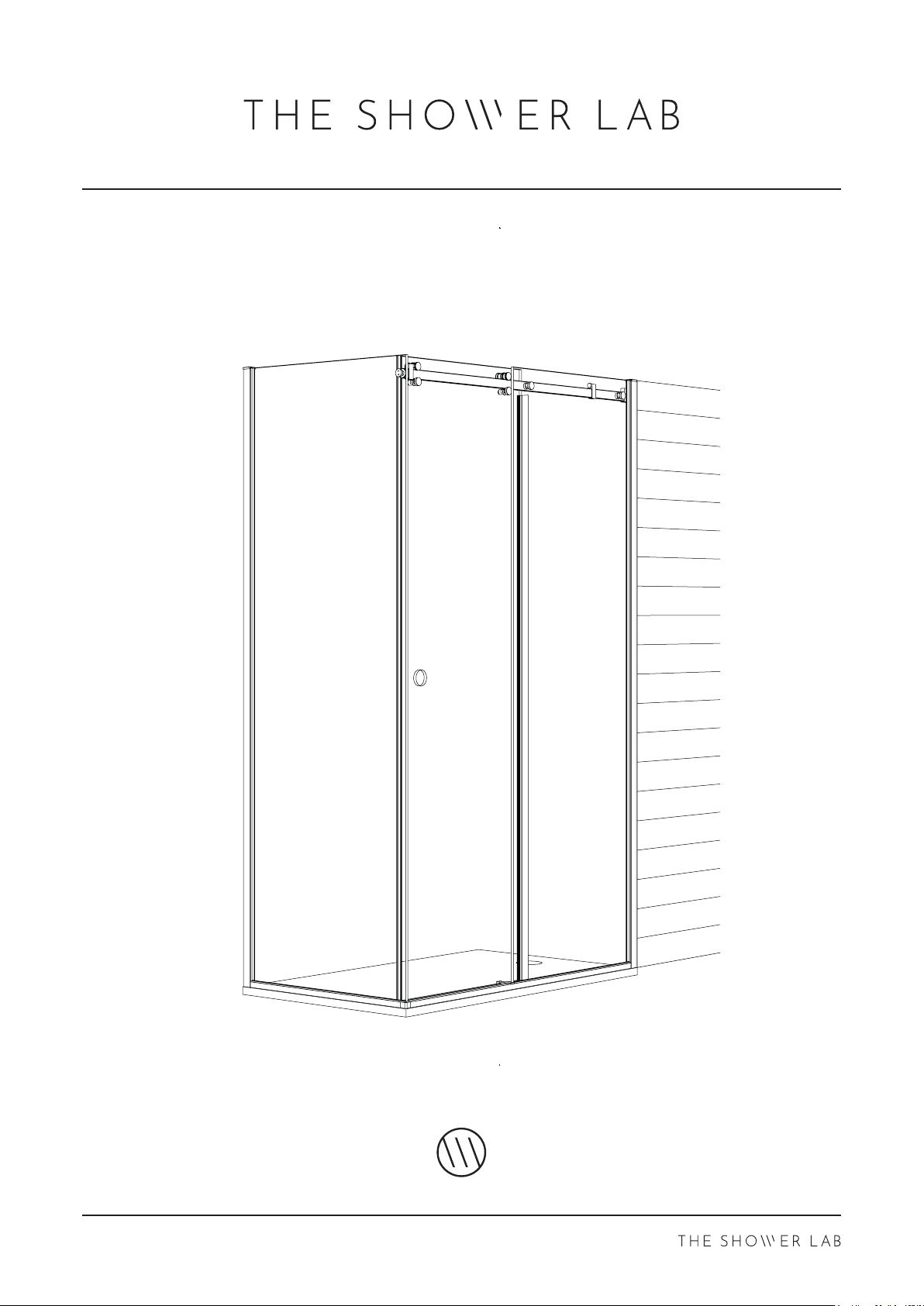

VIEW 31DP Illustration - View 31DP
Right Hand
10/2021 V 1.1
VIEW 31DP
IMPORTANT
•This shower screen / enclosure must be installed by suitably qualified individuals. We
recommend a minimum of two people for safe assembly of certain sections of this screen.
•Ensure all appropriate safety equipment, especially protective footwear, safety glasses
and gloves are used.
•When drilling holes in ceramic tiles, use masking tape to prevent the drill from slipping:
DO NOT use hammer action as this will crack the tiles. Use a high quality drill bit to ensure
a clean, precise hole.
Tighten hinges and brackets to the recommended 15.6N.
•
•
Please leave these instructions with the customer following installation.
PRIOR TO INSTALLATION
•Before disposing of the packaging and prior to commencing assembly, please check all
the components to ensure that they have been supplied correctly and are undamaged.
Subsequent claims for missing or damaged pieces will not be accepted once the
packaging has been disposed of and installation commenced.
•In the event of any queries please contact your supplier quoting the relevant model
information.
•The Tray / Tiled floor on which this screen is to be installed must be level on all sides.
•It may be necessary to use alternate fixings to those supplied, depending on the properties
of the walls to be fixed to.
•Use the protective corners supplied at all times until the glass is moved to its final position.
•Ensure that the glass is installed correctly, taking care to avoid installing the glass upside
down. On certain panels an easy clean coating is applied to one side only, this is clearly
marked with a sticker on the non-coated side. The coated surface is to be fitted inwards
towards the inside (wet side) of the screen.
•Ensure that all surfaces to be sealed are clean and dry prior to applying the silicone
sealant. Use a high grade fungal resistant sealant.
•Allow a minimum of 24 hours after application of the silicone sealant prior to using the
screen.
TOOLS & MATERIALS REQUIRED
Junior Hacksaw
Straight Edge (Steel
Rule)
Fine Tooth File
Set or Roofing
Square
Masking Tape
Modelling Knife
Spirit Level
Pencil
Silicone Gun
Power Drill
Ø6mm Masonry Drill Bit
2x Suction Glass Lifters
High Quality Silicone Sealant
Tape Measure
Pozi-drive
Screwdrivers, PZ1&2
Safety Glasses and
Gloves
CARE AND MAINTENANCE
(please ensure that these instructions are left with the installed unit)
•We recommend routine cleaning of your screen / enclosure with hot water using a soft
cloth, then drying with a dry soft cloth or chamois leather.
Ritec Aftercare for Shower Glass is recomended for best results.
•All glass has been treated with EASY CLEAN glass finish and care must be taken to avoid
any abrasive cleaning products that may damage the special surface protection.
•DO NOT use acidic based de-scaler products or products containing bleaches or solvents.
Digital Torque Wrench
10/2021 V 1.1
VIEW 31DP
Spacers Wall Prole End Cap
x2
Supplied Parts
Inline Panel
x1
Door
x1
Slider Bracket Template
x1
Nylon Block
x1
Pig Nose Adapter
x1
Return Panel
x1
Slider Bar Return Jig
x1
Packers Underframe 90°Connector
x1
10/2021 V 1.1
VIEW 31DP

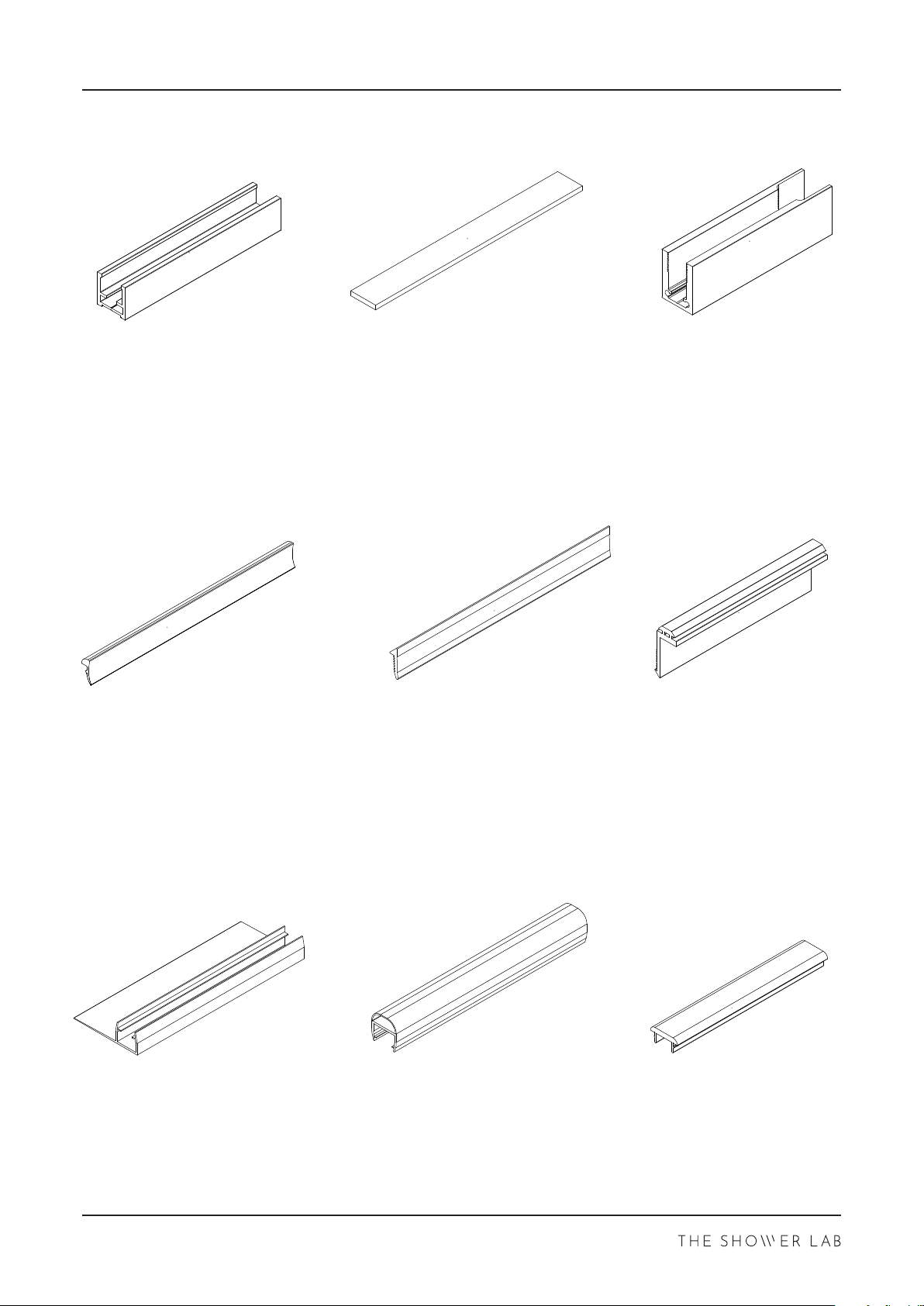

Supplied Parts
Underframe Wedge Gasket
x4
Underframe
x2
Underframe Gasket
x2
Wall Prole
x2
Wall Prole Soft Seal
x2
Wall Prole Rigid Seal
x2
Underframe Top
x1
Glass to Wall Seal
x1
Glass to Glass Slider Seal
x1
10/2021 V 1.1
VIEW 31DP
Slider Door Roller
x2
Slider Panel Fixing
x2
Slider Door Retainer
x2
Slider Door Stop
x2
Slider Wall Bracket
x1
Bottom Door Guide
x1
Supplied Parts
Slider Bar
x1
Slider Return Panel Fixing
x1
Slider Bar Insert
x1
10/2021 V 1.1
VIEW 31DP
These instructions are for the View 31DP.
The following instructions are valid for both the 20mm and 30mm proles. The 30mm prole is
used in the following instructions.

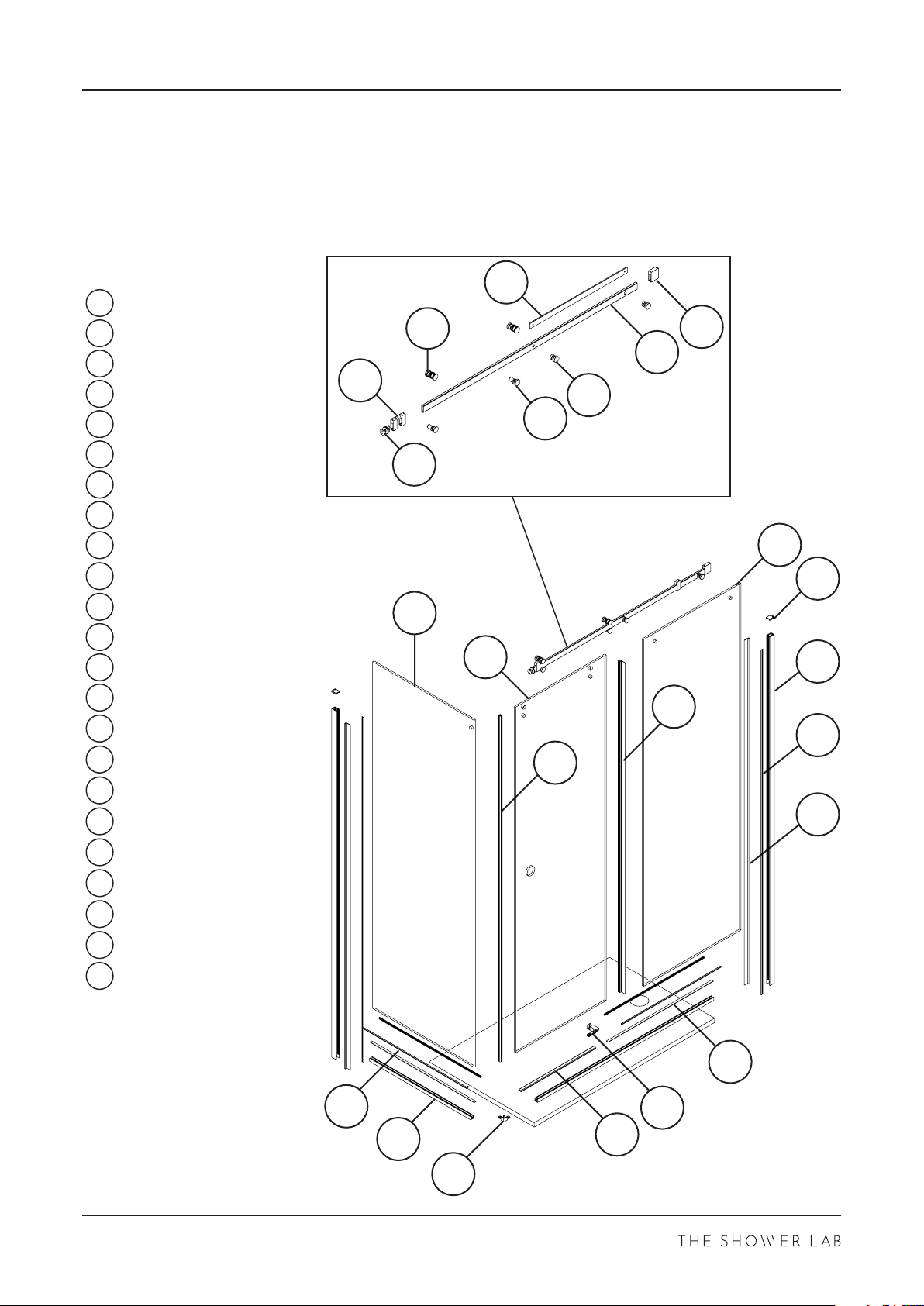

Please use the below diagram to reference the list of parts.
A
B
I
C
H
D
F
E
G
Return Panel
Door Panel
Inline Fixed Panel
Wall Prole End Cap
Wall Prole Soft Seal
Wall Prole Rigid Seal
Underframe Wedge Gasket
Underframe
JUnderframe Top
Wall Prole
N
M
K
L
Underframe 90 Connector
Underframe Gasket
Bottom Door Guide
Glass to Glass Slider Seal
OGlass to Wall Bubble Seal
PSlider Bar
QSlider Bar Insert
RSlider Door Stop
SSlider Wall Bracket
TSlider Door Retainer
USlider Door Roller
VSlider Panel Fixing
WSlider Return Panel Fixing
Q
U
O
E
D
N
L
M
B
J
V
P
T
S
A
G
F
l
H
K
W
C
R
10/2021 V 1.1
VIEW 31DP
]GI 7QGjP .Ijkg[ $dI[Q[O<d $pIgY<d IQOPj
6.ÄÂ/ÂÂÁÉÁ ÂÁÅÃÂÁÉÃ ÈÈÅÈÉÉ ÅÄÁÅÈÁ ÈÁÄÁ ÃÁÁÁ
6.ÄÂ/ÂÂÁÊÁ ÂÁÅÃÂÁÉÃ ÉÈÅÉÉÉ ÅÄÁÅÈÁ ÈÁÄÁ ÃÁÁÁ
6.ÄÂ/ÂÃÁÉÁ ÂÂÅÃÂÂÉÃ ÈÈÅÈÉÉ ÅÉÁÆÃÁ ÈÁÄÁ ÃÁÁÁ
6.ÄÂ/ÂÃÁÊÁ ÂÂÅÃÂÂÉÃ ÉÈÅÉÉÉ ÅÉÁÆÃÁ ÈÁÄÁ ÃÁÁÁ
6.ÄÂ/ÂÄÁÉÁ ÂÃÅÃÂÃÉÃ ÈÈÅÈÉÉ ÆÄÁÆÈÁ ÈÁÄÁ ÃÁÁÁ
6.ÄÂ/ÂÄÁÊÁ ÂÃÅÃÂÃÉÃ ÉÈÅÉÉÉ ÆÄÁÆÈÁ ÈÁÄÁ ÃÁÁÁ
6.ÄÂ/ÂÅÁÉÁ ÂÄÅÃÂÄÉÃ ÈÈÅÈÉÉ ÆÉÁÇÃÁ ÈÂÄÁ ÃÁÁÁ
6.ÄÂ/ÂÅÁÊÁ ÂÄÅÃÂÄÉÃ ÉÈÅÉÉÉ ÆÉÁÇÃÁ ÈÃÄÁ ÃÁÁÁ
6.ÄÂ/ÂÆÁÉÁ ÂÅÅÃÂÅÉÃ ÈÈÅÈÉÉ ÇÄÁÇÈÁ ÈÄÄÁ ÃÁÁÁ
6.ÄÂ/ÂÆÁÊÁ ÂÅÅÃÂÅÉÃ ÉÈÅÉÉÉ ÇÄÁÇÈÁ ÈÅÄÁ ÃÁÁÁ
6.ÄÂ/ÂÇÁÉÁ ÂÆÅÃÂÆÉÃ ÈÈÅÈÉÉ ÇÉÁÈÃÁ ÈÆÄÁ ÃÁÁÁ
6.ÄÂ/ÂÇÁÊÁ ÂÆÅÃÂÆÉÃ ÉÈÅÉÉÉ ÇÉÁÈÃÁ ÈÇÄÁ ÃÁÁÁ
ADJUSTMENT SHEET
LH RH
Enclosure dimensions to OUTSIDE of Wall Profiles - See spec below
Underframe dimensions - (See spec below -3mm Wall Profile Overlap)
STANDARD ENCLOSURES - 30mm (CH30) Wall Profiles
If you have a Bespoke Enclosure, reference the Install Sheet for the panel specifica�ons of the Enclosure.
CH30 - Bespoke Front Width: Door + Panel - 44 = Minimum Width + 54 = Maximum Width
CH30 - Bespoke Return Width: Panel + 17 = Minimum Width + 14 = Maximum Width
CH20 - Bespoke Front Width: Door + Panel - 44 = Minimum Width + 44 = Maximum Width
CH20 - Bespoke Return Width: Panel + 17 = Minimum Width + 4 = Maximum Width
BESPOKE ENCLOSURES - 30mm (CH30)/ 20mm (CH20) Wall Profiles
10/2021 V 1.1
VIEW 31DP
01/15
3mm minimum
Shower Tray
x - 22mm
F
R
01
04
10/2021 V 1.1
VIEW 31DP

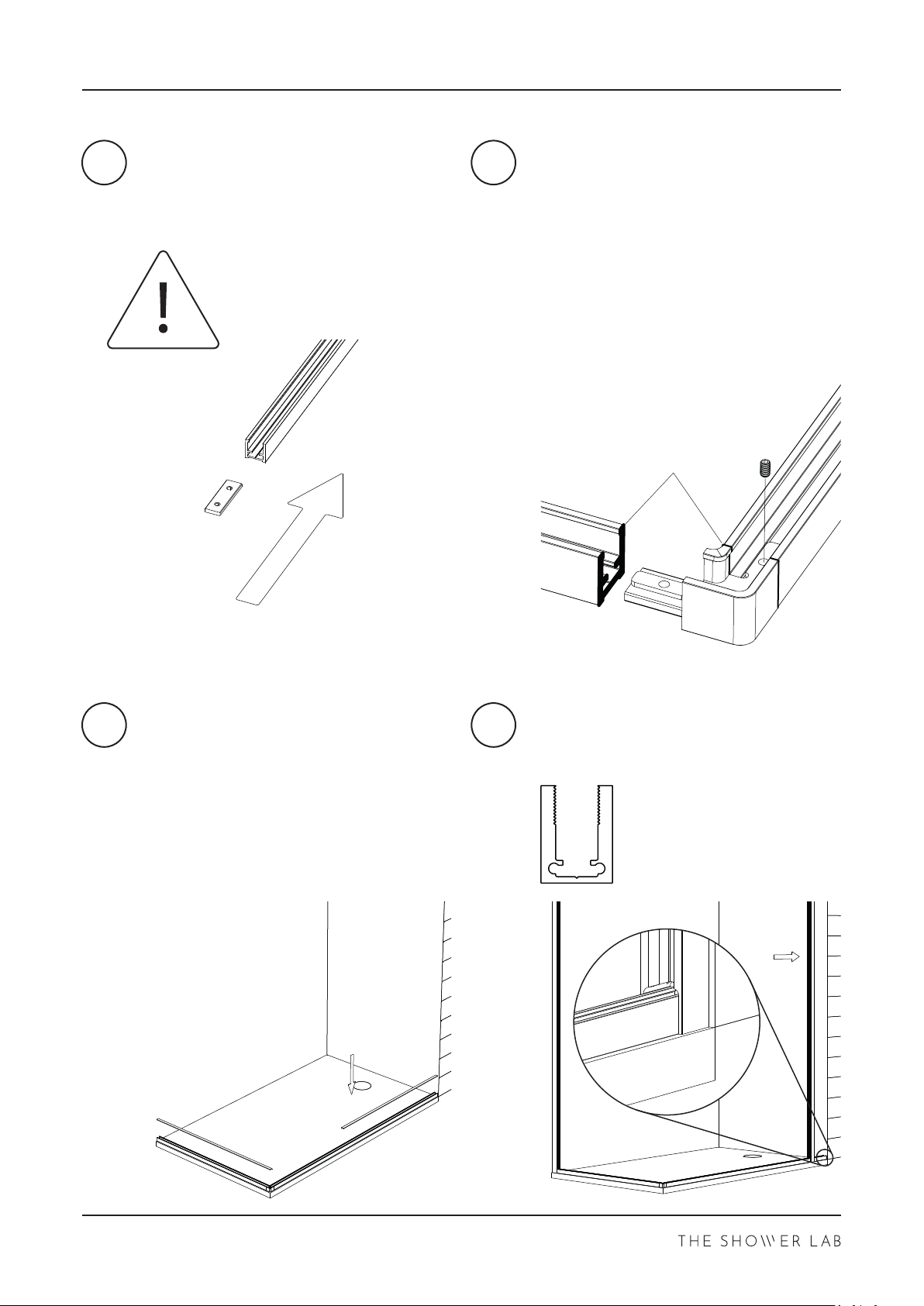

02/15
IMPORTANT STEP
Silicone
10/2021 V 1.1
VIEW 31DP
03/15
Wet Side
Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
09 10
11 12
(No 8) Prole - Wall
(No 6) Prole - Top Cap
10/2021 V 1.1
VIEW 31DP
04/15
13 14
16
4mm
10/2021 V 1.1
VIEW 31DP
05/15

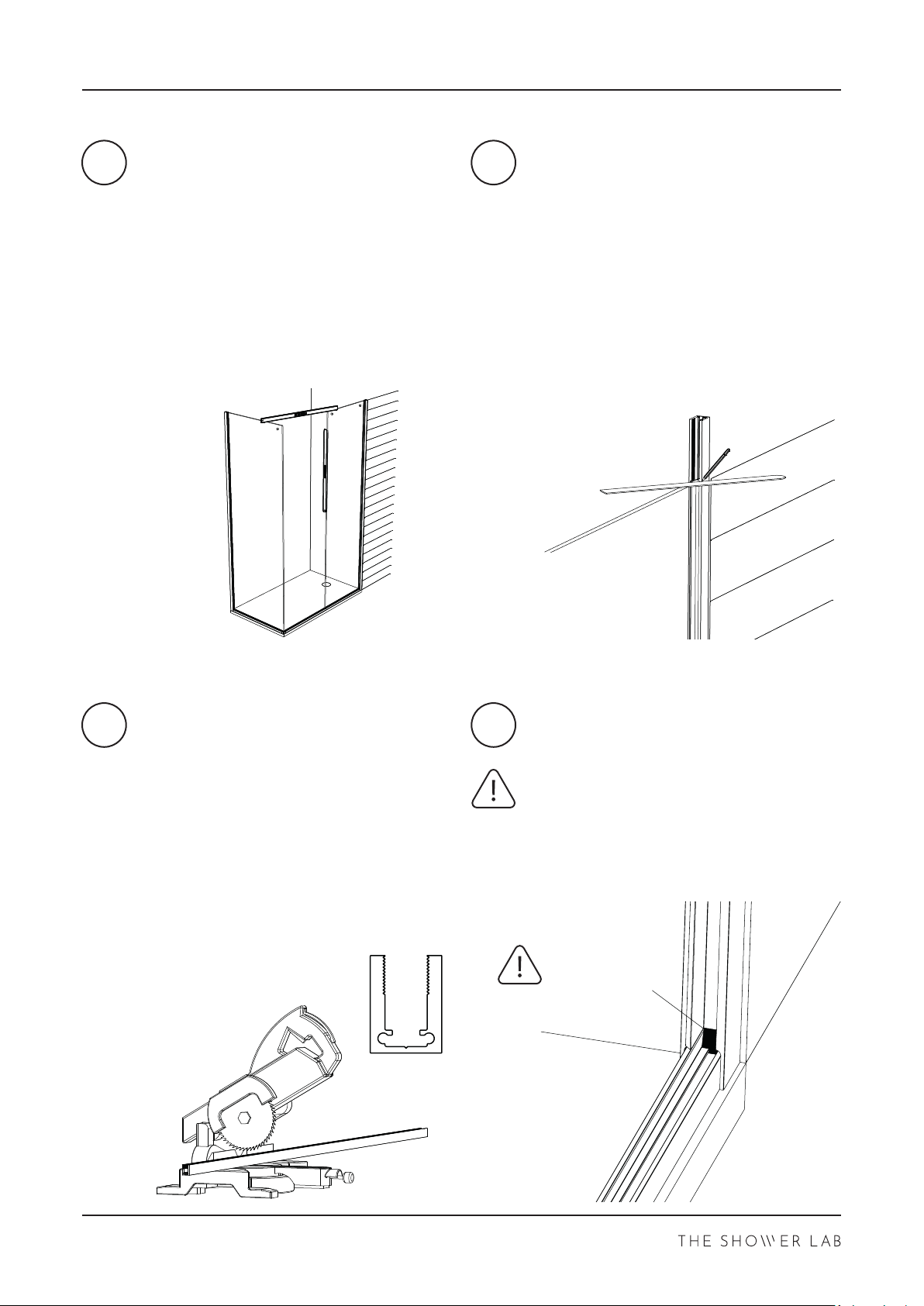

Remove and replace the Panel adding
level the Panel (to a maximum height
of 5mm inside the Underframe).
Check the Panel is level using a Spirit
Level.
Glass Panels, move on to step 21.
the top of the Glass Panels, mark the
be trimmed.
recommended to mark on masking
tape.
careful not to damage the channel
the back.
Re-install the Glass.
Silicone the
inside corner
17 18
19 20
10/2021 V 1.1
VIEW 31DP
06/15
Measure the width of the Door.
Measure the distance from the edge of
the Inline Panel to the inside face of
the Return Panel.
Ensure the door is at least 30mm wider
Panel.
Measure and check the distance from
the Inline Panel to the Return Panel at
To centre the panel, add 1mm Packers
on both sides of Inline Panel and
Return Panel in the Underframe.
recommended)
Apply the Rigid Seals to the dry side of
top.
=
=
Flush
6mm min
Wall ProleGlass Panel
Rigid Seal
Glass Panel
x
21 22
23 24
10/2021 V 1.1
VIEW 31DP
07/15
Gently tap the Wall Profile Rigid Seal
into place using a rubber mallet with
the Nylon Block to protect the Glass
and the Wall Profile.
Remove Inline Packers and feed the
Underframe Wedge Gasket into the
archway gap of the Front Inline Panel
and trace along the Glass on both
sides.
Trim the Wedge Gaskets at the edge of
the Inline Panel.
Trim both of the Wall Profile seals at
the top face of each Wall Profile using a
blade.dimension.
25 26
27 28
10/2021 V 1.1
VIEW 31DP
Fixing Holes
08/15

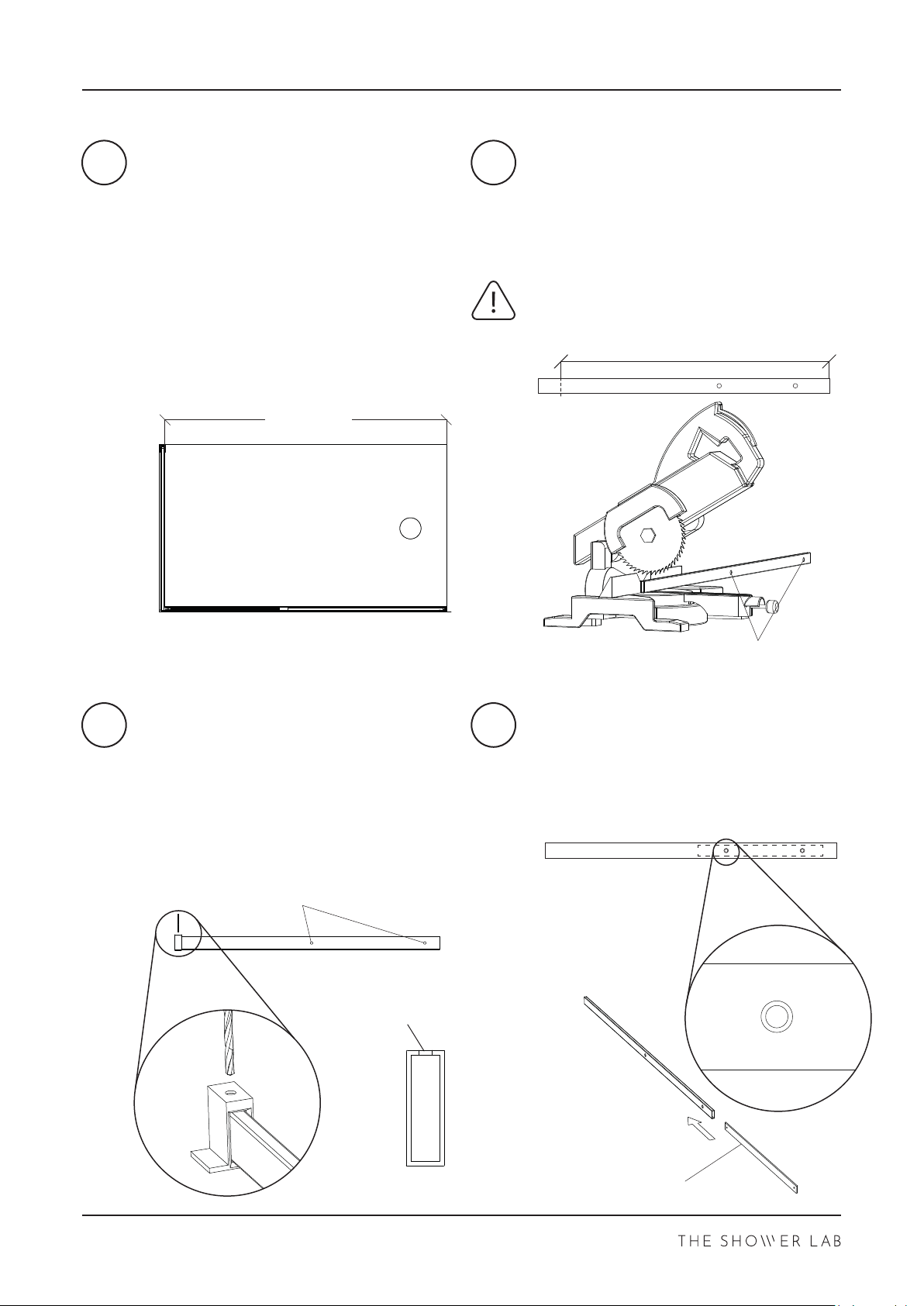

Measure the distance from the wall to
the nearest fixing hole on the Inline
Panel. Ensure this measurement is truly
horizontal.
Subtract 15mm to get your final
dimension.
Mark the final dimension on the Slider
Bar on the fixing hole side.
Cut squarely using a chop saw and
finish the edge.
SLIDER BAR IS STAINLESS STEEL
Use the Slider Rail Bracket Template to
mark the hole posi�ons for the Slider
Rail Bracket on the Wall Profile side of
the enclosure.
Using a Ø6mm high quality drill bit for
a clean and precise hole, drill all holes
and fully insert the wall plugs.
Fix the Slider Wall Bracket in place
using the supplied screws.
x - 15mm
x - 15mm
29 30
31 32
10/2021 V 1.1
VIEW 31DP
Fixing Holes
x
Slider Bar Insert
Drill 1 side only
Fixing Holes
09/15
Measure the distance from the wall to
the inside face of the Return Panel.
Ensure this measurement is truly
horizontal.
Subtract 18mm to get your final
dimension.
Mark the final dimension on the Slider
Bar on the opposite side of the Slider
Bar.
Cut squarely using a chop saw and
finish the edge.
SLIDER BAR IS STAINLESS STEEL
With masking tape applied, place the
supplied Slider Bar Jig firmly at the
trimmed end of the Stay Bar and mark
the hole with a pen.
Drill holes using a 5mm drill bit.
Insert the Slider Bar Insert into the
Slider Bar and ensure that the threaded
holes in the Slider Bar Insert align with
the clearance holes on the Slider Bar.
x - 18mm
33 34
35 36
10/2021 V 1.1
VIEW 31DP
10/15

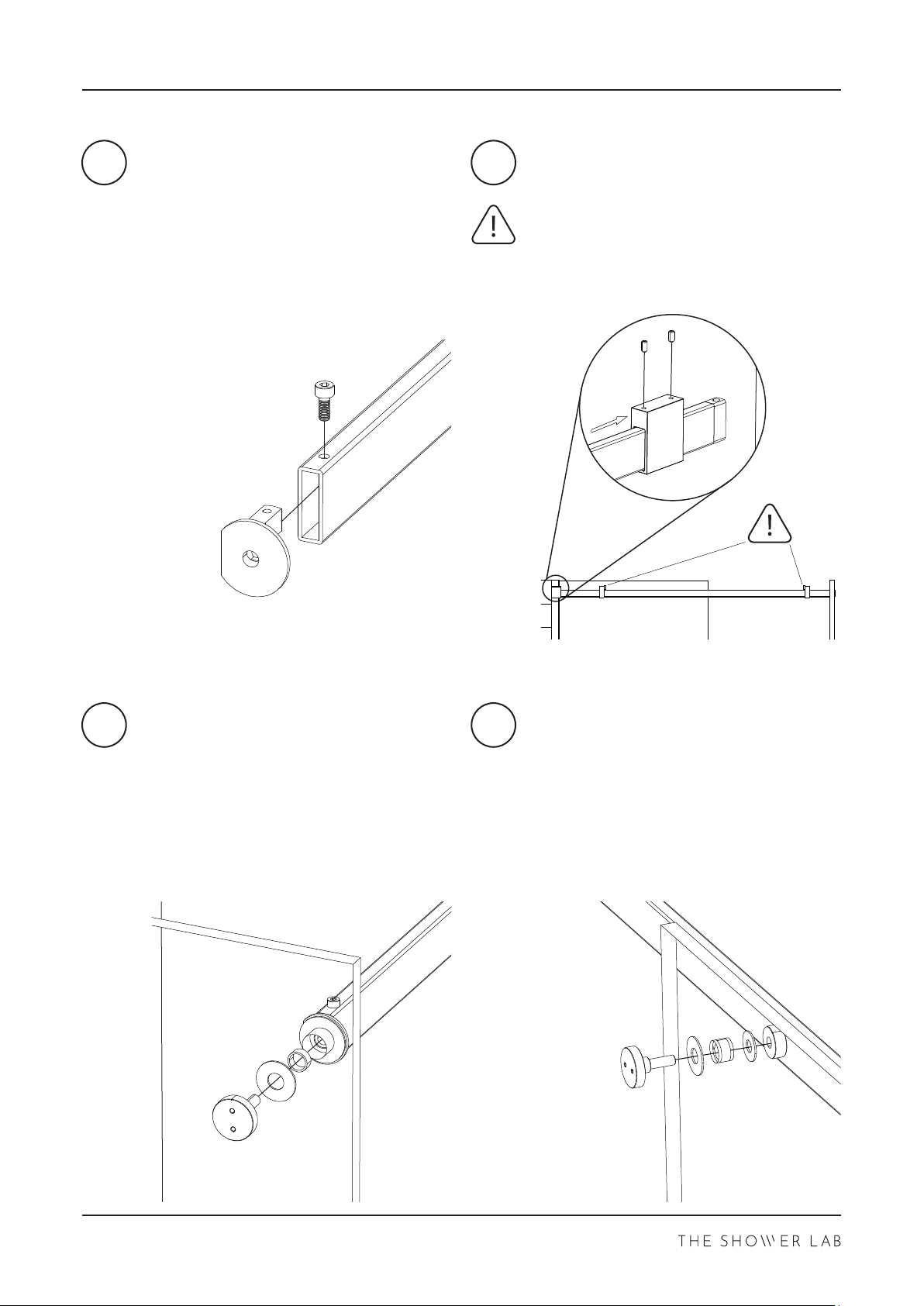

Use the supplied Pan Head Screw to fix
the Slider Return Panel Fixing Bracket
into the Slider Bar.
Slide the Collar over the Wall Bracket
and fix in place.
Ensure the Door Stops are posi�oned
and orientated as shown before
installing the bar. The stops will be
adjusted in a later step.
Fix the Slider Return Panel Fixing to the
Return Panel using the Pig Nose
Adapter.
Fix the Inline Panel to the Slider Bar
using the supplied Fixed Panel Fixings.
Use the supplied Pig Nose Adapter to
fix in place.
37 38
39 40
10/2021 V 1.1
VIEW 31DP
11/15
Plate.
42
43 44
PZ1 Screws
10/2021 V 1.1
VIEW 31DP
Outside of
enclosure
x
12/15
Door Stop
45 46
47 48
10/2021 V 1.1
VIEW 31DP
13/15
Remove Return Panel Packers and feed
the Underframe Wedge Gasket into the
archway gap of the Return Panel and
trace along the Glass on both sides.
Trim the Wedge Gasket where it meets
the Underframe Top.
the Door.
trimmed later.
the Door.
trimmed later.
they can go. With a straight edge, mark
the tops of the Door.
49 50
51 52
Other manuals for VIEW 31DP
1
Table of contents
Other THE SHOWER LAB Bathroom Fixture manuals
THE SHOWER LAB
THE SHOWER LAB VIEW 11 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 19.3H User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 19F User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 03 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 19.3F User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 30 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 06 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 02 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 25 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 31DW User manual
THE SHOWER LAB
THE SHOWER LAB PORTRAIT SLIDER User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 02 VR02S59 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 31DW User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 19H User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 30 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 20 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 23 User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 19.3H User manual
THE SHOWER LAB
THE SHOWER LAB VIEW 03 User manual
THE SHOWER LAB
THE SHOWER LAB VR01S20 User manual
Popular Bathroom Fixture manuals by other brands
Luxier
Luxier SP37-CEC installation guide
Bradley
Bradley Express SS Series installation instructions
Sunshower
Sunshower PURE SOLO manual
Alterna
Alterna U5930S-W-ESA2-M quick guide
Signature Hardware
Signature Hardware PINECREST 946627 quick start guide
Signature Hardware
Signature Hardware Provincetown 948596 quick start guide
KWC
KWC EXOS675X Installation and operating instructions
Hornbach
Hornbach Form & Style Lehua 10581578 installation manual
DURAVIT
DURAVIT Manhattan MH5250 0000 Instructions for mounting and use
Teuco
Teuco 193 Assembly instructions
Sloan
Sloan EBF-825 manual
Glacier bay
Glacier bay HD67499W-6404 Installation and care guide
