Thermo Scientific 1300 Series User manual

1300 Series A2
Class II, Type A2 Biological Safety Cabinet
Operating Manual 7021355 Rev. 18
User Manual
Visit us online to egiste you wa anty
www.the moscientific.com/labwa anty

Thermo Scientific
Preface
1300 Series A2 i
This manual covers the models shown below:
Dear User,
ongratulations on your purchase of a Thermo Scientific 1300 Series lass II, Type A2 biological safety cabinet! Your 1300 Series A2 biological safety
cabinet has been tested and certified in accordance to NSF/ANSI 49, and is designed to protect the user, the environment, and your research from
harmful substances and cross-contamination. This user’s manual provides instructions on how to use the 1300 Series A2 most effectively and safely. A
printed copy of this user’s manual is available from Technical Services, if required.
Containment * Comfort * Convenience™
The 1300 Series A2 offers a unique range of product features that will enhance your safety and improve overall operating efficiency. Should you have
any questions on using this product or need further explanation of any of it’s features, please contact Technical Services (Page iv), or your local
distributor.
Stainless Steel Interior Coated Interior Size Voltage
10 inch opening 8 inch opening 10 inch opening 8 inch opening
1322 1341 1320 1339 3 ft 120V
1323* 1342* 1321* 1340* 3 ft 120V
1345 1305 1355 1325 4 ft 120V
1346 1306 1356 1326 4 ft 230V
1354 4 ft 230V, China
1384* 4 ft 230V, China
1370 1352 1368 1350 5 ft 120V
1371* 1353* 1369* 1351* 5 ft 120V
1347 1307 1357 1327 6 ft 120V
1348 1308 1358 1328 6 ft 230V
1359 6 ft 230V, China
1389* 6 ft 230V, China
1332 1392 1330 1390 3 ft 230V
1333* 1393* 1331* 1391* 3 ft 230V
1375* 1335* 1385* 1395* 4 ft 120V
1376* 1336* 1386* 1396* 4 ft 230V
1382 1366 1380 1372 5 ft 230V
1383* 1367* 1381* 1373* 5 ft 230V
1377* 1337* 1387* 1397* 6 ft 120V
1378* 1338* 1388* 1398* 6 ft 230V
* Includes cabinet, adjustable eig t stand, UV lig t and armrest.
MANUAL NUMBER 7021355
18 ECNM-001017 06/24/2020 Added Maintenance Notes in page 6-1. TFI
17 ECNM-000187 12/03/18 Updated inflow test description and factors TFI
16 41783 11/20/17 Corrected Downflow and Exhaust air dimensions on pages 7-6 & 7-7 IEC
15 41700 8/2/17 Added Drain valve to Fig 1-1, 2-6 bpg
14 40072 7/21/17 Clarified shutdown instructions bpg
13 41335 12/12/16 Added note to Drain Valve installation on page 2-8 ccs
12 40525/ D-1941 9/1/16 Noted SmartPort as option ccs
11 31809 4/6/16 Updated operating hours of the device to filter life meter (pg 1-5) ccs

Thermo Scientificii 1300 Series A2
Preface
Important Read this instruction manual. Failure to read, understand and follow the instructions in this manual
may result in damage to the unit, injury to operating personnel, and poor equipment performance. s
Caution All internal adjustments and maintenance must be performed by qualified service personnel. s
Material in this manual is for information purposes only. The contents and the product it describes are subject
to change without notice. Thermo Fisher Scientific makes no representations or warranties with respect to this
manual. In no event shall Thermo Fisher Scientific be held liable for any damages, direct or incidental, arising
out of or related to the use of this manual.
© 2020 Thermo Fisher Scientific. All rights reserved.
Contains Parts and Assemblies
Susceptible to Damage by
Electrostatic Discharge (ESD)
CAUTION

Thermo Scientific 1300 Series A2 iii Thermo Scientific
Preface
Important operating and/or maintenance instructions. Read the accompanying text carefully.
Potential electrical hazards. Only qualified persons should perform procedures associated with this
symbol.
Equipment being maintained or serviced must be turned off and locked off to prevent possible injury.
Hot surface(s) present which may cause burns to unprotected skin, or to materials which may be
damaged by elevated temperatures.
WEEE ompliance: Thermo Fisher Scientific has contracted with companies for recycling/disposal in
each EU Member State. For further information, send an email to [email protected].
4Always use the proper protective equipment (clothing, gloves, goggles, etc.)
4Always dissipate extreme cold or heat and wear protective clothing.
4Always follow good hygiene practices.
4Each individual is responsible for his or her own safety.

Thermo Scientific
Do You Need Information or Assistance on
Thermo Scientific Products?
If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:
1-740-373-4763 Direct
1-800-438-4851 Toll Free, U.S. and Canada
1-877-213-8051 FAX
http://www.thermofisher.com Internet Worldwide Web Home Page
[e-mail] Tech Support Email Address
Certified Service Web Pagewww.unitylabservices.com
Our staff can provide information on pricing and give you quotations. We canSales Support
take your order and provide delivery information on major equipment items or make
arrangements to have your local sales representative contact you. Our products are listed on the
Internet and we can be contacted through our Internet home page.
Our staff can supply technical information about proper setup, operation orService Support
troubleshooting of your equipment. We can fill your needs for spare or replacement parts or
provide you with on-site service. We can also provide you with a quotation on our Extended
Warranty for your Thermo Scientific products.
Whatever Thermo Scientific products you need or use, we will be happy to discuss your
applications. If you are experiencing technical problems, working together, we will help you
locate the problem and, chances are, correct it yourself...over the telephone without a service
call.
When more extensive service is necessary, we will assist you with direct factory trained
technicians or a qualified service organization for on-the-spot repair. If your service need is
covered by the warranty, we will arrange for the unit to be repaired at our expense and to your
satisfaction.
Regardless of your needs, our professional telephone technicians are available to assist you
Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by
telephone or fax. If you wish to write, our mailing address is:
Thermo Fisher Scientific (Asheville) LLC
401 Millcreek Road, Box 649
Marietta, OH 45750
International customers, please contact your local Thermo Scientific distributor.
iv 1300 Series A2
Preface

1300 Series A2 vThermo Scientific
Table of Contents
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Safety Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
HEPA Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Paper atch Grids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4

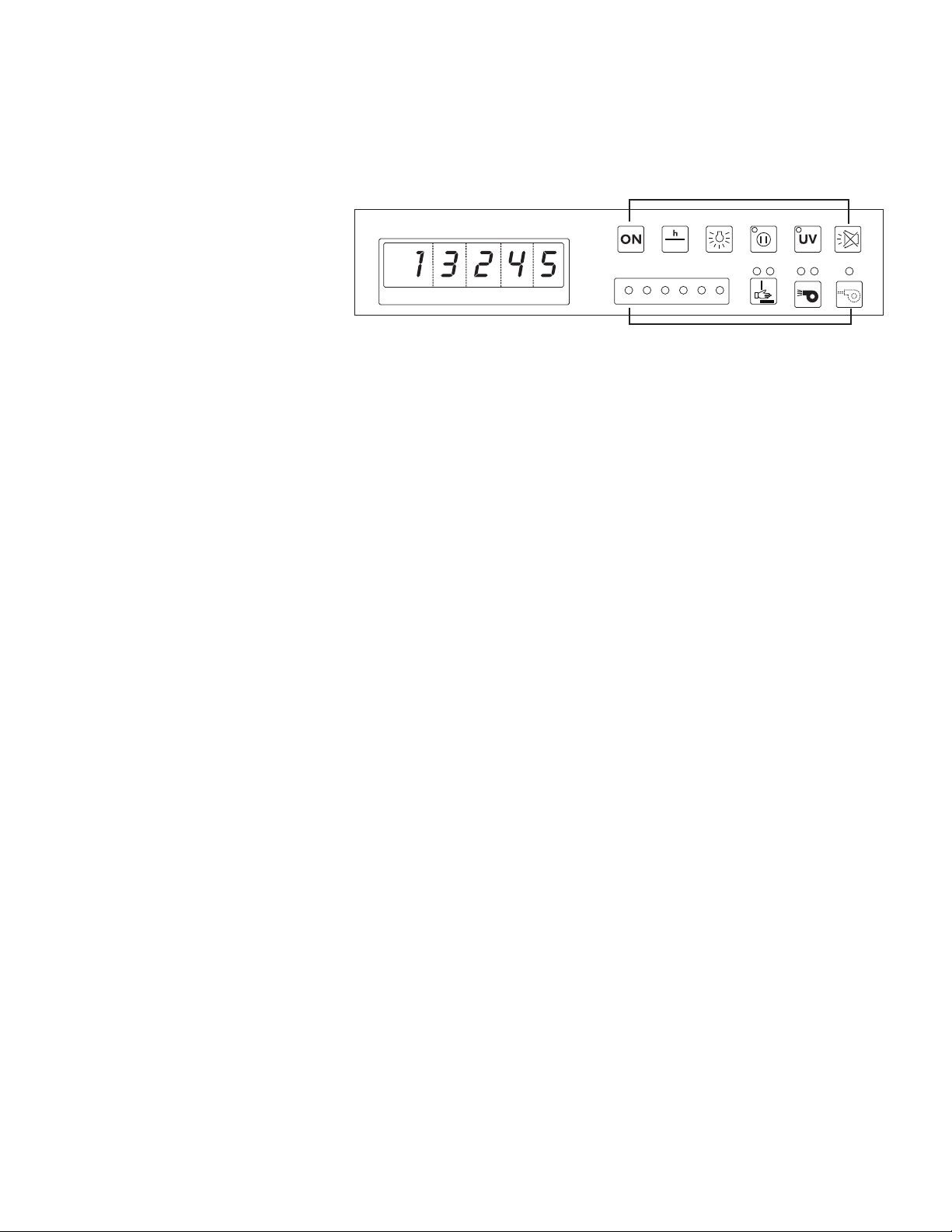

ontrol Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Use of the Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Unit Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8
hamber Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
UV Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10
Work Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

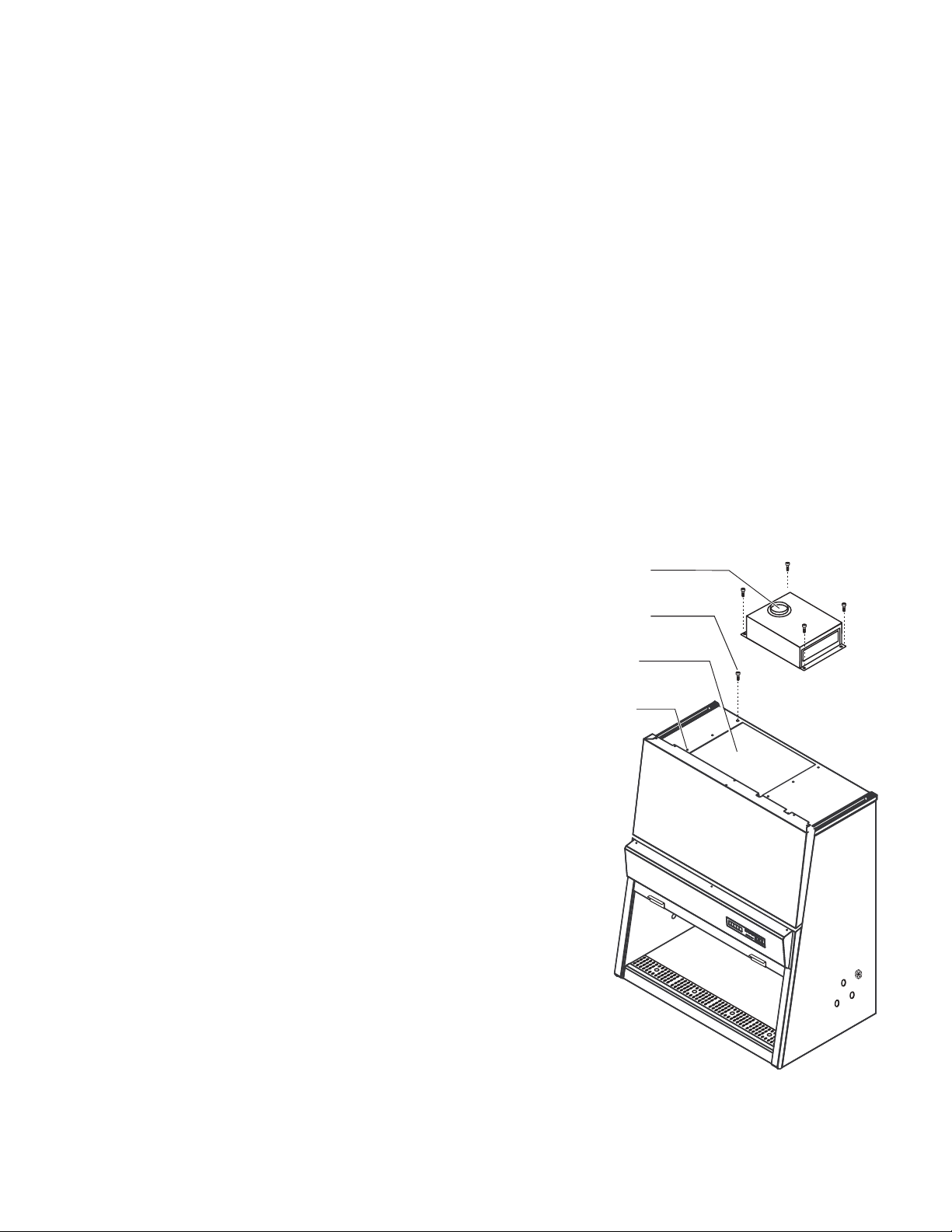

Optional Exhaust Transition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

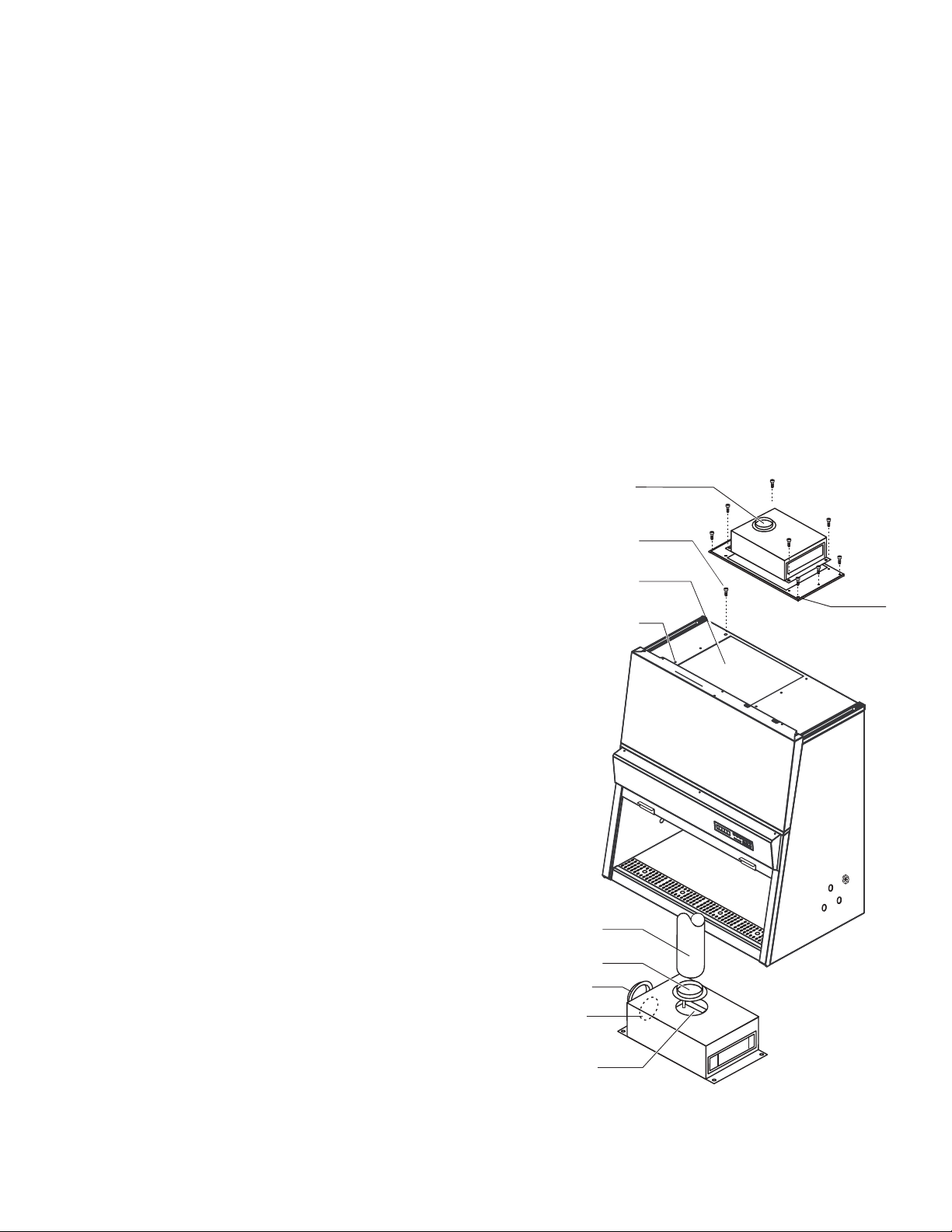

Exhaust System Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Moving the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Service Valve onnections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Universal Piping onnections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7
SmartPort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-8
Drain Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-8
Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Assemble the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Unlock ounterweight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
Level the abinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
Power onnection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Installation Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
Locating a ertifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6
peration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Unit Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Loading the hamber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
Error odes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Working Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Unit Shut-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Extended Periond Shut-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Unit Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Section 1
Section 2
Section 3
Section 4

vi 1300 Series A2 Thermo Scientific
Table of Contents
Cleaning / Decontamination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
are and leaning of Stainless Steel . . . . . . . . . . . . . . . . . . . . . . . . .5-1
leaning and aring for oated Surfaces . . . . . . . . . . . . . . . . . . . . .5-2
Disinfection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
UV Disinfection After leaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
hange the UV Disinfection Time . . . . . . . . . . . . . . . . . . . . . . . . .5-4
Microbiological Space Decontamination . . . . . . . . . . . . . . . . . . . . . .5-4
lean Exterior Surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5
lean Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5
lean the Drain Pan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5
lean the Paper atch Grid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
Sample hamber Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
Optional UV Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
Replacements and Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3
Unit Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
Certification Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
lassification of the Safety abinet . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Test Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2
Test Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-3
Testing Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-3
HEPA Filter Leak Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-10
Filters that can be Accessed and Scanned . . . . . . . . . . . . . . . . . . .8-10
Filters that cannot be Accessed or Scanned . . . . . . . . . . . . . . . . . .8-11
Airflow Pattern Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-11
Elect. Leakage, Ground Resistance, Polarity Tests . . . . . . . . . . . . .8-12
Site Installation Assesment Tests . . . . . . . . . . . . . . . . . . . . . . . . . .8-12
Data Log/Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1
Section 5
Section 6
Section 8
Section 7
Section 9

1300 Series A2 1-1Thermo Scientific
Section 1 Description
The Thermo Scientific 1300 Series A2 offers innovative SmartFlow™
technology; an automatic airflow compensation system that adjusts motor
speed as filters load, without the use of a manual damper. The
SmartFlow™ system ensures safe working conditions, even between annual
certifications.

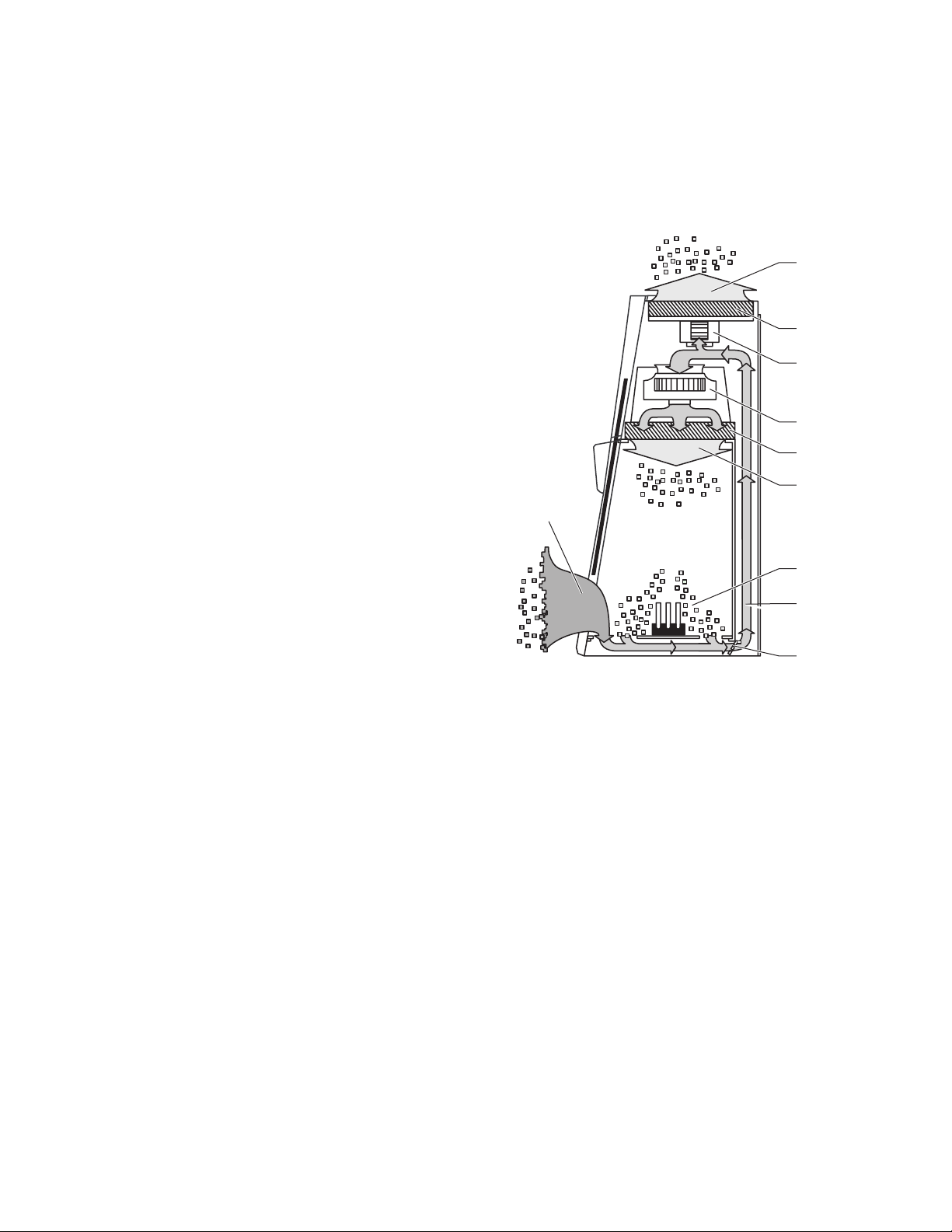

The plenum assembly consists of a plenum for the downflow blower and a
plenum for the exhaust air blower. Each blower includes a filter. The
exhaust air is discharged through an opening in the top of the cabinet.
hamber lighting includes one fluorescent bulb for 4 foot models and two
for 3, 5 & 6 foot models.
The optional, factory-installed UV light is installed in the ceiling at the
front of the sample chamber.

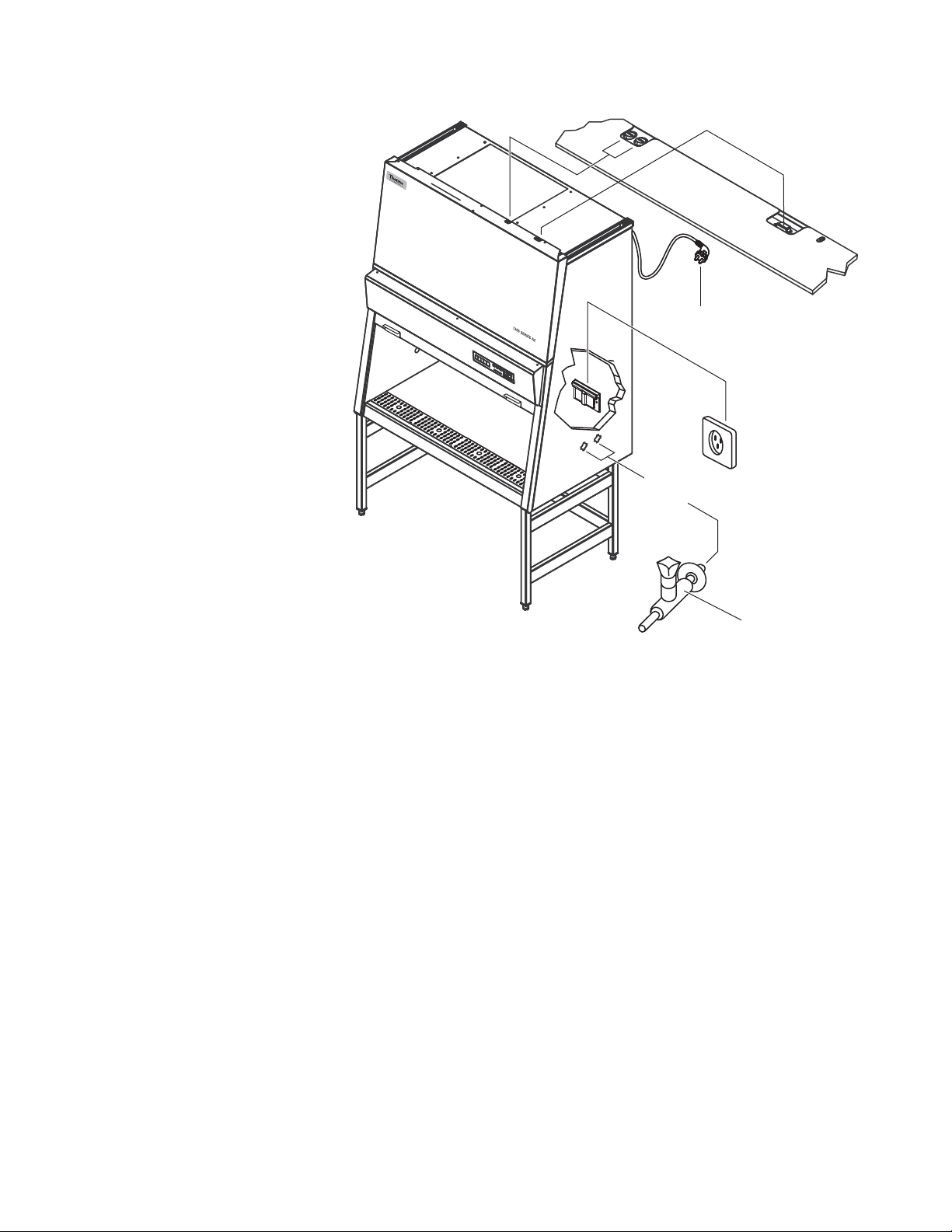

Figure 1-1. Unit Components
WRSDFFHVVSRLQWVULJKWVLGHDFFHVVSRLQWVERWWRPRIFDELQHWDFFHVVSRLQWVERWWRPRIFDELQHWDFFHVVSRLQWVOHIWVLGHDFFHVVSRLQWV
FXIWXQLWVRQO\GUDLQYDOYH

1-2 1300 Series A2 Thermo Scientific
Section 1
Description
Safety Systems
Three service valve access ports are located on each side panel. When
installing service valves, remove the center of the port plugs at the
perforations.
The optional stand may be ordered in two configurations; a manually
adjustable from 30” to 38” working height, and a fixed 34” working
height with attached casters.
A stainless steel one-piece work surface is standard. Optional armrests
ensure a comfortable working position for the user and minimize
blockage of airflow at the front grille.
Internal outlets, provided as the power source for accessories, are provided
standard in the following configuration:
1305, 1307, 1320, 1321, 1322, 1323, 1325, 1327, 1335, 1337, 1339,
1340, 1341, 1342, 1345, 1347, 1350, 1351, 1352, 1353, 1355, 1357,
1368, 1369, 1370, 1371, 1375, 1377, 1385, 1387, 1395, 1397: two
duplex right and left side
1306, 1308, 1326, 1328, 1330, 1331, 1332, 1333, 1336, 1338, 1346,
1348, 1358, 1359, 1366, 1367, 1372, 1373, 1376, 1378, 1380, 1381,
1382, 1383, 1384, 1388, 1389, 1390, 1391, 1392, 1393, 1396, 1398:
two single right and left side
Test hoses (aerosol challenge ports) are located under the work tray. The
supply plenum hose is located on the left and the exhaust plenum hose on
the right.
Note Do not remove the caps of the two test hoses to check for supply
and exhaust airflow. s
Negative pressure air system
A negative pressure air system combines with HEPA filters in the
supply and exhaust airflow for personnel and product protection.
Personnel protection
Inflow air along the entire working opening at a constant high velocity
prevents leakage from the work opening of the chamber.
Exterior air pressure being higher than the internal air pressure creates
negative pressure, ensuring containment in case of cabinet leakage.
Product protection
Steady airflow within the air system ensures constant downflow,
allowing the HEPA filters to remove contaminants so that the samples
are always surrounded by ultra-pure air. Harmful particles are not
carried over the sample chamber (protection from cross-contamination).

1300 Series A2 1-3Thermo Scientific
Section 1
Description
HEPA filters
The downflow air within the chamber and the exhaust air are cleaned by
HEPA filters.
Safety lockout
To protect from UV radiation, the optional UV light will not turn on if
the front window is open. While the UV light is on, the front window
should remain closed. The closed window blocks out the UV rays.
Opening the window will cause the UV light to turn off.
Digital Airflow Verification (DAVe)
Independent monitoring of inflow and downflow air velocities
guarantees that product and personnel protection remain
uncompromised. Airflow monitoring determines the velocity of the
airflow in the sample chamber as well as the inflow velocity of air
through the exhaust opening. As soon as airflow velocities rise above or
fall below a specified safety value, an audible and a visual alarm is
activated.
Window position monitoring
The position sensors detect the size of the front window opening and
indicate whether the window is open to the specified work position,
closed (energy saving) or in an unsafe intermediate position.
SmartFlow Indicator
The SmartFlow Indicator provides assurance that the inflow is balanced
properly. SmartFlow monitors the advanced motor technology adjusting
airflows even as the filter resistances change due to loading or other
influences. The SmartFlow Indicator visually demonstrates the cabinet’s
ability to compensate to maintain personnel protection. Green indicators
show the fan and filters have power and capacity in reserve to respond to
additional demands. Yellow or red indicators show that while the cabinet
is providing personnel and product protection, maintenance should be
scheduled to restore the compensation reserve.
Safety Systems
(continued)

The filter system consists of two HEPA filters for downflow (supply) and
exhaust air.
Room air is drawn into the sample chamber through the work position
window opening. The room air is drawn into the negative pressure drain
pan air duct, then
pulled into the air
plenum in the top
portion of the cabinet.
The room air is mixed
with recirculating
HEPA filtered air from
the chamber, and
filtered proportionally
by the downflow and
exhaust filters. The
filtered air is then
supplied as ultra-pure
air into the sample
chamber of the unit,
and exhausted as
ultra-pure air into the
room environment, or
into an external
exhaust system via an
exhaust transition.
Sectional paper catch grids are installed beneath the work tray in the air
duct between the inner and outer back wall of the unit. These grids
prevent large items such as paper towels and tissues from entering the
plenum where they may impair the function of the blowers or the filters.
The grids can be easily removed for cleaning.
1-4 1300 Series A2 Thermo Scientific
Section 1
Description
HEPA Filters
Ultrapure air
Exhaust air filter
Exhaust blower
Supply blower
Supply filter
Ultrapure air
Downflow
in chamber
Blended air
Paper catch
screens
Room air
Figure 1-2. Airflow Filtering System
Paper Catch Grids

1300 Series A2 1-5Thermo Scientific
Section 1
Description
The control panel is located on the front of the cabinet and consists of
keys, status indicators and a numerical display.
The display with its 5-digit panel shows the following information,
regardless of the activated operating function:
• Filter life meter (reset on filter replacement or attaining 10,000 hours)
• Downflow and inflow air velocities
• Remaining time of the UV disinfection routine
The keys turn functions on or off.
Status indicators show:
• Window work position
• Airflow
• Reduced blower speed
• SmartFlow Indicator
Control Panel
ft/min
SMARTFLOW INDICATOR
Display
Keys
Status Indicators
Figure 1-3. Control Panel

The sample chamber is accessible through various positions of the front
window. The working position of the window is a 8 or 10 inch opening,
+0.25”, -0.75” (depending on model - check data label and first page of
this manual). For loading the chamber, the window opens fully. For
decontamination and energy saving, enter into Night-Set-Back mode by
closing the window. When the window is closed, the blower speed is
reduced, minimizing energy consumption and noise emittance without
compromising particulate containment inside the work chamber.
Note The working and loading window positions are indicated on the user
interface, as controlled by micro switches and displayed by status
indicators on the control panel. s
Use of the Window
1-6 1300 Series A2 Thermo Scientific
Section 1
Description
Window
Window
Pillar dress
panel
Opening height
for cleaning window
Pillar dress
panel
Closed position
Work
position
Max opening for
loading samples
1300 SERIES A2
1300 SERIES A2
Figure 1-4. Window Openings

To place the window at the work position, move it to the area of the top
‘dimple’ (Figure 1-5) and watch for the GREEN sash position height
indicator to illuminate (Figure 1-6). If the window is moved from the the
work position, the sash height indicator will turn RED.
To place the window in the closed or reduced mode position, move it to
the area of the lower ‘dimple’ (Figure 1-7) and watch for the BLUE
reduced mode indicator to illuminate (Figure1-8). If the window is not
positioned correctly, or is moved from the closed position, the BLUE
indicator will be extinguished. When the BLUE reduced mode indicator
is not illuminated, the unit will not operate in reduced mode, and the
optional UV light will not function.
1300 Series A2 1-7Thermo Scientific
Section 1
Description
Use of the Window
(continued)
Figure 1-5. Work Position Figure 1-6. Lighted Green LED
Figure 1-7. Fully Closed Position (UV, if applicable) Figure 1-8. Lighted Blue LED
dimple
dimple

1-8 1300 Series A2 Thermo Scientific
Section 1
Description
Our patented-pending Smart lean™ window design easily lowers below
the work position for replacing the sample chamber light bulbs.
Caution If the front window jams or is sluggish to move, do not use force!
ontact Technical Services immediately. Do not attempt to repair this
problem. s
The standard unit includes accessory outlets, service valve access ports, an
RS-232 connection and a remote alarm connection.
The power cord to be connected to the power source is located on the top,
near the front of the cabinet.
The accessory outlets (max 5A) are located on the interior chamber back
wall.
On top of the cabinet are the two fuseholders for the 5 A accessory outlet
fuses and an RS-232 connection (signal source, not customer interface).
Service valve access ports are located on each side of the cabinet. To use
these ports, remove the center perforation. Service valves are available as
optional accessories.
The remote alarm accessory can be used for notification of window
movement or access.
Warning If a gas burner is to be operated in the sample chamber, an
appropriate shut-off valve for the gas supply must be installed. Use only
laboratory safe burners in the sample chamber. s
Use of the Window
(continued)
Unit Interface

1300 Series A2 1-9Thermo Scientific
Section 1
Description
The Thermo Scientific 1300 Series A2 offers a bright workspace for a
more comfortable working environment. Models with coated rear and
side walls resist glare and make it easier for the user to work safely.
Lighting for the sample chamber includes one fluorescent bulb for 4 foot
units, and two bulbs for 3, 5 & 6 foot units. The bulb(s) is installed
behind the light canopy.
Service
valve
Access
ports
Power cord
RS-232
Fuses
N
L
Accessory outlet
(1 of 2 shown)
Figure 1-9. Interfaces (2 of 4 access ports are shown)
Chamber Lighting
Unit Interface
(continued)

1-10 1300 Series A2 Thermo Scientific
Section 1
Description
The optional, factory-
installed UV light is
installed at the top of the
front section of the sample
chamber.
The operating time of the
UV light is preset for 1
hour. The UV disinfection
procedure can be started by
pressing the “UV” key on
the control panel with the
window in the closed
position. If the window is
opened, the procedure is
immediately cancelled.
Note To protect from UV radiation, the UV light can only be turned on
when the window is completely closed. s
The single piece work tray is provided with the cabinet. It is placed onto
the frame above the sample chamber drain pan. It can be removed by
lifting up, using the large holes in the work tray.
The working area for optimal product protection extends over the entire
width and depth of the work tray. The two optional armrests are
positioned in the center of the working area 8 inches (20 cm) from each
other. To attach the armrests, insert into the first perforated track of the
work tray.
Warning Work safety is assured only if the armrests are used correctly! s
Work Area
UV Lights
Figure 1-10. Lights
Width
Depth
Perforation
track
Armrest
Armrest
Separation
distance
Perforation
track
Work tray
Figure 1-11. Work tray

1300 Series A2 2-1Thermo Scientific
Section 2 Installation
The operational safety and proper function of the unit depend on the
location where it is to be operated. The cabinet should be operated only in
the ambient conditions listed below.
• Up to 6562 ft. (2000 m) above sea level.
• Power outlet accessible to authorized personnel only. Ideally, the outlet
should be installed above the biological safety cabinet. The power cord
is the mains disconnect.
• Location capable of supporting the weight of the device and
non-flammable.
• If the factory-approved stand is not purchased, the holding device must
be rated for twice the cabinet weight.
• Adequate room height. For devices that are not connected to an
exhaust system, the distance between the exhaust air opening at the
device and the room ceiling must be at least 8 inches (200 mm).
• Equipped with an appropriate ventilation system.
• Room temperature between 10° and 40° (50°F and 104°F).
• Relative humidity must not exceed 80%, up to 31° and decreasing
linearly to 50% at 40° .
• For indoor use only.
Room ventilation should preferably be a ventilation system that complies
with the national requirements for the application.
The inlet air and exhaust air openings of the room ventilation must be
located so that drafts do not impair the function of the biological safety
cabinet air system.
When positioning the cabinet, make sure the counterweight on the back of
the unit can move freely. The minimal distance to the wall or adjacent
objects should be 3 inches (7.6 cm), unless upper wall brackets are used.

The part numbers for the optional thimble exhaust connection are
1911316 for three, four & five foot units, and 1911317 for six foot units.
The test conditions according to NSF/ANSI 49 were performed with the
standard version of the safety cabinet, without exhaust system accessories.
An available accessory for the biological safety cabinet exhaust system is an
exhaust thimble connection for an on-site exhaust system with blower.
According to NSF/ANSI Standard 49, an exhaust alarm is required with
this connection.
The exhaust system components are installed to the exhaust opening on
top of the cabinet. The threaded inserts for the retaining screws are
pre-installed in the unit.
Installation on 3, 4 and 5 ft. models:
1. Turn the unit off and disconnect it from the power source.
2. Thoroughly clean the surfaces
around the exhaust opening and
of the accessory to be installed, to
ensure that they are free of debris.
3. Secure the accessory by tightening
the supplied retaining screws
(M5) wrench-tight.
4. Using the adjustment nuts on the
sliding panel, set the gap height
to an opening of 2 inches.
2-2 1300 Series A2 Thermo Scientific
Section 2
Installation
ptional Exhaust
Transition
Exhaust System
Accessories
Thimble
Retaining
screws
Exhaust
opening
Threaded
inserts
Figure 2-1. 4 ft Thimble

The exhaust thimble connection is installed to the top of the cabinet using
an additional adapter. The threaded inserts for the retaining screws of the
adapter are pre-installed to the top of the cabinet.
Installation on a 6 ft. model:
1. Turn the unit off and disconnect it from the power source.
2. lean the contact surfaces around the exhaust opening, and the upper
and lower contact surfaces of the adapter thoroughly to ensure that all
grease and dust residue are removed.
3. Secure the adapter to the pre-installed threaded inserts on top of the
cabinet using the supplied four retaining screws. Tighten the screws
hand-tight.
4. Secure the accessory by tightening the supplied retaining screws (M 5)
wrench-tight.
5. Using the adjustment nuts
on the sliding panel, set
the gap height to an
opening of 2 inches.
1. Place the connecting
sleeve onto the connecting
opening of the accessory
and secure it with the
screws.
2. Fit the connecting pipe
(200 mm [8 in]) of the
on-site exhaust air system
to the connecting sleeve.
3. Seal the unused
connecting opening with
the cover. Place the cover
onto the connecting
opening at the housing
and secure it with the
screws.
1300 Series A2 2-3Thermo Scientific
Section 2
Installation
Connecting Sleeve
Exhaust System
Accessories (continued)
Thimble
Retaining
screws
Exhaust
opening
Threaded
inserts
Pipe
Sleeve
Cover
Sleeve
Opening
Adapter
Figure 2-2. 6 ft Thimble and Sleeve
