THOMSON DFT-6600 User manual

DFT-6600
Battery Charger-Discharger
Users Manual
THOMSON TECH CO LTD
www.thomsontesting.com

DFT-6600 Battery Charger-Discharger Users Manual
1
Table of Contents
Introduction...................................................................................................................................................................2
Use notice & Reading tips ....................................................................................................................................................4
Chapter 1 Overview..............................................................................................................................................................6
1.1. DFT-6600 Tester Usage .........................................................................................................................................6
1.2. DFT-6600 Tester Functions....................................................................................................................................7
1.3. DFT-6600 Tester Features......................................................................................................................................8
1.4. Working schematic diagram...................................................................................................................................9
1.5. DFT-6600 Tester series Technical index................................................................................................................9
Chapter 2 Shape and structure ............................................................................................................................................11

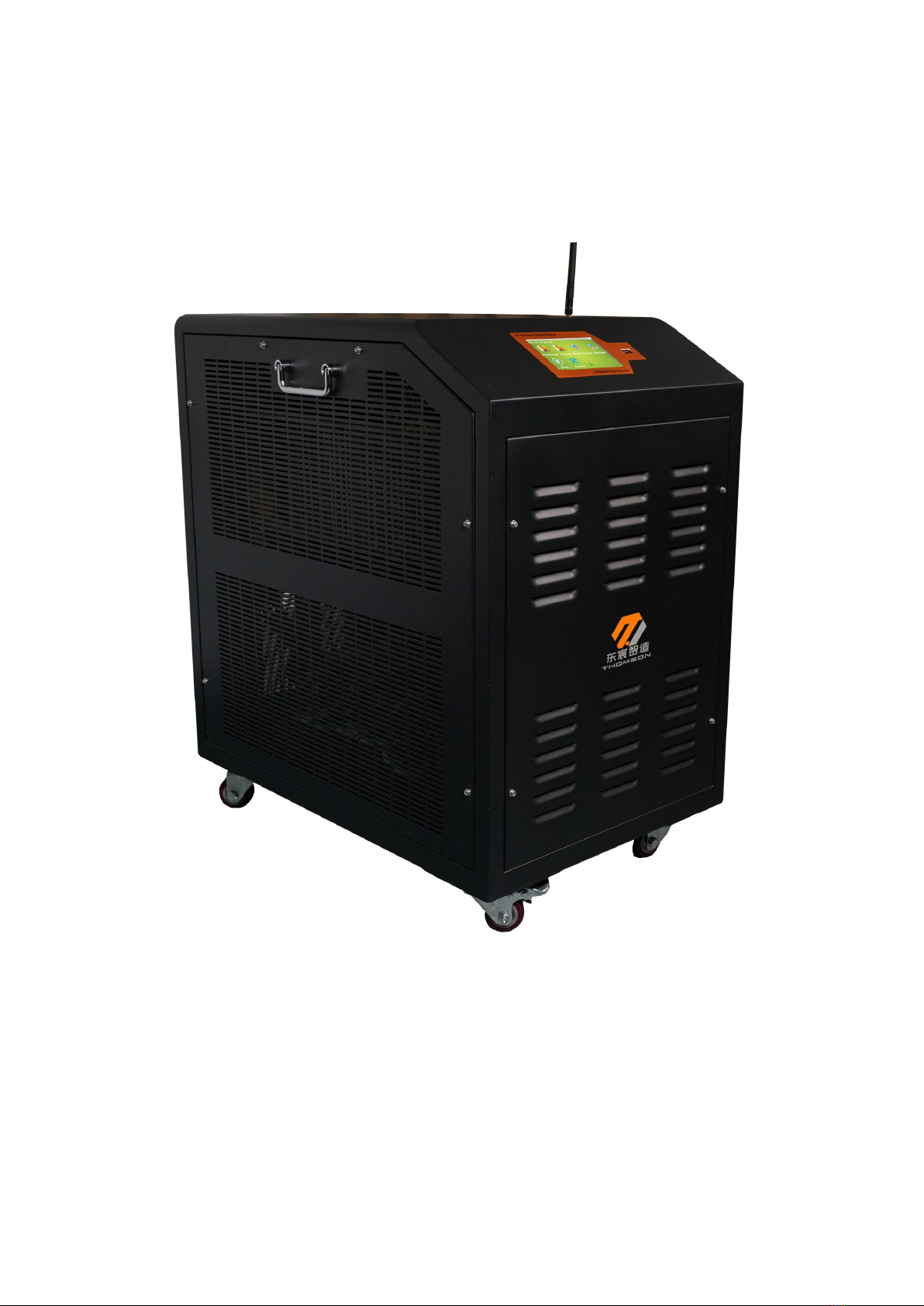

2.1.The host schematic diagram：..............................................................................................................................11

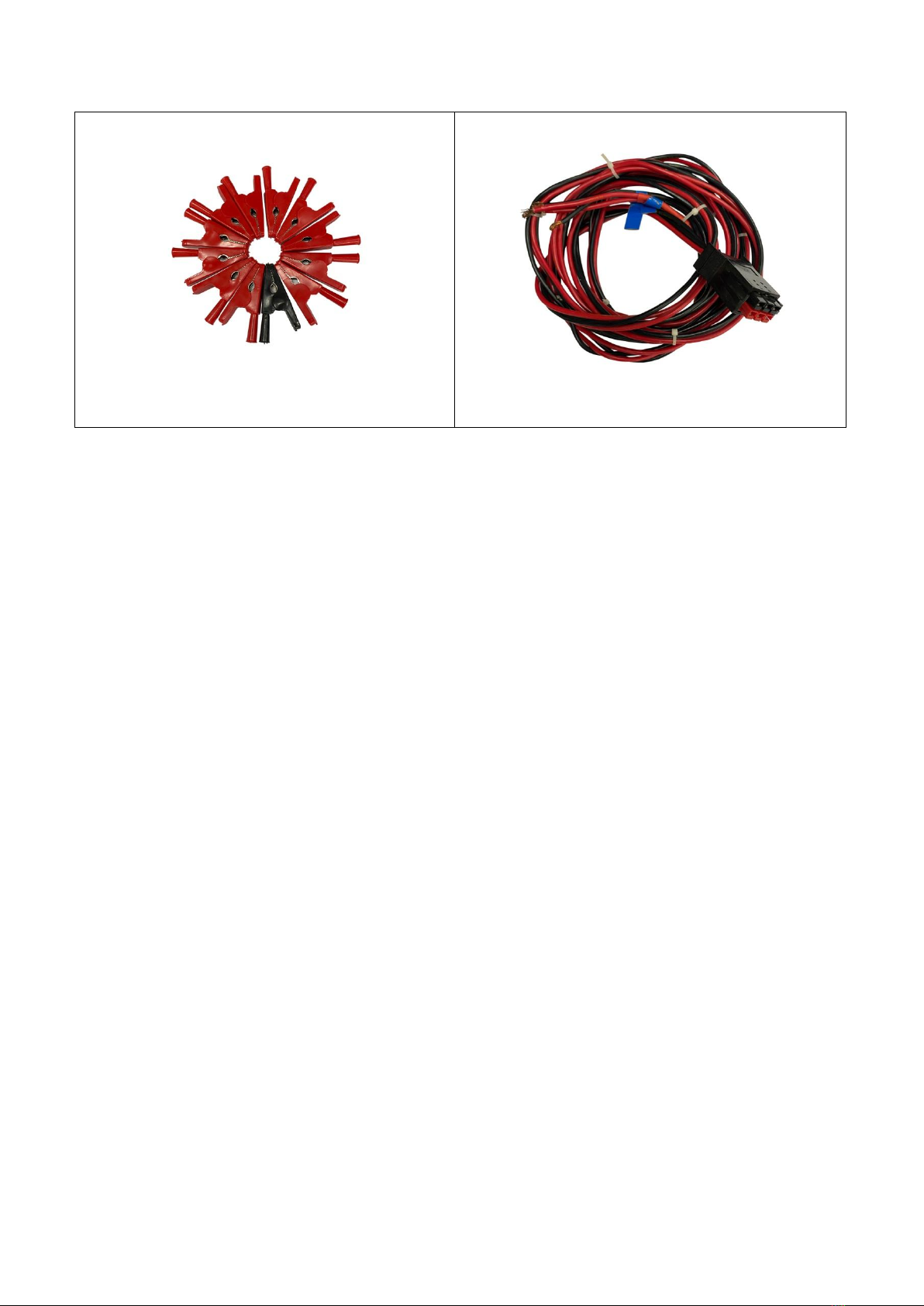

2.2. Package List.........................................................................................................................................................12
Chapter 3 Connection .........................................................................................................................................................15
3.1.Preparations ..........................................................................................................................................................15
3.2. Host connection ...................................................................................................................................................15
3.3. Cell-Data-Case connection ..................................................................................................................................18
3.4. Running................................................................................................................................................................18
Chapter 4 Functions and operating procedures...................................................................................................................19
4.1. Starting Boot........................................................................................................................................................19
4.2. Battery Discharge.................................................................................................................................................19
4.3. Battery Charge .....................................................................................................................................................20
4.4. Discharge & Charge Cycle (optional):.................................................................................................................22
4.5. Data management ................................................................................................................................................22
4.6. System settings ....................................................................................................................................................24
Chapter 5 Routine maintenance..........................................................................................................................................26
5.1. Cleaning maintenance..........................................................................................................................................26
5.2. Storage.................................................................................................................................................................26

DFT-6600 Battery Charger-Discharger Users Manual
2
Introduction
The DFT-6600 Tester is specially designed for verification discharge testing, capacity testing, daily battery string
maintenance, engineering acceptance and other DC power supply load capacity testing of battery string:
Using the latest Wi-fi communication technology, the battery discharge process can be monitored in real time
through the PC monitoring software, and the discharge process of each battery can be monitored.
The power consumption part adopts the new efficient resistor as the discharge load, which completely avoids
the red-heat phenomenon for more safe and reliable and nonpolluting.
The whole tester is controlled by a microprocessor on LCD display & English menu.
The host design is novel, small size, light weight and portable.
The entire constant current discharge process is automatically completed after the various discharge
parameters are set,
Fully smart control to make the entire discharge process safer.
The DFT-6600 Tester is to make the discharge test work simple and easy, which is not only to greatly reduce the
labor intensity of professional maintenance personnel, but also to improve the scientific and smart control
discharge testing.
The DFT-6600 Tester combines battery testing technology, Wi-Fi communication technology, computer
information processing and other technologies, to launch a new generation of discharge tester with Wi-Fi
single-cell detection functions:
By the use of Wi-Fi transmission single-cell voltage acquisition system, it can be short distance Wi-Fi
communication transmission data, data acquisition speed, high precision, strong anti-interference ability, easy
operate, which can also record the battery discharge process of each time period of voltage changes, and effectively
avoid the error caused by the connection and connection cable damage and other safety hazards.
The single-cell bridge voltage Wi-Fi collection between the battery connection wire is to ensure that even if
individual connectors loose in the discharge process may cause large connection resistance, it can also monitor
individual voltage abnormalities, Eliminate hidden dangers in time, and prevent major accidents such as fire caused
by overheating at the joint, which enhance the stability and reliability of the system, and expand the use scope of
the DFT-6600 Tester.

DFT-6600 Battery Charger-Discharger Users Manual
3
There are traditional main 2 ways to monitor the voltage of a single-cell: manual and wired automatic
measurement.
Due to manual measurement inability to achieve continuous and synchronous in time with more human error and
low precision, it is impossible to make a more accurate and objective judgment on the performance of the battery,
and the workload is large.
Although the wired automatic measurement improves the speed and accuracy of data acquisition and reduces the
workload relative to manual measurement, but there are more connections and complex operations, taking the
detection of a string of 24 single-cells as an example, it is necessary to lead 25 single test cables from the host to
connect to the battery string, and its length is less than one tester, more than ten tester, which not only increases the
purchase cost of the users, but also because the connection cable is more and longer, it is easy to cause connection
errors, and it is impossible to avoid the safety hazards such as connection cable damage.
The tester is used of single-cell detection & string dishing with Wi-Fi transmission single-cell voltage acquisition
system, which effectively overcomes the shortcomings of the traditional single-cell battery voltage monitoring
method. Wi-Fi transmission single-cell voltage acquisition system, each Wi-Fi transmission single-cell voltage
acquisition system can simultaneously collect multiple sections of single-cell voltage, and Wi-Fi send the detection
results to the host, convenient for the construction of the test environment and measurement control and data
distribution.
So the use of new single-cell detection & entire string discharge tester to monitor the single-cell, without the need
to connect the single-cell and the host, you can directly detect, easy use, reduce the purchase cost of users

DFT-6600 Battery Charger-Discharger Users Manual
4
Use notice & Reading tips
Use notice
This manual is intended to guide the user in operating the DFT-6600 Tester.
The operator must have the qualification of electrician or above.
The operator should pay special attention to the safety of personnel and equipment during use.
The DFT-6600 Tester belongs to the precision test equipment, in the process of use should be lightly handled,
do not throw and throw, the result of the light will lead to the deformation of the shell, the heavy will lead to
the failure of internal components, affecting normal use.
Avoid splashing liquids onto the surface of the smart control discharge monitoring DFT-6600 Tester to avoid
permanent damage caused by entering the system, and flammable gases may cause explosions.
For your safety, please read the entire contents of this manual before operating the DFT-6600 Tester. The surveyor
should be familiar with the characteristics of the system under test. It is important to take the correct testing steps to
avoid injury to yourself and others in the work area and to detect damage to your equipment.
Ensure that the operator has a comprehensive understanding of the battery, charging system and relative device
starting before using this tester. Before using this tester, be sure to refer to and follow the relevant safety
precautions and test procedures provided by the THOMSON of the equipment under test.
Safety Information: Security information is used to avoid casualties and damage to equipment.
Reading & understanding and comply with the safety information and instructions in this instruction manual,
including follows:
Dangerous! Indicates a very urgent and dangerous situation that could result in serious casualties if not avoided.
Warning! Indicates a potentially dangerous situation that could result in serious casualties if not avoided.
Note! Indicates a potentially dangerous situation that may result in general personal injury if not avoided.
Significant! Indicates a potentially hazardous situation that could result in damage to the test equipment if not
avoided.
Prompt! Do not operate the Air (Control) Switch during discharge

DFT-6600 Battery Charger-Discharger Users Manual
5
Important safety guidelines
Warning
Explosion hazard! The gas produced by the battery is extremely explosive.
Reading & understanding and follow all guidelines with the tester, battery, and any other equipment near the
battery.
No Smoking & No lighting matches, and placing metal tools near or creating sparks near the battery are
prohibited.
The terminals should be cleaned before using the tester. Take care to protect your eyes, nose and mouth when
cleaning. Soda and water can be used to neutralize acidity to reduce the corrosiveness of the air.
Do not place the tester in rain or snow or in a humid environment.
Do not allow battery gas or sulfuric acid to touch the tester's housing.
Never charging, testing, or loading to a frozen battery. The battery should be thawed and warmed to room
temperature before performing the above operations. Charging or testing a frozen battery can cause the battery
to explode and injure people.
Before performing the test, confirm that all test connectors are connected according to the guidelines.
Make sure that the two battery clips are securely connected to the battery.
Battery explosions can cause casualties.
Warning!
Prevent burns
The current generated by the battery short circuit is enough to melt down various ornaments and make them weld
to metal. So please remove various ornaments while working near the battery.
Any short circuit will result in injuries!!!

DFT-6600 Battery Charger-Discharger Users Manual
6
Chapter 1 Overview
1.1. DFT-6600 Tester Usage
This DFT-6600 Tester can charging, discharge, single body detection, online monitoring and activation as 5-in-1
multi-purpose, which Reduce the cost and reduce the labor intensity of maintenance personnel, and provide
comprehensive scientific detection methods for battery and UPS power maintenance.
This DFT-6600 Tester adopts new power consumption components, patented technology manufacturing, to
achieve constant current discharge,
smart 3-stage charging, equal-charge / float-charge, constant current / constant voltage automatic conversion
function;
Real-time online circuit detection of the voltage of each single-cell or the entire String of batteries,
real-time online display, detection, recording of the voltage of a single-cell or the entire String of batteries,
storing or transmitting the data to the PC; Large-screen LCD display, full English menu prompts, easy to
operate, high degree of smart,
set and control voltage, current, time, capacity and other parameters, automatically complete the test and
monitoring of various parameters of the battery string;
Automatic discharge/charging, which can activate the battery and extend the service life of the battery.
After charging/discharging, the detected data can be directly uploaded to the PC through the RS232 interface
or transferred to the U-disk on site;
The supporting data processing software processes the data information collected by the discharge/charging,
analyzes the remaining capacity of the battery, and generates various charts, which provides a scientific basis
for analyzing the performance of the battery.

DFT-6600 Battery Charger-Discharger Users Manual
7
1.2. DFT-6600 Tester Functions
LCD touch screen display with full English menu prompts, easy to operate with high automation, it can set the
Parameters of voltage, current, Tim, capacity, cycles No. and etc, and automatically complete the test monitor
of various parameters of the battery string.
Real-time online monitoring function: real-time online monitoring, display all test data: current, battery
string voltage, single-cell voltage, time, capacity, etc., while storing and transmitting the data to the PC,
displaying and printing various charts.
Automatic discharge & charging function: It can set the high limit and low limit of the current, duration,
capacity and voltage of the discharge/charge, and can cycle the discharge and charging process.
Battery activation function: Set the discharge and charging cycles No., and activate the battery string.
Automatic Stop function: It can automatically stop discharging/charging when any of the following
conditions are met: time to, capacity to, single-cell protection voltage to and the whole String of battery
protection voltage to.
Protection function: If there is a voltage abnormality, automatically stop charging or discharging.
Calibration correction function of voltage and current display value: It mainly calibrates the total voltage,
current and single-cell voltage of the battery string.
U-disk data transfer function: charging, discharging, automatic discharge or after the end of battery
activation, the collected data can be transferred to the U-disk, and then the U-disk will put / charge the
collected data transferred to the PC, after the supporting data processing software processing, display, print a
variety of charts. Provide a scientific basis for judging the advantages and disadvantages of whole Strings or
Single batteries.

DFT-6600 Battery Charger-Discharger Users Manual
8

1.3. DFT-6600 Tester Features
5- in-one of charging, discharging, single-cell detection, online monitoring and activation with complete
functions as one DFT-6600 Tester for multi-purpose.
Smart three-stage charging, constant current discharge, real-time online circuit detection of each single-cell
parameters.
The power consumption component adopts new efficient resistor, which is safe & redfree heat phenomenon
and has a long life.
The application of single-chip microcomputer to U-disk data transfer technology solves the problem of
large-capacity data storage.
After the end of charging/discharging, the data can be automatically generated after the data is transferred by
the U-disk or uploaded by the RS232 interface to the computer background processing, and the battery
performance is clear at a glance.
Portable design, convenient for users with strong mobility.

DFT-6600 Battery Charger-Discharger Users Manual
9
1.4. Working schematic diagram

DFT-6600 Battery Charger-Discharger Users Manual
10
1.5. DFT-6600 Tester series Technical index
Item
Models
48V150A
48V200A
110V50A
220V50A
220V150A
380V20A
Total discharge
voltage(Rated)
48V
10～60V
98～121V
180～286V
180～286V
304～456V
Total charge voltage
output
2～58V
43～60V
99～121V
180～286V
180～286V
304～456V
Charging current
0～150A
0～200A
0～50A
0～50A
0～150A
0～20A
Discharge current
0～150A
0～200A
0～50A
0～50A
0～150A
0～20A
Access load voltage
48V
48V
110V
220V
220V
380V
Host Size(mm)
178×380×403
225×418×425
638×500×600
178×380×403
525×732×980
706×500×52
2
Host Weight (Kg)
15
45
60
55
80
65
Sampling accuracy
Total voltage: resolution 10mV, accuracy 0.1V
Single-cell voltage: resolution 1mV, accuracy 10mV
Current: Resolution 0.1A, accuracy 1A
Charging & discharging
unit voltage
0.000V～16.00V
Charge and discharge
time
0～9 hours & 59 minutes
Cooling method
Forced air cooling
Discharge load
Efficient resistor
Screen size
TFT 5 -inch color LCD
Working power supply
AC 3P4W 380V
Working environment
Temperature 0°C~50°C Humidity5%~90%
Communication
interface
Data storage: USB parallel communication: WIFI
Note: the DFT-6600 series tester current and voltage can be specially customized according to user’s details needs,

DFT-6600 Battery Charger-Discharger Users Manual
11
Chapter 2 Shape and structure
2.1. The host schematic diagram
Figure 2-1 DFT-6600 series tester Host (images only for reference)

DFT-6600 Battery Charger-Discharger Users Manual
12
2.2. Package List
S/N
Release Date
QC
QA
Item
Parts Name
Quantity
1
Host
1
2
String Voltage line
1-Red + 1-Black
3
Charge and discharge cable
1-Red + 1-Black
4
U-disk
1
5
Power Lead
1
6
Ground wire
1
7
Instruction manual
1
8
Box
1
Cell-Data-Case optional with PC Data Software
No. differ to 2V，4V，6V，12V etc
9
Cell-Data-Case
N rationed according to actual conditions
10
Cell-Data-Case voltage line（12-Red Cell +1-Black）
N Kit
11
Cell-Data-Case ramp （12-Red +1 Black）
N x (12+1)
12
Antenna
1

DFT-6600 Battery Charger-Discharger Users Manual
13
Box
String Voltage line
Charge and discharge cable
Cell-Data-Case voltage line
（12-Red Cell +1-Black Ground）
Cell-Data-Case（2V，6V，12V）
Antenna

DFT-6600 Battery Charger-Discharger Users Manual
14
Cell-Data-Case ramp （12-Red +1 Black）
Power Lead 380V 6pin

DFT-6600 Battery Charger-Discharger Users Manual
15
Chapter 3 Connection
3.1. Preparations
Confirm that the voltage level of discharged battery string is consistent with the discharge tester!
Before connecting to the DFT-6600 Tester, first confirm that the discharged battery string has exited the operating
state and has been disconnected from the charging power and load.Avoid accidents during discharge.
There is enough space around the battery string and the DFT-6600 Tester,
There are No flammable and explosive materials around the site
There are No flammable and explosive gases in the air.
Check that the DFT-6600 Tester is in good condition and that the power switch is in an open state.
There must be no inflammable and explosive materials around the work.
The air must not contain flammable and explosive gases to prevent the occurrence of explosions!
3.2. Host connection
a) The Air (Control) Switch of the tester back should be in a closed position, if not, please close;
b) The host power switch is in the off position;
c) Plug in the host power lead;

DFT-6600 Battery Charger-Discharger Users Manual
16
3.2.1 Discharge cable connection
a) Connect the host side first, insert and tighten the black quick plug at the convex alignment discharge tester
black quick connect socket notch, and the red quick plug at the raised alignment discharge tester red quick
connect socket notch inserted and tightened;
b) Black discharge cable large test clip connected to the battery string negative, red large test clip connected to
the battery string positive;
c) Now Can turn on the host power on;
Note:
a) If there is a spark found in the process of discharging the cable clip battery string electrode, please remove the
clip, stop the discharge testing, and contact the THOMSON;
b) When wiring, first connect the DFT-6600 Tester and then connect the battery, and first remove the clip at the
battery end when disconnecting the wire;
c) When the coupling connector is connected to the quick connecting socket, it needs to be rotated and tightened
clockwise to prevent falling off! Rotate counterclockwise to remove at the end of discharge.
d) It is forbidden to only operate the Air (Control) Switch on the back of the tester for stopping discharging,
please disconnect the open circuit by removing the discharge cable clip!

DFT-6600 Battery Charger-Discharger Users Manual
17
When connecting the discharge cable and the voltage test cable, pay attention to safety to prevent electric
shock and short circuit！
3.2.2 Voltage test line connection
Due to the large discharge current, in order to accurately measure the voltage of the battery string, a Special voltage
test line is provided. One end of the voltage test line is connected to the voltage test socket of the DFT-6600 Tester,
the other end of red clip is connected to the positive pole of the battery string (busbar), and the black clip is
connected to the negative pole of the battery string (busbar).
Be careful that Positive and Negative Terminals not to reversed!

DFT-6600 Battery Charger-Discharger Users Manual
18
3.2.3 Others
Connect the host antenna reliably to the antenna socket of the host of the DFT-6600 Tester.
3.3. Cell-Data-Case connection
Cell-Data-Case is for each-cell voltage sampling of max 12-Cell, which is with magnetized screws for easy fixing
standby.
3.4.Running
After checking that the wiring is correct, turn on the power switch; then the LCD screen should be displayed
normally, now you can complete the setting of various test & discharge parameters according to the operating
instructions

DFT-6600 Battery Charger-Discharger Users Manual
19
Chapter 4 Functions and operating procedures
4.1. Starting Boot
Press the power switch on the back of the tester to activate the tester and enter the main menu of the DFT-6600
Tester. The main menu is as follows:
4.2. Battery Discharge
In the main menu, press the icon "Discharge Test" to enter the discharge settings interface.
At this point, you need to set the site No., Battery string No., Voltage level, Battery type, batteries No., Nominal
capacity. Discharge capacity; the parameters of the stop setting are automatically filled in, or you can also modify it
yourself.
Finally, according to the actual situation, tick select to detect single-cell, or the single-cell is not monitored if not
tick the single-cell means.
After set the discharge parameters and press the [Start] key to enter the discharge state.
