Timex W223 NA User manual

W223 EU1 222-095003

English page 2
Deutsch seite 40
Español página 80
Português página 120

TIMEX® WATCHES
Congratulations on purchasing your TIMEX® watch.
Please read these instructions carefully to under-
stand how to operate your Timex timepiece.
Your watch may not have all of the features
described in this booklet.
For more information, please visit:
www.timex.com

TABLE OF CONTENTS
2How to Start Your Watch
3Water and Shock Resistance
4Indiglo® Night-Light
5Analog/Digital Models
18 Multi-Function Models
20 Chronograph Models
27 Elapsed Time Ring
29 Tachymeter Ring
30 Compass Ring
31 How to Adjust Bracelet
33 Bracelet Link Removal
34 Battery
35 Warranty
ENGLISH

WATER AND SHOCK RESISTANCE
If your watch is water-resistant, meter marking
(WR_M) is indicated.
*pounds per square inch absolute
WARNING: TO MAINTAIN WATER-RESISTANCE,
DO NOT PRESS ANY BUTTONS OR PULL OUT
THE CROWN UNDER WATER UNLESS YOUR
WATCH IS INDICATED AS 200 METER WATER-
RESISTANT.
1. Watch is water-resistant only as long as crystal,
crown and case remain intact.
3
ENGLISH
HOW TO START YOUR WATCH
To start your watch remove the plastic guard from
under the crown, then press the crown in against the
case.The second hand will begin advancing in one-
second intervals.
Some deep-depth water-resistant watches require
the setting crown to be screwed in to secure water-
resistance.If your watch case has a protrusion with
screw threads,the crown must be screwed in after
setting the watch.
To screw in, push the crown firmly against the
threaded protrusion and hold in while turning the
crown clockwise.Continue to screw in the crown
until it is tight. You will need to unscrew the crown
(counter-clockwise) before pulling it out the next time
you want to set your watch.
2
ENGLISH
Water-Resistance Depth p.s.i.a. * Water pressure
Below Surface
30m/98ft 60
50m/164ft 86
100m/328ft 160
200m/656ft 284

ANALOG/DIGITAL MODELS
4-PUSHER ANALOG/DIGITAL MODEL WITH
INDIGLO® NIGHT-LIGHT & NIGHT-MODE®
FEATURE
5
ENGLISH
2. Watch is not a diver watch and should not be
used for diving.
3. Rinse watch with fresh water after exposure to
salt water.
4. Shock-resistance will be indicated on the watch
face or caseback. Watches are designed to pass
ISO test for shock-resistance.However,care
should be taken to avoid damaging the crystal.
INDIGLO® NIGHT-LIGHT
Press button or crown to activate light. Patented
(U.S.pat. 4, 527,096 and 4,775,964) electrolumines-
cent technology used in the INDIGLO® night-light
illuminates entire watch face at night and in low light
conditions.
4
ENGLISH
“B” PUSHER
“C”
CROWN
POSITION
PUSHER
“D”
A B
PUSHER
“B”
PUSHER
“A ”
PUSHER
“C”
CROWN
POSITION
PUSHER
“D”
A B
PUSHER
PUSHER
“A”

(Analog/Digital Models, Cont’d.)
DIGITAL DISPLAY

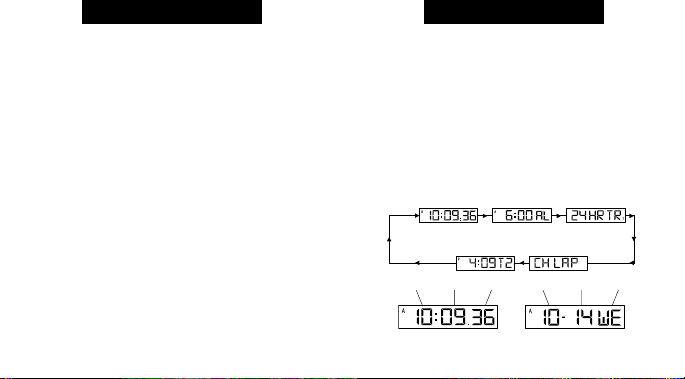

1) The Digital display changes to each function every
time you PRESS pusher “A”. (As illustrated below:)
TIME / CALENDAR
DAILY ALARM
COUNTDOWN TIMER
CHRONOGRAPH
DUAL TIME
7
ENGLISH
(Analog/Digital Models, Cont’d.)
TO USE INDIGLO® NIGHT-LIGHT
1) PRESS pusher “B” to illuminate the entire dial
(Both analog and digital.)
TO USE NIGHT-MODE® FEATURE
1) PRESS and HOLD pusher “B” for 3 seconds until
you hear a beep.
2) Pressing any pusher will cause the INDIGLO®
night-light to illuminate and stay on for 3 seconds.
3) NIGHT-MODE® feature will last for 3 hours.
4) To deactivate NIGHT-MODE® feature PRESS and
HOLD pusher “B” for 3 seconds.
ANALOG TIME
TO SET ANALOG TIME
1) PULL the crown out to the “B” position.
2) TURN the crown either way to the correct time.
3) PUSH in the crown to the “A” position.
6
ENGLISH
START
Press and release MODE
button once.
DUAL TIME CHRONOGRAPH
COUNTDOWN
TIME/
CALENDAR
DAILY
ALARM TIMER
CALENDAR
HOUR MINUTE SECOND MONTH DATEDAY
Press and release MODE
button once.
Press and release MODE
button once.

(Analog/Digital Models, Cont’d.)
• To view or change the display to TIME, repeat the
step as above.
NOTE: “A” or “P” will appear when the 12-Hour
format is selected.
•Set this time to coordinate with the Analog time
or another time zone.
•PRESS and HOLD pusher “C” for 2 seconds in
setting mode,to activate fast advance.
9
ENGLISH
(Analog/Digital Models, Cont’d.)
TO SET TIME / CALENDAR
1) PRESS pusher “A” to bring up TIME / CALENDAR
display.
2) PRESS and HOLD pusher “D”. HOLD will display
until second flashes.
3) PRESS pusher “C” to reset to second to “00”.
4) PRESS pusher “A” to let hour flash.
5) PRESS pusher “C” to advance hour.
6) PRESS pusher “A” and “C” as above to adjust tens
of minutes,minute,year,month, date,day and 12
/24 hour format.
7) PRESS pusher “D” to complete setting.
8) View or select the TIME or CALENDAR to appear
in your digital display.
•PRESS pusher “C” to view the CALENDAR for 2
seconds.
•PRESS and HOLD pusher “C” for 3 seconds until
the watch beeps to change the display to
CALENDAR.
8
ENGLISH

(Analog/Digital Models, Cont’d.)
NOTE:
•When the alarm sounds,it will beep for 20
seconds.
• To stop the alarm beep,PRESS any pusher.
•PRESS and HOLD pusher “C” for 2 seconds in
setting mode,to activate fast advance.
11
ENGLISH
(Analog/Digital Models, Cont’d.)
TO SET DAILY ALARM
1) PRESS pusher “A” to bring up DAILY ALARM dis-
play: “ALARM” will appear for 3 seconds followed
by the current alarm setting time and time zone.
The ALARM mode symbol “AL”and the applicable
time zone symbol “T1” or T2” alternate to give
complete information.
2) PRESS pusher “D” to let time zone flash.
3) PRESS pusher “C” to select time zone.
4) PRESS pusher “A” to let hour flash.
5) PRESS pusher “C” to advance hour.
6) PRESS pusher “A” and “C” as above to adjust tens
of minutes and minute.
7) PRESS pusher “D” to complete setting.
8) Alarm is automatically activated after setting
Sis displayed.
10
ENGLISH
FOLLOWED BY
THE CURRENT
ALARM SETTING
TIME AND TIME
ZONE.
WILL
APPEAR
FOR 3
SECONDS

(Analog/Digital Models, Cont’d.)
TO USE COUNTDOWN TIMER
1) PRESS pusher “A” to bring up COUNTDOWN TIMER
display.“24 HR TR” will appear.
2) PRESS pusher “D” to let hour flash.
3) PRESS pusher “C” to advance hour.
4) PRESS pusher “A” to set tens of minutes.
5) PRESS pusher “C” to advance tens of minutes.
6) PRESS pusher “A” and “C” as above to adjust
minute.
7) PRESS pusher “D” to complete setting.
8) PRESS pusher “C” to start the timer.
9) PRESS pusher “D” to stop the timer.
10) PRESS pusher “D” again to resume timer to the
preset time.
13
ENGLISH
(Analog/Digital Models, Cont’d.)
TO SET DAILY ALARM OR CHIME ON/OFF
1) PRESS pusher “A” to bring up DAILY ALARM
display.
2) PRESS pusher “C” to activate or deactivate daily
alarm and chime accordingly.
NOTE:
•aor Cwill appear or disappear according to daily
alarm activation or deactivation.
•Nor Bwill appear or disappear according to
chime activation or deactivation.
•The alarm coordinates with the digital time not
analog time.
•The alarm will sound only if the digital time zone
(T1 or T2) selected in the Alarm set mode is
currently displayed, as confirmed by the alarm
symbol aor C.
12
ENGLISH
SETTING MODE
HOUR MINUTE

(Analog/Digital Models, Cont’d.)
TO USE CHRONOGRAPH FOR LAP OR SPLIT
TIME MEASUREMENT:
1) PRESS pusher “A” to bring up CHRONOGRAPH
display; “CH LAP” or “CH SPL”will appear.
2) PRESS pusher “D” to select LAP or SPLIT.
3) PRESS pusher “C” to start timing.
4) PRESS pusher “C” to record the first Lap or Split
time; digits will be frozen for 15 seconds; “L”or
“S” will flash to indicate that the next Lap or Split
time is being recorded in the background.
5) PRESS pusher “A” to view the running display
while the display is frozen.
6) PRESS pusher “C” to take another Lap or Split.
7) PRESS pusher “D” to stop.
8) PRESS pusher “D” again to reset.
NOTE: CHRONOGRAPH must be reset to zero to
switch between LAP and SPLIT.
Records time up to 24 hours and shows 1/100 of
seconds for the first hour.
15
ENGLISH
(Analog/Digital Models, Cont’d.)
NOTE:
When the timer counts down to zero it will beep for
20 seconds.
To stop the timer beep,PRESS any pusher.
“T” will appear to designate that the countdown
timer is running.
Countdown time up to 24 hours.
PRESS and HOLD pusher “C” for 2 seconds in setting
mode,to activate fast advance.

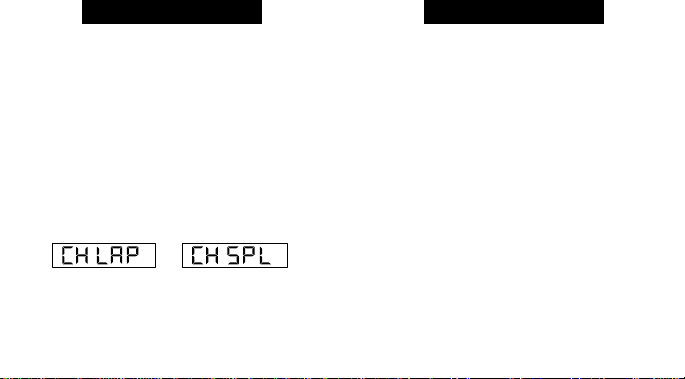

TO USE CHRONOGRAPH FOR STANDARD
MEASUREMENT:
1) PRESS pusher “A” to bring up CHRONOGRAPH dis-
play; “CH LAP” or “CH SPL”will appear.
2) PRESS pusher “C” to start timing.
3) PRESS pusher “D” to stop timing.
4) PRESS pusher “D” to reset.
14
ENGLISH
OR

(Analog/Digital Models, Cont’d.)
NOTE:
1) While in setting of any mode,if no pusher is
pressed for 90 seconds the display will automati-
cally return to TIME / CALENDAR mode.
2) While in any mode other than TIME / CALENDAR
mode,whenever pusher “C” or “D” is pressed, the
next press of pusher “A” will automatically return
the display to TIME / CALENDAR mode.
17
ENGLISH
(Analog/Digital Models, Cont’d.)

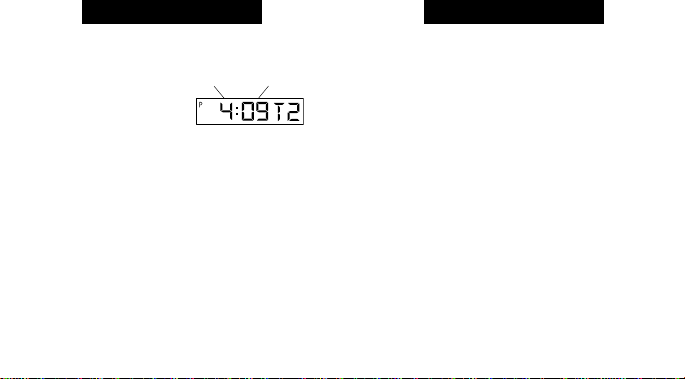

TO SET DUAL TIME:
1) PRESS pusher “A” to
bring up DUAL TIME
display.“T2” will appear
beside the dual time.
2) PRESS and HOLD pusher “D”; “Hold” will display
until hour flashes.
3) PRESS pusher “C” to advance hour.
4) PRESS pusher “A” to let month flash.
5) PRESS pusher “C” to advance month.
6) PRESS pusher “A” and “C” as above to adjust date,
day,and to set 12 / 24 hour format.
7) PRESS pusher “D” to complete setting.
NOTE:
PRESS pusher “C” for 2 seconds in setting mode,
fast advance will be activated.
16
ENGLISH
HOUR MINUTE

TO SET THE TIME
1) Pull crown all the way out and turn to correct
time.
2) Push crown in to restart.
Note: 24-hour display will set automatically.
TO SET THE DATE
Instant date change:
1) Pull crown one stop and turn CLOCKWISE until
you reach correct date.
2) Push crown in to restart.
19
ENGLISH

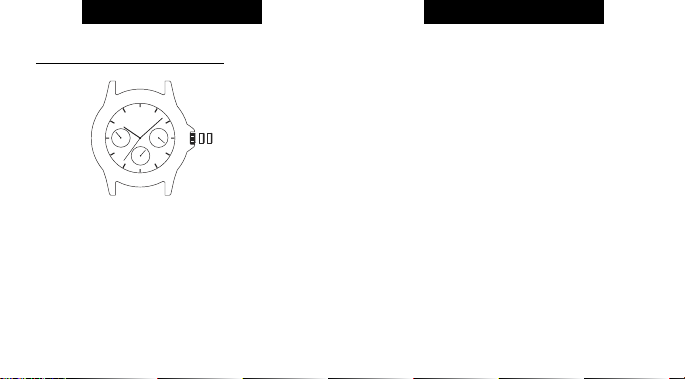

MULTI-FUNCTION MODELS
Your watch has a normal large face display and three
small faces displaying date,day and 24-hour time.
TO SET THE DAY
1) Pull crown all the way out and turn CLOCKWISE
until correct day appears.
2) Push crown in to restart.
Note: You must set day before setting time.
18
ENGLISH
C
B
A
CROWN POSITION

•The seconds sweep hand shows “seconds
elapsed” for chronograph
TIME, CALENDAR, CHRONOGRAPH
This chronograph watch has three functions:
TIME
TO SET THE TIME:
1) PULL out Crown to “C” position
2) TURN Crown either way to correct time
3) PUSH in Crown to “A” position
CALENDAR
TO SET THE CALENDAR
1) PULL out Crown to “B” position
2) TURN Crown clockwise to correct position
3) PUSH in Crown to “A” position
21
ENGLISH
CHRONOGRAPH MODELS
6, 9, 12 THREE-EYE CHRONOGRAPH
WITH DATE
•Crown position “A”, “B” & “C”
•Pusher “A” (right) & “B” (left)
•Hour,minute and small second hands (6 o’clock
eye) show time
•12 o’clock eye shows “minutes elapsed” for
chronograph
•9 o’clock eye shows “hours elapsed” for chrono-
graph
20
ENGLISH

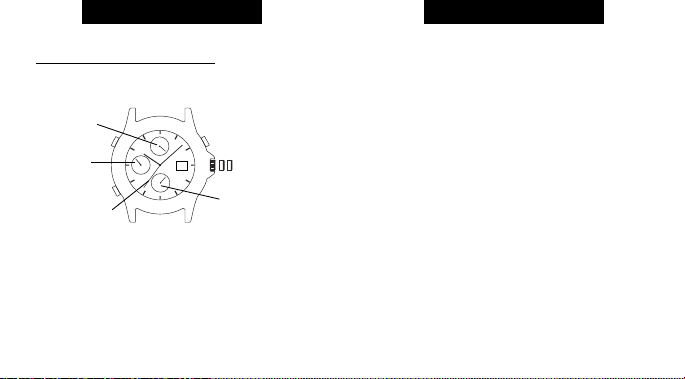

C
B
A
PUSHER “A”
PUSHER “B”
STOPWATCH
SECOND HAND
SMALL
SECOND HAND CROWN POSITION
PUSHER “C”
STOPWATCH
HOUR HAND
STOPWATCH
1/20 SEC. HAND
STOPWATCH
MINUTES HAND

NOTE: PRESSING and HOLDING either pusher “A” or
“B” will cause the hands to move continually until the
pusher is released.
STANDARD CHRONOGRAPH
MEASUREMENT:
1) PRESS pusher “A” to start timing
2) PRESS pusher “A” to stop timing
3) PRESS pusher “B” to reset
23
ENGLISH
CHRONOGRAPH
•The Chronograph is capable of measuring:
•Minutes elapsed up to 1 hour (12 o’clock eye)
•Hour elapsed up to 12 hours (9 o’clock eye)
•Seconds elapsed up to 1 minute (seconds sweep
hand)
BEFORE USING THE CHRONOGRAPH:
Adjust all the chronograph hands to the “0” or 12 hr.
position.
TO ADJUST THE CHRONOGRAPH HANDS:
1) PULL out CROWN to “C” position
2) PRESS pusher “A” intermittently until the seconds
sweep hand resets to “0” or 12-hr.position
3) PRESS pusher “B” intermittently until the hands in
the 12 o’clock eye reset to “0” or 12-hr position
4) PUSH in Crown to “A” position
NOTE: Make sure that the chronograph is stopped
and reset before adjusting.
22
ENGLISH

TIME
TO SET THE TIME:
1) PULL out Crown to “B” position
2) TURN Crown either way to correct time
3) PUSH in Crown to “A” position
STOPWATCH
The stopwatch can measure up to 1 hour in minutes
and seconds.Before using the stopwatch ensure that
stopwatch hands are at the “60” or 12 o’clock posi-
tion.
TO USE THE STOPWATCH
1) PRESS pusher “A” to start timing
2) PRESS pusher “A” to stop timing
3) PRESS pusher “B” to reset stopwatch to “60”
TO MEASURE ELAPSED OR SPLIT TIME:
1) PRESS pusher “A” to start timing
2) PRESS pusher “B” to stop timing.The stopwatch
continues to count seconds elapsed but the
hands do not move.
25
ENGLISH
(Chronograph Models, Cont’d.)
THIS CHRONOGRAPH HAS TWO FUNCTIONS:
TIME & STOPWATCH
The left eye (stopwatch hand) measures minutes
elapsed on the stopwatch up to a maximum of 60
minutes.The center eye (stopwatch hand) measures
seconds elapsed on stopwatch up to a maximum of
60 seconds.It also shows measurement of elapsed
time.The right eye (24 hour hand) indicates time
elapsed on a 24 hour basis.
24
ENGLISH
B
A
PUSHER “A”
CROWN POSITION
PUSHER “B”
SMALL
SECOND HAND
STOPWATCH
HOUR HAND STOPWATCH
1/20 SEC. HAND

ELAPSED TIME RING
If your watch is equipped with a rotatable outer ring
on the face,with numbers corresponding to minutes,
you can use this Elapsed Time Ring to time an activity
from the start, or to mark the ending time for the
duration of an activity.
TO TIME AN ACTIVITY FROM THE START:
Set the Start/Stop triangle at the time (hour or
minute) when you start the activity (As shown on the
left in the illustration shown below). At completion,
you can see how long the activity took.
27
ENGLISH
3) PRESS pusher “B” again to resume timing.The
hands move quickly to indicate elapsed time and
continue counting.
4) PRESS pusher “A” to stop
5) PRESS pusher “B” to reset
EXAMPLE OF SPLIT TIME:
Two runners are timed simultaneously; the first run-
ner’s time can be recorded while the second runner’s
time will continue to accumulate until he finishes.
NOTE: The hour,minute and second hands on the
watch will continue to indicate the correct time while
using the stopwatch.
IF STOPWATCH HANDS DO NOT RETURN TO
“60” WHEN THE STOPWATCH IS RESET:
1) PULL out the crown to “B” position
2) PRESS pushers “A” or “B” repeatedly to move
hands to “60” position
3) PUSH in the crown to “A” position
26
ENGLISH

TACHYMETER RING
The tachymeter feature can be used to measure
speed in miles per hour (MPH), nautical miles per
hour (knots) or kilometers per hour (KPH) using the
sweep second hand and the scale on the wall above
the watch face. You need to know the actual dis-
tance you are covering in miles or km.
Start the chronograph with the second hand at zero
(the twelve o’clock position). Within the first minute,
the second hand will point to the rate for a one-mile
(or one kilometer) course: if it takes 45 seconds,the
hand will point to 80 at that position – 80 MPH or 80
KPH.
If within the first minute,a distance greater than one
mile or kilometer is covered, multiply the tachymeter
number by the distance to get the actual rate: if you
went 1.2 miles in 45 seconds,multiply the 80 by
1.2 – 96 MPH.
29
ENGLISH
TO MEASURE THE TIME REMAINING:
Set the triangle to the hour or minute position when
you wish to complete the activity,and check the
watch periodically for progress towards that goal.

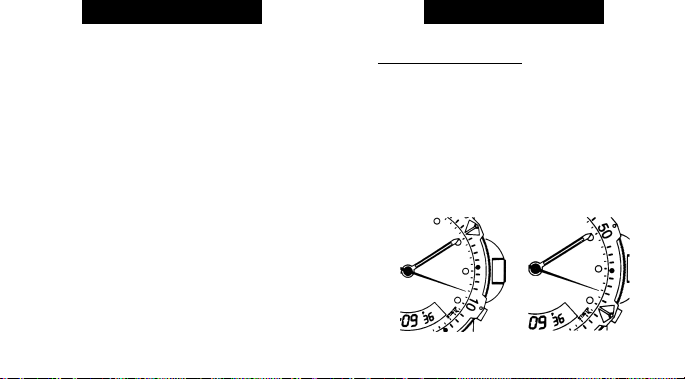

In the illustration shown on the previous page on the
right you can stop when the minute hand reaches
the 20 minutes past the hour position.
28
ENGLISH

HOW TO ADJUST BRACELET
(Variations of the following bracelet sections apply to
all watch models).
SLIDING CLASP BRACELET
1Open locking plate.
2. Move clasp to desired bracelet length.
3. Exert pressure while holding locking plate and
slide clasp back and
forth until it engages
in grooves on under-
side of bracelet.
4. Press locking plate
down until it snaps
closed. Clasp can be
damaged if excessive
force is used.
31
ENGLISH
COMPASS RING
If your watch is equipped
with a movable ring around
the dial marked at the let-
ters “N”, “E”, “W”, “S” (for
the four compass directions)
or compass degrees,you can use
this feature to find an approximate
compass directional reading.
1) Lay the watch on a flat surface,
or hold it so that the face is par-
allel to the ground.
2) Locate the sun and point the
hour hand at the sun.
3) In the A.M., rotate the ring until the “S” (south)
marker is halfway between the hour hand and
12:00 (after the hour hand or within the shortest
distance between the hour hand and 12:00).
4) In the P.M., rotate the ring until “S” is before the
hour hand and halfway between the hour hand
and 12:00.
30
ENGLISH
12 1
2
3
4
5
6
7
8
9
10
11
N
S
W
E

BRACELET LINK REMOVAL
REMOVING LINKS:
1. Place bracelet upright
and insert pointed tool
in opening of link.
2. Push pin forcefully in
direction of arrow until
link is detached (pins
are designed to be diffi-
cult to remove).
3. Repeat until desired number of links are removed.
RE-ASSEMBLY:
1. Rejoin bracelet parts.
2. Push pin back into link
in opposite direction of
arrow.
3. Press pin down securely
into bracelet until it is
flush.
33
ENGLISH
FOLDOVER CLASP
BRACELET
1. Find spring bar that con-
nects bracelet to clasp.
2. Using a pointed tool,
push in spring bar and
gently twist bracelet to
disengage.
3. Determine wrist size,
then insert spring bar in
correct bottom hole.
4. Push down on spring
bar,align with top hole
and release to lock in
place.
32
ENGLISH
Fig. 1
Fig. 2
Fig. 3
