Timex W223 NA User manual

W223 NA 222-0950012
W223_Analog2_NA_Cvr.qxd 6/5/09 9:37 AM Page cvr1

English page 2
Français page 54
Español página 114
Português page 170
W223_Analog2_NA_Cvr.qxd 6/5/09 9:37 AM Page cvr3

TIMEX®WATCHES
Congratulations on purchasing your TIMEX®
watch. Please read these instructions carefully to
understand how to operate your Timex timepiece.
Your watch may not have all of the features
described in this booklet.
For more information, please visit:
Timex.com
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page ENii

TABLE OF CONTENTS
2How to Start Your Watch
3Water and Shock Resistance
4Indiglo®Night-Light
5Analog/Digital Models
18 Multi-Function Models
20 Day/Date/AM/PM/Sun/Moon Models
22 Chronograph Models
39 Elapsed Time Ring
40 Tachymeter Ring
41 Compass Ring
42 How to Adjust Bracelet
44 Bracelet Link Removal
45 Battery
46 Warranty
ENGLISH
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page ENiv

WATER AND SHOCK RESISTANCE
If your watch is water-resistant, meter marking
(WR_M) is indicated.
*pounds per square inch absolute
WARNING: TO MAINTAIN WATER-RESISTANCE,
DO NOT PRESS ANY BUTTONS OR PULL OUT
THE CROWN UNDER WATER UNLESS YOUR
WATCH IS INDICATED AS 200 METER WATER-
RESISTANT.
1. Watch is water-resistant only as long as crystal,
crown and case remain intact.
3
ENGLISH
HOW TO START YOUR WATCH
To start your watch remove the plastic guard from
under the crown, then press the crown in against the
case. The second hand will begin advancing in one-
second intervals.
Some deep-depth water-resistant watches require
the setting crown to be screwed in to secure water-
resistance. If your watch case has a protrusion with
screw threads, the crown must be screwed in after
setting the watch.
To screw in, push the crown firmly against the
threaded protrusion and hold in while turning the
crown clockwise. Continue to screw in the crown
until it is tight. You will need to unscrew the crown
(counter-clockwise) before pulling it out the next time
you want to set your watch.
2
ENGLISH
Water-Resistance Depth p.s.i.a. * Water pressure
Below Surface
30m/98ft 60
50m/164ft 86
100m/328ft 160
200m/656ft 284
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 2

ANALOG/DIGITAL MODELS
4-PUSHER ANALOG/DIGITAL MODEL WITH
INDIGLO®NIGHT-LIGHT & NIGHT-MODE®
FEATURE
5
ENGLISH
2. Watch is not a diver watch and should not be
used for diving.
3. Rinse watch with fresh water after exposure to
salt water.
4. Shock-resistance will be indicated on the watch
face or caseback. Watches are designed to pass
ISO test for shock-resistance. However, care
should be taken to avoid damaging the crystal.
INDIGLO®NIGHT-LIGHT
Press button or crown to activate light.
Electrolumines-
cent technology used in the INDIGLO®night-light
illuminates entire watch face at night and in low light
conditions.
4
ENGLISH
“B” PUSHER
“C”
CROWN
POSITION
PUSHER
“D”
A B
PUSHER
“B”
PUSHER
“A ”
PUSHER
“C”
CROWN
POSITION
PUSHER
“D”
A B
PUSHER
PUSHER
“A”
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 4

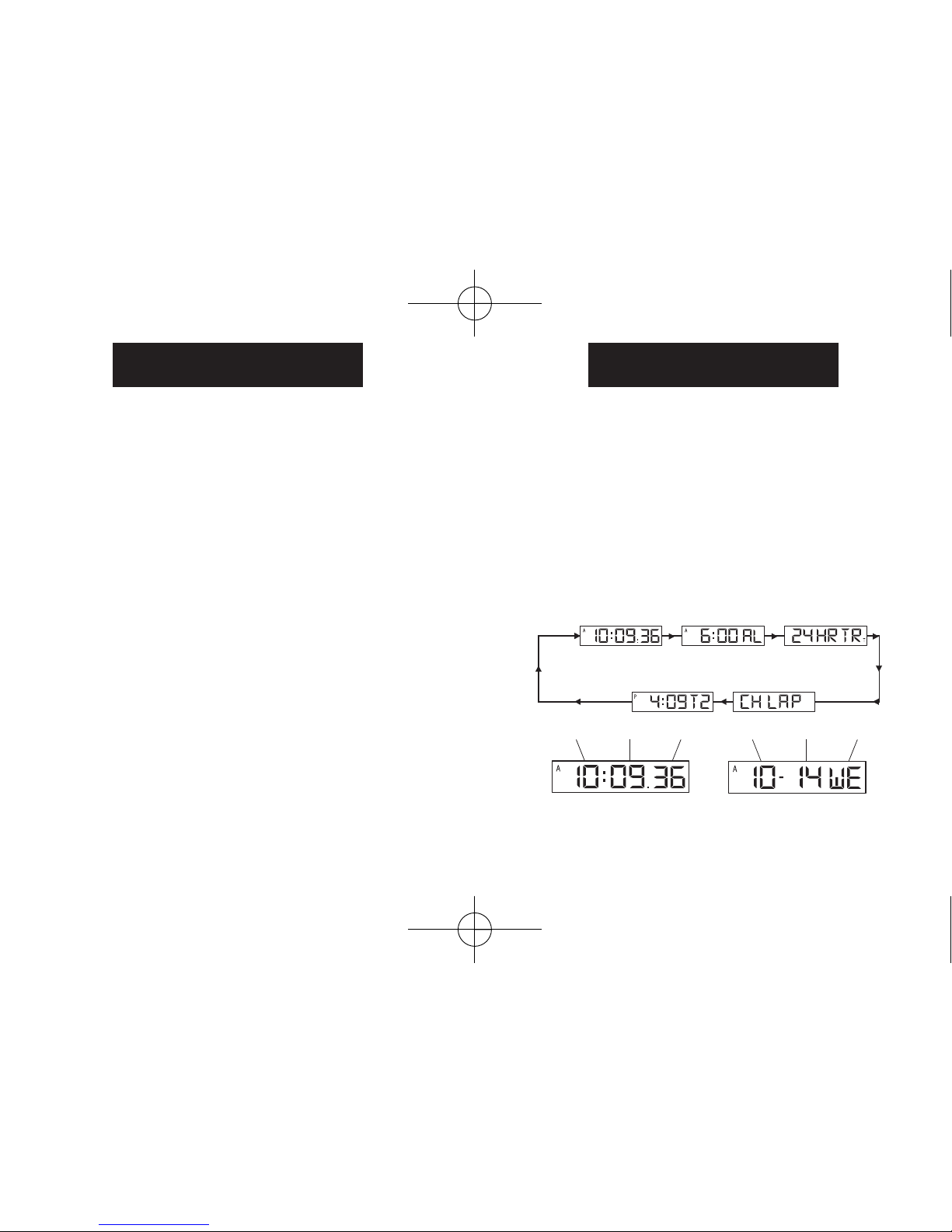

DIGITAL DISPLAY
1) The Digital display changes to each function every
time you PRESS pusher “A”. (As illustrated below):
TIME / CALENDAR
DAILY ALARM
COUNTDOWN TIMER
CHRONOGRAPH
DUAL TIME
7
ENGLISH
TO USE INDIGLO®NIGHT-LIGHT
1) PRESS pusher “B” to illuminate the entire dial
(Both analog and digital).
TO USE NIGHT-MODE®FEATURE
1) PRESS and HOLD pusher “B” for 3 seconds until
you hear a beep.
2) Pressing any pusher will cause the INDIGLO®
night-light to illuminate and stay on for 3 seconds.
3) NIGHT-MODE®feature will last for 3 hours.
4) To deactivate NIGHT-MODE®feature PRESS and
HOLD pusher “B” for 3 seconds.
ANALOG TIME
TO SET ANALOG TIME
1) PULL the crown out to the “B” position.
2) TURN the crown either way to the correct time.
3) PUSH in the crown to the “A” position.
6
ENGLISH
START
Press and release MODE
button once.
DUAL TIME CHRONOGRAPH
COUNTDOWN
TIME/
CALENDAR DAILY
ALARM TIMER
CALENDAR
HOUR MINUTE SECOND MONTH DATE DAY
Press and release MODE
button once. Press and release MODE
button once.
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 6

• To view or change the display to TIME, repeat the
steps above.
NOTE: “A” or “P” will appear when the 12-Hour
format is selected.
• Set this time to coordinate with the Analog time
or another time zone.
• PRESS and HOLD pusher “C” for 2 seconds in
setting mode, to activate fast advance.
9
ENGLISH
TO SET TIME / CALENDAR
1) PRESS pusher “A” to bring up TIME / CALENDAR
display.
2) PRESS and HOLD pusher “D”. HOLD will display
until second flashes.
3) PRESS pusher “C” to reset to second to “00”.
4) PRESS pusher “A” to let hour flash.
5) PRESS pusher “C” to advance hour.
6) PRESS pusher “A” and “C” as above to adjust tens
of minutes, minute, year, month, date, day and
12/24 hour format.
7) PRESS pusher “D” to complete setting.
8) View or select the TIME or CALENDAR to appear
in your digital display.
• PRESS pusher “C” to view the CALENDAR for 2
seconds.
• PRESS and HOLD pusher “C” for 3 seconds until
the watch beeps to change the display to
CALENDAR.
8
ENGLISH
W223_Analog2_NA_EN.qxd 6/9/09 9:02 AM Page 8

NOTE:
• When the alarm sounds, it will beep for 20
seconds.
• To stop the alarm beep, PRESS any pusher.
• PRESS and HOLD pusher “C” for 2 seconds in
setting mode, to activate fast advance.
11
ENGLISH

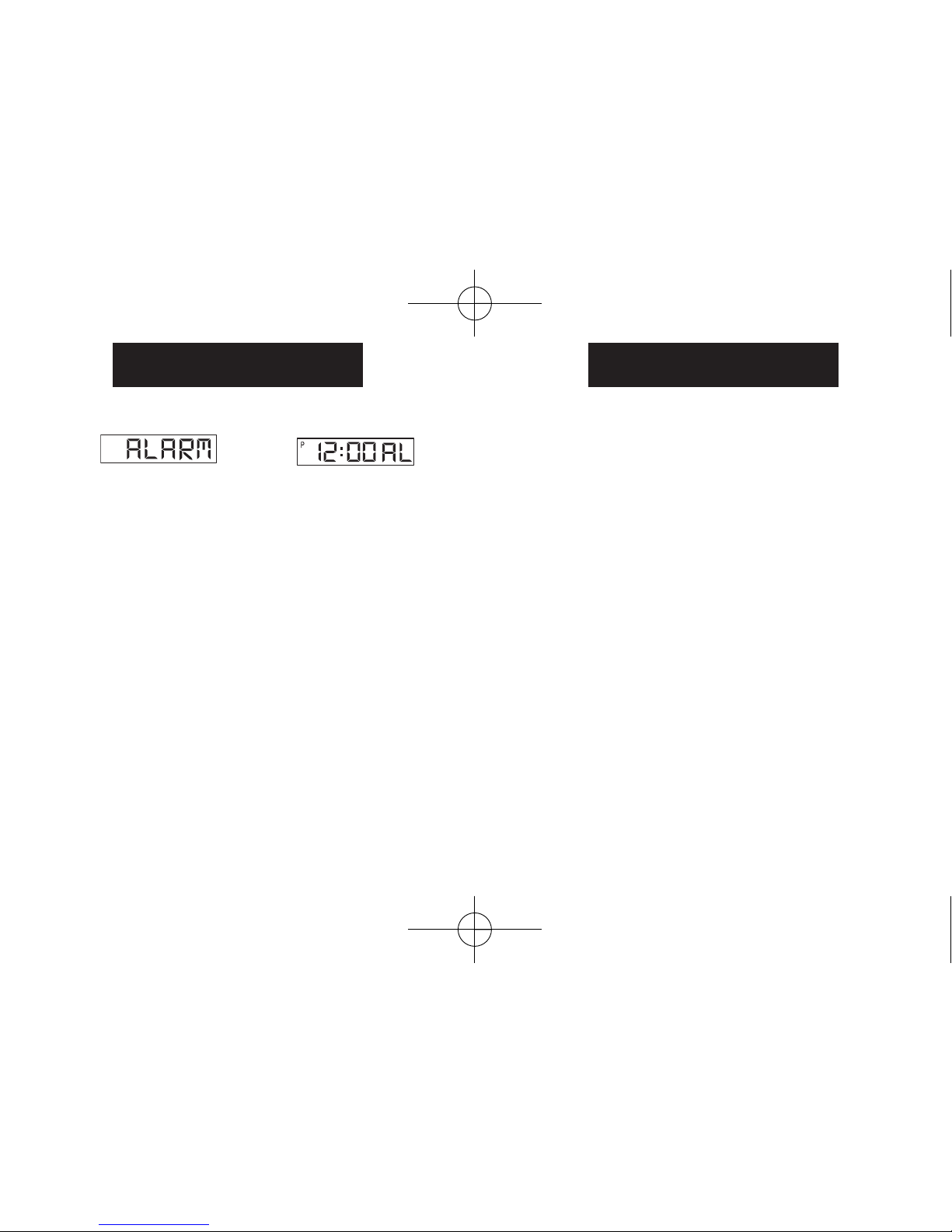

TO SET DAILY ALARM
1) PRESS pusher “A” to bring up DAILY ALARM dis-
play: “ALARM” will appear for 3 seconds followed
by the current alarm setting time and time zone.
The ALARM mode symbol “AL” and the applicable
time zone symbol “T1” or “T2” alternate to give
complete information.
2) PRESS pusher “D” to let time zone flash.
3) PRESS pusher “C” to select time zone.
4) PRESS pusher “A” to let hour flash.
5) PRESS pusher “C” to advance hour.
6) PRESS pusher “A” and “C” as above to adjust tens
of minutes and minute.
7) PRESS pusher “D” to complete setting.
8) Alarm is automatically activated after setting
Sis displayed.
10
ENGLISH
FOLLOWED BY
THE CURRENT
ALARM SETTING
TIME AND TIME
ZONE.
WILL
APPEAR
FOR 3
SECONDS
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 10

TO USE COUNTDOWN TIMER
1) PRESS pusher “A” to bring up COUNTDOWN TIMER
display. “24 HR TR” will appear.
2) PRESS pusher “D” to let hour flash.
3) PRESS pusher “C” to advance hour.
4) PRESS pusher “A” to set tens of minutes.
5) PRESS pusher “C” to advance tens of minutes.
6) PRESS pusher “A” and “C” as above to adjust
minute.
7) PRESS pusher “D” to complete setting.
8) PRESS pusher “C” to start the timer.
9) PRESS pusher “D” to stop the timer.
10) PRESS pusher “D” again to resume timer to the
preset time.
13
ENGLISH
TO SET DAILY ALARM OR CHIME ON/OFF
1) PRESS pusher “A” to bring up DAILY ALARM
display.
2) PRESS pusher “C” to activate or deactivate daily
alarm and chime accordingly.
NOTE:
•aor Cwill appear or disappear according to daily
alarm activation or deactivation.
•Nor Bwill appear or disappear according to
chime activation or deactivation.
• The alarm coordinates with the digital time not
analog time.
• The alarm will sound only if the digital time zone
(T1 or T2) selected in the Alarm set mode is
currently displayed, as confirmed by the alarm
symbol aor C.
12
ENGLISH
SETTING MODE
HOUR MINUTE
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 12

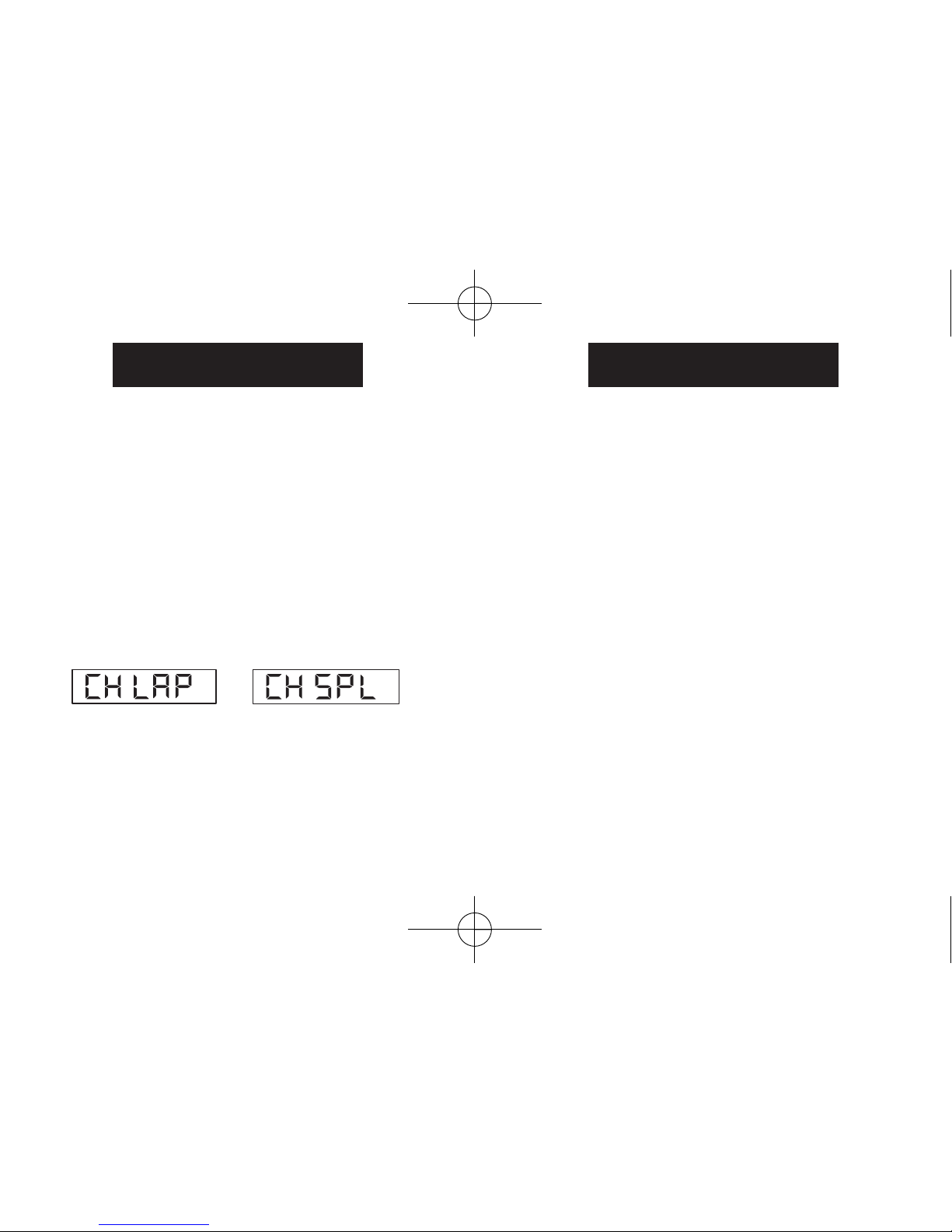

TO USE CHRONOGRAPH FOR LAP OR SPLIT
TIME MEASUREMENT:
1) PRESS pusher “A” to bring up CHRONOGRAPH
display; “CH LAP” or “CH SPL” will appear.
2) PRESS pusher “D” to select LAP or SPLIT.
3) PRESS pusher “C” to start timing.
4) PRESS pusher “C” to record the first Lap or Split
time; digits will be frozen for 15 seconds; “L” or
“S” will flash to indicate that the next Lap or Split
time is being recorded in the background.
5) PRESS pusher “A” to view the running display
while the display is frozen.
6) PRESS pusher “C” to take another Lap or Split.
7) PRESS pusher “D” to stop.
8) PRESS pusher “D” again to reset.
NOTE: CHRONOGRAPH must be reset to zero to
switch between LAP and SPLIT.
Records time up to 24 hours and shows 1/100 of
seconds for the first hour.
15
ENGLISH
NOTE:
When the timer counts down to zero it will beep for
20 seconds.
To stop the timer beep, PRESS any pusher.
“T” will appear to designate that the countdown
timer is running.
Countdown time up to 24 hours.
PRESS and HOLD pusher “C” for 2 seconds in setting
mode, to activate fast advance.
TO USE CHRONOGRAPH FOR STANDARD
MEASUREMENT:
1) PRESS pusher “A” to bring up CHRONOGRAPH dis-
play; “CH LAP” or “CH SPL” will appear.
2) PRESS pusher “C” to start timing.
3) PRESS pusher “D” to stop timing.
4) PRESS pusher “D” to reset.
14
ENGLISH
OR
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 14

NOTE:
1) While in setting of any mode, if no pusher is
pressed for 90 seconds the display will automati-
cally return to TIME / CALENDAR mode.
2) While in any mode other than TIME / CALENDAR
mode, whenever pusher “C” or “D” is pressed, the
next press of pusher “A” will automatically return
the display to TIME / CALENDAR mode.
17
ENGLISH

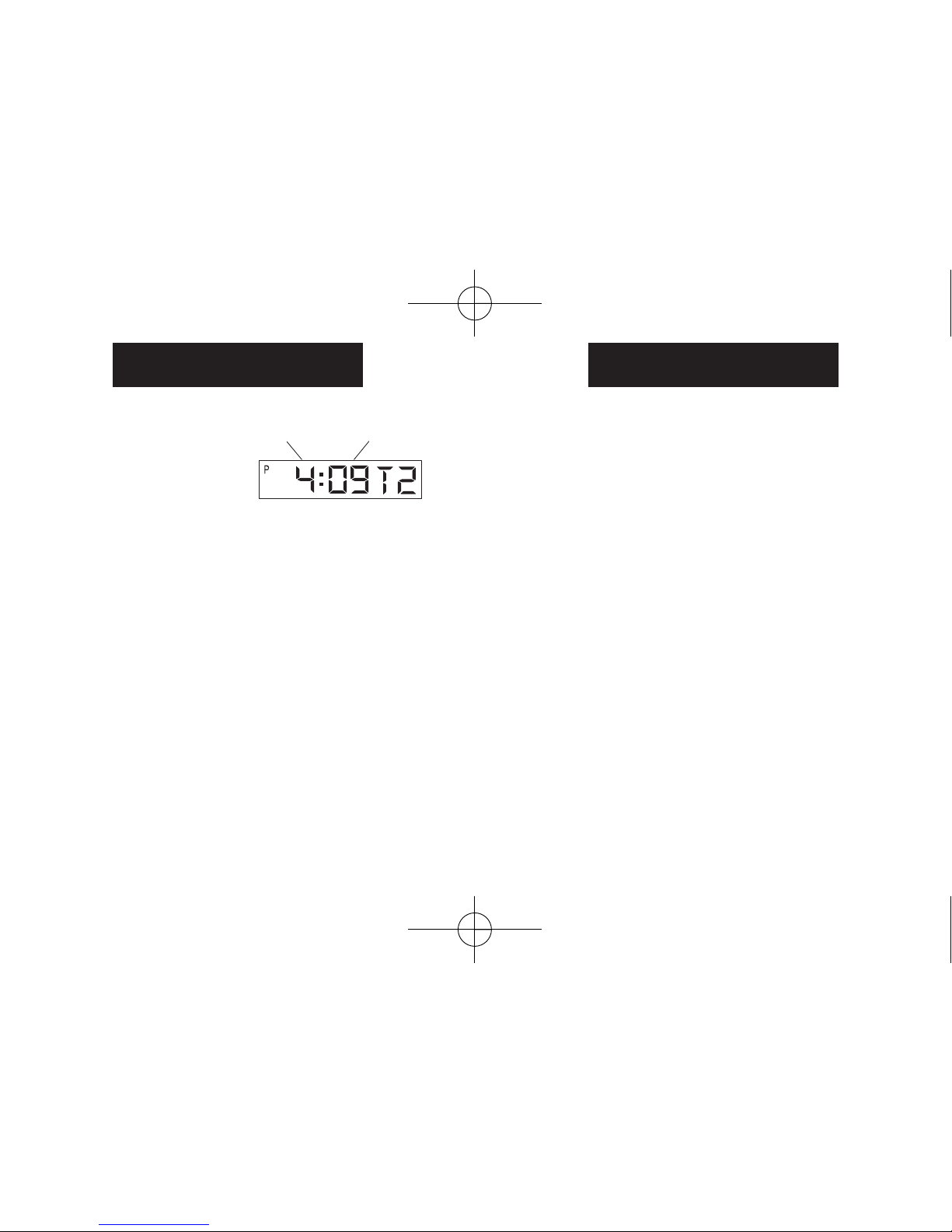

TO SET DUAL TIME:
1) PRESS pusher “A” to
bring up DUAL TIME
display. “T2” will appear
beside the dual time.
2) PRESS and HOLD pusher “D”; “Hold” will display
until hour flashes.
3) PRESS pusher “C” to advance hour.
4) PRESS pusher “A” to let month flash.
5) PRESS pusher “C” to advance month.
6) PRESS pusher “A” and “C” as above to adjust date,
day, and to set 12 / 24 hour format.
7) PRESS pusher “D” to complete setting.
NOTE:
PRESS and hold pusher “C” for 2 seconds in set-
ting mode to activate fast advance.
16
ENGLISH
HOUR MINUTE
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 16

TO SET THE TIME
1) Pull crown all the way out and turn to correct
time.
2) Push crown in to restart.
Note: 24-hour display will set automatically.
TO SET THE DATE
Instant date change:
1) Pull crown out one stop and turn CLOCKWISE
until you reach correct date.
2) Push crown in to restart.
19
ENGLISH

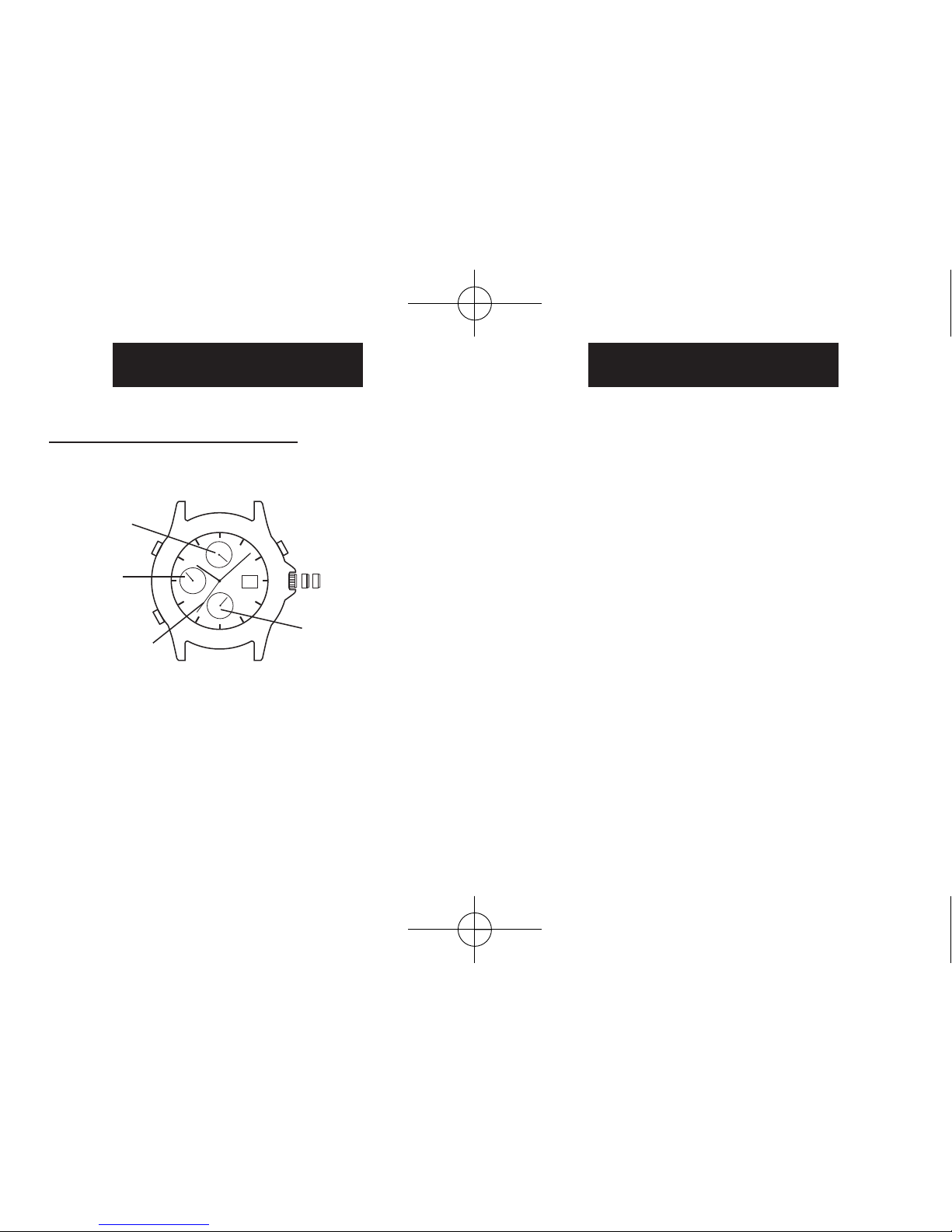

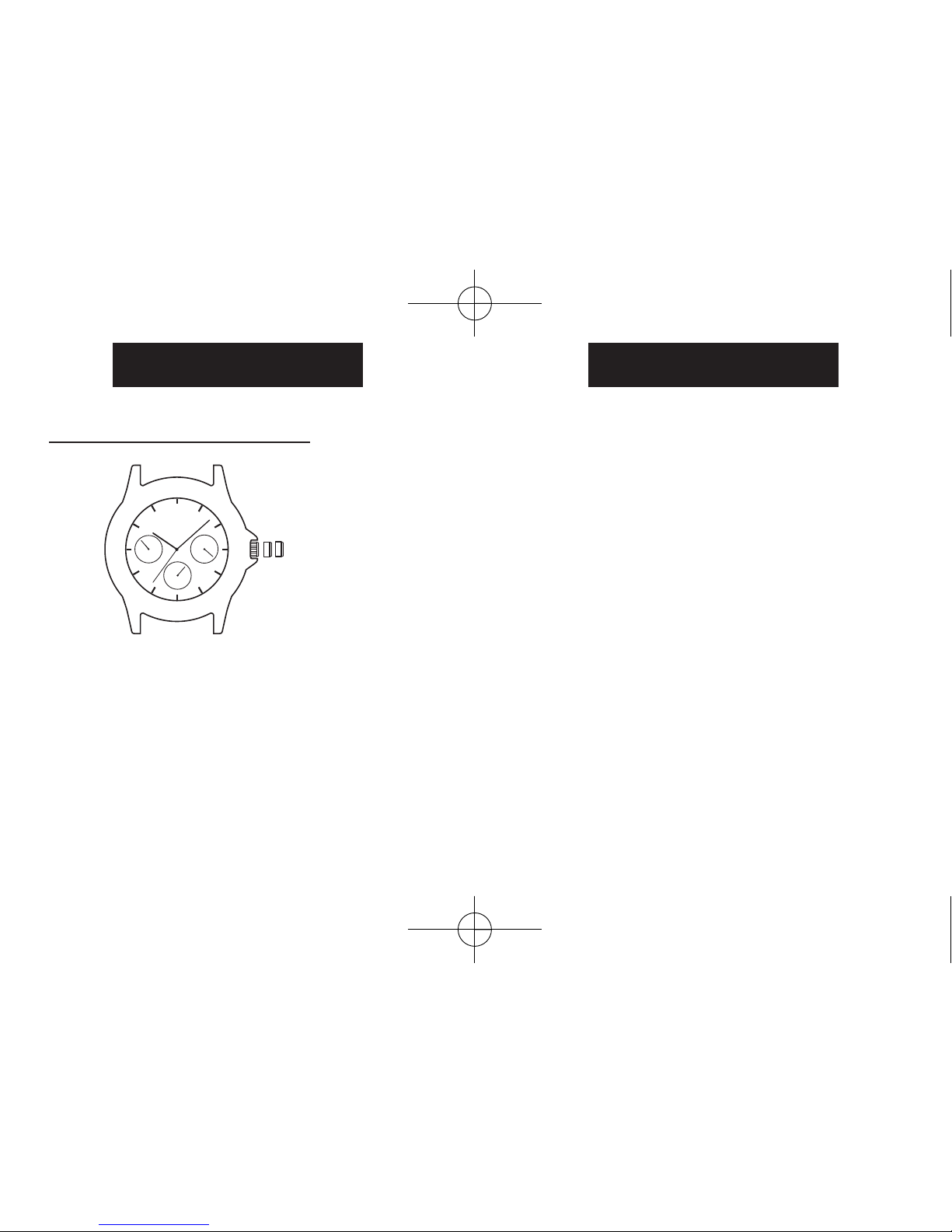

MULTI-FUNCTION MODELS
Your watch has a normal large face display and three
small faces displaying date, day and 24-hour time.
TO SET THE DAY
1) Pull crown all the way out and turn CLOCKWISE
until correct day appears.
2) Push crown in to restart.
Note: You must set day before setting time.
18
ENGLISH
CB
A
CROWN POSITION
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 18

NOTE: Remember to set time for am or pm (sun or
moon).
TO SET DATE:
1) PULL out crown to “B” position.
2) TURN crown clockwise to correct date.
3) PUSH in crown to “A” position
TO SET DAY:
1) PULL out crown to “C” position.
2) Advance time 24 hours to change the day.
3) PUSH in crown to “A” position
21
ENGLISH

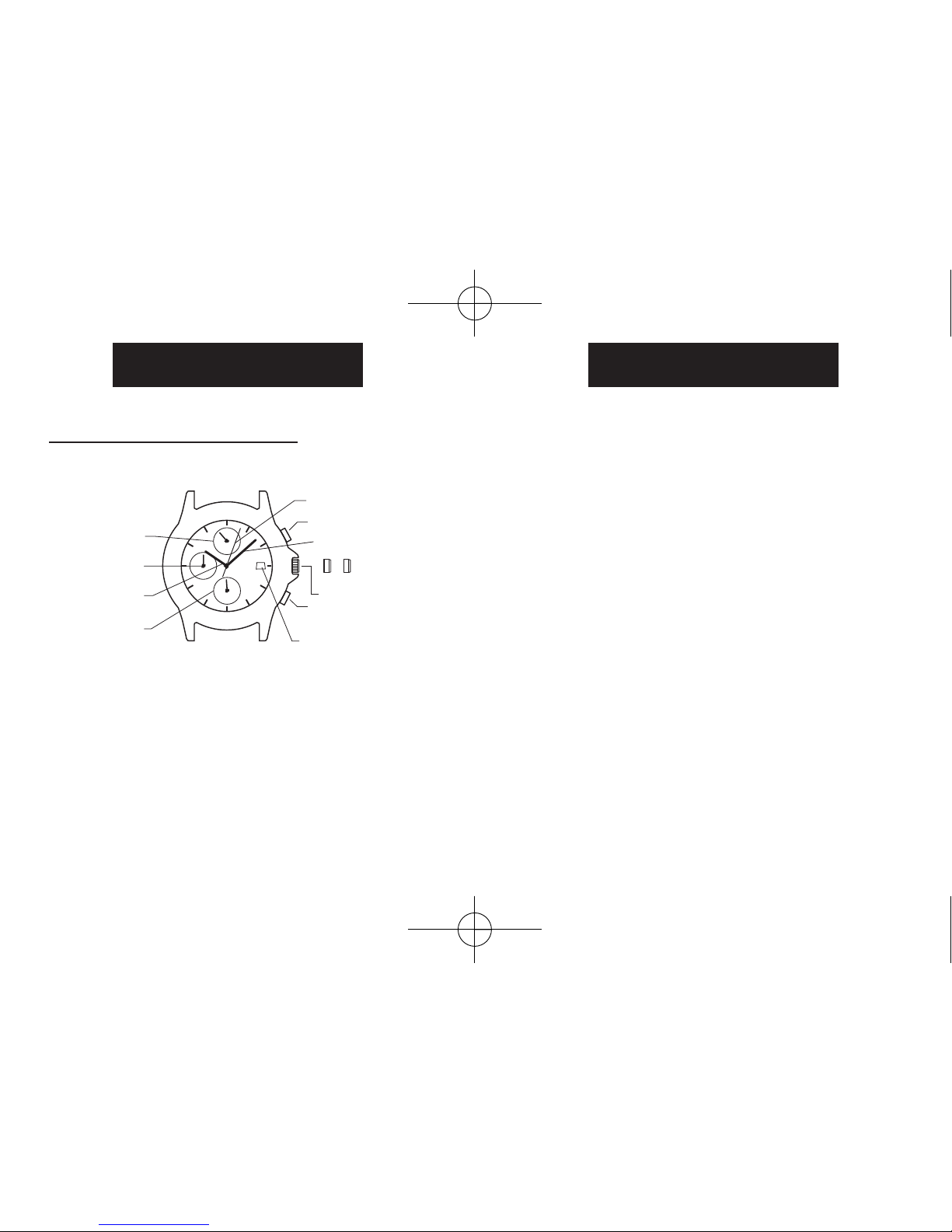

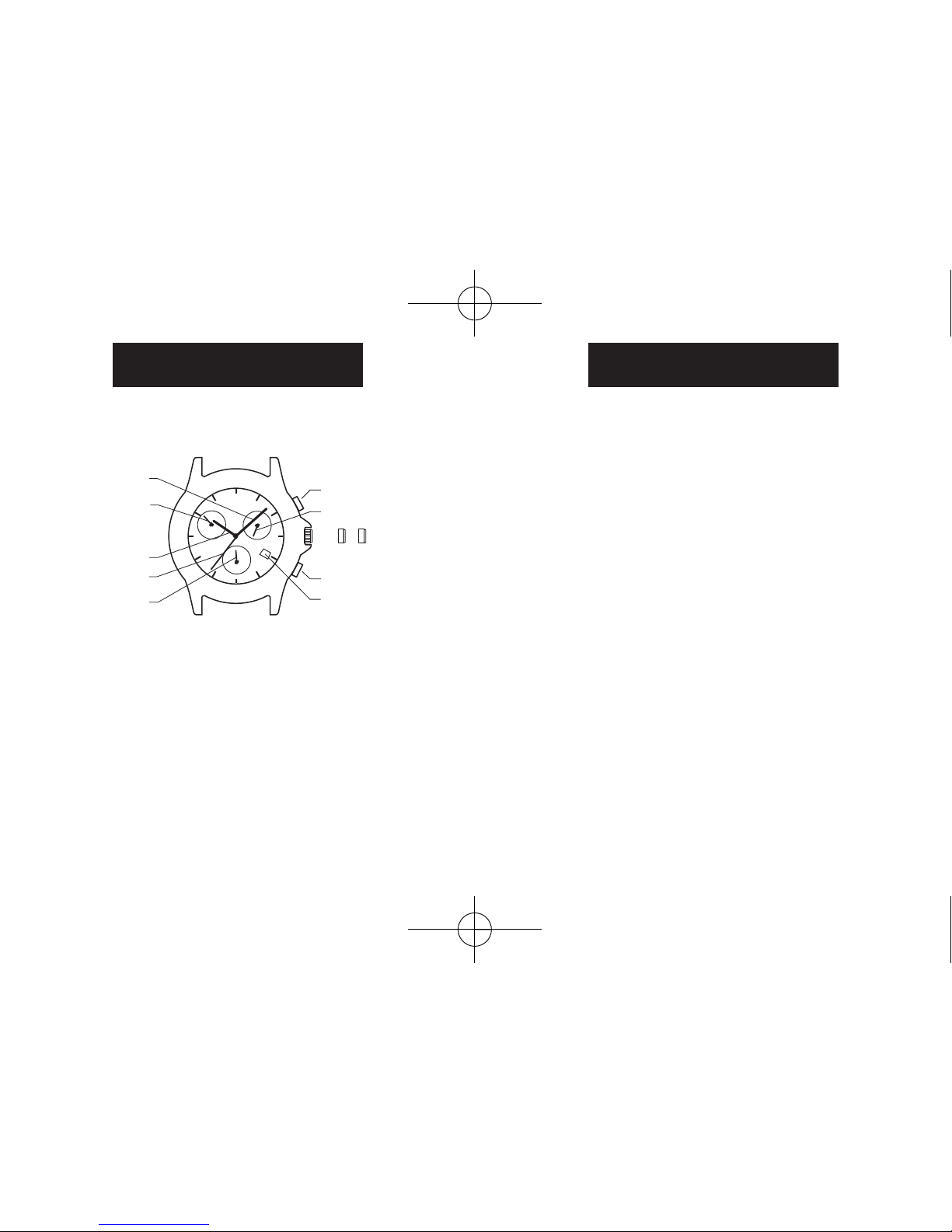

DAY/DATE/AM/PM/
SUN/MOON MODELS
TO SET TIME:
1) PULL out crown to “C” position.
2) TURN crown clockwise to correct time.
Day/am/pm/moon will also change.
3) Push in crown to “A” position.
20
ENGLISH
C
B
A
CROWN
POSITION
DATE
DAY
AM/PM
SUN/MOON
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 20

• The seconds sweep hand shows “seconds
elapsed” for chronograph
TIME, CALENDAR, CHRONOGRAPH
This chronograph watch has three functions:
TIME
TO SET THE TIME:
1) PULL out Crown to “C” position
2) TURN Crown either way to correct time
3) PUSH in Crown to “A” position
CALENDAR
TO SET THE CALENDAR
1) PULL out Crown to “B” position
2) TURN Crown clockwise to correct position
3) PUSH in Crown to “A” position
23
ENGLISH
CHRONOGRAPH MODELS
Review all chronographs to determine your watch type
TYPE 1
• Crown position “A”, “B” & “C”
• Pusher “A” (right) & “B” (left)
• Hour, minute and small second hands (6 o’clock
eye) show time
• 12 o’clock eye shows “minutes elapsed” for
chronograph
• 9 o’clock eye shows “hours elapsed” for chrono-
graph
22
ENGLISH
CB
A
PUSHER “A”
PUSHER “B”
STOPWATCH
SECOND HAND
SMALL
SECOND HAND CROWN POSITION
PUSHER “C”
STOPWATCH
HOUR HAND
STOPWATCH
1/20 SEC. HAND
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 22

NOTE: PRESSING and HOLDING either pusher “A” or
“B” will cause the hands to move continually until the
pusher is released.
STANDARD CHRONOGRAPH
MEASUREMENT:
1) PRESS pusher “A” to start timing
2) PRESS pusher “A” to stop timing
3) PRESS pusher “B” to reset
25
ENGLISH
CHRONOGRAPH
• The Chronograph is capable of measuring:
• Minutes elapsed up to 1 hour (12 o’clock eye)
• Hour elapsed up to 12 hours (9 o’clock eye)
• Seconds elapsed up to 1 minute (seconds sweep
hand)
BEFORE USING THE CHRONOGRAPH:
Adjust all the chronograph hands to the “0” or 12 hr.
position.
TO ADJUST THE CHRONOGRAPH HANDS:
1) PULL out CROWN to “C” position
2) PRESS pusher “A” intermittently until the seconds
sweep hand resets to “0” or 12-hr. position
3) PRESS pusher “B” intermittently until the hands in
the 12 o’clock eye reset to “0” or 12-hr position
4) PUSH in Crown to “A” position
NOTE: Make sure that the chronograph is stopped
and reset before adjusting.
24
ENGLISH
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 24

SETTING THE DATE
1) PULL the crown out to the 1st position “B”.
2) Turn the crown counter-clockwise to set the date.
*If the date is set between the hours of around
9:00 PM and 1:00 AM, the date may not change
on the following day.
3) After the date has been set, push the crown back
to the normal position “A”.
USING THE CHRONOGRAPH
This chronograph is able to measure and display
time in 1/1 second up to maximum of 11 hours
59 minutes 59 seconds. The chronograph second
hand keeps continuously for 11 hours 59 minutes
59 seconds after starting.
MEASURING TIME WITH THE
CHRONOGRAPH
1) The chronograph can be started and stopped
each time pusher “A” is pressed.
2) Pressing pusher “B” resets the chronograph and
the chronograph second hand, chronograph
27
ENGLISH
CHRONOGRAPH MODELS
TYPE 2
SETTING THE TIME
1) PULL the crown out to the 2nd position “C”.
2) Turn the crown to set hour and minute hands.
3) When the crown is pushed back to the normal
position “A”, small second hand begins to run.
26
ENGLISH
B C
PUSHER “A”
DATE
CHRONOGRAPH
SECOND
CROWN
POSITION
PUSHER “B”
SMALL SECOND
CHRONOGRAPH
HOUR
CHRONOGRAPH
MINUTE
HOUR
MINUTE HAND
7
NORMAL POSITION “A”
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 26

*Do not push crown to normal position while the
chronograph second hand returns to zero position.
It stops on the way when crown is returned to
normal position and its position is recognized as
zero position.
29
ENGLISH
minute hand, and chronograph hour hand return
to zero position.
CHRONOGRAPH RESET
(INCL. AFTER REPLACING BATTERY)
This procedure should be performed when the
chronograph second hand does not return to zero
position after the chronograph has been reset,
including after the battery has been replaced.
1) Pull the crown out to the 2nd position “C”.
2) Press pusher “A” to set the chronograph second
hand to the zero position. The chronograph hand
can be advanced rapidly by continuously pressing
pusher “A”.
3) Once the hand returns to zero position, return the
crown to the normal position.
28
ENGLISH
TIME MEASUREMENT
RESET STOP
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 28

TIME
TO SET THE TIME:
1. PULL crown out to “C” position.
2. TURN crown either way to correct time.
3. PUSH crown in to “A” position.
TO ADJUST TO A NEW TIME ZONE:
1. PULL crown out to “B” position.
2. TURN crown either way to move the hour hand in
hour increments.
CALENDAR
TO SET THE CALENDAR:
1. PULL crown out to “B” position.
2. TURN crown either way to move hour hand. Two
complete revolutions relative to the 12 o’clock
position will move the date forward or backward.
This will correct both date and 24-hour time.
3. PUSH crown in to “A” position.
NOTE: The date changes automatically every 24
hours.
31
ENGLISH
TYPE 3
BASIC OPERATIONS
• 6 o’clock eye shows seconds.
• 10 o’clock eye shows “minutes elapsed” for
chronograph.
• 2 o’clock eye shows “1/20 seconds elapsed” for
chronograph.
• Chronograph second hand shows “seconds
elapsed” for chronograph.
30
ENGLISH
B
D
A
C
PUSHER “A”
DATE
CHRONOGRAPH
1/20 SECOND
CROWN
POSITION
PUSHER “B”
SECOND
CHRONOGRAPH
SECOND
CHRONOGRAPH
MINUTE
HOUR
MINUTE
你
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 30

TO ADJUST CHRONOGRAPH HANDS:
1. PULL crown out to “B” position.
2. PRESS pusher “B” until the hand at the 10 o’clock
eye resets to the “30” position.
3. PULL crown out to “C” position.
4. PRESS pusher “A” until the chronograph second
hand resets to the “0” or “60” or 12-hour position.
5. PRESS pusher “B” until the hand at the 2 o’clock
eye resets to the “0” position.
6. PUSH in Crown to “A” position.
NOTE:
• Make sure the chronograph is stopped and reset
before adjusting.
• PRESSING and HOLDING either pusher “A” or “B”
for 2 seconds will cause the hands to move
continuously until the pusher is released.
33
ENGLISH
CHRONOGRAPH
THE CHRONOGRAPH IS CAPABLE OF
MEASURING:
• 1/20 seconds elapsed up to 1 second (2 o’clock
eye).
• Seconds elapsed up to 1 minute (chronograph
second hand).
• Minutes elapsed up to 30 minutes (10 o’clock
eye).
NOTE: Chronograph will operate continuously for
4 hours, after which it will automatically stop and
reset.
NOTE: The 1/20th of a second hand does not
move during chronograph function, the 1/20th
seconds are indicated when chronograph is
stopped and not yet reset.
BEFORE USING THE CHRONOGRAPH, adjust all
the chronograph hands to the “0” or 12-hour
positions.
32
ENGLISH
W223_Analog2_NA_EN.qxd 6/5/09 9:19 AM Page 32
