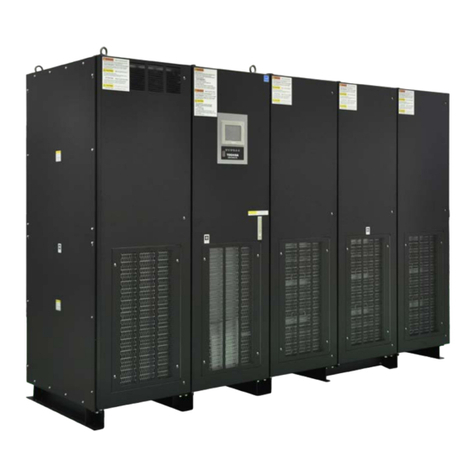

TOSHIBA G9000
80/100/160/225 kVA
GUIDE SPECIFICATION
THREE PHASE UNINTERRUPTIBLE POWER SUPPLY

Guide Specification –3-Phase Static Uninterruptible Power Supply
2

Guide Specification –3-Phase Static Uninterruptible Power Supply
3
Table of Contents
1SCOPE.........................................................................................................................................................................5
1.1 SYSTEM ............................................................................................................................................................................5
2SYSTEM DESCRIPTION.................................................................................................................................................5
2.1 APPLICABLE STANDARDS:.....................................................................................................................................................5
2.2 COMPONENTS: ..................................................................................................................................................................5
2.3 SYSTEM OPERATION: ..........................................................................................................................................................6
2.3.1 Normal .................................................................................................................................................................6
2.3.2 Loss of Main Power ..............................................................................................................................................6
2.3.3 Return of Main Power ..........................................................................................................................................6
2.3.4 Transfer to Bypass AC source ...............................................................................................................................6
2.3.5 Maintenance Bypass ............................................................................................................................................6
3GENERAL CONDITIONS FOR INSTALLATION.................................................................................................................6
3.1 REQUIRED OUTPUT CAPACITY:..............................................................................................................................................6
3.2 UPS ENVIRONMENT: ..........................................................................................................................................................6
3.2.1 Standard Environmental Parameters...................................................................................................................6
3.2.2 Discharge Heat from UPS.....................................................................................................................................6
3.2.3 Clearances for installation ...................................................................................................................................7
4SYSTEM PARAMETERS ................................................................................................................................................7
4.1 UPS REQUIREMENTS: .........................................................................................................................................................7
4.1.1 General Requirements: ........................................................................................................................................7
5FUNCTIONAL DESCRIPTION.........................................................................................................................................9
5.1 IGBT RECTIFIER .................................................................................................................................................................9
5.2 IGBT DC-DC CONVERTER ...................................................................................................................................................9
5.3 IGBT INVERTER:...............................................................................................................................................................10
5.4 STATIC BYPASS CIRCUIT: ....................................................................................................................................................11
5.5 METERING,MONITORING,ALARMS,AND CONTROLS ..............................................................................................................12
6MECHANICAL DESIGN ...............................................................................................................................................14
6.1 UPS ENCLOSURE..............................................................................................................................................................14
6.2 CABLE ACCESS .................................................................................................................................................................14
7WARRANTY ..............................................................................................................................................................14
7.1 UPS WARRANTY..............................................................................................................................................................14
7.2 UPS BATTERY WARRANTY .................................................................................................................................................14
7.3 WARRANTY SUPPORT AVAILABILITY .....................................................................................................................................14
8BATTERY CABINETS (OPTION) ...................................................................................................................................14
9COMMUNICATIONS (OPTIONAL) ..............................................................................................................................14
9.1 REMOTEYE II NETWORK ADAPTER.......................................................................................................................................14
9.1.1 SNMP Ability ......................................................................................................................................................14
9.1.2 HTTP Familiarity.................................................................................................................................................15
9.1.3 Shutdown Capability ..........................................................................................................................................15

Guide Specification –3-Phase Static Uninterruptible Power Supply
4
9.2 REMOTE STATUS ALARM PANEL (RSAP)...............................................................................................................................15
10 TOSHIBA DISTRIBUTION CABNET (TDC) (OPTION).....................................................................................................16
11 MAINTENANCE BYPASS PANEL (OPTION)..................................................................................................................16
11.1 SITE INSTALLATION.......................................................................................................................................................16
11.2 ELECTRICAL CONFIGURATION .........................................................................................................................................16
11.3 MECHANICAL INTERLOCK ..............................................................................................................................................16
11.4 EXTERNAL MAINTENANCE BYPASS: .................................................................................................................................16
12 AUXILIARY TRANSFORMER CABINETS (OPTION) .......................................................................................................16
13 POWER DISTRIBUTION UNITS (OPTION) ...................................................................................................................16
14 EXTENDED SERVICES (OPTION) .................................................................................................................................17

Guide Specification –3-Phase Static Uninterruptible Power Supply
5
1SCOPE
1.1 System
These specifications describe a high efficiency continuous duty, three-phase, on-line, solid-state
Uninterruptible Power Supply system (UPS). The UPS shall operate utilizing the existing power
distribution system to provide high quality, uninterruptible power to critical loads.
The UPS shall consist of an AC/DC multi-level Insulated Gate Bipolar Transistor (IGBT)
Rectifier, DC/DC Converter/Battery Charger, DC/AC multi-level IGBT Inverter, integral static
bypass, front-accessible controls, display, and monitor.
2SYSTEM DESCRIPTION
2.1 Applicable Standards:
The UPS shall be designed in accordance with and be compliant with the following sections of
the current revisions of the following standards:
UL 1778/cUL Listed
FCC Class A, Article 47, Part 15.B
ISO 9001
ISO 14001
ANSI C62.41
2.2 Components:
The UPS shall consist of the following components:
1. Multi-level IGBT AC/DC Rectifier
2. IGBT DC/DC Battery Converter/Charger
3. Multi-level IGBT DC/AC Inverter
4. Hybrid Integral Static Bypass (Thyristor switch with wrap around contactor)
5. Microprocessor Logic and Control Panel
** The following components shall be optional:
1. Battery Cabinet with DC Breaker
2. Toshiba Distribution Cabinet (TDC)
3. Toshiba Tie Cabinet for parallel operation
4. RemotEye II UPS remote communications and web-based monitor card
5. Network communications with MODBUS interface adapter
6. Remote Status Alarm Panel (RSAP)

Guide Specification –3-Phase Static Uninterruptible Power Supply
6
2.3 System Operation:
The UPS shall operate as a fully automatic on-line system in the following modes:
2.3.1Normal
IGBT Rectifier converts AC input power to DC power for the inverter and for charging the
batteries. The IGBT inverter supplies clean and stable AC power continuously to the critical
load. The UPS Inverter output shall be synchronized with the bypass AC source when the
bypass source is within the AC input voltage and frequency specifications.
2.3.2Loss of Main Power
When Main Power is lost, the battery option shall automatically back up the inverter so there
is no interruption of AC power to the critical load.
2.3.3Return of Main Power
The system shall recover to the operating mode in Item 1 and shall cause no disturbance to
the critical load while simultaneously recharging the backup battery.
2.3.4Transfer to Bypass AC source
If the UPS becomes overloaded, or an internal fault is detected, the UPS controls shall
automatically transfer the critical load from the inverter output to the bypass AC source
without interruption. When the overload or internal warning condition is removed, after a
preset “hold” period the UPS will automatically re-transfer the critical load from the bypass
to the inverter output without interruption of power to the critical load.
2.3.5Maintenance Bypass
An optional manual make-before-break maintenance bypass panel may be provided to
electrically isolate the UPS for maintenance or test without affecting load operation.
3GENERAL CONDITIONS FOR INSTALLATION
3.1 Required Output Capacity:
The UPS will be available in the following output capacities: 80, 100, 160, and 225 kVA (72, 90,
144, and 202.5 kW). Each unit shall be capable of being operated either independently or
connected in parallel for a total of up to four like-capacity units.
3.2 UPS Environment:
3.2.1Standard Environmental Parameters
Operating Temperature : 32° to 104°F (0° to 40°C)
Operating Humidity : 5 - 90% (Non-condensing)
Altitude : 7380 ft. (2250 m) (without derating)
3.2.2Discharge Heat from UPS at full load.
80 kVA : 11,307 Btu/Hr
100 kVA : 14,133 Btu/Hr
160 kVA : 19,408 Btu/Hr
225 kVA : 27,292 Btu/Hr

Guide Specification –3-Phase Static Uninterruptible Power Supply
7
3.2.3Clearances for installation
Ceiling Level : 20” minimum from top of UPS to ceiling
Front : 40”minimum for maintenance
(Local and regional codes may apply)
Bottom : Knockouts for power cable access
Rear : Zero clearance required
Sides : Zero clearance if using bottom cable access
(Standard knockouts for left/right side
cable access )
Base : Channel mounted
4SYSTEM PARAMETERS
4.1 UPS Requirements:
4.1.1General Requirements:
Rated Output Capacity : 80/100/160/225 kVA
(72/90/144/202.5 kW)
AC/DC Rectifier Type : AC/DC multi-level IGBT Rectifier
DC/AC Inverter Type :DC/AC multi-level IGBT Inverter
Inverter
External Dimensions (W) (D) (H)*
80 kVA : 27.6”x 32.8”x 78.7 (80.6)”
100 kVA : 27.6”x 32.8”x 78.7 (80.6)”
160 kVA : 35.4”x 32.8”x 78.7 (80.6)”
225 kVA : 35.4”x 32.8”x 78.7 (80.6)”
* Unit height with fan assembly installed
Weight
80 kVA : 855 lbs
100 kVA : 855 lbs
160 kVA : 1160 lbs
225 kVA : 1230 lbs
Power Cable Access : Bottom, Sides, Top Entry with optional
side cabinet
Paint Color : Black (Munsell N1.5)
4.1.2 AC Input:
Configuration : 3-Phase/3-Wire + Ground
Rated Voltage : 480V
Voltage Variation : +15% to –20%
Rated Frequency : 60Hz
Frequency Variation : +/-10%
Input Power Factor : Greater than 0.99 lagging at 25%-115% load

Guide Specification –3-Phase Static Uninterruptible Power Supply
8
Current THD : <3% THD at 60%–100% load
<6% THD at 25%–59% load
(No input harmonic filter required)
4.1.3 Charging Function:
DC Nominal Voltage : 480 V
AC Ripple on DC Bus : < 0.2% of DC Voltage
DC Voltage Range : 400 V to 545 V
DC Float Charging Voltage : 545 V
Maximum charging current:
80 kVA : 20 A
100 kVA : 25 A
160 kVA : 40 A
225 kVA : 56 A
AC Ripple on DC Charging Circuit :
80 kVA : 0.23%
100 kVA : 0.23%
160 kVA : 0.23%
225 kVA : 0.29%
4.1.4 Bypass Input:
Configuration : 3-Phase/3-Wire + Ground
Rated Voltage : 480 V
Input voltage synchronous range : +/-10%
Rated frequency : 60 Hz
Frequency Variation : +/-5%
Frequency synchronous range : +/-1.0 Hz
Bypass overload capacity : 1000% for 1 cycle
4.1.5 AC Output:
Configuration : 3-Phase/3-Wire + Ground
Rated Capacity :80/100/160/225 kVA (72/90/144/202.5 kW)
Rated Voltage : 480 V
Efficiency at % Full Load : 20% 40% 60% 80% 100%
80 kVA 92.5% 95.6% 95.6% 95.6% 95.6%
100 kVA 92.5% 95.6% 95.6% 95.6% 95.6%
150 kVA 94.6% 96.2% 96.2% 96.2% 96.5%
225 kVA 94.7% 96.2% 96.2% 96.2% 96.5%
Voltage Regulation : +/-1% (0-100% Unbalanced Load)
: +/-1% (0-100% Balanced Load)
Voltage Adjustment Range : +/-3%
Rated Frequency : 60 Hz
Frequency Regulation : +/-0.01% (Free-Running Mode)
Frequency Synchronous Range : +/-0.5 Hz or +/-1.0 Hz (Selectable)
Rated Load Power Factor : 0.9 PF lagging
Overload Capacity : 125% for 2 min., 150% for 1 min.

Guide Specification –3-Phase Static Uninterruptible Power Supply
9
Harmonic Voltage Distortion : < 2% THD (100% Linear Load)
: < 5% THD (100% Non-linear Load)
Phase Displacement : 1° Maximum at 100% load
Voltage Transients:
100% Load Step Change : +/-2% Maximum (Without battery assistance)
Loss or Return of Input : +/-1% Maximum
Transfer from Bypass to Inverter : +/-5% Maximum
(At Bypass Rated Voltage)
Recovery Time : 1 cycle
5FUNCTIONAL DESCRIPTION
The UPS shall protect the load against surges, sags, undervoltage, and voltage fluctuation. The
UPS shall have built-in protection against permanent damage to itself and the connected load for
all predictable types of malfunctions. The load shall be automatically transferred to the bypass
line without interruption in the event of an internal UPS malfunction. The status of protective
devices shall be indicated on a LCD graphic display screen on the front of the UPS.
5.1 IGBT Rectifier
5.1.1 General
A solid-state, multi-level IGBT Rectifier shall convert the incoming AC power into DC
power to supply the inverter input and system battery.
5.1.2 Voltage Regulation
The rectifier output voltage shall not deviate by more than +/- 1.0% RMS under the
following conditions:
0% - 100% loading (balanced and unbalanced loading, non-transient)
+15% - 20% utility voltage change
+/-10.0% utility frequency change
5.1.3 Reflected Harmonic Content
Input current THD shall be
< 3% at 60%-100% load
< 6% at 25%-59% load.
5.2 IGBT DC-DC Converter
5.2.1 General
A solid-state IGBT Battery Converter/Charger shall control battery charging.
5.2.2 Battery Charge Current Limit
The Converter logic shall provide DC for controlled battery charging. The battery current
sensing shall be independent of the Converter DC Output current sensing to provide
precise battery recharging control. The DC/DC Charging Converter shall include a circuit
to regulate the battery charging current to between 100% and 125%.

Guide Specification –3-Phase Static Uninterruptible Power Supply
10
5.2.3 Battery Protection
The converter shall be provided with monitoring and control circuits to protect the battery
system from damage due to excessive discharge. Converter shutdown shall be initiated
when the battery voltage reaches a discharge cutoff voltage of 400 VDC. Automatic
shutdown based on discharge time is not acceptable.
5.2.4 DC Ripple
AC Ripple on the DC Bus shall be less than 0.2%.
AC Ripple on the Battery charging circuit shall be less than 0.23% for the 80/100/160
kVA UPS, and less than 0.29% for the 225 kVA UPS.
5.3 IGBT Inverter:
5.3.1 General
The inverter shall be composed of multi-level IGBT power transistors controlled utilizing
an Advanced Technology PWM logic. The Inverter shall continuously convert DC power
from the IGBT Rectifier to AC power for the critical loads. When the utility voltage or
frequency exceeds the specified UPS input tolerances, the inverter shall continuously
convert DC power from the battery source to AC power for the critical load.
The inverter shall be capable of providing rated output while operating at any battery
voltage within the battery operating range. When the DC battery voltage reaches the
operational low voltage limit during a loss of utility AC power, the inverter shall
automatically shut off.
5.3.2 Output Voltage
The Inverter output voltage shall not deviate by more than +/- 1.0% RMS under the
following steady state conditions as the Inverter DC input varies from maximum to
minimum:
0% to 100%Unbalanced load
0% to 100%Balanced load
5.3.3 Synchronization
The Inverter output voltage shall be automatically synchronized with the bypass AC
source as long as the source is within the tolerable frequency and voltage range. If the
bypass AC source is not within the range, the control circuitry will stop synchronization
and operate the inverter in free running mode. When the bypass AC source recovers to
within tolerance, the inverter shall change its frequency (slew rate 1Hz/sec) and track the
bypass AC source until synchronization is achieved without causing any disturbance to
the load.
5.3.4 Output Control
The Inverter can be manually started and stopped using the LCD touch screen controls.

Guide Specification –3-Phase Static Uninterruptible Power Supply
11
5.3.5 Overload Capacity:
The Inverter output shall be capable of providing an overload current of 125% for 2 min.
and 150% for 1 min. A message on the control panel shall indicate this condition. If the
time limit associated with the overload condition expires, or the overload is in excess of
the set current limit, the load power shall transfer to the bypass source without
interruption.
5.4 Static Bypass Circuit:
5.4.1 General:
An integral static bypass circuit shall be provided to supply an alternate source of power
to the critical load in the event the inverter cannot supply rated output power. The bypass
circuit shall be capable of supplying the UPS rated load current and accommodate fault
clearing.
The 100% duty rated static bypass panel shall be composed of a thyristor switch with a
wrap-around contactor. The thyristor switch shall be a high-speed transfer device. The
wrap-around contactor shall be electrically connected in parallel to the thyristor switch
and shall, at the same time as the thyristor switch, be energized and, upon closure,
maintain the bypass source to the load to improve the efficiency and reliability of the
system. The thyristor switch shall only be utilized for the time needed to energize the
contactor closure.
The UPS system logic shall employ sensing which shall cause the thyristor switch to
energize and provide an uninterrupted transfer of the load to the bypass source when any
of the following limitations are exceeded:
Inverter output undervoltage or overvoltage.
Overloads exceeding 125% for 2 min., or 150% for 1 min.
DC circuit undervoltage or overvoltage.
Final discharge voltage of system battery is reached and the bypass source is
present, available, and within tolerance range
Transferring the output from the inverter to the bypass source and vice versa shall be
performed by pressing “START/STOP” icon on the touchscreen display.
Operating Mode
Transfer mode
Transfer Type
Synchronized
Unsynchronized
Automatic
Inverter to Bypass
(Overload, Internal Fault)
Uninterrupted
Interrupted
“BYPASS”
switch operated
Inverter to Bypass
Uninterrupted
Interrupted
(forced transfer)
Automatic
Bypass to Inverter
(Auto-Retransfer Mode)
Uninterrupted
Transfer inhibited
“UPS”
switch operated
Bypass to Inverter
Uninterrupted
Transfer inhibited

Guide Specification –3-Phase Static Uninterruptible Power Supply
12
If the bypass source is beyond the conditions stated below, interrupted transfer shall be
made upon detection of a fault condition.
Bypass voltage greater than + 10%, -10% from the UPS rated output voltage.
Bypass frequency greater than + 1 Hz from the UPS rated output frequency.
5.4.2 Overload Capacity in Bypass:
Continuous duty : 125% of the system rated capacity
Overload duty : 1000% of ampere rating for 1 cycle.
5.4.3 Retry function:
When an internal warning has been detected, power flow will automatically switch from
the main circuit (inverter) to the bypass circuit without interruption to the load. If the
internal warning is cleared, UPS will automatically switch the power flow from the
bypass circuit to the main circuit (inverter) without interruption.
5.5 Metering, Monitoring, Alarms, and Controls
5.5.1 Status Indicators
The Front Panel shall include LED status indicators for the following states:
Load on Inverter
Battery Operation
Load on Bypass
Overload
LCD Fault
UPS Fault
5.5.2 EPO (Emergency Power Off) Button
The Front Panel shall have an Emergency Power Off button (EPO) located on the front
panel that, when pressed, will shut down the UPS.
5.5.3 Liquid Crystal Display (LCD) Touch Panel
The Front Panel shall include a LCD touch panel that shall provide performance data,
statistics, and operating conditions. The following metering will be displayed on LCD
touch panel:
AC Input Voltage
AC Input Frequency
AC Output Voltage
AC Output Current
AC Output Frequency
Battery DC Voltage
Battery DC Current
AC Bypass Voltage
AC Bypass Frequency

Guide Specification –3-Phase Static Uninterruptible Power Supply
13
5.5.4 Mimic Panel
A one-line diagram of the system shall be displayed on the touch panel display panel to
provide a visual status of contactors within UPS. The panel shall display the followings:
AC Input, DC Input
Rectifier in Operation
Inverter in Operation
UPS/Bypass supply
Battery Operating Condition (float charge/discharge)
Fault, Warning
Operation Guidance (LCD Display)
Fault Guidance (LCD Display)
5.5.5 Isolated Control Signals
Normally Open isolated contact signal outputs for remote use will be furnished for the
following operating status indications:
Summary Alarm
Load on Bypass
Load on Inverter
Battery Operation
Rectifier Operation
Battery Low Voltage
Overload
Total alarm
Output Contactor Closed
Contact rating:
Output: 1 A @ 30 VDC.
Input: 24 VDC
UPS module accepts remote switches to initiate the following remote operations. These
contacts shall be field supplied):
Remote Start
Remote Stop
Battery Temperature High
Power Demand
Emergency Power Off (EPO)
Contact rating:
Input: 24 VDC
The contact signal inputs and outputs shall be wired to a terminal block located inside the
UPS.

Guide Specification –3-Phase Static Uninterruptible Power Supply
14
6MECHANICAL DESIGN
6.1 UPS Enclosure
The UPS shall be a freestanding NEMA1 enclosure equipped with a leveling channel base. The
enclosure shall include provisions for hoisting, jacking, and forklift handling.
6.2 Cable Access
Cable access to the UPS shall be
Bottom entry
Side entry,
Top entry with when using optional side cabinet
7WARRANTY
7.1 UPS Warranty
The UPS shall come with a 36-month warranty on all mechanical, electrical, electronic
components. Parts, labor, and travel are included during warranty period. Optional extended
warranties shall be available.
7.2 UPS Battery Warranty
The back-up batteries shall come with a ten-year warranty: three years full, then seven years pro
rata. Parts, labor, and travel are included during warranty period. Optional extended warranties
shall be available. See Toshiba warranties at www.toshiba.com/ind
7.3 Warranty Support Availability
Warranty and technical support shall be available 24/7/365. (877-867-8773)
8BATTERY CABINETS (OPTION)
The UPS manufacturer can provide optional matching battery cabinets with DC breaker.
9COMMUNICATIONS (OPTIONAL)
9.1 RemotEye II Network Adapter
The UPS shall provide either an internal or external support for an internet web/SNMP adapter
RemotEye II. for the optional capability of remote or internet system monitoring.
9.1.1SNMP Ability
RemotEye II shall provide a SNMP interface for the UPS. The SNMP interface shall provide
for easy integration of UPS management into an existing SNMP Network Management
System. At any given time, SNMP queries shall be able to poll the RemotEye II agent for the
current status of its connected UPS.

Guide Specification –3-Phase Static Uninterruptible Power Supply
15
9.1.2HTTP Familiarity
The RemotEye II shall provide a HTTP interface for the UPS to allow easy access of the UPS
information from any machine with a web browser. At any time, a network workstation or
management station shall be able to open a RemotEye II website. RemotEye II website shall
enable the UPS system information to be configured and monitored remotely. RemotEye II
shall provide access to 3 java applets for monitoring, event logging, and trend analysis.
9.1.3Shutdown Capability
The RemotEye II application software shall allow RemotEye II to remotely notify and
shutdown selected network servers.
Network Adapter/External Hardware
AMD 188ES-20MHz
512kB SRAM: 512kB Flash
Two asynchronous serial ports
10 BaseT RJ-45 connector
Toshiba UPS communication protocol
SNMP over UDP/IP : HTTP over TCP/IP:ARP, RARP, TFTP and
ICMP
MIB_II : Toshiba v1.2_MIB :JEM MIB : RFC 1628
Traffic LED for network : Status LED for status : Power LED for
Power
2 digit (default setting is Switches 1 and 2 off)
Temperature Range: 0 –40 C
Relative Humidity: 10 –80 %
Power Requirements: 12 VDC ungrounded
2.0 Watts Maximum
Dimensions: 5.28”(134mm) x 3.40”(86mm) x 1.10”(27mm) (LxWxH)
Weight: 0.38lbs(170g)
Certifications: FCC class A, UL, CUL, CE
9.2 Remote Status Alarm Panel (RSAP)
The manufacturer shall optionally provide a RSAP that shall provide a wall-mounted LED mimic
display for UPS status events of:
Input ON
Bypass ON
Inverter ON
Low Battery, AC Fail
New alarm annunciation
Battery backup for the RSAP monitor.

Guide Specification –3-Phase Static Uninterruptible Power Supply
16
10 TOSHIBA DISTRIBUTION CABNET (TDC) (OPTION)
The manufacturer can optionally provide a matching TDC for the UPS.
The TDC can include a step-down, 480/208/120 V transformer in a matching NEMA1
cabinet.
The TDC can include a three-breaker MBS with a slidebar interlock. Interlock keys and
Solenoid Key-Retractable Unit (SKRU) can be provided.
The TDC can include up to eight 225 A sub-feed breakers.
The TDC can include up to two 42-pole distribution panels.
11 MAINTENANCE BYPASS PANEL (OPTION)
The manufacturer can optionally provide a MBS (Maintenance Bypass Panel) for the UPS.
11.1Site Installation
The MBS can be available in either a wall mount or floor mount configuration.
11.2Electrical Configuration
The MBS can be available in two, three, or four breaker configurations.
11.3Mechanical Interlock
The MBS can have the option for a two-kirk-key interlock system.
11.4External Maintenance Bypass:
A manually operated maintenance bypass panel can be provided to bypass the power
feeding the critical load from inverter to a static switch panel without causing any power
interruption.
Bypass input breaker can supply input power to the UPS module static bypass input. If
the system design calls for separate UPS and bypass inputs, a bypass input breaker can be
installed on each input.
UPS maintenance bypass breaker can allow power flow to the load when the UPS is
bypassed. This can be a normally open circuit breaker.
The UPS module output can feed the UPS output isolation breaker.
Optionally, the two input bypass breaker can be used to feed both the UPS converter input
and the UPS bypass input.
12 AUXILIARY TRANSFORMER CABINETS (OPTION)
The UPS manufacturer can provide optional Auxiliary Transformer Cabinets (ATC) for stepping
the UPS output voltage down to service load voltages.
13 POWER DISTRIBUTION UNITS (OPTION)
The UPS manufacturer shall provide optional PDUs (Power Distribution Units) for stepping the
UPS output voltage down to service load voltages. The PDUs can be provided in either front-
access cabinet or Rack-mount style.

Guide Specification –3-Phase Static Uninterruptible Power Supply
17
14 EXTENDED SERVICES (OPTION)
The UPS manufacturer can offer :
Startup Service
Maintenance Contracts (Silver, Gold, Platinum)
Preventive Maintenance Contracts
Spare-parts kits (A, B, and C level)
Extended warranty coverage for up to an additional 5 years
Enhanced warranty contract (24/7 + Holiday coverage)
Load bank testing
Factory witness testing
Site monitor and power audits
