Toto T112 User manual

1
Required
03B18SS T1 2021.4
Handrail Resin Coating Type/Stainless Steel Type
Follow the instructions in this installation manual to fully fulll the functions of this product. After installation, give full explanation on how to use this product to the customer.

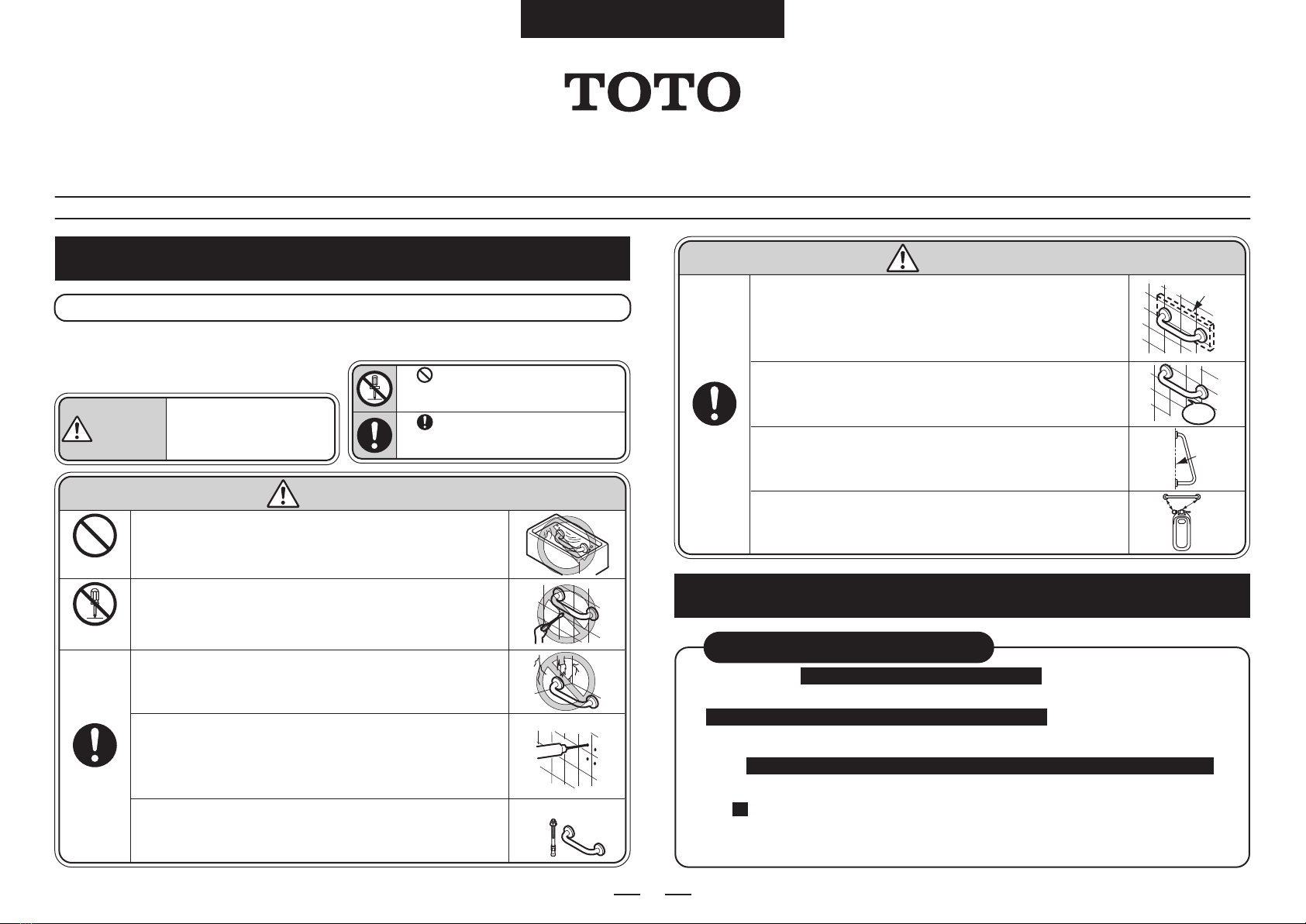

1. Safety Precautions ( Be sure to observe these instructions. )
Please read these “Safety Precautions” before installation, and install the product correctly.
WARNING
● This instruction manual shows various symbols to
correctly install the product in
order to prevent harm to
customers and other users, and damage to property.
Those symbols mean the following contents.
When this appears next a topic, this
indicates that ignoring this symbol
and mishandling the product could
result in death or serious injury.
The symbol indicates something that is
“Prohibited.” The symbol on the left indicates “Do
not disassemble.”
The symbol indicates something that “Must be
implemented.” The symbol on the left indicates
“Required.”
● The following symbols are used to classify and explain
instruction that must be followed.
WARNING
Prohibit
Do not
disassemble
Required
WARNING
Installation manual
T112 Type/T113 Type
2-1. Before Installation
Precautions before installation
●Make sure that the wall where the handrail is attached is strong enough.
●When installing the handrail in combination with a product with a photoelectric sensor,
make sure that the sensor does not detect the handrail .
For the mounting positions of a product with photoelectric sensor and the handrail, see the manuals or
catalogs for products with photoelectric sensor.
●Select an appropriate mounting method depending on the structure of the building .
As the part number of the handrail and those of the wall- (oor-) xing brackets are different, please place an
order for the xing brackets separately depending on the wall structure.
See “ Fixing Brackets (Optional Parts)” for the required number of xing bracket sets.
*For installation methods not shown in this manual, contact TOTO’s branch ofce, branch shop, or sales
ofce.
●See the catalogue, etc. for the handrail installation position.
3.
Wall
surface
Top
Bottom
T
O
T
O
-
d
e
s
i
g
n
a
t
e
d
No
backlash!
Do not install the product outdoor or in areas that
might be submerged.
Doing so could cause a user to fall due to the damage or coming-off
of the handrail and may result in injury.
Make sure that the base has sufcient thickness and is reinforced,
and install the handrail by the specied installation method.
If the base does not have sufcient thickness or is not reinforced, and if you
do not follow the specied installation method for each base, the handrail may
come off or the wall may collapse, which could result in user’s fall and injury.
Make sure that the handrail has no backlash after the
installation is complete.
If the handrail has backlash, the handrail may come off or the wall
may collapse, which could result in user’s fall and injury.
Check the installation orientation of the I type handrail for
washing area in bathroom.
If the product is installed in the orientation not shown in the illustration, a part of the body
(neck, etc.) could get caught between the handrail and the wall and may result in injury.
Check the space between the handrail for Japanese-style toilet and its
surrounding xed objects and the installation position of the handrail.
Failure to do so could cause a part of the body (neck, etc.) to get caught
between the handrail and the xed object and may result in injury.
Anyone other than service engineers must not
disassemble, repair, or modify the product.
Failure to observe this warning could cause a user to fall due to the
damage or coming-off of the handrail and may result in injury.
Be sure to install this product on a strong wall or building structure.
If the product is installed directly on a wall that is not strong enough,
including a soil wall and a gypsum board wall, it may come off or the
wall may collapse, which could result in user’s fall and injury.
When the product is used in wet areas such as a bathroom,
be sure to apply sealant around the mounting holes.
If sealant is not applied, water may enter the back of the wall and
cause the product to come off or the wall to collapse, which could
result in user’s fall and injury.
Be sure to use TOTO-designated xing brackets.
If TOTO-designated xing brackets are not used, the handrail may
come off or the wall may collapse, which could result in user’s fall
and injury.
Reinforcement

Note
2
<Remedial method>
Grip bar
T110D43
Clamping set
Fixing position: 1 position
・Continuous-thread stud: 4 pieces
・Washer: 8 pieces
・Nut: 12 pieces
M6×150
<Fixing bracket list>
T110D37
T110D22R
T110D15(L=70)
T110D16(L=50)
T110D23(L=33)
t=3.2
φ4×16
250
150
Mounting bracket for
light-gauge steel frame
Fixing position: 1 position
・Mounting bracket: 1 piece
・Drilling screw: 10 pieces
T110D36 φ4×16
t=3.2
250
150
340
150
Mounting bracket for
light-gauge steel frame
Fixing position: 2 positions
(top and bottom)
・Mounting bracket: 1 piece
・Drilling screw: 10 pieces
T110D44
M6×50Bolt set
(for light-gauge steel
frame)
Fixing position: 1 position
・Bolt: 4 pieces
・Washer: 4 pieces
T110D45
φ5×45Drilling screw set
(for light-gauge steel
frame)
Fixing position: 1 position
・Drilling screw: 4 pieces
・Washer: 4 pieces
T110D46
M6×50
M6
Mechanical nut set
(for light-gauge steel
frame)
Fixing position: 1 position
・Mechanical nut: 4 pieces
・Bolt: 4 pieces
・Washer: 4 pieces
T110D26
<Fixing bracket list>
Anchor bolt Fixing position: 1 position
・Anchor bolt: 4 pieces
L
M6
T110D3R
(L=85)
T110D18R
(L=105)
Coach screw
Fixing position: 1 position
・Coach screw: 4 pieces
・Washer: 4 pieces
L
φ6
Resin plug Fixing position: 5 positions
・Resin plug: 20 pieces
φ8×40
Clamping bracket
(40 mm-thick,
for additional installation
to a toilet booth)
Fixing position: 1 position
・Mounting plate: 1 piece
・Bolt: 4 pieces
・Washer, nut, and resin pipe:
4 pieces each
Use the outer bolt holes
M6×55
Resin
pipe
φ13
Fixing with hanger
bolts
Fixing position: 1 position
・Hanger bolt: 4 pieces
・Washer and nut: 4 pieces each
M6×11
φ6×L
Hanger
bolt
T110D34
(L=50)
T110D35
(L=30)
(Unit: mm)
2-2. Before Installation
About the resin coating type grip bar
ShapePart No. Details of the setName
<Fixing bracket list> (Unit: mm)
ShapePart No. Details of the set
T110D41
T110D11
T110D62
T110D42
Mounting plate
Fixing position: 1 position
・Mounting plate: 1 piece
φ8
M6 100×100×t6
Welding set Fixing position: 1 position
・Continuous-thread stud: 4 pieces
・Washer: 4 pieces
・Nut: 8 pieces
M6×60
Embedding set Fixing position: 1 position
・Continuous-thread stud: 4 pieces
・Washer: 4 pieces, ・Nut: 8 pieces
・Anchor bolt: 4 pieces
M6×60 M6×50
Name
Mounting plate Fixing position: 2 positions
(top and bottom)
・Mounting plate: 1 piece
260
150
φ8
M6
t6 100
3-1. Fixing Brackets (Optional Parts)
●If the resin coating type grip bar gets scratched on its surface, it cannot
be repaired. Therefore, please handle the product with care.
●As the surface of the resin coating type grip bar is made of soft resin, if a
tool or the like hits the grip bar, the surface of the grip bar may get
dented. In that case, remedy it by the following procedure.
Apply hot air to the dented portion with a hair dryer for about 2 or 3 minutes.
*The time to apply hot air varies depending on the degree of the dent.
Remedy it while checking its recovering condition.
Do not apply hot air to the soft resin on the surface of
the resin coating type grip bar too long. Doing so may
cause the soft resin portion to burn or change in color.

3
<List of the required numbers of xing brackets and those of parts to be procured in the eld>
3-2. Fixing Brackets (Optional Parts)
Versatile I type handrail
Versatile L type handrail (T112CL9, T113BL9)
L type handrail for sitting toilet
(T112CL10, T113BL10)
L type handrail for sitting toilet
(T112CL11/CL12, T113BL11/BL12)
P type handrail for sitting toilet
(T112CP21/CP22, T113BP21/BP22)
Note 11
P type handrail for sitting toilet (T112CP26/CP27)
Handrail for wall-mounted washbasin (T112CP31)
Handrail for Japanese-style toilet
(T112CW1, T113BW1)
Handrail for urinal
(T112CU22, T113BU22)
Handrail for wall-mounted washbasin
(T112CP23, T113BP23)
Note 11
Handrail for wall-mounted washbasin
(T112CP28)
I type handrail for washing area in bathroom
(T112CD6, T113BD6)
T110D11×2,T110D42×2
T110D11×3,T110D42×3
T110D11×3,T110D42×3
T110D11×3,T110D42×3
T110D62×1,T110D42×2
T110D62×2,T110D42×4
T110D11×2,T110D42×2
Product name
Base (mounting method)
Concrete base, GL (Gypsum Lining) method
(Fixing by embedding a mounting plate)
Note 1
T110D3R×2
T110D3R×3
T110D3R×3
T110D3R×3
T110D3R×3
T110D3R×2
T110D3R×2
T110D3R×4
T110D3R×3
T110D3R×3
T110D3R×2
Concrete base
(Fixing with anchor bolts)
T110D16 × 2, T110D26
Note 6
T110D16 × 2, T110D34 × 1
Note 7
T110D26Note 6
T110D16 × 2, T110D34 × 1
Note 7
T110D26
Note 6
T110D62×1,T110D43×2
T110D3R×1
T110D62×1,T110D43×2
T110D3R×1
T110D11×1,T110D62×1
T110D43×3
Concrete base/
Concrete block base (Fixing with plugs)
T110D11×2,T110D43×2
T110D11×3,T110D43×3
T110D11×3,T110D43×3
T110D11×3,T110D43×3
T110D62×1,T110D43×2
T110D62×2,T110D43×4
T110D11×2,T110D43×2
Wooden base/Concrete block base
(Fixing by clamping a mounting plate)
Note 2
T110D16 × 2
Note 8
T110D15×3
T110D15×2,T110D3R×1
T110D15×2
T110D15×2
T110D15×4
T110D15×2,T110D3R×1
T110D15×3
T110D15×2
Wooden base
(Fixing with coach screws)
Note 3
T110D62×1,T110D42×2
T110D3R×1
T110D11×1,T110D62×1
T110D42×3
T110D62×1,T110D42×2
T110D3R×1
11
1
2
3
4
7
6
5
8
9
10
*●shows the parts that need to be procured in the eld. “Pipe” indicates metal pipes (φ13.8,
t2). Please purchase them at a hardware store or a home improvement center. Prepare pipes
with an appropriate length considering the thickness of the wall.
*"-" means that it cannot be installed.
Note 1: [GL method] Available only when the thickness of GL (Gypsum Lining) is 50 mm or less.
Note 2: [Concrete block base] Available only when the thickness from the back of the concrete
block to the nished wall surface is 125 mm or less.
Note 3: For the thickness of reinforcing wooden blocks, see " (P. 10) ."
Note 4: The toilet booths for which the xing brackets are available are those made from paper
honeycomb, melanin, or polyether decorative plywood, or the equivalent, which is 40
mm in thickness.
Note 5: Available only for toilet booths with a wall thickness of 30 mm or more.
Note
7-3.
Note 6: Please place an order for T110D26 (resin plug: 20 pieces) depending on the required
number of screws. The required number of screws is 8 for I type and 12 for L type.
Note 7: Use hanger bolts for the intermediate support part, which facilitate installation. If
coach screws are used, a screwdriver could interfere with the cover, making it difcult
to install the product, and it may cause damage to the cover.
Note 8: If the thickness of the nished wall surface is 15 mm or less, T110D23 can also be used.
Note 9: If the thickness of the nished wall surface is 15 mm or less, T110D35 can also be used.
Note 10: Use bolts for the intermediate support part. If drilling screws are used, a screwdriver
could interfere with the cover, making it difcult to install the product, and it may
cause damage to the cover.
Note 11: Floor-xing brackets shown in the list are for installation by xing with anchor bolts
(concrete oor). When the oor is a wooden base, change the oor-xing type
T110D3R (xing with anchor bolts) to T110D15 (xing with coach screws). In the case
of a wooden base, reinforcement of 60 mm or more is required.
T110D16 × 2Note 8,
T110D34 × 1Notes 7 and 9
T110D16 × 2Note 8,
T110D34 × 1Notes 7 and 9

3-3. Fixing Brackets (Optional Parts)
T110D18R × 2, ●Pipe × 8
T110D18R × 3, ●Pipe × 12
T110D18R × 3, ●Pipe × 12
T110D18R × 3, ●Pipe × 12
T110D18R×2,T110D3R×1
●Pipe × 8
T110D18R × 2, ●Pipe × 8
T110D18R × 4, ●Pipe × 16
T110D18R×2,T110D3R×1
●Pipe × 8
T110D18R × 3, ●Pipe × 12
T110D18R × 2, ●Pipe × 8
GL (Gypsum Lining) method
(Fixing with anchor bolts + pipes)
Note 1
Light-gauge steel base
(Fixing with bolts)
Toilet booth
(Fixing by clamping)
Note 4
Toilet booth
(Fixing with coach screws)
Note 5
Light-gauge steel base
(Fixing with mechanical nuts)
Light-gauge steel base
(Fixing by welding a mounting plate)
T110D22R×2
T110D22R×3
T110D22R×3
T110D37×2, T110D44×2
T110D37×3, T110D44×3
T110D37×3, T110D44×3
T110D37×3, T110D44×3
T110D37×2, T110D45×2
T110D37×3, T110D45×2
T110D44 × 1
Note 10
T110D37×3, T110D45×2
T110D44 × 1
Note 10
T110D37×2, T110D44×2
T110D36×2, T110D44×4
T110D36×1, T110D44×2
T110D3R×1
T110D36×1,T110D44×2
T110D36×1, T110D45×2
T110D3R×1
T110D36×1,T110D45×2
T110D36×1, T110D44×2
T110D3R×1
T110D36×1, T110D37×1
T110D44×3
T110D37×2, T110D45×2
T110D36×2, T110D45×4
T110D36×1, T110D45×2
T110D3R×1
T110D36×1, T110D37×1
T110D45×3
T110D37×2, T110D46×2
T110D37×3, T110D46×3
T110D37×3, T110D46×3
T110D37×3, T110D46×3
T110D36×1, T110D46×2
T110D3R×1
T110D36×1, T110D46×2
T110D37×2, T110D46×2
T110D36×2, T110D46×4
T110D36×1, T110D46×2
T110D3R×1
T110D36×1, T110D37×1
T110D46×3
T110D11×2, T110D41×2
T110D11×3, T110D41×3
T110D11×3, T110D41×3
T110D11×3,T110D41×3
T110D62×1, T110D41×2
T110D3R×1
T110D62×1,T110D41×2
T110D11×2, T110D41×2
T110D62×2, T110D41×4
T110D62×1, T110D41×2
T110D3R×1
T110D11×1, T110D62×1
T110D41×3
T110D23×2
T110D23×2
T110D35 × 1
Note 7
T110D23×2
T110D35 × 1
Note 7
T110D37×3,T110D45×3
11
1
2
3
4
7
6
5
8
9
10
4-1. Completion Drawing
*In the case of T113BL9,
the cover for the corner part is φ84.
Intermediate
support part: φ34
Wall surface
18
700
φ86
(φ85)
18
90
700
(φ27)
φ34
600
120
φ86
Wall surface
*The drawings show resin coating type T112, and dimensions in ( ) indicate those for stainless steel type T113.
Versatile L type handrailVersatile I type handrail
L
Wall
surface
90
φ34
φ86 (φ85)
Resin coating
T112CM6
Weight
1.2kg
Resin coating
T112CL9
Weight
2.3kg
Stainless steel
T113BL9
Weight
2.0kg
(Unit: mm)
300
400
500
600
1000
L
800
Resin coating
T112C3
T112C4
T112C5
T112C6
T112C8
T112C10
Stainless steel
T113B3
T113B4
T113B5
T113B6
T113B8
T113B10
Weight
0.7kg
0.7kg
0.8kg
0.9kg
1.1kg
1.3kg
Weight
0.7kg
0.8kg
0.9kg
1.1kg
1.3kg
1.6kg
Light-gauge steel base
(Fixing with drilling screws)
4

5
4-2. Completion Drawing
*The drawings show resin coating type T112, and dimensions in ( ) indicate those for stainless steel type T113. (Unit: mm)
Resin coating
T112CP31
Weight
2.0kg
Resin coating
T112CP28
Weight
3.2kg
φ34
Wall surface
Floor surface
φ86
(φ85)
φ8 4 (φ85)
800
550250
15 0
590
740
A
φ34
Wall surface
φ86
800
384
150
550
A
φ34
Wall surface
φ86
650
150
φ34
320
150
470
600
Wall surface
φ86 (φ85)
250
50
300
550
A
(T112CU22 alone)
φ34
Wall surface
600
φ86（φ85）
250
90
φ34
Floor surface
600
φ84（φ85）
500
Handrail for Japanese-style toilet Handrail for wall-mounted washbasin
I type handrail for washing
area in bathroom
Handrail for urinal
Resin coating
T112CW1
Weight
2.4kg
Stainless steel
T113BW1
Weight
2.1kg
Resin coating
T112CU22
Weight
5.4kg
Stainless steel
T113BU22
Weight
4.6kg
Resin coating
T112CP23
Weight
3.3kg
Stainless steel
T113BP23
Weight
2.9kg
Resin coating
T112CD6
Weight
1.3kg
Stainless steel
T113BD6
Weight
1.2kg
WARNING
Top
Bottom
Handrail for Japanese-style toilet
Japanese-style
toilet
Flush valve
120 or more 120 or more
Bathtub
Handrail for Japanese-style toilet
When installing a bathtub
WARNING
550
700
L Resin coating
T112CP21
T112CP22
Stainless steel
T113BP21
T113BP22
WeightWeight
2.5kg
2.9kg
2.4kg
2.7kg
550
700
L Resin coating
T112CP26
T112CP27
Weight
1.6kg
2.1kg
φ34
Wall surface
φ86
L
150
φ34
Wall
surface
Floor
surface
φ86
(φ85)
φ84 (φ85)
L
250
150
550
700
A
*In the case of T113BL10,
the cover for the corner part is φ84.
*In the case of T113BL11/12,
the cover for the corner part is φ84.
φ34
18
L
φ86
(φ85)
L
18
230
Wall surface
Intermediate
support part: φ34
(φ27)
φ34
Intermediate
support part: φ34
Wall surface
18
700
φ86
(φ85)
700
120
(φ27)
18
P type handrail for sitting toiletL type handrail for sitting toilet
Resin coating Stainless steel
T112CL10 T113BL10
Weight
2.0kg
Weight
2.4kg
700
800
L Resin coating
T112CL12
T112CL11
Stainless steel
T113BL12
T113BL11
Weight
2.3kg
2.5kg
Weight
3.0kg
3.1kg
When installing a handrail for
a Japanese-style toilet
Failure to observe the above instructions could cause a part
of the body (neck, etc.) to get caught between the handrail
and the xed object and may result in injury.
Secure at least 120 mm of space
between the handrail and the ush valve.
Install the handrail inside the extension
lines of both sides of the bathtub.
Do not install the product
in any orientation other
than that shown in the
completion drawing.

6
Fixing with coach screws and hanger bolts
Fixing by clamping
Toilet booth
See P. 10.
See P. 14.
Concrete block base
Fixing with plugs
See P. 9.
Fixing by clamping a mounting plate
See P. 11.
Wooden base
Fixing with coach screws and hanger bolts
Fixing by clamping a mounting plate
See P. 10.
See P. 11.
Fixing by embedding a mounting plate
GL method
See P. 8.
Fixing with anchor bolts + pipes
See P. 12.
●Temporarily tighten T112CP21, CP22, CP23, CP28, CU22, and T113BP21, BP22, BP23 to the specied shape, assemble the product,
and then fully tighten again.
●Make sure that the screws and bolts to be used to assemble the handrail are in the packing box. (Only for handrails to be assembled)
*Fixing brackets for installing the handrail on the wall (oor) are optional parts.
Check the connection method of the connection part.
When using bolts
Assembling the Handrail
6.
See P. 7.
Finishing the Connection Part
See P. 15.
Inspection Items See P. 15.
Mounting the handrail
When there is no connection
part in the completion drawing
When the connection part in the completion drawing is A
Fixing by welding a mounting plate
Light-gauge steel base
Fixing with drilling screws
Fixing with bolts
Fixing with mechanical nuts
See P. 12.
See P. 13.
See P. 13.
See P. 13.
4.
4.
7.
8.
9.
Concrete base
Fixing by embedding a mounting plate
Fixing with anchor bolts
See P. 8.
Fixing with plugs
See P. 9.
See P. 8.
5. Installation Work Flow

When using set screws
7
[In the case of a custom-made product or a semi-custom-made
product of T113 type]
[ In the case of in Completion Drawing]
4. A
[In the case of a custom-made product or a semi-custom-made
product of T112 type/T113 type]
[In the case of a custom-made product or a semi-custom-made
product of T112 type]
6. Assembling the Handrail
<T112 type>
<T113 type/T112CU22 type>
Joint
Grip bar
Grip bar
Grip bar
Grip bar
Bolt
Bolt
Spring washer
Spring washer
Washer
Washer
(T113 type alone)
Joint
Grip bar
Bolt
Spring
washer
Washer
Washer (large)
Flat surface
Flat surface
Curved surface
Grip bar
Grip bar
Bolt
Spring washer
Washer
Joint
Screw hole
Set screw
Grip bar
Screw hole
Notes
When using bolts
Put the bolt through the spring washer and the washer
according to the order shown in the gure on the right,
and then temporarily fasten the grip bars to each other
with a hexagonal wrench.
①Push the washer (large) into the joint, and then
push the grip bar into the joint.
*Attach the washer (large) in such a way that its
at surface comes into contact with the grip
bar.
②Attach the bolts in the same procedure as that
of "part A in Completion Drawing."
4.
●Because a washer has a at
surface and a curved surface,
place the at surface on the
spring washer side.
If the washer is placed in the
opposite orientation, the
handrail may become loose.
(Washers are not used for
T112CU22.)
●Do not fully tighten the bolts
before mounting the handrail.
If the handrail is mounted after
fully tightening the bolts, you
may fail to install the handrail.
Put the bolt through the spring washer and the
washer according to the order shown in the gure
on the right, and then temporarily fasten the grip
bars to each other with a hexagonal wrench.
①Push the grip bar in such a way that the screw
hole of the grip bar ts the screw hole of the
joint.
②Firmly tighten the set screw with a hexagonal
wrench.

8
Anchor bolt
Cover
Flange
Finished
wall surface
Concrete
37 or more
85 or more
9 to 16
Prepared
hole (φ6)
Nut
Mortar
Notes
Concrete base: Fixing with anchor bolts Concrete base, GL method: Fixing by embedding a mounting plate
①Carry out centering and then make
prepared holes of φ6 mm and 85 mm
or more in depth for anchor
bolts.
②Screw the nuts about 2 mm from the
upper ends of the anchor bolts, and
then drive them in the prepared holes
lightly.
③Tighten the nuts on the anchor bolt.
(This opens the wedges of the anchor
bolts and prevents the anchor bolts
from coming out.)
④Remove the nuts from the anchor
bolts.
⑤Adjust the projecting length of the
anchor bolts to be between 9 and 16
mm from the nished wall
surface.
⑥Put the anchor bolts through the
mounting holes of the ange, and
then tighten with the nuts.
⑦Press the cover against the nished
surface.
Note 1
Note 2
Note 3
(Unit: mm)
①Carry out centering and then make prepared holes of φ6 mm and 50 mm or more in depth for anchor
bolts.
②Screw the nuts about 2 mm from the upper ends of the anchor bolts, put the bolts through the mounting hole
of the mounting plate, and then drive them in the prepared holes lightly.
③Tighten the nuts on the anchor bolt.
④Screw continuous-thread studs into the bolt holes of the mounting plate and tighten them with nuts.
⑤After nishing the wall, adjust the projecting length of the continuous-thread studs to be between 9 and 16
mm from the nished wall surface.
⑥Put the continuous-thread studs through the mounting holes of the ange, and then tighten with the washers
and nuts.
⑦Press the cover against the nished surface.
Note 2
Notes 3 and 4
Note 4
Note 1
7-1. Installing the Handrail
Finished wall surface Finished wall surface
Concrete
50 or more
37 or more
Anchor bolt
Mortar
Nut
Nut
Mounting plate
Washer Washer
Cover
Flange
9 to 16
Anchor bolt
Fill mortar
37 or more
Prepared hole
(φ6) Prepared hole
(φ6)
Concrete
Gypsum board
50 or more
GL bond
<Concrete base> <GL method>
Nut
Nut
Mounting plate
Cover
Flange
9 to 16
50 or less
Continuous-thread
stud
Continuous-thread
stud
(Unit: mm)
Notes
Fixing bracket part number T110D3R Fixing bracket part number T110D11,T110D62,T110D42
Note 1: Use a drill that can make prepared holes of φ6 mm and
85 mm or more in depth in concrete. If the bit size of the
drill is too large or if it has core deviation, you may fail to
x it securely.
Note 2: The embedding length of the anchor bolts in concrete
must be 37 mm or more.
Note 3: Adjust the projecting length of the anchor bolts to be
between 9 and 16 mm from the nished wall surface.
Note 1: Use a drill that can make prepared holes of φ6 mm and 50 mm or more in depth in
concrete. If the bit size of the drill is too large or if it has core deviation, you may not
be able to secure the mounting plate securely.
Note 2: The embedding length of the anchor bolts in concrete must be 37 mm or more.
Note 3: Adjust the projecting length of the bolts to be between 9 and 16 mm from the nished
wall surface.
Note 4: If the bolts are not long enough, procure M6 continuous-thread studs in the eld.

Screw 2 nuts and turn the nuts to the different directions each other
to tighten and x.
Coach screw
Hanger bolt
Intermediate
support part
9
①Carry out centering and then make prepared
holes of φ8 mm and 60 mm or more in depth
for resin plugs.
②Lightly drive the resin plugs into the prepared
holes.
③Fix using the nuts (2 pieces) as a double nut,
which come with the hanger bolts.
Note 1
④Turn the double nut xed in ③using a tool, and screw the hanger bolt into the resin plug in
the intermediate support part of the handrail.
⑤Adjust the projecting length of the bolts to be between 9 and 16 mm from the nished wall
surface.
⑥Remove the double nuts.
⑦Put the hanger bolt through the mounting hole of the ange in the intermediate support part
of the handrail, and then temporarily tighten with the washer and nut.
⑧Put the coach screws through the washers and attach to the wall through the mounting hole
of the ange.
⑨Fully tighten the nut that is temporarily tightening the hanger bolt.
⑩Press the cover against the nished surface.
Note 2
<Concrete base>
<Concrete block base>
・When xing with coach screws ・When xing with hanger bolts
・When xing with coach screws ・When xing with hanger bolts
120 or less
60 or more
9 to 16
Prepared hole
(φ8)
Resin plug
Hanger bolt
Hanger bolt
Flange
Nut
Washer
Finished wall surface
Nut
120 or less
120 or less 9 to 16
Cover Cover
Flange
Cover
Finished wall surface
Finished wall surface
60 or more
120 or less
Flange
Washer
Prepared hole
(φ8)
Prepared hole
(φ8)
Resin plug
Coach screw
Cover
Resin plug
Coach screw
Mortar
Mortar
Concrete
Mortar
Concrete
Flange
Washer 60 or more
Concrete block
Concrete block
Finished wall surface
Prepared hole
(φ8)
Resin plug
Mortar
Washer 60 or more
(Unit: mm)
7-2. Installing the Handrail
Concrete base/Concrete block base: Fixing with plugs
Note
Only versatile I type handrail, versatile L type handrail, and L type handrail for sitting
toilet (front protrusion dimension: 120 mm) can be installed.
Notes
Fixing bracket part number T110D16,T110D26,T110D34
For the intermediate support parts of the versatile
L type handrail and the L type handrail for sitting
toilet (front protrusion dimension: 120 mm), use
hanger bolts that facilitate installation.
As the versatile I type handrail does not use hanger
bolts, its installation procedure is ①, ②, ⑧, and ⑩.
Note 1: Use a drill that can make prepared holes of φ8 mm and 60 mm or more
in depth in concrete. If the bit size of the drill is too large or if it has core
deviation, you may fail to x it securely.
Note 2: Adjust the projecting length of the hanger bolts to be between 9 and 12
mm from the nished wall surface.

Notes
10
Flange
Prepared hole (φ4)
for coach screw
Prepared hole (φ4)
for coach screw
Plywood,
etc.
Cover
Washer
120 or less
Cover
Cover
Washer
Reinforcing
wooden block
Paper honeycomb
Decorative
plywood sheet
30 or more
Prepared hole
(φ4) for hanger bolt
Prepared hole
(φ4) for hanger
bolt
Reinforcing
wooden block
30 or more
Paper honeycomb
Decorative
plywood sheet
Nut
Washer
Nut
<Wooden base> <Toilet booth>
9 to 16
9 to 16
120 or less
Plywood,
etc.
Prepared hole (φ4)
for coach screw
Washer
Flange
Flange
Flange
Reinforcing
wooden
block
Plywood, etc.
Cover
Cover
Washer
Prepared hole
(φ4) for hanger
bolt
Reinforcing
wooden
block
Cover
Washer
Nut
9 to 16
Plywood, etc.
Screw 2 nuts and turn the nuts to the different
directions each other to tighten and x.
Coach screw
Hanger bolt
Intermediate
support part
①Mount reinforcing wooden blocks on the
handrail mounting area beforehand.
②Carry out centering and then make prepared
holes of φ4 mm for hanger bolts.
(In the case of a tile wall, make through holes
of φ6.5 mm only in the tile area.)
③Fix using the nuts (2 pieces) as a double nut,
which come with the hanger bolts.
Note 1
④Turn the double nut xed in ③using a tool, and screw the hanger bolt into the prepared hole
in the intermediate support part of the handrail.
⑤Adjust the projecting length of the bolts to be between 9 and 16 mm from the nished wall
surface.
⑥Remove the double nuts.
⑦Put the hanger bolt through the mounting hole of the ange in the intermediate support part
of the handrail, and then temporarily tighten with the washer and nut.
⑧Put the coach screws through the washers and attach to the wall through the mounting hole
of the ange.
⑨Fully tighten the nut that is temporarily tightening the hanger bolt.
⑩Press the cover against the nished surface.
Note 2
Finished wall surface
Finished wall surface Finished wall surface Finished wall surface
Finished wall surface
Finished wall surface
(Unit: mm)
Flange
Flange
Wooden base, Toilet booth: Fixing with coach screws and a hanger bolt
7-3. Installing the Handrail
Fixing bracket part number Wooden base: T110D15, T110D16, T110D34
Toilet booth: T110D23, T110D35
Target product Thickness of plywood sheet
or reinforcing wooden block
30 mm or more
60 mm or more
・Versatile handrail I type
・Versatile handrail L type
・
Handrail for sitting toilet L type
(T112CL11･CL12,
T113BL11･BL12)
・
Handrail for sitting toilet P type
・ Handrail for Japanese-style toilet
・Handrail for urinal
・ Handrail for wall-mounted washbasin
12 mm or more
・L type handrail for sitting
toilet
(T112CL10,T113BL10)
・I type handrail for washing
area in bathroom
Note 2: Adjust the projecting length of the hanger bolts to be between 9 and 16 mm
from the nished wall surface.
For the intermediate support parts of the versatile L type handrail and the L type handrail for
sitting toilet (front protrusion dimension: 120 mm), use hanger bolts that facilitate installation.
As the versatile I type handrail does not use hanger bolts, its installation procedure is ①, ②, ⑧,
and ⑩.
Note 1: The thickness of the reinforcing wooden blocks differs depending on the type
of handrail. Give reinforcement appropriate for the handrail.
Mount a reinforcing plywood sheet or wooden blocks with a thickness that conforms
to the table below securely on a strong pillar, etc. If reinforcing wooden blocks are
not mounted, the handrail may have backlash or come off.
* Only when the front protrusion dimension
of the handrail is 120 mm or less.
*Mount a structural plywood sheet (JAS
standard product) or an equivalent or
better one to the base material.

Notes Notes
11
Plywood, etc.
Reinforcing
wooden block
Cover
Flange
Finished wall
surface
Nut
Mounting plate
Through hole
(φ8)
Continuous-thread
stud
45 to 60
9 to 16
Washer
①Mount reinforcing wooden blocks of 45 to 60
mm in thickness on the handrail mounting
area beforehand.
②Carry out centering and then make φ8-mm
through holes for continuous-thread studs.
③Screw the continuous-thread studs into the
bolt holes of the mounting plate and tighten
them with nuts.
④Insert the continuous-thread studs into the
through holes, put the mounting plate on the
back of the wall, and tighten with washers
and nuts from the handrail mounting side.
⑤After nishing the wall, adjust the projecting
length of the continuous-thread studs to be
between 9 and 16 mm from the nished wall
surface.
⑥Put the continuous-thread studs through the
mounting holes of the ange, and then
tighten with the washers and nuts.
⑦Press the cover against the nished surface.
①Carry out centering and then make
through holes of φ8 mm for
continuous-thread studs.
②Screw the continuous-thread studs into
the bolt holes of the mounting plate and
tighten them with nuts.
③Insert the continuous-thread studs into
the through holes, put the mounting
plate on the back of the wall, and
tighten with the washers and nuts from
the handrail mounting side.
④After nishing the wall, adjust the
projecting length of the
continuous-thread studs to be between
9 and 16 mm from the nished wall
surface.
⑤Put the continuous-thread studs
through the mounting holes of the
ange, and then tighten with the
washers and nuts.
⑥Press the cover against the nished
surface.
Note 3
(Unit: mm)
Finished wall
surface
9 to 16
125 or less
Concrete block
Mortar
Mounting plate
Cover
Flange
Through hole (φ8)
Washer
Nut
Continuous-thread
stud
Note 3
(Unit: mm)
7-4. Installing the Handrail
Wooden base: Fixing by clamping a mounting plate Concrete block base: Fixing by clamping a mounting plate
Fixing bracket part number T110D11,T110D62,T110D43 Fixing bracket part number T110D11,T110D62,T110D43
Note 1
Notes 2 and 4
Note 1: Mount reinforcing wooden blocks of 45 to 60 mm in thickness securely
on a strong pillar, etc.
Note 2: Adjust the projecting length of the continuous-thread studs to be
between 9 and 16 mm from the nished wall surface.
Note 3: Be careful not to overtighten the nuts to avoid tiles from breaking.
Note 4: If the bolts are not long enough, procure M6 continuous-thread studs
in the eld.
Note 1: It is not necessary to ll hollows with mortar, etc.
Note 2: Adjust the projecting length of the continuous-thread studs to be
between 9 and 16 mm from the nished wall surface.
Note 3: Be careful not to overtighten the nuts to avoid tiles from breaking.
Note 4: If the bolts are not long enough, procure M6 continuous-thread studs
in the eld.
Note 1
Notes 2 and 4

Notes
Notes
GL method: Fixing with anchor bolts + pipes Light-gauge steel base: Fixing a mounting plate by welding
12
Nut
Flange
Cover
Through hole (φ14)
Finished wall surface
Finished wall surface
Prepared hole
(φ6)
37 or more
105 or more
GL bond
Anchor bolt
50 or less
Gap
9 to 16
(0.5)
Concrete
Gypsum board
Metal pipe
・White characters in indicate parts to be
procured in the eld.
Nut
9 to 16
Flange
Cover
Light-gauge steel
frame
Plywood, etc.
Mounting plate
Continuous-thread
stud
Fixing by welding
t 2.3 or more
Through hole (φ8)
Washer
Washer
①Carry out centering and then make
prepared holes for anchor bolts, which are
φ6 mm and 105 mm or more in depth from
the nished wall surface.
②Make through holes of φ14 mm for metal
pipes only in the gypsum board part.
③Insert the metal pipes until they hit the
concrete base surface, and cut it in such a
way that it protrudes about 0.5 mm from the
nished wall surface.
*If the length is not enough, insert a washer
to adjust the length.
④Screw the nuts about 2 mm from the upper
ends of the anchor bolts, put the bolts
through the metal pipes, and then drive
them in the prepared holes lightly.
⑤Tighten the nuts on the anchor bolt. (This
opens the wedges of the anchor bolts and
prevents the anchor bolts from coming out.)
⑥Remove the nuts from the anchor bolts.
⑦Adjust the projecting length of the anchor
bolts to be between 9 and 16 mm from the
nished wall surface.
⑧Put the anchor bolts through the mounting
holes of the ange, and then tighten with
the washers and nuts.
⑨Press the cover against the nished surface.
①While carrying out centering, x the
mounting plate to the reinforcing
light-gauge steel frame (t 2.3 mm or more)
by welding.
②Screw the continuous-thread studs into the
holes of the mounting plate, adjust their
projecting length to be between 9 and 16
mm from the nished wall surface, and
tighten from the back of the wall with nuts.
③Finish the wall.
④Put the continuous-thread studs through the
mounting holes of the ange, and then
tighten with the washers and nuts.
⑤Press the cover against the nished surface.
*You cannot adjust the
mounting position of
the handrail after
nishing the wall.
Note 1
Note 2
Note 3
Reinforcing material
(t 2.3 or more)
Stud
Mounting plate
Note 1
Note 2
Note 3
(Unit: mm)
(Unit: mm)
7-5. Installing the Handrail
T110D11,T110D62,T110D41
Fixing bracket part number
Part to be procured in the eld φ13.8 (t2) metal pipe
Fixing bracket part number T110D18R
Note 1: Use a drill that can make prepared holes of φ6 mm and 105 mm or
more in depth in concrete. If the bit size of the drill is too large or if it
has core deviation, you may fail to x it securely.
Note 2: The embedding length of the anchor bolts in concrete must be 37 mm
or more.
Note 3: Adjust the projecting length of the anchor bolts to be between 9 and 16
mm from the nished wall surface.
Note 1: Use reinforcing light-gauge steel frames of t 2.3 mm or more.
Note 2: Adjust the projecting length of the continuous-thread studs to be
between 9 and 16 mm from the nished wall surface.
Note 3: Be careful not to overtighten the nuts to avoid tiles from breaking.

Notes
13
Fixing bracket part number T110D36,T110D37,T110D45
Fixing bracket part number T110D36,T110D37,T110D46
Flange
Cover
Finished wall surface
Finished
wall surface
Plywood, etc.
Mounting bracket
Drilling screw
Washer
Fixing bracket part number T110D36,T110D37,T110D44
Flange
Cover
Plywood, etc.
Mounting bracket
Through hole (φ12)
Bolt Mechanical nut
Washer
Flange
Cover
Finished wall surface Plywood,
etc.
Mounting bracket
Through hole
(φ8)
Through hole (φ8)
Prepared hole
(φ3 to φ3.5)
Bolt
Prepared
hole for M6
tapping
(φ5.1)
Washer
Reinforcing material
(t 2.3 or more)
Stud
Mounting bracket
①In the handrail mounting position, x the
mounting bracket for light-gauge steel frames
to the reinforcing light-gauge steel frames (t 2.3
mm or more) with drilling screws.
②After nishing the wall, carry out handrail
centering and make prepared holes of φ3 to
3.5 mm with a drill.
③Make about φ8-mm through holes for drilling
screws in the nished wall area.
④Put the drilling screws through the washers and
attach to the wall through the mounting holes
of the ange.
⑤Press the cover against the nished surface.
Note 1
Note 2
Note 3
①In the handrail mounting position, x the
mounting bracket for light-gauge steel frames
to the reinforcing light-gauge steel frames (t 2.3
mm or more) with drilling screws.
②After nishing the wall, carry out handrail
centering and make φ12-mm through holes for
mechanical nuts.
③Insert the mechanical nuts into the through
holes and set them.
④Put the bolts through the washers and attach to
the wall through the mounting holes of the
ange.
⑤Press the cover against the nished surface.
Note 1
Note 3
①In the handrail mounting position, x the
mounting bracket for light-gauge steel
frames to the reinforcing light-gauge steel
frames (t 2.3 mm or more) with drilling
screws.
②After nishing the wall, carry out handrail
centering and make φ5.1-mm prepared
holes for M6 tapping.
Make about φ8-mm through holes in the
nished wall area.
③Perform M6 tapping in the mounting bracket
for the light-gauge steel frames.
④Put the bolts through the washers and
attach to the wall through the mounting
holes of the ange.
⑤Press the cover against the nished surface.
Note 1
Note 3
(Unit: mm)
(Unit: mm) (Unit: mm)
Light-gauge steel base: Fixing with drilling screws
Light-gauge steel base: Fixing with mechanical nuts
Light-gauge steel base: Fixing with bolts
7-6. Installing the Handrail
*After nishing the wall, you can adjust
the handrail-mounting position within
the range of the mounting bracket.
Note 1: Use reinforcing light-gauge steel frames of t 2.3 mm or more.
Note 2: In order to prevent the handrail from being scratched, make prepared
holes to facilitate installation.
Note 3: Be careful not to overtighten the nuts to avoid tiles from breaking.

Note
40
Washer
Nut
Through hole
(φ13)
Bolt Decorative
plywood sheet
Paper honeycomb
Mounting plate
Flange
Cover
Finished wall surface
Within 120
Resin pipe
14
*For installation methods not shown in this manual, please contact TOTO’s branch ofce, branch shop, or sales ofce.
Note
Use the outer holes
①Carry out centering and then make φ13-mm
through holes for pipes.
②Insert the resin pipes into the through holes.
Resin pipes are used to prevent wall buckling
which occurs when the handrail is installed
on a paper honeycomb wall or the like.
Therefore, be sure to check the wall before
installing the handrail.
③Screw the continuous-thread studs in the
outer bolt holes of the mounting plate to the
end, and while inserting them into the resin
pipes from the back of the booth, put the
mounting plate on the wall.
*The mounting plate has 4 outer bolt holes
and 4 inner outer bolt holes. Check the bolt
holes before installation.
④Put the bolts through the mounting holes of
the ange, and then tighten with the washers
and nuts.
⑤Press the cover against the nished surface.
Note 1
Note 1
Prepared hole guide for xing bracket T110D22R
*Do not use the inner holes because they are the mounting hole
positions for the handrail (T114 type).
Mounting hole positions (outer holes) of the handrail
(T112 type/T113 type)
φ65
Mounting plate
46
46
(Unit: mm)
Toilet booth: Fixing by clamping
7-7. Installing the Handrail
Fixing bracket part number T110D22R
When the toilet booth is made from paper honeycomb, melanin/polyether
decorative plywood, or the equivalent, which is 40 mm in thickness, only
versatile I type handrail, versatile L type handrail, and L type handrail for sitting
toilet (front protrusion dimension: 120 mm) can be installed.
Note 1: When you use reinforcing wooden blocks for the toilet booth or when
the toilet booth has strong walls without hollow, do not use resin pipes
that come with the product, but make φ8-mm through holes for bolts,
to mount the handrail.

Note
Connection part
15
After the installation is complete, conrm the following items:
Checking for backlash
Make sure that the handrail has no backlash.
Is the connection part securely assembled?
Is the handrail rmly secured to the wall?
*Be sure to hand over the instruction manual to the customer.
①After installing the handrail, fully tighten the bolt with a hexagonal wrench.
②Attach the cap.
Cap
Bolt
Claw
Claw
Claw orientation
Claw
orientation
8. Finishing the Connection Part (When Using Bolts) 9. Inspection Items
See 6. Assembling the Handrail.
See 8. Finishing the Connection Part.
See 7. Installing the Handrail.
Since the cap has a predetermined orientation, attach it in such a way that the
claws face the axial direction of the grip bar.

16
Prepared Hole Guide
*Cut this sheet according to the number of
xing positions on the walls.
Precautions for use
46
46
46
46
46
46
CAUTION
Required
Cover
Handrail-mounting hole position
Handrail-mounting
hole position
Handrail-mounting
hole position
Cover
Cover
φ65
φ65φ65
Cut here
Cut here
Cut here
Be sure to conrm that the prepared
hole positions of the product match
the handrail-mounting hole positions
of the guide before making prepared
holes.
When you copy this sheet and use the copy, the
size of the illustration may change depending on
the printing machine. Please check the dimensions
before use.
