Toyota TVSS IV-S User manual

TOYOTA MOTOR CORPORATION
RAV4 (RHD)
PART NUMBER
Manual Ref. Nr. 2T4RA2-400
ALARM
TOYOTA VEHICLE SECURITY SYSTEM
TTVVSSSSIIVV--SS//--DD
MAIN KIT
•FOR VEHICLES WITH DOUBLE LOCK 08585-12950
•FOR VEHICLES WITHOUT DOUBLE LOCK 08585-12890
FITTING KIT (FOR 3-DOOR MODELS) 08586-4A810
FITTING KIT (FOR 5-DOOR MODELS) 08586-4A860
SUB KIT (SIREN AND RADAR) 08586-1A890
FOR **A2*R
INSTALLATION INSTRUCTIONS
for

PRECAUTIONS
RAV4 (RHD) - 2
RAV4 TVSS IV-S/-D
06-00
PLEASE READ THOROUGHLY THESE PRECAUTIONS
BEFORE THE TVSS INSTALLATION
• Be sure to disconnect the negative (-)
lead from the battery terminals.
• Do not pinch the rear wiring or harness
in the tightened part.
• When passing the wires through the
bulkhead or other panels, use a
grommet to ensure waterproofing.
• Protect the wiring with tape when it is
passed through a hole.
• When disconnecting the connectors,
be sure to grip the connector body.
Do not tug on the wiring.
• Do not forcibly pull any car wiring harness.
Rough tugging may result in opened con-
nections, or a broken wire or harness.
• Confirm that lamps, horn, wiper and
other car accessories operate normally.
• Protect your car with wing covers,
seat and so on.
• Use the correct tool when tightening
bolts or nuts.
• Before drilling a hole, check that the rear
of the mounting wall is clear.
• Be sure to firmly tighten connectors
and terminals.
• Before connecting the power wiring to
the battery, check the wiring con-
nections, harness, etc. to see that they
are properly secured.
• Check body and trim near area of installation to be certain no
dirt or scratches resulted from the installation.
waterproof - O.K. !!
Grommet
Stop it !
Taping
Insert completely

TABLE OF CONTENTS
RAV4 (RHD) - 3
RAV4 TVSS IV-S/-D
06-00
Precautions ................................................................................................................................................................ 2
System Components
• Fitting Kit ........................................................................................................................................................... 4
• Main Kit ............................................................................................................................................................. 6
• Sub Kit (Siren and Radar) .................................................................................................................................. 6
System Layout and Wire Harness Outline .................................................................................................... 7
Connector Arrangement of the TVSS Fitting Kit (Pin View) ................................................................. 9
TVSS Installation Instructions
• Vehicle Disassembly (Main) ............................................................................................................................... 10
• Vehicle Disassembly (Engine Compartment) ..................................................................................................... 14
• Wire Harness Installation (Main) ....................................................................................................................... 16
• Mounting the Status Monitor ............................................................................................................................. 22
• Mounting the Radar Sensor ............................................................................................................................... 23
• Mounting the Glass Breakage Control Unit (Only 5-door Models) ..................................................................... 26
• Mounting the Microphone (Only 5-door Models) .............................................................................................. 27
• Mounting the TVSS ECU .................................................................................................................................... 28
• Wire Harness Installation (Engine Compartment) .............................................................................................. 30
• Mounting the Siren ............................................................................................................................................ 32
• Mounting the Hood Switch ................................................................................................................................ 34
• Attaching the Stickers ........................................................................................................................................ 35

RAV4 (RHD) - 4
RAV4 TVSS IV-S/-D
06-00

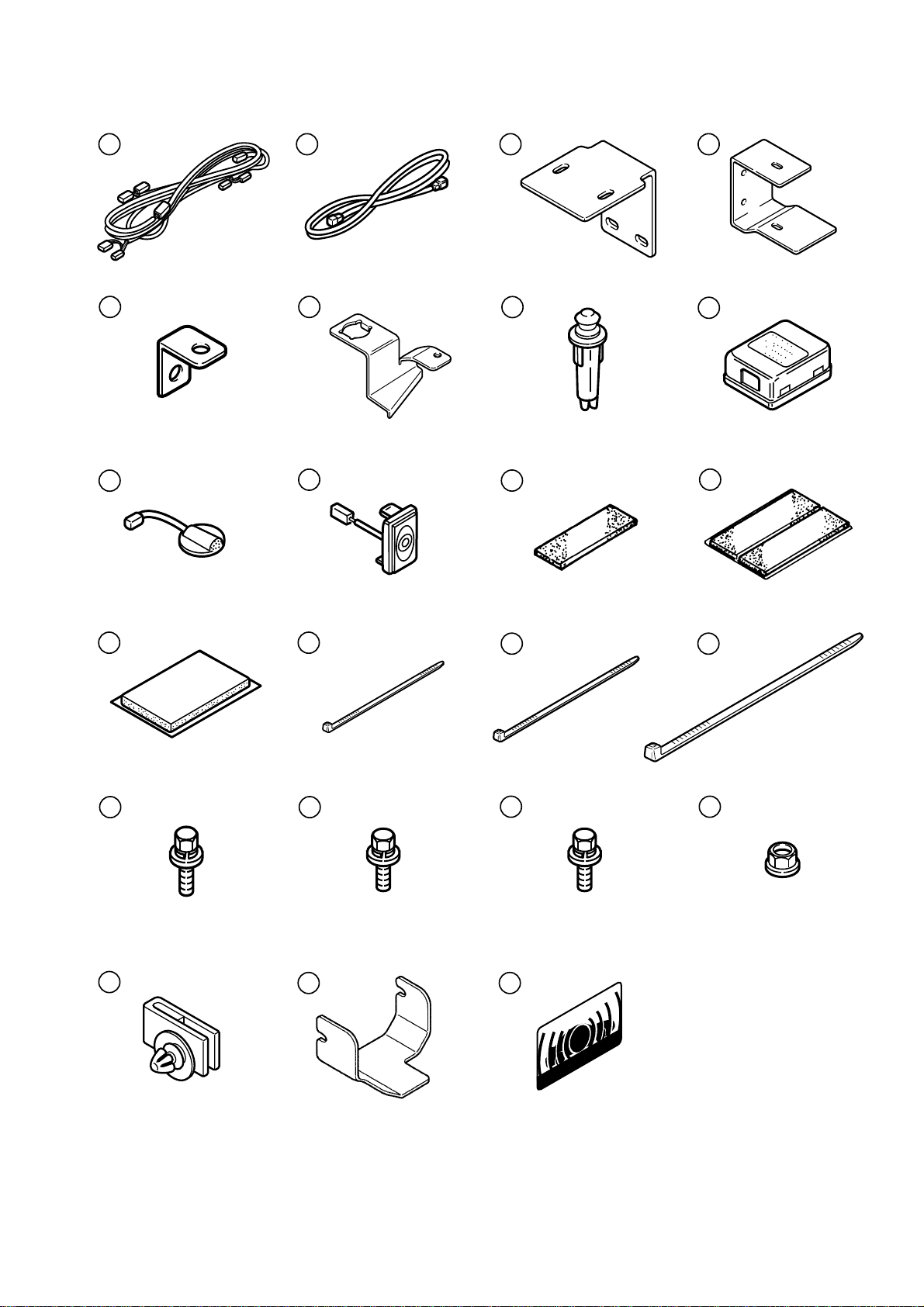

FITTING KIT 08586-4A810 / 08586-4A860
Pos. No. Description Qty
WIRE HARNESS (MAIN) 2
WIRE HARNESS (SUB) 1
RADAR SENSOR BRACKET 1
SIREN BRACKET 1
TVSS ECU BRACKET 1
HOOD SWITCH BRACKET 1
HOOD SWITCH 1
GLASS BREAKAGE CONTROL UNIT (FOR 5-DOOR MODELS) 1
MICROPHONE (FOR 5-DOOR MODELS) 1
STATUS MONITOR 1
FOAM (1 DIVISION ON 1 SHEET) (FOR 5-DOOR MODELS) 5
(FOR 3-DOOR MODELS) 2
FOAM (2 DIVISIONS ON 1 SHEET) 1
BUTYL TAPE 3
WIRE TIE (150 mm) (FOR 5-DOOR MODELS) 30
(FOR 3-DOOR MODELS) 25
WIRE TIE (200 mm) 5
WIRE TIE (300 mm) 7
BOLT (FOR GROUND TERMINAL) 1
BOLT (BLACK M6 X 18) 1
BOLT (M6 X 18) 2
NUT (M6) 3
CLIP 1
SIREN PROTECTIVE BRACKET 1
WINDOW STICKER 2
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

RAV4 (RHD) - 5
RAV4 TVSS IV-S/-D
06-00
67
21 3 4
58
10
911 12
1413 15 16
1817 19 20
22
21
AT TO OY
23

RAV4 (RHD) - 6
RAV4 TVSS IV-S/-D
06-00

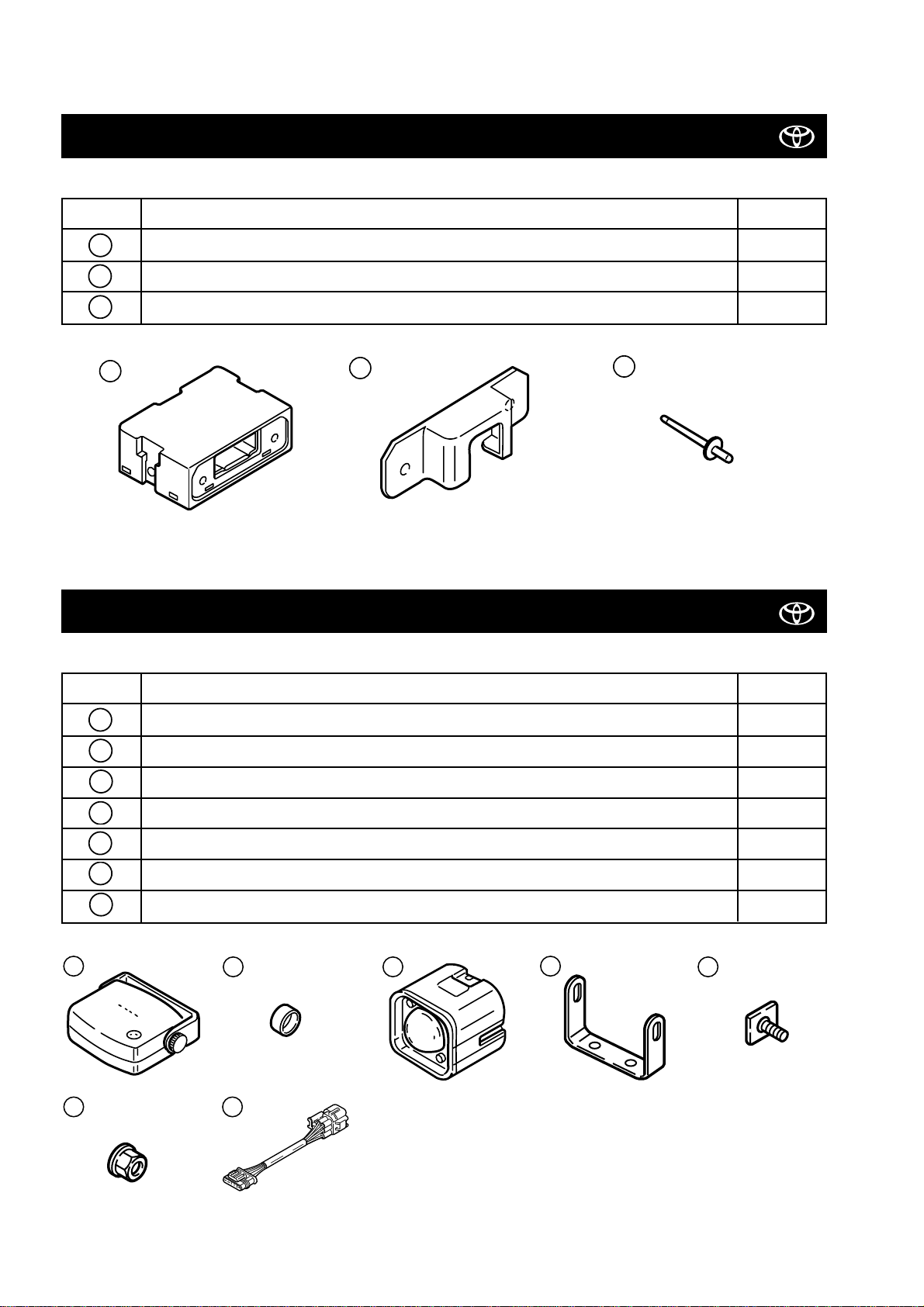

MAIN KIT 08585-12890 / 08585-12950
II
IIII
SUB KIT (RADAR AND SIREN) 08586-1A890
Pos. No. Description Qty
TVSS ECU 1
ECU PROTECTIVE BRACKET 1
BLIND RIVET 2
III
II
I
Pos. No. Description Qty
RADAR SENSOR 1
CAP 2
SIREN 1
SIREN BRACKET (*) NOT USED FOR RAV4 1
BOLT 2
NUT 2
SIREN WIRE HARNESS 1
vii
vi
v
iv
iii
ii
i
ii
iiii iv v
vi vii
(*)

RAV4 (RHD) - 7
RAV4 TVSS IV-S/-D
06-00

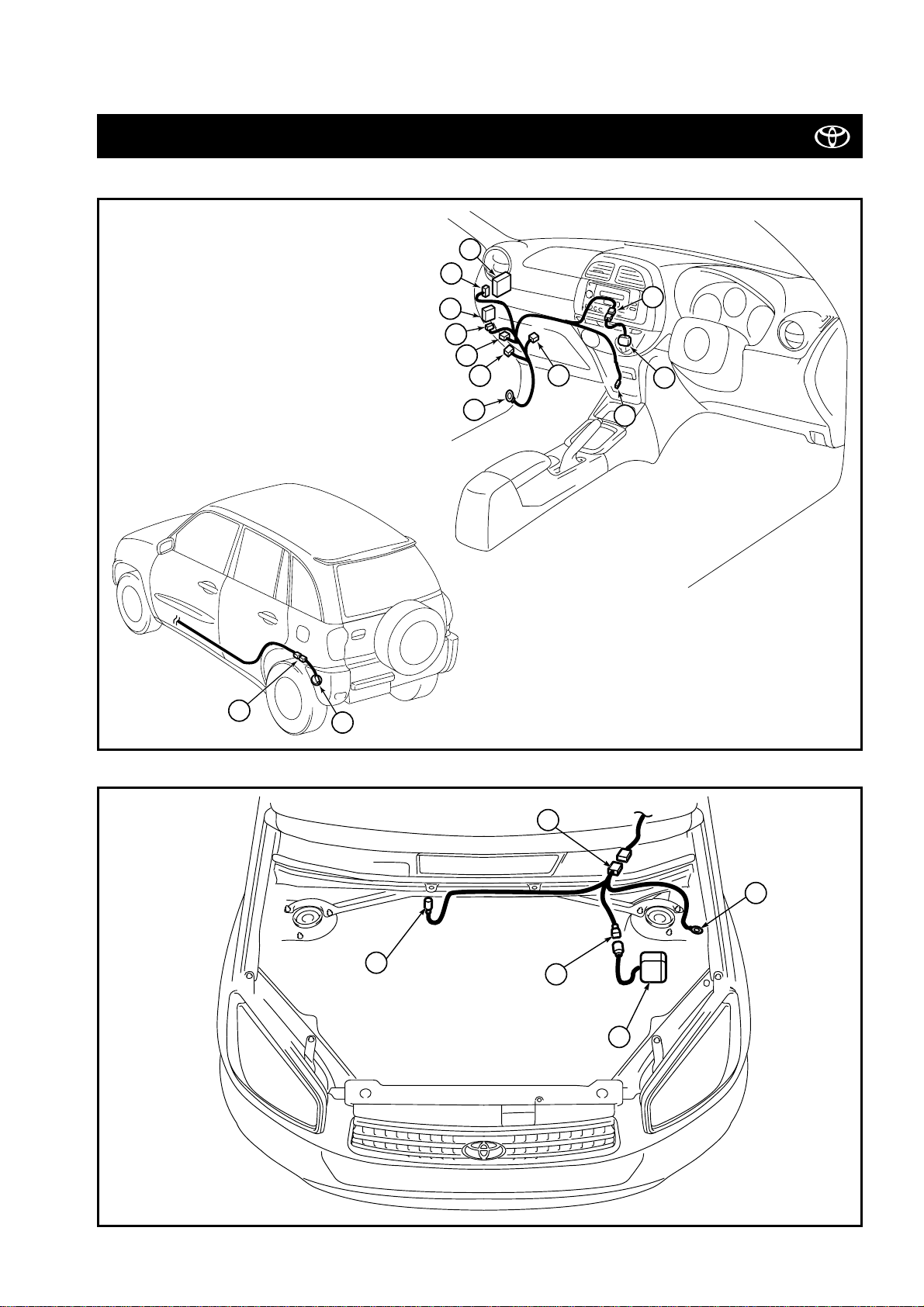

SYSTEM LAYOUT AND WIRE HARNESS (MAIN) OUTLINE
A
B
C
E
G
M
L
iii
K
D
F
i
N
H
I
8
J
Q
(*)(*)
(*)
(*) For 5-Door Models only
(*)

RAV4 (RHD) - 8
RAV4 TVSS IV-S/-D
06-00
Pre-wire connector (5P male white)
Pre-wire connector (6P male white)
Pre-wire connector (8P male white)
Ground terminal
TVSS ECU connector (26P female grey)
Glass breakage control unit connector (6P female clear)
Radar sensor connector (4P female white)
Status monitor connector (2P female clear)
Microphone connector (2P male white)
Pre-wire connector (6P male grey)
Ground terminal
Siren connector (6P female grey)
Hood switch connector (2P female white)
Glass breakage control unit
Radar sensor
Microphone
TVSS ECU
Siren
iii
I
Q
i
8
N
M
L
K
J
H
G
F
E
D
C
B
A

RAV4 (RHD) - 9
RAV4 TVSS IV-S/-D
06-00

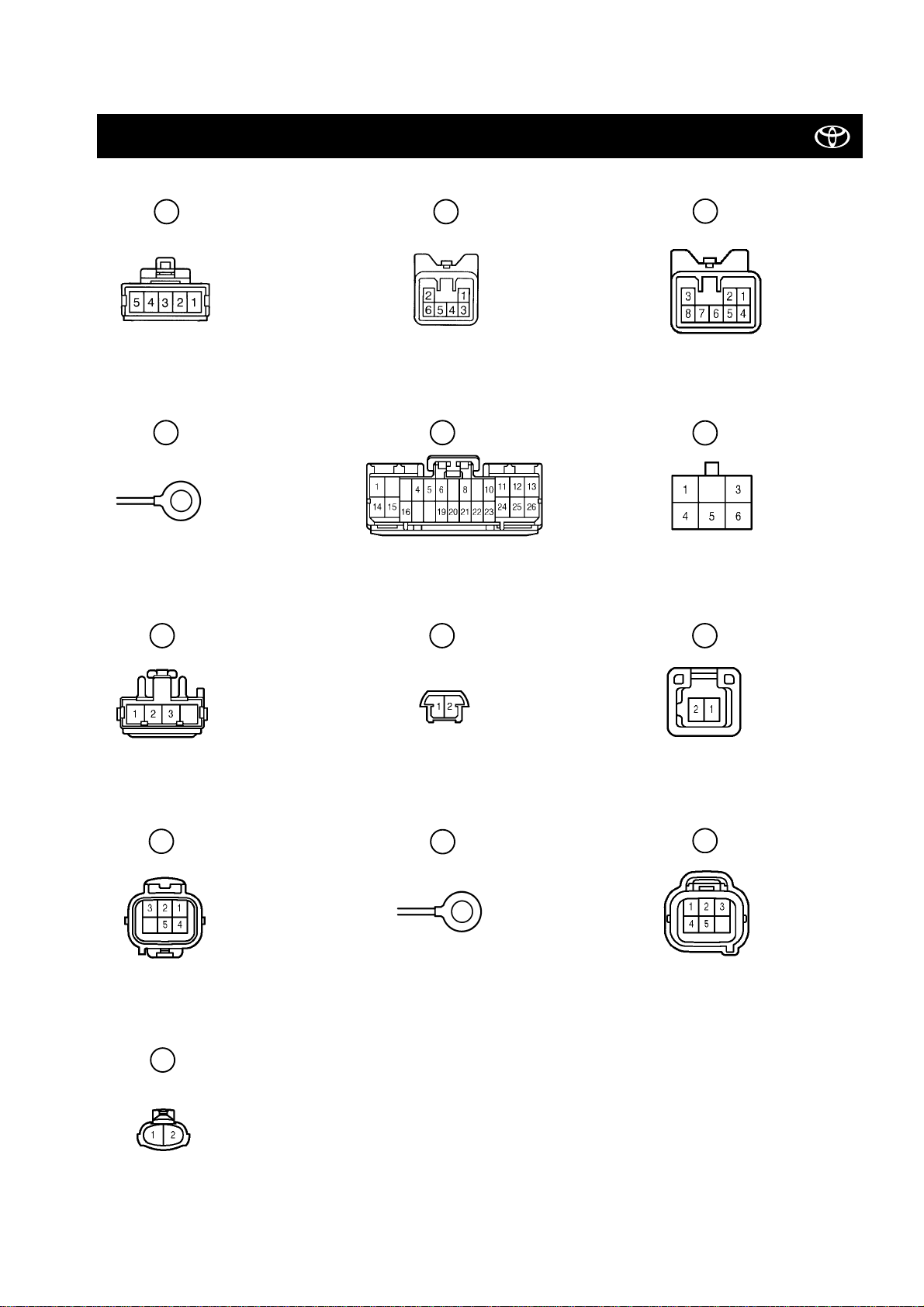

CONNECTOR ARRANGEMENT OF THE TVSS (PIN VIEW)
(male) (male)
(ground terminal) (female) (female)
(female) (female)
(male)
A
(male) (ground terminal)
K
B
C
E
D
F
G
H
(male)
J
L
(female)
M
(female)
N

RAV4 (RHD) - 10
RAV4 TVSS IV-S/-D
06-00

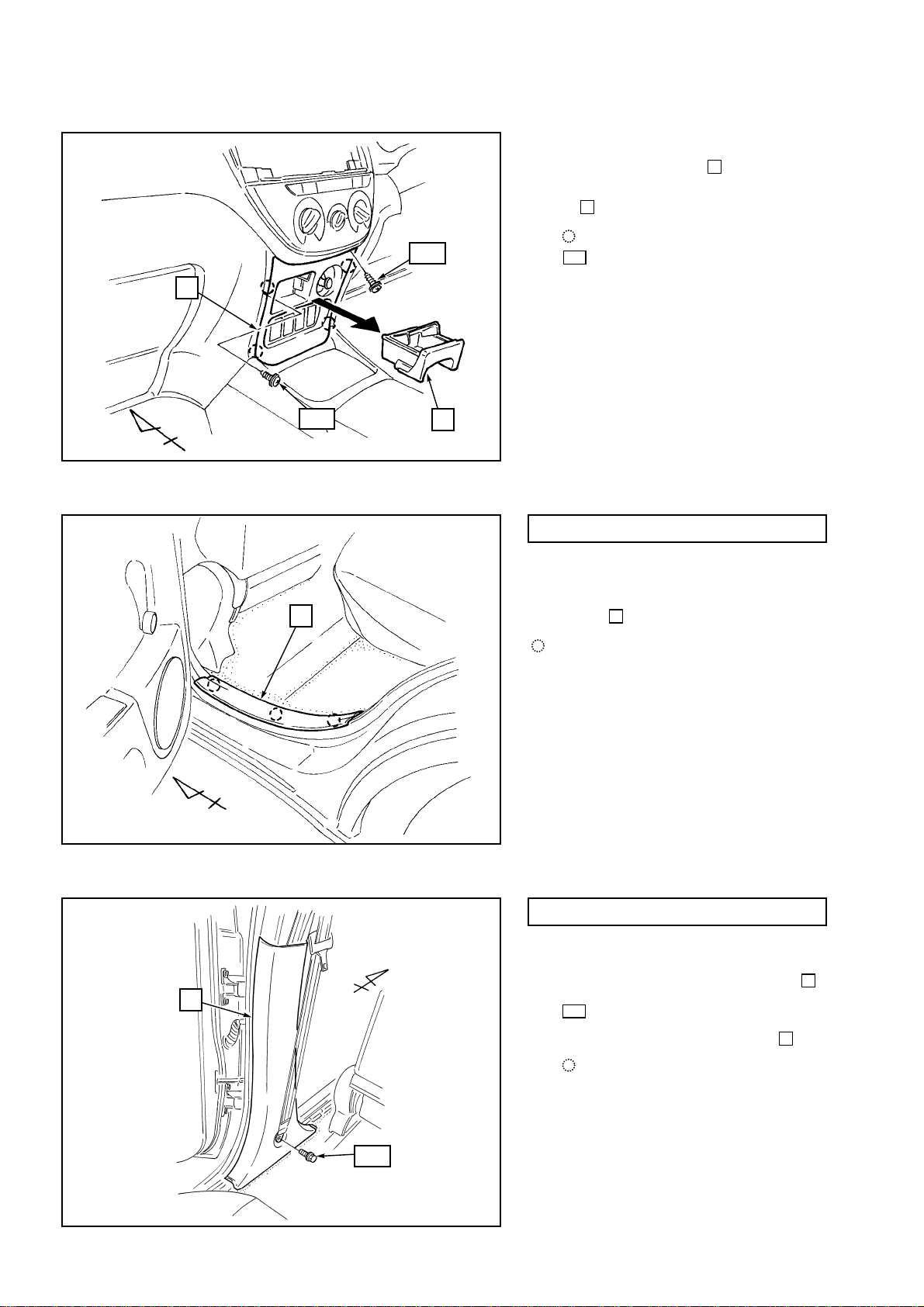

VEHICLE DISASSEMBLY
2.
Remove the passenger’s side cowl cover
.
: Retainer (1x)
100
2
1.
Remove the passenger’s side front door
scuff plate .
: Clip (4x)
1
Fig. 1
Fig. 2
3.
a) Remove the cover .
: Clip (3x)
b) Pull down the glove compartment .
4
3
Fig. 3
1
2
100
3
4

RAV4 (RHD) - 11
RAV4 TVSS IV-S/-D
06-00

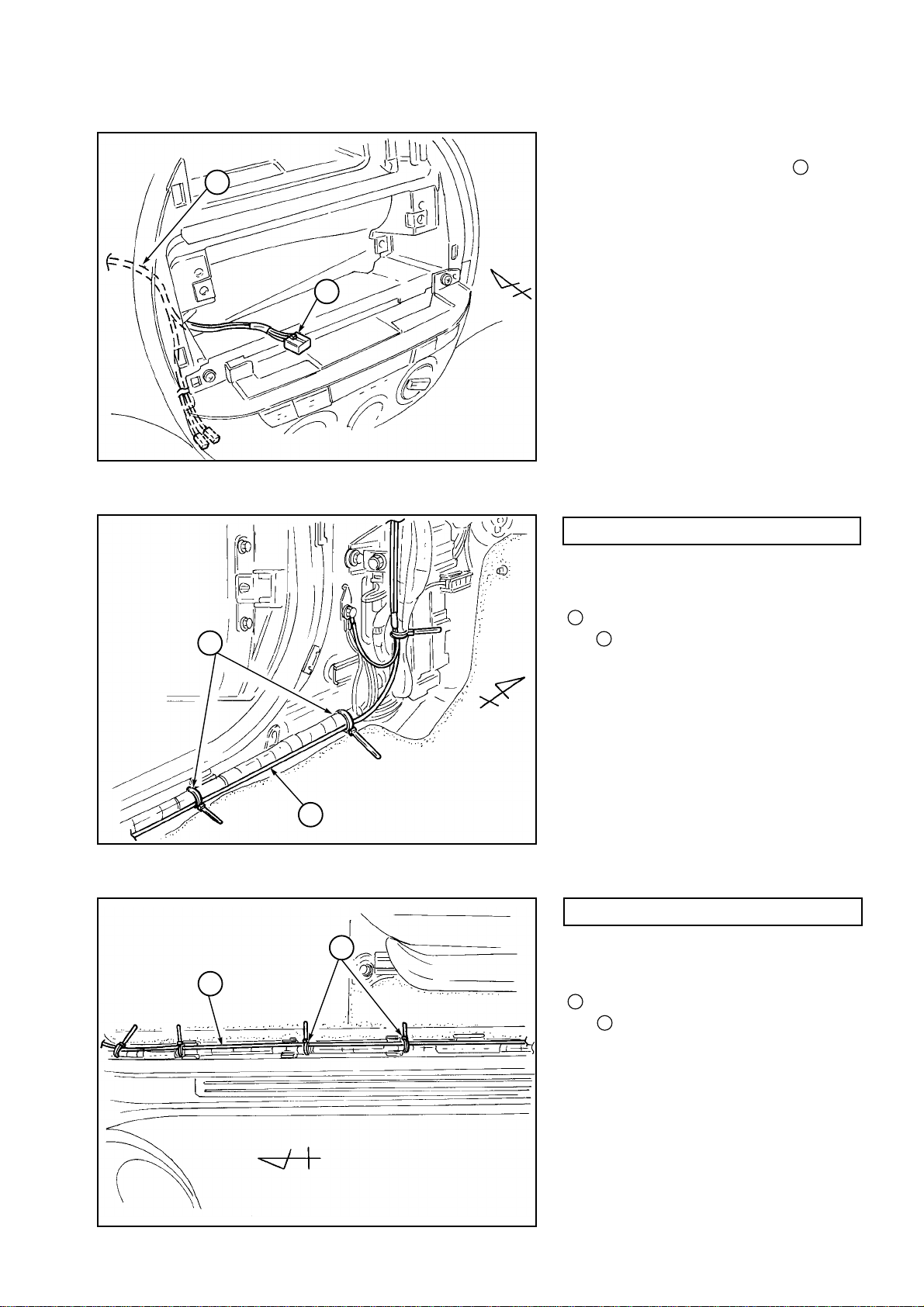

4.
Remove the glove compartment .
: Screw (2x)
101
4
5.
Remove the centre cluster panel .
: Clip (3x)
: Bolt (4x)
102
5
Fig. 4
Fig. 5
4
5
6.
Remove the audio assembly .
: Bolt (4x)
103
6
Fig. 6
6
103
103
101
102
102

7.
a) Remove the ashtray .
b) Remove the centre cluster under pan-
el .
: Clip (4x)
: Screw (2x)
101
8
7
Fig. 7
RAV4 (RHD) - 12
RAV4 TVSS IV-S/-D
06-00
8
7
101
101
8.
Remove the passenger’s side rear door
scuff plate .
: Clip (3x)
9
Fig. 8
9
9.
a) Remove the seat belt floor anchor .
: Bolt (1x)
b) Remove the centre pillar cover .
: Clip (5x)
10
104
10
Fig. 9
FOR 5-DOOR MODELS
FOR 5-DOOR MODELS
10
104

RAV4 (RHD) - 13
RAV4 TVSS IV-S/-D
06-00
10.
Remove the luggage finish plate .
: Clip (5x)
11
Fig. 10
11
Fig. 11
11.
a) Remove the cover from the rear LH
side compartment .
b) Remove the screws (2x).
105
14
13
Fig. 12
14
13
FOR 5-DOOR MODELS
FOR 5-DOOR MODELS
105
12.
Remove the rear side compartment .
: Clip (9x)
: Bolt (1x)
: Screw (3x)
105
104
14
105
104
FOR 5-DOOR MODELS
14

RAV4 (RHD) - 14
RAV4 TVSS IV-S/-D
06-00
VEHICLE DISASSEMBLY (ENGINE COMPARTMENT)
2.
Lift the cap and remove the positive ter-
minal of the battery .
18
17
1.
Remove the battery cover .
: Clip (6x)
106
16
Fig. 13
Fig. 14
3.
Remove the battery .
: Nut (2x)
: Hook bracket (2x)
: Bracket (1x)
109
108
107
18
Fig. 15
16
17
18
18
106
106
107
109
108

RAV4 (RHD) - 15
RAV4 TVSS IV-S/-D
06-00
4.
Remove the battery carrier .
: Bolt (4x)
110
19
Fig. 16
7
110
110
5.
Loosen the cover .
: Clip (1x)
111
20
Fig. 17
20
111

RAV4 (RHD) - 16
RAV4 TVSS IV-S/-D
06-00
WIRE HARNESS INSTALLATION (MAIN)

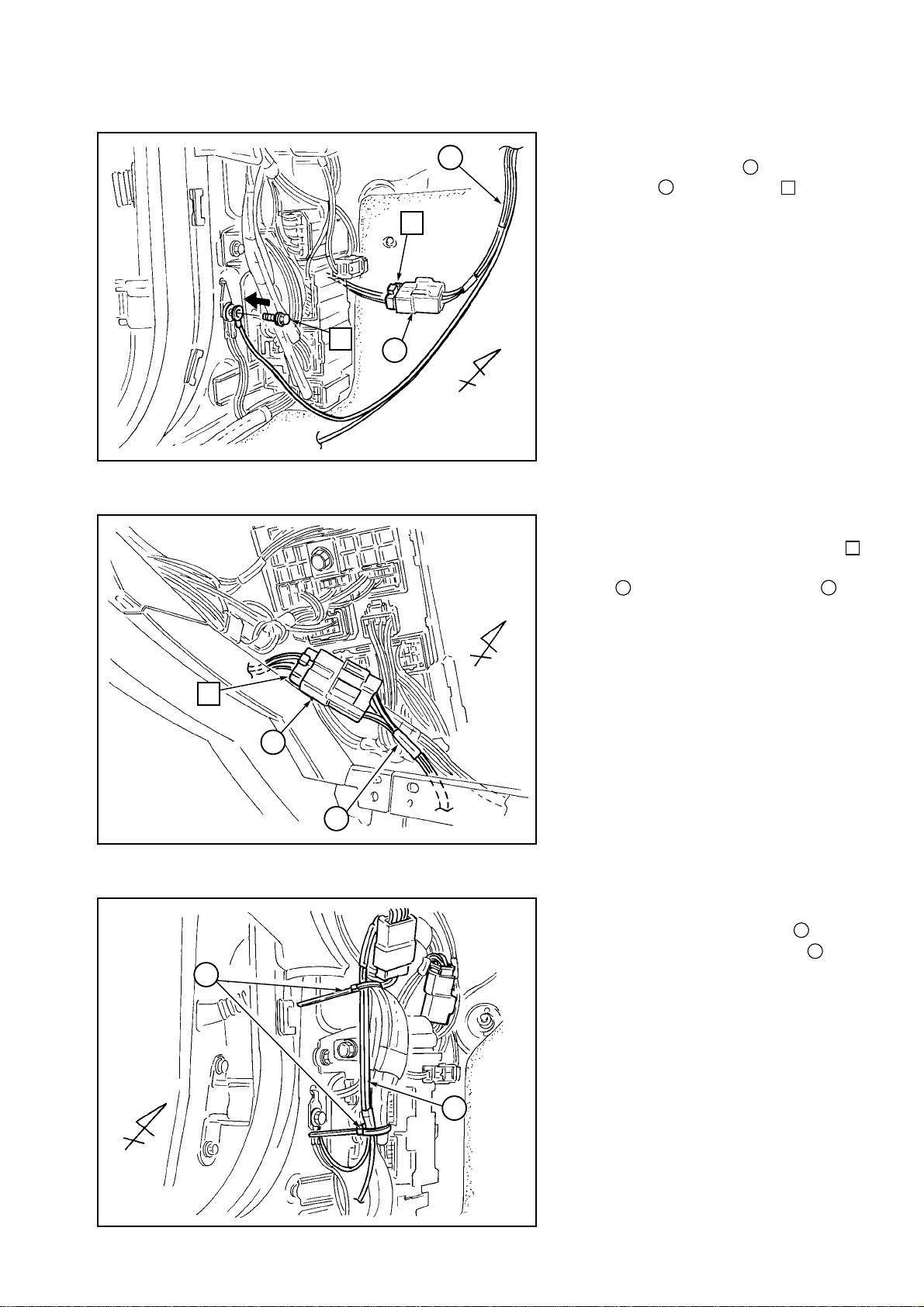

2.
Remove the bolt .
32
3.
a) Connect the 5P male connector of
the TVSS wire harness to the vehi-
cle harness 5P female connector .
b) Connect the 6P male connector of
the TVSS wire harness to the vehi-
cle harness 6P female connector .
31
1
B
30
1
A
1.
a) Locate the pre-wired 5P female con-
nector (white) and remove the tape.
b) Locate the pre-wired 6P female con-
nector (white) and remove the tape.
31
30
Fig. 18
Fig. 19
Fig. 20
31
30
32
30
31
D
B
1
A

RAV4 (RHD) - 17
RAV4 TVSS IV-S/-D
06-00
4.
Fit the ground terminal of the TVSS
wire harness using the bolt .
32
1
D
Fig. 21
5.
Locate the pre-wired 8P male connector
(white) and connect it to the 8P male con-
nector of the TVSS wire harness .
1
C
33
Fig. 22
6.
Attach the TVSS wire harness to the
vehicle harness using the wire ties (2x).
14
1
Fig. 23
32
1
31
B
C
33
1
1
14

RAV4 (RHD) - 18
RAV4 TVSS IV-S/-D
06-00
8.
Secure the 5P connector to the vehicle
harness using the wire tie (1x).
15
A
9.
Attach the TVSS wire harness to the
reinforcement using the wire ties (3x).
16
1
Fig. 25
Fig. 26
7.
Secure the 6P connector to the vehicle
harness using the wire tie (1x).
15
B
Fig. 24
1
16
B
15
31
A
15
30

RAV4 (RHD) - 19
RAV4 TVSS IV-S/-D
06-00

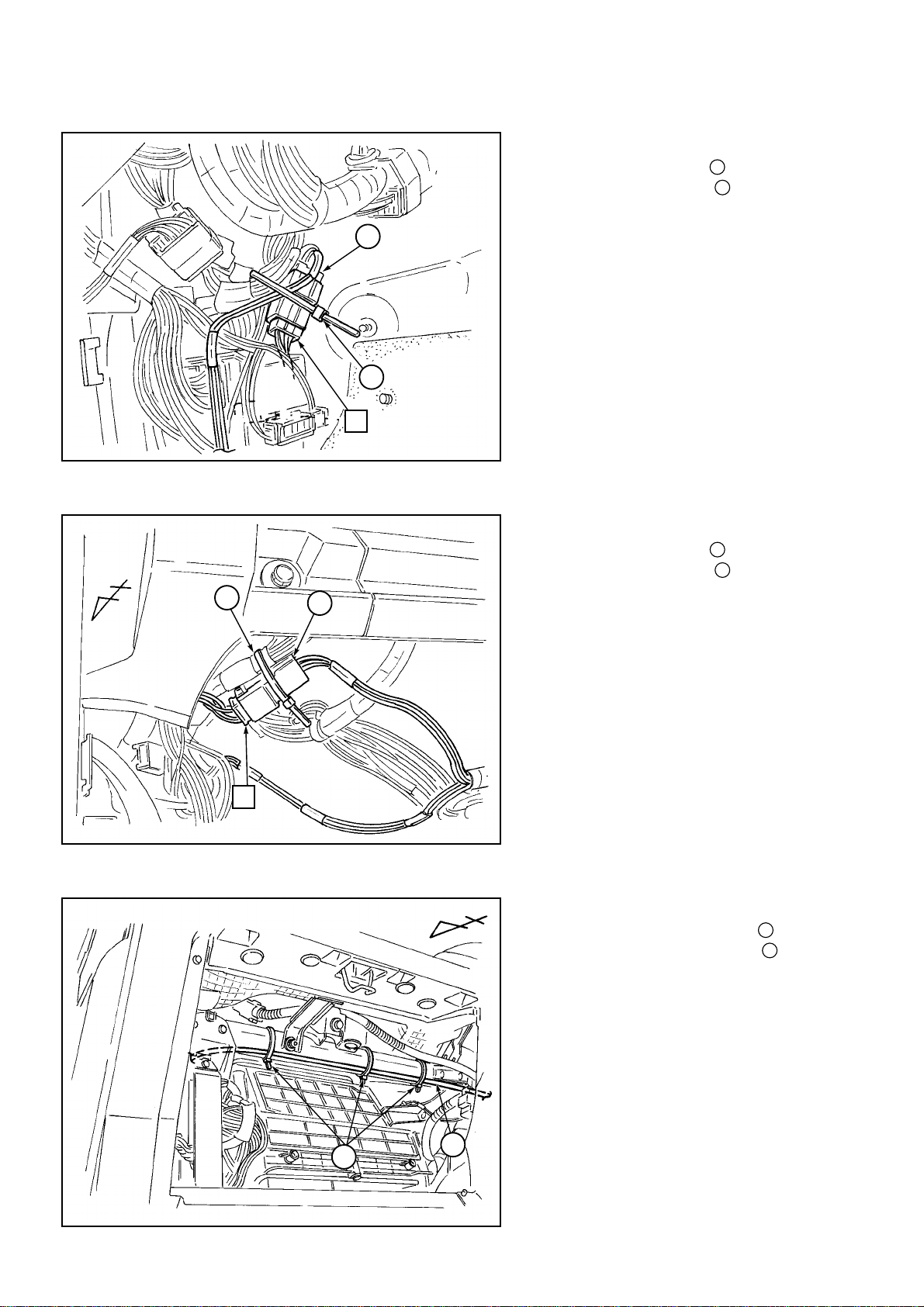

10.
Route the TVSS wire harness to the
centre cluster area as shown.
1
11.
Route and attach the TVSS wire harness
to the vehicle harness using the wire
ties (2x).
14
1
Fig. 27
Fig. 28
12.
Route and attach the TVSS wire harness
to the vehicle harness using the wire
ties (2x).
14
1
Fig. 29
FOR 5-DOOR MODELS
FOR 5-DOOR MODELS
G
1
14
1
1
14

RAV4 (RHD) - 20
RAV4 TVSS IV-S/-D
06-00

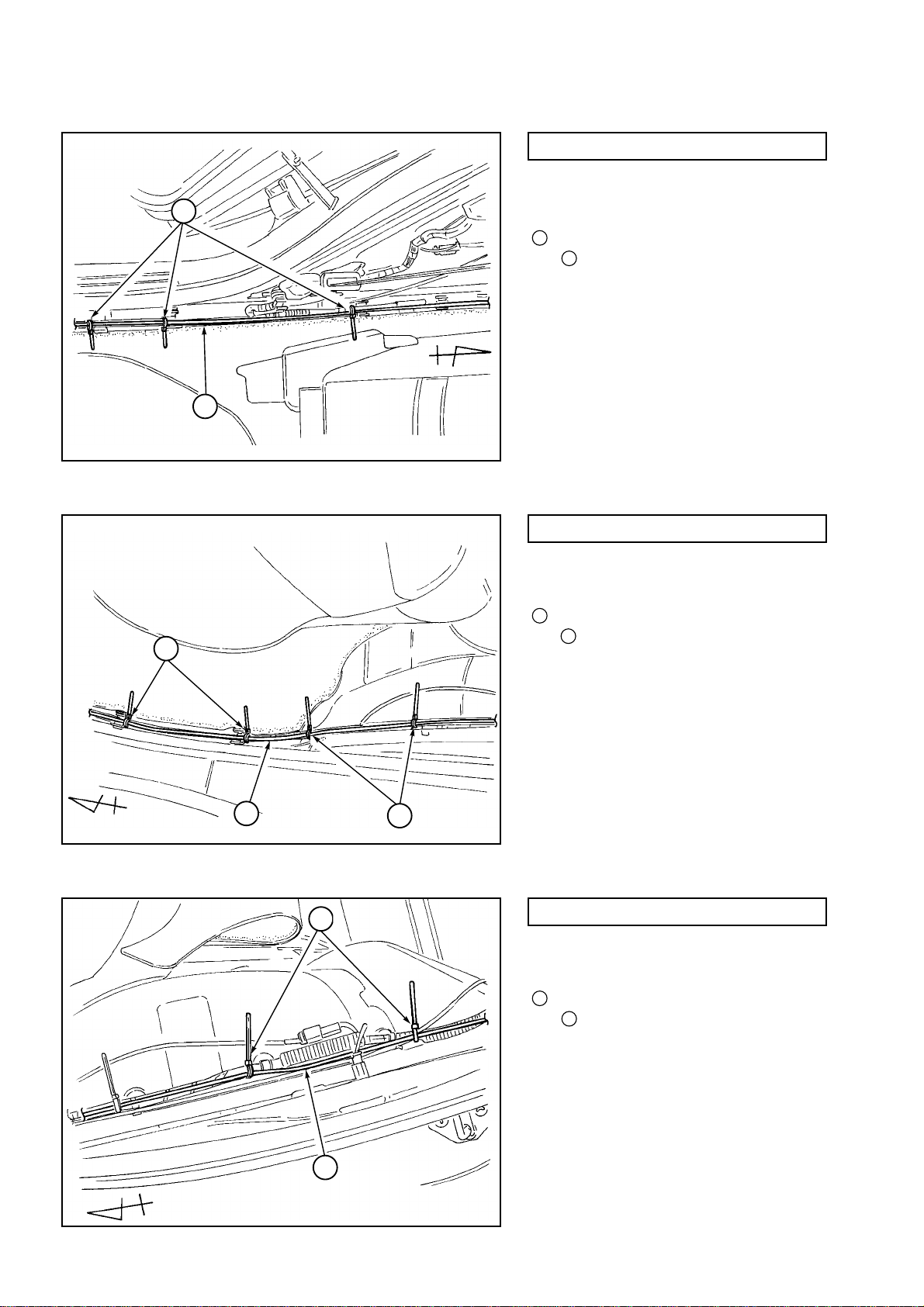

13.
Route and attach the TVSS wire harness
to the vehicle harness using the wire
ties (3x).
14
1
14.
Route and attach the TVSS wire harness
to the vehicle harness using the wire
ties (4x).
14
1
Fig. 30
Fig. 31
15.
Route and attach the TVSS wire harness
to the vehicle harness using the wire
ties (2x).
14
1
Fig. 32
FOR 5-DOOR MODELS
FOR 5-DOOR MODELS
FOR 5-DOOR MODELS
1
14
14
1
14
14
1
