TPG A758 User manual

Receipt
Cover
Front Cover
(non-flip model
shown)
Cardboard
Support
Carriage
Foam
Restraint
Receipt
Cover
Starter Roll
Thermal Paper
Paper Roll
Supports
Test Printout
A758Thermal Receipt and Impact Slip Printer
Setting up the printer
The following instructions will provide a quick reference for setting up the A758 printer.
You will need to refer to the Owner’s Guide or USB Setup Guide downloadable from the
TPG, Inc. web site (http:// www.TPGprinters.com) for specific details for the USB setup
procedures, troubleshooting tips, configuration adjustments, and command
designations. Pages referenced are from the Owner’s Guide, unless noted.

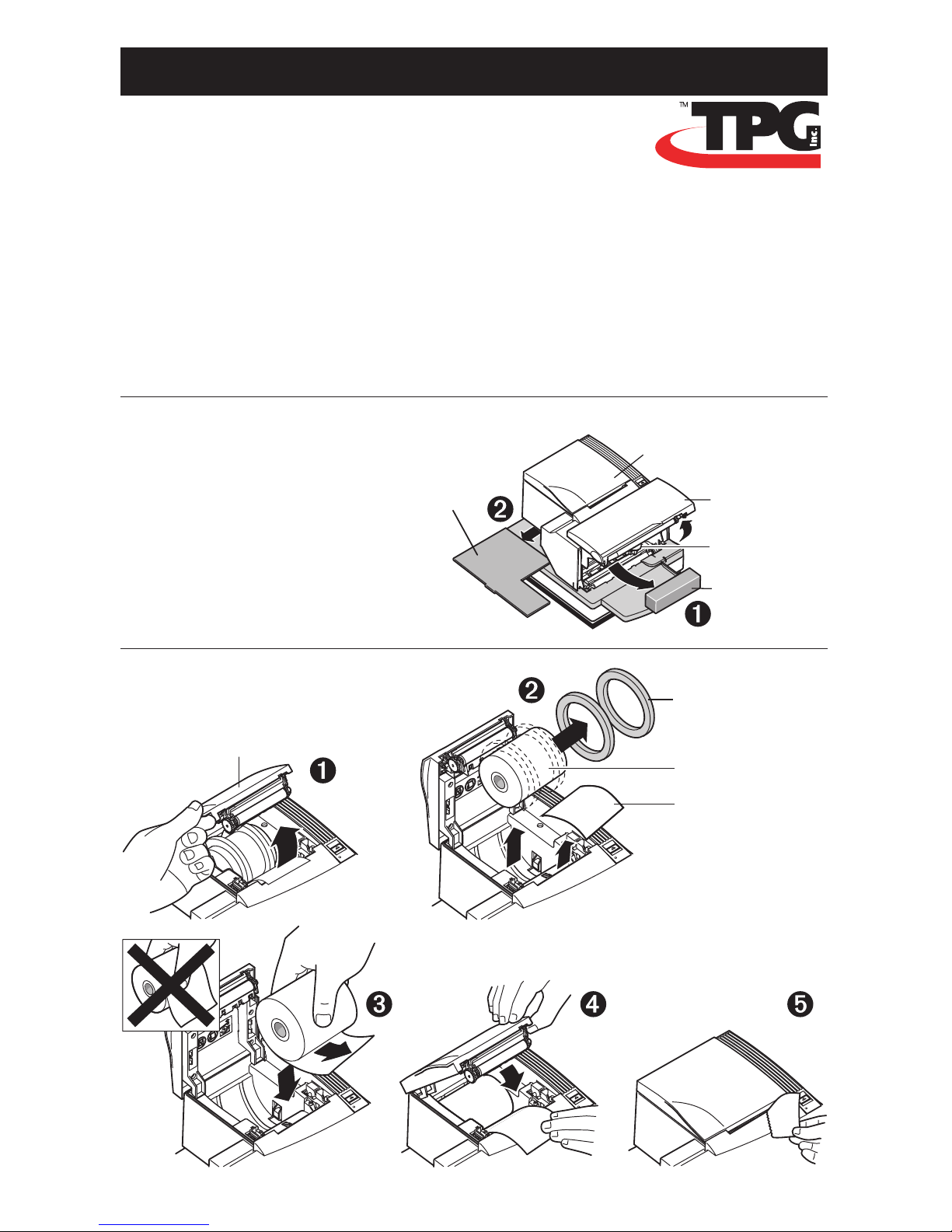

1Unpack the printer, saving all packing materials for future
shipping or storage (page 13).
2Load the starter roll of paper (pages 13 & 23).
Setup Guide

Front Cover
(non-flip model
shown)

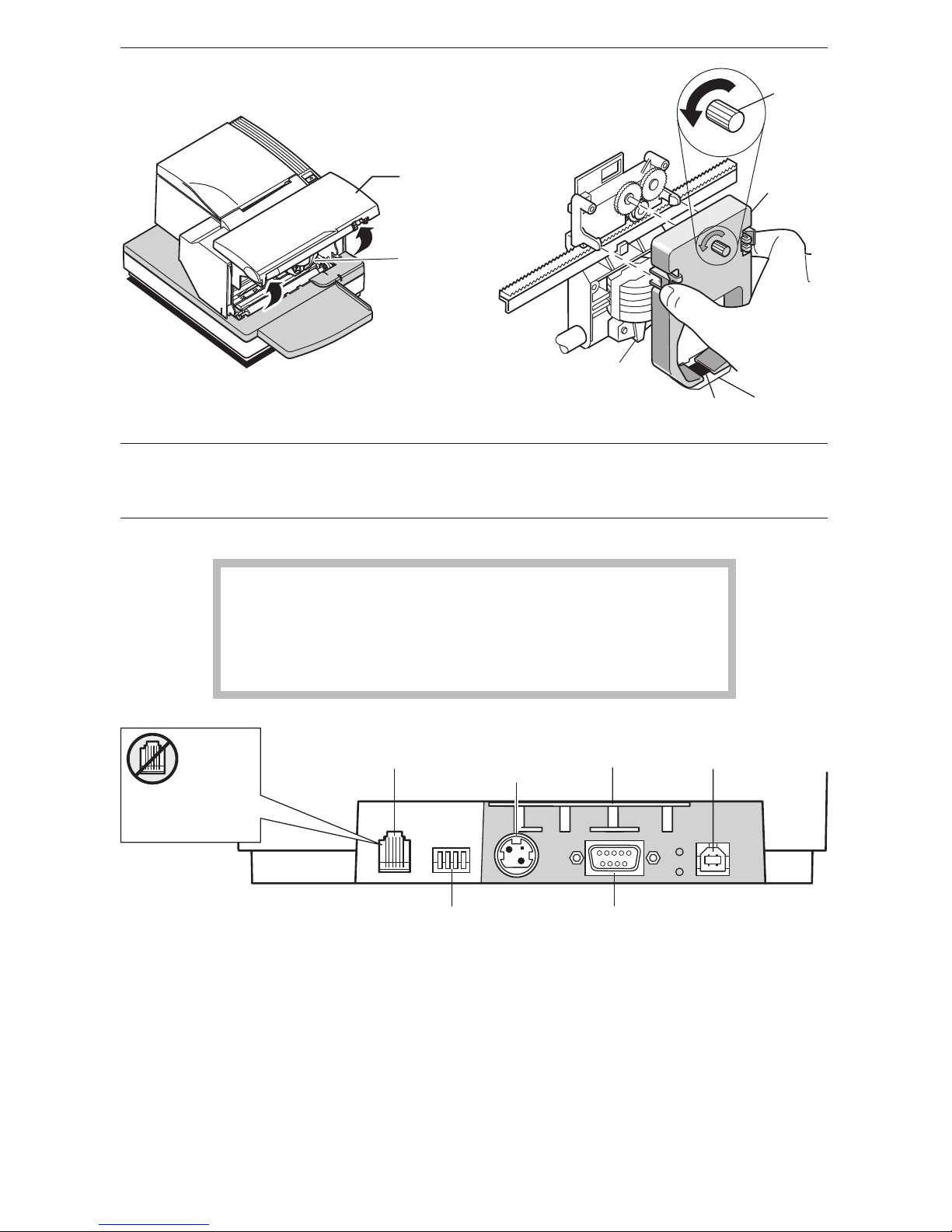

Ribbon
Cassette
(Shown in
Position)
Ribbon
Cassette
Knob
ylar
Shield
Printhead
3Install the ribbon cassette (page 24).
4Choose a location for the printer (page 12).
5Connect the following cables.
When using USB (step “b” below), use caution to ensure
the USB cable is connected to the USB connector
on the back right of the printer and not into the cash
drawer connector that is on the left back of the printer.
aCash drawer (if your installation includes this feature, page 16).
b9-pin or 25-pin Serial or USB cable (serial: page 14; USB: page 15).
Note: For USB connection instructions refer to the “A758 Setup Guide with USB”
downloadable from the TPG, Inc. web site (http://www.TPGprinters.com).
cConnect the power cable (page 16).
USB
connector
RS-232C communication
connector
(9-pin shown)
Power
supply
connector
Back of printer
Strain
relief
DIP
switches
Cash drawer
connector
CAUTION:
DO NOT plug the
USB cable here.

Open
Receipt
Cover
Push and hold
Paper Feed Button
while closing
Receipt Cover
USB
Communication
Cable
To the USB
Connector (when used)
Strain
Relief
Cash Drawer
Cable
Power
Supply
or Adapter
Cable
Cash Drawer
Cable
To the RS-232C
Connector (when used)
RS-232C
Communication
Cable
Print Test and Configuration Menu Sample.
Samples will vary depending on the printer model.

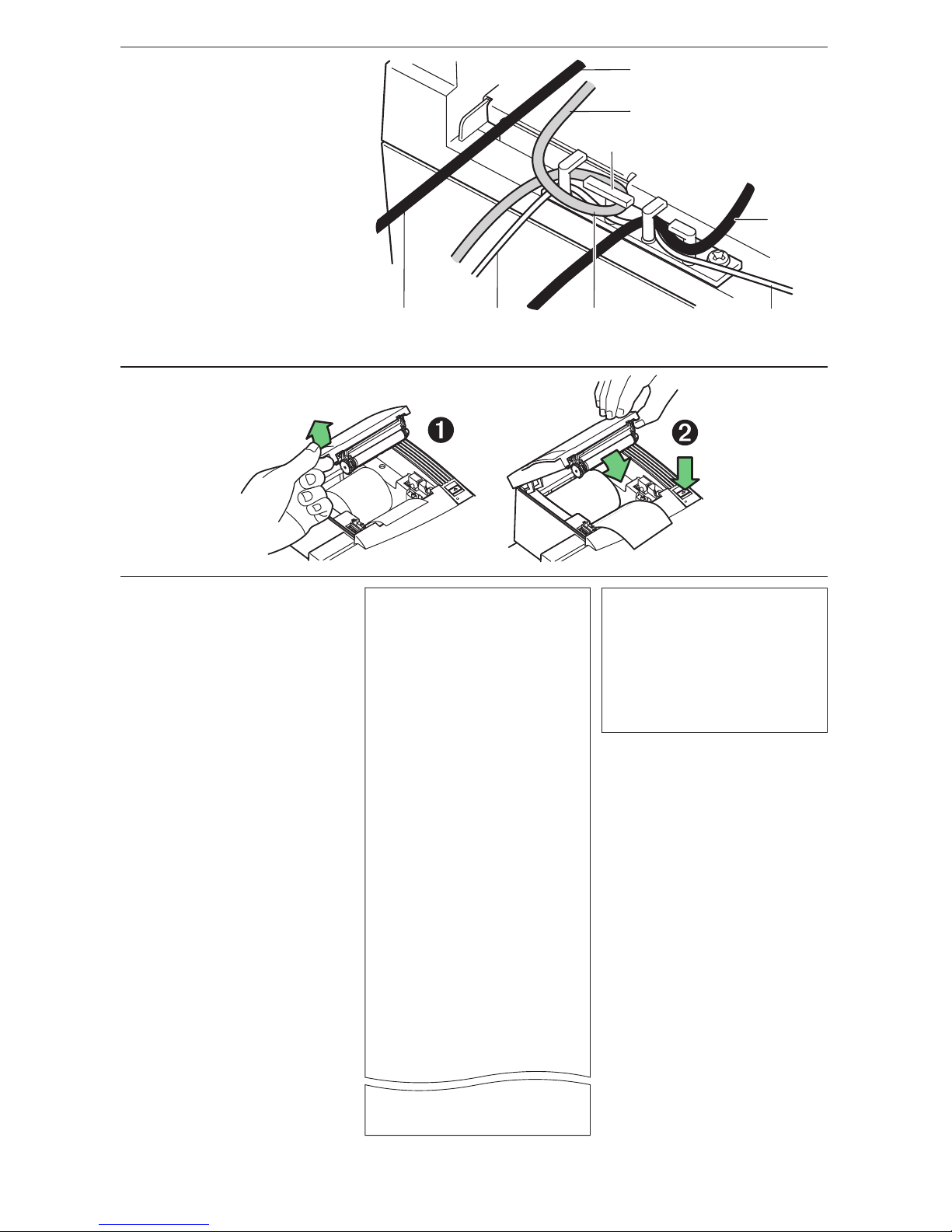

dRoute cables as shown
for your setup configuration
(page 15).
6Run a diagnostic test to test the printer (page 32).
7Configure the printer if
necessary (page 33 and
Communication Interface
(page 36) for commands
descriptions and usage).
*** A758 - Diagnostics Form ***
*** A758 - Diagnostics Form ***
Model number : A758-0000
Serial number : 0000000000
Boot Firmware
Re ision : V3.12
CRC : 814C
P/N : 189-1076109C
Flash Firmware
Re ision : V4.21
CRC : 19AB
P/N : 189-1076110E
H/W parameters
Flash Memory Size : 512 Mbyte
Flash Logos/Fonts : 64 kbytes
Flash User Storage : 64 kbytes
SRAM Size : 256 kbytes
CPU Clock Freq. : 50 MHz
Head setting : A
Print Density : 100 %
Max Speed : 130 mm/sec
Max Power : 55 W
Alternate Reset : Disabled
Knife : Enabled
Paper Low Sensor : Disabled
MICR : Disabled
Check Flip : Disabled
MICR Dual Pass : Disabled
MICR DC offset : 7F
Slip Position Option : Disabled
Comm. Interface
RX Buffer Size : 4096
Interface type : RS232/USB
Parameters
Baud Rate : 9600
Data Bits : 8
Stop Bit(s) : 1
Parity : NONE
Flow Control : DTR/DSR
Reception Errors : Ignore
Alternate DTR/DSR : Disabled
Resid. Code Pages : 437, 850, 852, 858
860, 863, 865, 866
1252,862,
737
Logo(s) defined : NO
User Char(s) defined : NO
To enter Printer Config Menu :
1) Flip DIP switch #1 down
2) Reset the printer, while holding
the Paper Feed button down
*********
*********
MAIN MENU
MAIN MENU
**********
**********
*******************************
*******************************
Select a sub-menu :
- EXIT -> 1 click
- Print Current Configuration -> 2 clicks
- Set Communication Interface -> 3 clicks
- Set Diagnostics Modes -> 4 clicks
- Set Emulation/Software Options -> 5 clicks
- Set Hardware Options -> 6 clicks
Enter code, then hold Button DOWN
at least 1 second to alidate
}
Current Printer tallies are
printed after the Diagnostic
information and will vary
per printer use.

A758-D110 189-9200390 Rev. B 09/29/04 Printed in USA
