Tranberg TEF 2440 User manual

Installation and operating manual – TUM1072
TEF 2440 Perimeter / Obstruction light
Perimeter / Obstruction Light LED
TEF 2440
Document properties (TUM1072)
Revision
Comment
Date
By
F
Changed tyoe of cable gland and cable diameter range. Converted to word.
25.10.2022
CKR

Installation and operating manual – TUM1072
TEF 2440 Perimeter / Obstruction light
Installation and operating manual
Contents
Document properties (TUM1072) ............................................................................................................................ 1
Warnings and risk levels.......................................................................................................................................... 3
General information................................................................................................................................................. 3
Marking and intended use ....................................................................................................................................... 4
Special conditions for safe use................................................................................................................................ 5
Technical data ......................................................................................................................................................... 5
Product description.................................................................................................................................................. 5
Transport and storage ............................................................................................................................................. 5
Mounting and installation......................................................................................................................................... 6
Mounting ............................................................................................................................................................. 6
Dimensions.............................................................................................................................................................. 8
External dimensions: ............................................................................................................................................... 8
Commissioning........................................................................................................................................................ 9
Maintenance and cleaning....................................................................................................................................... 9
Disposal................................................................................................................................................................... 9
Compliance/Conformity ......................................................................................................................................... 10

Installation and operating manual – TUM1072
TEF 2440 Perimeter / Obstruction light
Warnings and risk levels
DANGER
Non-compliance with the instruction results in risk of severe or fatal injuries to persons
WARNING
Non-compliance with the instruction may result in risk of severe or fatal injuries to persons
CAUTION
Non-compliance with the instruction may result in risk of injuries or damage to equipment
NOTICE
Non-compliance with the instruction may result in reduced lifetime of equipment, malfunctions etc.
General information
Before installation, make sure to read and understand this installation and operating manual.
Observe national assembly and installation regulations.
Always contact the manufacturer if anything is unclear, or if you notice any faults on the product or in this
document.
This installation and operating manual shall be available to anyone operating, installing, inspecting, modifying or
repairing the equipment.

Installation and operating manual – TUM1072
TEF 2440 Perimeter / Obstruction light
Marking and intended use
CAUTION
Not intended for use in “these” conditions (Where mud may be present, on helidecks, underground, direct
sunlight, heavy vibrations, high risk of impact, harsh cleaning agents, high pressure washer etc.)
CE-marking
Other markings
For use in safe area

Installation and operating manual – TUM1072
TEF 2440 Perimeter / Obstruction light
Special conditions for safe use
DANGER
Special conditions for safe use are critical conditions to maintain the safety of the equipment. These shall be
adhered to in all cases and under all circumstances.
•Changes made to the product and/or installation of components which do not conform to the approval,
may be a safety violation. The manufacturer will in no circumstance be held responsible for such
activities.
•For your health and safety, always use safety gear suited for the task. Be certain to follow codes,
regulations and/or specific procedures that are related to the installation.
Technical data
Property
Value
Value
Material
Acid proof stainless steel, powder
coated RAL 9010
Globe: Polycarbonate lexan
Input voltage
24 VAC/VDC, 100-230 VAC 50/60 Hz
Light output
Red: > 32 Candela
Green: > 30 Candela
Power consumption
Max. 10W
Ingress Protection
IP66 (IP67 if drainplug is replaced with blind plug)
Entries/Cable Glands
1xM25 stopping plug
1xM25 cable gland
For use in zone
Safe Area
Height
Red: 240 mm
Green: 147 mm
Width
140 mm
Length
164 mm
Weight
Red: 2,0 kg
Green: 1,9 kg
Product description
Perimeter lights on helideck.. The Luminaire consists of five powerful light emitting diodes
(LEDs) mounted on a machined aluminium base. The LED driver is placed in the lamp bottom
along with terminals. It has a rugged construction andis resistant to vibrations. It has a long
operating life, low power consumption and gives instant light at all temperatures.
It is mounted to the surface with 4 pcs M6 bolts (bolts not supplied by manufacturer).
Transport and storage
•Transport and store the equipment only in the original packaging
•Store the equipment in a dry and vibration free place
•Do not drop!

Installation and operating manual – TUM1072
TEF 2440 Perimeter / Obstruction light
Mounting and installation
DANGER
Incorrect mounting and installation may lead to risk for falling objects, risk for electric shock or fire and risk for
equipment malfunction. In turn, this can lead to severe damage and/or injuries.
Mounting
Regular tools required for installation:
•10 mm wrench for tightening the M6 bolts
•32 mm wrench for tightening the cable gland.
•30 mm wrench for tightening the lock nut.
•25 mm wrench for tightening the pressure nut.
•PZ 2 screwdriver for tightening/loosening the globe screws.
•3 mm flat screwdriver for tightening earth screw.
The luminaire is mounted to the surface with 4 pcs M6 bolts.
Before installing the lamp please review the following:
•Verify that the grommet kit used match the cable diameter. The included cable gland kit has two sealing
rings included. One for Ø11,0-15,0 mm and one for Ø15,0-20,1 mm cable.
•Cables should have a bend downwards before entering the cable gland, which will avoid water intrusion
into the luminaire. Secure the cable at a distance of maximum 50 cm from the luminaire.
•Tighten the cable gland sealing (pressure nut) according to the specification of the cable gland:
oTightening force for included cable gland is 8 Nm.
•If the cable gland is not in use it should be replaced by a stopping plug to prevent water ingress.
•Tighten the cable gland / stpping plug according to the specification for the gland/plug.
oTightening force for included gland/plug:25 Nm
Cable diameter
Size sealing ring
Part no cable gland kit
11,0-15,0 mm
D1 26,8/15,0x10
6222502
15,0-20,1 mm
D1 26,8/20,3x10
6222502
Be sure to install the cable in a way which prevents any water to penetrate into the enclosure through the
cable gland, also make sure to use the correct rubber seal when you install the luminaire.

Installation and operating manual – TUM1072
TEF 2440 Perimeter / Obstruction light
The safety wire should be in place and the two electrical wires for power to the LED’s should be correctly positioned
(+ and -). The input power 100-230 VAC should be terminated as indicated inside the lamp.
For the 24VAC/VDC version, connect power to the connection block.
Ensure the globe gasket is clean and properly aligned around the bottom of the globe assembly. Carefully
position the globe onto the lamp body and ensure that no wires is located between the lamp body and the globe
assembly. Place the globe ring over the globe and ensure the four screws enter the recessed nuts in the lamp body.
Slightly tighten the screws in a cross pattern to ensure that the globe lies straight, and the pressure on the globe
gasket is distributed evenly. Tighten all four screws until the globe is firmly positioned.
Power tools shall not be used in any circumstances!

Installation and operating manual – TUM1072
TEF 2440 Perimeter / Obstruction light

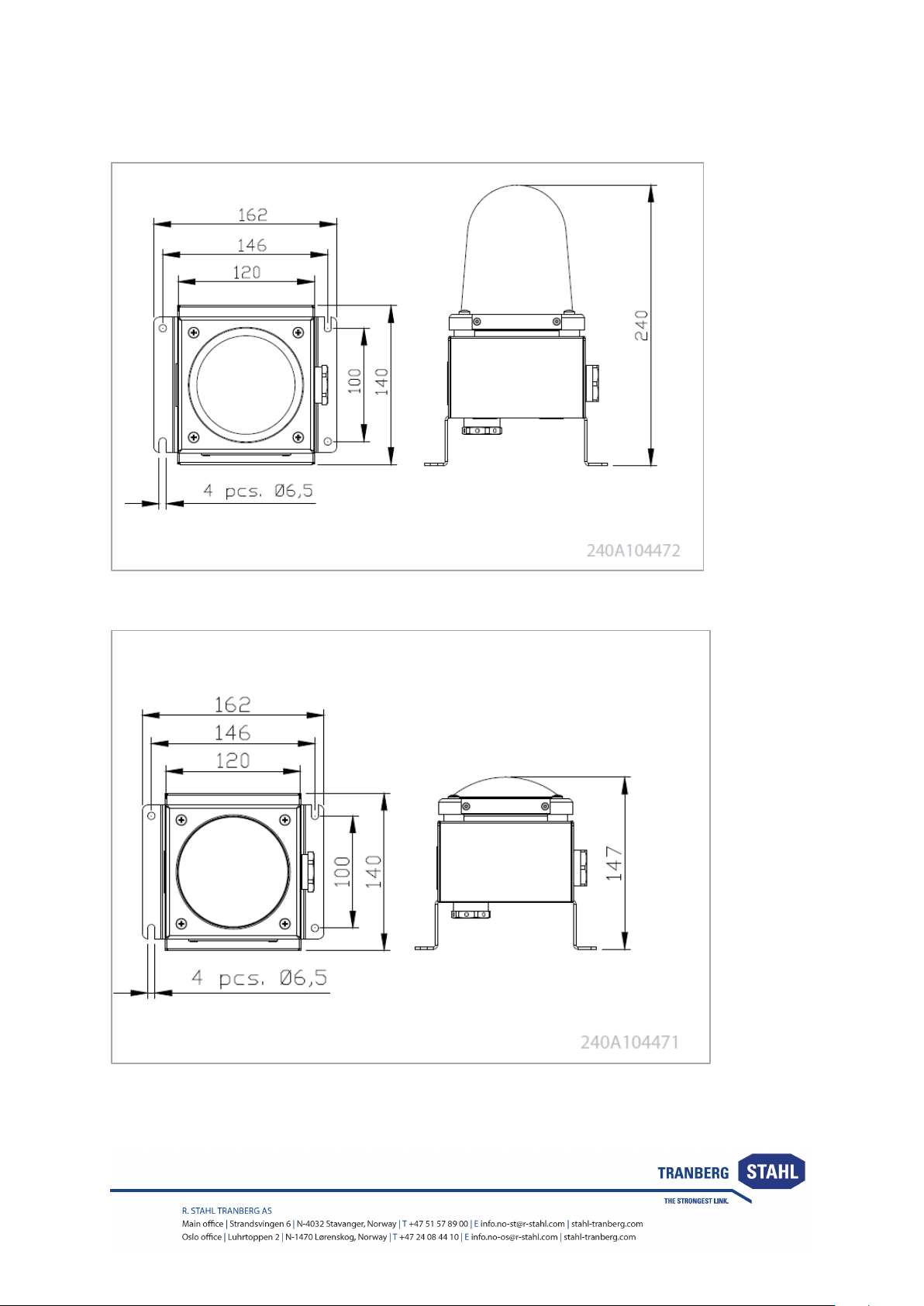

Dimensions
External dimensions:

Installation and operating manual – TUM1072
TEF 2440 Perimeter / Obstruction light
Commissioning
The luminaire should be inspected according to company routines. The manufacturer suggests regular check for
water intrusion/ condensation which should be removed immediately.
Description
Part No
Complete low globe assembly, green
6597
Complete high globe assembly, red
4417
Complete fastening ring
4249
Mean Well LPC-20-350, Constant Current LED Driver 16.8W
LED driver 100-230 V AC 50/60 Hz
50890047
50860079
LED driver 24 V AC / V DC – Denne hare n stykkliste full av void varenumre
4399
Globe gasket, silicon
50010021
Complete connection assembly
4246
Cable gland E xe E204/622 M25/D Kit 11,0-20,1 mm, 9mm brass
6222502
Stopping plug E xe: TEF 794/650 M25/9mm Brass
6502500
Maintenance and cleaning
Clean only with a damp cloth, water and mild detergents. Avoid chemicals with high or low pH, abrasives, high
pressure washer, strong detergents, solvents, petroleum- or alcohol based cleaning agents and similar. Avoid any
corrosive media.
Disposal
CAUTION
This equipment or part of this equipment is considered EE-Waste, and shall be handled accordingly
•Observe national and local regulations and statutory regulations regarding disposal
•Separate materials when sending it for recycling
•Ensure environmentally friendly disposal of all components
•No component or packaging shall end up in the ocean during any stage of the product’s lifetime

Installation and operating manual – TUM1072
TEF 2440 Perimeter / Obstruction light
Compliance/Conformity
•Complies with: ICAO Annex 14 Vol. II
•Low type complies with: IMO on 150mm height restrictions of IMO
