Transpak GENESIS HORI TP-502MH Guide

Original Instruction
TP-502MH
PALLET
TP-502MH
TP-502MHB (with battery)
SEMI-AUTO
GENESIS HORI
04/2018

CONTENTS
PART I
1. General Safety Instructions ................................................................. A1
2. Construction and Units ........................................................................ A4
3. General Safety Remarks ...................................................................... A6
4. Machine Information ........................................................................... A9
5. Operating the Machine ...................................................................... A20
6. Adjustment ........................................................................................ A23
7. Maintenance ...................................................................................... A25
8. Troubleshooting Guide ...................................................................... A30
PART II
1. Wiring Diagram .................................................................................... B1

PART III
1. Strapping Head Unit ………………………...………………………C1
2. Base Group ……………………………………………..………….C33
3. Reel Control Group ………………………………………………..C39
4. Body Frame Group ………………………………………………...C43
5. Electric Control Unit ……………………………………..………..C47
6. Battery Group ………………………………………..…………….C57

PART I

-A1-
1. General Safety Instructions
THIS MANUAL GIVES YOU INFORMATION ON SAFETY INSTRUCTIONS,
SPECIFICATIONS, OPERATION AND MAINTENANCE OF STRAPPING
MACHINES.
BEFORE OPERATING OR SERVICING THE MACHINE, PLEASE REVIEW
THE ENTIRE MANUAL AND FOLLOW THE SAFETY INSTRUCTIONS
CAREFULLY.
(1) Before Operating
a. Verify that the power line voltage is correct.
b. The machine must be properly grounded to avoid a shock hazard. All wiring must be in
accordance with local wiring standards.
c. The strapping machine can only be operated with polypropylene (P.P.) strapping; do not
use polyester (PET) strapping or polyethylene (PE) cord strap.
(2) During Operation
a. The lowest strapping position of the package should not be less than 175mm (6.88”).
b. Check if the machine emits any smokes or unusual sound when it is running.
(3) After operating
a. Remove dust and dirt from the unit.
b. Turn off the power when the machine is not in use.

-A2-
(4) Signs and Symbols
Symbol
Meaning
Warning for dangerous voltage!
Contact with live electrical parts will
result in severe injury or death.
Warning for hot surface!
Welding area is approximately 270oC(520℉)
Allow sufficient time for the heater to cool
down before any work in welding area.
Warning for danger!
Do not step into the machine below.
Warning for danger!
Do not put your hand below the moving
unit.

-A3-
(5) Maintenance
a. Turn off the power before removing either of the covers.
b. Use the correct tools and parts to repair the machine.
c. The heater tongue is very hot; do not touch it.
(6) Storage
a. The store room must be dry.
b. Do not expose the machine to extreme cold or hot environment.
c. Place the machine on an even floor in order to avoid any distortion.
(7) Other Reminders
a. An operation manual must remain attached to the machine at all times.
b. Do not alter the equipment or circuitry unless authorized to do so by the manufacturer.
c. Do not operate the machine with the covers removed.
d. Never put any part of your body near, under or into a moving machine.
e. Do not overload the machine by exceeding the performance limitations specified in this
manual.

-A4-

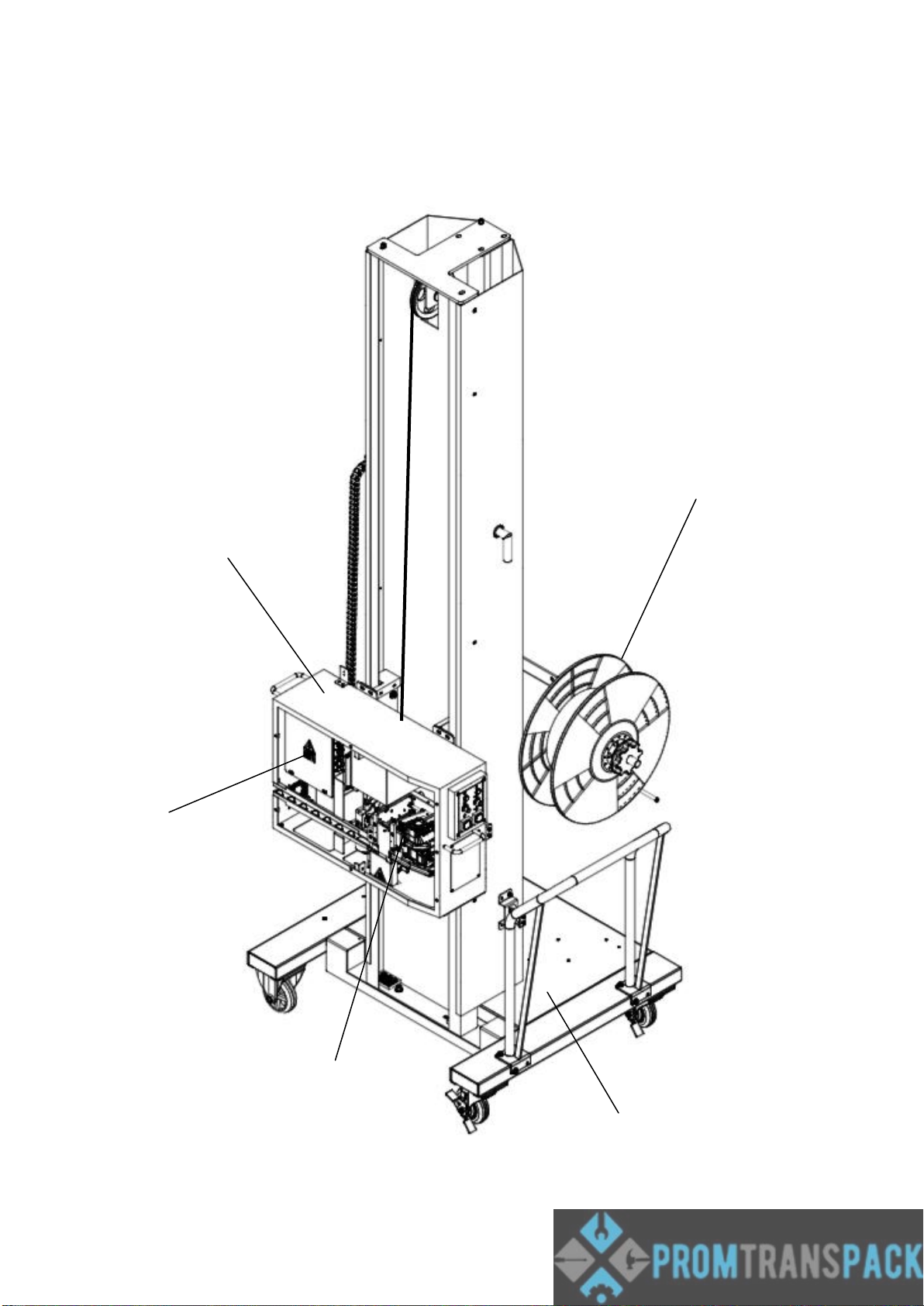

2. Construction and Units
a. TP-502MH
4 Body frame group
3 Reel control group
Holds the strap coil.
(If the reel core size is 280mm,
you can take off the center
drum to have core size 200mm.)
1 Strapping head unit
This unit is the most important
part of the machine for cutting
and sealing P.P. strap.
2 Base group
5 Electric control unit

-A5-
b. TP-502MHB
4 Body frame group
2 Base group
5 Electric control unit
6 Battery unit
3 Reel control group
Holds the strap coil.
(If the reel core size is 280mm,
you can take off the center
drum to have core size 200mm.)
1 Strapping head unit
This unit is the most important
part of the machine for cutting
and sealing P.P. strap.

-A6-
3. General Safety Remarks
(1) Basic Operation
The manual and the safety remarks are to be read before use. The operation manual should
be kept with the machine at all times for regular maintenance and inspections.
This machine was built with state of the art technology and rigid adherence to safety
standards.
Unless used properly, it can cause injury to operators or persons in close proximity to the
machine. In addition, improper use can cause damage to the machine or property around
the machine.
(2) Basic Safety Precautions
The user is to be instructed in all other generally applicable legal and other mandatory
regulations relevant to accident prevention and environmental protection in addition to the
operating instructions.
For safety reasons, long hair must be tied back or otherwise secured, garments must be close
fitting and no jewelry may be worn.
Use protective equipment whenever required by circumstances or by law.
Carefully observe all safety instructions and warnings attached to the machine and make
sure that they are always complete and perfectly legible.
Always make certain that persons being trained and instructed in working on or with the
machine are permanently supervised by an experienced person.
Work on the electrical system and equipment of the machine is only to be carried out by a
skilled electrician or by persons under the supervision and guidance of a skilled electrician
and in accordance with the rules and regulations of electrical engineering.
(3) Safety Instructions Governing Specific Operational Phases
Avoid any operation mode that might be unsafe.
All necessary precautions to ensure that the machine is only used being in a safe and
reliable state are to be taken. The machine is only to be operated if all protective and
safety devices, including removable safety devices, emergency shut-off equipment,
noise-protection elements and exhaust systems are in right place and fully functional.
The machine is to be checked for damage and defects at least once per work shift. Any
changes including the working behavior of the machine are to be reported to competent
persons immediately. If necessary, the machine is to be stopped and locked immediately.
In case of any malfunction the machine must be stopped and locked until the defect has been

-A7-
eliminated.
Generally make sure that nobody is at risk before starting up the machine.
All personnel that will be operating this machine should be thoroughly trained in all phases
of operation and safety.
Always tighten unscrewed connections after maintenance and repair.
After completing maintenance and repair, all safety devices removed for setting up or
repairing the machine must be reinstalled and checked for functionality prior to putting the
machine back into service.
To minimize the environmental impact, all consumables and replaced parts must be
disposed of safely.
Before starting the machine, check that the accessories have been stowed away safely.
Do not attempt any operation that may be a risk to the stability of the machine.
(4) Warning of Electrical Dangers
Immediately remove power to the machine in case of trouble in the electrical system.
Replace a fuse with one with the same style and ratings; pay particular attention to matching
the specified current.
Any electrical work performed on the equipment must be conducted by a skilled electrician
or under the supervision of a skilled electrician. All work must be observed good electrical
engineering practice and follow safety rules and local wiring standards.
Inspect the electrical equipment of the machine at regular intervals. Tighten any loose
connections. Check wiring for scorch marks; replace scorched wiring and determine and
correct the reason for the overheating.
When working on live equipment, ensure that a second person is available to cut power in
case of an emergency. When appropriate, secure the working area with safety tape and a
warning sign. Use insulated tools for electrical work.
Before working on high-voltage assemblies, turn off the power supply. Carefully discharge
the supply cable and short-circuit any energy-storage components such as capacitors.
If the equipment was moved, carefully refit and refasten all parts removed for transport
before reapplying power.
Before moving the machine, remember to disconnect the power cable. The length of
power cord is 10 meter long; take care of power cord when moving the machine if
necessary.

-A8-
(5) Grounding Instructions Shall Include the Following:
This product must be grounded. In the event of an electrical short circuit, grounding reduces
the risk of electric shock. This product is equipped with a cord that has a grounding wire
and an appropriate grounding plug. The plug must be plugged into an outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
If repair or replacement of the cord or plug is necessary, connect the ground wire to the
ground terminal of the plug. The wire with green insulation (with or without yellow stripes)
is the grounding wire.
Check with a qualified electrician or service person if the grounding instructions are not
clear or if in doubt about the proper grounding of the machine. Do not modify the plug
provided; if it will not fit the power outlet, have the proper outlet installed by a qualified
electrician.
This product is designed for use on a nominal 120 (230) volt AC circuit and has a grounding
plug.
DANGER!
Improper installation of the grounding can result in electrocution.

-A9-
4. Machine Information
(1) Areas of Application and Machine Description
TP-502MH (Genesis Hori) is suitable for fruit & vegetable boxes, concrete blocks, and
pallets loaded with cardboard boxes containing any type of products. It can be moved
easily beside the pallet you want to strap, no need to move the stacked pallet.
Machine Description
Semi-automatic plastic strapping machine for use with polypropylene strapping.
Heavy duty construction.
Simple, safe and user-friendly operation.
With high mobility big wheel, it is easy to move around.
Control Panel on Both Sides.
The strapping position could be moved up and down between 175mm~2200mm from
ground.
Environment Information
The strapping machine shall be installed in the following conditions:
Supply voltage: 0.9 - 1.1 nominal supply voltage
Source frequency: 0.99 - 1.01 nominal frequency
Ambient temperature: 5°C - 40°C (41℉-104℉).
Relative humidity: not exceed 50% at 40°C.
Please provide a suitable illumination around the machine for safety operation.
(2) Electrical Specifications
System configuration：
1L+N+PE (Ground)
1L+N+PE (Ground)
Nominal power：
0.33 KW
0.33 KW
Rated current：
3A
6.3A
Rated voltage：
220V/230V/240V
110V
Rated frequency：
50Hz /60Hz
Type of current：
AC - single phase

-A10-
(3) The Safety Devices
This machine must only be operated with polypropylene strapping. The use of other
synthetic straps may produce hazardous substances to health.
Caution!
Power Switch (QS1)
This switch is lockable for safety
Danger of burns near the heating unit! (1)
Dangerous points in the machine are covered by the screwed table top.
Please keep hands away from this danger areas (2) when Strapping head unit is moving.
Don't step into area (3). It's necessary to keep safety distance when this Strapping head
unit is moving up and down.
QS1
1
2
3

-A11-

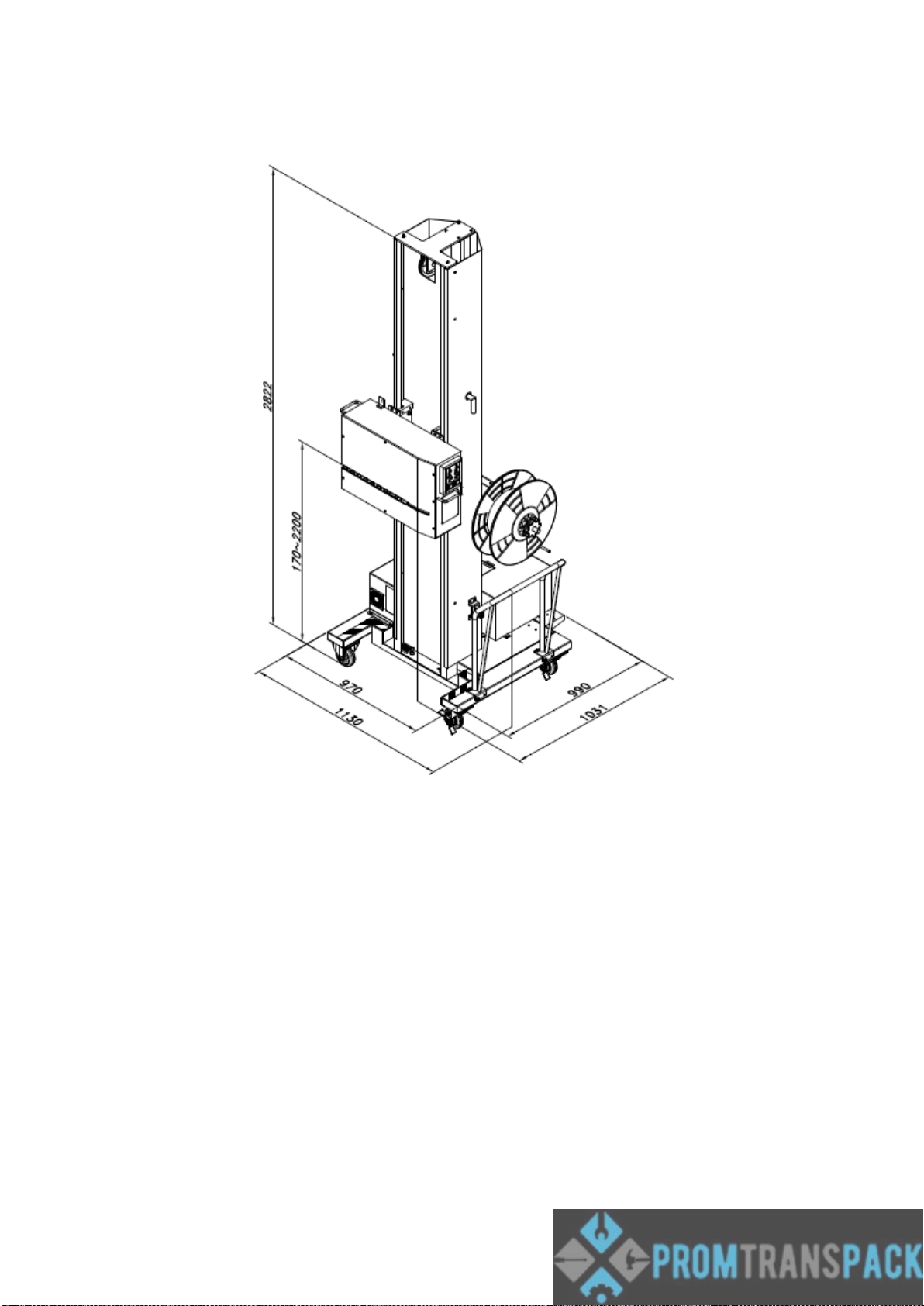

(4) Technical Data
a. TP-502MH
Sealing method
Heat
Strap type
P.P.
Strap Width
9.0 mm to 15.5mm ( 3/8” to 5/8” )
Strap reel diameter
200 mm (8”)
Width
1130 mm (44.5”)
Depth
891 mm (35.1”)
Height
2822 mm (111.1”)
Electrical Requirement
AC110V,220V/230V/240V
(50/60Hz), Single phase
Weight :
242 kg (535.5 lbs)
Noise emission
72dB (A)
Minimum strap height
175 mm (6.88”)
Maximum strap height
2200 mm (86.6”)
Ambient temp
5
C

~ 40
C

(41
F

~ 104
F

)

-A12-
b. TP-502MHB
Sealing method
Heat
Strap type
P.P.
Strap Width
9.0 mm to 15.5mm ( 3/8” to 5/8” )
Strap reel diameter
200 mm (8”)
Width
1130 mm (44.5”)
Depth
1031 mm (40.6”)
Height
2822 mm (111.1”)
Electrical Requirement
AC110V/220V/230V/240V
(50/60Hz), Single phase
Weight :
342 kg (917.1 lbs)
Noise emission
72dB (A)
Minimum strap height
175 mm (6.88”)
Maximum strap height
2200 mm (86.6”)
Ambient temp
5
C

~ 40
C

(41
F

~ 104
F

)

-A13-
(5) How to Remove/Handle the Machine from the Pallet
Safely remove the machine with a forklift.

-A14-
(6) Machine and Operating Elements
a. TP-502MH
○
1Power Switch
Supply the power when switch is ON.
○
2Feeding Length Knob
Strap is automatically fed according to the time preset by the knob.
○
3Reset Button
Restart the machine and/or to pull strap back into machine and/or
to cut off strap.
○
4Strap Feed Button
To feed strap out of machine in manual.
○
5Power Plug
To be connected to a 110V or 220V/230V/240V source.
○
6Strap Reel
Slide on strap coil here. (If Reel core is 280mm, you can take off
the center drum to have core size 200mm.)
○
7 Brake
Stops the over-rotation of the strap reel.
○
8Strap Guide for Brake
To place strap on brake ○
7.
○
9Strap Bypass Guide
The strap is passed through this guide.
○
10 Movement Handle
Strap position can be changed by both side handles.
The operator can use this handle to lift and pull down the strapping
height between 175mm~2200mm from ground easily.
○
11 Support Handle
○
12 Weld cooling timer
○
13 Tension Adjust Knob
○
14 Heater Temp. Knob
○
15 Jog Switch
This Support Handle is used when the strapping head is moved to
the bottom. Please insert this Handle as per above drawing to
avoid the loading weight and counter weight losing balance,
especially when change some parts.
To ensure good efficiency under higher tension.
To Adjust the tension.
To Adjust the Temperature of Heater.
Pushing down this switch, you can get any cycling stage you need
for maintenance. If the machine does not stop in home position
after you have pushed the jog switch, you only need to switch off
the power and turn on again.
○
12
○
14
○
15

-A15-
b. TP-502MHB
○
1Power Switch
Supply the power when switch is ON.
○
2Feeding Length Knob
Strap is automatically fed according to the time preset by the knob.
○
3 Reset Button
Restart the machine and to pull strap back into machine and/or to
cut off strap.
○
4Strap Feed Button
To feed strap out of machine in manual.
○
5 Power Plug
To be connected to a 110V or 220V/230V/240V source.
○
6 Strap Reel
Slide on strap coil here. (If Reel core is 280mm, you can take off
the center drum to have core size 200mm.)
○
7 Brake
Stops the over-rotation of the strap reel.
○
8 Strap Guide for Brake
To place strap on brake ○
7.
○
9Strap Bypass Guide
The strap is passed through this guide.
○
10 Movement Handle
Strap position can be changed by both side handles.
The operator can use this handle to lift and pull down the strapping
height between 175mm~2200mm from ground easily.
○
11 Support Handle
This Support Handle is used when the control head is moved to the
bottom. Please insert this Handle as per above drawing to
avoid the loading weight and counter weight losing balance,
especially when change some parts.
○
12 Weld cooling timer
○
13 Tension Adjust Knob
○
14 Battery Unit
○
15 Heater Temp. Knob
○
16 Jog Switch
To ensure good efficiency under higher tension.
To Adjust the tension.
Supply the power through battery.
To Adjust the Temperature of Heater.
Pushing down this switch, you can get any cycling stage you need
for maintenance. If the machine does not stop in home position
after you have pushed the jog switch, you only need to switch off
the power and turn on again.
○
12
○
15
○
16
