Trevi VELOCIPTOR ES 100W User manual
user guide
velociptor es 100w
Thank you for purchasing the electric scooter
VELOCIPTOR ES 100W
Please read the manual before using the product, and
keep it in a safe place for future reference.
3
index
Note on the user guide ............................................................... 4
Warnings ....................................................................................... 5
Installation of the handlebar....................................................... 6
Open and fold the scooter ......................................................... 7
Come ricaricare la batteria .......................................................... 8
Autonomy of VELOCIPTOR ES 100W .......................................... 8
Display............................................................................................ 9
How to use the scooter ............................................................ 10
Technical specications ............................................................. 10
Current legislation in Italy ......................................................... 11
Information to users of household appliances ...................... 12
Declaration of conformity ......................................................... 13
Warranty ...................................................................................... 14
4
This manual provides the user a description of the characteristics and
ope-ration.
The use of the vehicle is the sole responsibility of the driver who, after re-
a-ding and understanding this manual, and after asking the seller and / or
the manufacturer for any clarications deemed necessary, considers him-
self suitable from a psychological and physical point of view to the use of
the vehicle.
The manufacturer declines any responsibility for damages of any kind and
entity caused to people or things as a result of using the vehicle.
The manufacturer reserves the right to make changes to the manual and
the product without prior notice.
Note on user guide
5
• Use only the supplied power adapter.
• The use of VELOCIPTOR ES 100W by minors must always be supervised by
an adult.
• Do not drive VELOCIPTOR ES 100W with more than one person on the pla
tform, as it may cause loss of control of the vehicle.
• Do not use VELOCIPTOR ES 100W in dangerous situations for your perso
nal safety and that of those close to you.
• Do not use the vehicle after drinking alcohol, taking exciting or psychotro
pic substances that can alter the emotional state, the sensory abilities and
the ma-stery of the movements.
• Always use suitable clothing that does not hinder your movements and
at sho-es (possibly sports shoes with a non-smooth rubber surface) that
ensure the necessary grip and stability.
• As any means of locomotion, the use of VELOCIPTOR ES 100W carries the
risk of injury for those who use it and for other people nearby, due to ac
cidental falls or impacts. It is therefore necessary to always wear adequa
te protections (such as a bicycle helmet, knee pads, elbow pads) and pay
the utmost attention not to damage people and things.
• VELOCIPTOR ES 100W is not a toy.
• VELOCIPTOR ES 100W has a degree of resistance to water and dust (Water
& Dust Proof) which makes its use possible in the presence of accidental
and non-persistent splashes. Therefore it is not allowed to use VELOCIP
TOR ES 100W in the presence of stagnant water, puddles or adverse wea
ther conditions (such as rain, snow or hail). Use VELOCIPTOR ES 100W in
dry environments to avoid damage to the motor and electrical circuits.
• Do not try to disassemble the product or its parts. Any repairs must be
carried out by authorized personnel, in compliance with the warranty con
ditions.
• Before cleaning the device, disconnect the power supply. To clean, use a
cloth slightly moistened with water or a solution suitable for cleaning such
devices. Do not use alcohol or benzene. When nished, dry immediately
with a soft cloth.
warnings
6

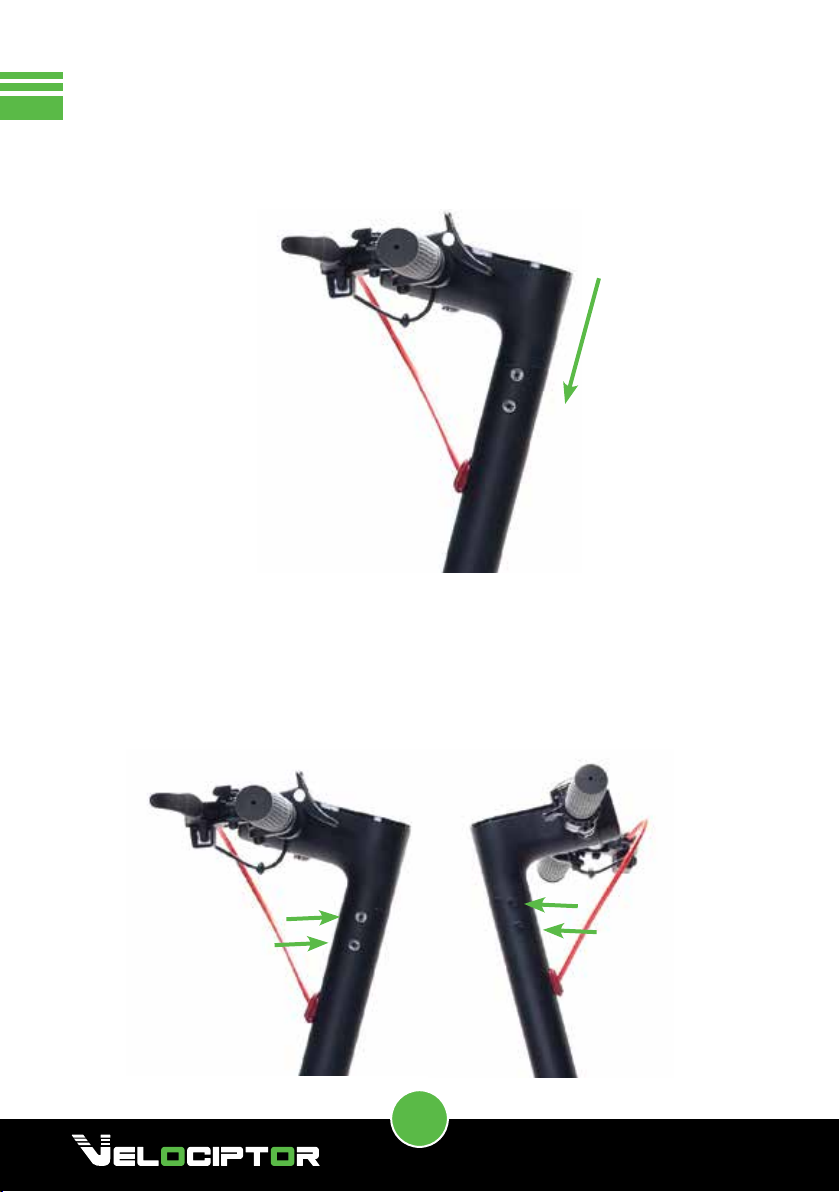

1. Insert the handlebar into the vehicle frame;
2. After matching the holes in the handlebar with those in the frame,
insert the screws and tighten them well; repeat the operation also on
the opposite side of the handlebar by inserting a total of 4 screws.
installation of the handlebar
7

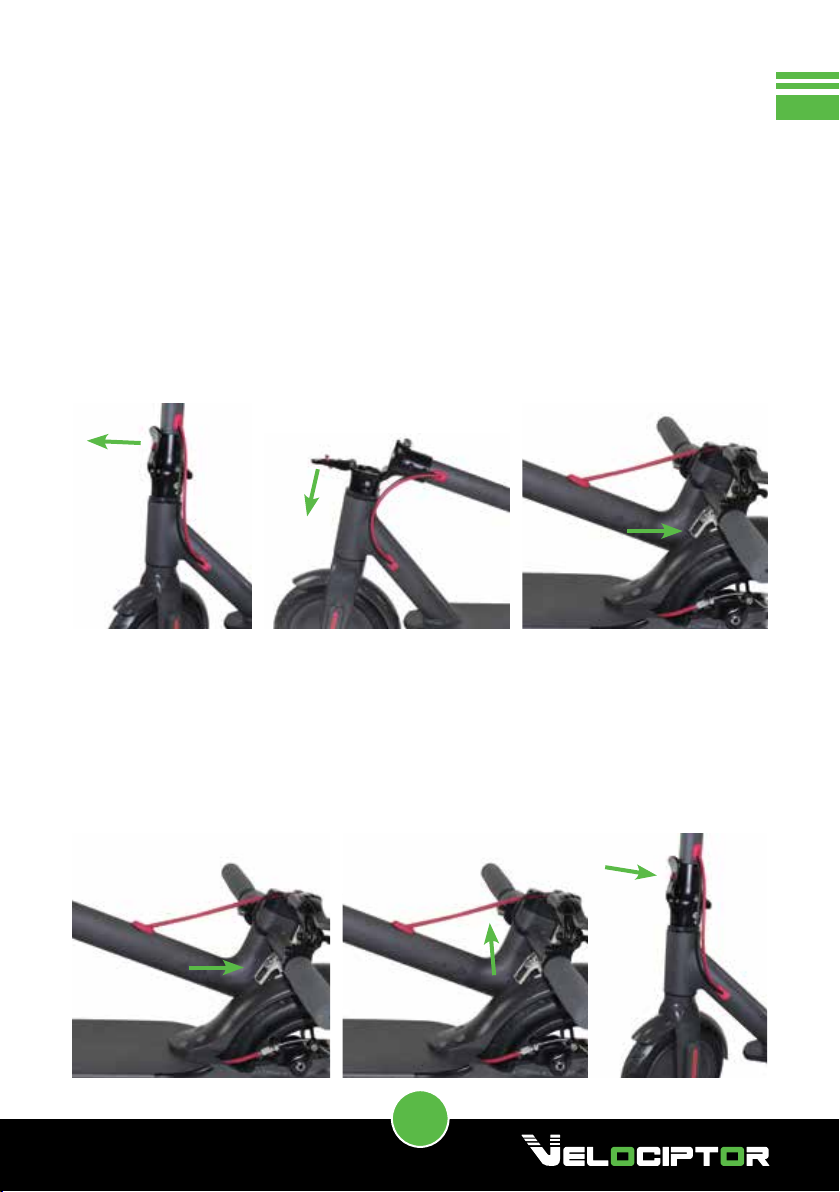

OPEN AND FOLD THE SCOOTER
How to fold VELOCIPTOR ES 100W
1. Release the release lever located on the lower part of the handlebar support
tube, pressing the release button and pulling the hook outwards;
2. Fully open the release lever, bringing it to 90 ° with respect to the support tube;
3. Guide the handlebar tube towards the rear wheel;
4. The handlebar is equipped with a hook: then hook the handlebar onto the
special support, located on the rear mudguard;
5. The scooter can now be transported by gripping the handlebar support tube
How to open VELOCIPTOR ES 100W
1. With the scooter closed and the handlebar attached to the rear mud-
guard, rele-ase the handlebar by acting on the hook located on the hand-
lebar itself;
2. Lift the handlebar in a vertical position;
3. Carefully close the locking lever, located on the lower part of the hand-
lebar support tube.
8
HOW TO RECHARGE THE BATTERY
To recharge the battery, simply insert
the charger in the space under the
platform as shown in the illustration.
NOTE: the battery must be charged
every 30 days, even if the scooter is not
used; if the battery is not charged regu-
larly, it will lose eciency until completely
dischar-ged; in this case, we cannot reco-
gnize the warranty on the product.
AUTONOMYY OF VELOCIPTOR ES 100W
The maximum distance that can be traveled with a single battery
charge is approximately 15/25 km. However, this value must be con-
sidered indicative since it can be inuenced by numerous factors.
Among the factors that can most aect battery life are the following:
• Transported weight: other conditions being equal, a greater
tran-sported weight will lead to a reduction in the battery autonomy.
• Surface: at and sliding surfaces are less wasteful for the battery
compared to uneven terrain, with slopes or that present substantial
friction.
• Speed and driving style: a pace with frequent acceleration and bra-
king will discharge the battery faster than a regular and uniform pace.
• Correct use and maintenance of the battery: a correct mana-
ge-ment of the charge and discharge cycles of the battery (see para-
graph “How to recharge the battery”) will help to keep the full ecien-
cy of the battery longer and delay its natural decay.
9
MULTIFUNCTION BUTTON
Switch the VELOCIPTOR ES 100W on and o
To turn on and o, press the button for about ve (5s) seconds.
Turn on the front and rear LED light
VELOCIPTOR ES 100W is equipped with front and rear LED lights. Press the power
button to turn on / o both LED lights. Note: the front LED has a white light while
the rear LED has a steady red light. Press the brake to make the LED rear light ash
Activate / deactivate speed level
To set the maximum speed level:
ECO: 6Km / h, D: 20Km / h, S: 25Km / h, press the button twice quickly until
the indicator corresponding to the desired speed level lights up.
Display
Speed indicator Km / h
Speed level:
•ECO:
Speed limited to 6 Km / h maxi-
mum
•D (Drive):
Maximum speed around 20 Km / h
•S (Sport):
Maximum speed around 25km / h
LED battery level indicators
Multi-function button: on / o light,
speed limiter, engine on / o
10
Aluminum frame
Brushless motor: 350W
Battery: 36 V - 7.5 Ah - 270 Wh
Wheels: 10 inches
LCD display integrated in the handlebar
Front shock absorber
Rear disc brake
3 speed levels: 6-20-25 Km / h
Front and rear LED light
Side stand
TECHNICAL SPECIFICATIONS
First of all, it is advisable to adjust the rear disc brake, tightening it or ma-
king it softer, according to your driving style.
Start the engine by pressing the ignition button.
Get on the scooter and make sure the stand is in the closed position; act
gently on the accelerator lever to start the electric motor.
To brake, release the accelerator, so that the engine brake works, or, for
more sudden braking, use the rear disc brake lever.
Charging time: about 4 hours
Maximum capacity: 120 Kg
Weight: 12.55 kg
Power supply included,
INPUT 100-240 V ~ 50/60 Hz
OUTPUT 42 V 2 A
HOW TO USE THE SCOOTER
11
EXTRACT FROM CURRENT LEGISLATION IN ITALY
Since the kick scooter is considered as a velocipede in the current legislation, it is not
subject to any provisions relating to homologation, approval, registration, plate informa-
tion or insurance coverage.
Electric scooters can be used on urban roads with a speed limit of 50 km/h where the
circulation of velocipedes is allowed, and on suburban roads only within the cycle path
on the road side. On urban roads, it should circulate on cycle paths, if present.
Electric Scooter drivers:
• cannot exceed 25 km / h when driven on the road and 6 km / h when driven in pede-
strian areas.
• must proceed aligned in all cases where trac conditions require it, and in any case
when more than two people.
• if underage, they must wear suitable protective helmet.
• their arms and hands must be free, and must always hold the handlebar with both
hands, unless it is necessary to show the left or right turn
• must be able to see freely in front of them, both sides, and drive the scooter with the
maximum freedom.
• must wear the high-visibility retro-reective jacket or braces from half an hour after
sunset, during the whole period of darkness and during the day, if weather conditions
require to turn the lights on.
• cannot transport other people, objects or animals, tow vehicles or animals or be towed
by another vehicle.
The scooter must not be equipped with a seat for the user, because it is intended for use
with standing posture.
The scooter must be equipped with a speed limiter that does not allow them to exceed
25 km / h when they travel on the roadway and 6 km / h when they travel in pedestrian
areas.
The scooter must be equipped with a bell for acoustic signals.
As part of the experimentation of road trac, scooters can only be driven by adults aged
at least 18 years old, or by more than 14 years old with the obligation to use a suitable
helmet.
Although not expressly referred to by the new regulation, given that electric scooters
are considered velocipedes and are therefore considered vehicles, the general rules of
conduct of the trac laws will apply.
Source: Ministry of Interior - Public Security Department
Always check for possible updates to specic rules or regulations issued by local autho-
rities.
The manufacturer declines all responsibility in the event of damage to persons or
things that occur as a result of using the product
12
pursuant to Legislative Decree No. 49 of March 14,
2014 “Implementa-tion of Directive 2012/19 / EU on
waste electrical and electronic equi-pment (WEEE)”.
The crossed-out wheeled bin symbol shown on the equi-
pment indicates that the product at the end of its useful
life must be collected separately from other waste. The-
refore, the user must provide the equipment inte-grating
the essential components at the end of its life at the ap-
propriate centers for the separate collection of electronic
and electro-technical waste, or return it to the retailer at
the time of purchase of new equivalent equi-pment, on the basis of one
to one, or 1 to zero for equipment with a lon-ger side less than 25 CM.
Adequate separate collection for the subsequent start-up of the equipment
discharged for recycling, treatment and compa-tible environmental dispo-
sal helps to avoid possible negative eects on the environment and on he-
alth and promotes the recycling of the materials of which the equipment
is composed. Unauthorized disposal of the product by the user entails the
application of administrative sanctions pursuant to Legislative Decree No.
49 of March 14, 2014.
Information to users ABOUT household
appliances
The product works with batteries that fall under the
European directive 2013/56 / EC and that cannot be di-
sposed of with normal household waste. Please inform
yourself about the local directives regarding the separate
col-lection of batteries: a correct disposal allows to avoid
negative consequences for the environment and health.
TECHNICAL ASSISTANCE
Product technical assistance is guaranteed by:
Trevi S.p.a. Technical assistance
Via Raibano 40, 47853 Coriano (Rimini) Italia
Tel.: +39 0541 694839 | Web: www.velociptor.it
13
informazioni agli utenti
di apparecchiature domestiche
14
warranty
1. The warranty comes into force on the date of the tax document and covers ma-
nufacturing defects and consequent failures that arose during the warranty period.
2. In the event of a device failure, the buyer can ask for assistance
contact the retailer where you purchased the product or:
center Trevi S.p.a. Technical Assistance, Via Raibano 40, 47853 Coriano (Rimini)
Italy - Tel .: +39 0541 694839 | Web: www.velociptor.it
3. In order for the warranty to be valid, the buyer must present a valid proof of
purchase of the product for which he intends to request assistance (invoice or sales
receipt in which an identication code and product description are expressly indica-
ted) , together with this warranty certicate.
4. The external parts of the appliance, components and accessories purchased se-
parately, parts and components which by their nature are subject to wear and tear,
decay, and therefore require periodic maintenance and / or replacement (for exam-
ple cables) are not covered by the warranty. power supply, power supplies /
battery charger, batteries, wheels, cases, etc ...).
The guarantee does not cover direct and indirect damages, suered by the user or
by third parties, deriving from knocks and falls (even accidental), misuse by the user,
use in an unsuitable environment, other components, atmospheric agents, sudden
changes in tension, res. The warranty does not cover those marginal aesthetic de-
fects that have a negligible eect on the value or functionality of the product. Except
as otherwise prescribed in other parts of this certicate, the warranty automatically
lapses in the following cases:
a) if the serial number of the device is removed, modied or made unrecognizable;
b) in the event of tampering, alteration, replacement, repair, attempted repair, di-
sassembly (even partial) of the product carried out by unauthorized personnel;
c) in case of tampering or other violation of the integrity of the warranty seals placed
on the product;
d) in the event of use that does not comply with current legislation <applicable to
the product covered by the warranty.
The recognition of direct and indirect damages of any kind to persons and things
deriving directly or indirectly from one or more causes of exclusion mentioned in
this paragraph is also excluded.
15
warranty
5. The mere authorization to send the product to the service center does not imply
that the defect has been recognized as covered by the warranty with consequent
free repair of the product. The product must be shipped in the original packaging,
or in another suitable packaging, and in any case inserted in a protective packaging
that is suitable for shipment by courier or postal service. Until delivery to the service
center, the goods travel at the sender’s risk. The warranty does not cover any dama-
ge that may have occurred during transport to the service center. The service center
reserves the right to check the validity conditions of the guarantee upon receipt of
the product. For requests for warranty assistance which, following verication by
authorized service personnel, should prove to be unfounded due to the absence
of real defects or due to the absence of defects covered by the guarantee, all costs
incurred for the repair will be charged to the customer, the verication and controls
on defect-free units covered by warranty. The customer will also be charged for all
transportation costs.
6. If parts or components under warranty are replaced, the parts removed and re-
placed will become the property of the service center. In the event that the repair
is not physically possible, or is excessively expensive in relation to the value of the
product, this can be replaced with a product with equivalent or superior technical
characteristics.
7. The manufacturer is not responsible for any damage or loss resulting from the
failure to use a product for repair, or for any damage or loss resulting from the mal-
function of the product or some of its parts.
8. The period of validity of the battery warranty (if any) is 6 months from purchase.
9. The period of validity of the guarantee for consumers, that is, those who buy
for purposes unrelated to one’s professional or business activity, it is governed by
Legislative Decree 2 February 2002, n.24. - articles 1519-bis and following of the
Italian Civil Code - (2 years from delivery under legal conditions). For buyers who
purchase with a VAT number for purposes related to their professional activity, the
legal guarantees referred to in articles 1490 and following of the Civil Code will ap-
ply (1 year from delivery under the conditions of the law).
Trevi S.p.A.Strada Consolare Rimini-San Marino 62, 47924 Rimini (RN) Italia
Made In China
Table of contents
Other Trevi Scooter manuals
