Trevi VELOCIPTOR ES 85W User manual
user guide
velociptor es 85w
Thank you for purchasing the electric scooter
VELOCIPTOR ES 85W
Please read the manual before using the product, and
keep it in a safe place for future reference.
3
index
Note on the user guide ................................................................ 4
Warnings ........................................................................................ 5
Installation of the handlebar ...................................................... 6
Open and fold the scooter .......................................................... 7
How to recharge the battery ...................................................... 8
Autonomy of VELOCIPTOR ES 85W ............................................ 8
Display ........................................................................................... 9
How to use the scooter ............................................................. 10
Technical specications ............................................................. 10
Current legislation in Italy......................................................... 11
Information to users of household appliances...................... 12
Warranty ...................................................................................... 14
4
This manual provides the user a description of the characteristics and ope-
ration.
The use of the vehicle is the sole responsibility of the driver who, after rea-
ding and understanding this manual, and after asking the seller and / or the
manufacturer for any clarications deemed necessary, considers himself
suitable from a psychological and physical point of view to the use of the
vehicle.
The manufacturer declines any responsibility for damages of any kind and
entity caused to people or things as a result of using the vehicle.
The manufacturer reserves the right to make changes to the manual and
the product without prior notice.
Note on the user guide
5
• Use only the supplied power adapter.
• The use of VELOCIPTOR ES 85W by minors must always be supervised by an
adult. The use of the product is not allowed for children under 16 years.
• Do not drive VELOCIPTOR ES 85W with more than one person on the platform,
as it may cause loss of control of the vehicle.
• Do not use VELOCIPTOR ES 85W in dangerous situations for your personal sa-
fety and that of those close to you.
• Do not use the vehicle after drinking alcohol, taking exciting or psychotropic
substances that can alter the emotional state, the sensory abilities and the ma-
stery of the movements.
• Always use suitable clothing that does not hinder your movements and at sho-
es (possibly sports shoes with a non-smooth rubber surface) that ensure the
necessary grip and stability.
• As any means of locomotion, the use of VELOCIPTOR ES 85W carries the risk of
injury for those who use it and for other people nearby, due to accidental falls
or impacts. It is therefore necessary to always wear adequate protections (such
as a bicycle helmet, knee pads, elbow pads) and pay the utmost attention not
to damage people and things.
• VELOCIPTOR ES 85W is not a toy.
• VELOCIPTOR ES 85W has a degree of resistance to water and dust (Water &
Dust Proof) which makes its use possible in the presence of accidental and
non-persistent splashes. Therefore it is not allowed to use VELOCIPTOR ES 85W
in the presence of stagnant water, puddles or adverse weather conditions (such
as rain, snow or hail). Use VELOCIPTOR ES 85W in dry environments to avoid
damage to the motor and electrical circuits.
• Do not try to disassemble the product or its parts. Any repairs must be carried
out by authorized personnel, in compliance with the warranty conditions.
• Before cleaning the device, disconnect the power supply. To clean, use a cloth
slightly moistened with water or a solution suitable for cleaning such devices.
Do not use alcohol or benzene. When nished, dry immediately with a soft cloth.
warnings
6
Before using VELOCIPTOR ES 85W it is necessary to install the handlebar on
the main frame of the vehicle.
1. Insert the handlebar into the vehicle frame;
2. After matching the holes in the handlebar with those in the frame,
insert the screws and tighten them well; repeat the operation also on
the opposite side of the handlebar by inserting a total of 4 screws.
installation of the handlebar
7
OPEN AND FOLD THE SCOOTER
How to fold VELOCIPTOR ES 85W
1. Release the release lever located on the lower part of the handlebar support
tube, pressing the release button and pulling the hook outwards;
2. Fully open the release lever, bringing it to 90 ° with respect to the support tube;
3. Guide the handlebar tube towards the rear wheel;
4. The handlebar is equipped with a hook: then hook the handlebar onto the
special support, located on the rear mudguard;
5. The scooter can now be transported by gripping the handlebar support tube
How to open VELOCIPTOR ES 85W
With the scooter closed and the handlebar attached to the rear mudguard, rele-
ase the handlebar by acting on the hook located on the handlebar itself;
1. Lift the handlebar in a vertical position;
2. Carefully close the locking lever, located on the lower part of the handlebar
support tube.
8
HOW TO RECHARGE THE BATTERY

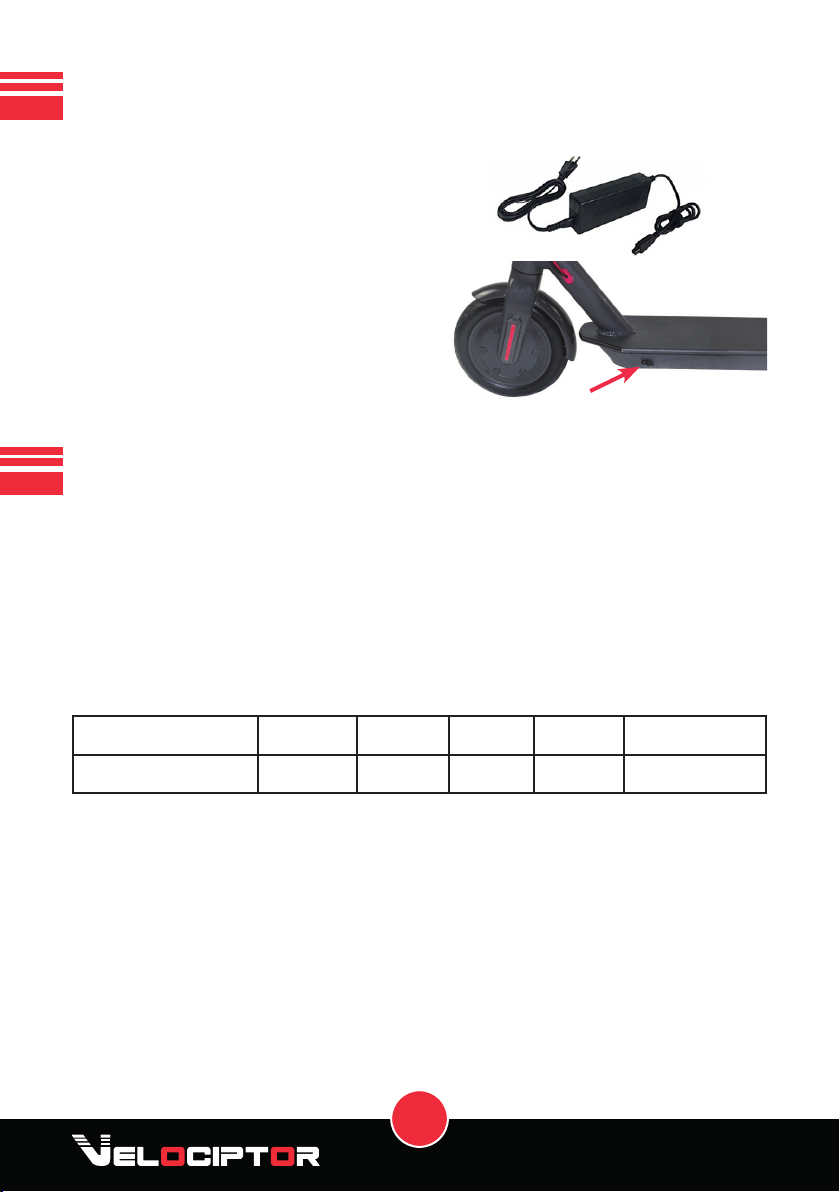

To recharge the battery, simply insert the
charger in the space under the platform
as shown in the illustration.
NOTE: the battery must be charged every
30 days, even if the scooter is not used; if
the battery is not charged regularly, it will
lose eciency until completely dischar-
ged; in this case, we cannot recognize the
warranty on the product.
AutonomY OF VELOCIPTOR ES 85W
The maximum distance that can be traveled with a single battery charge is
approximately 20 km. However, this value must be considered indicative
since it can be inuenced by numerous factors.
Among the factors that can most aect battery life are the following:
• Transported weight: other conditions being equal, a greater tran-
sported weight will lead to a reduction in the battery autonomy.
• Surface: at and sliding surfaces are less wasteful for the battery
compared to uneven terrain, with slopes or that present substantial
friction.
• Speed and driving style: a pace with frequent acceleration and bra-
king will discharge the battery faster than a regular and uniform pace.
• Correct use and maintenance of the battery: a correct manage-
ment of the charge and discharge cycles of the battery (see paragraph
“How to recharge the battery”) will help to keep the full eciency of
the battery longer and delay its natural decay.
Weight 50 Kg 60 Kg 70 Kg 80 Kg over 80 Kg
Distance traveled 20 Km 16 Km 14 km 12 Km < 12 km
9
MULTIFUNCTION BUTTON
Switch the VELOCIPTOR ES 85W on and o
To turn on and o, press the button for about ve (5s) seconds.
Turn on the front and rear LED light
VELOCIPTOR ES 85W is equipped with front and rear LED lights. Press the
power button to turn on / o both LED lights. Note: the front LED has a whi-
te light while the rear LED has a steady red light. Press the brake to make
the LED rear light ash
Activate / deactivate speed level
To set the maximum speed level:
ECO: 6Km / h, D: 20Km / h, S: 25Km / h, press the button twice quickly until
the indicator corresponding to the desired speed level lights up.
Display
Speed indicator Km / h
Speed level:
• ECO:
Speed limited to 6 Km / h maxi-
mum
• D (Drive):
Maximum speed around 20 Km / h
• S (Sport):
Maximum speed around 25km / h
LED battery level indicators
Multi-function button:
on / o light, speed limiter,
engine on / o
10
Aluminum frame with a maximum load of 125 Kg
foldable
8.5 inch solid wheels
350 W motor power
3 speed levels: ECO 6 Km / h, Drive 20 Km / h, Sport 25 Km / h
36 V 6Ah lithium battery rechargeable in about 4 hours
Display integrated in the handlebar
Rear disc brake
Front and rear LED lights,
Practical side stand
TECHNICAL SPECIFICATIONS
First of all, it is advisable to adjust the rear disc brake, tightening it or ma-
king it softer, according to your driving style.
Start the engine by pressing the ignition button.
Get on the scooter and make sure the stand is in the closed position; act
gently on the accelerator lever to start the electric motor.
To brake, release the accelerator, so that the engine brake works, or, for
more sudden braking, use the rear disc brake lever.
Weight about 12 Kg
Power supply included
HOW TO USE THE SCOOTER
11
CURRENT LEGISLATION IN ITALY
With the decree n. 229 of June 4, the Italian Ministry of Transport introdu-
ced the experimentation of road circulation of mainly electric propulsion
vehicles, such as electric scooters, monowheels, segways and hoverboards.
The experimentation contemplates that the circulation in the city is possible
only in the pedestrian areas, on pedestrian and cycle paths, on cycle paths
in the own seat and on the reserved lane, areas at 30 Km / h and roads with
speed limit of 30 km / h; the speed limit for electric vehicles is 20 km / h.
It is also possible to circulate in pedestrian areas, with a maximum speed
of 6 km / h.
After sunset, during the entire period of darkness and during the day, if the
weather conditions require lighting, it is necessary to turn on front white or
yellow lights and the rear red light, and wear the jacket or the high visibility
retroreective braces, or transport the vehicle by hand.
As part of the experimentation of road circulation, scooters can only be
conducted by adults, or by minors in possession of an AM category license.
Since each municipality is left free to identify the road infrastructure or par-
ts of the road suitable for the circulation of electric scooters, please check
the local regulations in terms of use of the product.
If a local municipal resolution concerning the circulation of the
product is not contemplated, the movement of the scooter outside the pri-
vate areas of competence of the owner of the vehicle would therefore not
be possible.
The manufacturer declines all responsibility in the event of damage to per-
sons or things that occurs as a result of using the product.
12
pursuant to Legislative Decree No. 49 of March 14, 2014 “Implementa-
tion of Directive 2012/19 / EU on waste electrical and electronic equi-
pment (WEEE)”.
The crossed-out wheeled bin symbol shown on the equipment indicates
that the product at the end of its useful life must be collected separately
from other waste. Therefore, the user must provide the equipment inte-
grating the essential components at the end of its life at the appropriate
centers for the separate collection of electronic and electro-technical waste,
or return it to the retailer at the time of purchase of new equivalent equi-
pment, on the basis of one to one, or 1 to zero for equipment with a lon-
ger side less than 25 CM. Adequate separate collection for the subsequent
start-up of the equipment discharged for recycling, treatment and compa-
tible environmental disposal helps to avoid possible negative eects on the
environment and on health and promotes the recycling of the materials of
which the equipment is composed. Unauthorized disposal of the product
by the user entails the application of administrative sanctions pursuant to
Legislative Decree No. 49 of March 14, 2014.
Information to users ABOUT household
appliances
13
Information to users ABOUT household
appliances
The product works with batteries that fall under the European directive
2013/56 / EC and that cannot be disposed of with normal household waste.
Please inform yourself about the local directives regarding the separate col-
lection of batteries: a correct disposal allows to avoid negative consequences
for the environment and health.
TECHNICAL ASSISTANCE
Product technical assistance is guaranteed by:
Trevi S.p.a. Technical assistance
Via Raibano 40, 47853 Coriano (Rimini) Italia
Tel.: +39 0541 694839 | Web: www.velociptor.it
The complete Declaration of Conformity is available at:
Trevi S.p.a. Strada Consolare Rimini - San Marino 62, 47924 Rimini (RN) Italia
www.velociptor.it
14
WARRANTY
1. The warranty comes into eect on the date of the tax document and covers de-
fects of manufacture and subsequent failures arising during the period of validity
of the warranty.
2. In the event of equipment failure, the purchaser may request assistance
contact the retailer where you purchased the product or:
Trevi center Technical Assistance, Via Raibano 40, 47853 Coriano (Rimini) Italy
Tel. +39 0541 694839 | Web: www.velociptor.it
3. In order for the warranty to be valid, the purchaser must show to the retailer or to
manufacturer a valid proof of purchase of the product for which he intends to re-
quest assistance (invoice or receipt stating express
identication code and product description), together with this certicate
of guarantee.
4. The external parts of the appliance, components and are not covered by the war-
ranty accessories purchased separately, parts and components which by their natu-
re they are subject to wear, wear, decay, and therefore need periodic
maintenance and / or replacement (for example power cables, power supplies /
battery charger, batteries, wheels, enclosures, etc ...).
The warranty does not cover direct and indirect damages suered by the user or
third parties resulting from impacts and falls (even accidental), bad use by the user,
use in an unsuitable environment, other components, atmospheric agents, sudden
changes of tension, res.
The warranty does not cover those marginal aesthetic defects which they have a
negligible eect on the value or functionality of the product. Done except as pre-
scribed in the other parts of this certicate, the warranty automatically expires in
the following cases:
a) if the serial number of the device is removed, modied or returned
unrecognizable;
b) in case of tampering, alteration, replacement, repair, attempted repair, disassem-
bly (even partial) of the product carried out by personnel
not allowed;
c) in the event of tampering or other violation of the integrity of the guarantee seals
placed on the product;
d) in case of use not compliant with the current legislation
applicable to the product covered by the warranty.
15
WARRANTY
The recognition of direct and indirect damages of any nature to persons and things
deriving directly or indirectly from one or more causes of exclusion mentioned in
this paragraph is also excluded.
5. The mere authorization to send the product to the service center does not imply
that the defect has been recognized as covered by the warranty with consequent
free repair of the product. The product must be shipped inside the original packa-
ging, or in another suitable package, and in any case inserted in a protective packa-
ging that is suitable for a shipment by courier
or postal service. The goods, until delivery to the service center, travel at the risk of
the sender. The warranty does not cover any damage occurred during transport to
the service center. The service center reserves the right to verify the conditions of
validity of the warranty upon receipt of the product. For warranty assistance reque-
sts which, following verication by authorized service personnel, should prove to
be unfounded due to the absence of real defects or due to the absence of defects
covered by warranty, the customer will be charged for all costs incurred for the re-
pair, the verication and checks on the units without defects covered by warranty.
The customer will also be charged for all transport costs.
6. In case of replacement of parts or components under warranty, the parts remo-
ved and replaced will become the property of the service center. In the event that
the repair is not materially possible, or is excessively expensive in relation to the
value of the product, this can be replaced with a product of equivalent or superior
technical characteristics.
7. The manufacturer is not responsible for any damage or loss resulting from the
failure to use a product for repair, nor for any damage or loss resulting from the
malfunctioning of the product or some of its parts.
8. The period of validity of the warranty on the batteries (where present) is 6 mon-
ths from the purchase.
9. The period of validity of the guarantee for consumers, ie those who purchase
for purposes unrelated to their professional or business activity, is governed by
Legislative Decree 2 February 2002, n.24. - articles 1519-bis and following of the
Italian Civil Code - (2 years from delivery under the law conditions). For purchasers
who purchase with VAT for purposes related to their professional activity, the legal
guarantees referred to in articles 1490 and following of the cc.
(1 year from delivery in accordance with the law).
Made in China by Trevi S.p.A.
Table of contents
Other Trevi Scooter manuals
