Trevi T-Fit 220 HB User manual

T-Fit 220 HB
16
English
Smart Bracelet
User Manual

17
T-Fit 220 HB English
Welcome to use smart bracelet, the
high-performance wrist-band smart
bracelet will create the intimate fitness
experience for you.
Maintenance
Please remember the following tips in terms of smart
bracelet maintenance:
•Clean the smart bracelet regularly, especially the inner
side of it, and keep it dry.
•Adjust the tightness of smart bracelet to ensure air
circulation.
•Excessive skincare product is undesirable on wrist with
a smart bracelet on.
•Please cease wearing the smart bracelet in case of skin
allergy or any discomfort.
Charging
1. Contact the metal contact on the
back of the smart bracelet with the
charger clamp and insert the other
end of the charger into the USB
charging point or computer USB
interface.
2. We can see on
the screen that it
is being charged

T-Fit 220 HB
18
English
Downloading and Binding of Smart
bracelet APP
1. Schematic diagram of main body of smart bracelet
2. Power-on
We can hold the touch button for 5 seconds or plug in
the charging clamp to charge the smart bracelet.
3. Download and install APP
1. Scan QR code with mobile
phone and download APP.
2. For IOS system, we can
select APP store; for Android
system, we can select Application
Treasure to download and install Da Fit.
Note: Your mobile phone must support
Android 5.1 or IOS8.0 or above, and Bluetooth
4.0 or above.
4. Check mac address
You can get the smart bracelet MAC by holding the
main interface for two seconds. MAC address, used to
indicate the hardware address of smart bracelet, is the
only sign of the smart bracelet and cannot be modified.
If you check the smart bracelet with mobile phone,

19
T-Fit 220 HB English
checking the MAC number. The MAC address is used
to identify the smart bracelet and connected to the
mobile phone quickly.
In the lower left corner is the
battery symbol, and on the
right is the Bluetooth symbol.
After connecting to the phone,
the icon will be displayed.
5. Smart bracelet binding by APP
3. For IOS system, 4. Successful
there will be
Bluetooth Pairing
Request and you
can click Bluetooth
"Pairing" to confirm;
connect it directly
for Android system.
1. Click
on
"Add
Device"
to bind
the
bracelet.
2. Choose
your
device in
the device
list
scanned.
binding.
you can find the corresponding smart bracelet by

T-Fit 220 HB
20
English
For Android, we can disconnect it from the phone by
clicking on the Remove Device. For some particular
model of mobile phone, after it is unbound, it is
necessary to click set up- Bluetooth- paired
device- canceling the pairing.
After IOS is unbound, you need to click set
up- Bluetooth, click on the symbol on the right, and
choose to ignore the device.
Introduction of smart bracelet features
Start-up status
Click the touch sign to switch the menu interfaces of
main screen, as shown in the following interfaces;

21
T-Fit 220 HB English
1. Introduction of main interface functions
After the smart bracelet and APP
are first paired, it will synchronize
the time, date, steps, and calorie
symbols of the phone.
2. Counting of steps, distance and calorie
The step-counting interface shows
steps. With the smart bracelet on
wrist, it can count steps, distance
and calories automatically.
3. Heart rate measurement
The heart rate measurement interface
starts to test after 2 seconds of staying.
After the "start" and "end", the motor
will vibrate once and display the
current test data.
3.1 The heart rate sensor shall be closely attached to
and well contacted with skin in measurement of heart
rate. If the smart bracelet is too loose, the sensor light
will expose, which can result in inaccurate
measurement. It is prohibited to look steadily at the
green light of sensor; otherwise, it may make eyes
uncomfortable.
3.2 The user has to keep sitting still though the device
is used for measuring heat rate in a real-time and
dynamic way; otherwise, the time for measurement of
heart rate will be delayed or no data can be measured.
The user should not move until the smart bracelet
measures the value and then he can check the data of
real-time dynamic heart rate.

T-Fit 220 HB
22
English
3.3 It is necessary to measure heart rate after a rest if
there is a big difference in measured data. The average
value obtained through five times of consecutive
measurement is more accurate.
3.4 The device is used to measure heart rate in a
real-time and dynamic way, so the heart rate is varied
with different conditions such as speaking, dining and
drinking. It shall be subject to the actual case.
3.5 Be sure that there is no dirt at the bottom of the
heart rate sensor during measurement. Skin color, hair
density, tattoo and scar may affect the accuracy of the
measured results, in which cases it is necessary to
re-measure the heart rate.
4. Blood pressure
The blood pressure measurement interface starts to
test after 2 seconds of staying. After the "start" and
"end", the motor will vibrate once and display the
current test data.
You should measure blood pressure in the quiet place
with appropriate temperature, rest for at least 5 minutes
before measurement to avoid tension,
anxiety and emotional excitement,
measure blood pressure for three
times, with two minutes apart each
time, and record the average of
three readings.
5. Blood oxygen
The blood oxygen measurement interface starts to test
after 2 seconds of staying. After the "start" and "end",
the motor will vibrate once and display the current
test data.

23
T-Fit 220 HB English

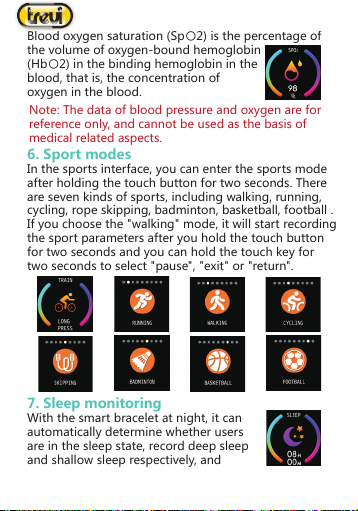

Blood oxygen saturation (Sp〇2) is the percentage of
the volume of oxygen-bound hemoglobin
(Hb〇2) in the binding hemoglobin in the
blood, that is, the concentration of
oxygen in the blood.
6. Sport modes
In the sports interface, you can enter the sports mode
after holding the touch button for two seconds. There
are seven kinds of sports, including walking, running,
cycling, rope skipping, badminton, basketball, football .
If you choose the "walking" mode, it will start recording
the sport parameters after you hold the touch button
for two seconds and you can hold the touch key for
two seconds to select "pause", "exit" or "return".
7. Sleep monitoring
With the smart bracelet at night, it can
automatically determine whether users
are in the sleep state, record deep sleep
and shallow sleep respectively, and
Note: The data of blood pressure and oxygen are for
reference only, and cannot be used as the basis of
medical related aspects.
12.4 亮度调节
长按触摸区，进入“
亮度调节”，单点触摸健
选择亮度，短按侧键返回确定。

T-Fit 220 HB
24
English
summarize sleep time to help users monitor their sleep
quality. It can measure quality of sleep by the range
and frequency of wrist movements as you sleep.
8. Weather
The weather page will display the current
weather and long press the touch button
for two seconds to display the weather
conditions for tomorrow.
There will be weather information after it is connected
with APP, and the weather information will not be
updated if it is disconnected for a long time.
9. Message
When switching to the information interface, you can
enter the information content after holding the touch
area for 2 seconds, and then switch to the next content
after clicking the touch area, which contains the
information pushed by the short message and chat
software. Up to three messages can be saved, and in
case that there are already three messages, the
message displayed before will be replaced by new
message one by one.
Note: When entering the information
content interface, you can delete the
current single message by holding the
touch area for 2 seconds.

25
T-Fit 220 HB English

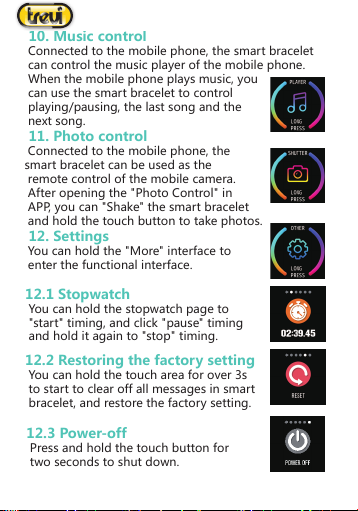

10. Music control
Connected to the mobile phone, the smart bracelet
can control the music player of the mobile phone.
When the mobile phone plays music, you
can use the smart bracelet to control
playing/pausing, the last song and the
next song.
11. Photo control
Connected to the mobile phone, the
smart bracelet can be used as the
remote control of the mobile camera.
After opening the "Photo Control" in
APP, you can "Shake" the smart bracelet
and hold the touch button to take photos.
12. Settings
You can hold the "More" interface to
enter the functional interface.
12.3 Power-off
Press and hold the touch button for
two seconds to shut down.
12.2 Restoring the factory setting
You can hold the touch area for over 3s
to start to clear off all messages in smart
bracelet, and restore the factory setting.
12.1 Stopwatch
You can hold the stopwatch page to
"start" timing, and click "pause" timing
and hold it again to "stop" timing.

T-Fit 220 HB
26
English
12.4 Brightness regulation
You can hold the touch area to
enter "brightness regulation",
you can click the touch key to
select brightness and
momentarily press the side
key to return.
Frequently Asked Questions (FAQ)
1. Why does the smart bracelet automatically disconnect
Bluetooth when the Android screen goes out?
1>. Lock Background APP. When the Da Fit process is
cleared, the smart bracelet will be disconnected from
the phone.
2>. Set APP self-startup
3>. Unrestricted Background operation, with App
installed on Android mobile phone, the background
operation is restricted intelligently by default. App
should be set manually without any restrictions.
2. Why cannot the smart bracelet receive message push?
1>. You have to confirms that a switch for message
push is turned on at the phone client.
2>. You have to confirm that message can be displayed
normally in the mobile phone notification bar. The
message push on the smart bracelet is completed by
reading the message from the mobile phone notification
bar; the smart bracelet will not receive the push if there
is no message in the mobile phone notification bar.
(You need to find notification settings in the mobile
phone settings, and turn on the notification switch of
WeChat, QQ, phone, SMS and mobile phone client)

27
T-Fit 220 HB English
12.4 Brightness regulation
You can hold the touch area to
enter "brightness regulation",
you can click the touch key to
select brightness and
momentarily press the side
key to return.
Frequently Asked Questions (FAQ)
1. Why does the smart bracelet automatically disconnect
Bluetooth when the Android screen goes out?
1>. Lock Background APP. When the Da Fit process is
cleared, the smart bracelet will be disconnected from
the phone.
2>. Set APP self-startup
3>. Unrestricted Background operation, with App
installed on Android mobile phone, the background
operation is restricted intelligently by default. App
should be set manually without any restrictions.
2. Why cannot the smart bracelet receive message push?
1>. You have to confirms that a switch for message
push is turned on at the phone client.
2>. You have to confirm that message can be displayed
normally in the mobile phone notification bar. The
message push on the smart bracelet is completed by
reading the message from the mobile phone notification
bar; the smart bracelet will not receive the push if there
is no message in the mobile phone notification bar.
(You need to find notification settings in the mobile
phone settings, and turn on the notification switch of
WeChat, QQ, phone, SMS and mobile phone client)
3 >Open the phone --- settings, the top search box,
enter "notification usage rights", re-open Da Fit.
3. Why can't you take a hot bath with the smart bracelet?
Answer: Bath water temperature is relatively high, there
is a lot of vapor in the gas phase, with small molecular
radius, and it can easily infiltrate into the smart bracelet
from the shell gap; when the temperature drops down,
it will condensate into liquid droplets, which will easily
cause short circuit inside the smart bracelet, damage
the circuit board, and then damage the smart bracelet.
Note: For more common questions, please refer to Da
Fit APP feedback.
Warning:
Please consult your doctor before you take part in a
new sport. The smart bracelet should not be used for
medical purpose though it may monitor the heart rate
in the real-time and dynamic way.

T-Fit 220 HB
28
English
Warnings
This device is an electronic instrument of high precision; therefore,
avoid using it in the following cases:
• Close to strong heat sources such as heaters and stoves.
• In environments that are too cold or too hot or very dusty.
• The appliance must not be exposed to dripping or splashing
water. No liquid-filled objects, such as vases, must be placed on
the appliance.
• If liquids penetrate into the device, bring the device to the nearest
authorized TREVI service Centre.
• Do not use the device near flammable or explosive gases, this
may cause a malfunction of the device or a fire hazard.
• No naked flame sources, such as lighted candles, must be placed
on the appliance.
• Keep the device out of reach of children. The device is not a
toy. The device is made up of small removable parts which, if
ingested, can cause suffocation.
• Do not expose the device to strong shocks.
• Store the product in a dry place when you are not using it.
• Keep this instruction manual.

29
T-Fit 220 HB
Features
Device Type: Smart bracelet
Display: 1,3” TFT
Weight: 51g
Length: 25cm
Strap Material: Silicone
Water resistance Index: IP67
Battery capacity: 170mAh
Charging time: maximum 2 hours
Bluetooth: 4.0
Peak of Bluetooth transmission power: 2,5mW
Maximum Bluetooth transmission power: 1,9mW
Bluetooth Transmission Band: 2,4GHz
Supported operating system: Android 5.1, iOS 8.0 or above
Included in the package: device, charging cable, instructions
(* Because of the continuous update of the functions, the details are
in the DaFit APP manual)
5-7
English

T-Fit 220 HB
30
Precautions for correct disposal of the product
The symbol shown on the equipment indicates that waste must be
disposed of in “separate collection” and so the product must not be
disposed of together with urban waste.
The user must take the product to special “separate waste collection
centres” provided by local government, or deliver it to the retailer
against the purchase of a new product.
Separate collection of waste and subsequent treatment, recycling and
disposal operations promotes the production of equipment with
recycled materials and limits negative effects on the environment
and on health caused by improper handling of waste.
Illegal disposal of the product leads to the enforcement of admini-
strative penalties.
English

31
T-Fit 220 HB Note

Per ulteriori informazioni e aggiornamenti di questo prodotto vedi: www.trevi.it
For additional information and updates of this product see: www.trevi.it
Pour plus d’informations et mises à jour de ce produit, voir: www.trevi.it
Weitere Informationen und Updates zu diesem Produkt finden Sie unter: www.trevi.it
Para obtener información adicional y actualizaciones de este producto, consulte: www.trevi.it
Trevi S.p.A. Strada Consolare Rimini-San Marino, 62
47924 RIMINI (RN) Italy
MADE IN CHINA
Dichiarazione di conformità UE semplificata
Il fabbricante TREVI S.p.A. dichiara che il tipo di apparecchiatura
T-Fit 220 HB
è conforme alla direttiva 2014/53/UE.
Il testo completo della dichiarazione di conformità UE è disponibile al
seguente indirizzo internet:
https://www.trevi.it/dms/zidi/TREVI/DOCTFIT220HB.pdf
Simplified EU Declaration Of Conformity
Hereby TREVI S.p.A. declares that the equipment
T-Fit 220 HB
is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the
following internet address:
https://www.trevi.it/dms/zidi/TREVI/DOCTFIT220HB.pdf
