Trojan ELITE 1000 User manual

ELITE 1000
ELLIPITCAL AUTO
RESISTANCE CARDIO
USER MANUAL
Visit facebook.com/trojanhealth
www.trojanhealth.co.za
CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS IN THIS MANUAL
BEFORE USING THIS EQUIPMENT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.

2ELITE-E
INDEx
• Important Safety Instructions ________________________________ 3
• Pre Assembly Check List______________________________________ 5
• Hardware & Tools List ________________________________________ 6
• Parts List____________________________________________________ 7
• Exploded Drawing ___________________________________________ 9
• Assembly Steps______________________________________________ 10
• Computer Functions__________________________________________ 13
• Exercise Instructions ________________________________________ 17
• Maintenance ________________________________________________ 19
• Troubleshooting _____________________________________________ 19
• Fitness Tips & Techniques_____________________________________ 20
• Conditioning Guidelines_______________________________________ 21
• Warm Up & Cool Down _______________________________________ 22
• 2 Year Limited Warranty ______________________________________ 23
• Repairs Procedure____________________________________________ 24

3ELITE-E
IMPORTANT SAFETY INSTRUCTIONS
It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and
instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest
is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526), within the Republic of South Africa. Customers residing outside South Africa
can contact us on [phone].
The equipment is only intended for home use and is not intended for commercial, institutional and/or studio
facilities use.
Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be
informed of the following information prior to use.
HEALTH WARNING
• Before starting any exercise or conditioning program you should consult with your personal physician to
see if you require a complete physical exam. This is especially important if you are inactive, pregnant or
suffer from any illness.
• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and
consult your physician.
• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each session
by cooling down and stretching.
INSTALLATION
Trojan recommends that all equipment:
• Be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over
during training.
• Be set up inside your home away from moisture and dust (the equipment is not designed for outdoor use).
• Be set up with sufcient ventilation to ensure proper operation.
• Be set up with sufcient space around the equipment so that all exercises can be completed safely. It is
recommended that there should be at least 1 m of space around the equipment where access is required
to exercise.
PROPER USAGE
• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is
imperative that Trojan equipment is used properly to avoid injury.
• Injuries may result from exercising improperly or excessively.
• Your Trojan equipment should only be used by one person at a time.
• Be careful to maintain your balance while using, mounting, dismounting or assembling your Trojan
equipment to avoid injury.
• Do not attempt to adjust the seat or handlebars while you are on your Trojan equipment.
• Servicing other than the procedures in this manual should be performed by an authorised service
representative only.

4ELITE-E
ACCESS CONTROL
• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that
the equipment be located in an access controlled area. Control is the responsibility of the owner. Keep
children away from all equipment.
• Parents or others supervising adults must provide close supervision of children if the equipment is used in
the presence of children.
INSPECTION
• Do not use or permit use of any equipment that is damaged, or has worn or broken parts. For all Trojan
equipment use only replacement parts supplied by Trojan.
• Always make sure that all nuts and bolts are tightened prior to each use.
• Maintain labels and nameplates – do not remove labels for any reason. They contain
important information.
• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please
ensure that you follow our maintenance tips to ensure the continued correct function of your
Trojan equipment.
• Before any use, examine all accessories approved for use with the Trojan equipment for damage or wear.
• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the
equipment yourself.
• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.
Customers residing outside South Africa can contact us on [phone].
OPERATING WARNINGS
• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all
Trojan equipment.
• Keep children away from all moving parts. Parents must provide close supervision of children if the
equipment is used in the presence of children.
• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that
users tie up long hair to avoid contact with moving parts.
• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while
the machine is in operation.
USER WEIGHT LIMITATIONS
• This Trojan Elite 1000 Elliptical may not be used by persons weighing more than 130 kg.
SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE.
If any of these instructions or warnings are unclear please contact Trojan Customer Services on
0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.
Customers residing outside South Africa can contact us on [phone].
IMPORTANT SAFETY INSTRUCTIONS

5ELITE-E
PRE ASSEMbLY ChECk LIST
Thank you for choosing the Trojan Elite 1000 Elliptical. We take great pride in producing this product and
hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to its
fullest. Yes, it’s a proven fact that a regular exercise program can improve your physical and mental health. Too
often, our busy lifestyles limit our time and opportunity to exercise. The Trojan Elite 1000 Elliptical provides a
convenient and simple method to begin your assault on getting your body in shape and achieving a healthier
lifestyle. Before reading further, please review the drawing below and familiarise yourself with the parts that
are labelled.
Read this manual carefully before using the Trojan Elite 1000 Elliptical.
Tension Control Auto tension
Function Scan / Speed / ODO / Time / Distance / Calories / Pulse Program
Set-up Size 2040 mm (l) x 670 mm (w) x 1780 mm (h)
User Weight 130 kg (maximum)
Cross Walk Handles
Computer
Pedal
Rear End Stabiliser

6ELITE-E

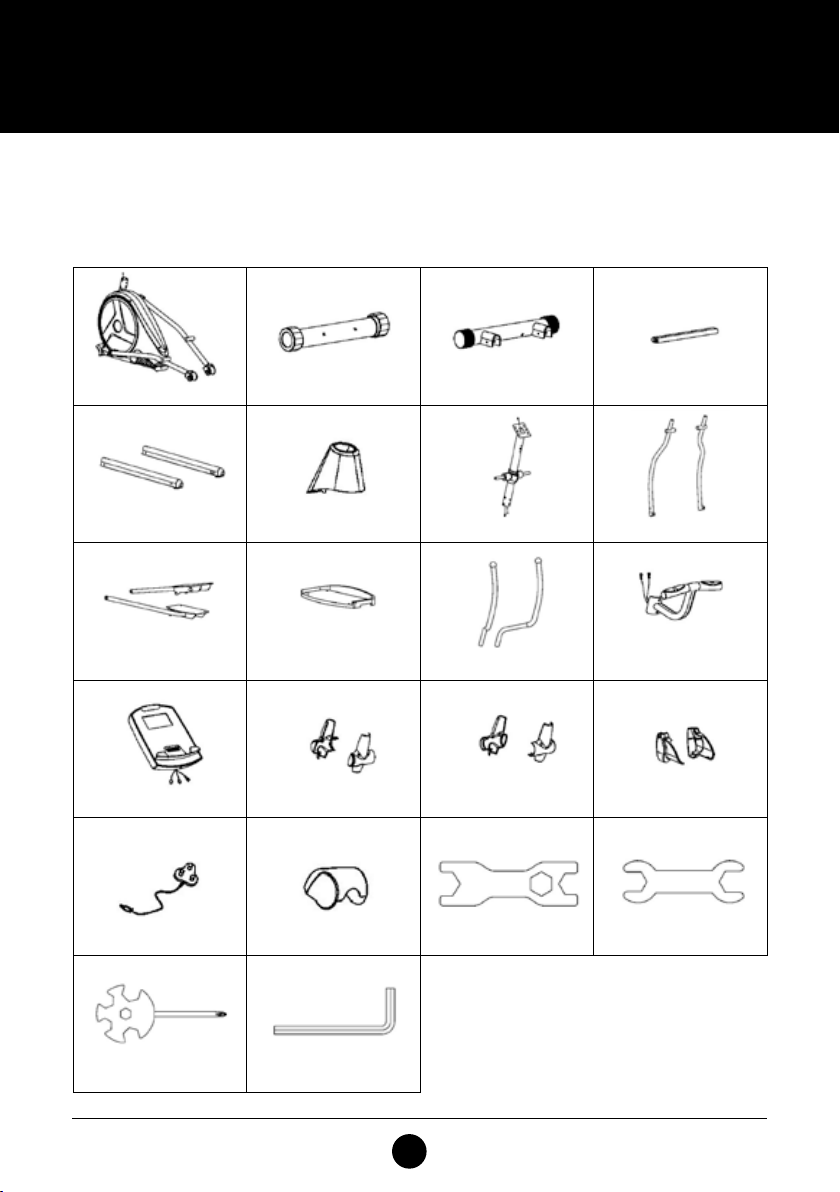

hARDwARE & TOOLS LIST
INSTRUCTIONS FOR ASSEMBLY
• Before you start to assemble, please check the hardware packaging to make sure all parts are included.
• Basic tools, such as spanners will be provided for assembly.






















#1 1 PC #10 1 PC #12 1 PC #4 1 PC
#3 L/R 1 PC #68 1 PC #2 1 PC #5 L/R 1 PC
#9 L/R 1 PC #65 2 PCS #6 L/R 1 PC #11 1 PC
#70 1 PC #52 a/b 1 PC #39 a/b 1 PC #49 L/R 2 PCS
#19 1 PC #50 2 PCS (S=17, 19) 2 PCS (S=13, 14) 1 PC
(S=10, 13, 14, 15, 17) 1 PC (S=6) 2 PCS

7ELITE-E
PARTS LIST
No. Description Qty
1 Main Frame 1
2 Handlebar Post 1
3 L/R Guide Rail 2
4 Rear Supporting Tube 1
5 L/R Swing Bar 2
6 L/R Handlebar 2
7Roller Bracket 2
8 Connecting Joint 2
9 L/R Pedal Bar 2
10 Front Bottom Tube 1
11 Handrail 1
12 Rear Bottom Tube 1
13 Inner Hex Screw M8 X L93 2
14 Inner Hex Screw M8 X L75 2
15 Hex Bolt M8 × 38 × L12 2
16 Hex Bolt M8 X 20 4
17 Hex Bolt M8 X 16 22
18 Hex Bolt M10 X 20 2
19 Adaptor 1
20 Bolt M10 × 65 × L20 2
21 Bolt M8 X 16 4
22 Bolt M8 X 30 2
23 Cross Taping Screw M6 × 15 8
24 Cross Taping Screw St4.2 X 18 8
25 Cross Taping Screw St4.2 X 12 6
26 Spring Washer D10 2
27 Spring Washer D8 22
28 Spring Washer D8 4
29 Flat Washer Φ17 X Φ22 X 2 4
No. Description Qty
30 Flat Washer D10 X D20 X 2 4
31 Flat Washer D8 X D32 X 2 4
32 Flat Washer D8 X D20 X 2 4
33 Flat Washer D8 X D16 X 1.5 8
34 Arch Washer Φ8 X 1.5 X Φ25 12
35 Arch Washer Φ8 X 1.5X Φ20 10
36 Wave Washer D21 4
37 Nylon Nut M10 2
38 Nylon Nut M8 4
39 a/b Right Swing Tube Cover 2
40 Bearing 6003Z 4
41 Bushing Φ8.2 X Φ11.9 X 15.5 2
42 Universal Joint 2
43 Short Axle 2
44 Hex Bolt M12x125 2
45 Flat Washer Φ12 X Φ24 X 2 4
46 Nylon Nut M12 2
47 Hex Nut M12 2
48 Bushing 4
49 L/R Pedal Bar Cover 4
50 Roller Cover 2
51 End Cap 2
52 a/b Left Swing Tube Cover 2
53 a/b Handlebar Cover 2
54 Adjustable Pad 2
55 Axle Bushing 8
56 Foam Grip 2
57 Front End Cap 2
58 Rear End Cap 2

8ELITE-E
No. Description Qty
59 Bushing 2
60 Round End Cap 2
61 Round End Cap Φ32 X 2 2
62 Round End Cap Φ28 X 1.5 2
63 Roller 2
64 Round End Cap 2
65 Pedal 2
66 Roller Of Guide Rail 2
67 Axle Bushing 4
68 Front Cover 1
69 End Cap S17 4
70 Computer 1
71 Screw M4 X 10 4
72 Sensor Wire 2
73 Extension Wire 1
74 Pulse Wire 2
PARTS LIST

9ELITE-E
ExPLODED DRAwINg

10 ELITE-E

ASSEMbLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.

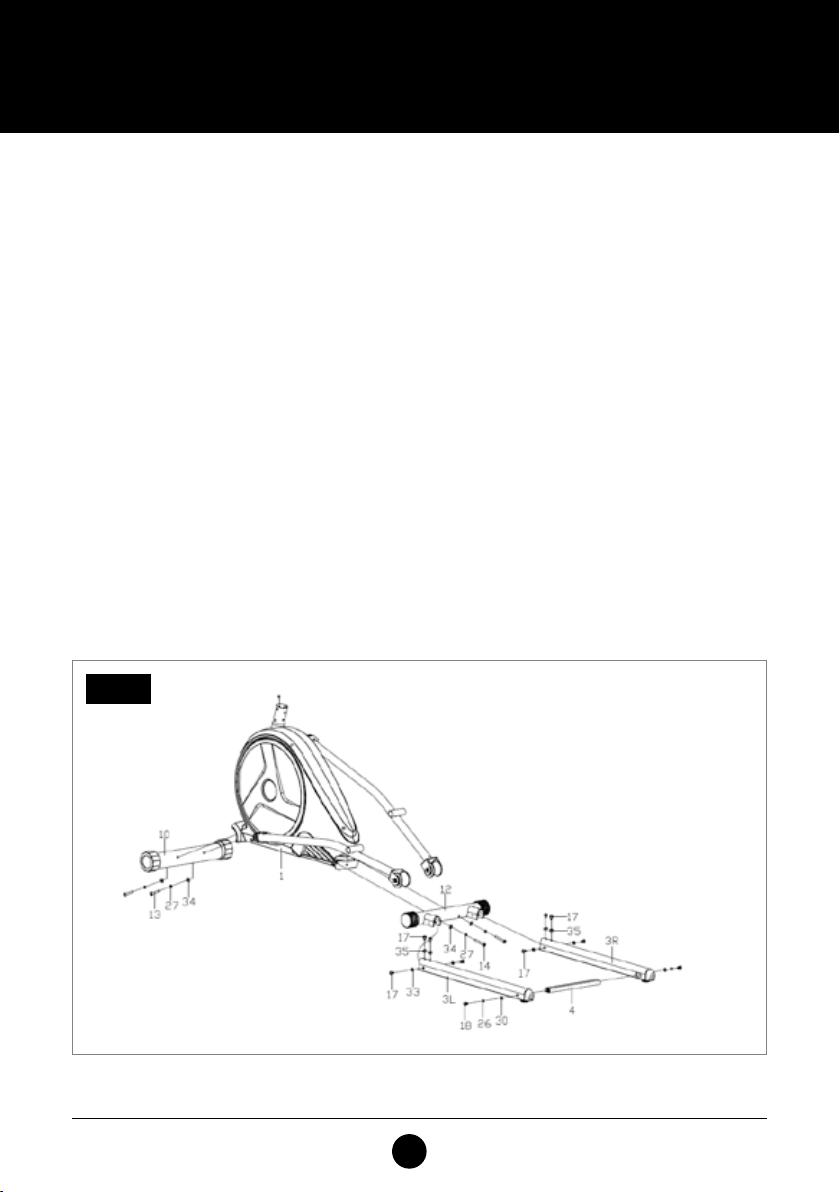

STEP 1
STEP 1: FRONT AND REAR STABILISERS
Lock the Front Bottom Tube (10) into the Main Frame (1) with Inner Hex Screw (13), Spring Washer (27) and Arch
Washer (34).
Lock the Rear Bottom Tube (12) into the Main Frame (1) with Inner Hex Screw (14), Spring Washer (27) and Arch
Washer (34).
Insert the Rear Supporting Tube (4) into the Guide Rail (3 L/R), and lock it with Hex Bolt (18), Spring Washer
(26), Flat Washer (30).
Lock the Guide Rail (3 L/R) into the Rear Bottom Tube (12) with Hex Bolt (17), Spring Washer (35), and Flat
Washer (33).

11 ELITE-E


ASSEMbLY STEPS

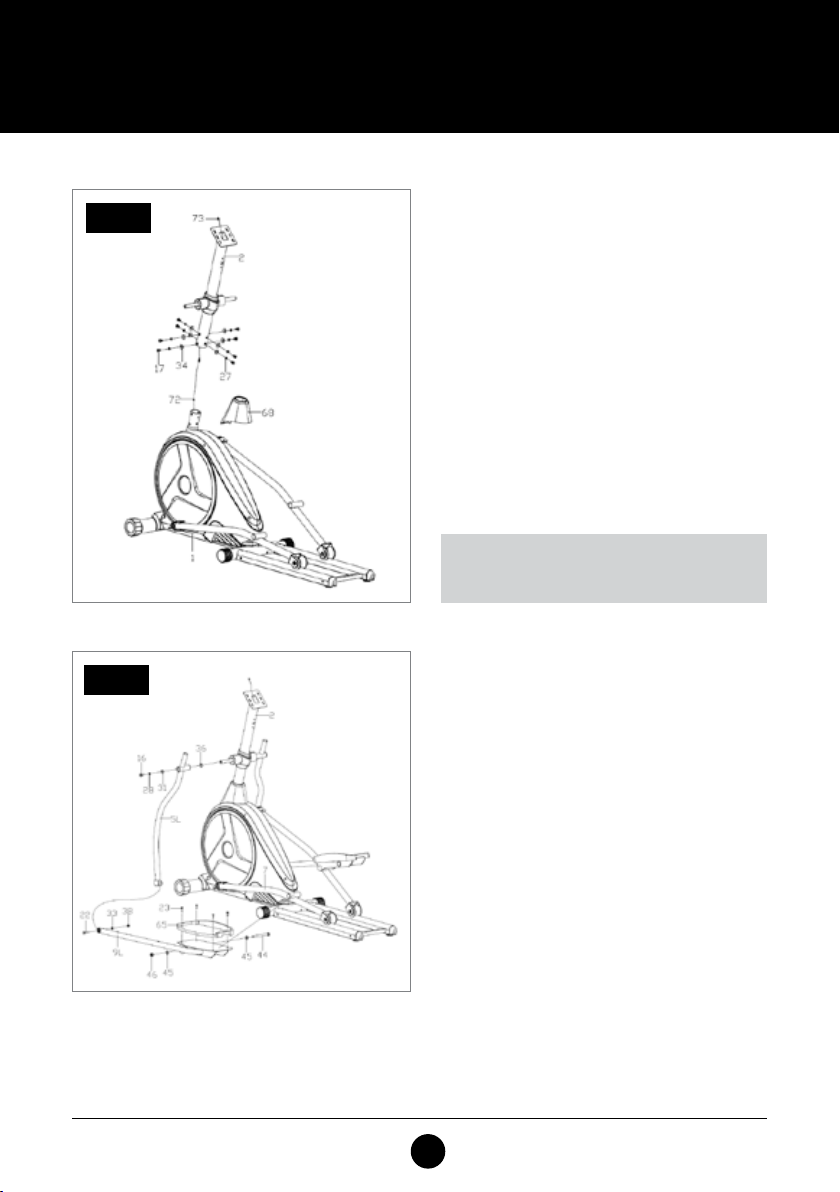

STEP 2: HANDLEBAR POST
Insert Front Cover (68) to Handlebar Post (2), connect
the Sensor Wire (72) and Extension Wire (73).
Insert the Handlebar Post (2) into the Main Frame (1)
and lock it tightly with Hex Bolt (17), Spring Washer
(27), and Arch Washer (34).
ATTENTION: YOU SHOULD SECURE THE
HANDLEBAR TIGHTLY
STEP 3: SWING BAR
Lock the Swing Bar (5 L/R) to the long axis of the
Handlebar Post (2) with Hex Bolt (16), Flat Washer
(31), Spring Washer (28) and Wave Washer (36).
Lock the Pedal Bar (9 L/R) to the Roller Bracket (7) with
Hex Bolt (44), Flat Washer (45) and Nylon Nut (46).
Connect the Swing Bar (5 L/R) and Pedal Bar (9 L/R)
with a Hex Bolt (22), Flat Washer (33) and Nylon
Nut (38).
Lock the Pedal (65) into the Pedal Bar (9 L/R) with
Cross Taping Screw (23).
STEP 2
STEP 3
CAUTION:
Ensure the cables are not damaged during
assembly or when tightening screws.

12 ELITE-E



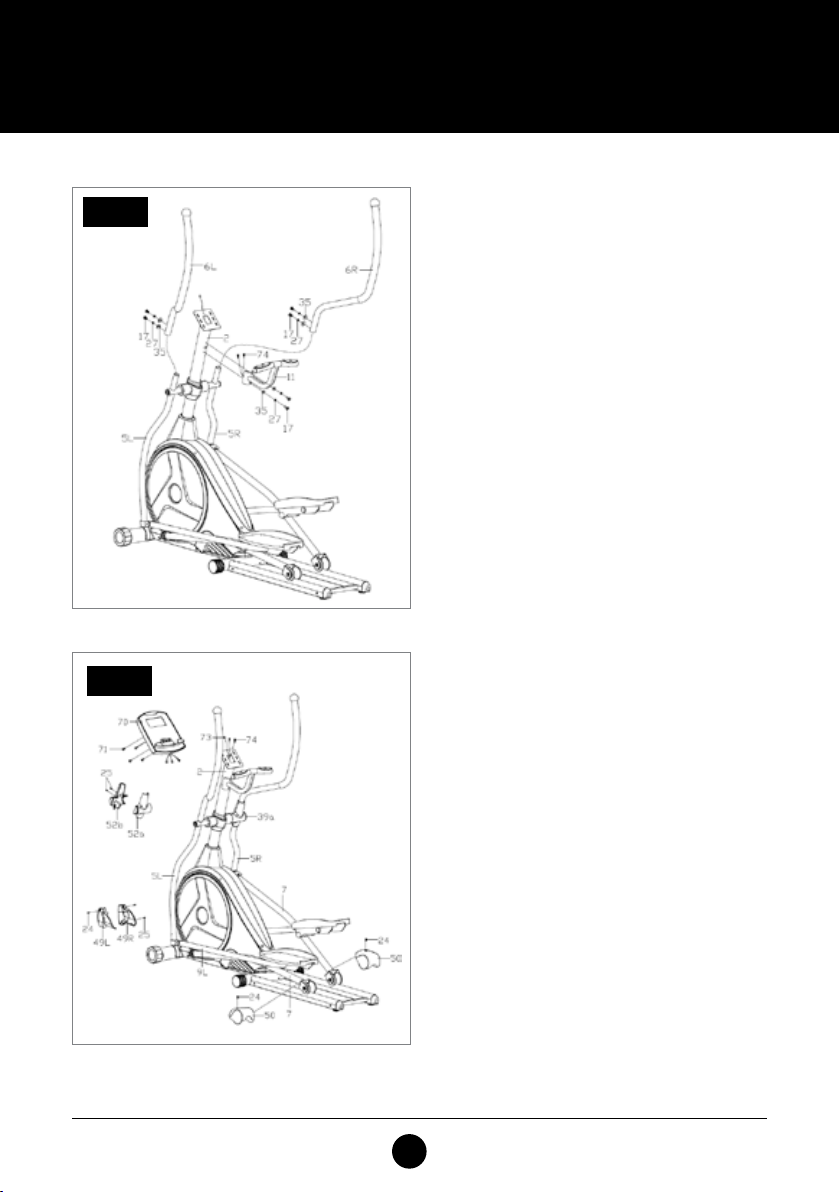

STEP 4: HANDLEBAR
Lock the Handlebar (6 L/R) to the Swing Bar (5 L/R)
with a Hex Bolt (17), Spring Washer (27) and Arch
Washer (35).
Put the Pulse Wire (74) through the hole of
Handlebar Post (2) and put it out from the bracket,
and then lock the Handrail (11) into the Handlebar
Post (2) with Hex Bolt (17), Spring Washer (27) and
Arch Washer (35).
STEP 5: COMPUTER INSTALLATION
Connect the Pulse Wire (74) and Extension Wire (73)
with the wires of the Computer (70), and then lock
the Computer (70) into the bracket of Handlebar
Post (2) with Screw (71).
Lock the left Swing Tube Cover (52 a/b) and Right
Swing Tube Cover (39 a/b) into the Swing Bar (5 L/R)
with Screw (25).
Lock the Pedal Bar Cover (49 L/R) on the connect
place of the Swing Bar (5 L/R) and Pedal Bar (9 L/R)
with Screw (24 & 25).
Lock the Roller Cover (50) into the Roller Bracket (7)
with Cross Taping Screw (24) on both sides.
ASSEMbLY STEPS
STEP 4
STEP 5

13 ELITE-E
FUNCTION BUTTONS:
START/STOP: 1. Starts & Stops workouts.
2. Starts body fat measurement and is used to exit the body fat program.
3. Holding this key for 3 seconds will reset all function values to
zero if in standby mode.
DOWN: Decreases the value of selected workout parameter: TIME, DISTANCE, etc. During the
workout, it will decrease the resistance load.
UP: Increases the value of selected workout parameter: TIME, DISTANCE, etc. During
the workout, it will increase the resistance load.
ENTER: To select desired value or workout mode.
TEST (RECOVERY): Press this button to enter the Recovery function when the computer shows the
heart rate value. Recovery indicates tness levels 1-6 after 1 minute. F1 is the best,
and F6 is the worst.
MODE: Press this button to switch display from RPM to SPEED, ODO to DIST, and WATT
to Calories during the workout.
FUNCTIONS AND OPERATIONS:
COMPUTER FUNCTIONS
FIELD SETTING
RANGE
DEFAULT
VALUE
INCREMENT /
DECREMENT DESCRIPTION
TIME 0:00 99:00 00:00 ±1:00 1. When display is 0:00, TIME will count up.
2. When Time is 1:00 ~ 99:00, it will count down to 0.
DISTANCE 0.00 ~ 999.0 0.00 ±1.0 1. When display is 0.0, DISTANCE will count up.
2. When distance is 1.0 ~ 999.0, it will count down to 0.
CALORIES 0 ~ 9950 0 ±50 1. When display is 0, CALORIES will count up.
2. When Calories is 50~9950, it will count down to 0.
AGE 10 ~ 99 30 ±1
Target H.R. will be based on Age. When Heart Rate
exceeds Target H.R., the Heart Rate indicated will ash
in programs.

14 ELITE-E
COMPUTER FUNCTIONS
PROGRAM OPERATION:
MANUAL
Select “Manual” using the UP or DOWN KEYS, then press the ENTER KEY to select the rst parameter. “Time”
will ash so the value can be adjusted using UP or DOWN KEY. Press the ENTER KEY to save the value and
move to the next parameter to be adjusted. Continue through all desired parameters. Press START/STOP to
start the workout.
Note: Once the workout parameters have been completed (reaches zero), it will “beep” and the machine will
stop automatically.
PRE-SET PROGRAMS
There are 6 program proles ready for use. All program proles have 16 levels of resistance.
SETTING PARAMETERS FOR PRE-SET PROGRAMS
Select one of the pre-set programs using UP or DOWN KEY then press the ENTER KEY to make your nal
selection. The rst parameter, “Time” will ash so the value can be adjusted using UP or DOWN KEY. Press
ENTER KEY to save value & move to next parameter to be adjusted. Continue through all desired parameters,
pressing START/STOP to start workout.
BODY FAT PROGRAM
SETTING DATA FOR BODY FAT
• Select “Body Fat Program” using the UP or DOWN KEY then press ENTER.
• For gender, “Male” will ash. Gender can be adjusted using the UP or DOWN KEY,
press ENTER to save gender and move to next selection.
• For height, “175” will ash. Height can be adjusted using the UP or DOWN KEY,
press ENTER save value and move to the next selection.
• For weight, “75” will ash. Weight can be adjusted using the UP or DOWN KEY,
press ENTER to save value and move to the next selection.
• For age, “30” will ash. Age can be adjusted using the UP or DOWN KEY, press ENTER to save
the selection.
• Press START/STOP to start measurement, then hold the hand pulse grips.
• After 15 seconds the display will show Body Fat%, BMR, BMI and BODY TYPE.
Note: Body Types: There are 5 body types shown according to the FAT% calculated.
BMR: Basal Metabolism Ratio.
BMI: Body Mass Index.
Press the START/STOP KEY to return to the main Display.

15 ELITE-E
COMPUTER FUNCTIONS
TARGET HEART RATE PROGRAM
SETTING PARAMETER FOR TARGET H.R.
Select “TARGET H.R.” using the UP or DOWN KEY then press ENTER. The first parameter “Time” will flash
so the value can be adjusted using the UP or DOWN KEY. Press ENTER to save the value and move to the
next parameter to be adjusted. Continue through all desired parameters, pressing START/STOP to start
the workout.
Note: If Pulse is ±5 above or below the set TARGET H.R, the computer will adjust the resistance load
automatically. It will check approximately every 20 seconds. If increasing the resistance, note that
each resistance represents 2 levels of loading.
Once the workout parameters have been completed (reaches zero), it will “beep” and the machine will
stop automatically.
HEART RATE CONTROL PROGRAM
THERE ARE 3 SELECTIONS FOR TARGET PULSE:
P10 - 60% TARGET H.R. = 60% of (220 - AGE)
P11 - 75% TARGET H.R. = 75% of (220 - AGE)
P12 - 85% TARGET H.R. = 85% of (220 - AGE)
SETTING PARAMETERS FOR HEART RATE CONTROL
Select one of the Heart Rate Control Programs using the UP or DOWN KEY then press the ENTER KEY.
The rst parameter “Time” will ash so the value can be adjusted using the UP or DOWN KEY. Press ENTER
to save the value and move to next parameter to be adjusted. Continue through all desired parameters,
pressing START/STOP to start the workout.
Once the workout parameters have been completed (reaches zero), it will “beep” and the machine will
stop automatically.

16 ELITE-E
USER PROGRAM
User program allows the user to set their own program that can be used immediately.
SETTING PARAMETERS FOR USER PROGRAM
Select user program parameters by using the UP or DOWN KEY, then press ENTER. The rst parameter “Time”
will ash so the value can be adjusted using the UP or DOWN KEY. Press ENTER to save the value and move
to next parameter to be adjusted. Continue through all desired parameters, pressing START/STOP to start
workout.
After nishing setting up the desired parameters, the level 1 will ash. Use the UP or DOWN KEY to adjust,
then press ENTER when nished. (There are total of 10 levels). Press START/STOP to start workout.
Once the workout parameters have been completed (reaches zero), it will “beep” and the machine will stop
automatically. Press the START KEY again to continue the workout to reach the unnished workout parameter.
COMPUTER FUNCTIONS

17 ELITE-E
ExERCISE INSTRUCTIONS
Using your Elliptical provides you with several benets, it will improve your physical tness, tone
muscle and in conjunction with calorie controlled diet help you lose weight.
THE WARM UP PHASE
This stage helps get the blood owing around the body and the muscles working properly. It will also reduce
the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each
stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch.
If it hurts, STOP.
THE EXERCISE PHASE
Start Position
Stand on the left side of the bike, grasp the handlebars (under the handlebar end caps
about 100 mm), then stride your left leg, place your left foot on the left pedal, then
stride your right leg, place your right foot on the right pedal, adjust your hands and
stand pose to a comfortable position.
Moving Position
Grasp the handlebars, then switch the handlebars to and fro in tandem to move along
with the pedals, do elliptical cycle movement. Your elliptical has reversable movement.
Forward pedalling emphasizes your quadriceps muscle (front thighs), while backwards
pedaling emphasizes your hamstrings (back thighs). Remember, if you want to change
your movement direction, stop movement rst.
SIDE BENDS OUTER THIGH
OUTER THIGH
INNER THIGH
FORWARD
BENDS



18 ELITE-E
ExERCISE INSTRUCTIONS
This is the stage where you put the effort in. After regular use, the muscles in your legs will become
stronger. Work at your own pace, but it is very important to maintain a steady tempo throughout.
The rate of work should be sufcient to raise your heart beat into the target zone shown on the
graph below.
This stage is to let your Cardiovascular System and muscles wind down. This is a repeat of the warm up
exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now
be repeated, again remembering not to force or jerk your muscles into the stretch.
As you get tter you may need to train longer and harder. It is advisable to train at least three times a week,
and if possible space your workouts evenly throughout the week.
MUSCLE TONING
To tone muscle while on your Elliptical you will need to have the resistance set quite high. This will
put more strain on our leg muscles and may mean you cannot train for as long as you would like. If you are
also trying to improve your tness, you need to alter your training program. You should train as normal
during the warm up and cool down phases, but towards the end of the exercise phase you should increase
resistance, making your legs work harden than normal. You may have to reduce your speed to keep your
heart rate in the target zone.
WEIGHT LOSS
The important factor here is the amount of effort you put in. The harder and longer you work the more
calories you will burn.

19 ELITE-E
MAINTENANCE
CLEANING
The Trojan Elite 1000 Elliptical can be cleaned with a soft cloth and mild detergent. Do not use
abrasives or solvents on plastic parts. Please wipe your perspiration off the Trojan Elite 1000 Elliptical
after each use.
Please inspect all assembly bolts and pedals on the machine for proper tightness before use.
STORAGE
Store the Trojan Elite 1000 Elliptical in a clean and dry environment away from children.
PROBLEM SOLUTION
There is no display on the
computer.
1. Remove the computer and verify the wire that comes from the
computer is properly connected to the wire that comes from the
main frame.
2. Check if the batteries are correctly positioned and that the bat-
tery springs are in proper contact with batteries.
3. The batteries in the computer may be dead. Change to
new batteries.
Squeaking noise when in use. There may be a loose bolt, please inspect the bolts and tighten if
necessary.
TROUbLEShOOTINg

20 ELITE-E
FITNESS TIPS & TEChNIqUES
VISIT:
www.trojanhealth.co.za for equipment choices and exercise programs, and
MUSCLE CHART
TROJAN ELITE 1000 ELLIPTICAL
The exercise routine that is performed on the Trojan Elite 1000 Elliptical will develop the upper and lower
body muscle group as well as condition the circulatory system and provide a good workout. These muscle
groups are highlighted on the muscle chart below.
Tr apezius
Posterior
Tricep
Latissimus Dorsi
Gluteals
Hamstrings
Gastrocnemius
Tr apezius
Anterior
Pectoralis Major
Serratus Anterior
Biceps
Abdominal
Sartorius
Quadriceps
Tibialis
