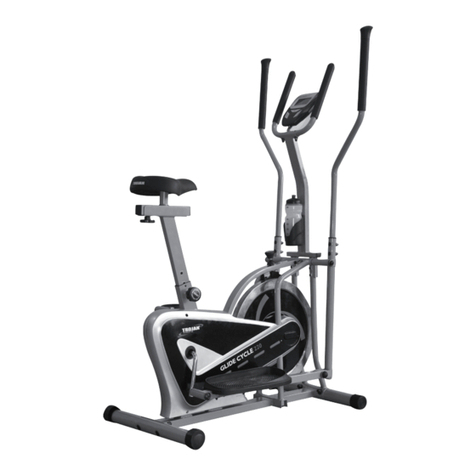

Trojan GLIDE CYCLE 220 User manual

CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS INTHIS MANUAL
BEFORE USING THIS EQUIPMENT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
#14M01T003 GLIDE 220 Elliptical UM OL.indd 1 2014/01/16 3:07 PM

2
10317
#14M01T003 GLIDE 220 Elliptical UM OL.indd 2 2014/01/16 3:07 PM

3
10317
•
•
•
•
•
•
•
•
•
#14M01T003 GLIDE 220 Elliptical UM OL.indd 3 2014/01/16 3:07 PM

4
10317
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
#14M01T003 GLIDE 220 Elliptical UM OL.indd 4 2014/01/16 3:07 PM

5
10317
#14M01T003 GLIDE 220 Elliptical UM OL.indd 5 2014/01/16 3:07 PM

6
10317
#14M01T003 GLIDE 220 Elliptical UM OL.indd 6 2014/01/16 3:07 PM

7
10317
No. Description Specications Qty
1Rear Stabiliser End Cap 2
2Rear Stabiliser 1
3Bolt M10 x 57 mm 4
4Big Curved Washer Ø10 mm x Ø25 mm x 2.0 mm 4
5 Cap Nut M10 4
6Phillips Self Tapping Screw ST4.2 x 20 mm 6
7 Screw ST4.2 x 25 mm 6
8Cover Cap Ø40 mm x Ø25 mm x 10 mm 2
9Left Cover 1
10 Right Cover 1
11 End Cap Ø25 mm x 1.5 mm 4
12 Main Frame 1
13 Sensor L=900 mm 1
14 Phillips Self Tapping Screw ST4.8 x 20 mm 1
15 Crank Nut 7/8” 1
16 Washer Ø34.5 mm x Ø23 mm x 2.5 mm 1
17 Slotted Bearing Nut 7/8” 1
18 Bearing 2
19 Bearing Cup 2
20 Notched Bearing Nut 15/16” 1
21 Washer Ø40 mm x Ø24 mm x 3.0 mm 1
22 Chain Pulley With Crank 1
23 Plastic Bolt Ø8 mm x 32 mm 2
24 Sensor Bracket 1
25 Chain 1
26 Front Stabiliser End Cap 2
27 Front Stabiliser 1
28 Bolt M6 x 45 mm 2
29 Transport Wheel Ø23 mm x Ø6 mm x 32 mm 2
30 Nylon Nut M6 8
31 Cap Nut M5 1
32 Washer Ø5 mm x Ø10 mm x 1.0 mm 1
#14M01T003 GLIDE 220 Elliptical UM OL.indd 7 2014/01/16 3:07 PM

8
10317
No. Description Specications Qty
33 Brake 1
34 Bolt M5 x 33 mm 1
35 Powder Metal Bushing Ø24.5 mm x Ø16 mm x 14 mm 10
36 Plug Ø12.1 mm 1
37 Cap Nut M6 1
38 Nut M14 x 1.5 mm x 8 mm 1
39 Nut M14 x 1.5 mm x 25 mm 1
40 Nut M8 mm x 4 mm 1
41 Cap Ø38 mm x 18 mm 1
42 Brake Handle 1
43 Nut M10 x 1.0 mm 2
44 Eyebolt M6 x 33 mm 2
45 U Bracket 2
46 Spring Washer Ø6 mm 2
47 Nut M6 2
48 Nut M10 x1.0 mm 2
49 Left Bushing Ø15 mm x Ø10 mm x 30 mm 1
50 Fan Wheel Axle 1
51 Bearing 6000zz 3
52 Fan Wheel 1
53 Right Bushing 1
54 Bolt For Left Crank Ø16 mm x 89 mm x l23 mm 1
55 Wave Washer Ø28 mm x Ø17 mm x 0.3 mm 4
56 Spring Washer Ø20 mm x Ø13 mm x 2.0 mm 2
57 Nylon Nut For Left Crank 1/2” 1
58 Washer Ø6 mm 6
59 Bolt M6 x 42 mm 6
60 Left Foot Pedal 1
61 End Cap 2
62 Cap 4
63 Bolt M10 x 55 mm 2
#14M01T003 GLIDE 220 Elliptical UM OL.indd 8 2014/01/16 3:07 PM

9
10317
No. Description Specications Qty
64 Powder Metal Bushing Ø14 mm x Ø10 mm x 10 mm 4
65 Nylon Nut M10 2
66 Nylon Nut For Right Crank 1/2” 1
67 Bolt For Right Crank Ø16 mm x 89 mm x l23 mm 1
68 Right Foot Pedal 1
69 End Cap Ø32 mm 2
70 Left Handrail 1
71 Right Handrail 1
72 Handrail Arm Plastic Bushing Ø28.5 mm x Ø25.4 mm x 84 mm 2
73 Bolt M10 x 18 mm 2
74 Spring Washer Ø10 mm x Ø18 mm x 3.0 mm 2
75 D Washer Ø28 mm x Ø16 mm x 5.0 mm 2
76 Rotation Rod Ø16 mm x 396 mm 1
77 Bolt M8 x 38 mm 8
78 Big Curved Washer Ø8 mm x Ø20 mm x 2.0 mm 6
79 Cap Nut M8 6
80 Left Handlebar 1
81 Foam Grip Ø24 mm x Ø34 mm x 280 mm 2
82 End Cap Ø25 mm 2
83 Right Handlebar 1
84 Meter 1
85 Left Foot Bar 1
86 Right Foot Bar 1
87 End Cap Ø25 mm x 1.5 mm 2
88 Foam Grip Ø24 mm x Ø30 mm x 240 mm 2
89 Screw M8 x 35 mm 2
90 Hand Pulse Handlebar 1
91 Hand Pulse Handlebar
Support Frame
1
92 Curved Washer Ø8 mm 4
93 Spring Washer Ø8 mm 4
94 End Cap 30 mm x 20 mm x 2.0 mm 2
95 Extension Wire L = 650 mm 1
#14M01T003 GLIDE 220 Elliptical UM OL.indd 9 2014/01/16 3:07 PM

10
10317
No. Description Specications Qty
96 Seat Cushion DD-982AT 1
97 Seat Sliding Tube 1
98 End Cap 38 mm x 38 mm x 1.5 mm 2
99 Washer Ø8 mm 3
100 Nut M8 3
101 Seat Post 1
102 Washer Ø10 mm 1
103 Seat Adjust Knob 1
104 Adjust Nut 1
105 Bushing 1
106 Plastic Sleeve 1
107 Screw M5 x 15 mm 2
108 Bottle Holder 1
109 Triangle Adjust Knob M16 1
110 Bolt 1
111 Screw M5 x 10 mm 4
#14M01T003 GLIDE 220 Elliptical UM OL.indd 10 2014/01/16 3:07 PM

11
10317
#14M01T003 GLIDE 220 Elliptical UM OL.indd 11 2014/01/16 3:07 PM

12
10317
CAUTION:
Ensure that cables are not damaged
during assembly or when
tightening screws.
#14M01T003 GLIDE 220 Elliptical UM OL.indd 12 2014/01/16 3:07 PM

13
10317
2
#14M01T003 GLIDE 220 Elliptical UM OL.indd 13 2014/01/16 3:07 PM

14
10317
3
CAUTION:
Ensure that cables are not damaged
during assembly or when
tightening screws.
#14M01T003 GLIDE 220 Elliptical UM OL.indd 14 2014/01/16 3:07 PM

15
10317
4
CAUTION:
Ensure that cables are not damaged
during assembly or when
tightening screws.
#14M01T003 GLIDE 220 Elliptical UM OL.indd 15 2014/01/16 3:07 PM

16
10317
#14M01T003 GLIDE 220 Elliptical UM OL.indd 16 2014/01/16 3:07 PM

17
10317
#14M01T003 GLIDE 220 Elliptical UM OL.indd 17 2014/01/16 3:07 PM

18
10317
#14M01T003 GLIDE 220 Elliptical UM OL.indd 18 2014/01/16 3:07 PM

19
10317
PROBLEM SOLUTION
There is no display on the
computer console.
1. Remove the computer console and verify the wire that
comes from the computer console is properly connected
to the wire that comes from the main frame.
2. Check if the batteries are correctly positioned and that
the battery springs are in proper contact with batteries.
3. The batteries in the computer console may be dead.
Change to new batteries.
Squeaking noise when in use. There may be a loose bolt, please inspect the bolts and
tighten if necessary.
