Trojan X-CITE 450 Installation guide

X-CITE 450
ELLIPTICAL TRAINER
ELLIPTICAL TRAINER CARE INSTRUCTIONS
AND ASSEMBLY MANUAL
TROJAN
MY SPACE MY TIME
®
#1
HOME
FITNESS
SOUTH AFRICA’S
SINCE
1981
CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS IN THIS MANUAL
BEFORE USING THIS EQUIPMENT
KEEP THIS MANUAL FOR
FUTURE REFERENCE
1 YEAR
warranty
CALL
0861 876526
0861TROJA N
SD-800

INDEX PAGE
1. SAFETY INSTRUCTIONS 3
2. PRE ASSEMBLY CHECK LIST 4
3. HARDWARE LIST 5
4. ASSEMBLY STEPS 6
5. COMPUTER FUNCTIONS 9
6. TRANSPORT 13
7. LUBRICATION 13
8. FITNESS TIPS AND TECHNIQUES 14
9. CONDITIONING GUIDELINES 15
10. WARM-UP AND COOL-DOWN 16
11. FREQUENTLY ASKED QUESTIONS 17
12. PARTS LIST 18

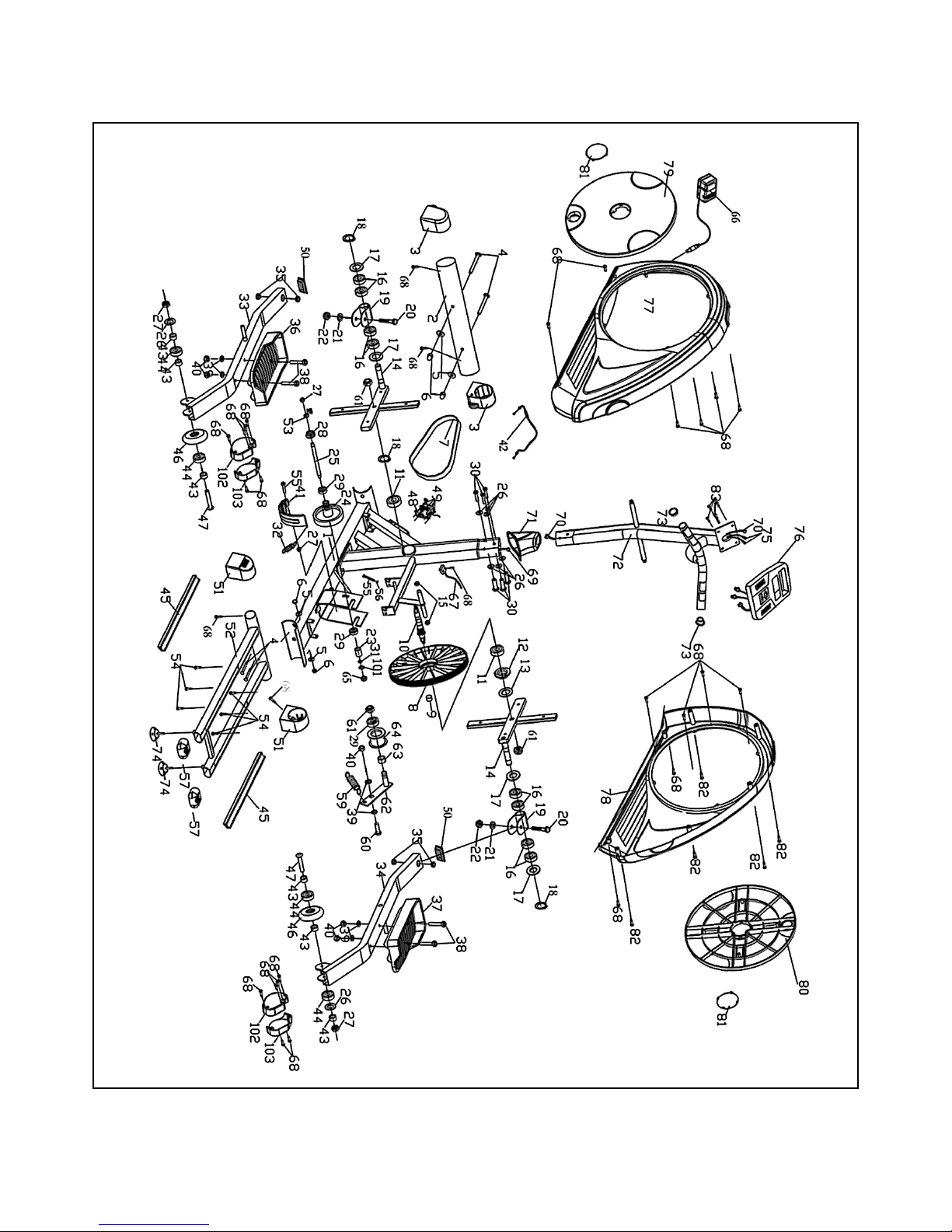

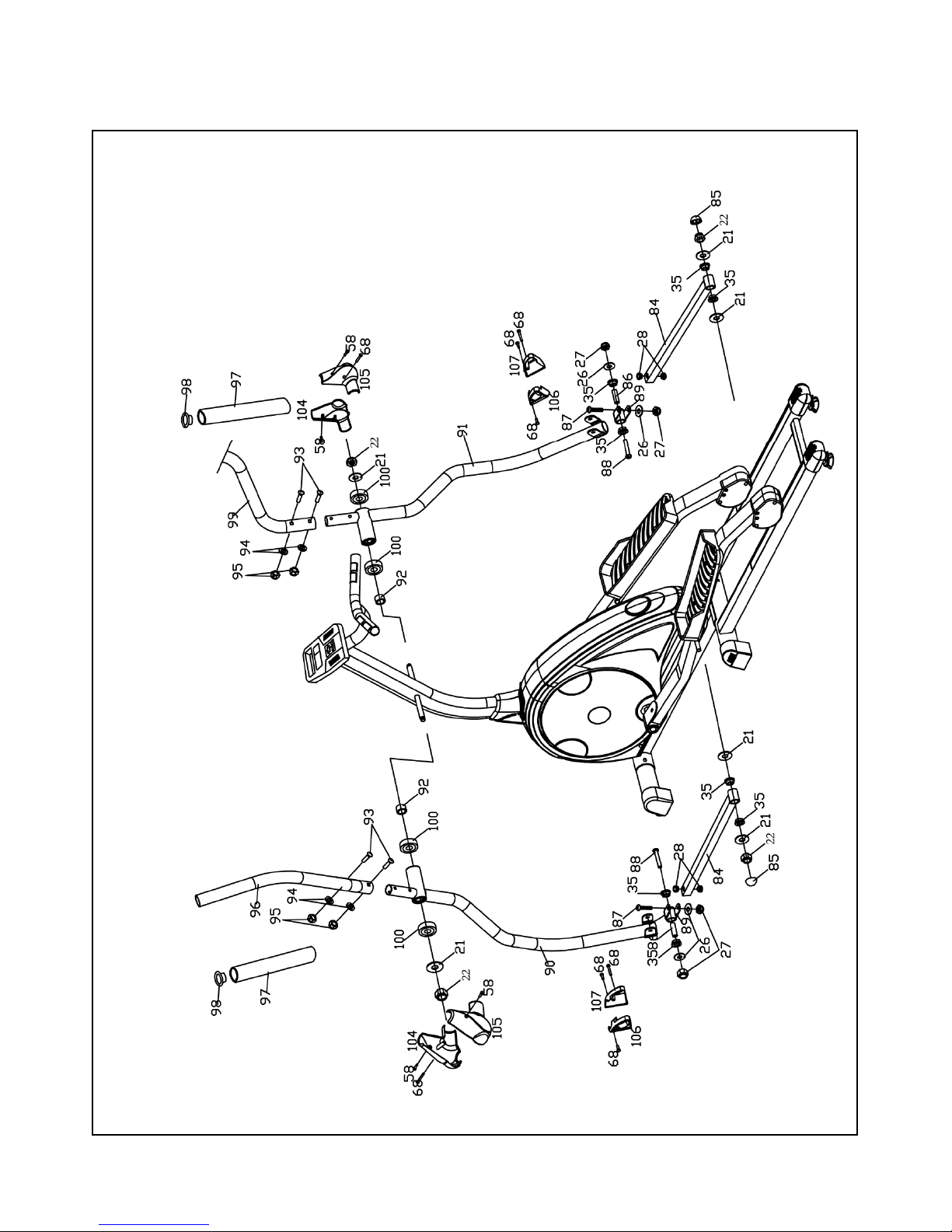

13. EXPLODED DRAWING 19
14. TROJAN 1YEAR LIMITED WARRANTY 21
15. TROJAN REPAIRS PROCEDURE 23

SD-800-3
1. SAFETY INSTRUCTIONS
WARNING :
To reduce the risk of serious injury, read the following safety instruction before using the TROJAN X-CITE 450 ELLIPTICAL.
1. Use the TROJAN X-CITE 450 ELLIPTICAL only on a level surface.
2. Keep children and pets away from this equipment at all times.
3.The TROJAN X-CITE 450 ELLIPTICAL should not be used by persons weighing more than 110kgs.
4.The TROJAN X-CITE 450 ELLIPTICAL should be used by only one person at a time.
5. Be careful to maintain your balance while using, mounting, dismounting, folding, unfolding or assembling the TROJAN
X-CITE 450 ELLIPTICAL, loss of balance may result in a fall and serious bodily injury.
6. Use the TROJAN X-CITE 450 ELLIPTICAL only as described in the manual.
7. Before using this equipment to exercise, always do stretching exercises to properly warm up.
8. Always make sure all bolts and nuts are tightened prior to each use.
WARNING
Before starting any exercise or conditioning program you should consult with your personal physician to see if you
require a complete physical exam.This is especially important if you are over the age of 35, have never exercised before,
are pregnant, or suffer from any illness.

SD-800-4

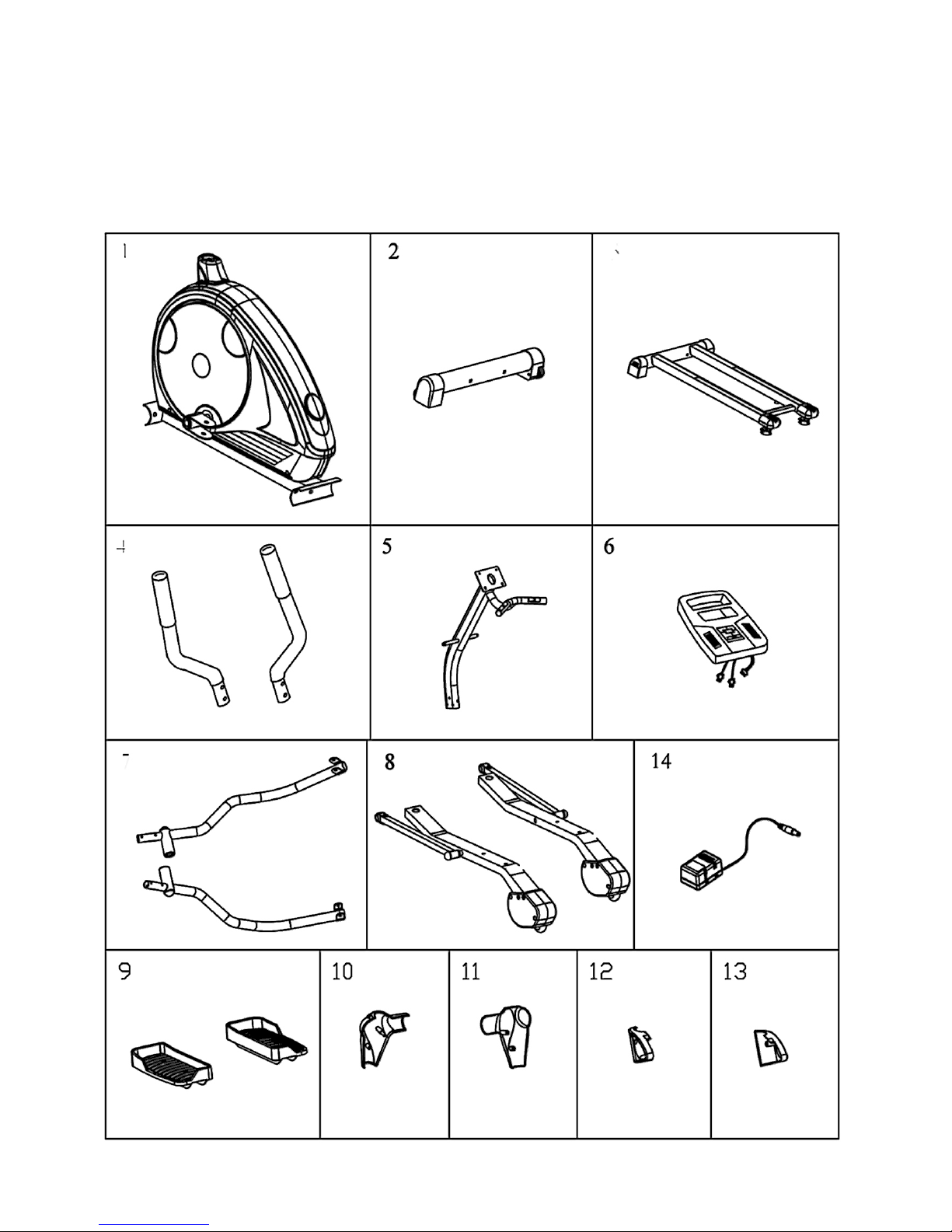

2. PRE ASSEMBLY CHECK LIST
Thank you for choosing the TROJAN X-CITE 450 ELLIPTICAL.We take great pride in producing this quality product and
hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to its fullest.
Yes, it’s a proven fact that a regular exercise program can improve your physical and mental health.Too often, our busy
lifestyles limit our time and opportunity to exercise. The TROJAN X-CITE 450 ELLIPTICAL provides a convenient and
simple method to begin your assault on getting your body in shape and achieving a healthier lifestyle.

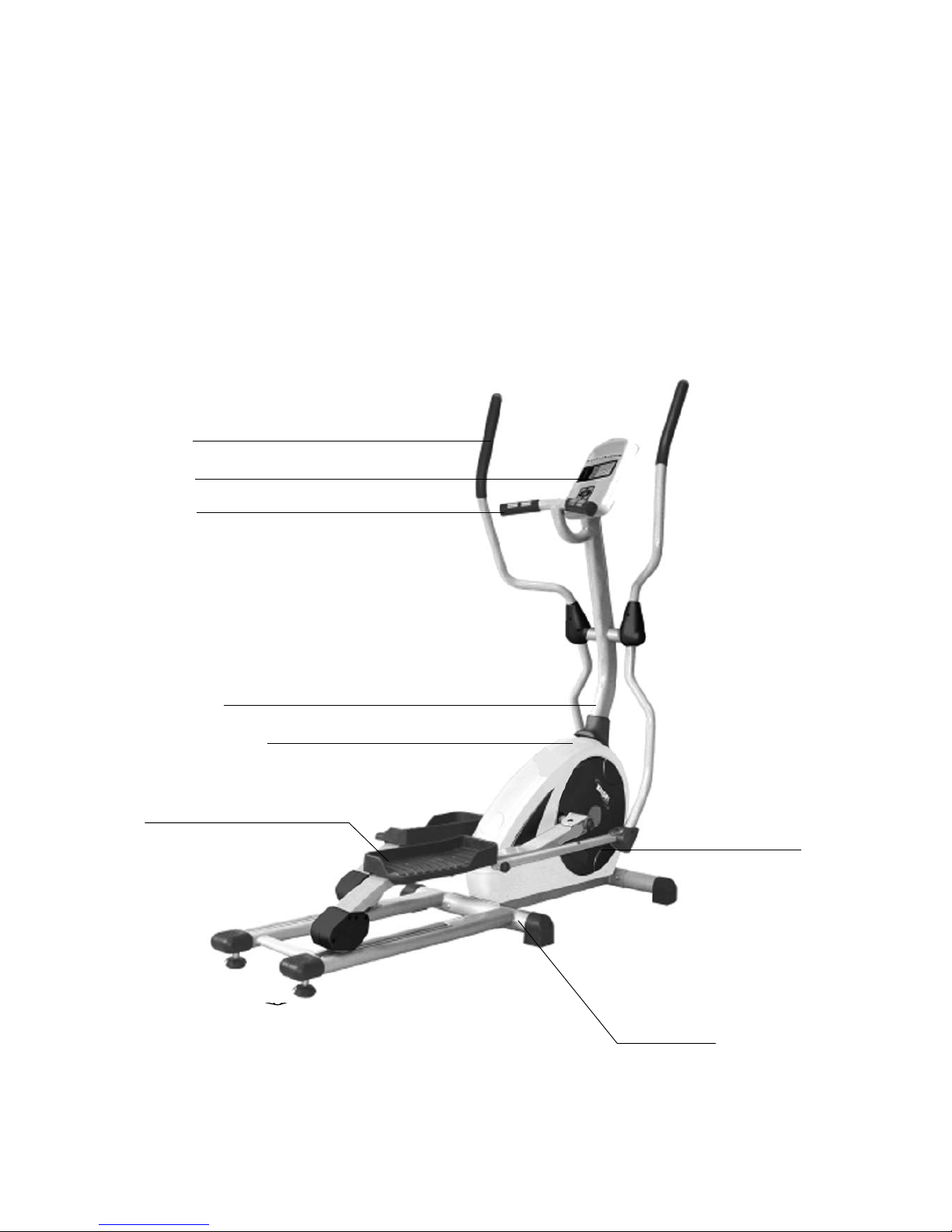

Before reading further, please review the drawing below and familiarise yourself with the parts that are labelled.
• Read this manual carefully before using the TROJAN X-CITE 450 ELLIPTICAL.
Handlebar
Handlepulse
Console
Wheel
Console Mast
Console Mast Cover
Pedal
Rear Stabiliser Cover

SD-800-5

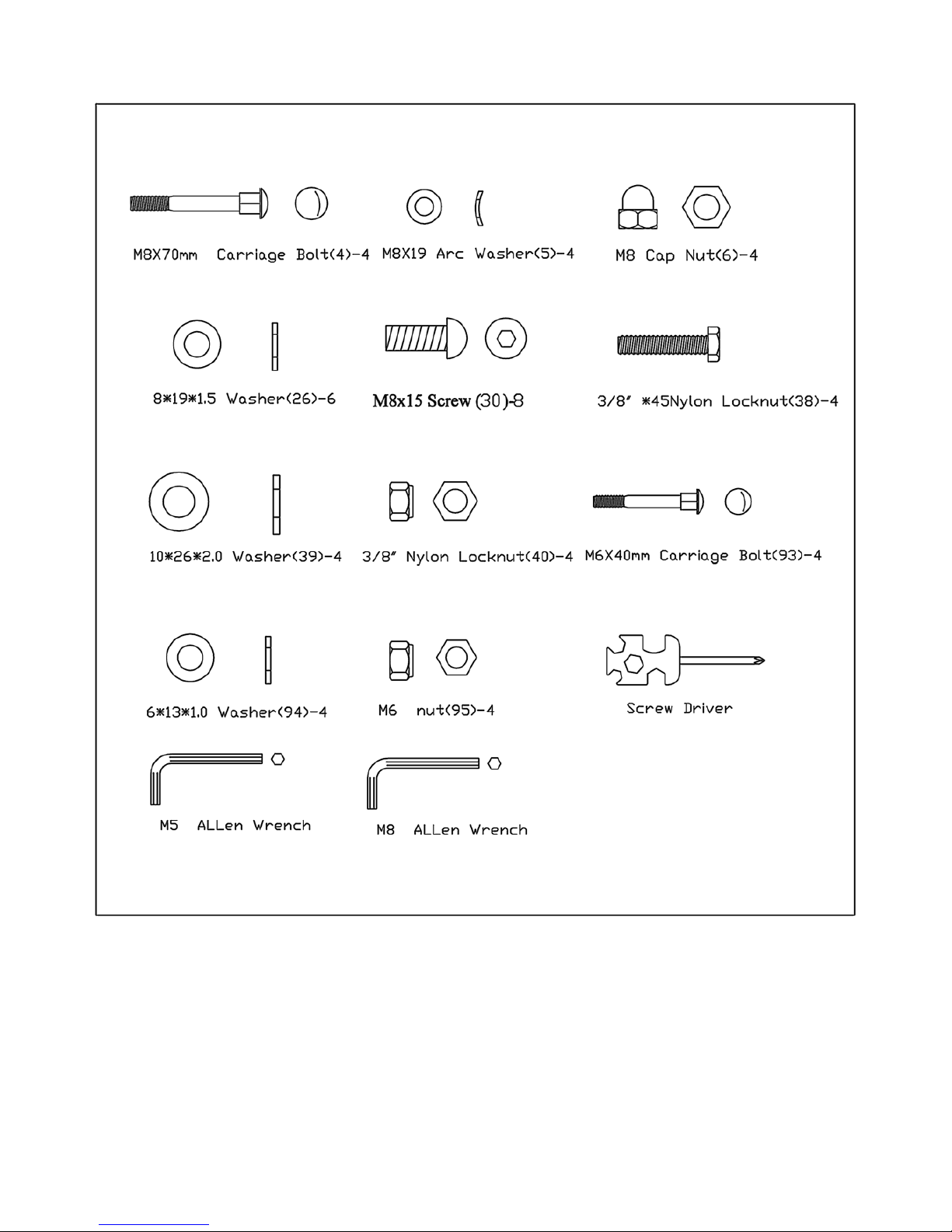

3. HARDWARE LIST
NOTE :
The described parts are all you need to assemble this machine.
Before starting assembly, please check the hardware packing to make sure they are included.

SD-800-6
4. ASSEMBLY STEPS

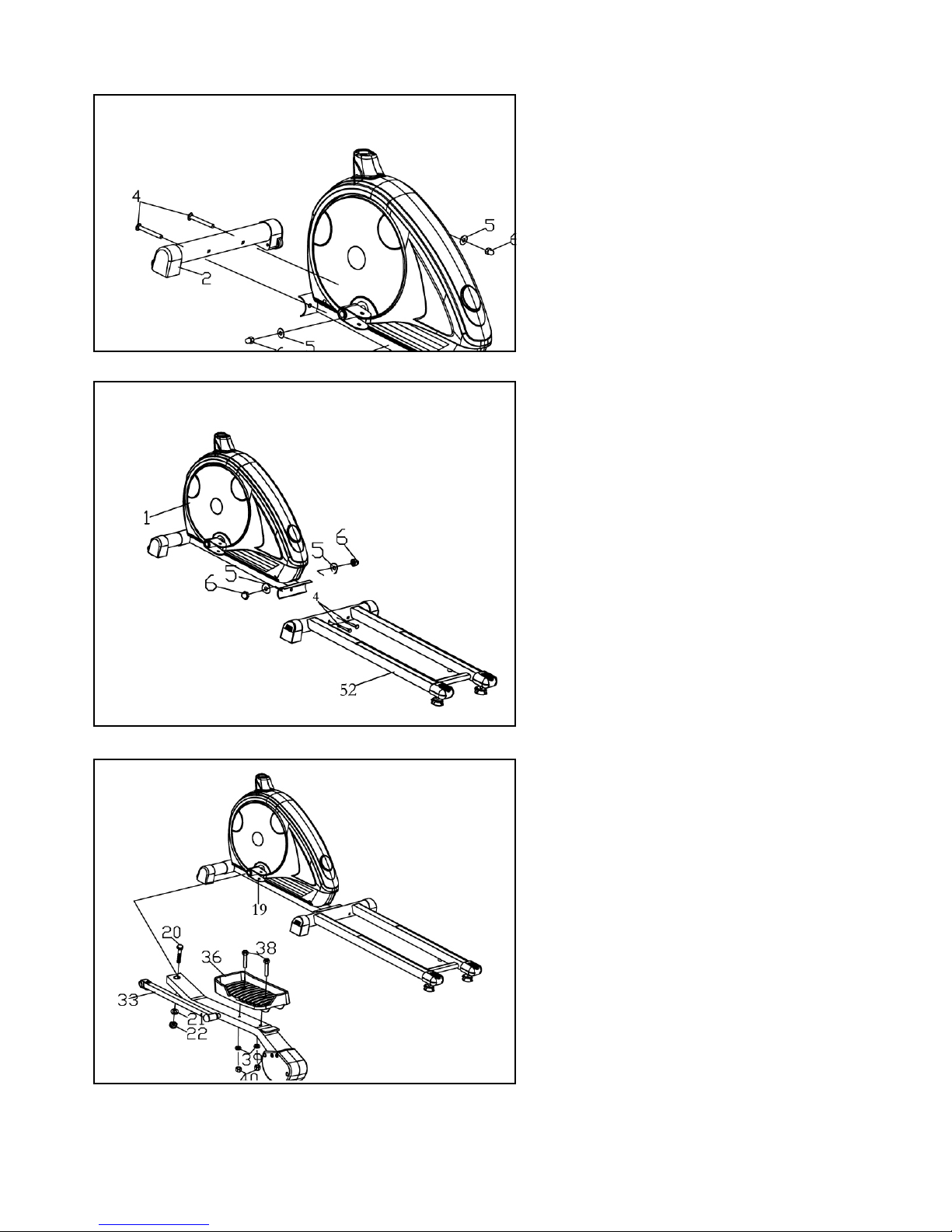

STEP 01
• Attach the Front Stabiliser (2) onto the Main
Frame (1) with the Carriage Screw (4), Cap
Nuts (6) and Arc Washers (5)
STEP 02
• Insert the Aluminium Rails (52 & 53) into the
Main Frame (1) and secure them with Carriage
Bolts (50), Arc Washers (5) and Cap Nuts (6)
STEP 03
• Attach Pedal (36) onto Pedal Tube (33) with
Carriage Screws (38), Nuts (40) and Washers
(39).
• Attach Pedal Tube (33) onto Crank (19) with
Carriage Screw (20), Nut (22) and Washer (16)
• Repeat steps on the right side

SD-800-7
ASSEMBLY STEPS
STEP 04
• Slip the Cover (71) on the Upright Tube (72)
• Connect the Monitor Cable (69) to the Sensor
Wire (70)
• Attach the Upright Post (72) onto the Main
Frame (1) with Washers (26) and Screws (30)
CAUTION:
Ensure that cables are not damaged during
assembly or when tightening screws.
STEP 05
• Connect the Monitor Cable (70) to the
Computer (76) and connect the Pulse Cables
(75) to the Computer
• Attach the Computer (76) to the top of the
Upright Tube (72) and tighten with Screws (83)
CAUTION:
Ensure that cables are not damaged during
assembly or when tightening screws.
STEP 06
• Install the Left Sleeve (90) to the Upright
Tube (72) and fasten with Washer (21) and
Nut (22)
• Connect the Upper Handle Bar (96) to the
Upper Left Sleeve (90) with Carriage Bolts (93),
Washers (94) and Cap Nuts (95)
• Attach the Tube (84) onto the Left Sleeve (90)
with Washer (26), Screw (88) and Nut (27)
• Repeat steps on the right side

SD-800-8
ASSEMBLY STEPS
Recheck
all bolts and nuts are
tightened securely
before using the machine
STEP 07
• Place the Left Protecting Covers (104 & 105) on the joint of the Handle Bar and Sleeve. Use Screw (68) and Screw
(82) to fasten. Repeat on the right side
• Place the Left Protecting Covers (106 & 107) on the joint of Sleeve and Pedal Tube. Fasten using Screw (68) and
Screw (82). Repeat on the right side
• Insert the narrower end of the Transformer (112), into the opening in the front of the casing.
• Once assembly is complete, connect the Transformer to a Power Source.
CAUTION:
Ensure that cables are not damaged during assembly or
when tightening screws.

SD-800-9
5. COMPUTER FUNCTIONS
FUNCTIONS
TIME
Count up No preset target. Time will count up from 00:00 to 99:59 (maximum)
where each increment is 1 second.
Count down
If training with a preset Time. Time will count down from preset time to
00:00.Each preset increment or decrement is 1 minute between 1:00 to
99:00 minutes.
SPEED Display current training speed from 0.0 to maximum 99.9 km or ml.
RPM Display current training rotation per minute.
DISTANCE
Count up No preset target. Distance will count up from 0.00 to 99.90 (maximum)
with each increment 0.1 KM.
Count down
If training with a preset target. Distance will count down from preset
distance to 0.00. Each preset increment or decrement is 0.1 KM (or ML)
between 0.00 to 99.90.km.
CALORIES
Count up No preset target. Calories will count up from 0 to 990 (maximum) with
each increment 1 cal.
Count down
If training with preset Calorie target. Calories will count down from preset
calories to 0. Each preset increment or decrement is 10 cal from 0 to 990
cal.
HEART SYMBOL When the monitor receives a heart rate signal, the symbol will start blinking.
PULSE
The monitor can detect pulse signals from the handgrip or chest belt.The monitor will
always display the chest belt reading if your hands are on the handgrips and you have the
chest belt on.
WATT Display current training watt figures.
HR LED BAR Display HR percentage from 55% to 95%.
FUNCTION BUTTONS
MODE Push to confirm all settings and to enter into exercise mode.
UP To select training mode and adjust function value up.
DOWN To select training mode and adjust function value down.
START/STOP To start or stop training.
RECOVERY
RECOVERY : After exercising for a period of time, keep holding on handgrips (if you do not have the
heart rate belt on) and press the “RECOVERY” button. All function displays will stop except “TIME”
starts counting down from 00:60 to 00:00. Screen will display your heart rate recovery status with
F1,F2….to F6. F1 is the best and F6 is the worst. User may keep exercising to improve the heart rate
recovery status. (Press the RECOVERY button again to return the main display.)
(If the monitor does not receive a heart rate signal, the RECOVERY function can not work.)
RESET Return to main menu in stop mode and clean all preset function value to zero.
TOTAL RESET To power on the computer.
NOTE:
1. To rate your pulse recovery correctly you must test it straight after nishing
your workout. The test will last 1 minute and then the results (F1 - F6)
will be dispayed on screen.
E 1 : Message appears on the screen when the palms of your hands are not correctly
placed on both the contact pads.
E 2 : Message appears on the screen because you have not stopped exercising.
Recovery Grade
F1 EXCELLENT
F2 VERY GOOD
F3 GOOD
F4 SATISFACTORY
F5 BELOW AVERAGE
F6 POOR

COMPUTER FUNCTIONS
OPERATING INSTRUCTION
Power on, Connect the adaptor to the rear of the unit to provide power to the computer. The LCD screen will
display all segments and sound a long beep while showing the wheel diameter (78”) for 2 seconds (drawing 1).
drawing 1
PROGRAMMING MODE
1. User personal data setting (U1 – U4):
1. 1 When U1 is blinking, user may press UP and DOWN to select user 1, user 2, user 3 or user 4 (drawing 2)
drawing 2
1. 2 Preset personal data (incl. AGE, WEIGHT, HEIGHT, SEX). And press the MODE for conrmation. (drawing 3-6)
drawing 3 drawing 4 drawing 5
drawing 6
1.3 The computer will enter into MANUAL mode immediately, and selected user may preset his own exercise data
(incl TIME, DISTANCE, CALORIES and PULSE). The computer will memorise and recall this data every time
when the user is selected.
1.4 User may start exercise by pressing the START button.

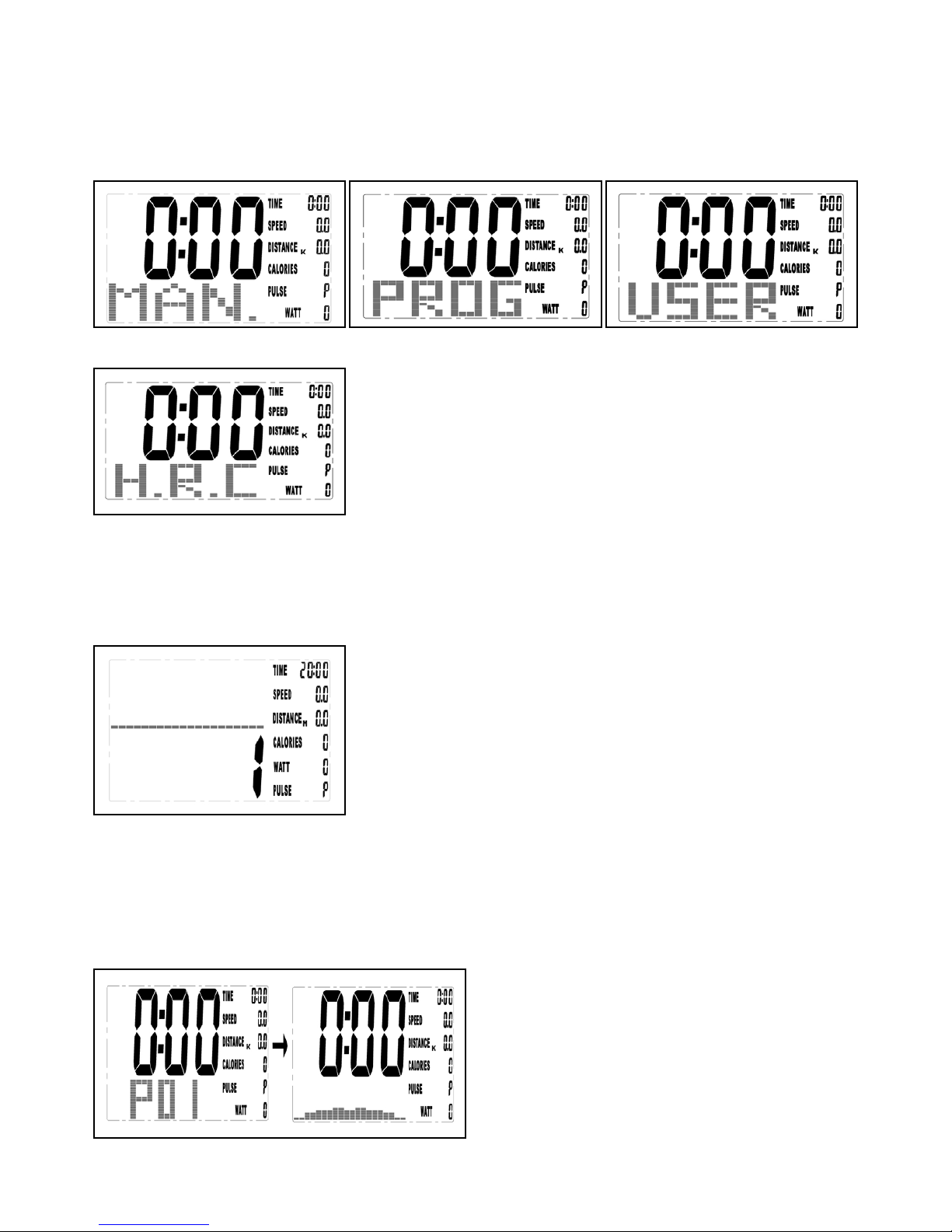

COMPUTER FUNCTIONS
1.5 Press RESET button to return to training mode selection on the main menu.
Program selections are MANUAL, PROGRAM, H.R.C. (Heart Rate Control), USER, WATT. Press UP and DOWN to
select the program you want and press START for QUICK START in Manual mode. (drawing 7-10)
drawing 7 drawing 8 drawing 9
drawing 10
MANUAL MODE
After selecting MANUAL mode, press the UP and DOWN button to increase and decrease levels (from 1 to 16) and
press MODE button to conrm. Level is adjustable during training. (drawing 11)
drawing 11
PROGRAM MODE
After entering PROGRAM mode, press the UP and DOWN button to select program profile from P1 to P12. Press
MODE button to confirm and enter the selected profile. User may press UP and DOWN to adjust the level. Level is
adjustable during training. (drawing 12)
drawing 12

SD-800-12
COMPUTER FUNCTIONS
H.R.C. MODE (HEART RATE CONTROL)
After entering H.R.C. mode, press the UP and DOWN button to select a different target from 55%, 75%, 90% and
TARGET. Press MODE to conrm. (drawing 13)
drawing 13
Note:
55% - Fat Burning Zone. (Exercise at this level for a minimum of 30 minutes at a time)
75% - Cardio Vascular Zone; Improves cardiovascular fitness
90% - Cardio Vascular performance only use for short high intensity bursts if you are a experienced fit user.
USER MODE
After entering USER mode, the first column of the profile is blinking, user may press UP or DOWN and then press
MODE to create his own prole (from column 1 to column 20). Press the MODE button for 2 seconds to quit prole
setting (drawing 14). Each user may have his own user prole.
drawing 14
WATT MODE
The preset watt value of 120 is flashing on the screen in WATT setting mode. User may use the UP or DOWN button
to set target value from 10 to 350. Press MODE button to confirm.The higher the WATT value the greater the effort
required to exercise.
NOTE:
1. Adaptor spec: 9V, 1A

SD-800-13
6. TRANSPORT
The elliptical is equipped with two transport wheels which are engaged when the rear of the elliptical is lifted.
7. LUBRICATION
1. Pour 2ml of the lubricant onto the middle of the Rail. You must apply lubricant every three months (depending on
how often the item is used).
2. If the user feels the equipment is not running smoothly or there is noise during exercising, please pour 2ml of the
lubricant on the middle of the Rails.

SD-800-14
AEROBIC EXERCISE
Aerobic exercise is any sustained activity that sends oxygen to your muscles via your heart and lungs. Aerobic exercise
improves the fitness of your lungs and heart - your body’s most important muscle. Aerobic exercise fitness is promoted
by any activity that uses your large muscles -arms, legs, or buttock, for example.Your heart beats quickly and you breathe
deeply. An aerobic exercise should be part of your entire exercise routine.
WEIGHT TRAINING
Along with aerobic exercising which helps get rid of and keep off the excess fat that our bodies can store, weight train-
ing is an essential part of the exercise routine process.Weight training helps tone, build and strengthen muscle. If you are
working above your target zone, you may want to do a lesser amount of reps.
Consult your physician before beginning any exercise program.
MUSCLE CHART
ELLIPTICAL
The exercise routine that is performed on the elliptical will develop the lower and upper body muscle groups as well
as condition the circulatory system and provide a good aerobic workout .These muscle groups are highlighted on the
muscle chart below.
8. FITNESS TIPS AND TECHNIQUES

SD-800-15
How you begin your exercise program depends on your physical condition. If you have been inactive for several years, or
are severely overweight, you must start slowly and increase your time on the equipment; a few minutes per workout.
Initially, you may be able to exercise only for a few minutes in your target zone, however, your aerobic fitness will improve
over the next six to eight weeks. Don’t be discouraged if it takes longer. It’s important to work at your own pace. Ulti-
mately, you’ll be able to exercise continuously for 30 minutes.The better your aerobic fitness, the harder you will have to
work to stay in your target zone. Please remember these essentials :
• Have your doctor review your training and diet programs to advise you of a workout routine you should adopt.
• Begin your training program slowly with realistic goals that have been set by you and your doctor.
• Monitor your pulse frequently. Establish your target heart rate based on your age and condition.
• Set up your equipment on a at, even surface at least 3 feet from walls and furniture.
9. CONDITIONING GUIDELINES
EXERCISE INTENSITY
To maximize the benefits of exercising, it is important to exercise with the
proper intensity.The proper intensity level can be found by using your heart
rate as a guide. For effective aerobic exercise, your heart rate should be
maintained at a level between 65% and 85% of your maximum heart rate
as you exercise.This is known as your target zone.You can find your target
zone in the table below.
During the first few months of your exercise program, keep your heart rate near the low end of your target zone as you
exercise. After a few months, your heart rate can be increased gradually until it is near the middle of your target zone as
you exercise.
To measure your heart rate, stop exercising but continue moving your legs or walking around and place two fingers on
your wrist.Take a six-second heartbeat count and multiply the results by 10 to find your heart rate. For example, if your
six-second heartbeat count is 14, your heart rate is 140 beats per minute. (A six-seconds count is used because your
heart rate will drop rapidly when you stop exercising.)
Adjust the intensity of your exercise until your
heart rate is at the proper level.
For more information on dieting and
training visit www.trojanhealth.co.za

SD-800-16
1
2
3
4
5
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body
temperature, heart rate, and circulation in preparation for exercise.
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training zone. (Note:
During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than
20 minutes.) A cool-down, with 5 to 10 minutes of stretching. This will increase the exibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between workouts.
After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key
to success is make exercise a regular and enjoyable part of your everyday life.
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you
stretch-never bounce.
1.Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from your hips. Allow
your back and shoulders to relax as you reach down toward your toes as far as pos-
sible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of
knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it
against the inner thigh of your extended leg. Reach toward your toes as far as pos-
sible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands against a wall.
Keep your back leg straight and your back foot flat on the floor. Bend your front leg,
lean forward and move your hips toward the wall. Hold for 15 counts, then relax.
Repeat 3 times for each leg.To cause further stretching of the achilles tendons, bend
your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one foot with your
other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull your feet to-
ward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times.
Stretches: Quadriceps and hip muscles.
For more information on dieting and training visit www.trojanhealth.co.za
10. WARM-UP AND COOL-DOWN

SD-800-17
11. FREQUENTLY ASKED QUESTIONS
Q1. My elliptical does not move as easily as indicated in manual
1. Ensure you have placed the stabilizer with the wheels in the front of the unit.
Q2. My consol does not work?
1. Make sure you have connected it correctly, the power source is connected and on
2. Check that you have a power supply to your home
Q3. My consol is not clear and appears faded?
1. Ensure your unit is not in direct sunlight and you have removed the plastic cover from the screen.
If display does not improve, please contact 0861 876 526
Q4. My tension control is not working?
1. Ensure the cable has been connected correctly, the power source is connected and that it is on.
Then check to see if you have power in your home.
Q5. My pedals are not fitting properly?
1. Make sure you have inserted them on the correct side of the unit. Each pedal is marked L or R.
Q6. I cannot thread the main cable through the upright bar?
1. Use the thin wire provided or a piece of string to assist you.
Q7. My consol is showing an “EI” error
1.The palms of your hands are not correctly placed on both of the hand pulse contact pads.Try again ensuring
proper contact.
Q8. My consol is showing an “E2” error
1.You have not stopped exercising when pushing the recovery button. Stop exercising and try again.
Q9. My consol is showing an ‘E4’ error
1. Body fat reading has exceeded the pre-programmed limit ( upper limit 50%; lower limit 5%)
Please re-enter your age, weight and height on the computer and resume training.
If this does not solve the problem please contact 0861 876 526.
Q10.The consol cannot read the hand pulse signal
1. The hand pulse sensors will not operate correctly if your skin is extremely dry. Moisten your hands and try again.
2. Avoid moving your hands while exercising and hold the hand pulse sensors firmly while exercising. If you do move your
hands while exercising, give the computer a few seconds to resample and display your correct heart pulse rate
3. Clean the hand pulse sensors to ensure good contact between your body and the pulse sensor
If the error persists, please contact 0861 876 526

SD-800-18
12. PARTS LIST
1. MAIN FRAME 2. FRONT STABILIZER 3. RAIL TUBE
4. HANDLEBAR 5. HANDLEBAR POST 6. COMPUTER
7. STEEVE 8. PEDAL ARM 9. PEDAL (L/R)
10. LEFT PROTECT COVER 11. RIGHT PROTECT COVER 12. LEFT PROTECT COVER
13. RIGHT PROTECT COVER. 14.TRANSFORMER
3
4
7

SD-800-19
13. EXPLODED DRAWING

SD-800-20
EXPLODED DRAWING
