tropitone 4011 Series User manual

KD Table Base Assembly and
Top Attachment Instructions
4011xx
5000xx
7305xx 8001xx
8206xx
Congratulations on the purchase of your Tropitone® furniture.
Read through all steps before starting assembly.
CAUTION: Do not try to lift or flip components with only
one person. Components may be heavy and awkward to
handle, and may result in injury to persons or damage to
property if not lifted properly.
Use the shipping carton, pool towels or a tarp to prepare a
smooth, non-scratch work surface.
Hardware is screwed into legs and specific table tops.
Tools Required
All Furniture Safety Glasses
Banchetto Slat 5/32” Hex Key 7/16” Wrench or ratchet
Other Tables 3/16” Hex Key 1/2” Wrench or ratchet
Parts List
(4) Table Legs
(1) Leg Support Brace
(2) on tables 34” height or higher, except Banchetto Slat
(1) Table Top
Acrylic, Glass or Patterned Aluminum Top Assembly
Banchetto Slat Table Top
Cast Aluminum Table Top
Stoneworks® Table Top
(2) Brace Support Arms (69” x 42” or larger Cast dining only)
(1) Center Tube Support (for specific models only)
2
4011xx Banchetto KD Table
STUB MOUNT
Step 1
Place the Leg Support Brace right side up on the prepared work
surface. With the glide (feet) downwards, attach (4) Legs onto the
Leg Support Brace.
Loosely install the bolts, flat washers and nuts
(8 places).
Parts List
See page 1.
Weld should
NOT face up!
Finished
side up!
Don’t fully tighten the bolts
until Step 3.

3
Step 2
With 2 persons, place the Table Top
upside down on the prepared work
surface.
With 2 persons, place the
assembled legs upside down (glide
feet up) onto the Table Top leg stub
mounts.
Loosely install the screws and
washers securing the Legs to the
Top (2 screws per leg).
If you aren’t able to get the screws
started on the first try, put one hand
on the glide (at the top of the leg)
and adjust / wiggle the leg while you
hand-start the screw.
After all screws are loosely installed,
fully tighten the screws securing the
Legs to the Top (4 places, 8
screws).
Step 3
Fully tighten two bolts, flat washers
and nuts to attach the Leg Support
Brace to all the Legs
(4 places, 8 bolts).
Step 4
With two persons, turn the table upright. Position the table for use
and enjoy!
4
4011xx Banchetto KD Table
“U” MOUNT
Step 1
Place the Table Top upside down on the prepared work surface.
Loosely attach (3) Legs with bolts, flat washers and nuts
(3 places). Mounting posts on legs point inwards.
Bolts will fit tightly into holes. You can thread the bolt into the
holes if necessary.
Don’t fully tighten the bolts until Step 5.
Step 2
Place the Leg Support Brace onto the Leg mounts with welds
facing up (downwards when upright). For oval and rectangular
tables, start with two legs on a short side (closer together).
This is a tight fitting connection; you may need
to “bump” the leg with the heel of your hand to
fully seat the Brace.
Parts List
See page 1.

5

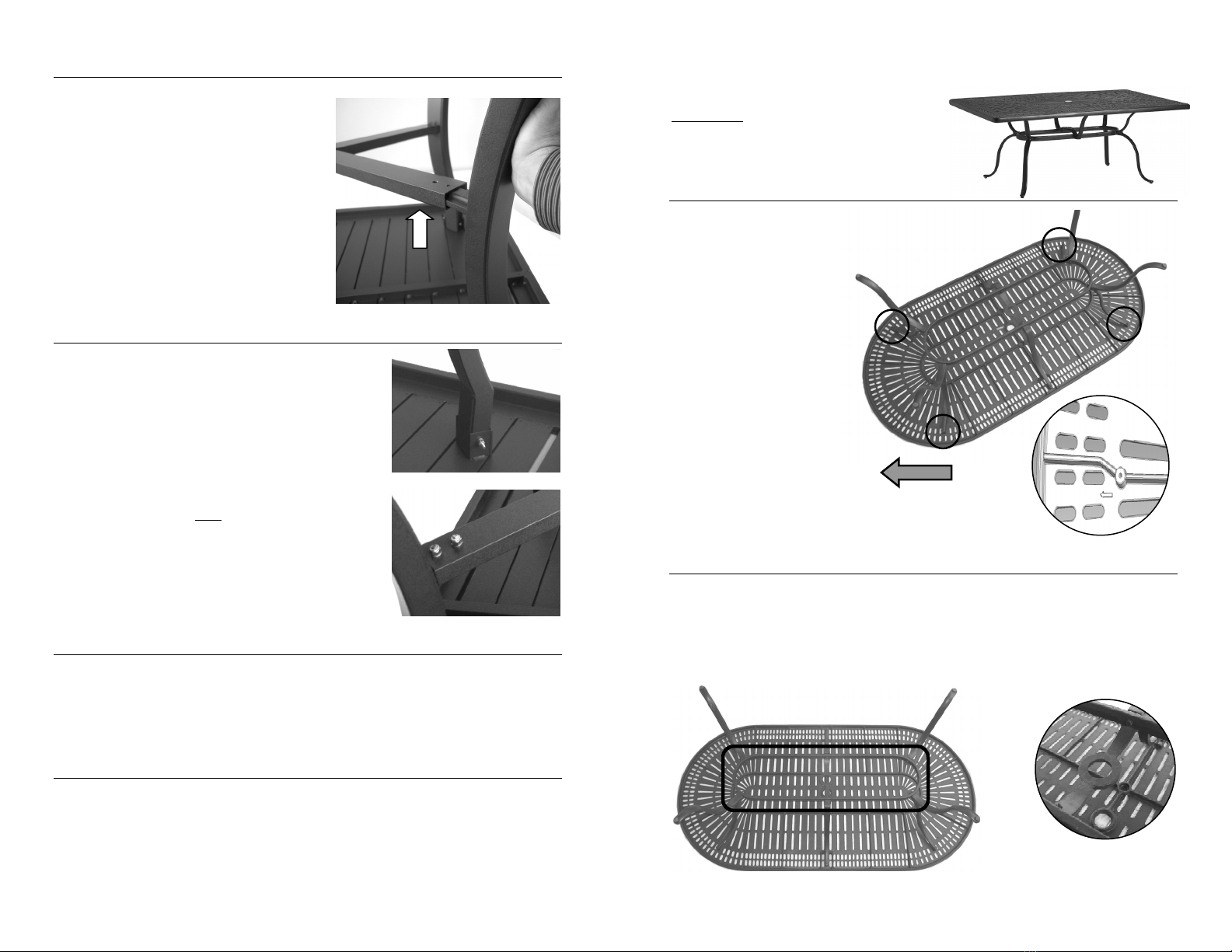

Step 3
Place the 4th Leg to the Top mount
but don’t install the bolt until
Step 4.
Attach the Leg Support Brace onto
the post on the 4th Table Leg.
You will need to gently lift the Leg
Support Brace onto the mount.
“Bump” the leg with the heel of
your hand to fully seat the Brace.
Step 4
Install the 4th Leg to the Top with
bolt, flat washers and nut.
Loosely install two bolts, flat
washers and nuts to attach the
Leg Support Brace to all the Legs
(4 places, 8 bolts).
Step 5
Fully tighten the bolts securing the Legs to the Top (4 places).
Fully tighten the bolts securing the Legs to the Leg Support Brace
(4 places, 8 bolts).
Step 6
With two persons, turn the table upright. Position the table for use
and enjoy!
6
8001xx & 8206xx Cast KD Table
Step 1
Place the Table Top
upside down on the
prepared work surface.
Loosely attach the legs
with bolts and split
washers (4 places).
Don’t fully tighten the
bolts until Step 5.
66” Round Table (6 legs):
Locate the arrow near one
leg mount. Starting at this mount, loosely
attach 4 legs to 4 mounts in a row with bolts
and split washers (2 adjacent mounts open).
Step 2
Place the Leg Support Brace(s) into the
clamps on the Table Legs so the
umbrella cross bar will arch towards the
bottom of the table top (arching upwards
when upright).
66” Round Tables:
see next page.
66” Round Top
Parts List
See page 1.

7
66” Round Table: Point the arrow
on the Leg Brace Support towards
the leg mount with the arrow.
Loosely attach the remaining legs with
bolts and split washers (2 places).
Step 3
Loosely install the bolts with split
washers in the table legs as shown.
Don’t fully tighten the bolts until
Step 5.
Step 4 Cast Dining Tables 69” x 42” or larger only
Attach the Brace Support Arms to the
table top and the Leg Support Brace.
Fully tighten the bolts securing the Arms
to the Table Top Leg Support Brace
(2 places).
Fully tighten the bolts securing the Arms
to the Table Top (2 places).
Step 5
Fully tighten the bolts securing the Legs to the Table Top.
Fully tighten the bolts securing the Legs to the Leg Support Brace.
Step 6
With two persons, turn the table upright. Position the table for use
and adjust glides to level. Enjoy!
66” Leg Support Brace
8

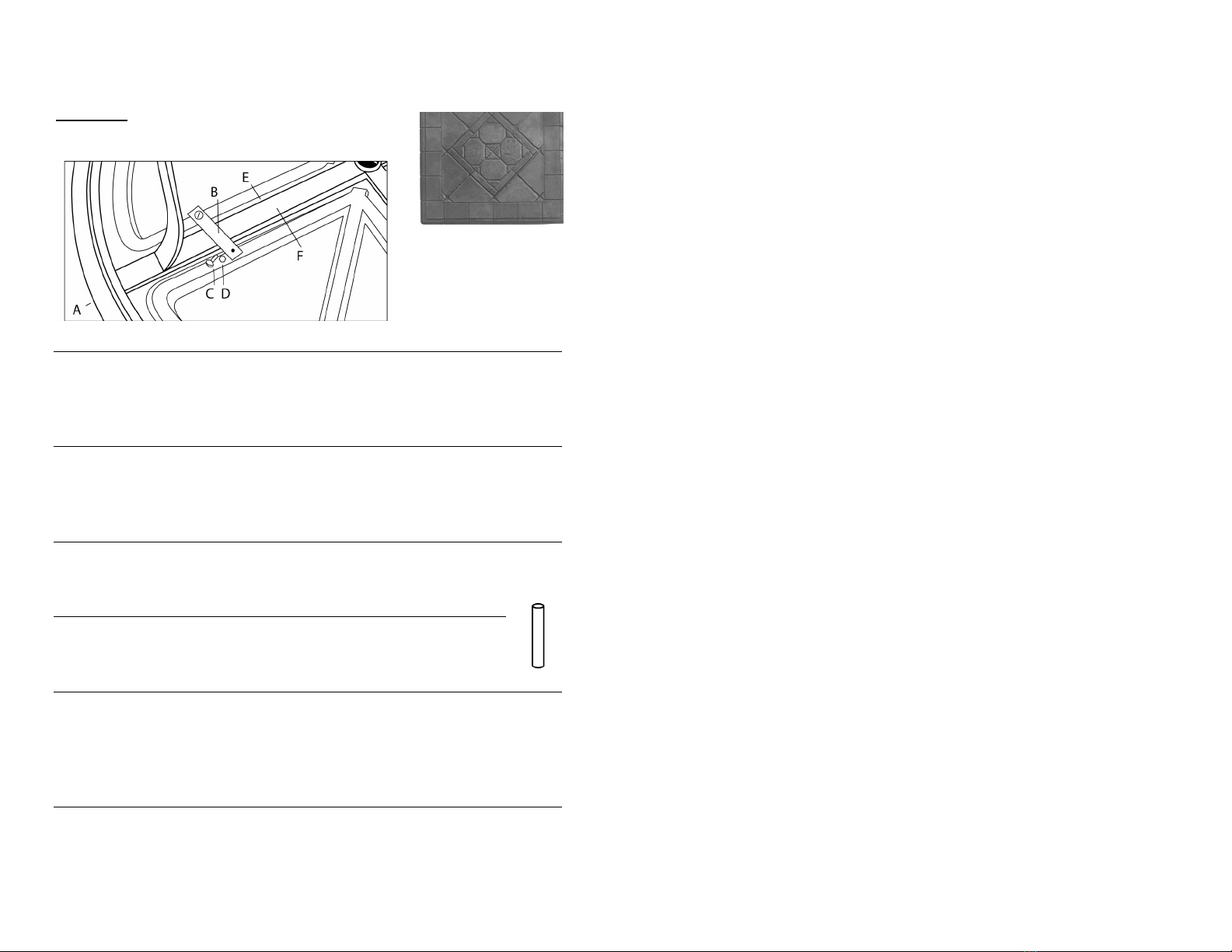

5000xxG OR A KD Table
Step 1
Place the Table Top upside down on the prepared work surface.
Attach the Table Legs to the angled interlocking posts on the
Table Top Frame.
Step 2 (500063 tables only)
Place the Center Tube Support over the umbrella ring in the
center of the Table Top Frame.
Step 3
Place the Leg Support Brace(s) into the clamps on the Table
Legs. Loosely install the bolts with split washers in the table legs
as shown. Insure the legs are fully inserted onto the posts in the
Table Top Frame.
Fully tighten the Leg Support Brace bolts.
Step 4
With two persons, turn the table upright. Position the table for use
and enjoy!
Stoneworks® Tops: Continue to Stoneworks® Top Attachment.
Parts List
See page 1.

9
7305xxG OR A KD Table
Parts List
(4) Table Legs
(1) Leg Support Brace
(1) Table Top Frame Assembly
Step 1
Place Table Top Frame upside down on the prepared work
surface. Slide two adjacent Table Legs onto connectors on the
Table Top Frame. Rectangular tables must have two Table Legs
on the long side assembled first.
Step 2
Hand start four 1-1/2” long Allen Bolts with washers into the
threaded connectors for the Table Legs positioned on the Table
Top Frame.
Step 3
Place the Leg Support Brace into the clamps on the two mounted
legs. Hand start two 1” long Allen Bolts with washers through the
Leg Support Brace into threaded holes in clamp.
Step 4 (730563 tables only)
Place the Center Tube Support over the umbrella ring in the
center of the Table Top Frame.
Continued on next page.
10
Step 5
Position the clamps on the remaining two Table Legs to Leg
Support Brace, then hand start the two 1” long Allen Bolts with
washers. This step is done without Table Legs being in their final
position on the Table Top.
Step 6
Slide the two remaining Legs onto connectors on the Table Top
Frame. Hand start four 1-1/2” long Allen Bolts with washers into
threaded connectors for remaining Table Legs.
Step 7
Tighten (8) Allen Bolts securing table legs onto Table Top Frame.
Step 8
Tighten (4) Allen Bolts securing Leg Support Brace into clamps.
Step 9
With two persons, turn the table upright. Position the table for use
and enjoy!
Stoneworks® table tops: Continue to Stoneworks® Top
Attachment instructions.
