True TPP-67 User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
TPP-67
TPP-67
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Pans
(top)
Cabinet Dimensions
(inches)
(mm)
L** D†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TPP-67 2 20.6
584
4967
1/4
1709
321/4
820
353/4
909
1/3
1/3
115/60/1
230-240/50/1
8.6
3.9
5-15P
▲
7
2.13
400
182
** Length does not include 1/4
" (7 mm) each side for lid pins and 1/4 " (7 mm) each side for cutting board brackets and thumb screws.
†Depth does not include 1
" (26 mm) for rear bumpers and 3 " (77 mm) for cutting board.
*Height does not include 61/4
" (159 mm) for castors or 6 " (153 mm) for optional legs. ▲Plug type varies by country.
1/07
R

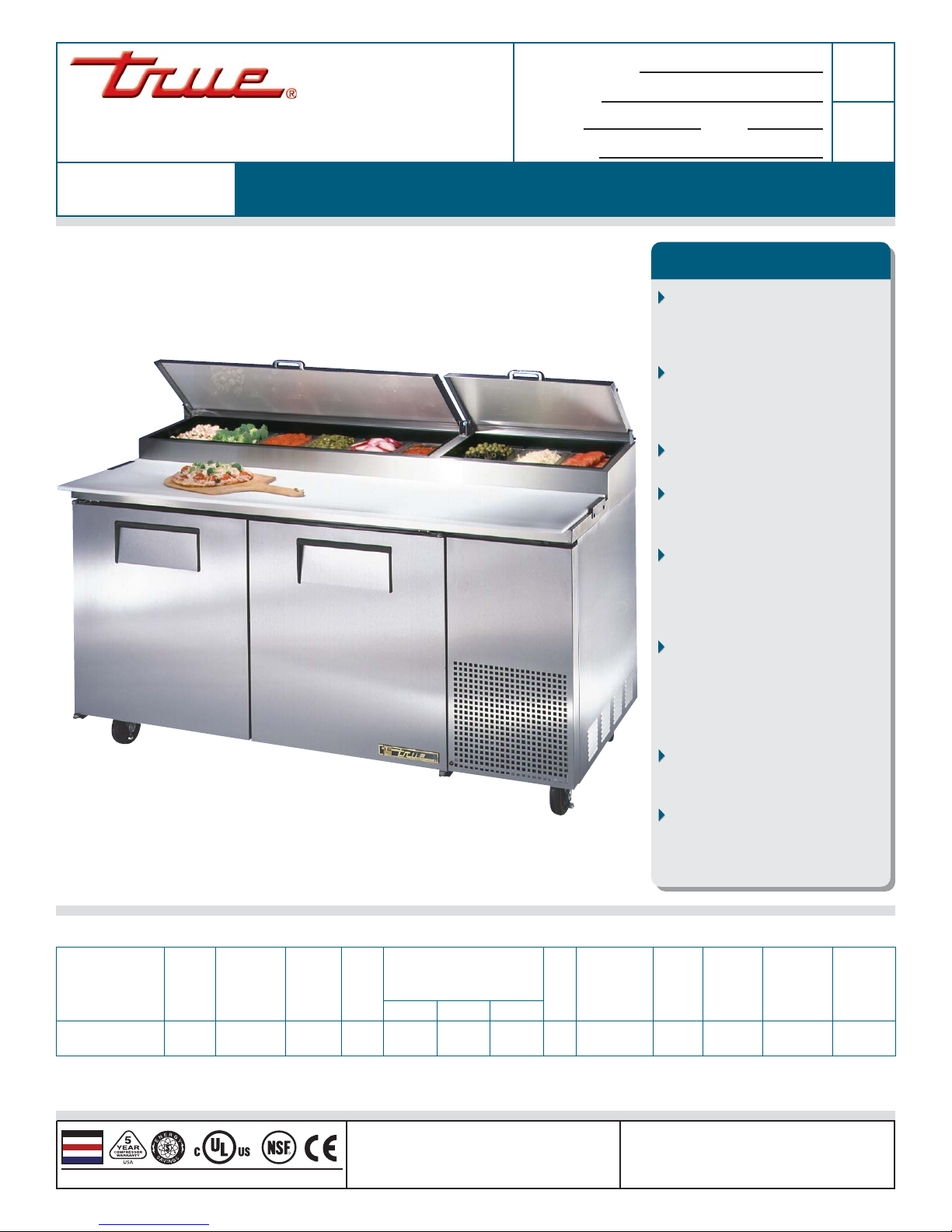

True’s pizza prep tables are
designed with enduring quality
that protects your long term
investment.
Oversized, environmentally
friendly (R134A) forced-air
refrigeration system holds 33°F
to 41°F (.5°C to 5°C).
Complies with and listed under
ANSI/NSF-7-1997-6.3.
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Stainless steel, patented,
foam insulated flat lids keep
pan temperatures colder, lock
in freshness, and minimize
condensation.
Extra-deep 191/2" (496 mm)
full length removable cutting
board included. Sanitary, high-
density, NSF approved white
polyethylene provides tough
preparation surface.
Foamed-in-place, high density
polyurethane insulation (CFC
free).
Heavy duty PVC coated wire
shelves.
Pizza Prep Table:
Solid Door Refrigerator
®

STANDARD FEATURES
Model:
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D

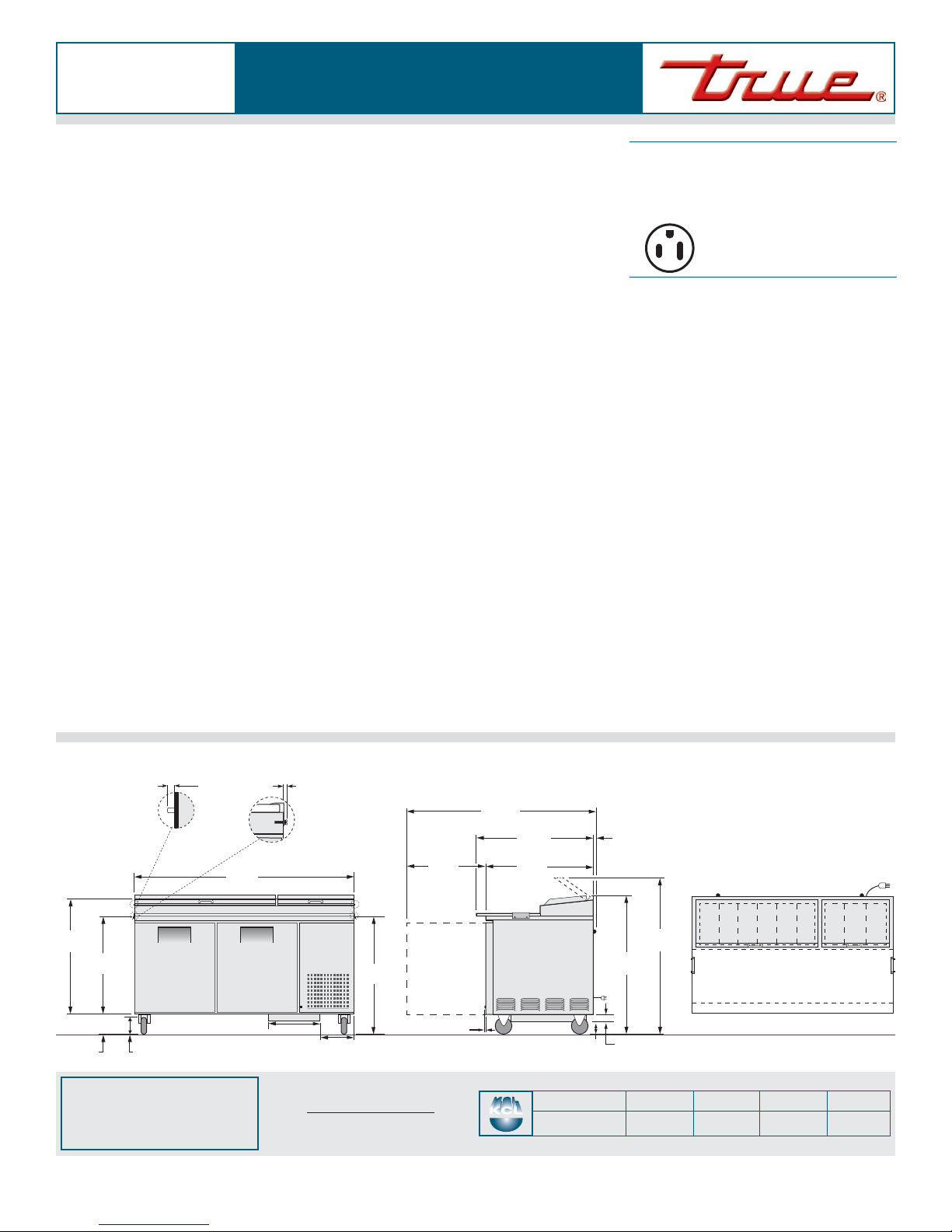

PLAN VIEW
KCL
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
25/8"
(67 mm)
39/16"
(91 mm)
259/32"
(643 mm)
ELEVATION
123/4"
(324 mm) 81/4"
(210 mm)
1/4"
(7 mm)
TPP-67 TFQY11E TFQY15S TFQY11P TFQY113
TPP-67
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained
capillary tube system using
environmentally friendly (CFC free) R134A
refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide
uniform temperature in food pan rail and
cabinet interior.
• Forced-air design holds 33°F to 41°F
(.5°C to 5°C) product temperature in food
pans and cabinet interior. Complies with
and listed under ANSI/NSF-7-1997-6.3.
• Condensing unit accessed from front
behind removable panel on right hand
side of cabinet, slides out for easy
maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum
finished back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor
with coved corners.
• Insulation - entire cabinet structure and
solid doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.
• 5" (127 mm) diameter stem castors. 36"
(915 mm) work surface height.
DOORS
• Stainless steel exterior with white
aluminum liner to match cabinet interior.
• Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
• Doors swing within cabinet dimensions.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Four (4) adjustable, heavy duty PVC
coated wire shelves 23
5
/ 8 "L x 28"D
(601 mm x 712 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on
1
/ 2 " (13 mm) increments.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• Extra-deep 19
1
/ 2 " (496 mm) full length
removable cutting board included.
Sanitary, high-density, NSF approved
white polyethylene provides tough
preparation surface.
• Stainless steel, patented, foam insulated
flat lids keep pan temperatures
colder, lock in freshness, and minimize
condensation.
• Refrigerated pan rail comes standard with
nine (
1
/ 3 size) 12
3
/ 4 "L x 6
1
/ 4 "W x 6"D
(324 mm x 159 mm x 153 mm) NSF
approved clear polycarbonate insert pans.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒3" (85 mm) diameter castors
❒ Garnish racks.
❒ Pizza prep service shelf.
❒ Single utility shelf.
❒ Double utility shelf.
❒ 19
1
/ 2 " (496 mm) deep,
1
/ 2 " (13 mm) thick,
white polyethylene cutting board.
❒ 19
1
/ 2 " (496 mm) deep,
1
/ 2 " (13 mm) thick,
composite cutting board.
❒ Half bun tray racks. Each holds up to
eleven 18"L x 26"D (158 mm x 661 mm)
sheet pans (sold separately).
❒ Exterior round digital thermometer
(factory installed).
❒ Remote cabinets (condensing unit
supplied by others; system comes standard
with 404A expansion valve and requires
R404A refrigerant), consult factory
technical service department for BTU
information.
115/60/1
NEMA-5-15R
RIGHT VIEW
Pizza Prep Table:
Solid Door Refrigerator
PAN LAYOUT
671/4"
(1709 mm)
4911/16"
(1263 mm)
417/8"
(1064 mm)
3511/16"
(907 mm)
321/4"
(820 mm)
355/32"
(893 mm)
5817/32"
(1487 mm)
1"
(26 mm)
293/4"
(756 mm)
63/16"
(158 mm)
3515/16"
(913 mm)
1/4"
(7 mm)
each side
for lid pins
1/4"
(7 mm)
each side for
Cutting Board
Brackets and
Thumb Screws
5"
(127 mm)
