ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TSSU-48-12D-4
TSSU-48-12D-4
Model Drawers
Capacity
(Cu. Ft.)
(liters)
Pans
(top)
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TSSU-48-12D-4 4 12.0
340
12 483/8
1229
301/8
766
363/4
934
1/3
1/3
115/60/1
230-240/50/1
8.6
4.2
5-15P
▲
7
2.13
335
152
†Depth does not include 1" (26 mm) for rear bumpers. ▲Plug type varies by country.
*Height does not include 61/4"(159 mm) for castors or 6"(153 mm) for optional legs.
7/06
R
Food Prep Table:
Drawered Sandwich/Salad Unit
True’s salad/sandwich units are
designed with enduring quality
that protects your long term
investment.
Oversized, environmentally
friendly (134A), patented
forced-air refrigeration system
holds 33˚F to 41˚F (.5˚C to 5˚C).
Complies with and listed under
ANSI/NSF-7-1997-6.3.
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Stainless steel, patented, foam
insulated lid and hood keeps
pans’ temperature colder, locks
in freshness and minimizes
condensation. Removable for
easy cleaning.
113/4" (299 mm) deep full
length removable cutting
board included. Sanitary,
high-density, NSF approved
white polyethylene provides
tough preparation surface.
Foamed-in-place, high density
polyurethane insulation (CFC
free).
Heavy-duty stainless steel
drawer slides and rollers.
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
KCL

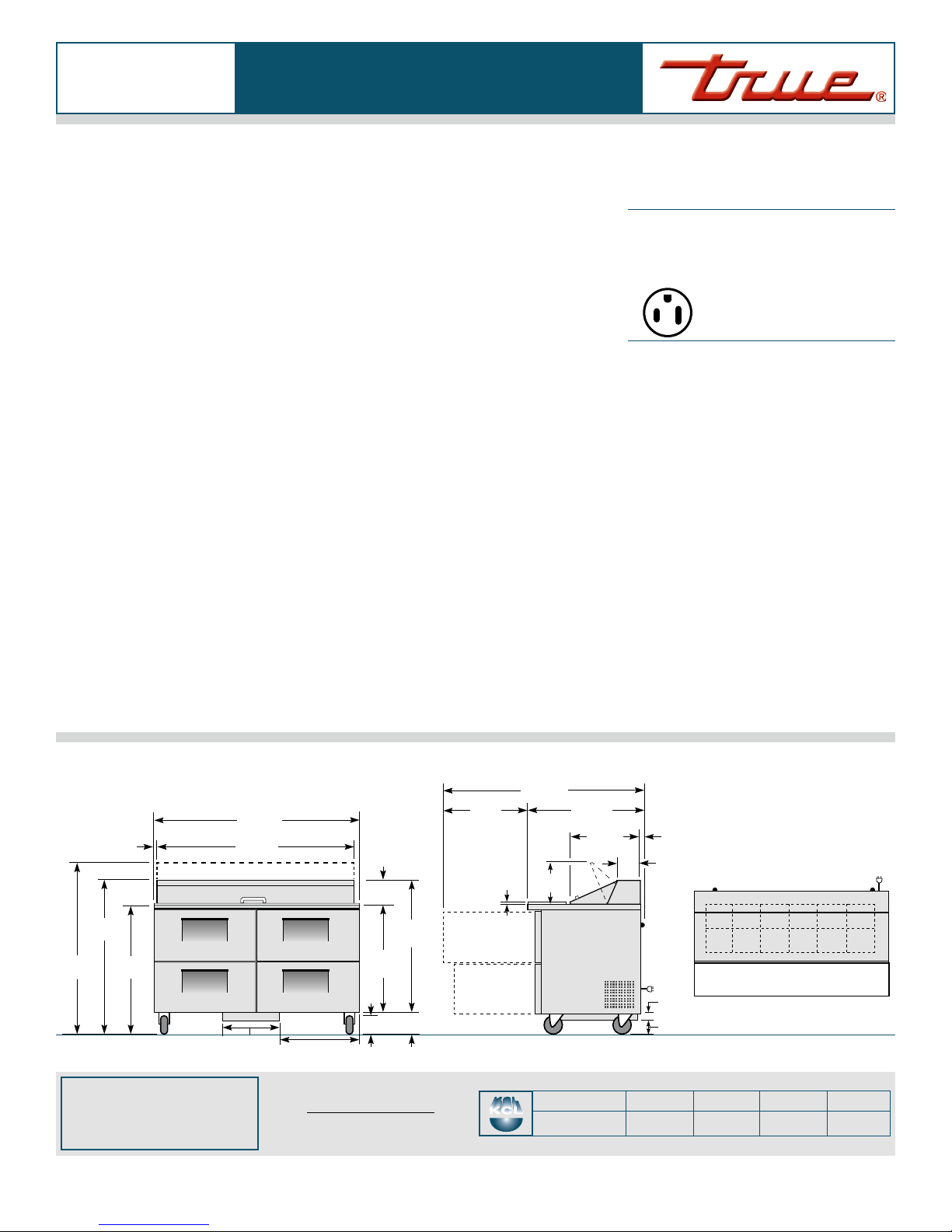

Model Elevation Right Plan 3D
PLAN VIEW
125/8"
(321 mm) 195/8"
(499 mm)
25/16"
(59 mm)
TSSU-48-12D-4 TFNY17E TFNY16S TFNY17P TFNY173
TSSU-48-12D-4
RIGHT VIEWELEVATION
485/16"
(1228 mm)
PAN LAYOUT
447/16"
(1129 mm)
117/32"
(39 mm) 7"
(178 mm)
5"
(127 mm)
293/4"
(756 mm)
4215/16"
(1091 mm)
311/16"
(789 mm)
185/16"
(466 mm)
61/8"
(156 mm)
103/4"
(274 mm)
4615/16"
(1193 mm)
Food Prep Table:
Drawered Sandwich/Salad Unit
1"
(26 mm)
3515/16"
(913 mm)
363/4"
(934 mm)
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using environmentally
friendly (CFC free) 134A refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide
uniform temperature in food pans and
cabinet interior.
• Patented, forced-air design holds 33˚F to
41˚F (.5˚C to 5˚C) product temperature in
food pans and cabinet interior. Complies
with and listed under ANSI/NSF-7-1997-6.3.
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True sandwich/salad units a
more efficient low velocity, high volume
airflow design.
• Condensing unit access in back of cabinet,
slides out for easy maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum finished
back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor
with coved corners.
• Insulation - entire cabinet structure and
drawer facings are foamed-in-place using
high density, CFC free, polyurethane
insulation.
• 5" (127 mm) diameter stem castors - locks
provided on front set. 36" (915 mm) work
surface height.
DRAWERS
• Stainless steel exterior with white
aluminum liner to match cabinet interior.
• Each drawer fitted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
• Magnetic drawer gaskets of one piece
construction, removable without tools for
ease of cleaning.
• Heavy-duty stainless steel drawer slides and
rollers. Removable without tools for easy
cleaning.
DRAWER PAN CAPACITY
• Each drawer accommodates one (1) full size
12"L x 18"W x 6"D (305 mm x 458 mm x
153 mm) food storage box (boxes supplied
by others) or one (1) 1/3size and one (1)
1/2size pan (sold separately).
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• 113/4" (299 mm) deep, full length
removable cutting board. Sanitary, high-
density, NSF approved white polyethylene
provides tough preparation surface.
• Stainless steel, patented, foam insulated
lid and hood keeps pans’ temperature
colder, locks in freshness and minimizes
condensation. Removable for easy
cleaning.
• NSF-7 compliant for open food product.
PAN CAPACITY
• Comes standard with 12 (1/6size) 67/8"L x
61/4"W x 4"D (175 mm x 159 mm x
102 mm) clear polycarbonate, NSF
approved, food pans in countertop prep
area. Also accommodates 6" (153 mm) and
8" (204 mm) deep food pans (supplied by
others).
• Countertop pan opening designed to
fit varying size pan configurations with
available pan divider bars. Varying pans
supplied by others.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply
❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒ Basic overshelf.
❒ Sandwich/salad service shelf.
❒ Single utility shelf.
❒ Double utility shelf.
❒ Sneezeguard.
❒ 113/4" (299 mm) deep, 1/2" (13 mm) thick,
composite cutting board. Requires “L”
brackets.
❒ Crumb catcher. Requires crumb catcher
cutting board for proper installation.
❒ Pan dividers.
❒ Exterior rectangular digital thermometer
(factory installed).
❒ADA compliant models with 34" (864 mm)
work surface height.
❒ Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical
service department for BTU information.
115/60/1
NEMA-5-15R
157/8"
(404 mm)
37/8"
(99 mm)
4611/16"
(1186 mm)
63/16"
(158 mm)
1/2"
(13 mm)
