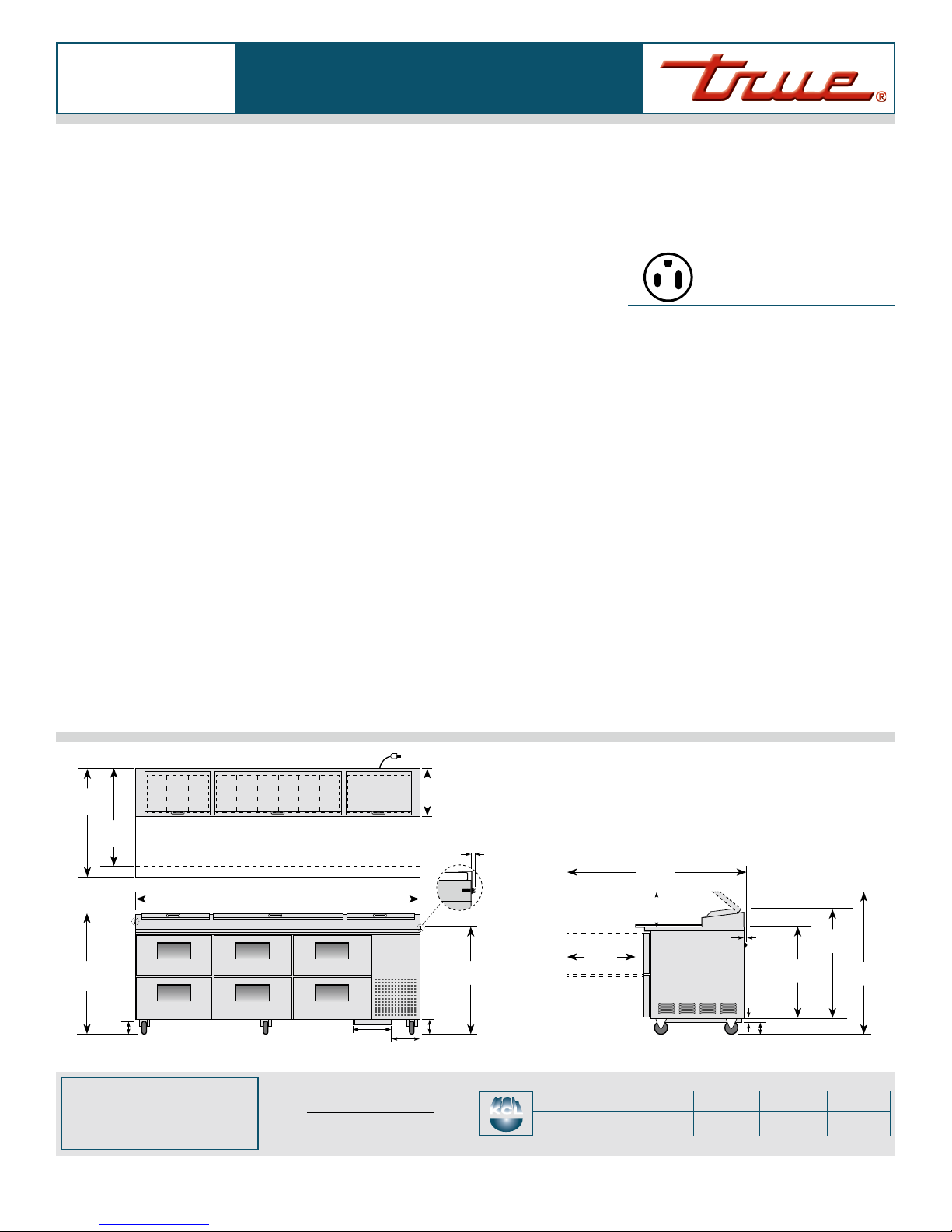

True TPP-93D-6 User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TPP-93D-6
TPP-93D-6
Model Drawers
Capacity
(Cu. Ft.)
(liters)
Pans
(top)
Cabinet Dimensions
(inches)
(mm)
L** D†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TPP-93D-6 6 30.9
875
12 931/4
2369
321/4
820
353/4
909
1/2
1/2
115/60/1
230-240/50/1
9.7
4.2
5-15P
▲
7
2.13
695
316
** Length does not include 1/4
" (7 mm) each side for cutting board brackets and thumb screws. ▲Plug type varies by country.
†Depth does not include 1
" (26 mm) for rear bumpers and 3 " (77 mm) for cutting board.
*Height does not include 61/4
" (159 mm) for castors or 6 " (153 mm) for optional legs.
1/07
R
True’s pizza prep tables are
designed with enduring quality
that protects your long term
investment.
Oversized, environmentally
friendly (R134A) forced-air
refrigeration system holds
33°F to 41°F (.5°C to 5°C).
Complies with and listed under
ANSI/NSF-7-1997-6.3.
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Stainless steel, patented, foam
insulated flat lids keep pans’
temperatures colder, lock
in freshness and minimize
condensation.
Extra-deep 191/2" (496 mm)
full length removable cutting
board included. Sanitary, high
density, NSF approved white
polyethylene provides tough
preparation surface.
Foamed-in-place, high density
polyurethane insulation (CFC
free).
Each drawer accommodates (2)
full size 12"L x 20"D x 8"H
(305 mm x 208 mm x 204 mm)
pans (sold separately).
Pizza Prep Table:
Drawered Refrigerator
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
1/4"
(7 mm)
each side for
Cutting Board
Brackets and
Thumb Screws
ELEVATION
TPP-93D-6 TFQY43E TFQY43S TFQY43P TFQY433
TPP-93D-6
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures,
lower utility costs, exceptional food
safety and the best value in today’s
food service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained
capillary tube system using
environmentally friendly (CFC free)
R134A refrigerant.
• Oversized, factory balanced
refrigeration system with guided
airflow to provide uniform temperature
in food pan rail and cabinet interior.
• Forced-air design holds 33°F to 41°F
(.5°C to 5°C) product temperature
in food pans and cabinet interior.
Complies with and listed under ANSI/
NSF-7-1997-6.3.
• Condensing unit accessed from front
behind removable panel, slides out for
easy maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum
finished back.
• Interior - attractive, NSF approved,
white aluminum liner. 300 series
stainless floor with coved corners.
• Insulation - entire cabinet structure
and drawer facings are foamed-in-
place using high density, CFC free,
polyurethane insulation.
• 5" (127 mm) diameter stem castors. 36"
(915 mm) work surface height.
DRAWERS
• Stainless steel exterior with white
aluminum liner to match cabinet
interior.
• Each drawer fitted with 12" (305 mm)
long recessed handle that is foamed-
in-place with a sheet metal interlock to
ensure permanent attachment.
• Magnetic drawer gaskets of one piece
construction, removable without tools
for ease of cleaning.
• Heavy-duty stainless steel drawer slides
and rollers. Removable without tools
for easy cleaning.
DRAWER PAN CAPACITY
• Each drawer accommodates (2) full size
12"L x 20"W x 8"D (305 mm x 508 mm
x 204 mm) food pans (sold separately).
Drawer will support varying pan
configurations with pan dividers bars
(drawer pans and divider bars optional).
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• Extra-deep 191/2" (496 mm), full length
removable cutting board included.
Sanitary, high-density, NSF approved
white polyethylene provides tough
preparation surface.
• Stainless steel, patented, foam insulated
flat lids keep pans’ temperature
colder, lock in freshness and minimize
condensation.
• Refrigerated pan rail comes standard
with twelve (1/3size) 123/4"L x 61/4"W x
6"D (324 mm x 159 mm x 153 mm) NSF
approved clear polycarbonate insert
pans.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for final connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒3" (85 mm) diameter castors.
❒ Garnish racks.
❒ Pizza prep service shelf.
❒ Single utility shelf.
❒ Double utility shelf.
❒ 191/2" (496 mm) deep, 1/2" (13 mm)
thick, white polyethylene cutting
board.
❒ 191/2" (496 mm) deep, 1/2" (13 mm),
composite cutting board.
❒ Pan dividers.
❒ Exterior round digital thermometer
(factory installed).
❒ Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant).
Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R
RIGHT VIEW
Pizza Prep Table:
Drawered Refrigerator
931/4"
(2369 mm)
3515/16"
(913 mm)
63/16"
(158 mm)
123/4"
(324 mm)
155/8"
(397 mm)
321/4"
(820 mm)
355/32"
(893 mm)
417/8"
(1064 mm)
PLAN VIEW
81/4"
(210 mm)
1"
(26 mm)
587/8"
(1496 mm)
255/8"
(651 mm)
25/8"
(67 mm)
4911/16"
(1263 mm)
3511/16"
(907 mm)
293/4"
(756 mm)
39/16"
(91 mm)
133/4"
(350 mm)
5"
(127 mm)
