TurnOnGreen EV700 User manual

Installation
Guide
TurnOnGreenTM
EV700 Home Charger

2turnongreen.com
Important Safety Instructions
Save these instructions
1. Read and follow all warnings and instructions before installing and
operating theTurnOnGreen charging station. Install and operate only as
instructed. Failure to do so may lead to death, injury, or property damage, and
will void the Limited Warranty.
2. Only use licensed professionals to install your TurnOnGreen charging
station and adhere to all national and local building codes and standards.
Before installing the TurnOnGreen charging station, consult with a licensed
contractor, such as a licensed electrician, and use a trained installation expert
to ensure compliance with local building and electrical codes and standards,
climate conditions, safety standards, and all applicable codes and ordinances.
Inspect the charging station for proper installation before use.
3. Always ground the TurnOnGreen® charging station. Failure to ground the
charging station can lead to risk of electrocution or fire. The charging station
must be connected to a grounded, metal, permanent wiring system, or an
equipment grounding conductor shall be run with circuit conductors and
connected to the equipment grounding terminal or lead on the Electric Vehicle
Supply Equipment (EVSE). Connections to the EVSE shall comply with all
applicable codes and ordinances.
4. Install the TurnOnGreen charging station using a TurnOnGreen approved
method. Failure to install on a surface that can support the weight of the
charging station can result in death, personal injury, or property damage.
Inspect the charging station for proper installation before use.
5. This charging station is not suitable for use in hazardous locations. Do not
install EV700 near flammable, explosive, or combustible materials.
6. This device should be supervised when used around children.
7. Do not put fingers into the electric vehicle connector.
8. Do not use this product if the input power cable or EV charging cable is
frayed, has broken insulation, or any other signs of damage.
Call TurnOnGreen customer support immediately at 1-877-634-0982.
WARNING: This manual contains important instructions for EV700.
When using electric products, always follow basic precautions,
including the following.

turnongreen.com 3
9. Do not use this product if the enclosure or the EV connector is broken,
cracked, open, or shows any other indication of damage. Call TurnOnGreen
customer support immediately at 1-877-634-0982.
10. Use 105°C wire copper conductors only.
11. Do not operate EV700 in temperatures outside its operating range.
For charging stations set to 16-48 A, the range is -40˚F to 122˚F (-40˚C to 50˚C).
For charging stations set to 50 A, the range is -40˚ to 113˚F (-40 to 45˚C).
Important: Under no circumstances will compliance with the information in this
manual relieve the user of his/her responsibility to comply with all applicable
codes or safety standards. This document describes the most commonly used
installation and mounting scenarios. If situations arise in which it is not possible
to perform an installation following the procedures provided in this document,
contact TurnOnGreen, Inc. TurnOnGreen is not responsible for any damages
that may occur resulting from custom installations that are not described in this
document or for any failure to adhere to installation recommendations.
Product Disposal
The EV700 is electronic and therefore may not be disposed of as part of unsorted
domestic waste. Inquire with local authorities regarding proper disposal.
No Accuracy Guarantee
Commercially reasonable efforts were made to ensure that the specifications
and other information in this manual are accurate and complete at the time of its
publication. However, the specifications and other information in this manual are
subject to change at any time without prior notice.
Copyright and Trademarks
©2021 TurnOnGreen, Inc. All rights reserved. This material is protected by
the copyright laws of the United States and other countries. It may not be
modified, reproduced or distributed without the prior, express written consent
of TurnOnGreen, Inc. TurnOnGreen is a U.S. and European Union registered
trademark and service mark of TurnOnGreen, Inc. and cannot be used without
the prior written consent of TurnOnGreen.

4turnongreen.com
(This page was intentionally left blank.)

turnongreen.com 5
Table of Contents
Package Contents ...................................................................................7
Tools .............................................................................................................8
Location Planning.....................................................................................9
Electrical Requirements for Plug In...................................................11
Mounting the EV700 ............................................................................12
Complete Installation ...........................................................................13
Limited Warranty .....................................................................................16

6turnongreen.com
(This page was intentionally left blank.)

turnongreen.com 7
a. b. c.
Package Contents

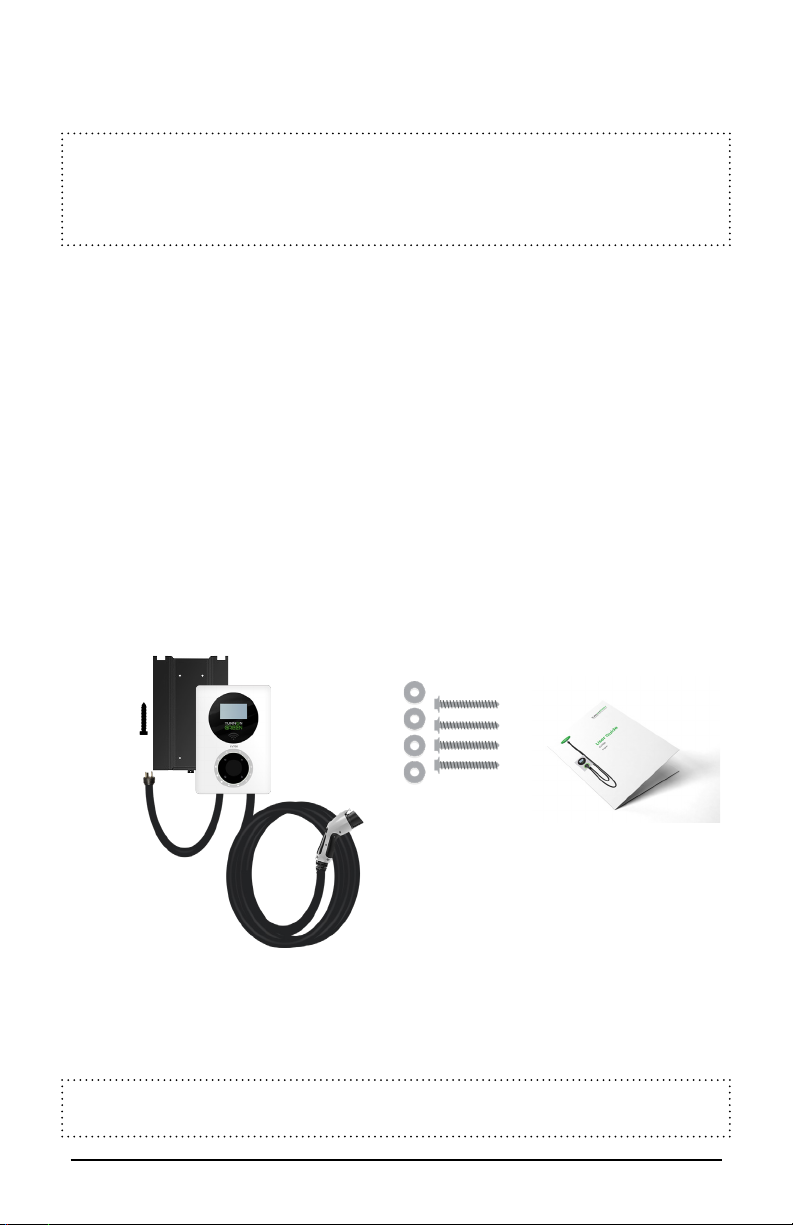

Check the box to ensure you have the Quick Start Guide, this installation
guide, and these parts:
a. Charging station
• Mounting Bracket
• Input Cable (2 ft.)
• Output Cable (18 ft./24 ft. optional)
• Device/Mounting Bracket Joiner Screw
b. Screws (4) and washers (4)
c. User Guide
Notice: If any of the items listed above are absent, contact us at1-877-634-0982.
Notice: The EV700 Home charging station requires a NEMA 6-50 outlet.
Contact an electrician if you do not have a NEMA 6-50 installed. If you do
not know where to find one, refer to the TurnOnGreen Quick Start Guide
or www.turnongreen.com/homeinstall for help.
NOTE: The EV700 contains no field serviceable parts. Do not attempt
to repair or service the unit yourself. Contact TurnOnGreen for repairs or
servicing.

8turnongreen.com
Tools
These additional tools will be helpful for a quick installation:
a. A NEMA-6-50 outlet
b. Measuring Tape
c. Pencil
d. Stud finer
e. Level
f. Drill
a.
d. e. f.
b. c.

turnongreen.com 9

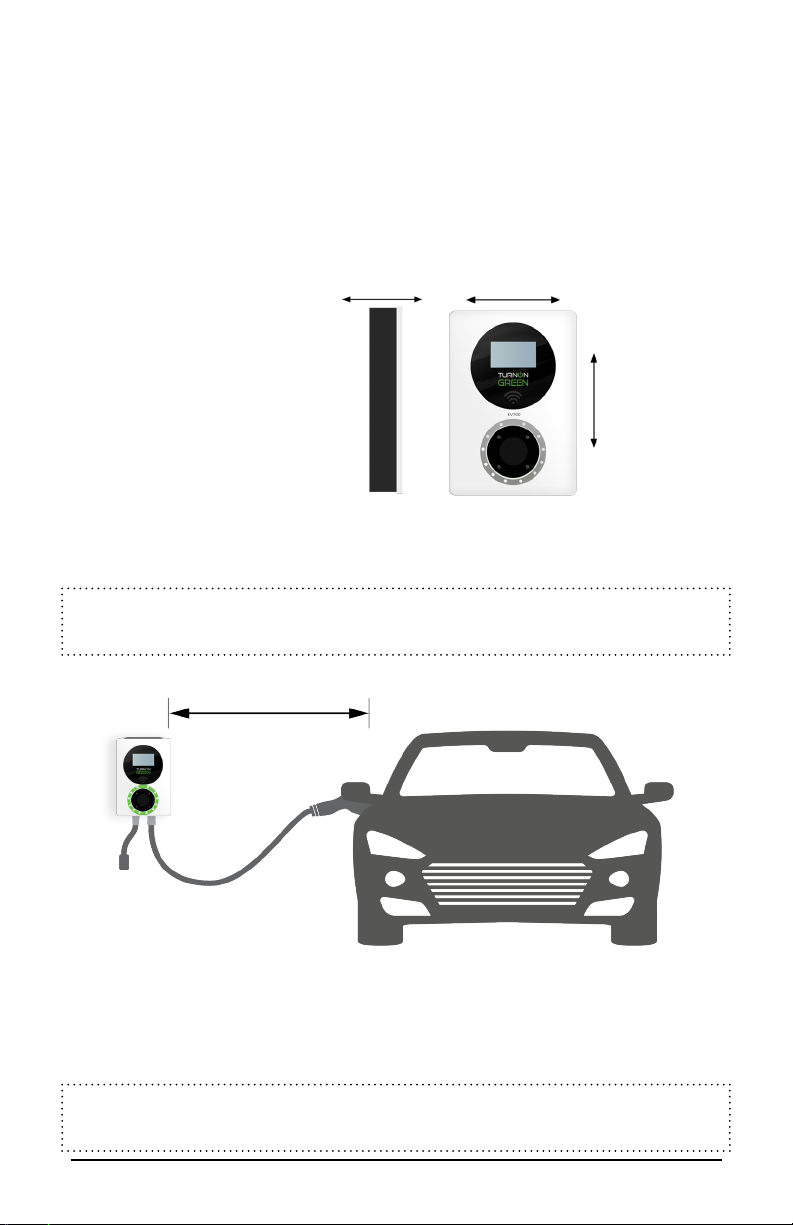

1. Be sure the area you have selected to mount your EV700 has sufficient
space to accomadate the device. See dimensions below.
Input Cable: 2 ft
Output Cable: 18 ft
(24 ft optional)
Depth: 4.5” inches
Width: 9.8” inches
Height: 14.9” inches
Location Planning
2. Be sure the property owner has selected a location for installation that
allows enough cable to reach the car, plus enough for remaining cable
slack. Verify that a stud is available for mounting the charging device.
Prior to installation, verify your site has a sufficient electrical
capacity and suitable location for mounting.
CAUTION: The circuit in use must be rated for 125% maximum load.
The EV700 is a continuous load device.
Notice: A plug-in install with a 50 amp is the only amperage allowed in
Canada.
4.5” 9.8”
14.9”
18-24 ft max

10 turnongreen.com
3. This charging station is not suitable for use in
hazardous locations. Do not install EV700 near
flammable, explosive, or combustible materials.
4. Be sure to install this device in an area that
is inaccesible to children.
5. Failure to install this device on a surface that can support the weight of
the charging station, cables, and necessary cable movement could result
in personal injury or property damage.
WARNING: When installing outdoors, be sure the electrical outlet in use
is weather-resistant and is outdoor-rated.

turnongreen.com 11
Electric Requirements for Plug In
DANGER: SHOCK RISK. Prior to wiring, make sure to turn off circuit
breaker to the 240 V outlet. Do not return power to outlet until
installation is complete. Failure to follow this step could result in
shock or electrocution.
The homeowner should know the final amperage of the circuit and the
expected charging rate available after activation. Discuss with your
electrician or power utility company.
1. Before installing the TurnOnGreen charging station, consult with a
licensed TurnOnGreen contractor or a licensed electrician, and use a
trained installation expert to ensure compliance with local building and
electrical codes and standards, climate conditions, safety standards, and
all applicable codes and ordinances. Inspect the charging station for
proper installation before use.
2. The EV700 is ready to be used out of the box if a 240V NEMA 6-50
outlet is available for use.
3. If a NEMA 6-50 outlet is not available, contact a licensed
electrician for installation.
4. The EV700 is a constant current charging device requiring
32 amps from the property’s main power source.
CAUTION: The circuit in use must be rated for 125% maximum load.
The EV700 is a continuous load device.
5. At minimum, it is recommended that a wire rated 600V/105°C,
8-gauge, 50-amp copper conductor is used to power the NEMA 6-50
outlet.
6. Ensure the electrical panel supports a 240V AC dedicated circuit with
a new, dedicated, non-GFCI two-pole circuit breaker, in accordance with
local codes and ordinances. Affix the label with the appropriate rating to
the circuit in the panel.
NEMA 6-50

12 turnongreen.com
2. Locate the stud closest to the NEMA 6-50 socket on which you wish to
mount the EV700. The mounting bracket allows for vertical or horizontal
screw installation.
2a. If your stud is visible, add an additional stud for
horizontal and verticle screw applications.
2b. If you are mounting on sheet rock wall, we recommend
using a 50lb hollow wall anchor at all four anchor points.
1. The bracket will need to be mounted independently of the EV700
charging device. Remove the joiner screw on the bottom side of the
device to separate the bracket.
Mounting the EV700
3. Place the mounting bracket
against the wall between 39-43
inches (990-1092mm) above
the ground.
4. Make sure the bracket is
evenly mounted using a level
tool, and make markings with a
pencil.
5. Drill pilot holes for each anchor screw.
6. Install the mounting bracket using the washers, and anchor screws.
39-43”

turnongreen.com 13

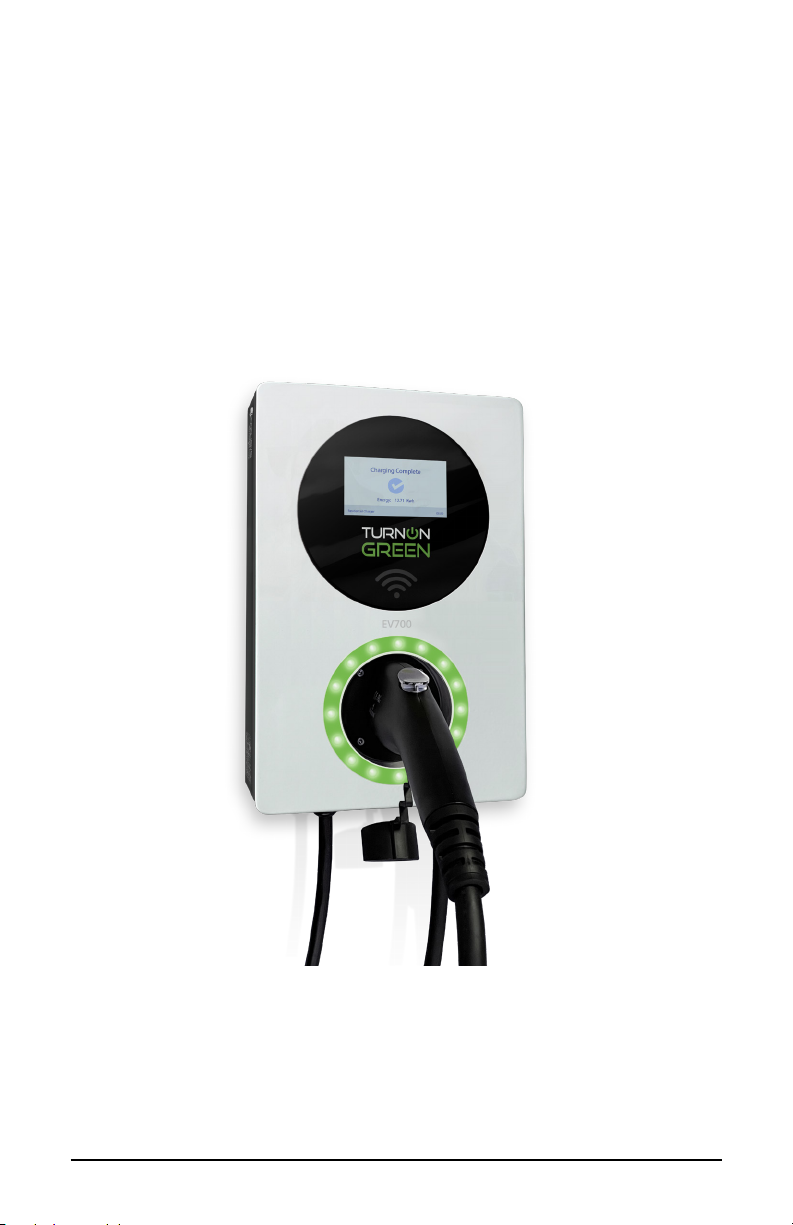

1. Hang the EV700 on the wall mounting bracket.
2 Reattach the device to the newly mounted bracket using the joiner
screw once again.
3. Extend the cable to its full length to remove any kinks or tension.
Complete Installation
4. Drape the charging cable over the top of the charging station and
dock the connector in its holster.
5. Restore power to the circuit at the electrical panel.
6. Plug the charging station into the outlet.
NOTE: Be mindful of the EV700 charging cable. Keep it positioned to
prevent trampling, tripping, or damage. (Example: Do not close a garage
door or drive over the charging cable.)

14 turnongreen.com

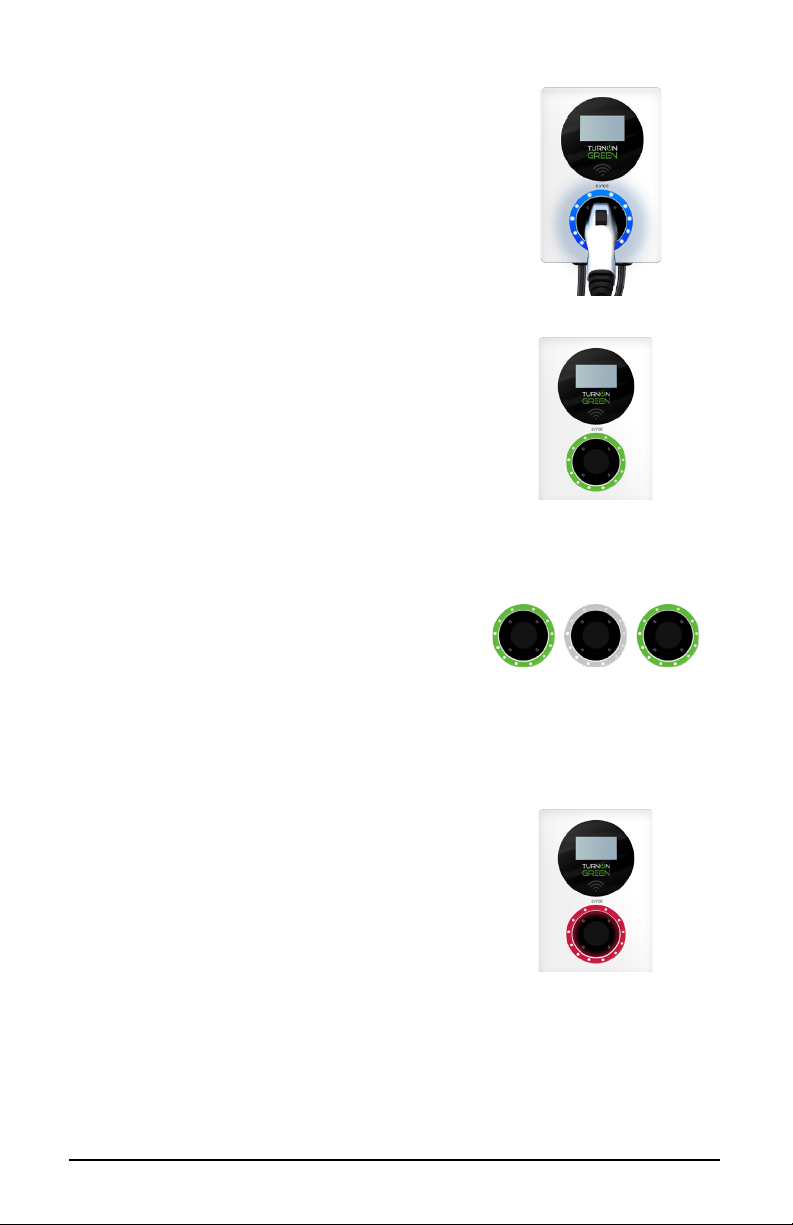

7.Watch to ensure that the front status light
glows solid blue. (indicates standby mode)
8. When the EV700 is plugged into your EV
the LED indicator will glow solid green.
9. Once the charger is activated the LED
lights will blink green to indicate that a
charge has been initiated.
10. In the event of a fault the LED light
indicator will glow solid red.
11. The EV700 is now ready for use.
See Quick Start Guide for details.

turnongreen.com 15
(This page was intentionally left blank.)

16 turnongreen.com
1. If at any time during the term of your Warranty you believe you have a
defective charging station, contact Customer Service at 1-877-634-0982 or
[email protected] and request a Return Material Authorization (“RMA”)
number from TurnOnGreen.
2. In connection with your RMA request, you will be asked for each of the
following:
3. If TurnOnGreen determines that the defect appears to be covered by your
Warranty and your Warranty is still in effect you will be provided a Returned
Material Authorization number (RMA number) to reference when returning the
defective charging station for repair or replacement.
4. Ship the defective charging station to TURNONGREEN and reference the RMA
number in the shipping documentation. The charging station must be returned
in its original shipping container or in another shipping container designed to
prevent damage to the charging station.
5. If your charging station is covered by your Warranty, TURNONGREEN will
either repair or replace the defective charging station at no charge to you and
ship the repaired or replaced charging station back to you at TURNONGREEN’s
expense.
• A detailed description of the problems you are experiencing with the
charging station;
• The model number and serial number of the charging station;
• Proof of purchase;and
• Shipping information
Limited Warranty
Our Promise
This Limited Warranty for TurnOnGreen EV700 Home Electric Vehicle
charging station (“Warranty”) applies to you, the original purchaser of a
new TURNONGREEN EV700 charging station (the “charging station”) from
TURNONGREEN solely for use by you at your residence. This warranty is not
transferrable and is valid for purchasers located in the U.S.A. and Canada only.
LIMITED THREE-YEAR PARTS EXCHANGE WARRANTY: Subject to the
exclusions from Warranty coverage set forth below, TURNONGREEN warrants
that, when used under normal operating conditions, your charging station will
be free from any defects in materials or workmanship for a period (the “Warranty
Period”)
of three (3) year from the date of original purchase. If, during the Warranty
Period, your charging station becomes defective in breach of the Warranty,
TURNONGREEN will, upon written notice of the defect received during the
Warranty Period, either repair or replace, at TURNONGREEN’s election, the
charging station. The Warranty covers both parts and factory labor necessary to
repair your charging station, but does not include any on-site labor costs related
to un-installing or reinstalling the repaired or replacement charging station.

turnongreen.com 17
You acknowledge that replacement parts or charging stations provided by
TURNONGREEN under the Warranty may be remanufactured or reconditioned
parts or charging stations or, if the exact charging station is no longer
manufactured by TURNONGREEN, a charging station with substantially similar
functionality (“Replacement Products”). All replaced parts, whether under
warranty or not, become the property of TURNONGREEN.
Any replacement parts or charging station so furnished will be warranted for
the remainder of the original Warranty Period or ninety days from the date
of delivery of such replacement parts or charging station, whichever is later.
Should TURNONGREEN be unable to repair or replace your charging station,
TURNONGREEN will refund the purchase price of the charging station to you.
IMPORTANT: The Warranty on your charging stations shall not apply to defects or
service repairs resulting from the following:
• Improper site preparation or maintenance, improper installation, cosmetic
damage such as scratches and dents, or normal aging.
• Abuse, vandalism, damage or other problems caused by accidents, misuse or
negligence (including but not limited to physical damage from being struck by
a vehicle), or use of the charging station in a way other than as specified in the
applicable TURNONGREEN documentation.
• Damage to the charging station caused by software, interfacing, parts, supplies
or any other product not supplied by TURNONGREEN.
• Installation, alteration, disassembly, modification, or relocation of the charging
station that was not approved in writing by TurnOnGreen or performed by
TurnOnGreen or by a licensed electrician pursuant to this guide.
• Damage as a result of extreme power surge, extreme electromagnetic field or
any acts of nature.
• Any other causes beyond the control of TURNONGREEN.
Replacement Parts or Charging Stations
Exclusions from Limited Product Warranty
1. You are responsible for the proper installation and maintenance of the
charging station including the un-installing of any defective charging station and
the installation of the repaired or replacement charging station returned to you.
2. Any service or repairs beyond the scope of the Warranty above will be
performed upon customer approval at TURNONGREEN’s then prevailing labor
rates and other applicable charges.
3. Any charging station that is found by TURNONGREEN to be out-of-warranty
or otherwise ineligible for warranty service will be returned, repaired or replaced
upon your approval at TURNONGREEN’s standard charges at your expense.
4. Please read carefully through the detailed descriptions of the WARRANTY, the
EXCLUSIONS FROM LIMITED PRODUCT WARRANTY, and the LIMITATIONS ON
WARRANTY AND LIABILITY on the following pages to assure that your charging
station is eligible for warranty service without additional cost to you.
Important

18 turnongreen.com
IN ADDITION: The Warranty on your charging station shall not apply if the
original identification markings (for example, serial numbers and trademarks)
have been defaced, altered or removed or if the charging station is used or
installed for any purpose other than for use at a single family residence.
NO AGENT OF TURNONGREEN IS AUTHORIZED TO ALTER OR EXCEED
THE WARRANTY OBLIGATIONS OF TURNONGREEN. THE REMEDIES IN
THIS LIMITED PRODUCT WARRANTY ARE YOUR SOLE AND EXCLUSIVE
REMEDIES. TURNONGREEN MAKES NO OTHER EXPRESS OR IMPLIED
WARRANTIES OTHER THAN THE WARRANTY SET FORTH ABOVE. ALL OTHER
WARRANTIES, INCLUDING WITHOUT LIMITATION ANY WARRANTY OF
DESIGN, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (EVEN
IF TURNONGREEN HAS BEEN INFORMED OF SUCH PURPOSE) OR AGAINST
INFRINGEMENT, ARE EXCLUDED TO THE EXTENT PERMITTED BY LAW. IF
ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED UNDER APPLICABLE
LAW, SUCH IMPLIED WARRANTY SHALL BE LIMITED IN DURATION TO THE
WARRANTY PERIOD DESCRIBED ABOVE. NO WARRANTIES APPLY AFTER
EXPIRATION OF THE WARRANTY PERIOD.
TURNONGREEN IS NOT LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT
LIMITATION LOST PROFITS, LOST BUSINESS, LOST DATA, LOSS OF USE, OR
COST OF COVER INCURRED BY YOU ARISING OUT OF OR RELATED TO YOUR
PURCHASE OR USE OF, OR INABILITY TO USE, THE CHARGING STATION,
UNDER ANY THEORY OF LIABILITY, WHETHER IN AN ACTION IN CONTRACT,
STRICT LIABILITY, TORT (INCLUDING NEGLIGENCE) OR OTHER LEGAL OR
EQUITABLE THEORY, EVEN IF TURNONGREEN KNEW OR SHOULD HAVE
KNOWN OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY EVENT, THE
CUMULATIVE LIABILITY OF TURNONGREEN FOR ALL CLAIMS WHATSOEVER
RELATED TO THE CHARGING STATION WILL NOT EXCEED THE PRICE YOU
PAID FOR THE CHARGING STATION. THE LIMITATIONS SET FORTH HEREIN ARE
INTENDED TO LIMIT THE LIABILITY OF TURNONGREEN AND SHALL APPLY
NOTWITHSTANDING ANY FAILURE OF ESSENTIAL PURPOSE OF ANY LIMITED
REMEDY.
Limitations on Warranty and Liability
Some states or jurisdictions do not allow the exclusion of express or implied
warranties or limitations on how long an implied warranty lasts, so the above
limitation may not apply to you.
Some states or jurisdictions do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may not apply to
you.
TURNONGREEN SPECIFICALLY DOES NOT WARRANT THAT ANY
TURNONGREEN SERVICES WILL BE ERROR FREE OR WILL OPERATE
WITHOUT INTERRUPTION.

turnongreen.com 19
Copyright and Trademarks
©2021 TurnOnGreen, Inc. All rights reserved. This material is protected by the copyright
laws of the United States and other countries. It may not be modified, reproduced or
distributed without the prior, express written consent of TurnOnGreen, Inc. TurnOnGreen
is a U.S. and European Union registered trademark and service mark of TurnOnGreen, Inc.
and cannot be used without the prior written consent of TurnOnGreen.
Additional Information
This Warranty shall be governed by and construed in accordance with the laws
of the State of California, U.S.A., exclusive of its conflict of laws principles. The
U.N. Convention on Contracts for the International Sale of Goods shall not apply.
This Warranty is the entire and exclusive agreement between you and
TURNONGREEN with respect to its subject matter, and any modification or
waiver of any provision of this statement is not effective unless expressly set
forth in writing by an authorized representative of TURNONGREEN.
