TW Steel ACE DIVER User manual

ACE DIVER
5030.D SWISS MADE MOVEMENT

Hour hand
Minute
counter
28
S
W
I
S
S
M
A
D
E
ACE DIVER
TW STEEL
Second
counter
Second
hand
Date
(0) position
Push-button A
Minute hand
Hour
counter
Crown / normal
crown position
Push-button B
USE OF THE CROWN
To adjust the time or set the date, unscrew
the crown anti-clockwise and pull the crown
out. Once you have set the date or time or
adjusted the chronograph second hand, push
the crown back to its normal position and
screw the crown clockwise back to the case.
MAINTENANCE
TW Steel uses the best materials and carries out
strict controls before the watch leaves the factory.
The way in which you wear or treat your TW Steel
will determine whether the appearance of the
watch is maintained in the future, or whether it will
deteriorate. In order to enjoy wearing your TW Steel
as long as possible, we include a number of tips: If
the watch comes into contact with hard or corrosive
materials, this can cause damage, which, if it occurs
regularly, will become clearly visible in the form of
scratches.
Your watch should be cleaned with a soft cotton cloth
that is not impregnated with any cleaning material.
Absolutely no cleaning materials should be used. It
is advisable to regularly polish your watch with a soft
cotton cloth. The watch is a precision mechanical
instrument and should be treated as such. Adjusting
the time or date, opening or closing the crown or
crowncap, should not be done roughly, but carefully.
TW Steel is a watch brand harmoniously combining both design and
innovation. ‘The Watch in Steel’ leads the oversized market with style and
quality guaranteed. TW Steel values the most important relationship of all
– the one with the consumer. To express this, we hereby give you all the
information that you need to enjoy your TW Steel watch to the fullest.
5030.D SWISS MADE MOVEMENT

CAUTION : IF THE CROWN IS NOT PRESSED IN PROPERLY, THE WATCH IS NO
LONGER WATERPROOF AND THE MOVEMENT CAN BE SERIOUSLY DAMAGED!
This watch uses a Ronda movement.
The following information relates to
this movement and its functions. In
case of repairs, guarantee claims and
questions concerning the functioning
of a watch, please contact us directly.
1
0
20
30
12
2
4
6
8
10
15
60
30
45
23

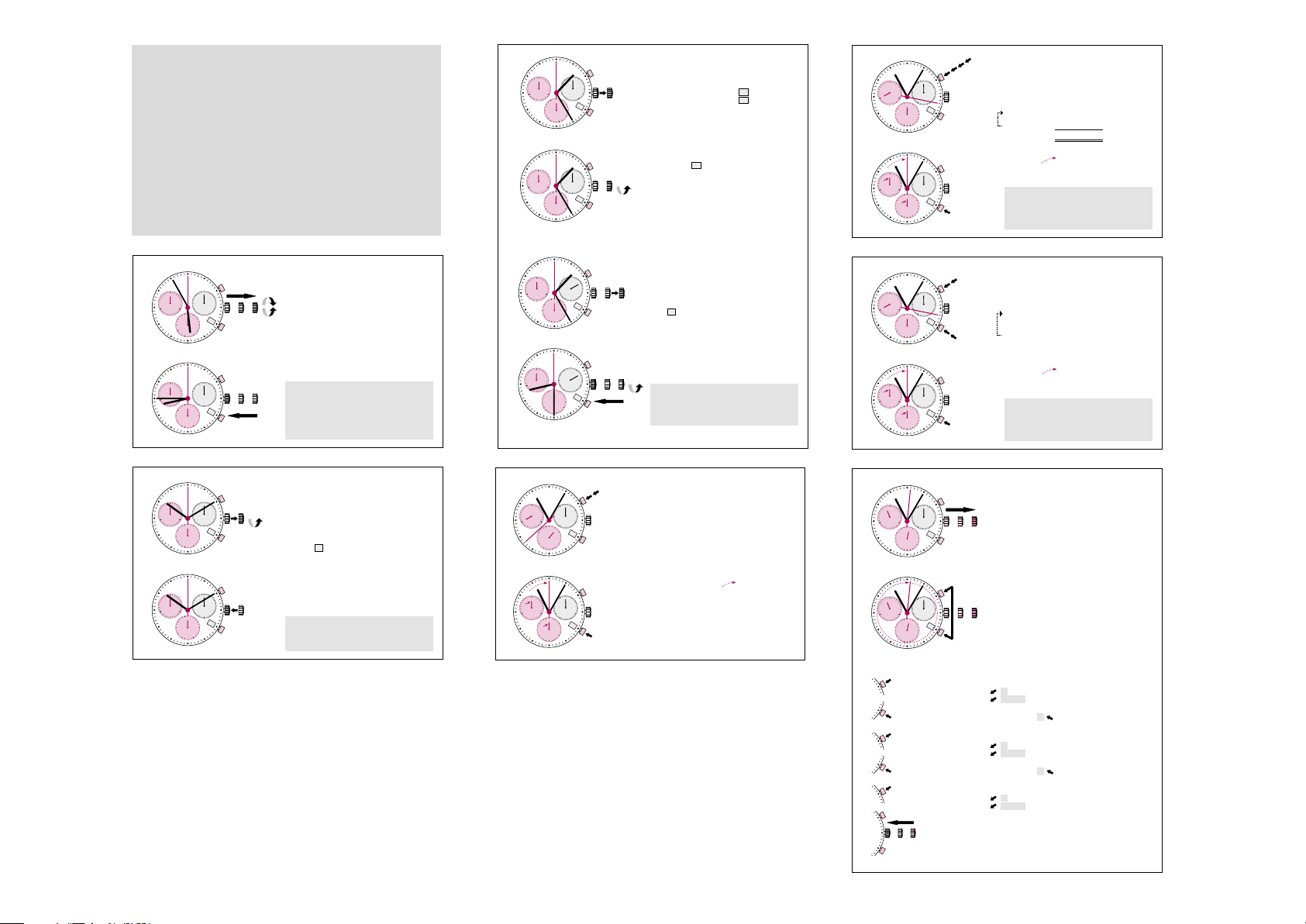

Description of the display and control buttons
