TWM LA Racer-40 User manual

Wing Span
Wing Area
Flying Weight
Fuselage Length
54 in / 1370 mm
5 lb / 2200 g
556 sq in / 35.9 sq dm
48 in / 1220 mm
*Specifications are subject to change without notice.*
INSTRUCTION MANUAL
Specifications
E
A
D
R
-
Y
T -
T
S
O
O
-
F
M
L
L
Y
A
-40
Require : 4 -channel w 5 servoss radio / standard
0.40-0.46 cu. in. displacement 2-stroke
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA

P.1
-40
Apply thread locker
Apply epoxy glue.
Pierce the shaded portion
covering film.
Apply instant glue
(C.A.glue, super glue.)
Ensure smooth non-bindin g
movement while assembling.
Do not overlook this symbol !
P. 3 -11
Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT
and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you
find to be defective after the gluing process may be difficult to remove for warranty replacement. The
manufacturer will replace any defective parts, but will not extend to the parts that are good before
gluing to defective parts during assembly. Warranty will not cover any parts modified by customer.
INDEX
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
P. 1
P. 2
P.11
BEFORE YOU BEGIN
Read through the manual before you begin, so you will have an overall idea of what to do.

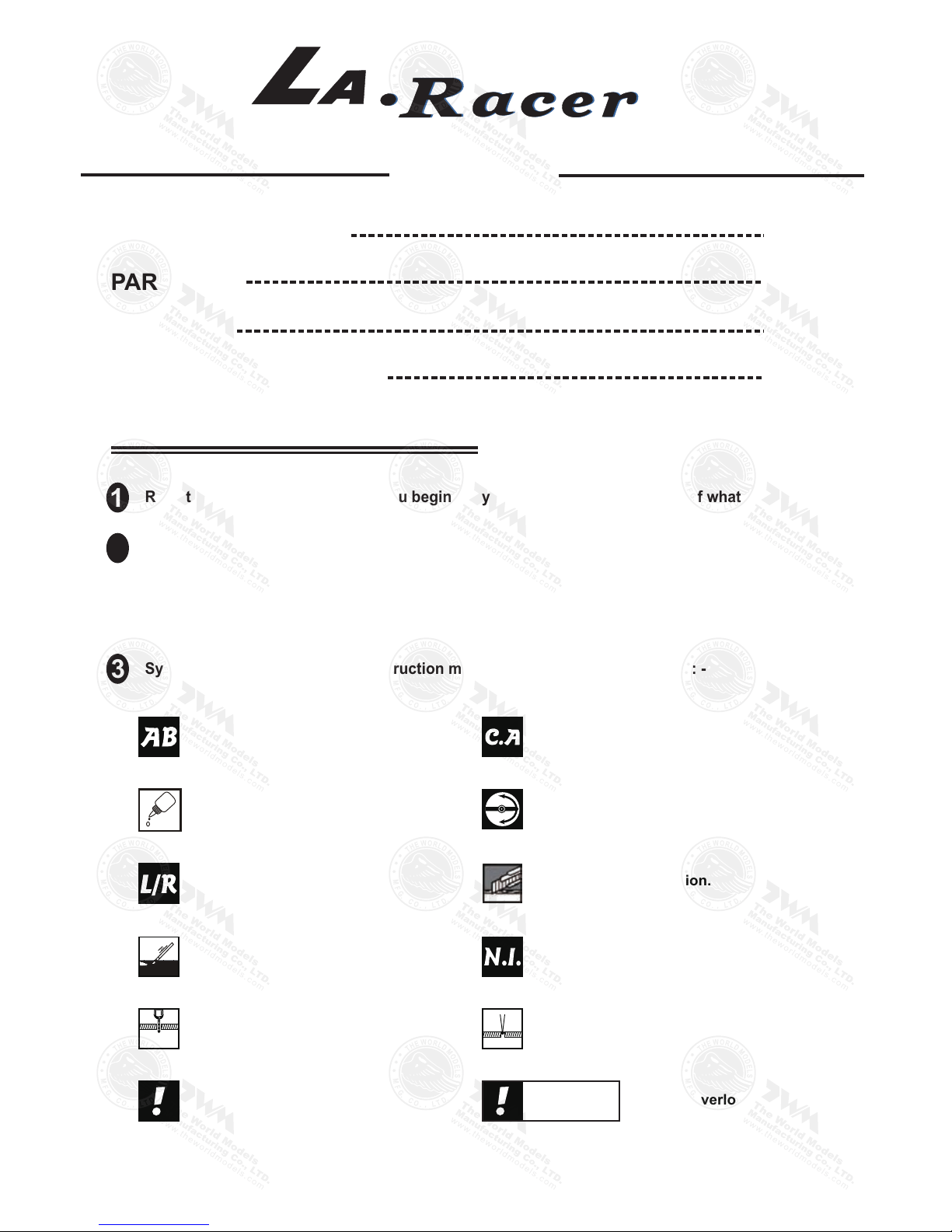

Symbols used throughout this instruction manual comprise of the following : -
1
2
3
Assemble left and right
sides the same way.
Peel off shaded portion
covering film.
Drill holes with the specified
diameter (here: 3mm) .
Pay close attention here!
Cut off shaded portion.
Must be purchased separately!
Warning!
3mm

P.2
COVERING:
BLACK COLOR SCHEME:
TOUGHLON STL100 WHITE
TOUGHLON STL201 BLACK
TOUGHLON STL311 FERRARI RED
TOUGHLON STL402 CHECKER(BLACK / WHITE)
TOUGHLON STL412 CHECKER(FERRARI RED / WHITE)
ORANGE COLOR SCHEME:
TOUGHLON STL100 WHITE
TOUGHLON STL311 FERRARI RED
TOUGHLON STL320 ORANGE
TOUGHLON STL412 CHECKER(FERRARI RED / WHITE)
TOUGHLON STL422 CHECKER(ORANGE / WHITE)
GREEN COLOR SCHEME:
TOUGHLON STL100 WHITE
TOUGHLON STL240 GREEN
TOUGHLON STL311 FERRARI RED
TOUGHLON STL412 CHECKER(FERRARI RED / WHITE)
TOUGHLON STL442 CHECKER(GREEN / WHITE)
BLUE COLOR SCHEME:
TOUGHLON STL100 WHITE
TOUGHLON STL250 BLUE
TOUGHLON STL311 FERRARI RED
TOUGHLON STL412 CHECKER(FERRARI RED / WHITE)
TOUGHLON STL452 CHECKER(BLUE / WHITE)

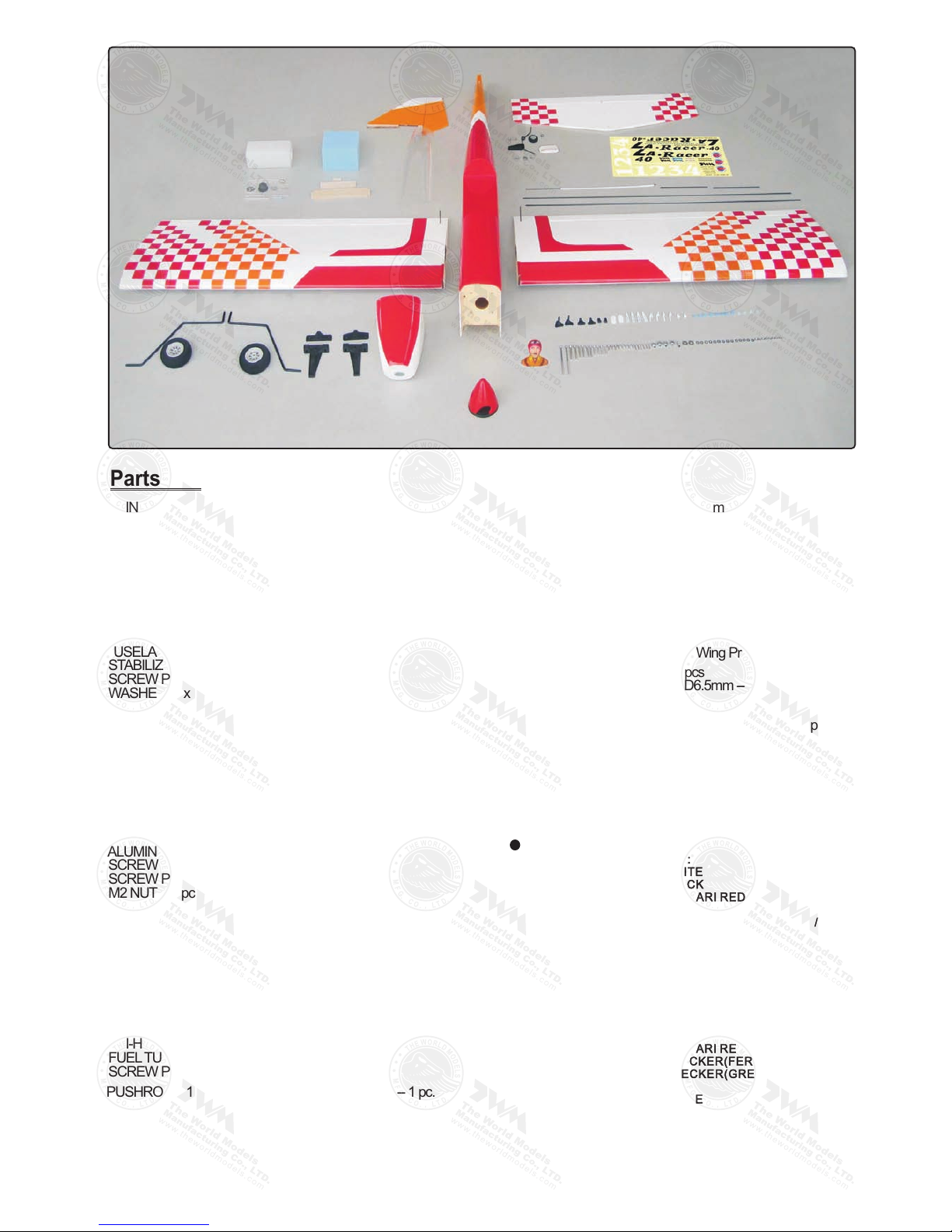

Parts List
1. MAIN WING -- 1 pair
2. WING JOINER 6x26x147mm -- 1 pc.
3. CLEVIS -- 2 pcs
STRAPER -- 2 pcs
FUEL TUBE Ø6x5mm -- 4 pcs
PUSHROD Ø1.8x135mm w/ Threads (For Aileron) -- 2 pcs
TRI-HORN M3x14mm (S) --2 sets
SCREW PB2x14mm -- 4 pcs
4. FUSELAGE -- 1 pc.
STABILIZER & ELEVATOR -- 1 set
SCREW PM3x25mm -- 2 pcs
WASHER d3xD7mm -- 2 pcs
5. VERTICAL FIN & RUDDER -- 1 set
6. MAIN LANDING GEAR -- 1 set
MAIN WHEEL Ø62mm -- 2 pcs
COLLAR Ø4.1mm w/ set screw -- 4 sets
MOUNTING PLATE 10x20mm (For Main Landing Gear) -- 2 pcs
SCREW PA3x10mm -- 4 pcs
7. TAIL LANDING GEAR -- 1 set
COLLAR Ø2.1mm w/ set screw -- 1 set
TAIL WHEEL Ø25mm -- 1 pc.
ALUMINUM REINFORCEMENT PLATE --1 pc.
SCREW PM2x12mm -- 1 pc.
SCREW PA3x8mm -- 2 pcs
M2 NUT -- 1 pc.
8. ENGINE MOUNT PL5111030 -- 1 set
SOCKET HEAD SCREW M3x20mm -- 4 pcs
WASHER d3xD7mm -- 4 pcs
9. FUEL TANK 260cc -- 1 set
BALSA 9x9x77mm (For Fuel Tank Position Fixing) -- 1 pc.
10. LINKAGE CONNECTOR Ø2.1mm w/ set screw -- 1 set
11. PUSHROD Ø1.8x700mm w/ Threads (For Elevator) -- 1 pc.
CLEVIS -- 1 pc.
TRI-HORN M3x14mm (S) -- 1 set
FUEL TUBE Ø6x5mm -- 1 pc.
SCREW PB2x12mm -- 3 pcs
12. PUSHROD Ø1.8x700mm w/ Threads (For Rudder) -- 1 pc.
CLEVIS -- 1 pc.
TRI-HORN M3x14mm (S) -- 1 set
FUEL TUBE Ø6x5mm -- 1 pc.
SCREW PB2x10mm -- 3 pcs
SCREW PB2x12mm -- 2 pcs
13. SOCKET HEAD SCREW M3x25mm -- 4 pcs
M3 NUT -- 8 pcs
WASHER d3xD7mm -- 8 pcs
THROTTLE PUSHWIRE Ø1.2x360mm -- 1 pc.
PLASTIC TUBE d2xD3x230mm -- 1 pc.
14. STRAPER -- 2 pcs
FUEL TUBE Ø6x5mm -- 2 pcs
SPONGE 60x70x80mm -- 1 pc.
15. SOCKET HEAD SCREW M4x30mm -- 2 pcs
WASHER d4xD12mm -- 2 pcs
PLYWOOD 2x22x78mm (For Wing Protection) -- 1 pc.
16. SCREW PWA2.3x8mm -- 4 pcs
SILICON GROMMET d1.5xD6.5mm -- 4 pcs
CANOPY -- 1 pc.
DOUBLE-SIDED TAPE -- 1 pc.
PC001063A (for blue and green color scheme) -- 1 pc.
PC001063B (for black and orange color scheme) -- 1 pc.
17. SCREW PWA2.6x12mm -- 4 pcs
SILICON GROMMET d1.5xD6.5mm -- 4 pcs
COWLING -- 1 pc.
SPINNER Ø52mm (PL2111052) -- 1 set
18. DECALSA235DEC -- 1 set

P.3
Main Wing
1
3
PB2x14mm Screw
4
Bottom View
Fuel Tube
Ø6x5mm
straper
PB2x14mm
Clevis
Tri-horn
M3x14mm
2mm
1.5mm
PB2x12mm
Aileron servo
lead
Main Wing
2
Wing Joiner 6 x 26 x 147mm
Completed
Please dry fit wing joiner into left and right wing to make sure they fit with the
proper dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to
both sides of all surfaces in contact. Use a stick to apply the glue to inner side
of wing joiner sleeve, and apply the glue to wing joiner before putting them
together. Wing joiner not glued properly will lead to wing failure and plane crash.
TWM PL8210010
CLEVIS WRENCH
PB2x12mm Screw
2
Pre-glued

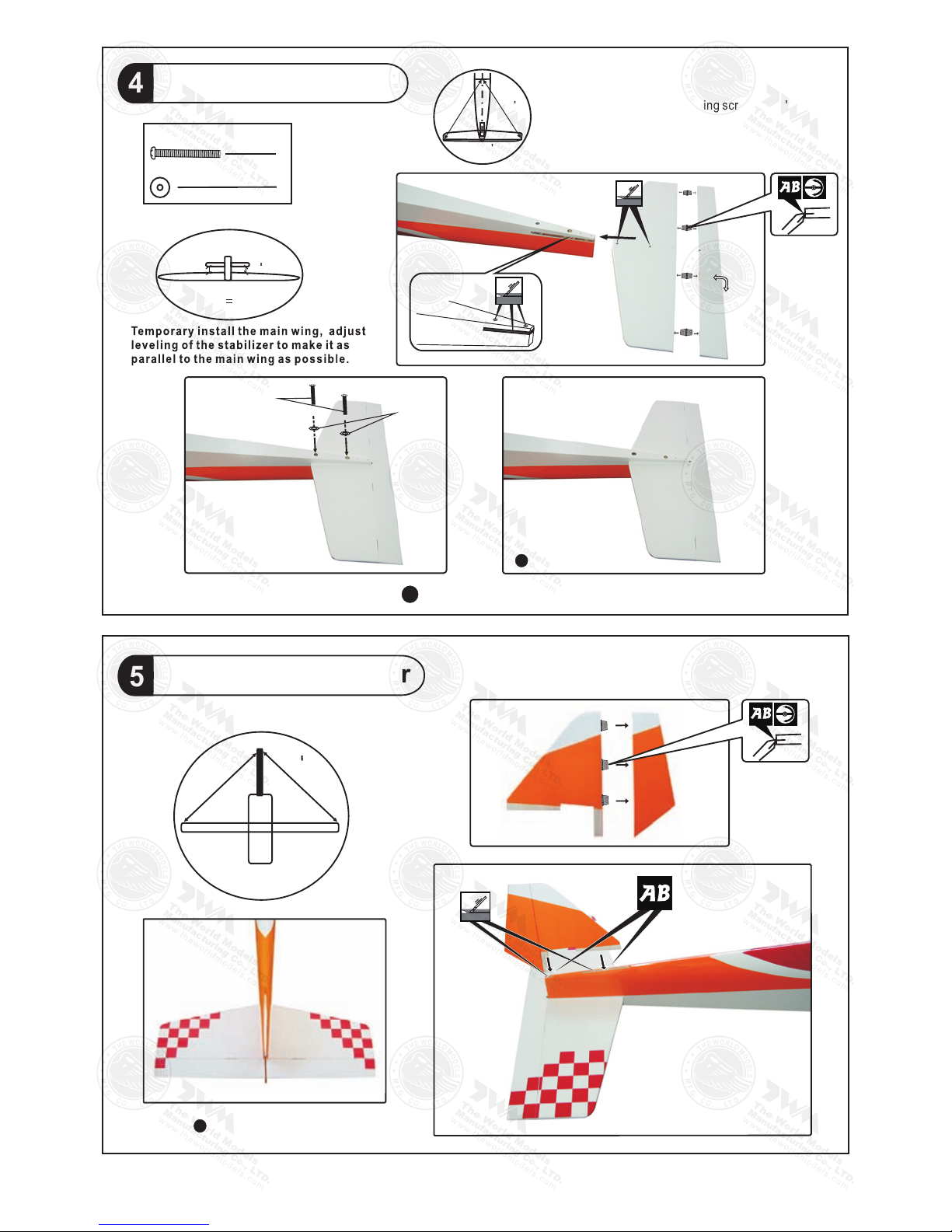

Stabilizer / Elevator
4
Bottom View
PM3 x 25mm Screw
2
2
d3 x D7mm Washer
Completed
Use thread locker when tightening screw. Don't use
excessive force as you are dealing with balsa.
P.4
d3 x D7mm
PM3 x 25mm
completed
5
Vertical Fin & Rudder
(Stabilizer)
(Main Wing)
BB'
B
B
A=A
A A
C=C'
CC
washer
Pre-glued
Pre-glued

6
PA3 x 10mm Screw
4
4.1mm Collar
4
P.5
PA3 x 10mm Plate
Bottom View
7
PA3 X 8mm
PA3 X 8mm Screw
2
PM2 x 12mm Screw
1
M2 Nut
1
2.1mm Collar
1
PM2 x 12mm
Aluminum
Reinforcement Plate
Completed
M3x 3mm Set Screw
4.1mm Collar
Bottom View
3mm Set Screw
2.1mm Collar
M2 Nut
1.5mm
1.5mm
2mm
Tail Landing Gear
Main Landing Gear

P.6
9
Servo Set
10
Fuel Tank
260cc
Balsa 9x9x77mm
(For
Position Fixing )
Fuel Tank
Bottom View
Balsa 9x9x77mm
(For ixing )Fuel Tank Position F
Fuel Tank
260cc
Fuel Tank
260cc
1
1
3x3mm Set Screw
Linkage Connector
M2 Nut
2mm Washer
1
2
Please refer to the attached sheet for linkage connector installation.
3X3mm Set Screw
Throttle Servo.
2mm
2mm
Washer
M2 Nut
2mm
Washer
d3 x D7mm Washer
M3 x 20mm Socket Head Screw
4
4
8
Blind nuts are off-centered to keep
the spinner at the fuselage axis.
Apply thread locker to screws.
Engine Mount
PL5111030
d3xD7mm
M3 x 20mm
UP
Fuel Tank
Engine Mount

Elevator Pushrod
11
PB2 x 12mm Screw
3
P.7
38mm
38mm
188mm
188mm
188mm
188mm
38mm
38mm

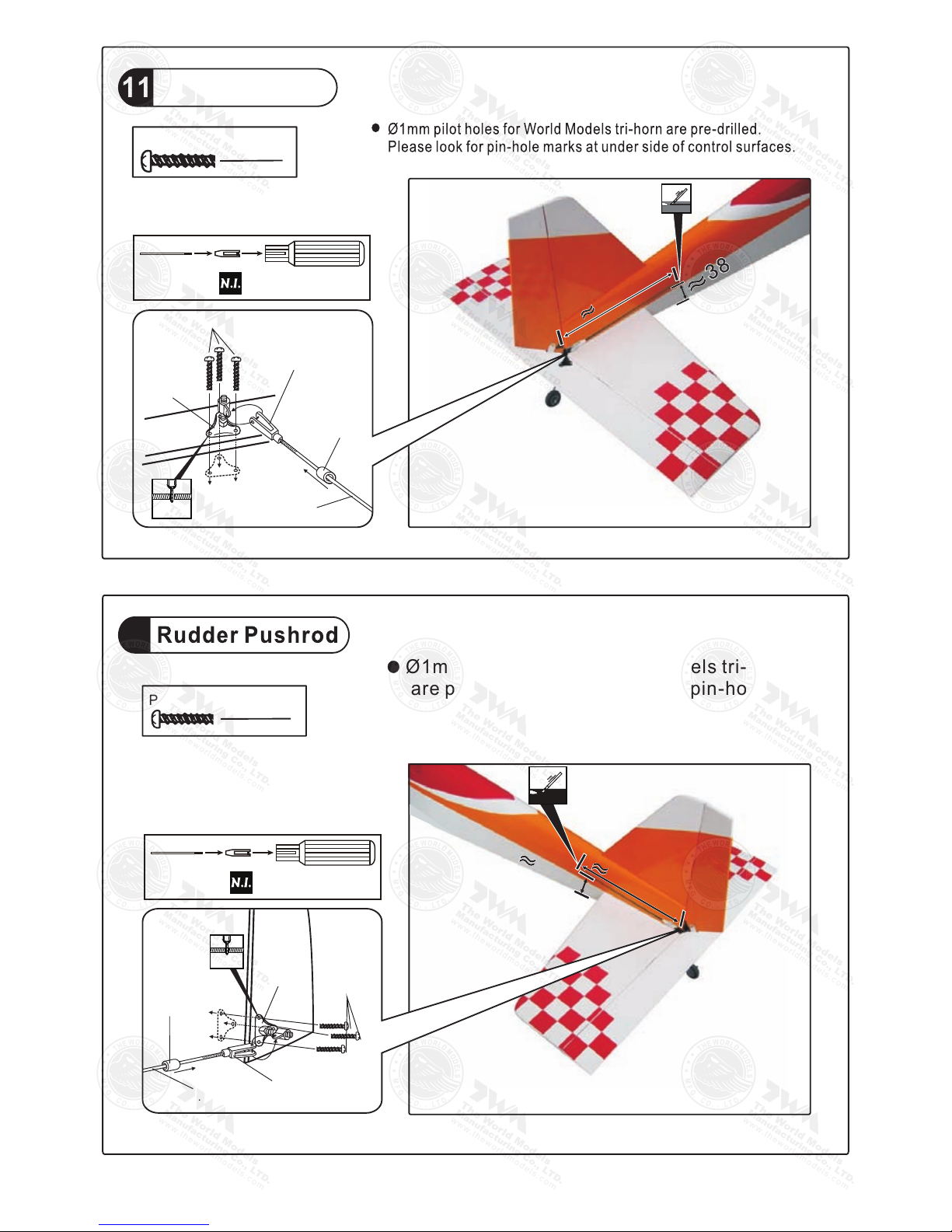

12
Ø1mm pilot holes for World Models tri-horn
are pre-drilled. Please look for pin-hole marks
at under side of control surfaces.
PB2 x 10mm Screw
3
Pushrod
Fuel Tube
Ø6x5mm
PB2x12mm
Tri-horn
M3x14mm
Clevis
Ø1.8x700mm
PB2x10mm
Pushrod
Ø1.8x700mm
Tri-horn
M3x14mm
Fuel Tube
Ø6x5mm
Clevis
2mm
2mm
TWM PL8210010
CLEVIS WRENCH
TWM PL8210010
CLEVIS WRENCH

P.8
d3 x D7mm Washer
M3 Nut
M3 x 25mm Socket Head Screw
4
8
8
13
M3 x 25mm
Throttle Pushwire
w/ plastic tube
100mm
3.9 in
d3 x D7mm
Washer
M3 Nut
d3 x D7mm
Washer

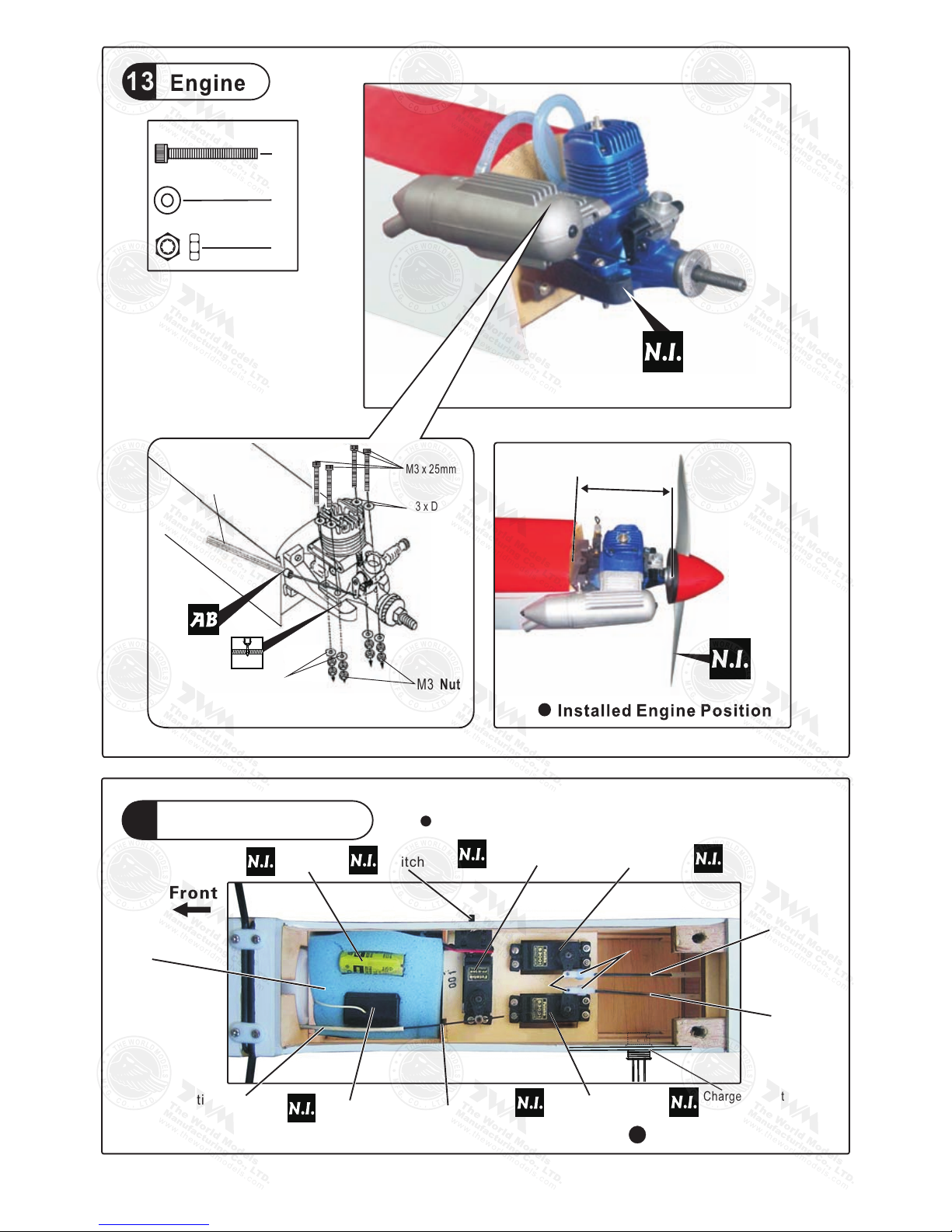

Install and arrange the servo as shown in the diagram.
Radio Equipment
14
Bottom View
Fuel Tube
Ø6 x 5mm
Fuel Tube
Ø6 x 5mm
Straper Straper
Throttle Servo Rudder Servo
Elevator Servo
P lastic Tube
d2 x D3 x 230mm Throttle Pushwire
Ø1.2x360mm
Sponge
Elevator
Pushrod
Rudder
Pushrod
Battery
Recevier
3.2mm
Charge Receptacles
KP0041300
Switch

P.9
d1.5 x D6.5mm Silicon Grommet
PWA2.3 X 8mm Screw
4
4
d4 x D12mm Washer
2
2

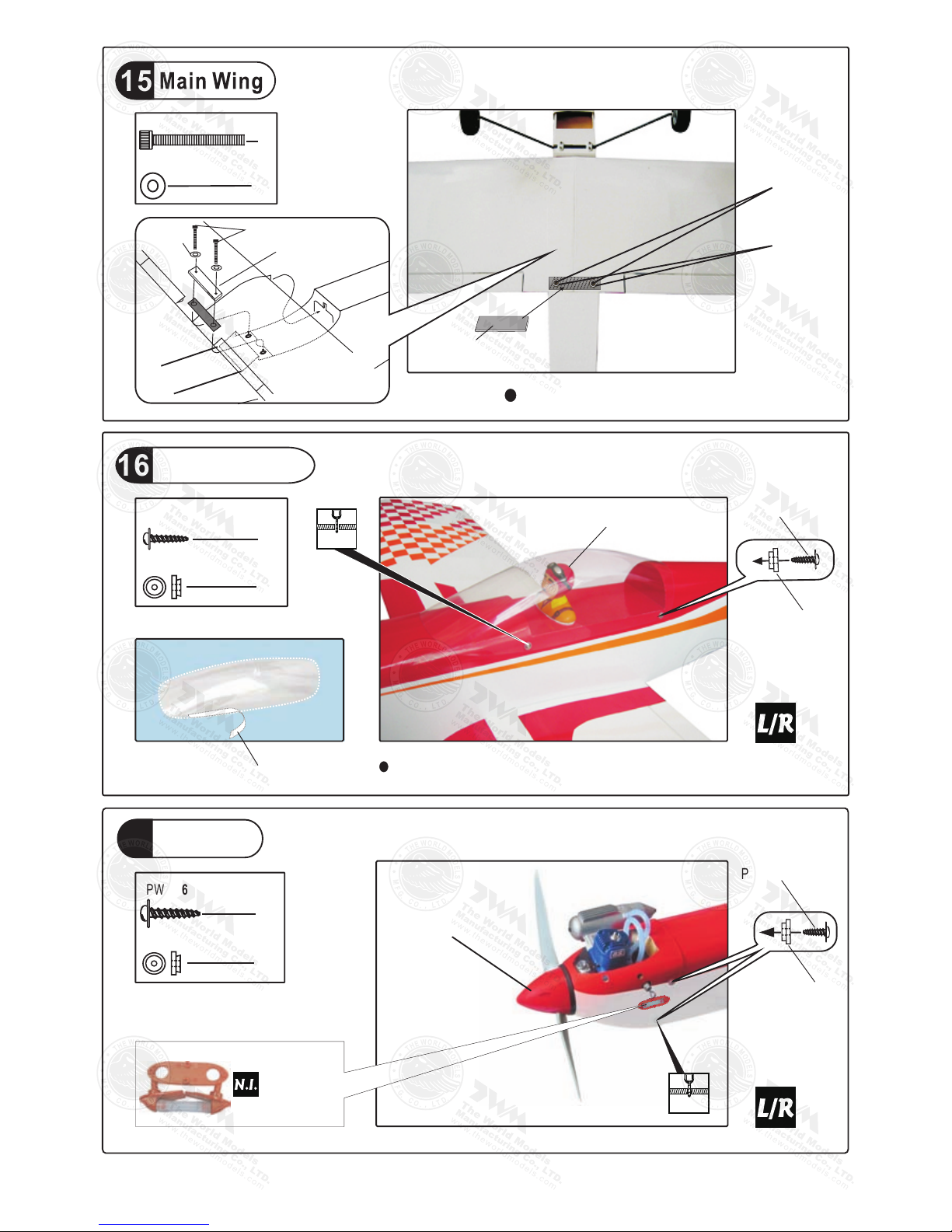

First insert the grommet to the canopy then apply screw.
15
Canopy & Pilot
16
d1.5 x D6.5mm
Silicon Grommet
PWA2.3 X 8mm
PM4 x 30mm
d4 x D12mm
Washer
Bottom View
18
17
Cowling
d1.5 x D6.5mm Silicon Grommet
PWA2.6 X 12mm Screw
4
4
PWA2.6 X 12mm
d1.5 x D6.5mm
Silicon Grommet
Spinner
Ø52mm
Pilot
Apply double-sided tape
M4 x 30mm
d4 x D12mm
Washer
Plywood
2x22x78mm
Plywood
2x22x78mm
1mm
1mm
M4 x 30mm Socket Head Screw
Fuel Filler
PL8110030

P.10
Wing Setting
18
Adjust the wing and fuselage configuration as shown in the diagrams.
A=A B=B C=C
C C
BB
A A

Adjust the control throws as shown in the
diagram. These throws are good for general
flying. You can adjust according to your
personal preference.
Control Throws
19
Important Safety Precautions
Warning!
P.11
A 235PO20480906
C.G.
20
-40
# First time flyer should never fly by himself / herself. Assistance from experienced
flyer is absolutely necessary.
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly
pre-adjusted aircraft.
# is specially designed to be powered by 2C 0.40-0.46 engine, using
a more powerful engine does not mean better performance. In fact, over powered
engine may cause severe damage and injuries.
# Make sure the air field is spacious, never fly the plane too close to people and never
get too close to a running propeller.
# If you find wrinkles on the covering as a result of weather changes, you can use hot
iron to remove the wrinkles. Please begin with lower temperature setting and
gradually raise the temperature until the wrinkles are gone. Too hot an iron may
damage the covering. Don't use hot iron near the seams or edges, hot iron will
melt the glue and shrink the covering at the same time, causing the seams to pull away.
# Check and re-tighten up all factory assembled screws, use thread locker if necessary.
6mm
6mm
Elevator
Rudder
Ailerons
15mm
15mm
20mm
20mm
85mm

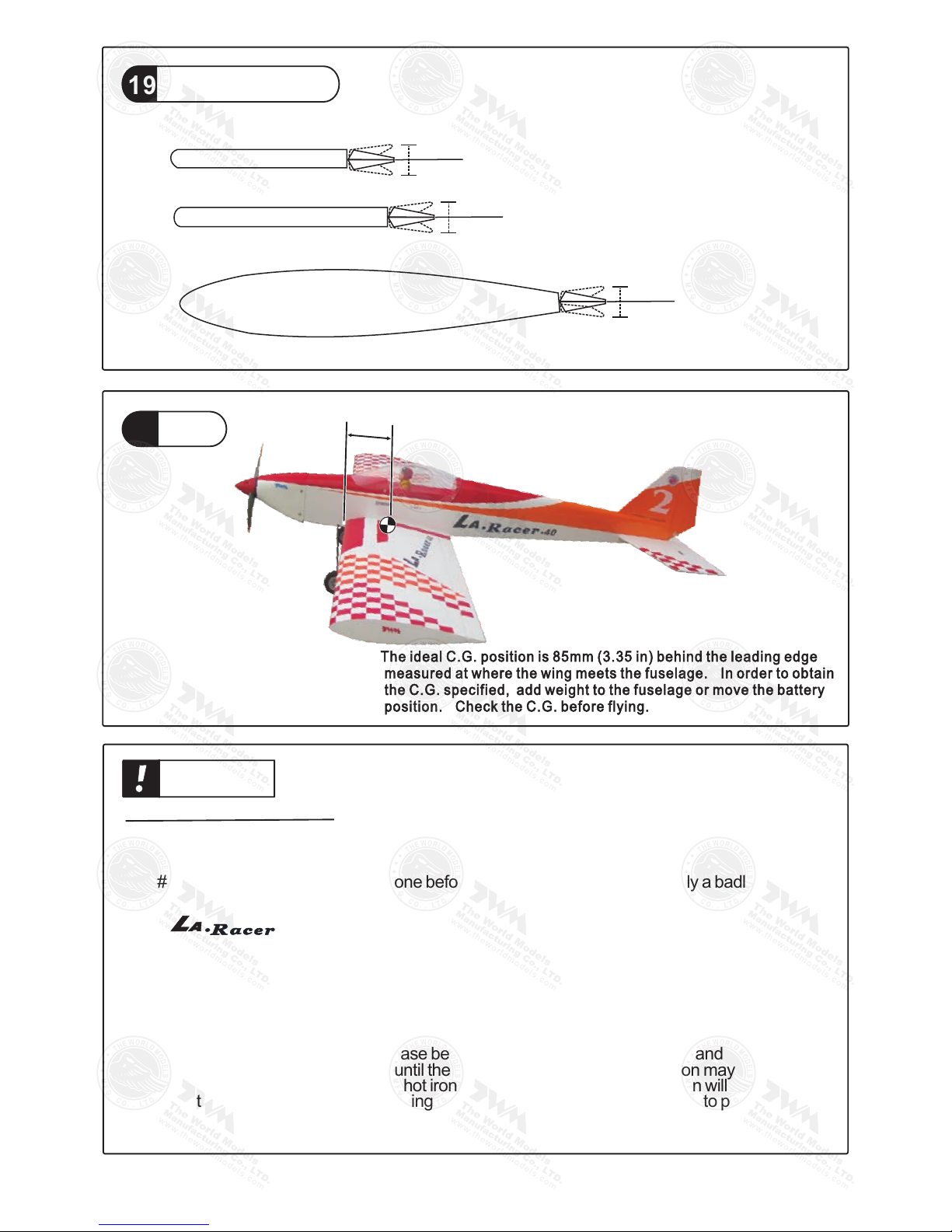

C.G.
C.G.
3.35in

Product Registration Form (US Customers)
We would like to share with you any relevant information regarding your model, including
product news and free upgrade parts when applicable. Please fill in the following and send to
AirBorne Models, 2403 Research Drive, Livermore, CA 94550 USA.
1. Name:
2. Address:
3. Phone #: E-mail:
4. Model:
Wing QC# Fuselage QC#
(QC numbers are stamped on wing and fuselage)
5. Date of Purchase:
6. Store Name:
Please call AirBorne Models at 925 371 0922 for any assistance in filling this form.
Thank you very much for purchasing our product.

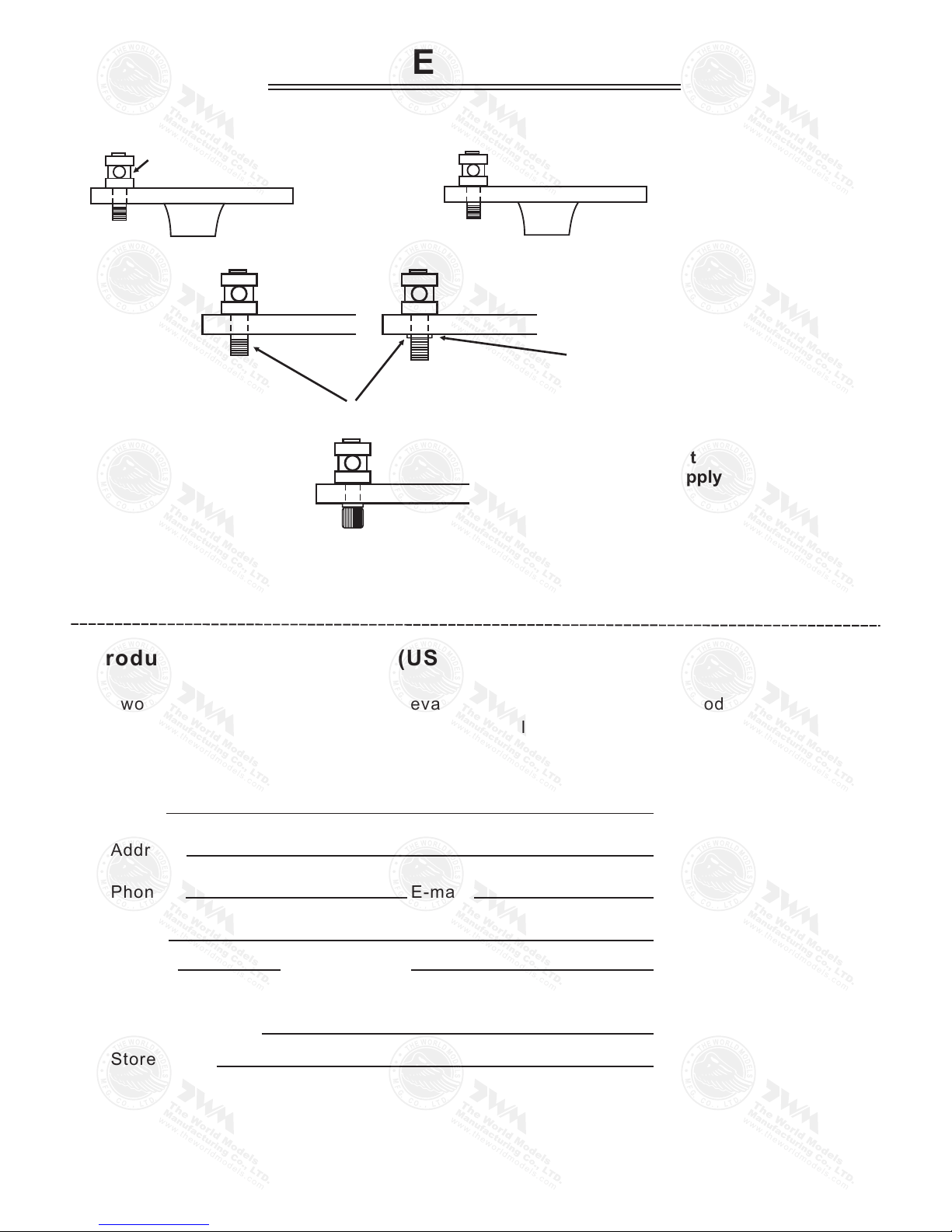

LINKAGE CONNECTOR
HW7111050 & HW7111060
After fastening the round nut, make sure that
the linkage connector can rotate freely.
Drill 2mm hole at servo horn.
Insert linkage connector
into servo horn.
Make sure shoulder of
screw is cleared from
servo horn.
Add washer to reduce
play if necessary.
Shoulder
Tighten up the round nut
against the shoulder. Apply
CA or permanent thread
locker.

12
34

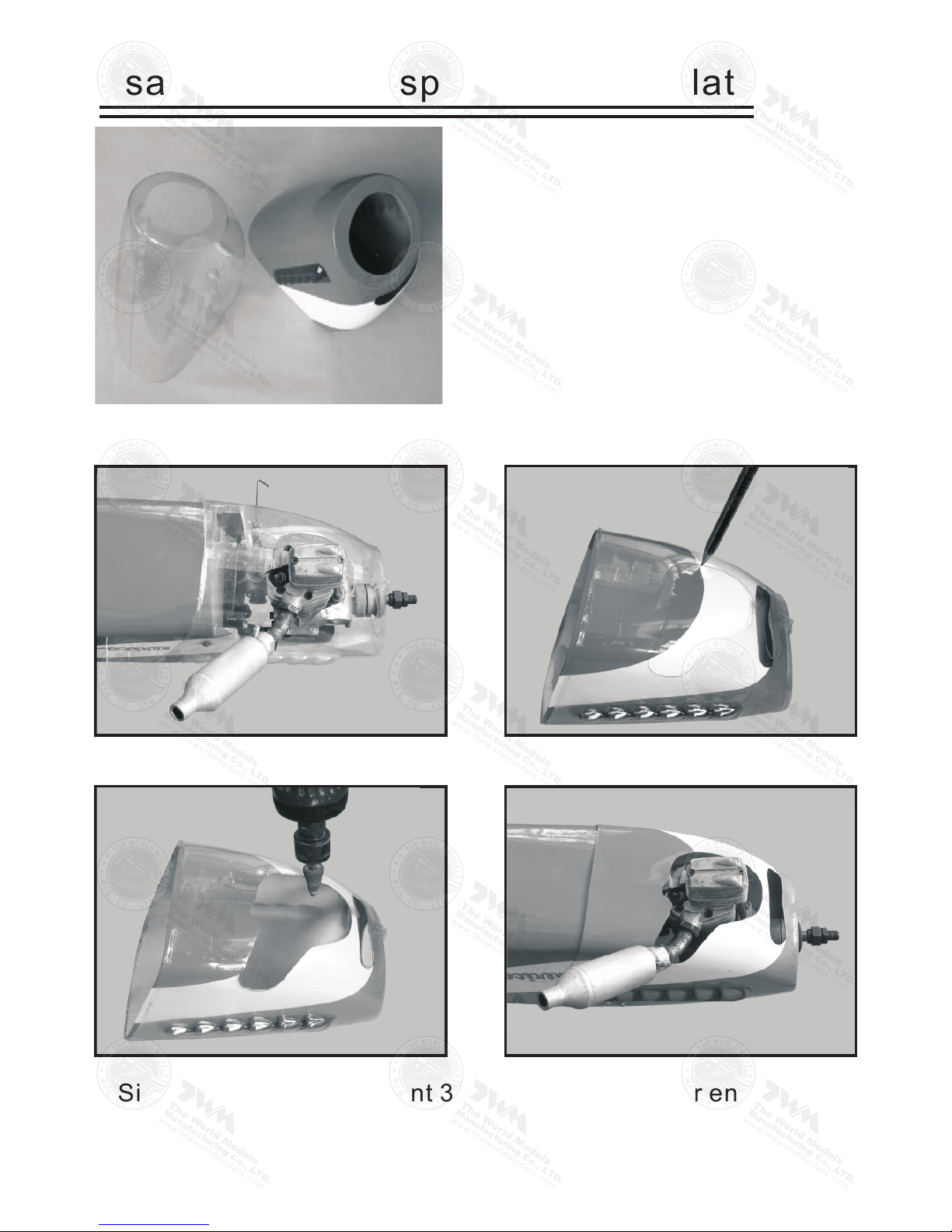

Usage of the transparent 3D template
This transparent 3D template
is used for position guidance
of the actual cutting of the
pre-painted cowling.
Simply cut the transparent 3D template to fit your engine and
exhaust pipe, then slide onto the actual cowling and use as
template to mark the openings required for final cutting.

Code No .Size Package
Code No .Size Package
Code No.Size Package
Code No.Size Package
Code No.Size Package
Code No.Size Package
Code No SV4031
KP0041300

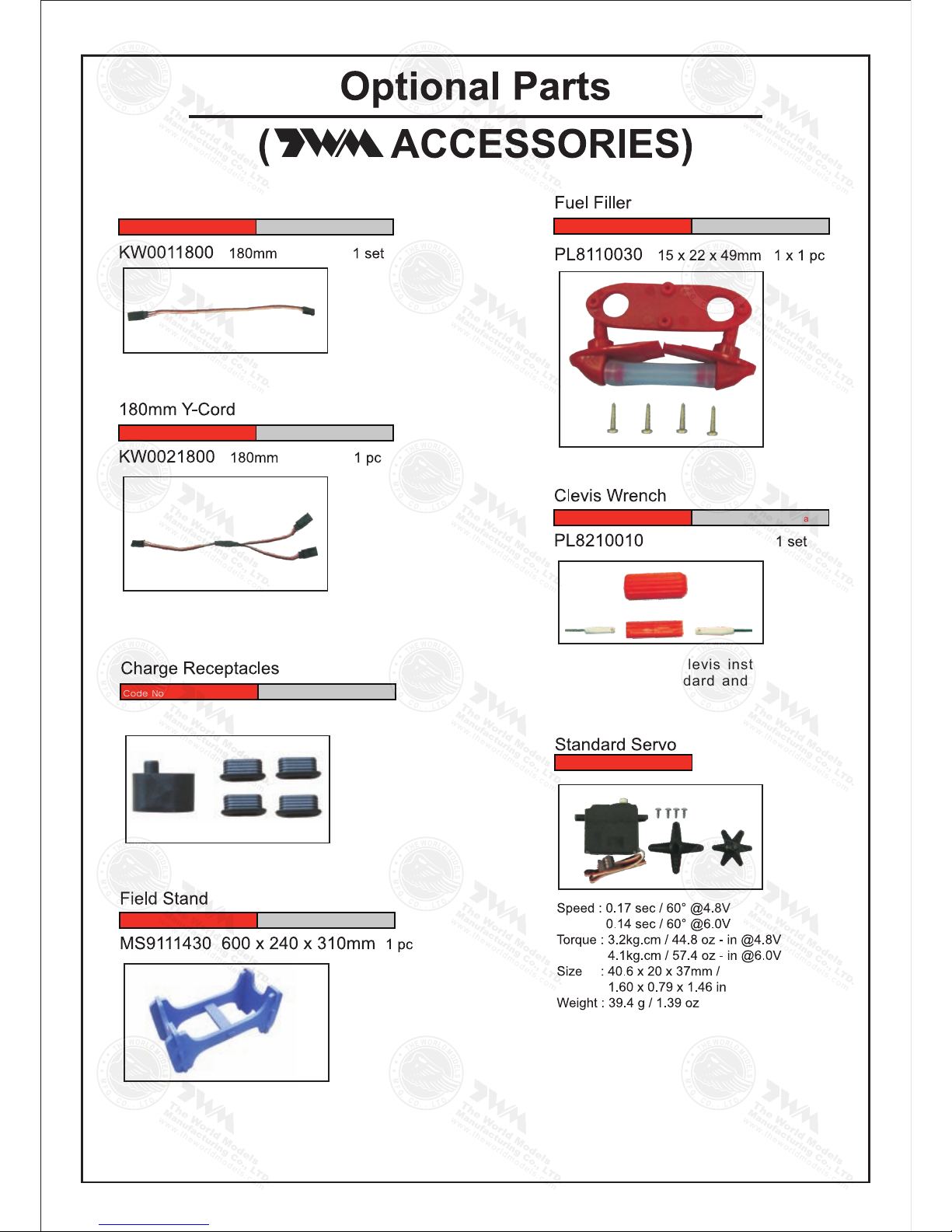

Special tool for clevis installation.
Suitable for standard and small
(EP)clevis.
Large Clevis
Small Clevis
180mm Extension

A 235PO20480906
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
Warbirds
Scale
Sports
Trainer
DuctedFan Pattern
Funfly
Electric
Glider
Boat
Accessories
Covering
(Lightex / Toughlon)
