TWM MENTOR T-34 User manual

Requires: 0.40-0.55 cu. in. displacement 2-stroke
0.52-0.56 cu. in. displacement 4-stroke
4-channel radio w/ 5 standard servos
Wing Span
Wing Area
Flying Weight
FuseLage Length
58.0 in / 1470 mm
577 sq in / 37.2 sq dm
5.0-5.5 lbs / 2200-2500 g
48.0 in / 1220 mm
INSTRUCTION MANUAL
* Specifications are subject to change without notice.*
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar
with this kind of engine powered precision model. Operating this model without
prior preparation may cause injuries. Remember, safety is the most important thing.
Always keep this instruction manual at hand for quick reference.
Specifications
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF)SERIES
MADE IN CHINA
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com
all-guides.com

INDEX
BEFORE YOU BEGIN
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
P.1
P.2
P.3-P.10
P.10
Check all parts. If you find any defective or missing parts contact your local dealer. Please
DRY FIT and check for defects for all parts that will require CAor Epoxy for final assembly.
Any parts you find to be defective after the gluing process may be difficult to remove for
warranty replacement. The manufacturer will replace any defective parts, but will not extend
to the parts that are good before gluing to defective parts during assembly. Warranty will
not cover any parts modified by customer.
Symbols used throughout this instruction manual comprise of the following :-
Read through the manual before you begin, so you will have an overall idea of what to do.
1
2
3
Cut off shaded portion.
Ensure smooth non-binding
movement while assembling.
Apply instant glue
(C.A.glue, super glue.)
Assemble left and right
sides the same way.
Peel off shaded portion
covering film.
Pay close attention here!
Apply epoxy glue.
Must be purchased separately !
Drill holes with the specified
diameter (here: 3mm). Pierce the shaded portion
covering film.
3mm
Do not overlook this symbol !
Warning!
Apply thread locker
P.1
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com

P.2
TOUGHLON STL 100 WHITE
TOUGHLON STL 201 BLACK
TOUGHLON STL 250 BLUE
TOUGHLON STL 312 BRIGHT RED
TOUGHLON STL 320 ORANGE
TOUGHLON STL 331 CUB YELLOW
COVERING:--
Parts List
1.MAINWING--1pair
2.SCREWPB2x14mm--4pcs
SCREWPB2x10mm--2pcs
SCREWPWA2x8mm--8pcs
CLEVISPL4112103--2pcs
STRAPERPL4112102--2pcs
FUELTUBEØ6x5mm--4pcs
TRI-HORNM3x14mm(L)PL4111185--2sets
PUSHRODØ1.8x115mmw/Threads(ForAileron)--2pcs
SERVOMOUNTINGPANELPL5310000--1pair
3.WINGJOINER6x16x84.5mm--1pc.
4.MAINLANDINGGEAR--1pair
SCREWPA3x12mm--8pcs
MOUNTINGPLATE(ForLandingGear)PL4114020--4pcs
5.MAINWHEELØ50mm--2pcs
COLLARØ3.6mmw/setscrew--4sets
6.FUSELAGE--1pc.
SCREWPA3x25mm--1pc.
WASHERd3xD12mm--1pc.
STABILIZER&ELEVATOR--1set
7.VERTICALFIN&RUDDER--1set
8.FUELTANK320ccPL1111320--1set
CABLETIE1.5x5x400mm--1pc.
DOUBLE-SIDED40x100mm--1pc.
9.ENGINEMOUNTPL51111030--1set
SOCKETHEADSCREWM3x25mm--4pcs
WASHERd3xD7mm--4pcs
10.FRONTLANDINGGEAR--1set
FRONTWHEELØ50mm--1pc.
COLLARØ4.1mmw/setscrew--4sets
STEERINGARMPL4112401--1set
11.SOCKETHEADSCREWM3x25mm--4pcs
WASHERd3xD7mm--8pcs
M3NUT--8pcs
THROTTLEPUSHWIREØ1.2x430mm--1pc.
PLASTICTUBEd2xD3x380mm--1pc.
12.COWLING--1pc.
TRANSPARENT3DTEMPLATE--1pc.
SCREWPWA2.6x12mm--4pcs
SILICONGROMMETd1.5xD6.5mm--4pcs
SPINNERØ57mmPL2111057--1set
13.TRI-HORNM3x22mm(L)PL4111251--1set
CLEVISPL4112103--1pc.
FUELTUBEØ6x5mm--1pc.
SCREWPB2x12mm--3pcs
PUSHRODØ1.8x665mmw/Threads(ForRudder)--1pc.
14.TRI-HORNM3x14mm(L)PL4111185--1set
CLEVISPL4112103--1pc.
FUELTUBEØ6x5mm--1pc.
SCREWPB2x14mm--3pcs
PUSHRODØ1.8x665mmw/Threads(ForElevator)--1pc.
15.LINKAGECONNECTORØ2.1mmHW111060--2sets
16.PLYWOOD6x82x117mm(ForFuselageServos)--1pc.
BALSA9x9x104mm(ForServosStand)--2pcs
FUELTUBEØ6x5mm--2pcs
STRAPERPL4112102--2pcs
FRONTWHEELPUSHWIREØ1.2x430mm--1pc.
PLASTICTUBEd2xD3x380mm--1pc.
17.SPONGE60x70x82mm--1pc.
18.CANOPY--1pc.
SCREWPWA2.3x8mm--6pcs
SILICONGROMMETd1.5xD6.5mmPL1265035--6pcs
PILOTPC001063A/B--2sets
DOUBLE-SIDEDTAPE--1 pc.
19.SOCKETHEADSCREWM3x25mm--2pcs
WASHERd3xD12mm--2pcs
PLYWOOD3x45x90mm(WingProtection)--1pc.
20.DECALS:A052DEC--1set
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com

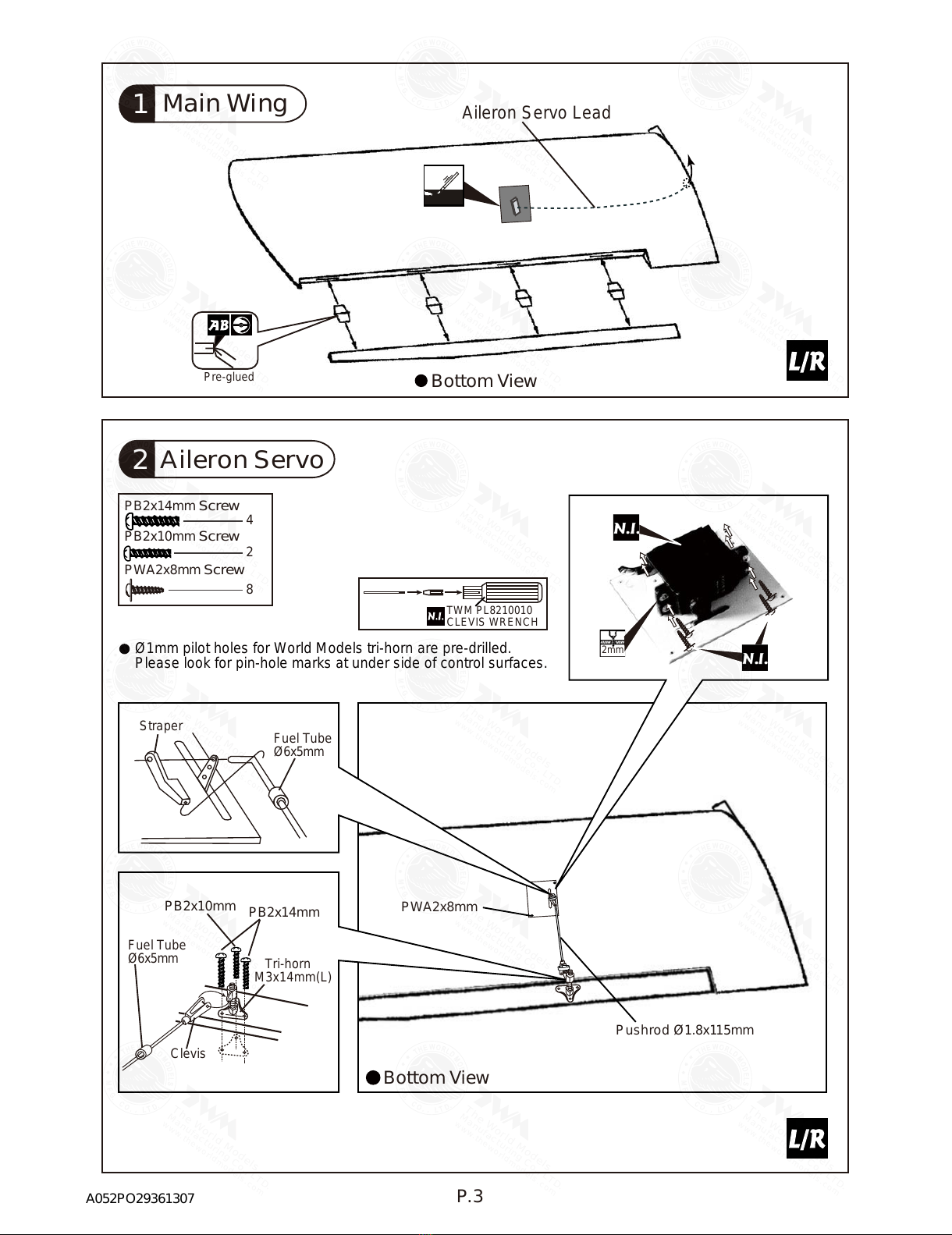

Main Wing
1
P.3
2
Bottom View
Aileron Servo
PB2x14mmScrew
Bottom View
PB2x10mmScrew
PWA2x8mmScrew
Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
4
2
8
Aileron Servo Lead
Pre-glued
2mm
Clevis
Tri-horn
M3x14mm(L)
Fuel Tube
Ø6x5mm
PB2x14mm
PB2x10mm
Straper Fuel Tube
Ø6x5mm
Pushrod Ø1.8x115mm
PWA2x8mm
TWM PL8210010
CLEVIS WRENCH
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com

P.4
Main Landing Gear
4
Main Wheels
5
Main Wing
3
Wing Joiner
6x16x84.5mm
Pleasedryfitwingjoinerintoleftandright wingtomakesuretheyfitwiththe
properdihedralangle,markthewingjoinerif necessary. Applyepoxyglueto
bothsidesofallsurfacesin contact. Usea stick toapplytheglueto innerside
ofwingjoinersleeve,andapplytheglueto wingjoinerbeforeputtingthem
together. Wingjoinernotgluedproperlywillleadto wingfailureandplanecrash.
Completed
PA3x12mmScrew
8
PA3x12mm
3.6mmCollar
3mmSetScrew
Plate
5mm
Bottom View
3.6mm
Collar
4
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com

P.5
Stabilizer & Elevator
6
Vertical Fin & Rudder
7
Fuel Tank
8
PA3x25mmScrew PA3x25mm
Pre-glued
Pre-glued
Double-sidedTape
40x100mm
d3xD12mmWasher d3xD12mm
Washer
1
1
Temporary install the main
wing, adjust leveling of the
stabilizer to make it as parallel
to the main wing as possible.
(Stabilizer)
(Main Wing)
B
B=B
B
A=A
A A
Bottom View
c=c'
cc
UP
320cc
Completed
12
3
CableTie
1.5x5x400mm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com
all-guides.com

P.6
10 Front Wheel
11 Engine
9Engine Mount
d3xD7mmWasher
d3xD7mmWasher
EngineMount
PL51111030
M3x25mmSocketHeadScrew
M3x25mm
4
4
4.1mmCollar
4.1mmCollar
4.1mmCollar
3mmSetScrew 3mmSetScrew
4
4
CompletedFront View
M3x25mm
SocketHeadScrew
d3xD7mmWasher
M3Nut
8
8
4
Installed Engine Position
Spinner
Ø57mm
118mm
4.65 in
If the engine throttle control is
on the opposite side, install the
throttle push-wire accordingly.
Install the throttle servo with
the drive pinion on the same
side of throttle push-wire.
Raise throttle servo if necessary
to provide clearance between
throttle and front wheel push-
wire.
M3x25mm
d3xD7mm
Washer
d3xD7mm
Washer
M3Nut
Plastic Tube
d2xD3x380mm
3.2mm
Blind nuts are off-centered to keep
the spinner at the fuselage axis.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com

Install the cowling as shown on
the drawing to allow for 5~7mm
clearance between drive, washer
surface and tip of cowling.
15~25mm
Spinner
Ø57mm
P.7

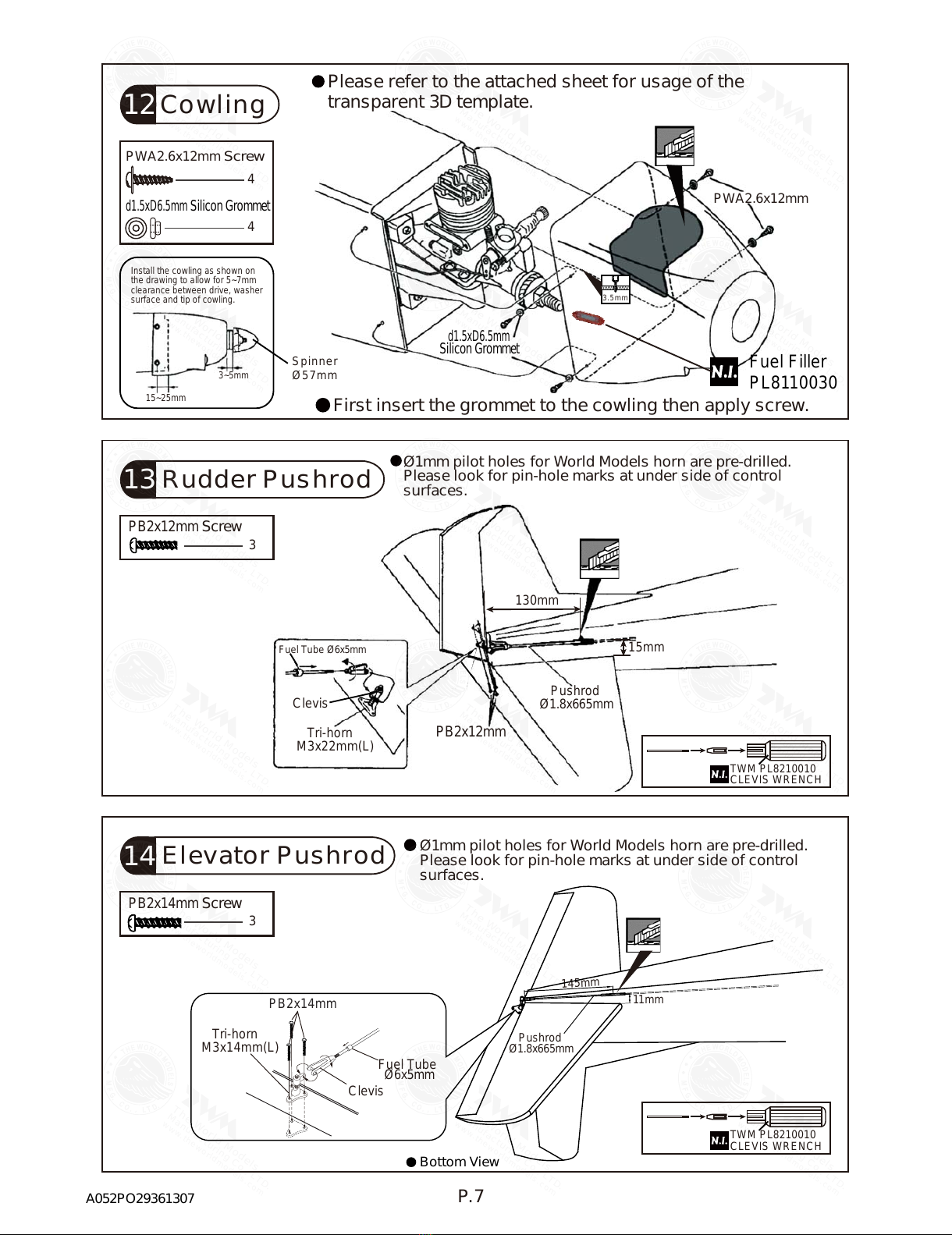

13 Rudder Pushrod
12Cowling
PB2x12mmScrew
PB2x12mm
3
3.5mm
PWA2.6x12mmScrew
PWA2.6x12mm
4
4
d1.5xD6.5mm Silicon Grommet
d1.5xD6.5mm
Silicon Grommet
3~5mm
14 Elevator Pushrod
PB2x14mmScrew
3
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control
surfaces.
Clevis
Tri-horn
M3x22mm(L)
Fuel Tube Ø6x5mm
Pushrod
Ø1.8x665mm
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control
surfaces.
First insert the grommet to the cowling then apply screw.
Please refer to the attached sheet for usage of the
transparent 3D template.
15mm
130mm
Fuel Filler
PL8110030
TWM PL8210010
CLEVIS WRENCH
TWM PL8210010
CLEVIS WRENCH
Pushrod
Ø1.8x665mm
145mm
11mm
Clevis
Tri-horn
M3x14mm(L) Fuel Tube
Ø6x5mm
PB2x14mm
Bottom View
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com

P.8
16 Servos
15Servo Set
17Radio Equipment
Fuel Tube
Ø6x5mm
Front Wheel Pushwire
Ø1.2x430mm
Balsa 9x9x104mm
Plywood 6x82x117mm
Rudder Pushrod
Straper
Front
Elevator Pushrod
3x3mm Set Screw
M2 Nut
M2 Nut
Linkage Connector
2
2
2
4
2mm Washer
Throttle Pushwire
Please refer to the attached sheet for linkage connector installation.
2mm
3mm
2mm
Throttle Servo
Bottom View
Bottom View
Install and arrange the servos as shown in the diagram.
Intall Sponge for inserting Battery and Receiver.
1.5mm
Throttle Pushwire
Ø1.2x430mm
Fuel Tank
320cc
Sponge
Front
Throttle servo Rudder Servo
Elevator Servo
Fuel Tube
Ø6x5mm
Rudder Pushrod
Elevator Pushrod
Straper
Battery Receiver
Charge Receptacles
KP0041300
Steering Arm
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com

P.9

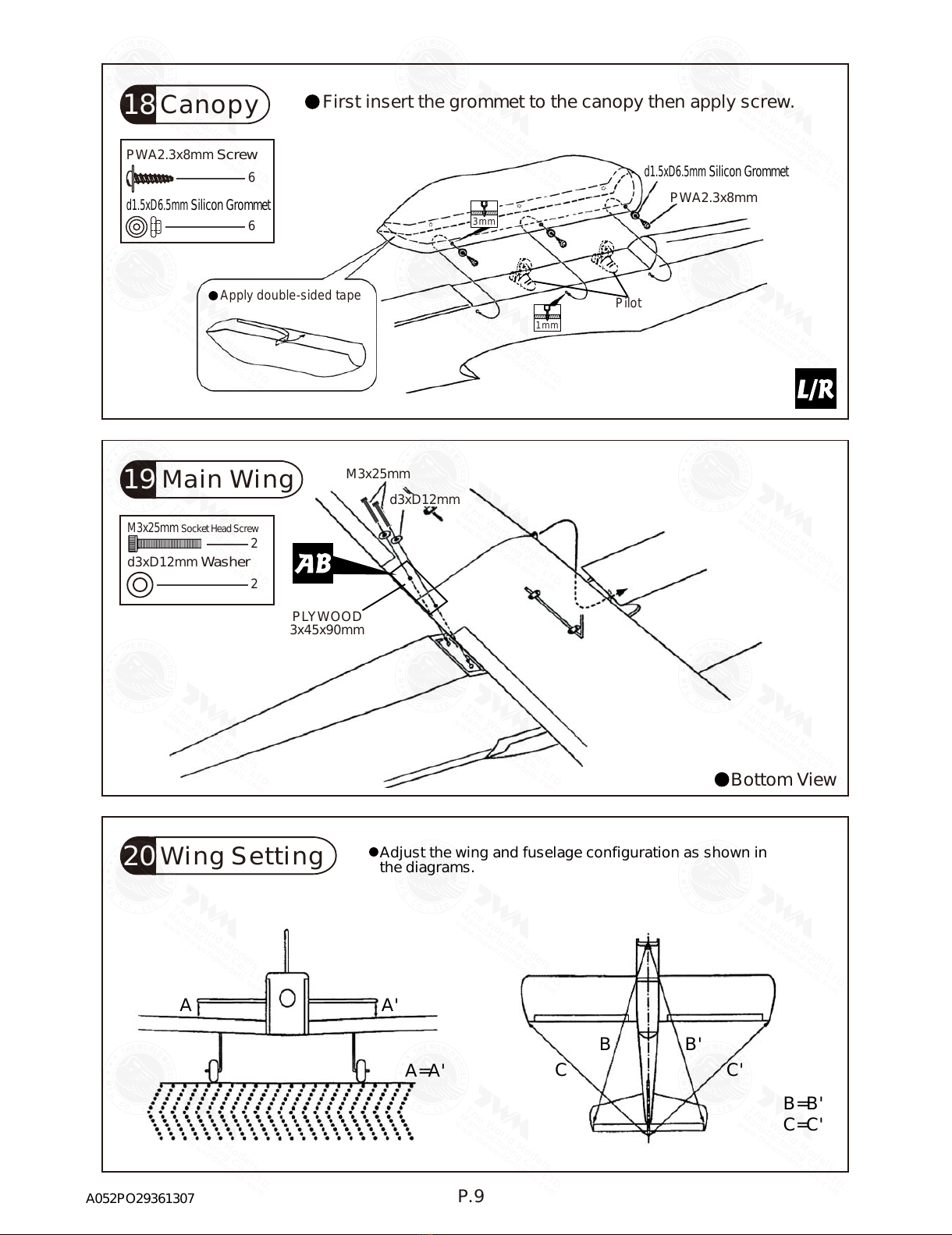

19 Main Wing
18Canopy
20Wing Setting
Apply double-sided tape Pilot
Bottom View
Adjust the wing and fuselage configuration as shown in
the diagrams.
PWA2.3x8mmScrew
PWA2.3x8mm
6
6
d1.5xD6.5mm Silicon Grommet
d1.5xD6.5mm Silicon Grommet
1mm
3mm
M3x25mm
Socket HeadScrew
M3x25mm
PLYWOOD
3x45x90mm
d3xD12mmWasher
d3xD12mm
2
2
A A'
B'
B=B'
C=C'
BC'C
A=A'
First insert the grommet to the canopy then apply screw.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com

12mm
12mm
Elevator
20mm
20mm
Rudder
8mm
8mm
Ailerons
78mm
C.G.
3.07 in.
P.10
22 C.G.
21Control Throws Adjust the control throws as shown in the diagram.
These throws are good for general flying. You can
adjust according to your personal preference.
Warning!
Important Safety Precautions
# First time flyer should never fly by himself / herself. Assistance from experienced flyer
is absolutely necessary.
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly
pre-adjusted aircraft.
# T-34 is specially designed to be powered by 2C 0.40-0.55 / 4C 0.52-0.56 engine, using
a more powerful engine does not mean better performance. In fact, over powered
engine may cause structural damage and injuries.
# Make sure the air field is spacious, never fly the plane too close to people and never
get too close to a running propeller.
# If you find wrinkles on the covering as a result of weather changes, you can use hot iron
to remove the wrinkles. Please begin with lower temperature setting and gradually raise
the temperature until the wrinkles are gone. Too hot an iron may damage the covering.
Don't use hot iron near the seams or edges, hot iron will melt the glue and shrink the
covering at the same time, causing the seams to pull away.
# Check and re-tighten up all factory assembled screws, use thread locker if necessary.
The ideal C.G.position is 78mm(3.07in.) behind the leadingedge measured atwhere the wing
meetsthefuselage.Inordertoobtainthe C.G.specified,addweightto thefuselageor movethe
battery position. Check the C.G.beforeflying.
Ifyouare convertingthismodel toelectric,please move theC.G. forward 10% of currentC.G.
distancefromleadingedgetocompensateforweightoffuel.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com
all-guides.com

Product Registration Form (US Customers)
We would like to share with you any relevant information regarding your model, including
product news and free upgrade parts when applicable. Please fill in the following and send to
AirBorne Models, 4749-K, Bennett Drive, Livermore, CA94551 USA.
1. Name:______________________________________________
2.Address:____________________________________________
3. Phone #:____________________ E-mail:__________________
4. Model:______________________________________________
Wing QC#__________ Fuselage QC# _______________________
(QC numbers are stamped on wing and fuselage)
5. Date of Purchase:_____________________________________
6. Store Name: _________________________________________
Please call AirBorne Models at 925 371 0922 for any assistance in filling this form.
Thank you very much for purchasing our product.
LINKAGE CONNECTOR
HW7111050 & HW7111060
After fastening the round nut, make sure that
the linkage connector can rotate freely.
Drill 2mm hole at servo horn. Insert linkage connector
into servo horn.
Make sure shoulder of
screw is cleared from
servo horn.
Add washer to reduce
play if necessary.
Shoulder
Tighten up the round nut
against the shoulder. Apply
CA or permanent thread
locker.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com

This transparent 3D template
is used for position guidance
of the actual cutting of the
pre-painted cowling.
Usage of the transparent 3D template
Simply cut the transparent 3D template to fit your engine and
exhaust pipe, then slide onto the actual cowling and use as
template to mark the openings required for final cutting.
1 2
3 4
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com

The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com

The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com

The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A052PO29361307
All manuals and user guides at all-guides.com
all-guides.com
Table of contents
Other TWM Toy manuals

TWM
TWM EXTRA 330L 60 User manual

TWM
TWM P-51D Strega-40 User manual

TWM
TWM Zero Fighter 60S User manual

TWM
TWM Super Chipmunk-90 RF User manual

TWM
TWM Extra 300 EP (40) User manual

TWM
TWM 1/4 Clipped Wing Cub User manual

TWM
TWM La-Flyer-40 User manual

TWM
TWM 1/3 SUPER CUB User manual

TWM
TWM Ultimate-90 User manual

TWM
TWM INTRUDER 90R User manual
