Ubiquiti airGateway-LR User manual

Indoor Access Point with
External Antenna
Model: airGateway-LR

Introduction
Thank you for purchasing the Ubiquiti Networks™airGateway™.

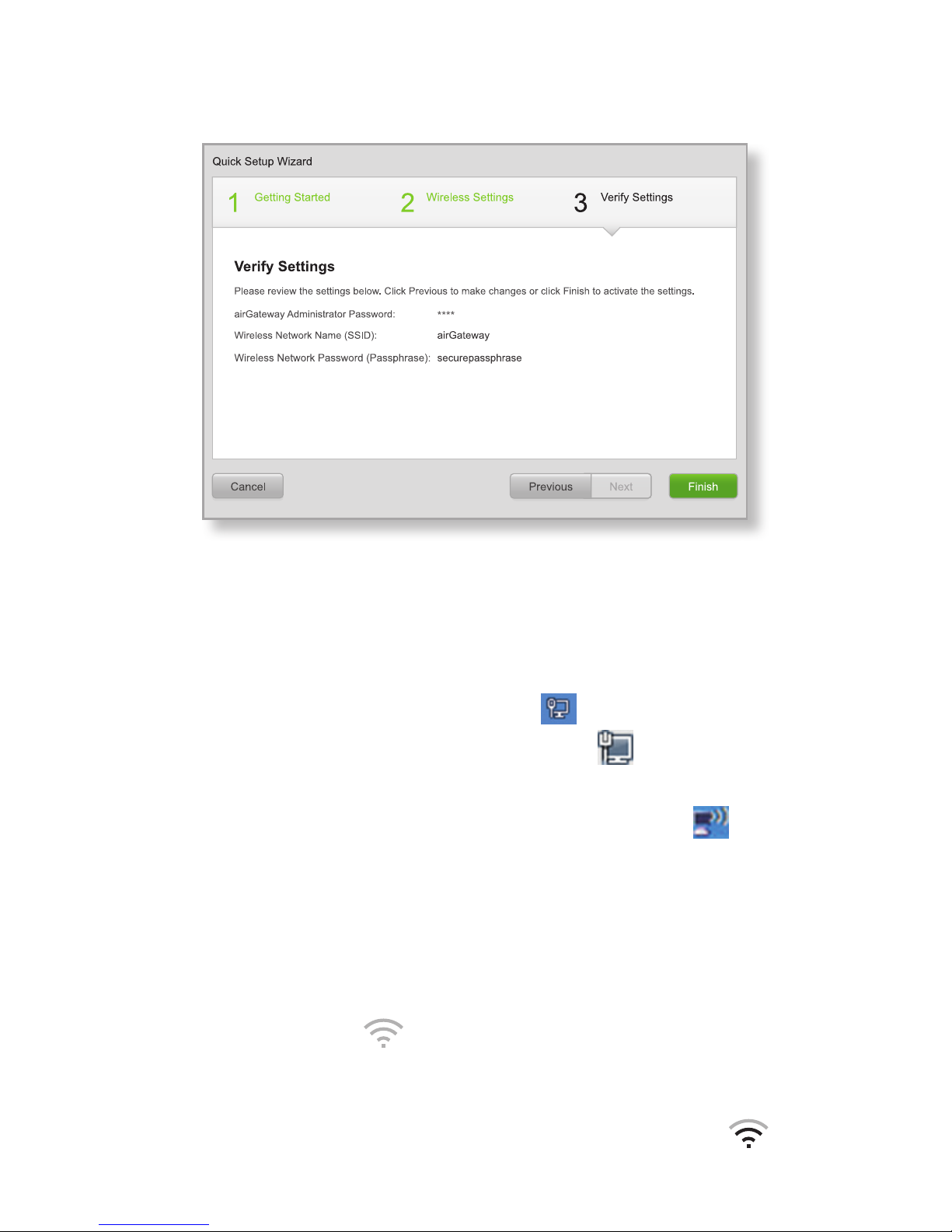

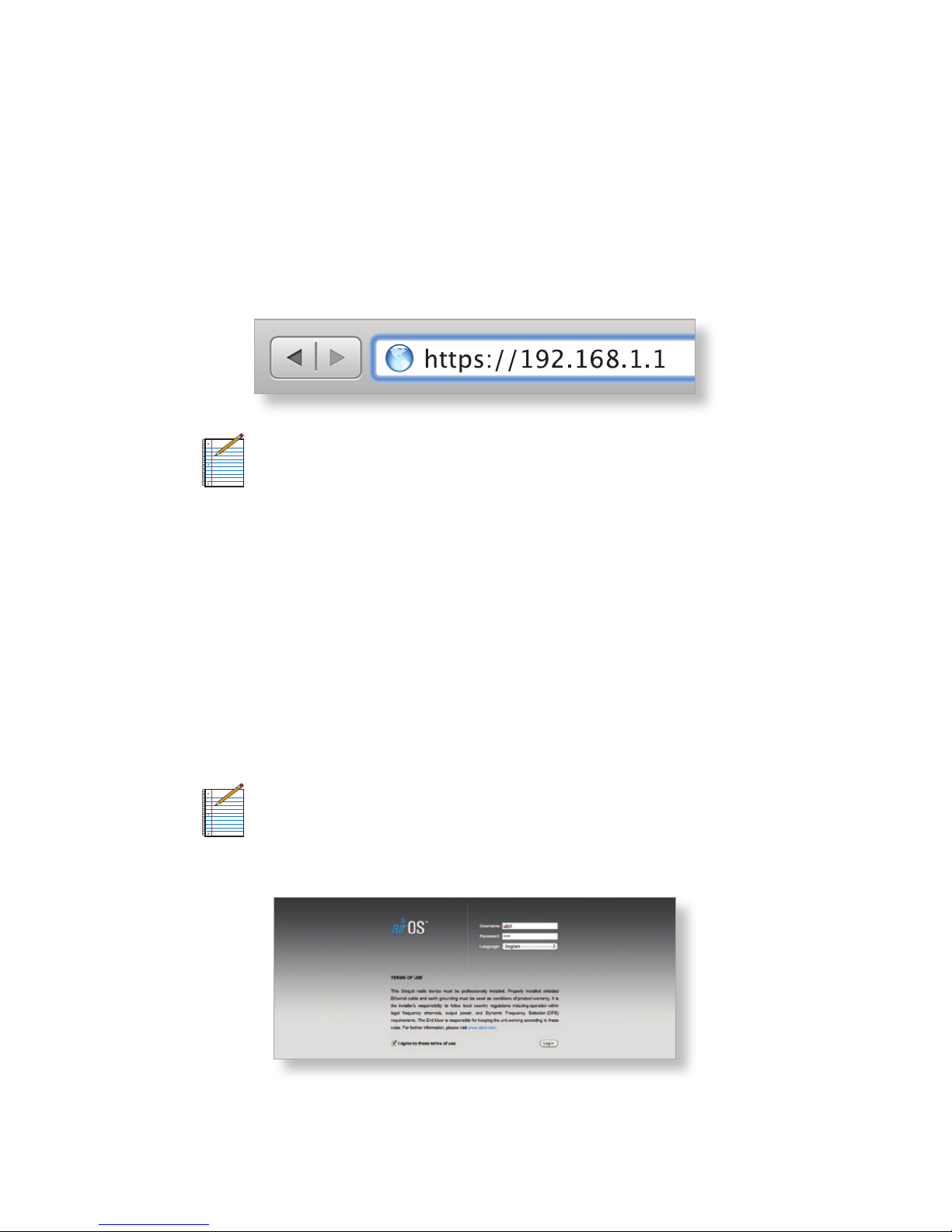

This Quick Start Guide is designed to guide you through
the installation, and show you how to access the airOS®
Configuration Interface. This Quick Start Guide also includes
the warranty terms and is for use with the airGateway LR.
Package Contents
POE LAN
airGateway LR External Antenna Wall Mount Bracket
Indoor Access Point with
External Antenna
Model: airGateway-LR
Screws
(M2.9x20, Qty. 2)
Screw Anchors
(M2.9x20, Qty. 2)
Quick Start Guide
Products may be different from pictures and are subject to change without notice.
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations, including operation within legal frequency
channels, output power, indoor cabling requirements, and Dynamic Frequency Selection
(DFS) requirements.

Hardware Overview
Top
POE LAN
RJ45 Connector
(Male)
LED
PoE
Port
LAN
Port
Antenna
Connector
LED
Steady White Indicates bootup/initializition/power-on.
Steady Blue Indicates the airGateway is working properly and
an active connection is detected.
Alternating Blue/White Indicates the device is busy; do not
move or unplug.

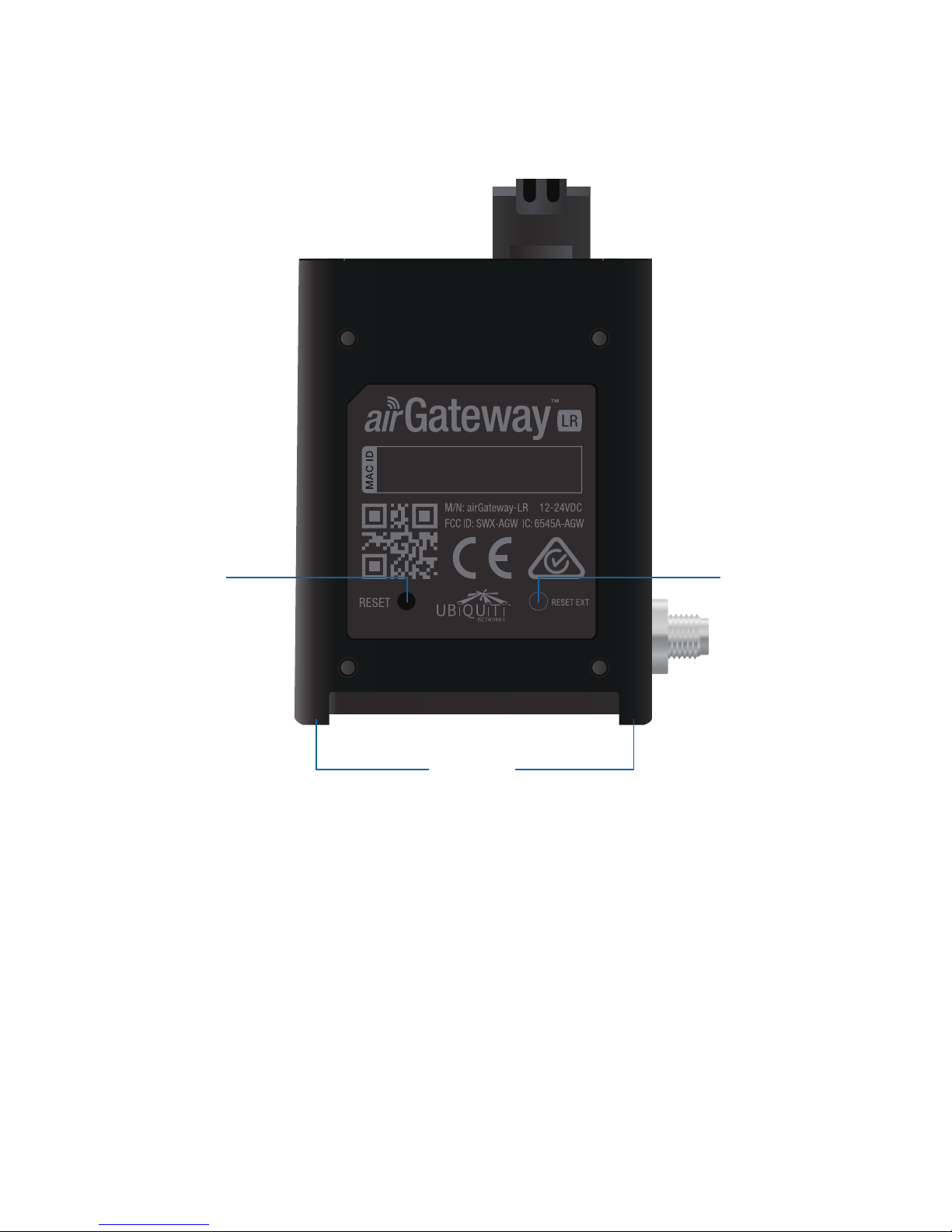

Bottom
Mounting
Tabs
Reset Reset
Ext
Reset Resets the airGateway to factory defaults. To reset the
airGateway, press and hold the Reset button for more than five
seconds while the airGateway is powered on.
Reset Ext Resets the airMAX®CPE device connected to
the airGateway to factory defaults. To reset the airMAX
device,press and hold the Reset Ext button for more than five
seconds while the airMAX device is powered on.

Installation Requirements
The airGateway is powered by and integrates exclusively with
Ubiquiti Networks PoE adapters. A wall mount kit is included.
• Ubiquiti Networks PoE Adapter (24V, 0.5A)
• Ubiquiti Networks airMAX CPE device
• CAT5/6 cable
• 6 mm drill bit and drill
• Screwdriver
Hardware Installation

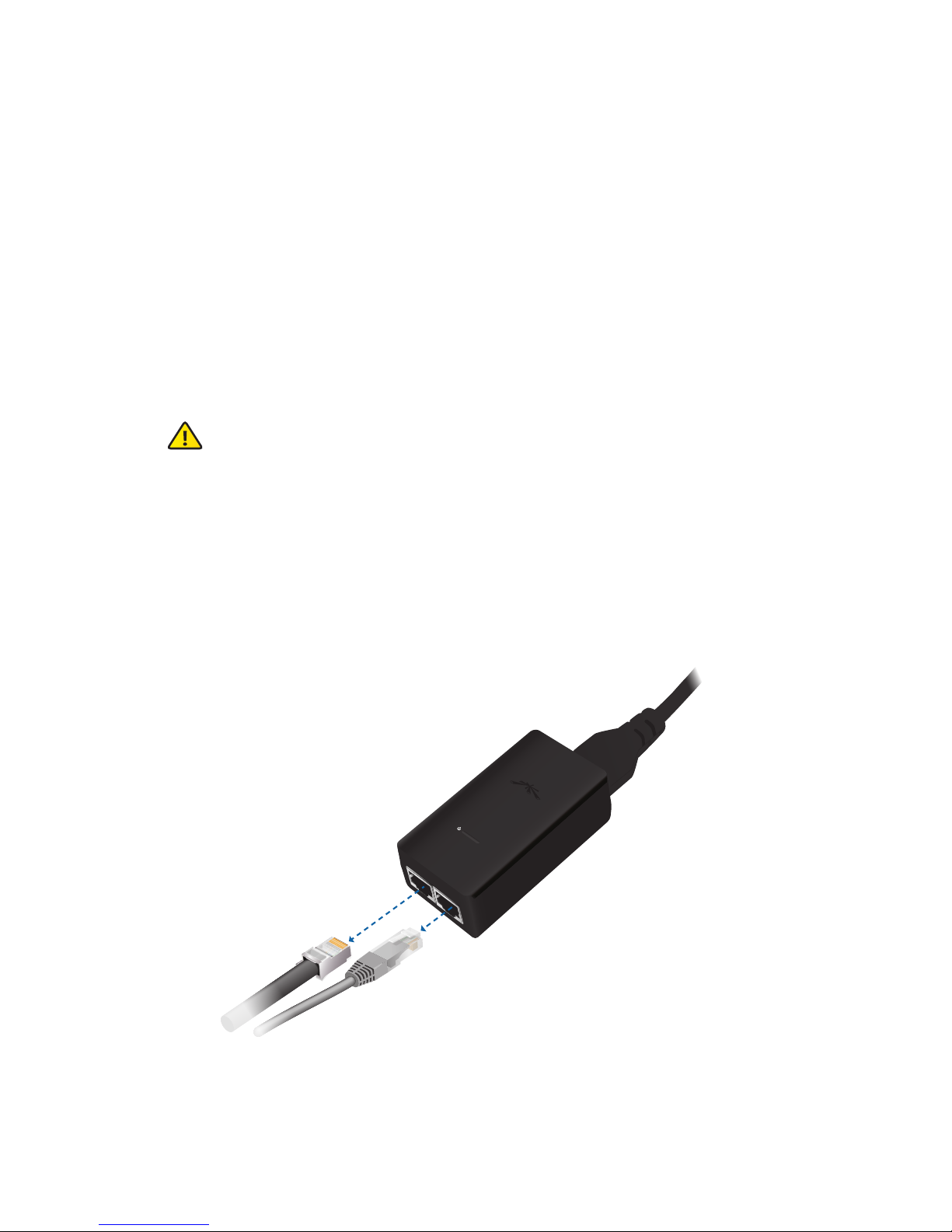

WARNING: Do not connect non-PoE devices (such as
laptops) to the POE port.
To install the airGateway, perform the following steps:
1. Disconnect the Ethernet cables from the Ethernet ports
on the PoE Adapter connected to your airMAX CPE device.
Ensure that you note which cable was connected to the
POE port and which cable was connected to the LAN port.
POE LAN

*720-00066-01*
720-00066-01

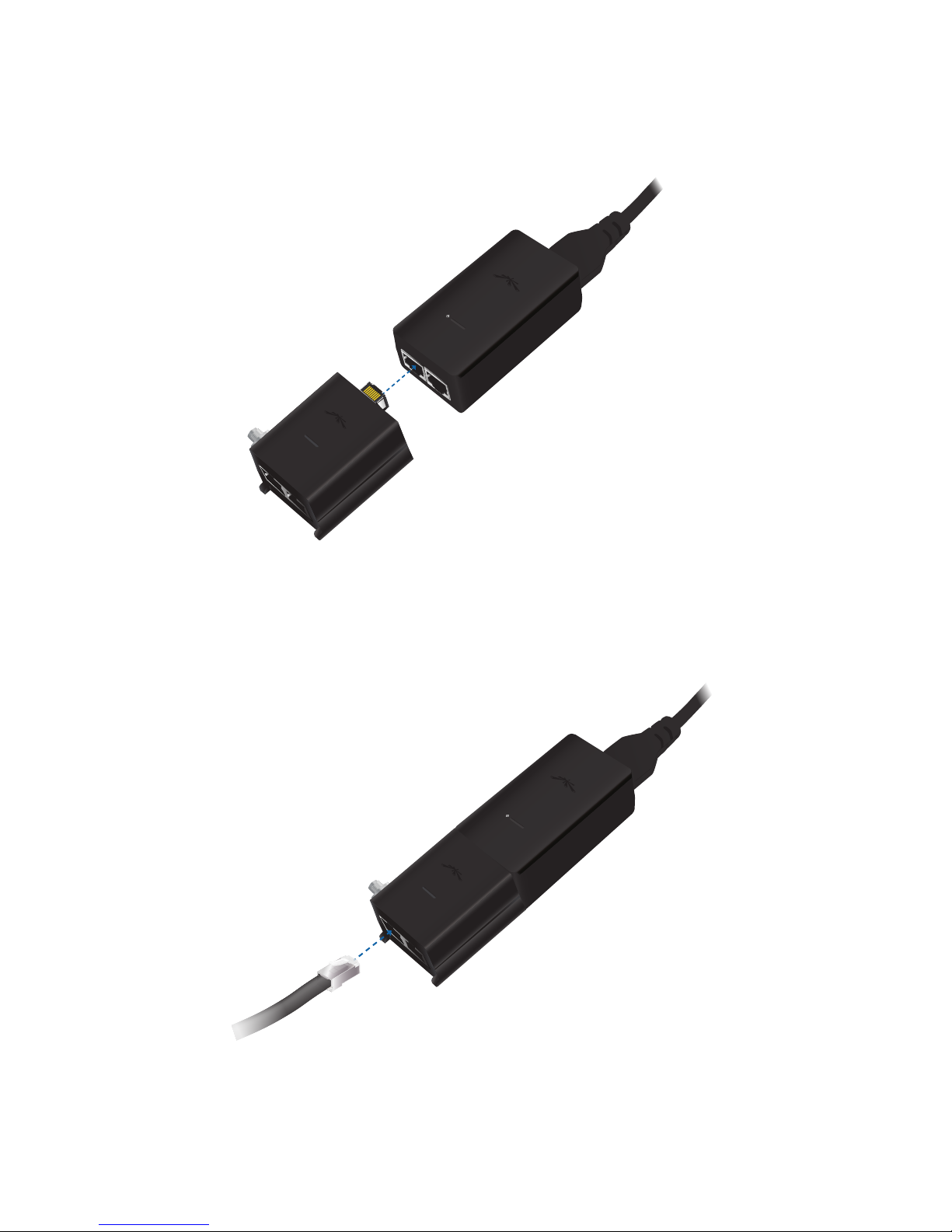

2. Insert the male RJ45 Connector of the airGateway into the
Ethernet port labeled POE on the PoEAdapter. Push the
two units together until they connect.
POE LAN
POE LAN
3. Connect the Ethernet cable that was disconnected from the
POE port in step 1 to the POE port on the airGateway.
POE LAN
POE LAN

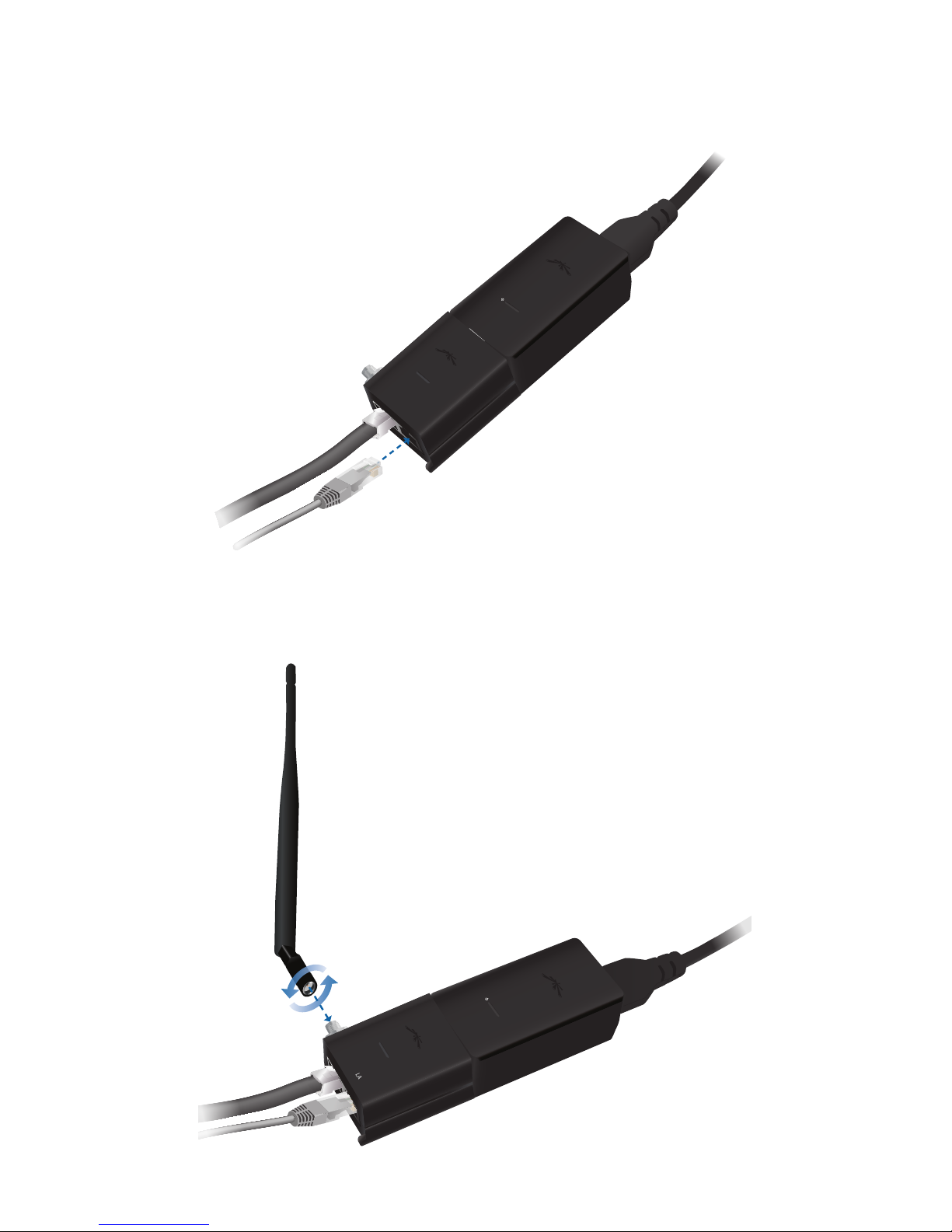

4. Connect the Ethernet cable that was disconnected from the
LAN port in step 1 to the LAN port on the airGateway.
POE LAN
POE LAN
5. Connect the External Antenna to the Antenna Connector on
the airGateway.
POE LAN
POE LAN

Wall Mounting
1. Position the Wall Mount Bracket at the desired location
on the wall with the bubble level at the bottom. Use the
bubble level to ensure the bracket is plumb.

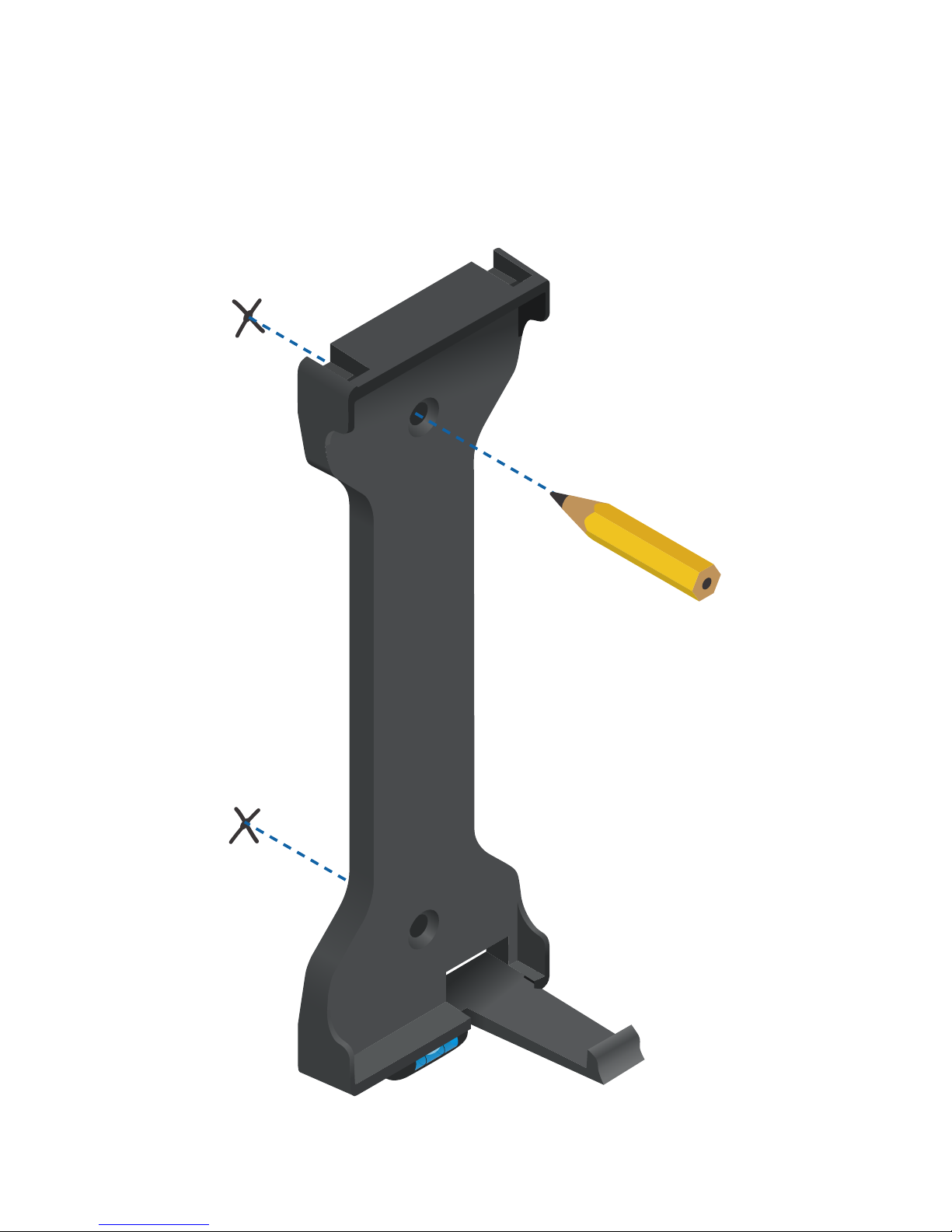

2. Mark the two holes with a pencil.

3. Drill the holes in the wall using a 6 mm drill bit.
4. Insert a Screw Anchor into each hole. Secure the Wall Mount
Bracket to the wall by inserting a Screw into each Screw
Anchor.

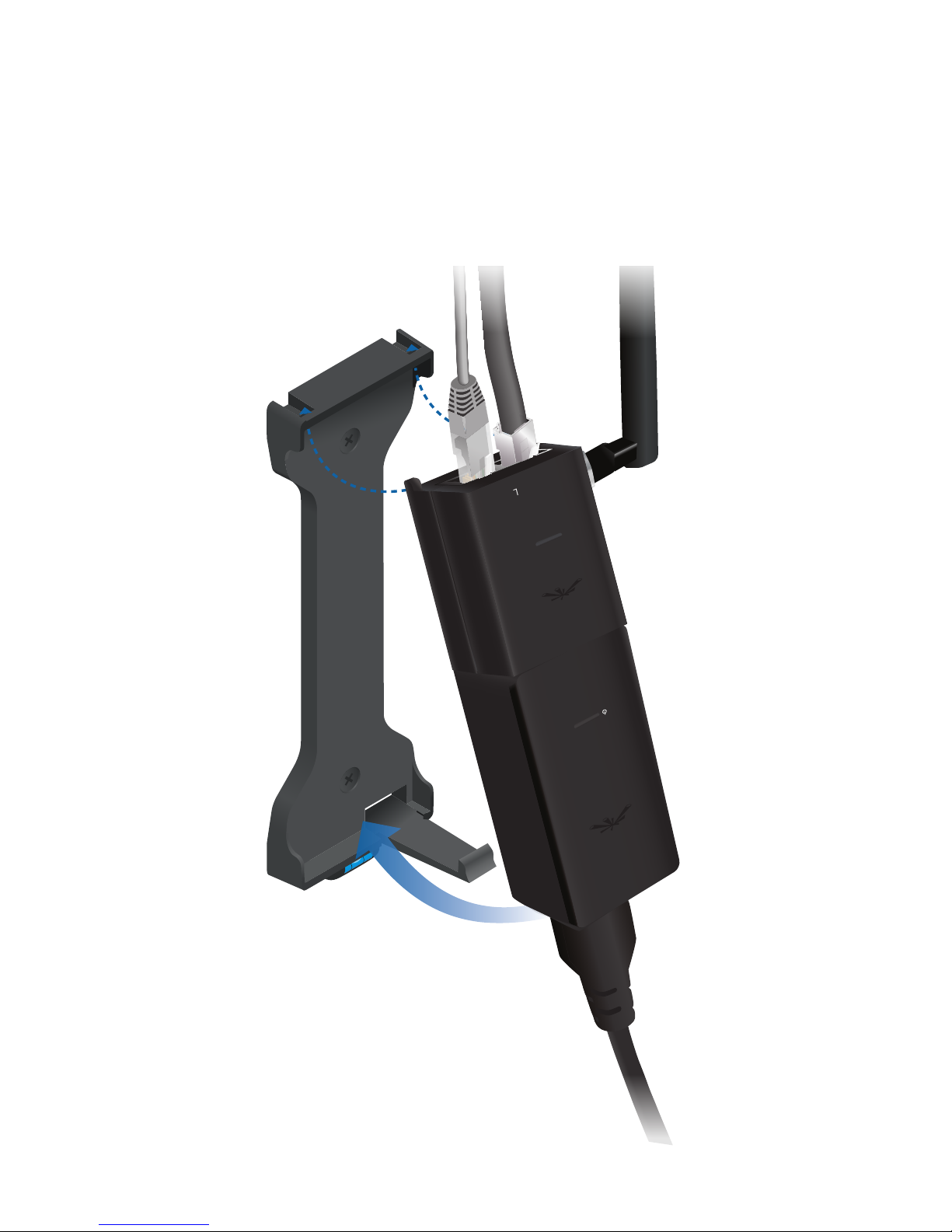

5. Attach the airGateway and PoE Adapter assembly to the
Wall Mount Bracket:
a. Insert the two Mounting Tabs on the airGateway into
the slots located at the top of the Wall Mount Bracket.
b. Rotate the PoE Adapter into the Wall Mount Bracket
until it snaps in place.
POE LAN
POE LAN
